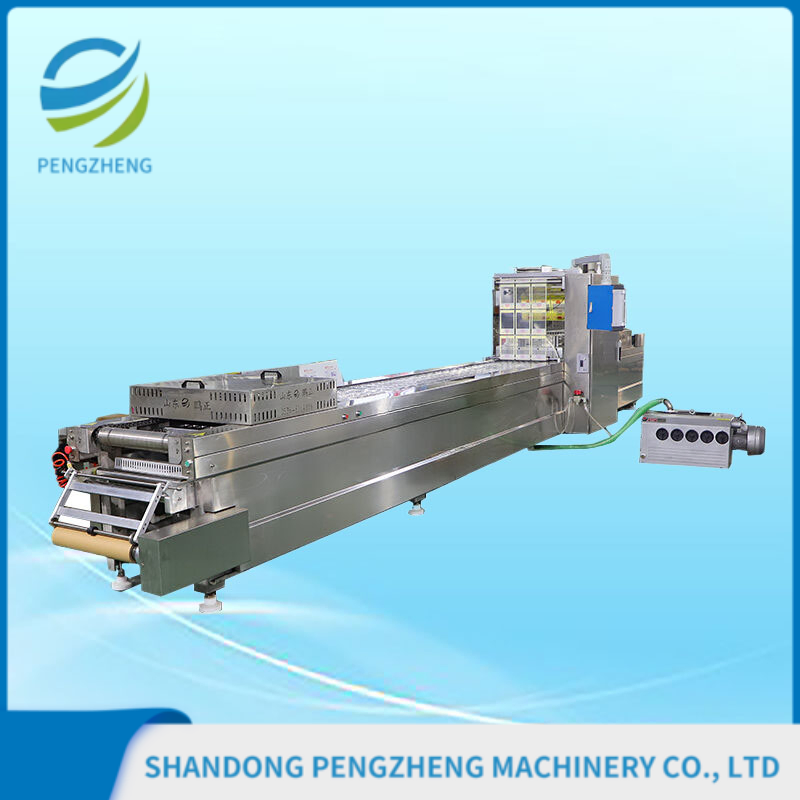

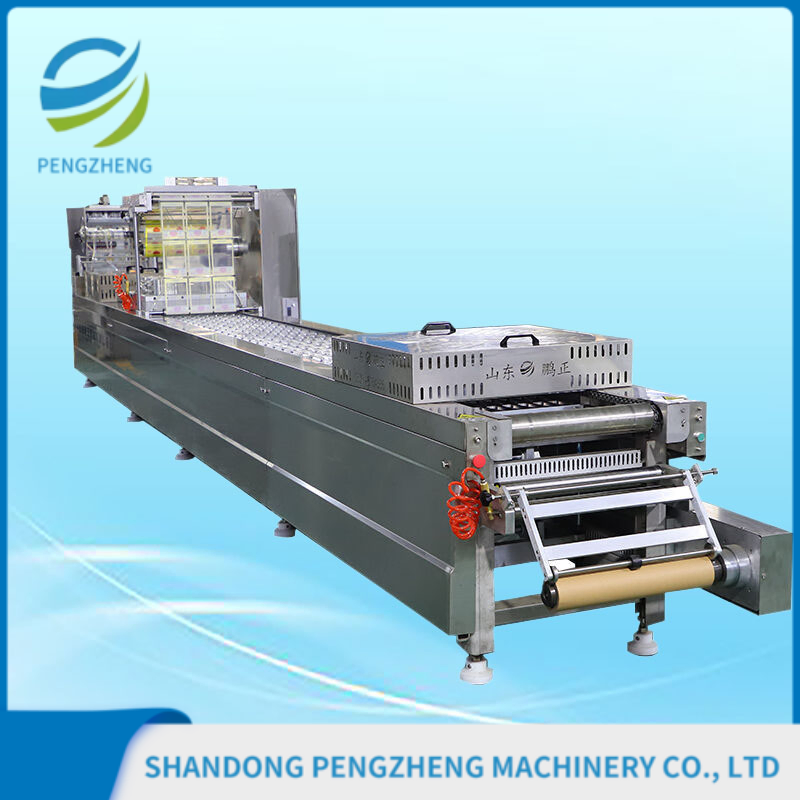

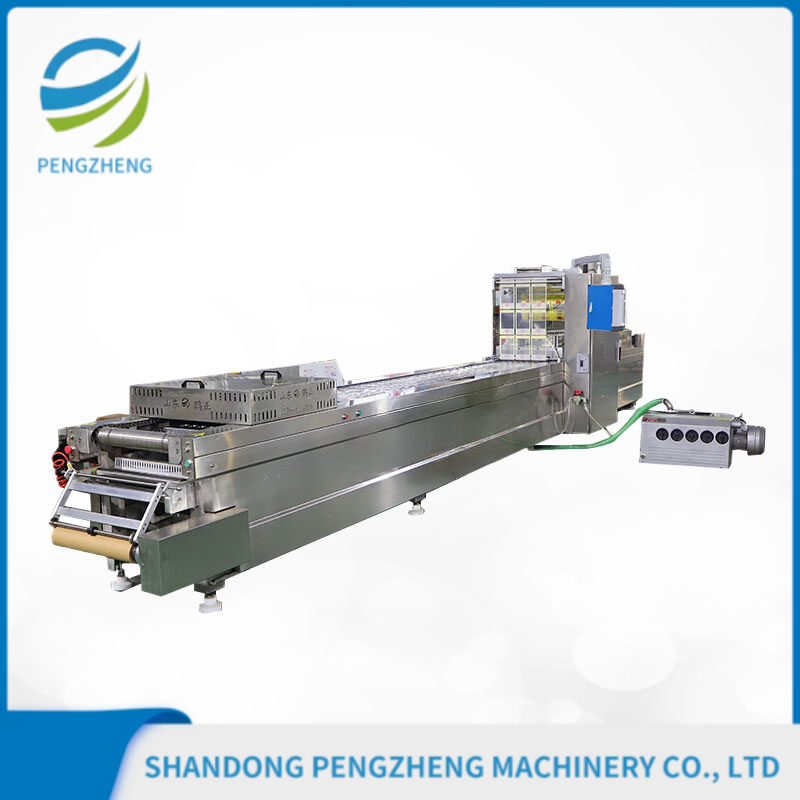

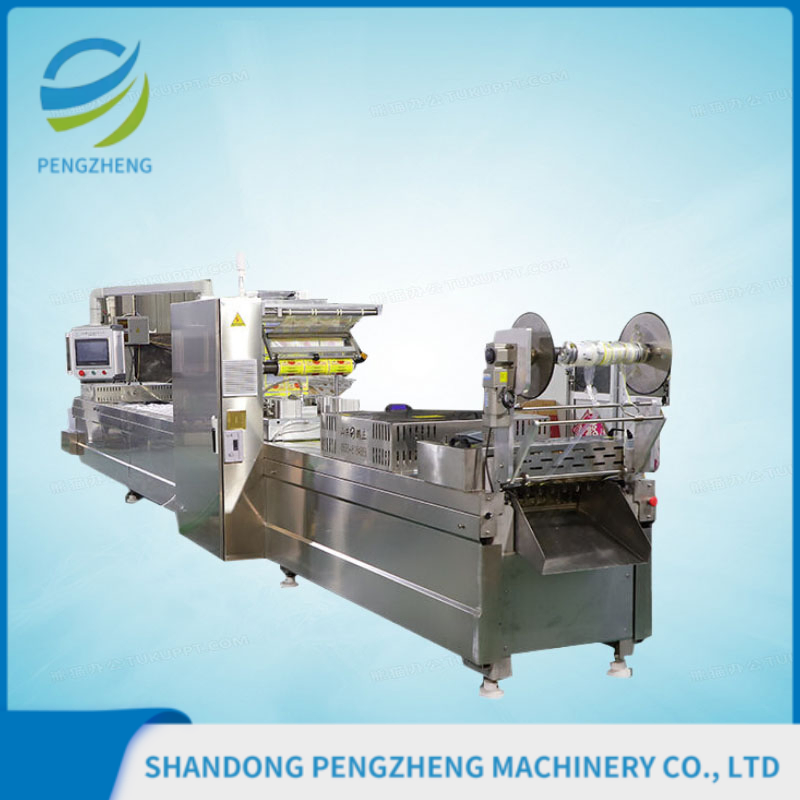

1500 Kgs Weight Packaging System

Customization:	Available
Application:	Electronic Component, Drug, Food
Power:	Electric

Basic Information

Automation

Automatic

Inflatable Device

Without

Type

Stretch Film Vacuum Packing

Object State

Paste, Powdery, Liquid, Solid

Condition

New

Available Film Width

284mm

Packing Speed

6-8 Cycles / Min

Capacity

3600-4000 Pcs / Hour

Weight

About 1500 Kgs

Dimensions

4500*1050*1800mm

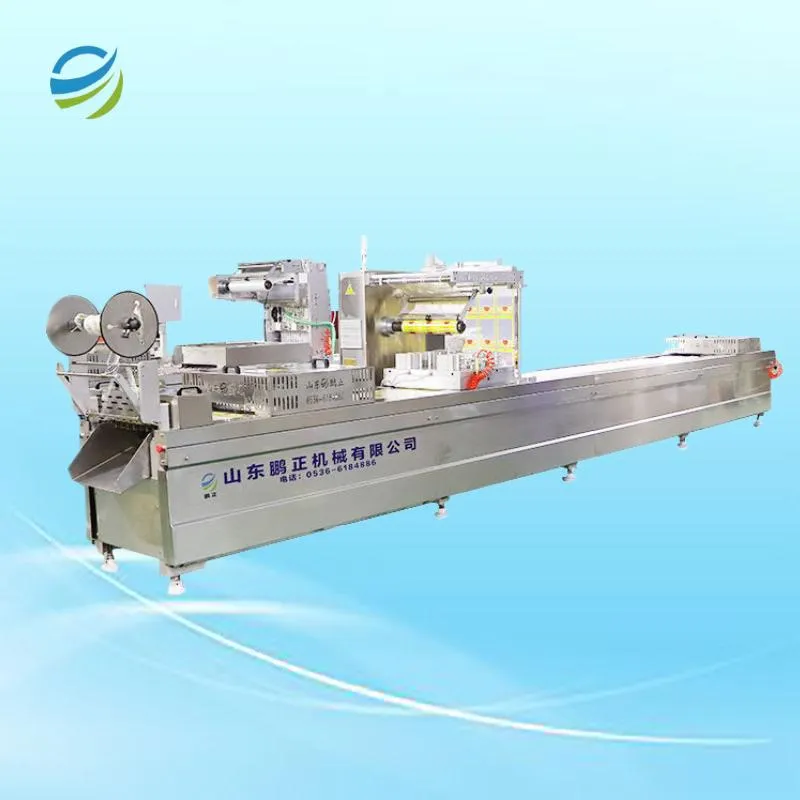

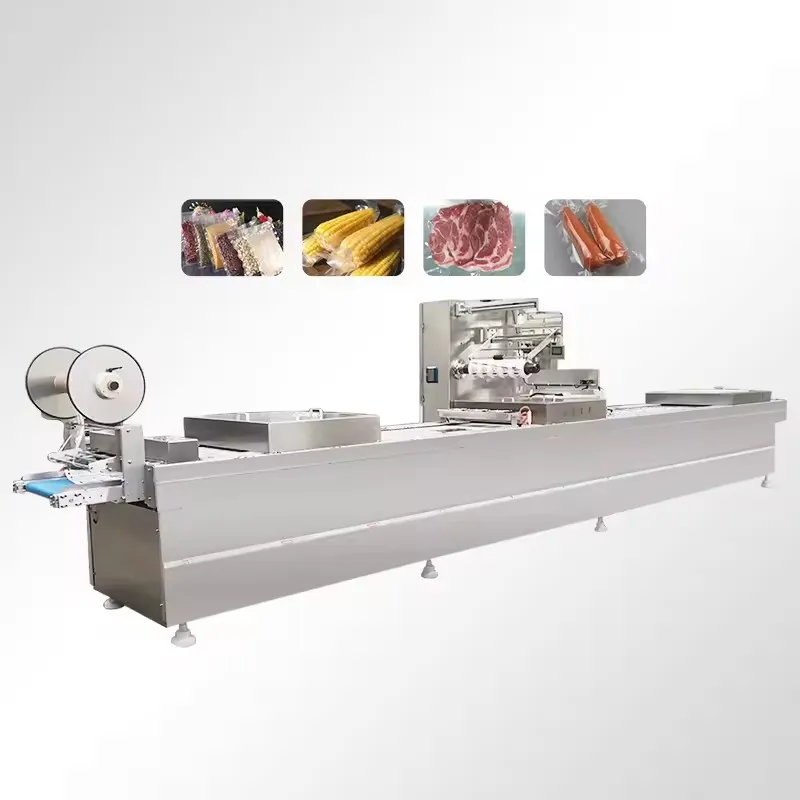

2024 Type CE Certified Vacuum Packer

Discover cutting-edge packaging technology with this thermoforming vacuum machine designed to revolutionize your packaging process, ensuring optimal freshness and preservation for a variety of products including meat, hot dogs, eggs, and electronic components.

Key Features & Benefits

CE Certified: Guaranteed quality and safety standards.
Versatile Application: Ideal for food items (eggs, meat, peanuts) and electronic components.
Extended Shelf Life: Preserves freshness and creates airtight packaging for maximum protection.
Efficiency: High-speed operation with reliable vacuum sealing technology.

Advanced Single-Side Stretch Film Technology

This innovative machine excels in single-side stretching and forming of film. It uses bottom film heating based on mould shape, precision top film covering, and vacuum forming to create secure, hygienic packaging bags.

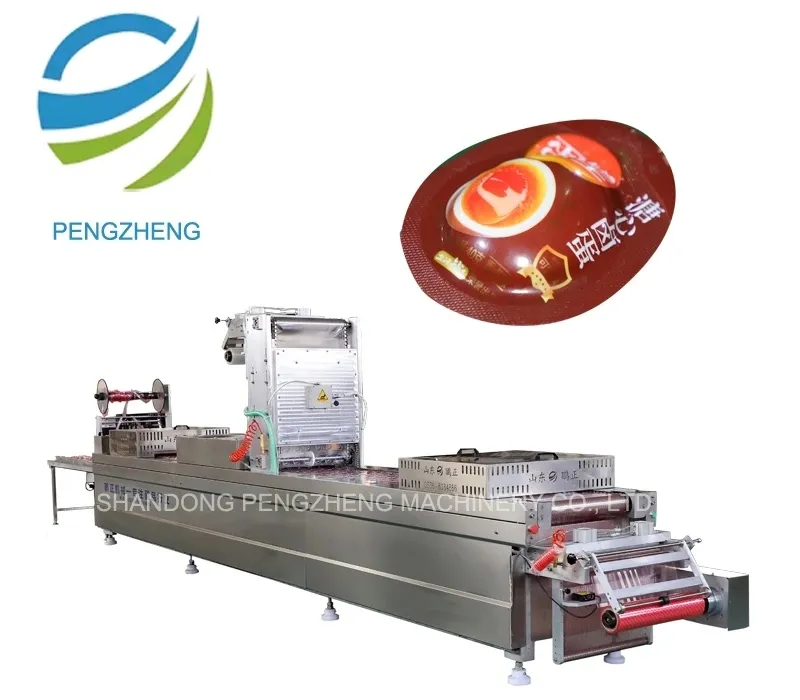

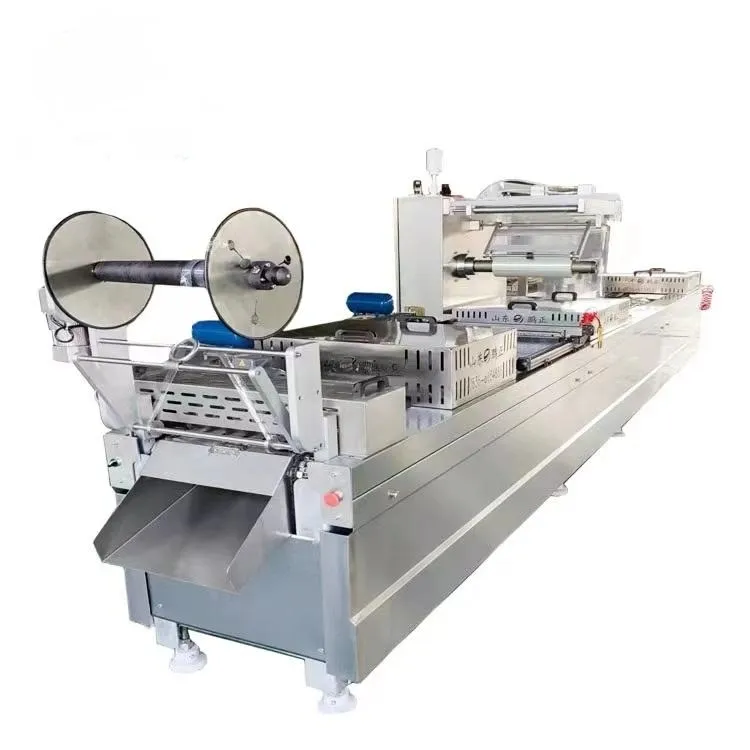

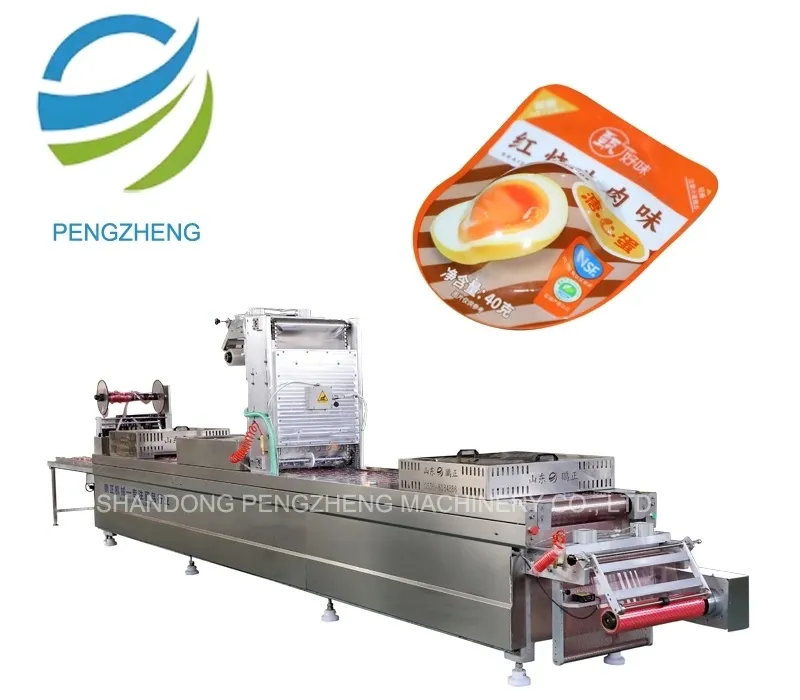

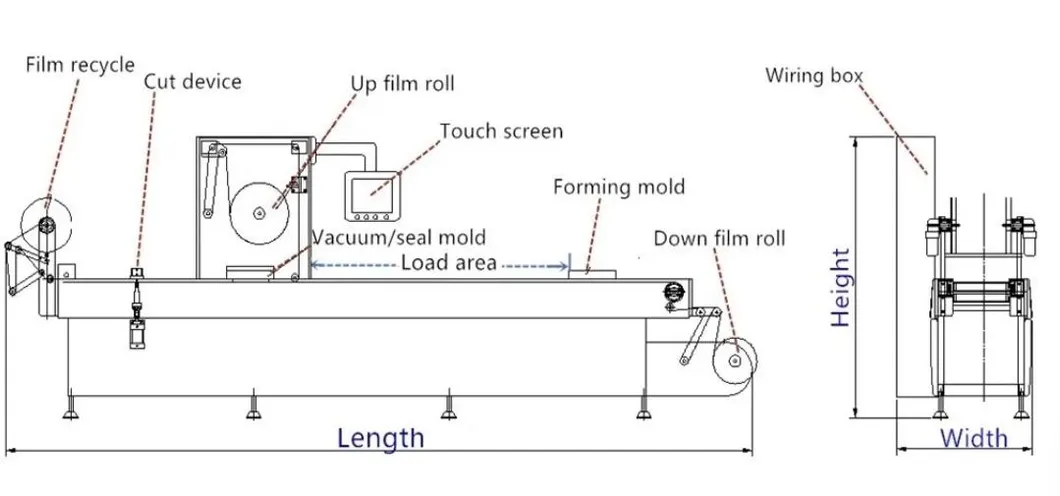

Detailed Visuals

Packing Method Comparison

Details	Traditional Bag	Single Side Stretch	Double-Side Stretch
Stretch Film Qty	None	Single Side	Double Side
Forming Depth	None	Max 120mm	Max 120mm*2
Efficiency	Low	High	Middle
Cost	High	Low	Middle
Appearance	Beautiful Printing	Uniform Shape	Most Aesthetic

Technical Parameters

Main Components
Vacuum Pump	RIETSCHLE (Germany)
Electrical Components	Schneider (France)
Servo Motor	Schneider (France)
Chain	TYC (Taiwan)
Working Parameters
Thermoforming Temp	70-120 °C
Sealing Temperature	125-150 °C
Vacuum Degree	≤200 Pa
Packing Capacity	3600-4000 pieces / h

Packaging & Shipping

Commercial and industrial standard packaging. Package size: 660cm*100cm*180cm. Gross weight: Approx 1800 kgs.

Our Advantages

Material Quality: Durable Stainless Steel 304 construction.
Cost Savings: Up to 40% less material usage compared to traditional methods.
Intelligent Control: Easy operation via high-end PLC screen.
Safety: Multiple emergency stop buttons and "No film no working" protection.

Professional Services

We provide expert guidance on unloading, installation, and debugging via detailed instructional videos. Senior engineers are available for custom on-site support if required. Enjoy a 12-month warranty and lifelong technical assistance.

Frequently Asked Questions

What is the standard manufacturing time for this machine?

The standard manufacturing time is 45 working days from the date of order and deposit. This includes 10 days for technical drawing, 15 days for parts manufacturing, and 20 days for assembly and tuning.

What information is needed for a custom quote?

To provide an accurate offer, we require your specific package dimensions and your expected daily production volume.

What kind of warranty do you provide?

We offer a 12-month warranty on the entire machine, excluding wearable parts. We also provide lifelong maintenance and 24-hour technical support.

How do you handle installation for international clients?

We provide detailed step-by-step instructional videos for installation and debugging. If needed, senior engineers can be dispatched to your location for on-site setup and training.

How does the "No film no working" function benefit the user?

This safety feature automatically shuts down the machine when the film runs out, preventing material loss and potential mechanical damage.

Can this machine handle fragile items like eggs safely?

Yes, the machine is specifically designed with pre-sealing devices and uniform stretch forming to ensure secure and hygienic packaging for delicate items.
