| Model NO. | PZ-320 | Automation | Automatic |
| Type | Stretch Film Vacuum Packing Machine | Object State | Paste, Powdery, Liquid, Solid |
| Available Width of Film | 384mm | Condition | New |
| Weight | About 1800 Kgs | Packing Speed | 6-8 Cycles / Min |
| Packing Capacity | 4600-5000 Pieces / Hour | Specification | 6600*1000*1800mm |

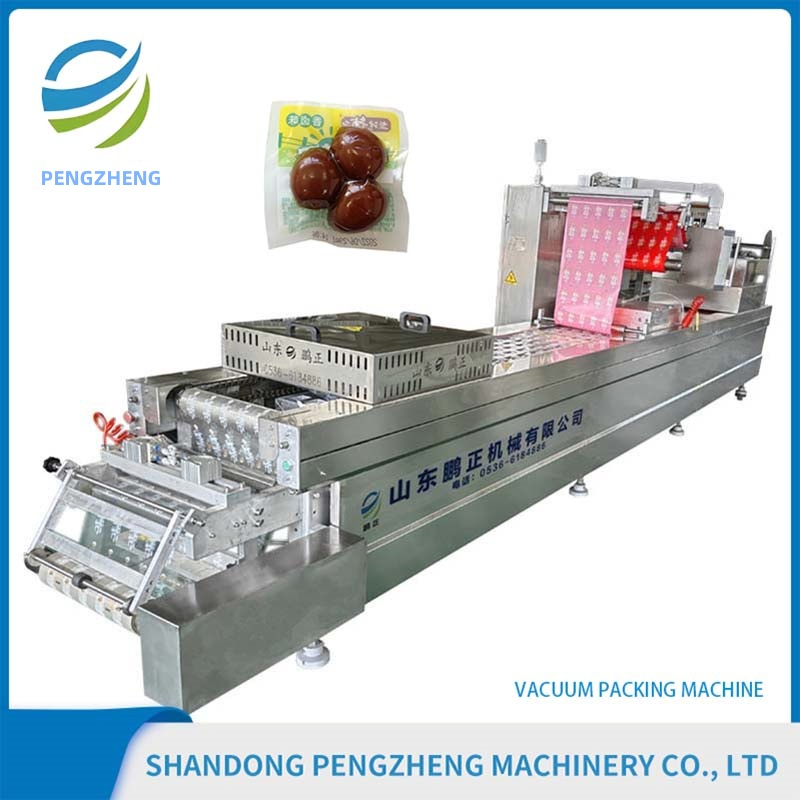

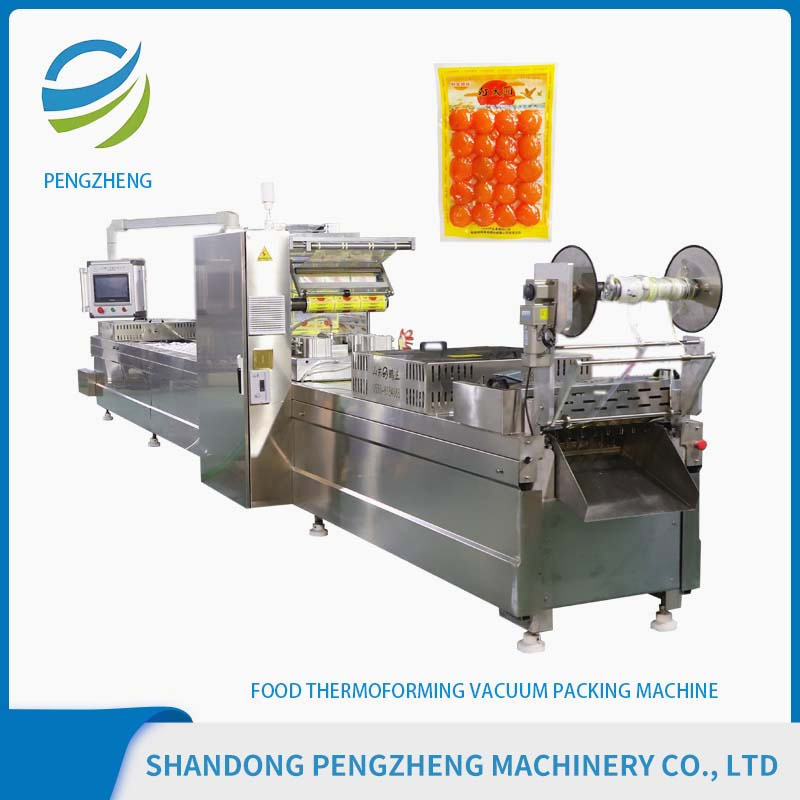

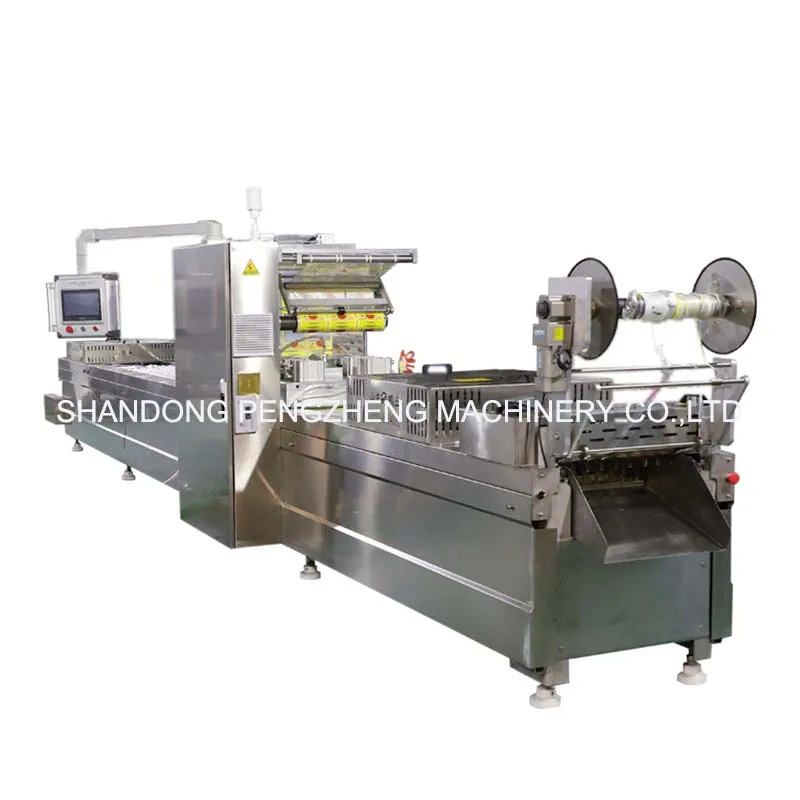

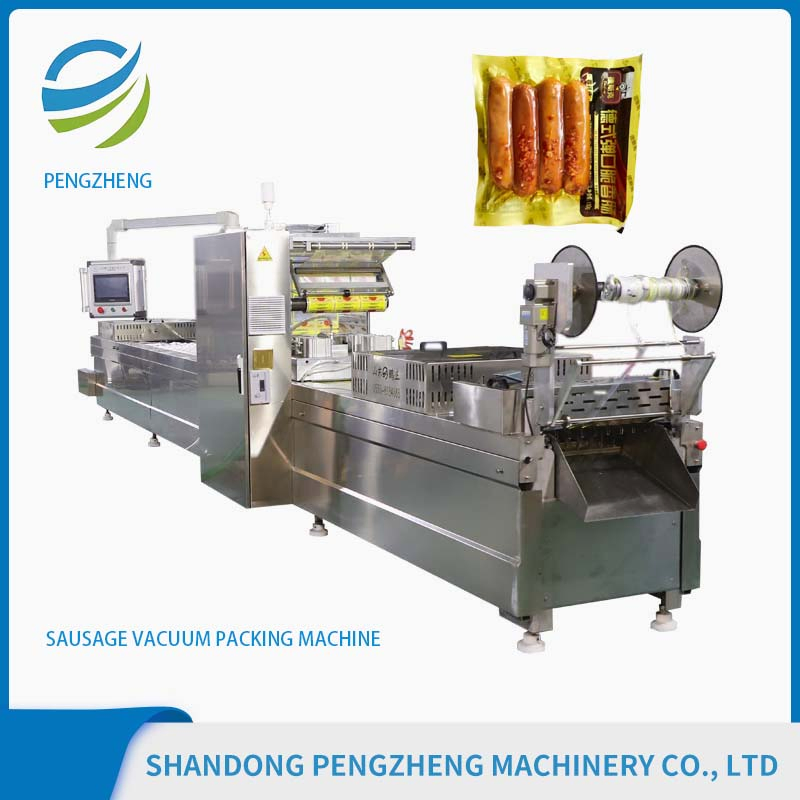

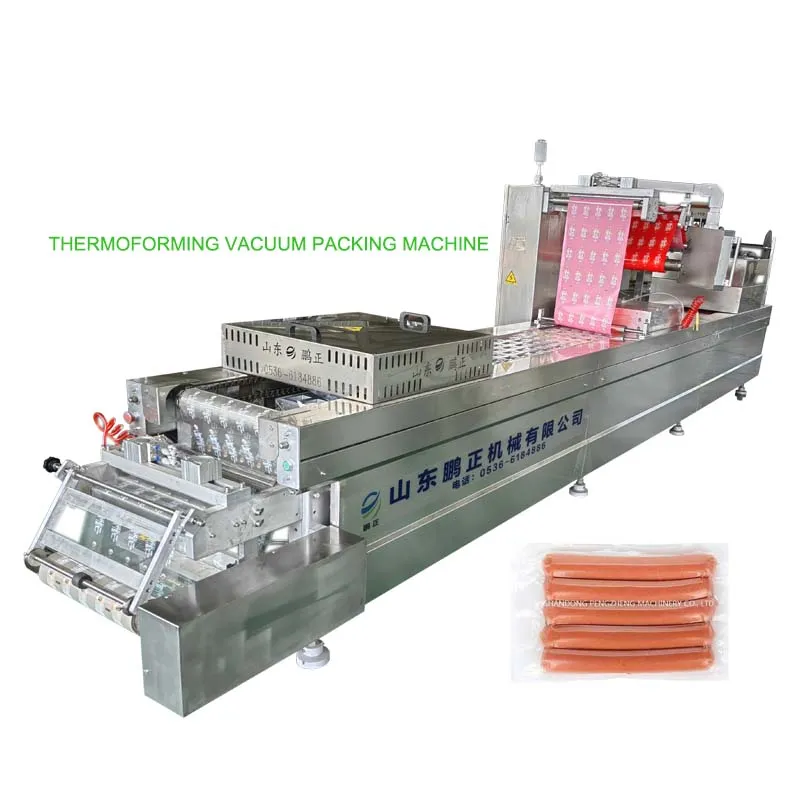

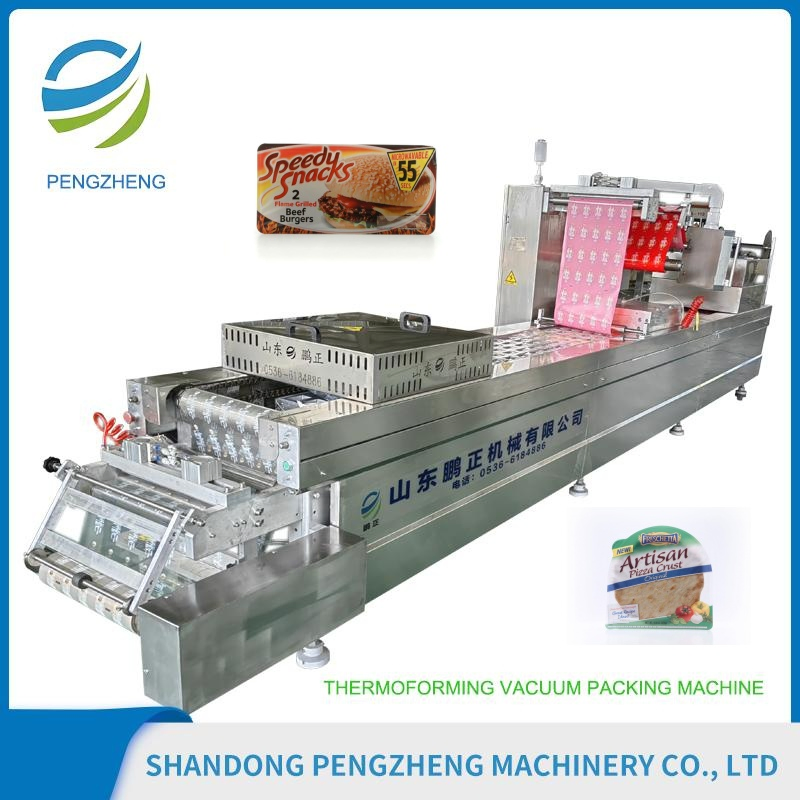

The Innovative Automatic Thermoforming Vacuum Packaging Machine is a high-performance solution designed for packaging a wide variety of products including sausages, fish, shrimp, steak, beef jerky, and toys. This state-of-the-art machine ensures efficient and precise packaging, significantly extending the shelf life of food products.
WHY CHOOSE THIS SYSTEM?

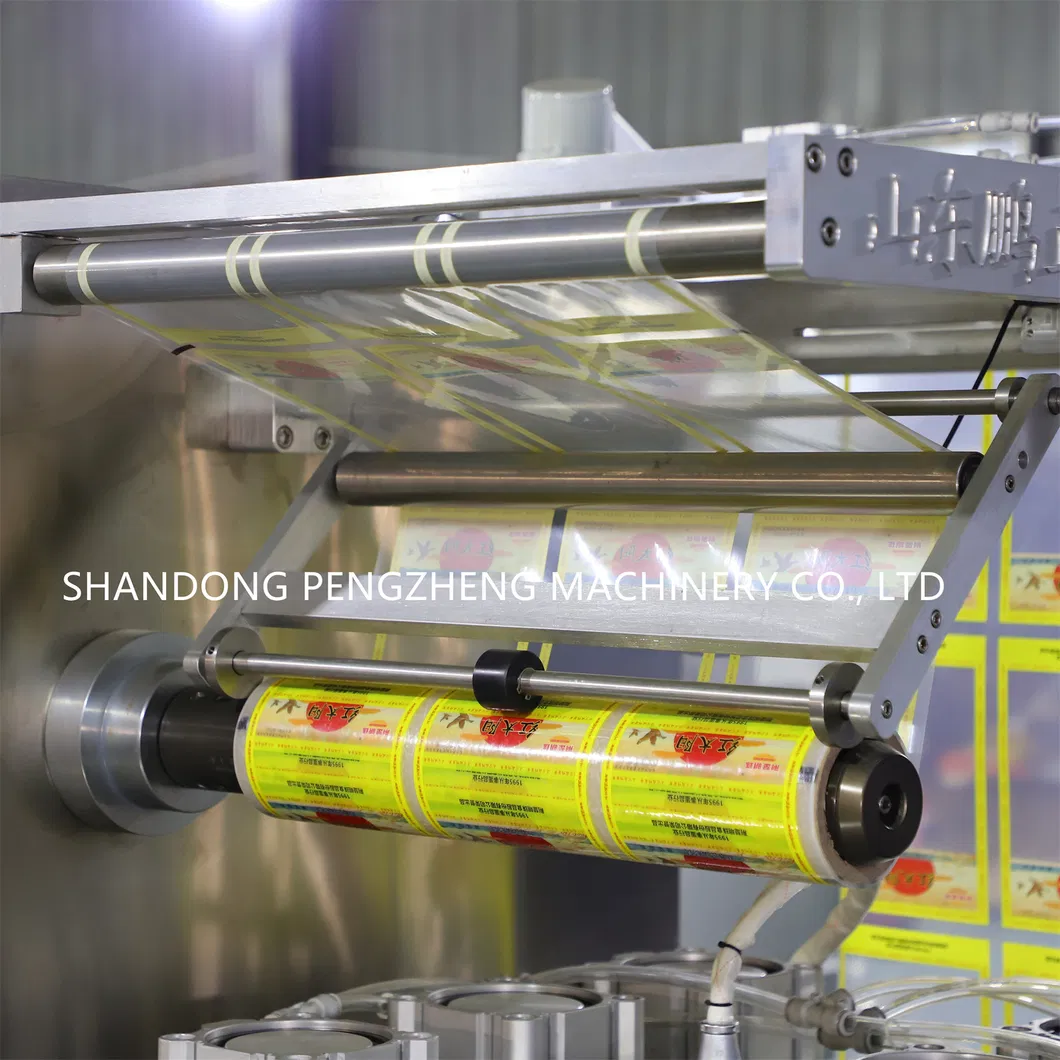

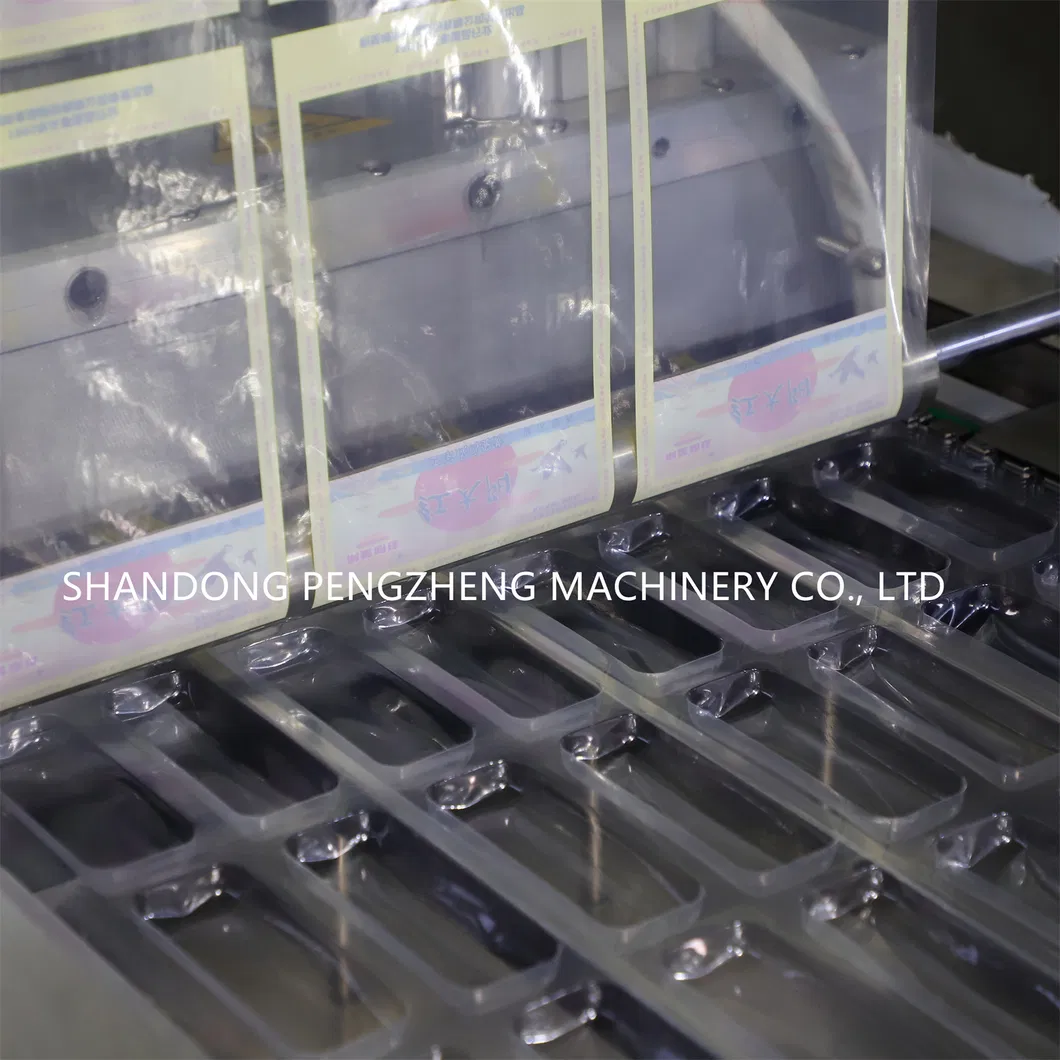

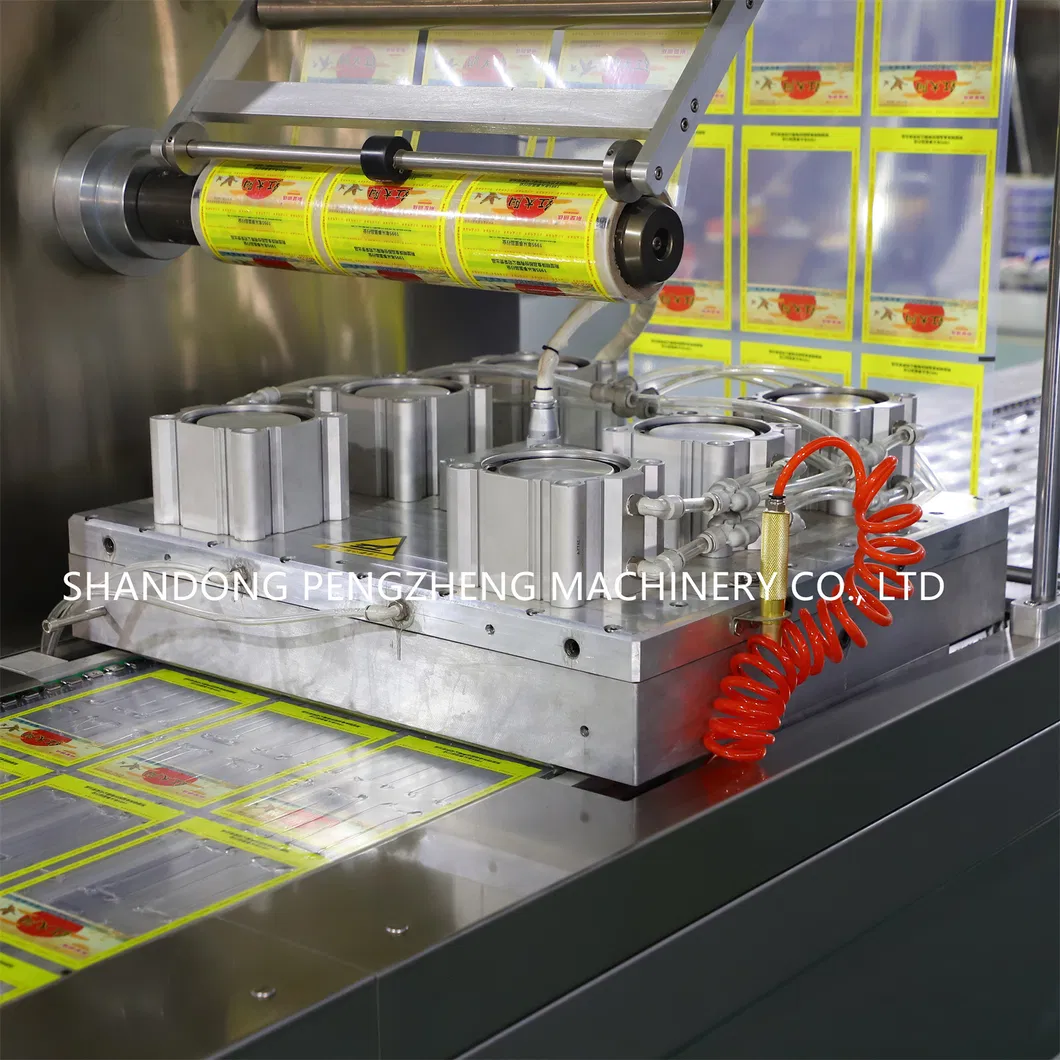

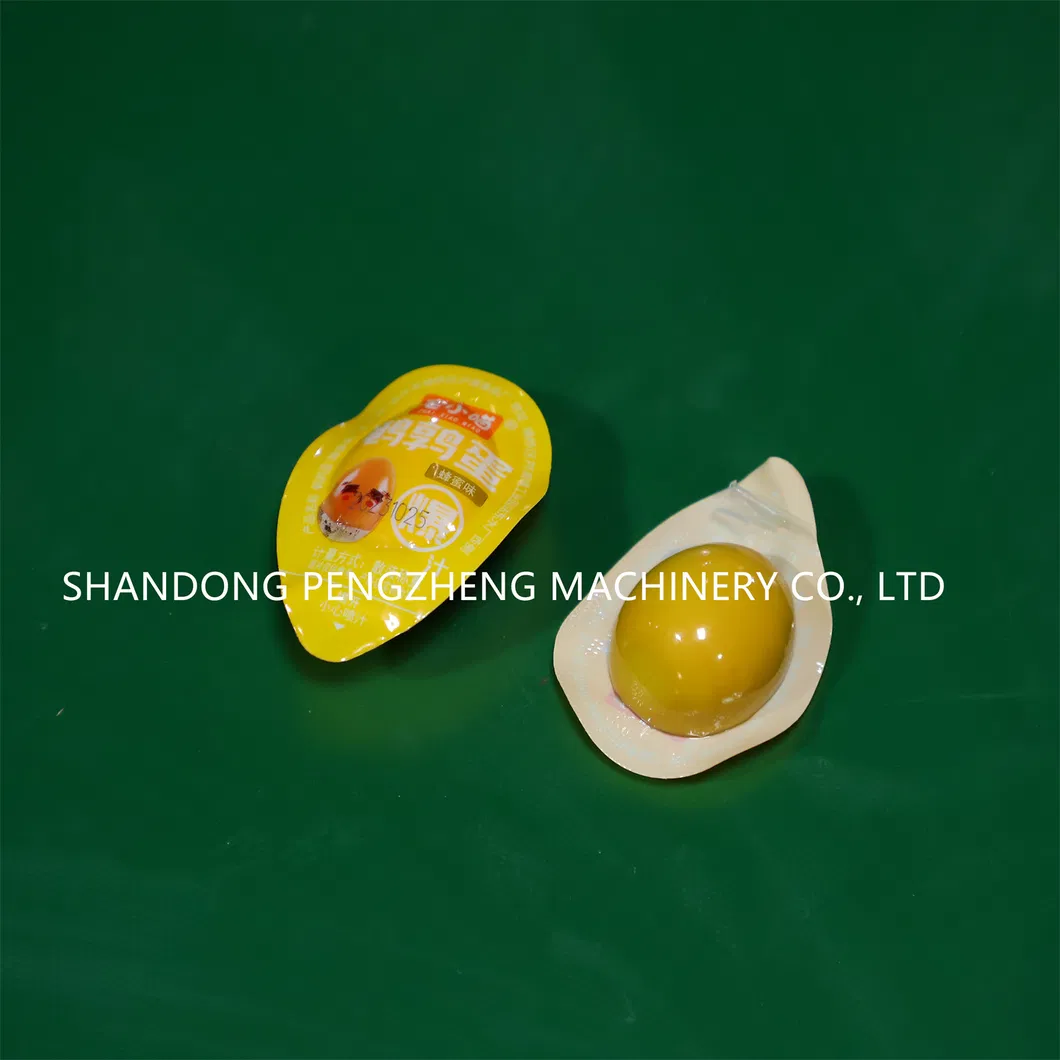

For specialized needs, the Automatic Single-Side Stretch Film Vacuum Packaging Machine for Eggs excels in precision. The bottom film is heated and formed to the exact shape of the product, followed by vacuum sealing in a dedicated chamber to ensure perfect integrity.

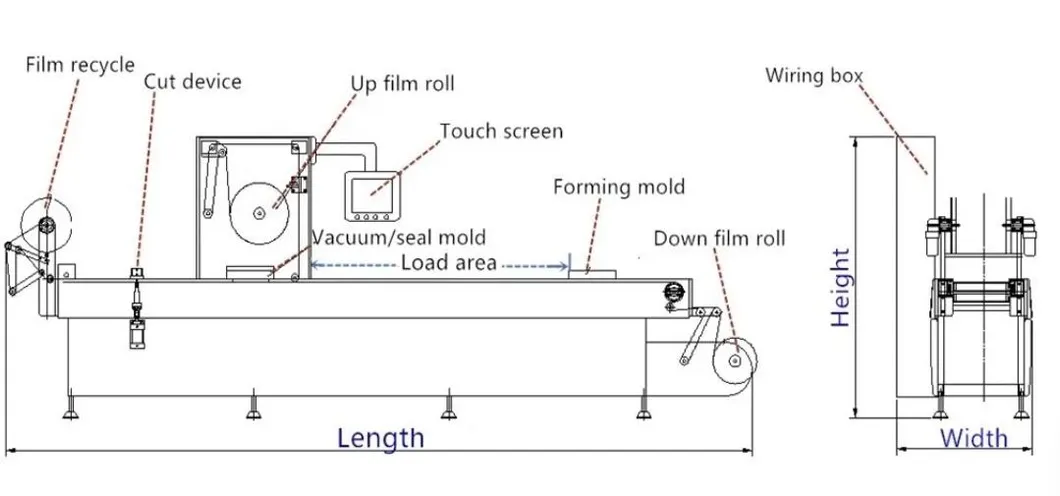

System Structure

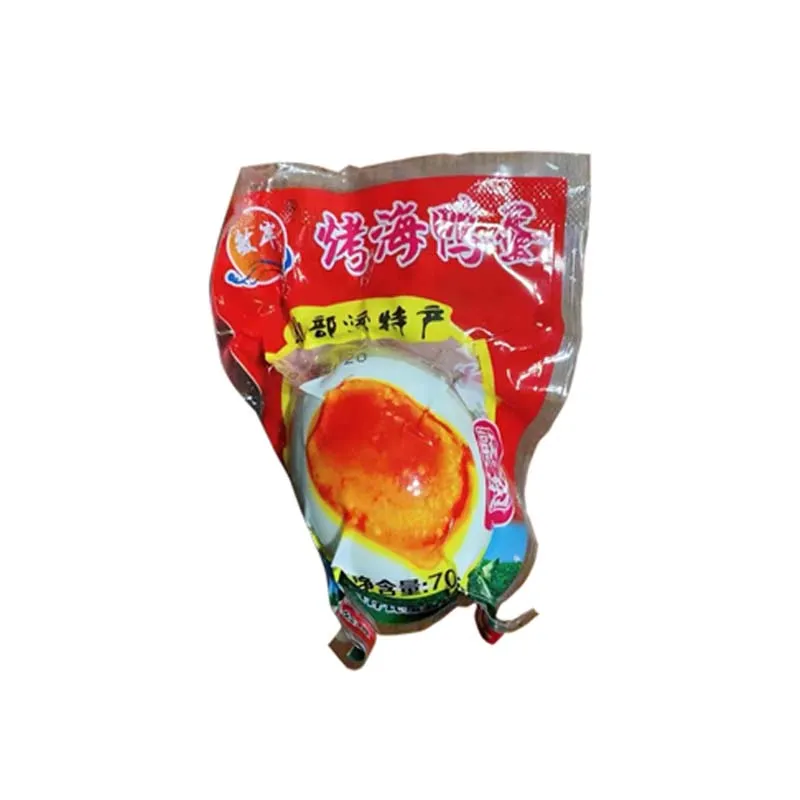

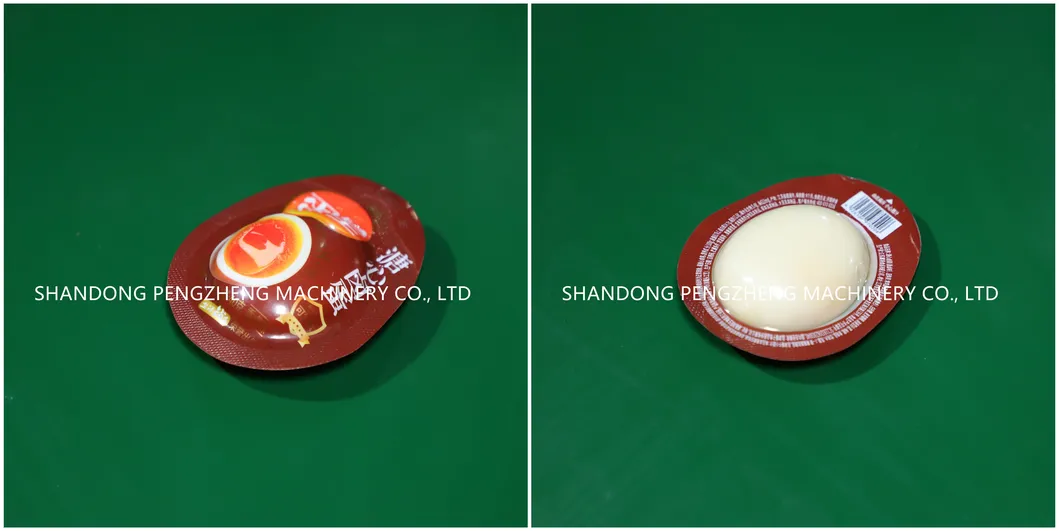

| Details | Traditional Bag | Single Side Stretch | Double Side Stretch |
|---|---|---|---|
| Forming Depth | None | Max. 120mm | Max. 120mm*2 (Uniform) |
| Efficiency | Low | High | Middle |
| Cost | High | Low | Middle |
| Visuals |
|
|
|
No Film, No Working
Smart sensors detect film status and automatically shut down when supply is exhausted to reduce waste.

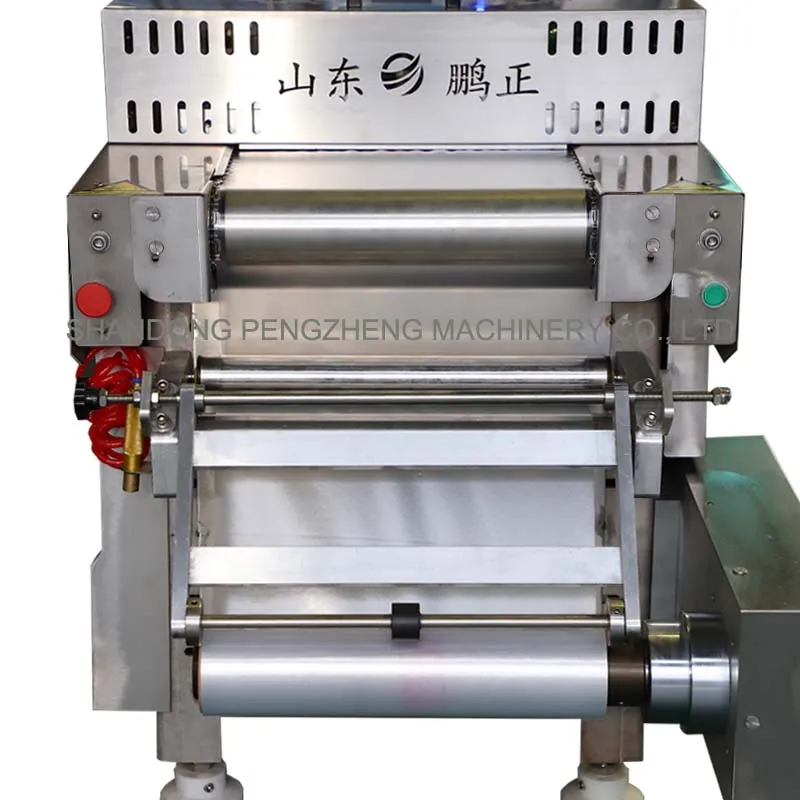

Automatic Correction

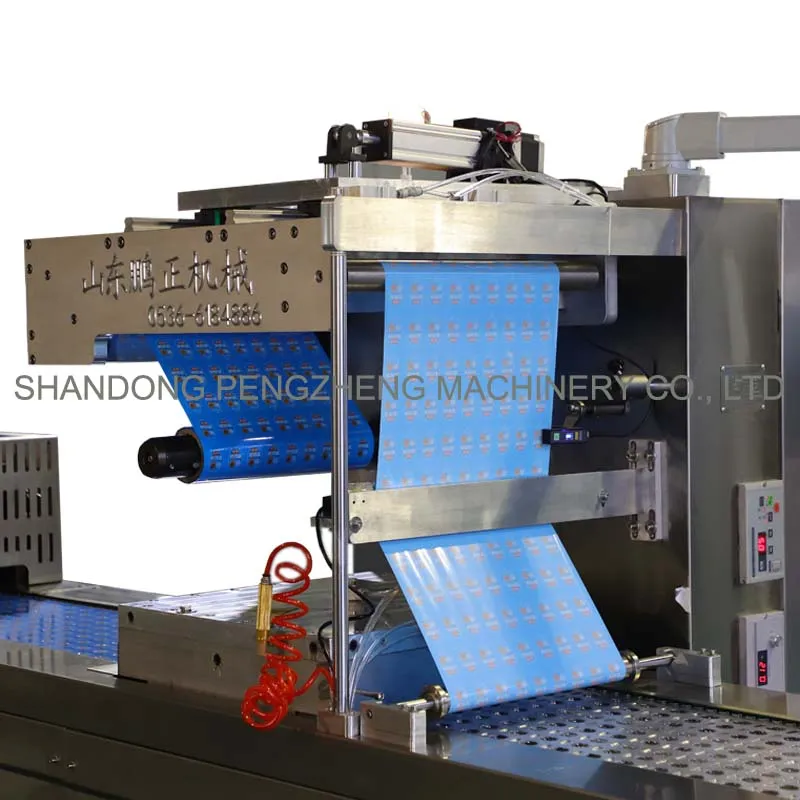

Includes intelligent left-right calibration and cursor conditioning for perfect alignment of top and bottom films.
Top Safety Standards
Sensors on all removable covers ensure the machine stops instantly if safety barriers are opened.

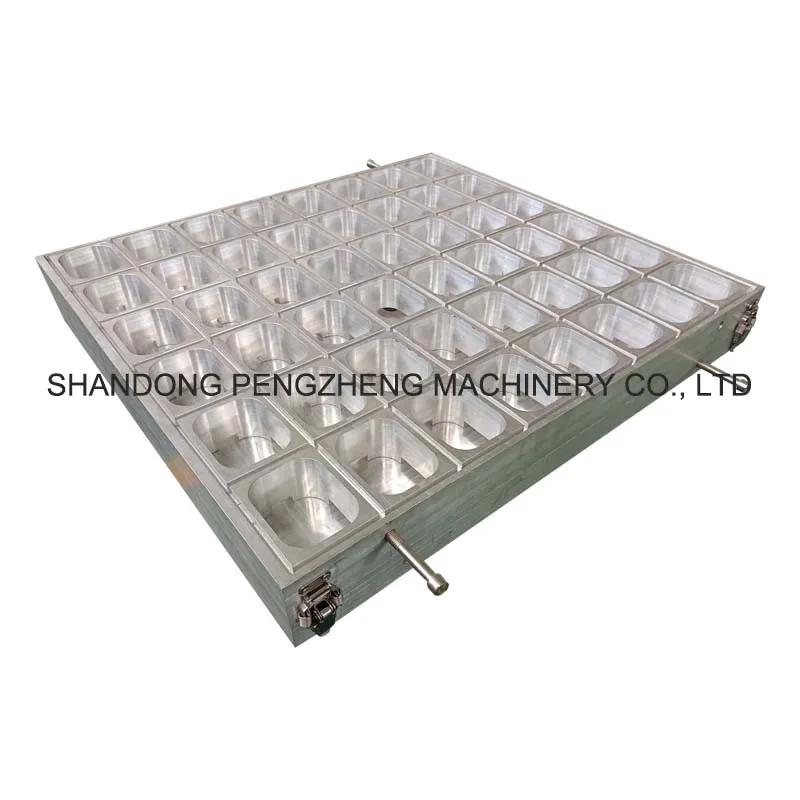

Mould Diversification
Simple and convenient mould replacement, suitable for a wide weight range (e.g., eggs from 40g to 100g).
| Main Components | |
|---|---|
| Vacuum Pump | RIETSCHLE (Germany) |
| Electrical / Servo Motor | Schneider (French) |
| Chain | TYC (Taiwan) |
| Working Specifications | |
| Width of Top / Bottom Film | 425mm / 398mm |
| Thermoforming Temperature | 70-120 Degree Celsius |
| Sealing Time | 1.5s - 2.5s |
| Vacuum Degree | ≤200 Pa |
| Packing Speed | 6-8 cycles / min |
Warranty Service
12-month full machine warranty. Multiple after-sale channels available for non-wearable parts.
Maintenance
Lifelong maintenance support via phone, mail, or online video. On-site personnel available if required.
Technical Support
24-hour technical hotline and online training courses to ensure smooth operation.
