2024 2 Cavity 4 Cavity Automatic PVC Plastic Wall Protection Corner Profile Double Screw Extrusion Production Line Vacuum Mold System with Hole Punching Device

Customization:	Available
Product Type:	PVC Profile
Screw:	Double-Screw

Send Inquiry

Product Description

🔧 Basic Specifications

Model NO.

SJSZ45/90

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008

Customized

Transport Package

Film Packed, Container

Origin

China

HS Code

847780000

Production Capacity

50 Per Quarter

📝 Product Description

The PVC profile production line is specialized for manufacturing PVC windows and doors profiles, door boards, window table boards, multi-hole pipes, and price tags. This versatile production line is adaptable to meet various profiling requirements based on customer specifications.

The complete system integrates a twin or single screw extruder, vacuum forming table, haul-off machine, cutting machine, and profile stacker for a seamless workflow.

⚙️

Premium Electrical Components: Features ABB or Delta frequency inverters, Omron temperature controls, Schneider contactors, and Siemens motors for maximum reliability.

📸 Technical Details & Components

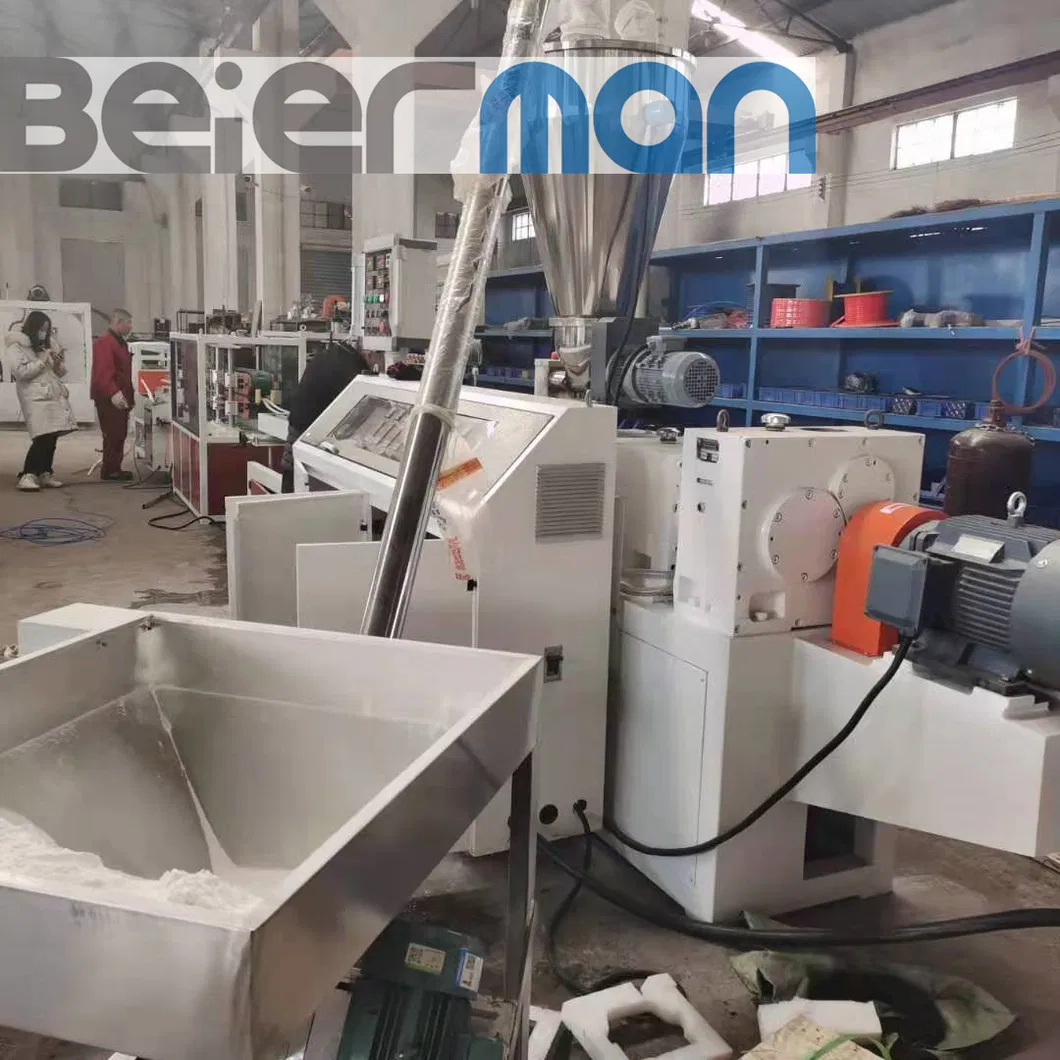

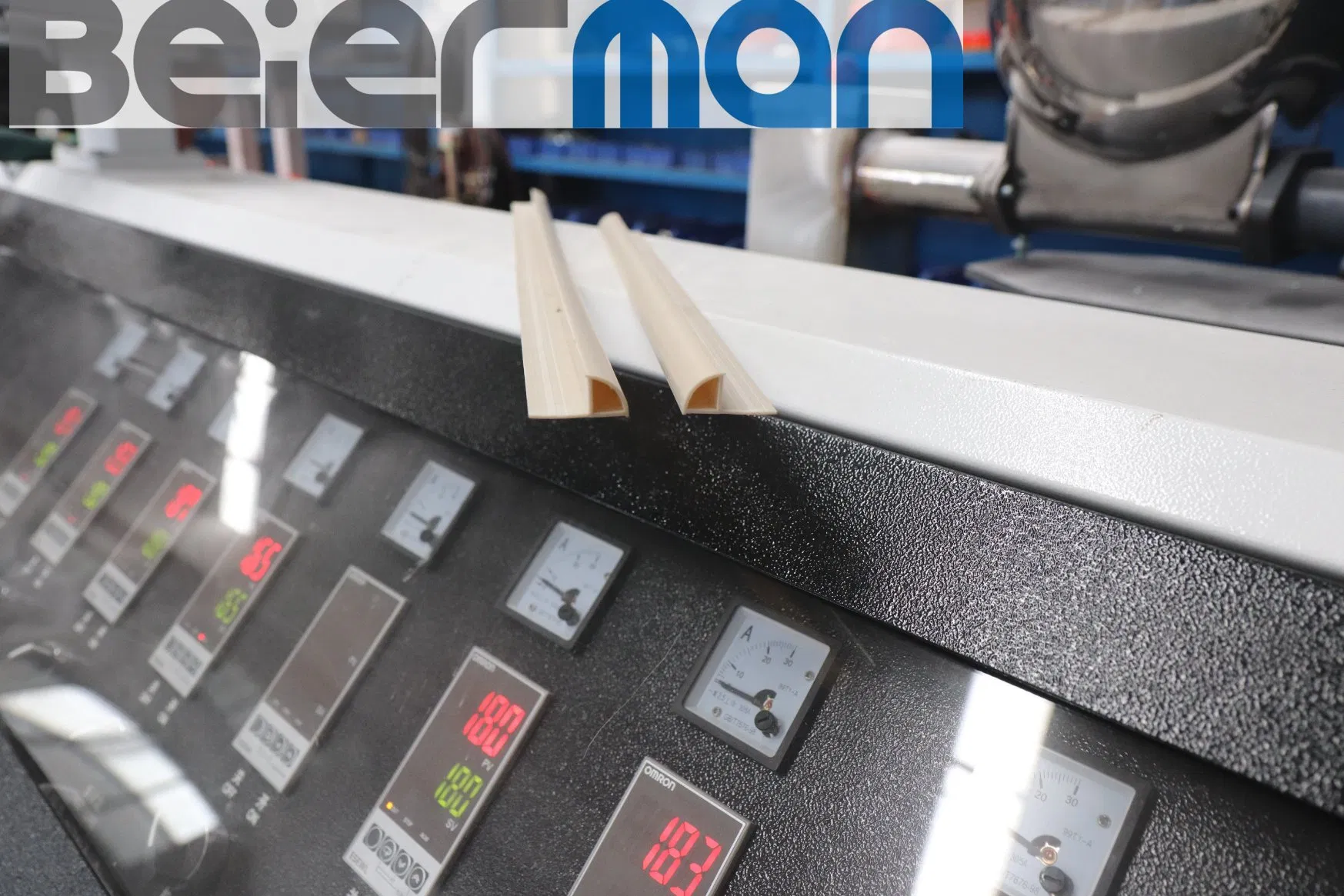

SJSZ45/90 Main Machine - 15KW Power

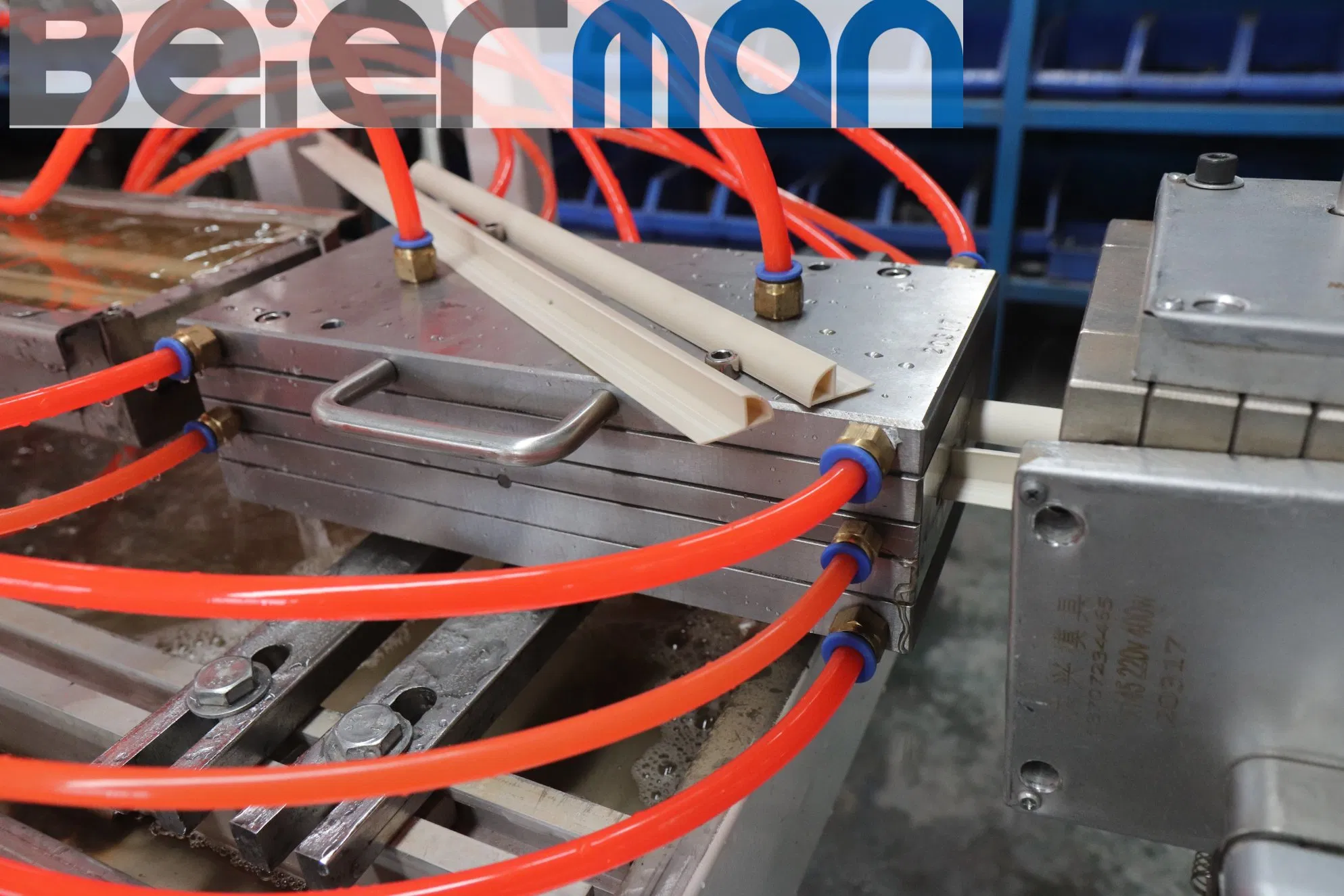

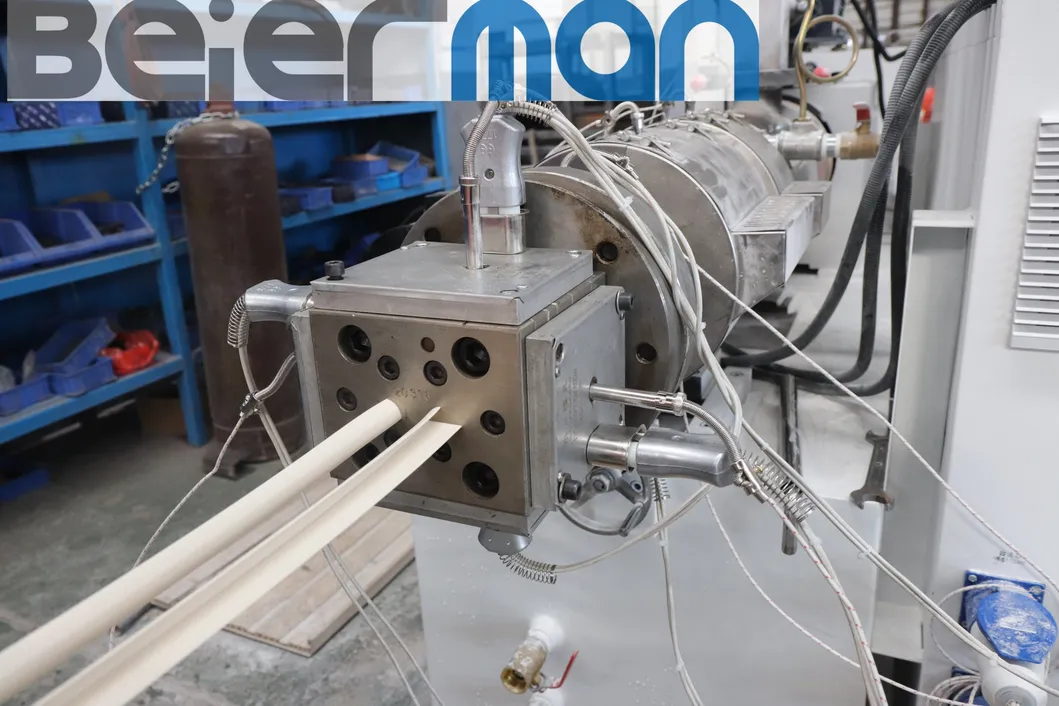

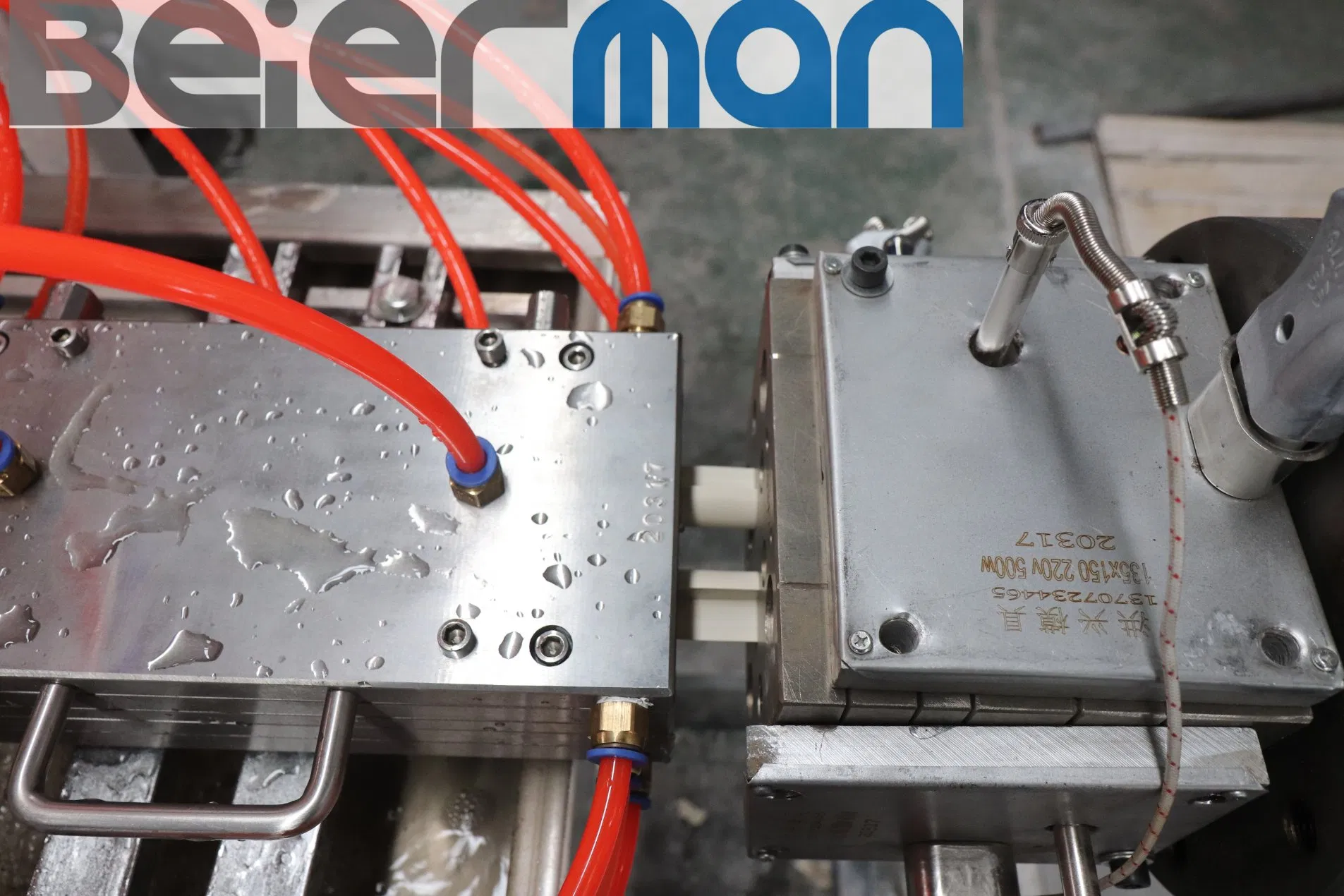

1 or 2 Cavity PVC Corner Mold

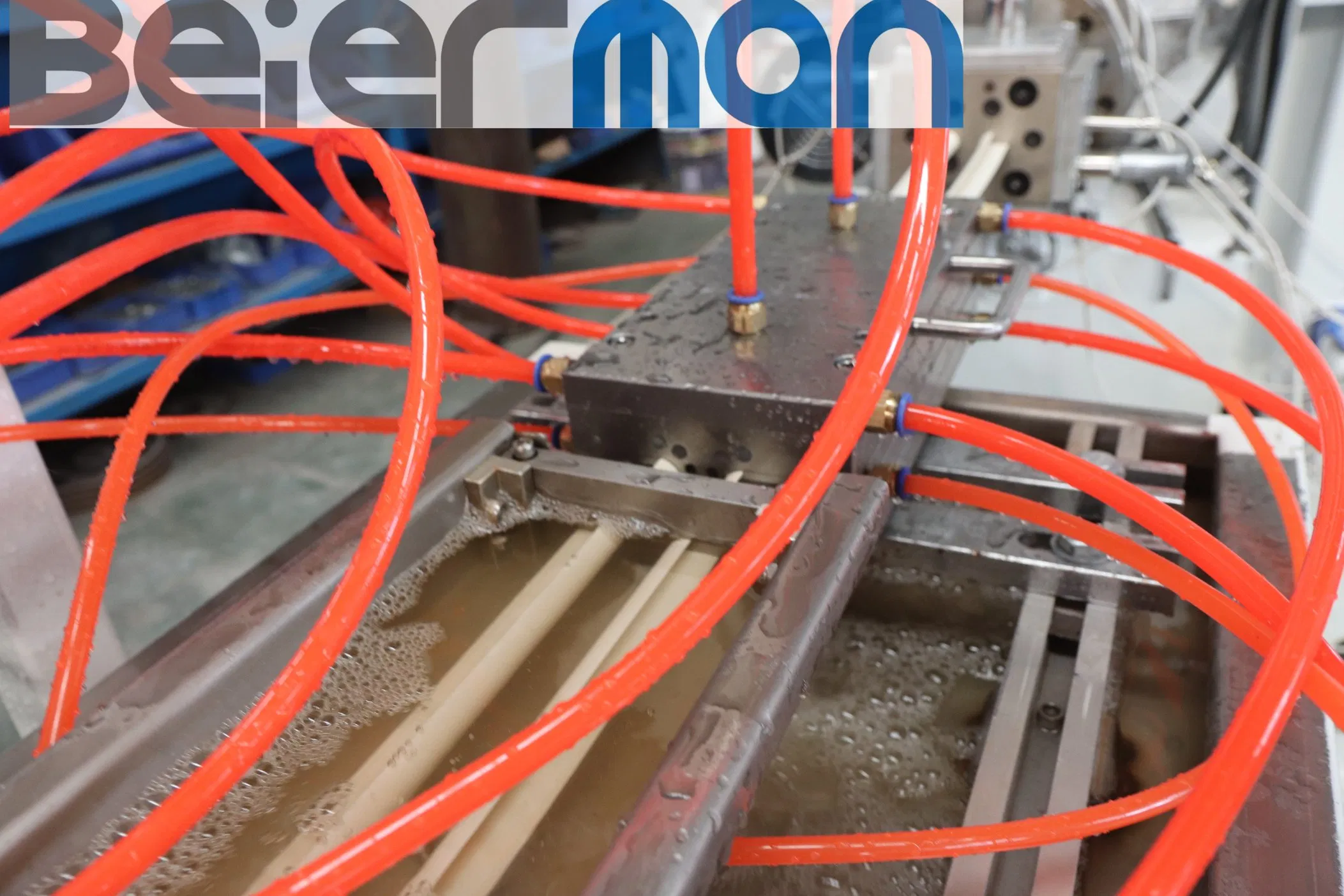

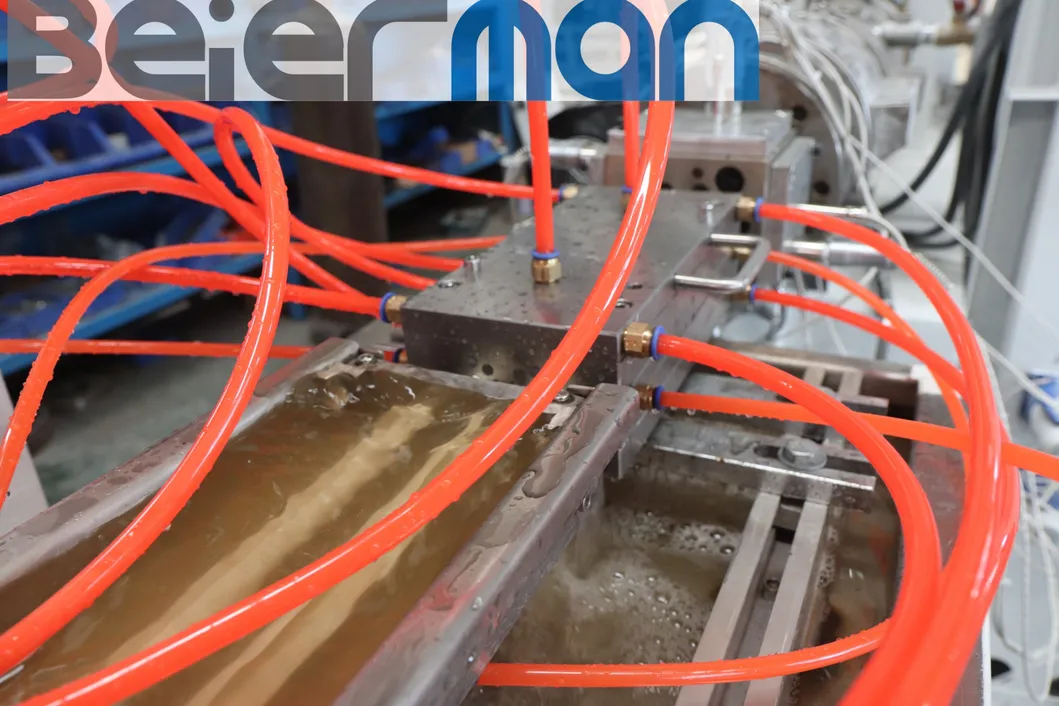

2500mm Vacuum Calibration Table

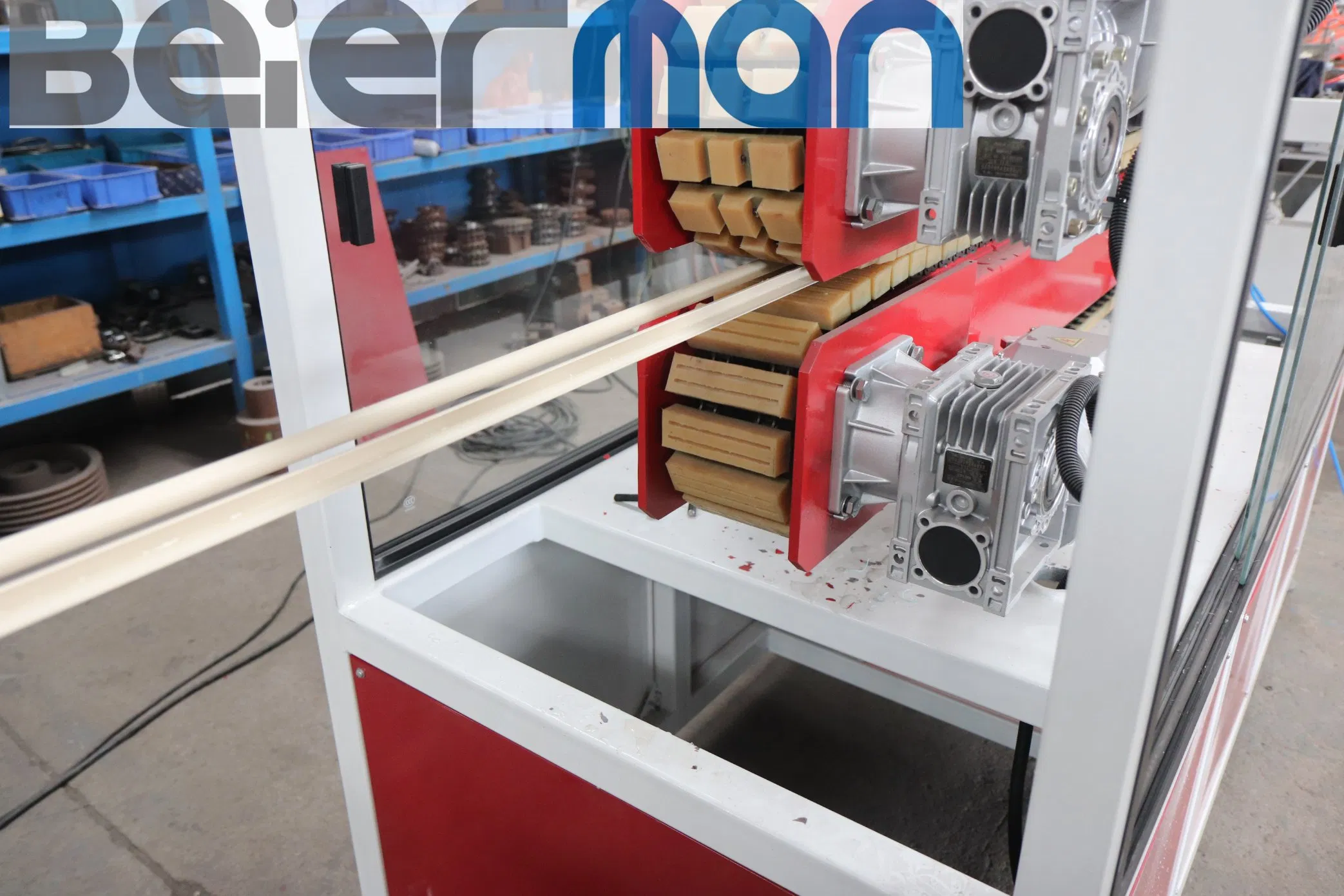

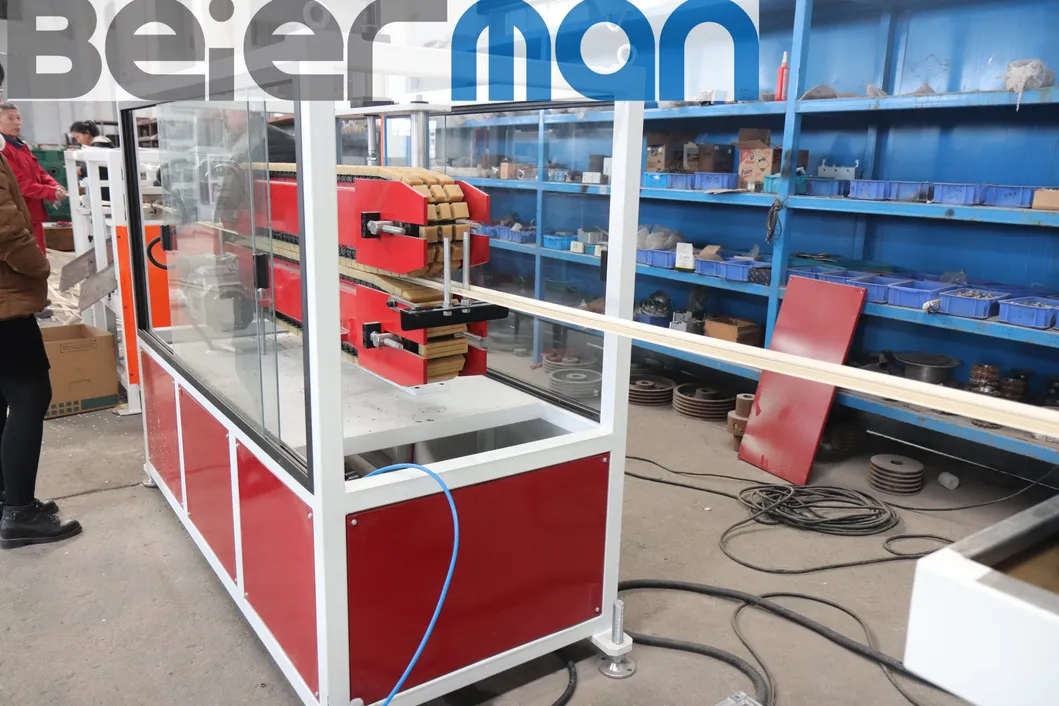

Inverter Controlled Belt Haul-off

Pneumatic Corner Punching Device

🏢 Manufacturing & Exhibition

As a modern factory engaged in plastic extrusion and recycling machinery research, we provide high-quality machines and comprehensive technical solutions from extrusion to turn-key projects.

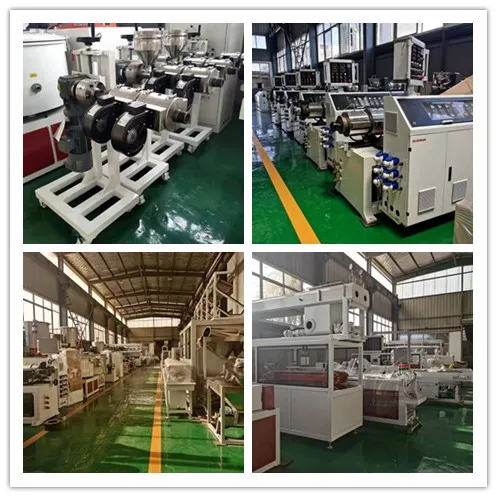

Modern Production Facility

Finished Machines Workshop

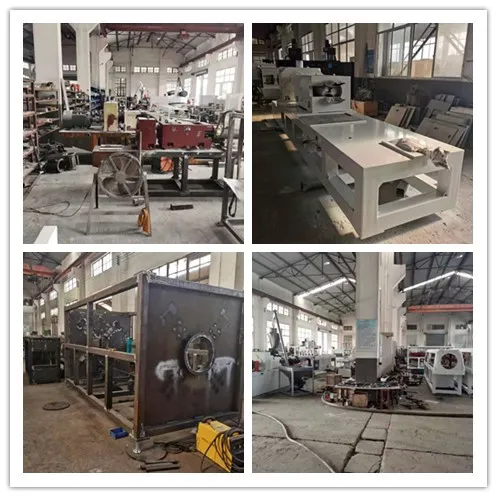

Processing Workshop

Global Exhibitions Participation

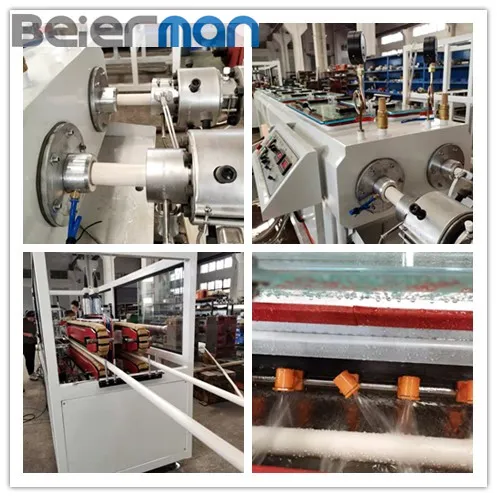

Machine Trial & Testing

❓ Frequently Asked Questions

1. What products can be produced with this line?

This line is designed for PVC wall protection corner profiles, windows and doors profiles, door boards, multi-hole pipes, and price tags.

2. What are the advantages of using a 2-cavity mold?

A 2-cavity mold significantly increases production capacity while saving energy and factory floor space.

3. How is the cooling process handled?

The system uses a vacuum forming table equipped with a whirlpool water cooling system, ensuring efficient cooling and precise shaping.

4. Which brands of electrical components are used?

We use world-renowned brands including Siemens motors, ABB/Delta inverters, Omron temperature controllers, and Schneider contactors.

5. Is the cutting machine synchronized?

Yes, the cutting machine works in synchronization with the haul-off machine and is fully controlled by a PLC system.

6. What is the production capacity of the SJSZ45/90 model?

The capacity for this specific model can reach approximately 40-60kg/h depending on the profile type.
