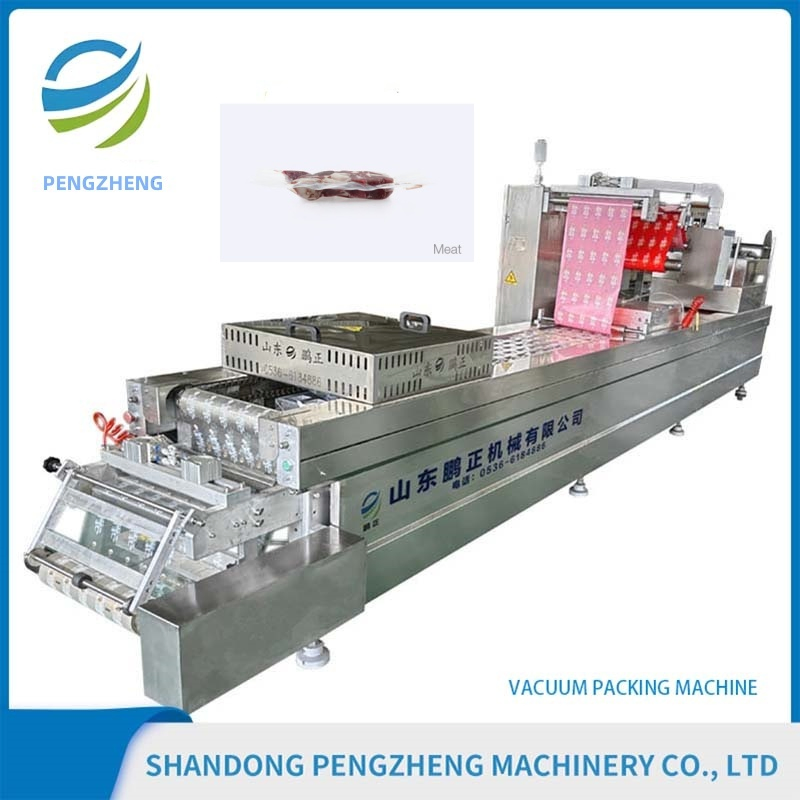

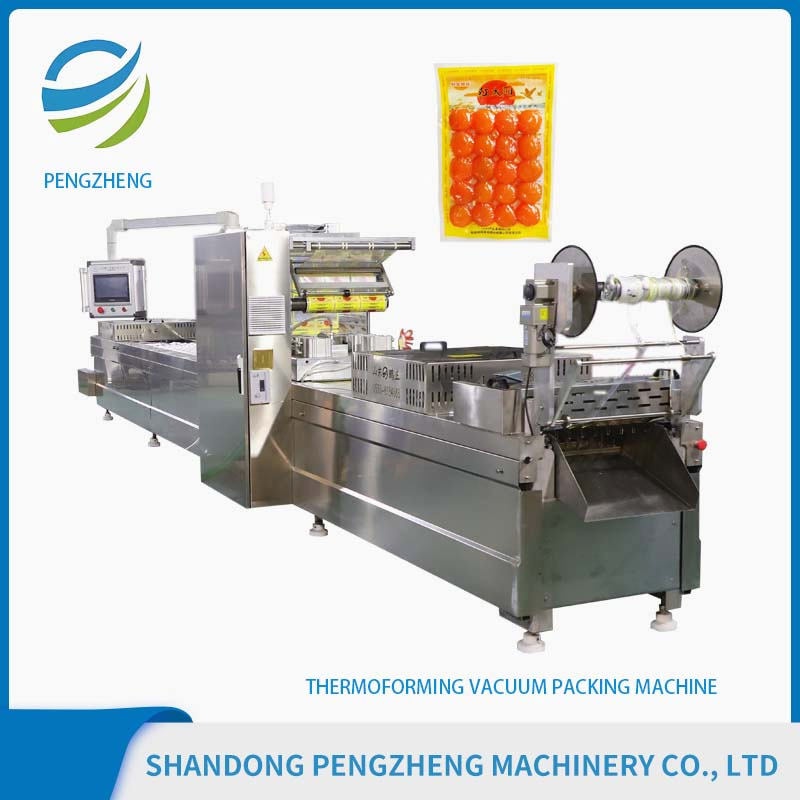

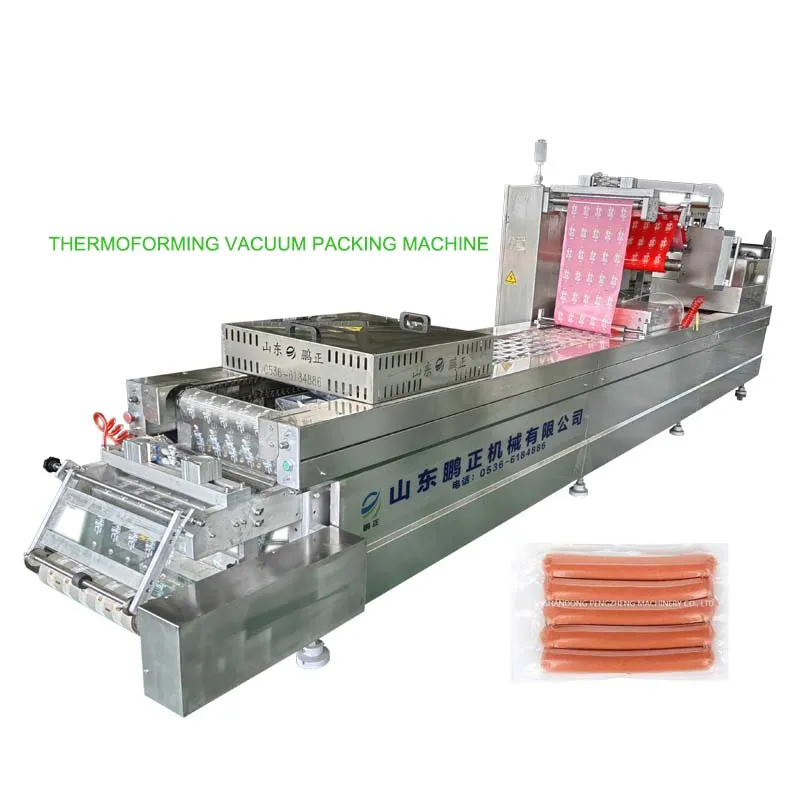

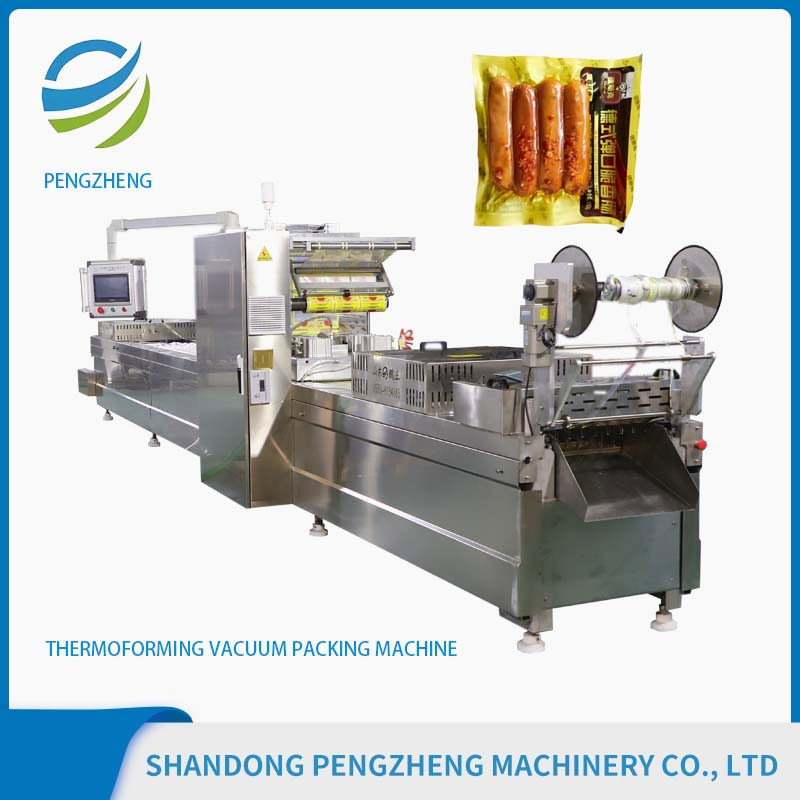

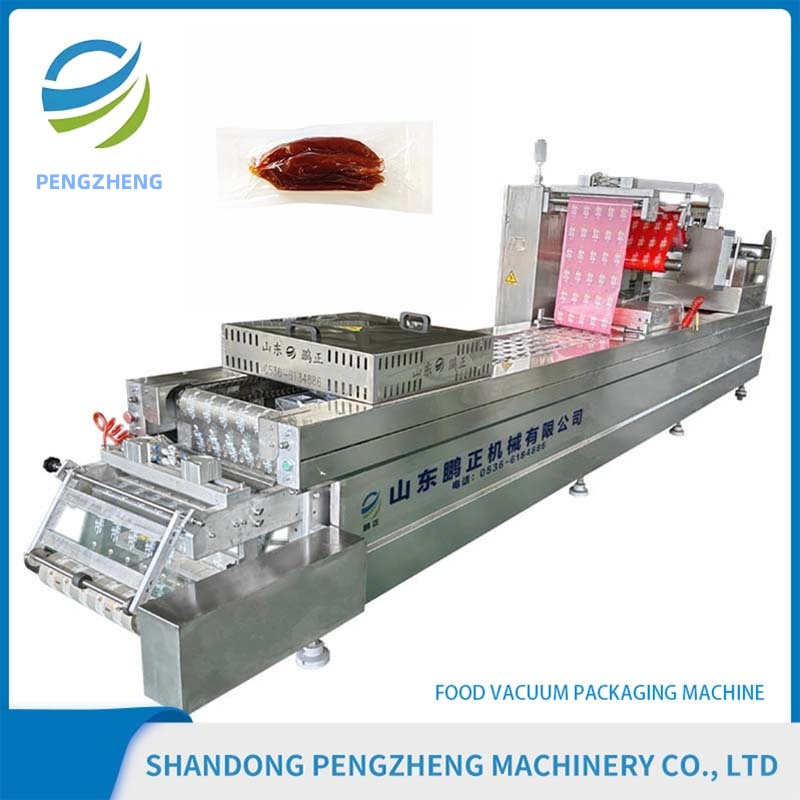

The Innovative Automatic Thermoforming Vacuum Packaging Machine is designed for packaging a variety of food items such as sausages, fish, shrimp, steak, beef, beef jerky, dried bean curd, goat, mutton, and chicken. Additionally, it can also be used for packaging toys.
With its advanced technology, this machine ensures efficient and precise vacuum packaging, extending the shelf life of your products. Say goodbye to food spoilage and hello to fresh, preserved items for longer periods. This equipment is a must-have for any food processing or packaging business looking to enhance product quality and customer satisfaction.
Tailored solutions to meet unique product specifications and industry requirements.
Delivers 6-8 cycles per minute, optimizing your production workflow.
Equipped with multiple safety sensors and emergency stop buttons for maximum security.

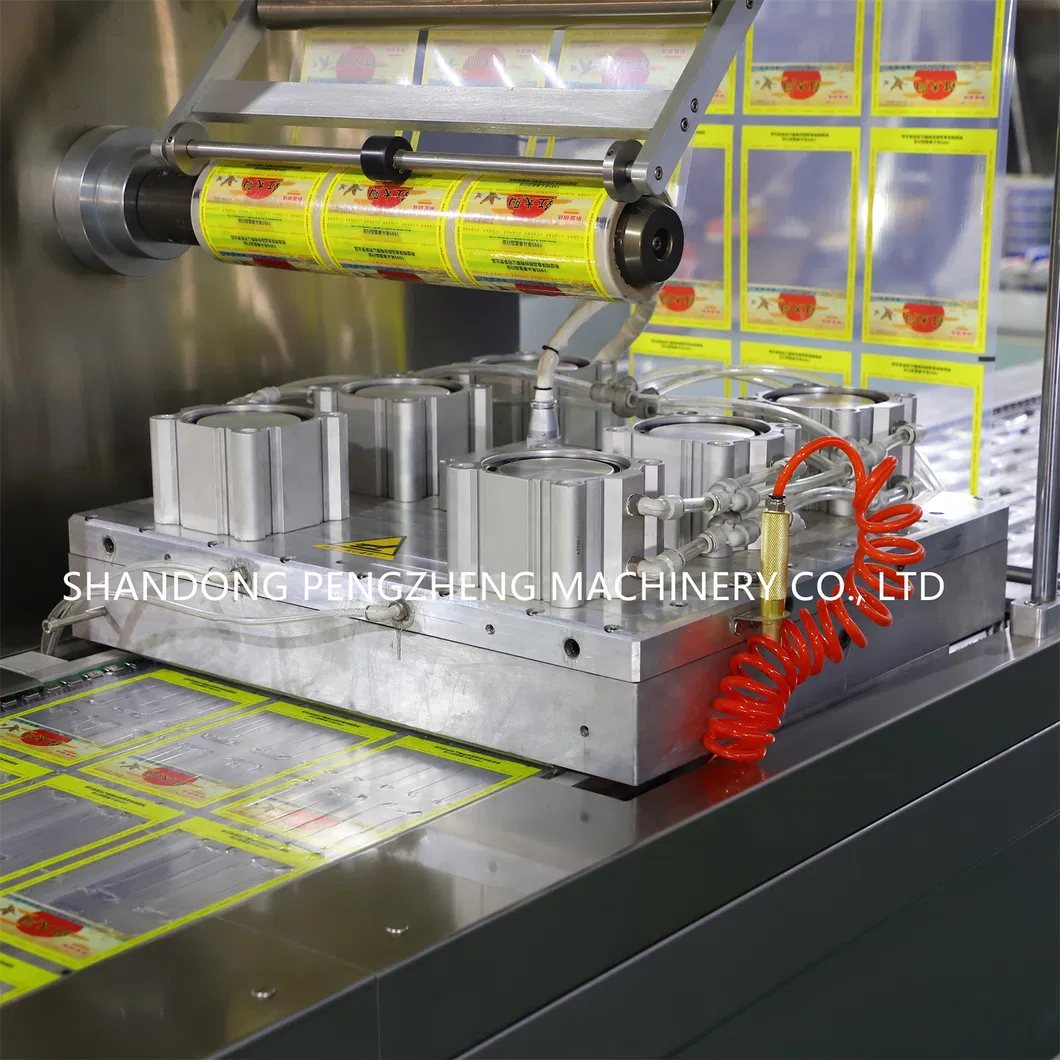

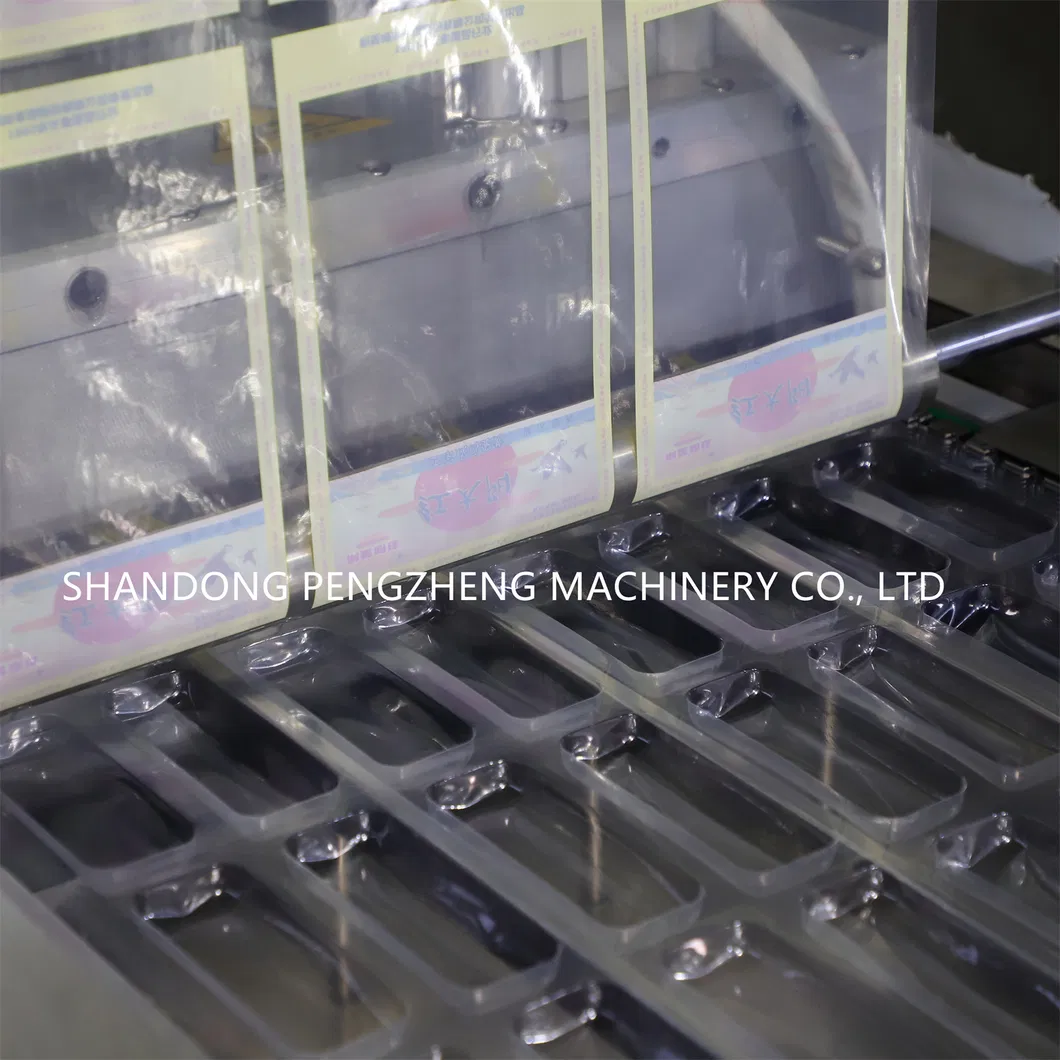

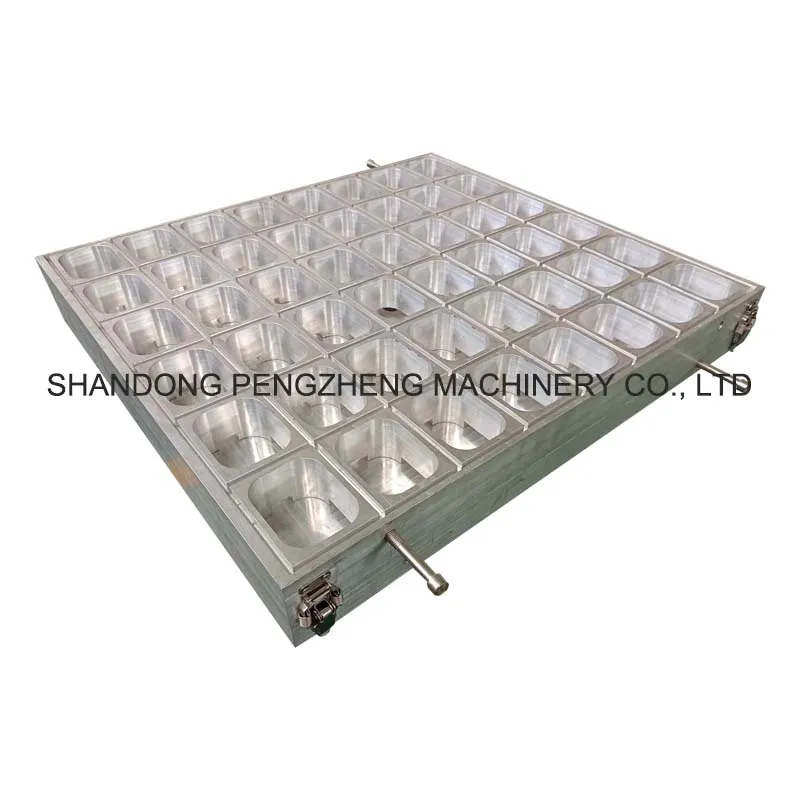

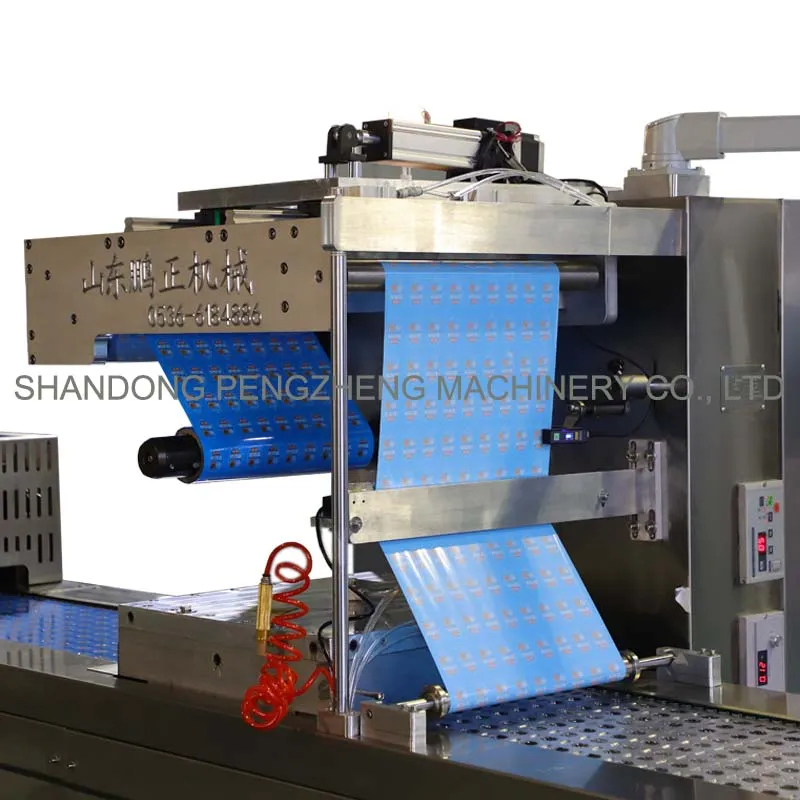

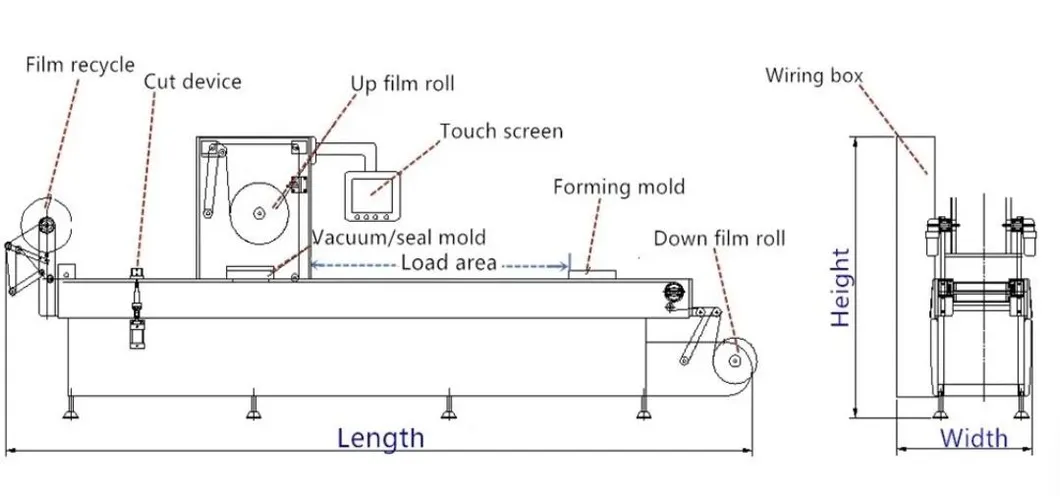

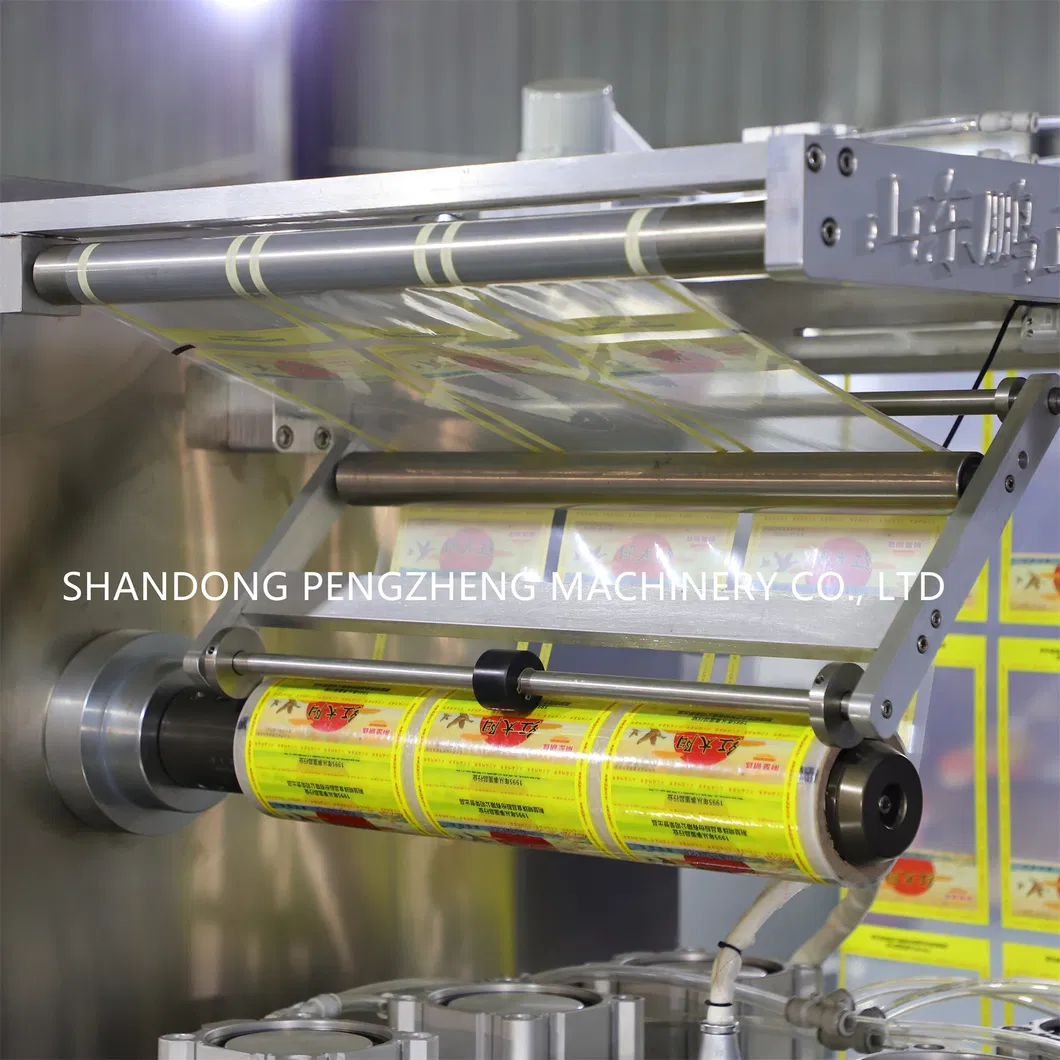

The process begins with heating and stretching a bottom film to conform to the shape of a mold. Materials are placed into the formed film, vacuum-sealed with a top film, and finally cut into individual bags.

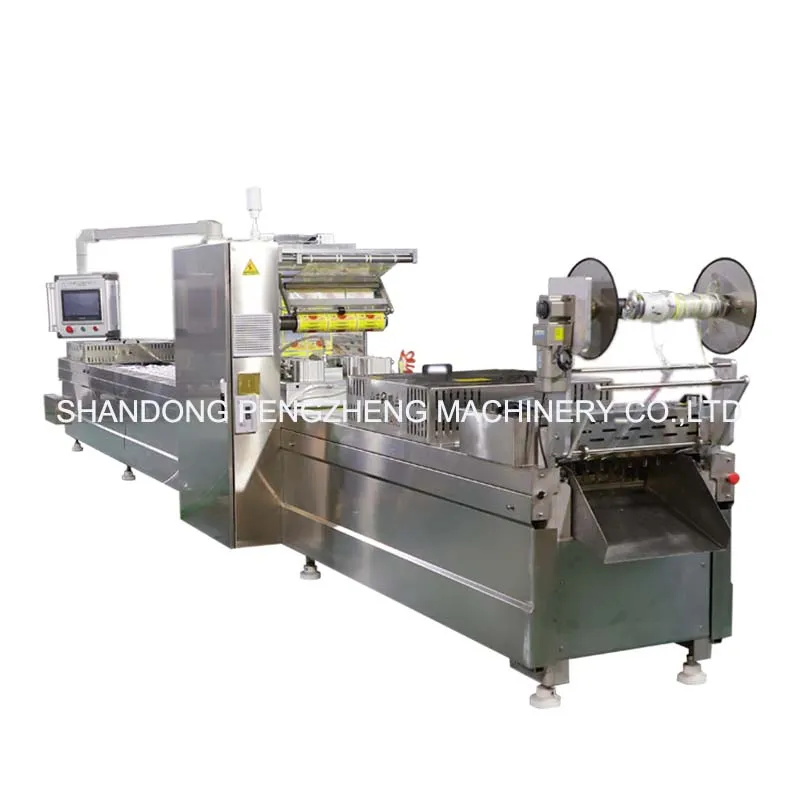

| Component | Specifications / Description |
|---|---|
| Main Structure | Stainless Steel 304, Thickness 6mm |
| Vacuum Pump | RIETSCHLE (Germany) |
| Electrical Components | Schneider (France) |
| Servo Motor | Schneider (France) |
| Control System | PLC Touch Screen Device |
| Safety Device | Automatic left-right correction & Sensors |

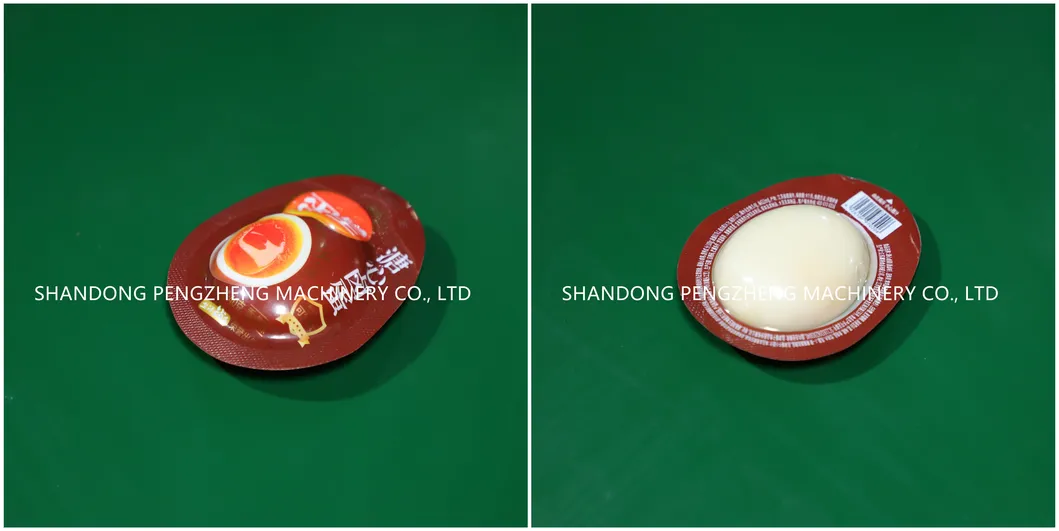

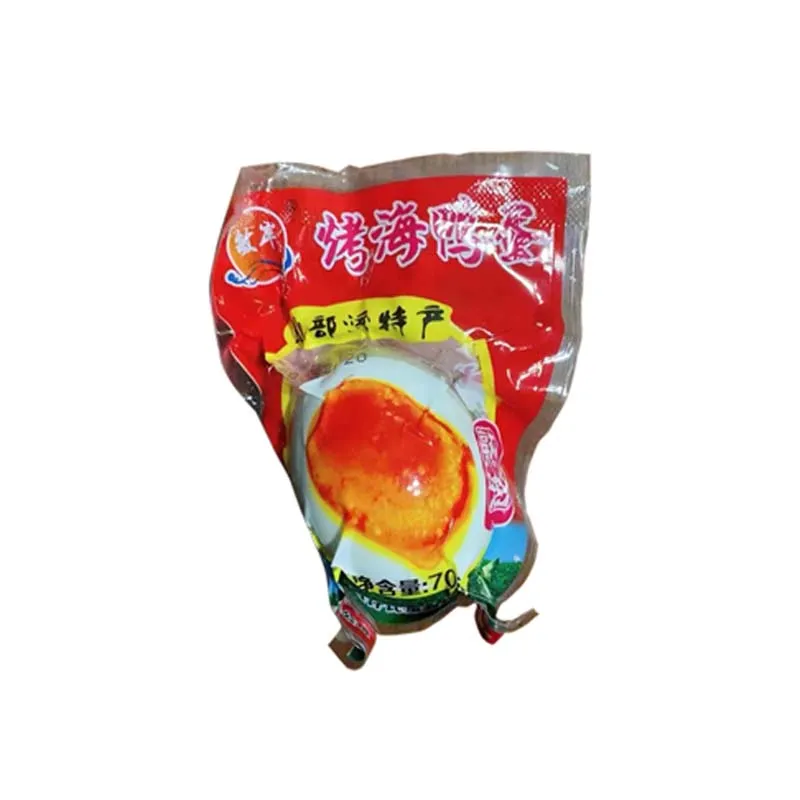

| Feature | Traditional Bag | Single Side Stretch | Double-Side Stretch |
|---|---|---|---|
| Quantity of Stretch Film | Without | Single Side | Double Side |
| Forming Depth | None | Max 120mm | Max 120mm * 2 |
| Efficiency | Low | High | Middle |
| Appearance | Standard | Uniformly Stretched | Elegant / Imitation Traditional |
Ensures tightly sealed environments, preventing air and moisture infiltration to extend shelf life by 2-3 times.
Uses 40% less material compared to traditional wrapping methods.
Complete process from forming, vacuum-sealing, to cutting is handled automatically via PLC.
| Working Parameters | |
|---|---|
| Width of Top Film | 425mm |
| Width of Bottom Film | 398mm |
| Thermoforming Temp | 70-120 °C (158-248 °F) |
| Sealing Temperature | 125-150 °C (257-302 °F) |
| Vacuum Degree | ≤200 Pa |
| Packing Speed | 6-8 cycles / min |
| Packing Capacity | 4600-5000 pieces / h |

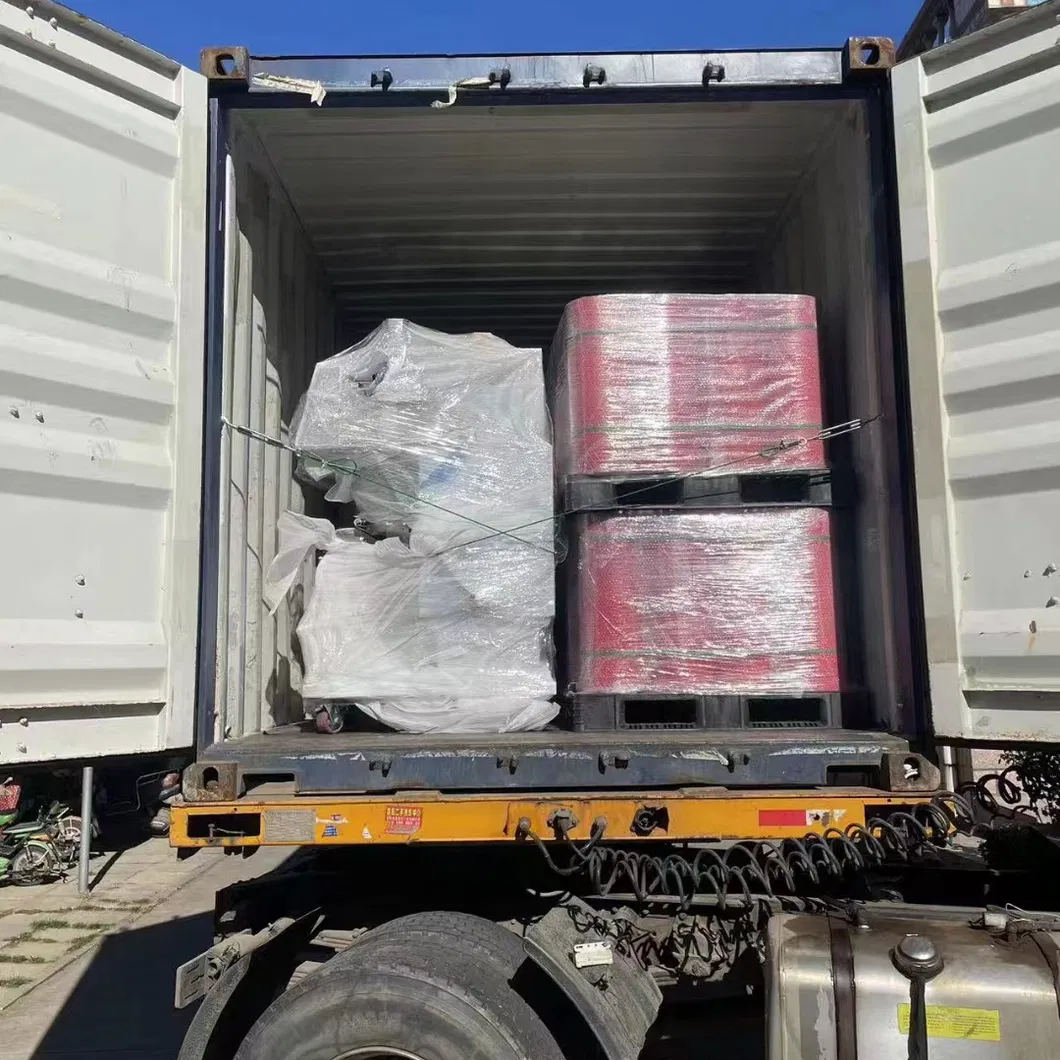

The thermoforming packaging equipment is securely packed for international transport. Dimensions: 660cm*100cm*180cm. Gross Weight: Approx 1800 kgs.
12-month full machine warranty with online guidance and installation support.
24-hour hotline, online training, and lifelong maintenance services.
Global supply centers ensure genuine parts are available whenever needed.
