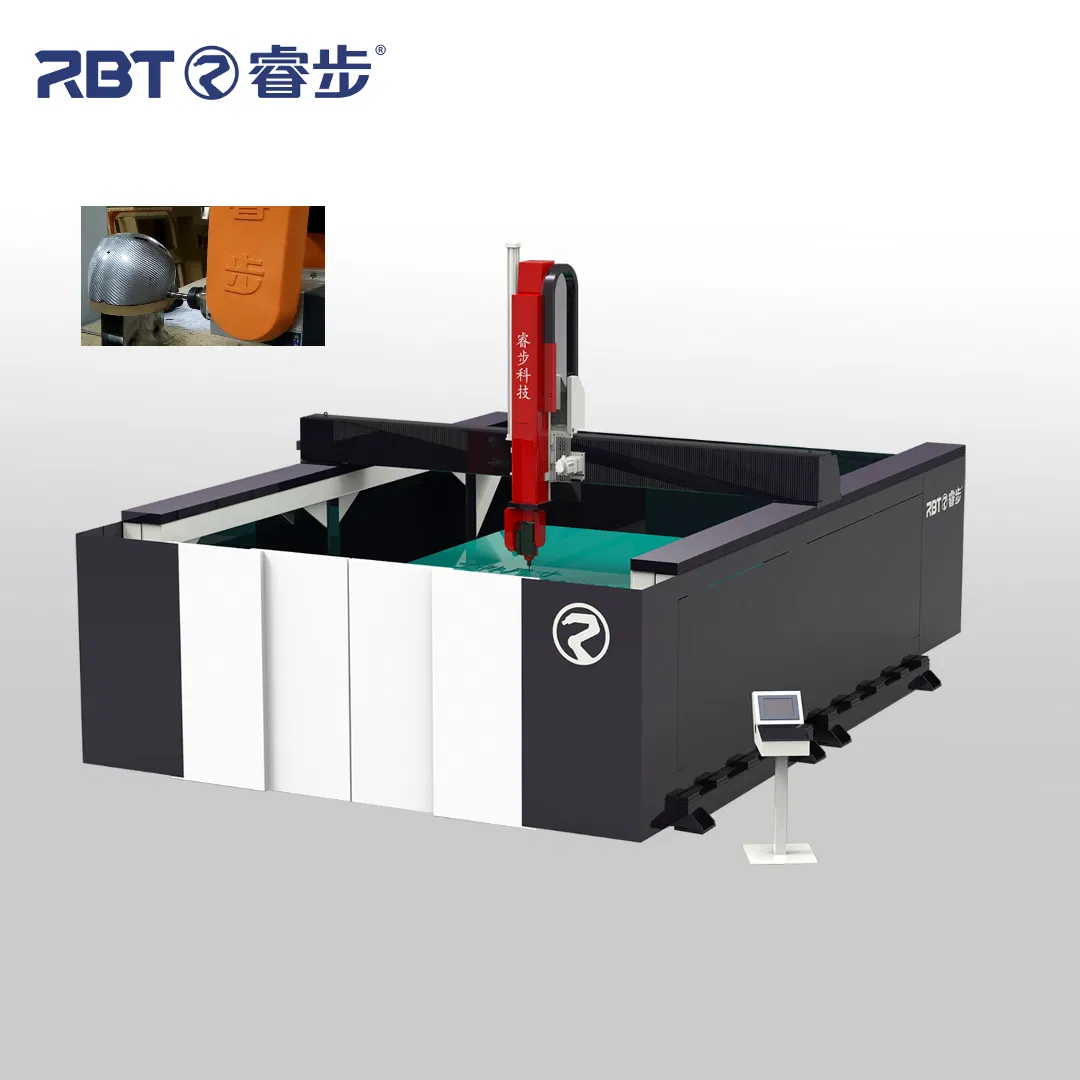

5 Axis Cutting Machine Drilling Machine for Vacuum Forming Parts

1 / 5

5 Axis Cutting Machine Drilling Machine for Vacuum Forming Parts

Customization:	Available
After-sales Service:	Technical Support, Online Support, Spare Parts
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model NO.RB-H5-2115-Z08

X Axis Stroke2500mm

Y Axis Stroke2000mm

Z Axis Stroke820mm

B-Axis Rotation+/- 130 Degree

C-Axis Rotation+/- 540 Degree

Max Speed (X/Y)50m/Min

Repeat Accuracy+/-0.05mm

Voltage380V

Total Power13.95kw

Spindle Power3kw (Customizable)

Weight3.9t

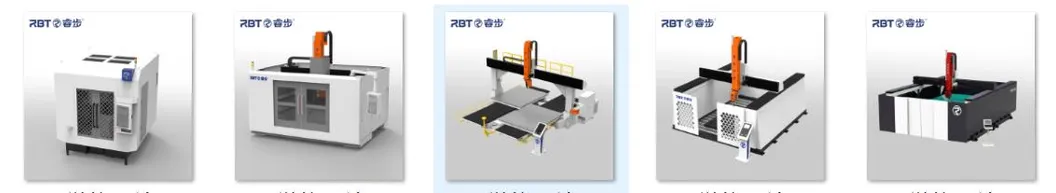

5 Axis Cutting & Drilling Solution

High-performance non-metal five-axis machining center designed for vacuum forming parts. This system drives the tool across five coordinate axes, enabling five-axis linkage three-dimensional movement for complex pentahedron and curved surface processing.

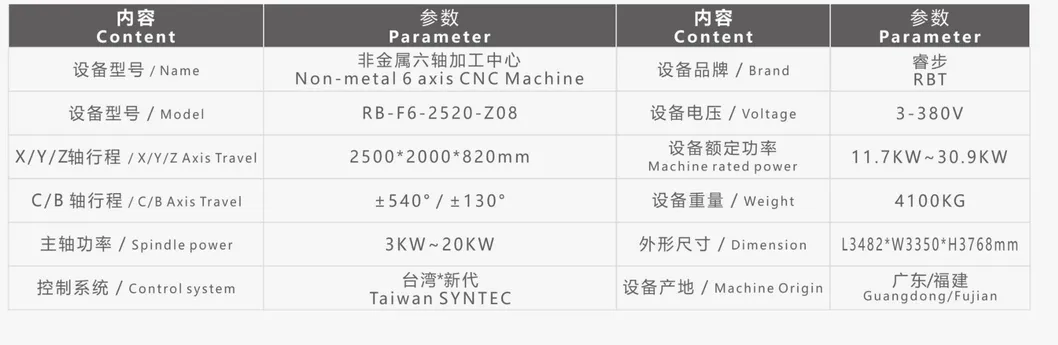

Technical Parameters

Machine Functions & Features

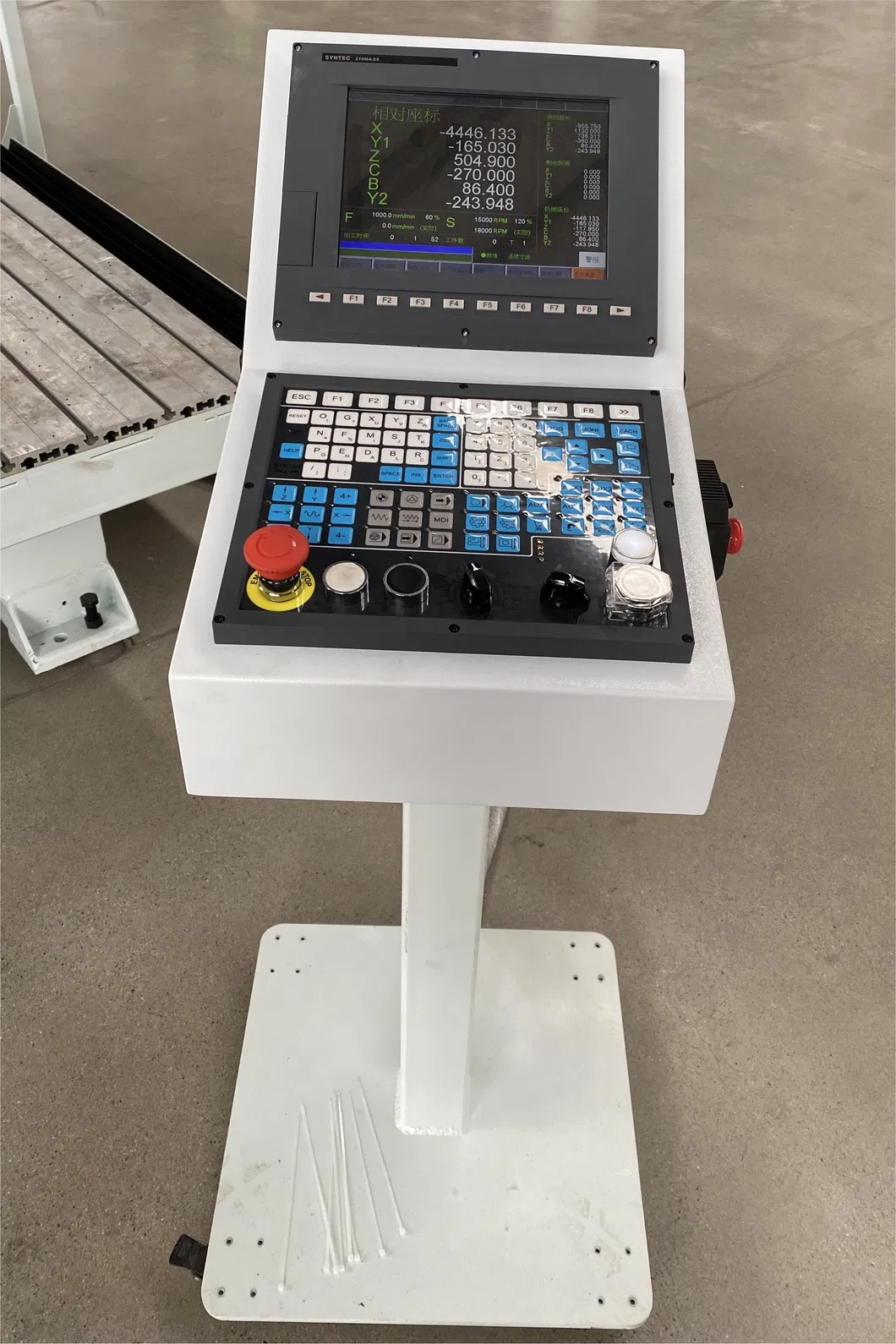

Adopts SYNTEC five-axis linkage CNC system for power, speed, and precision.

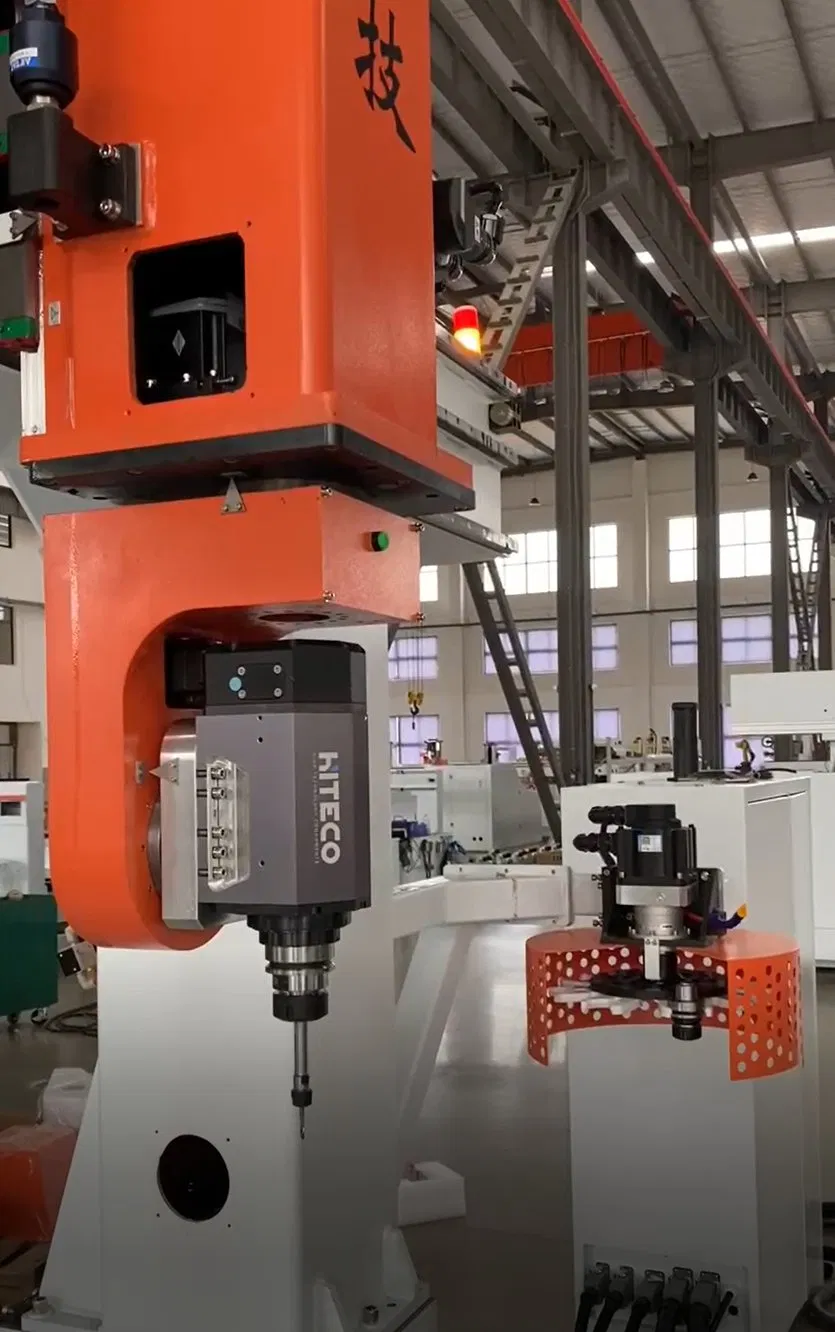

Equipped with automatic tool change, dust collection, and RTCP functions.

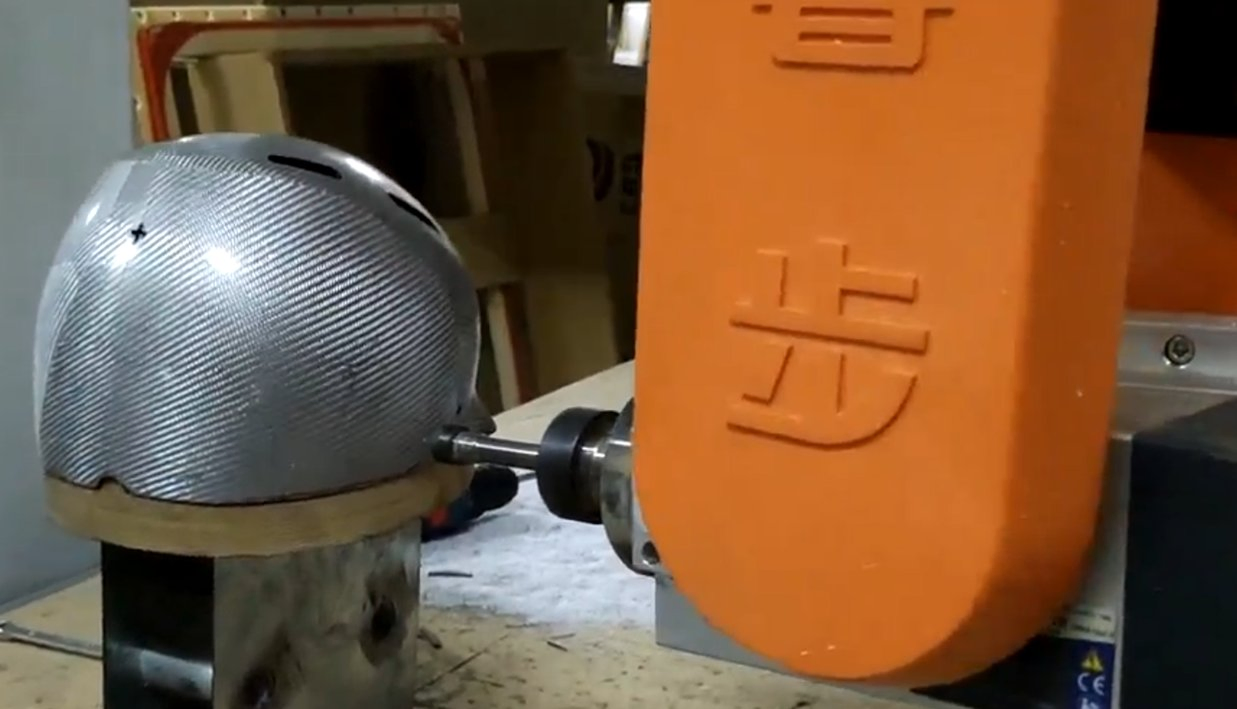

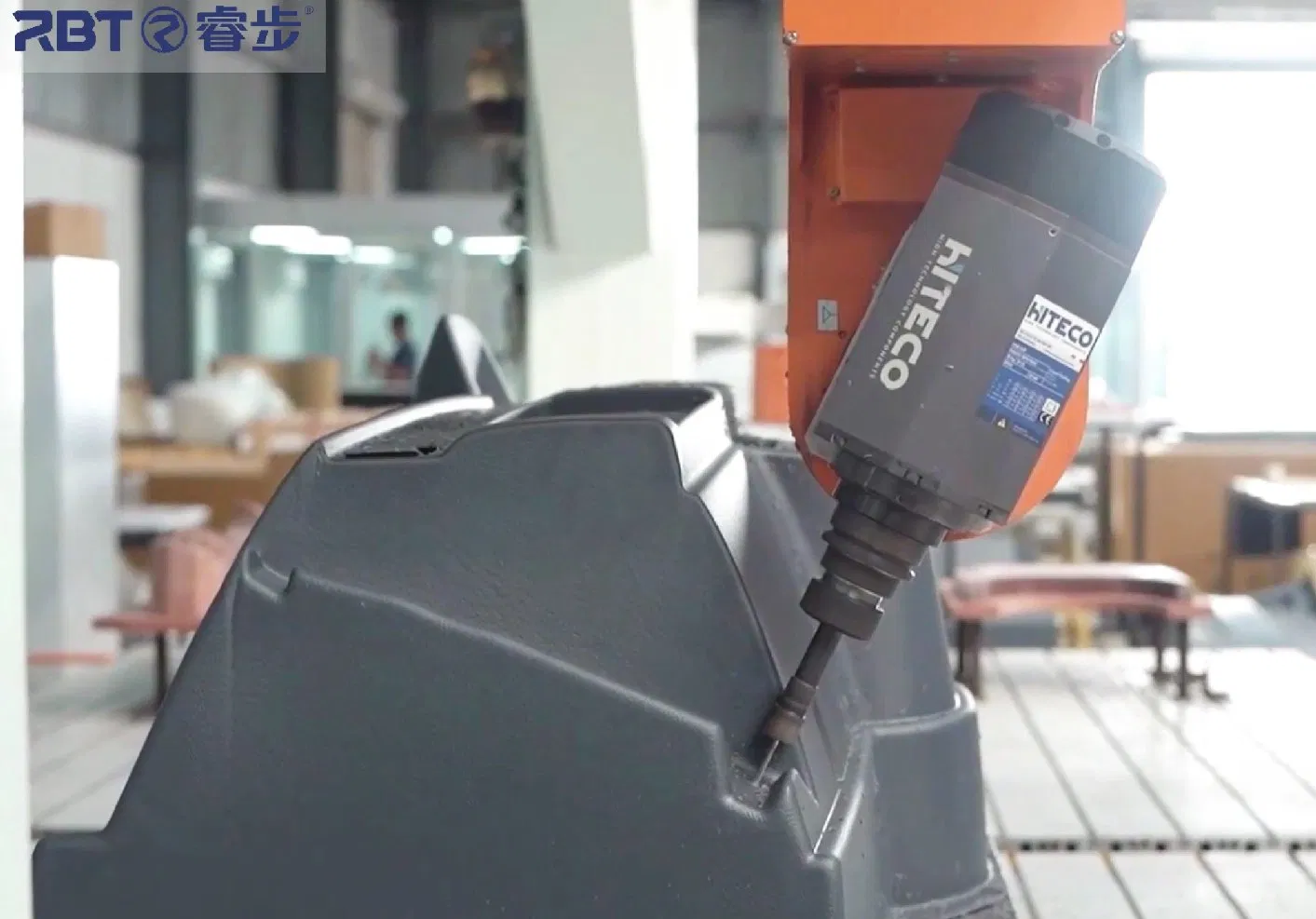

Ideal for thermoformed plastic or composite material trimming, drilling, and multidimensional cutting.

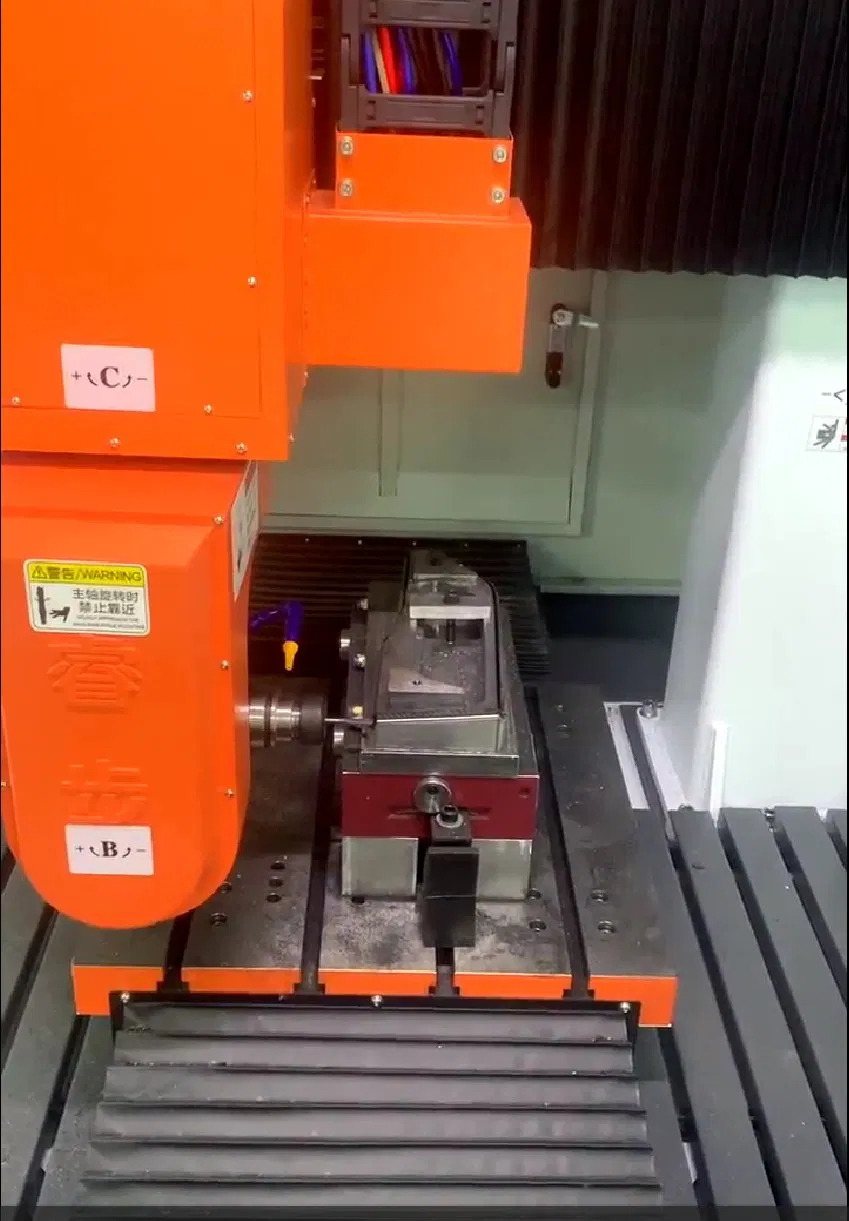

Imported double swing head spindle allows 360° rotation for complex side drilling.

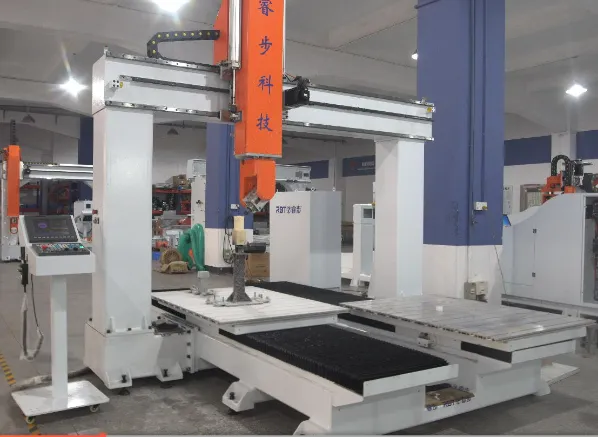

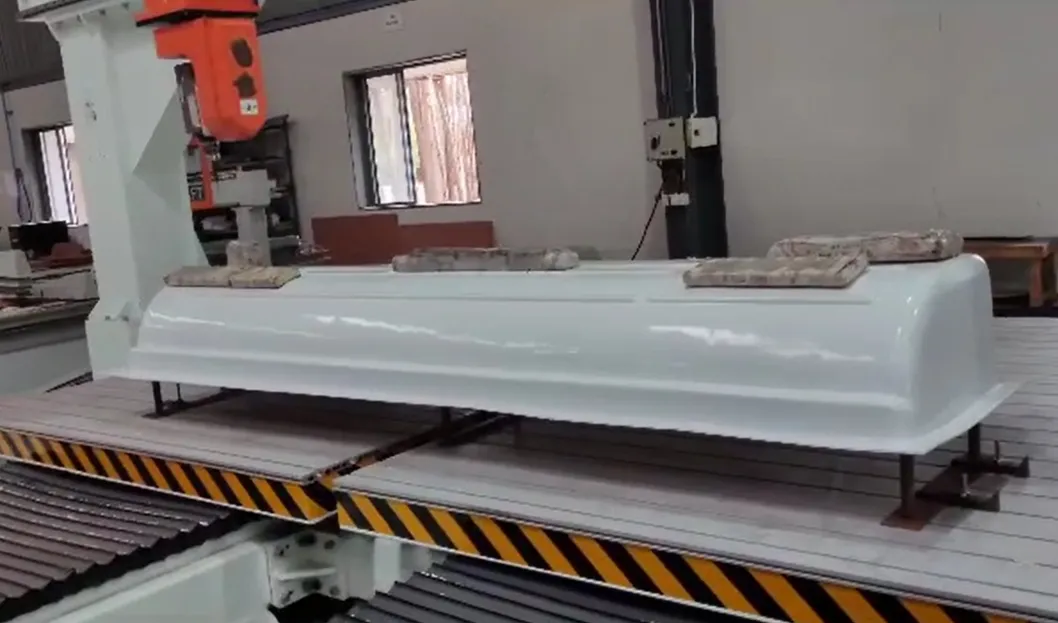

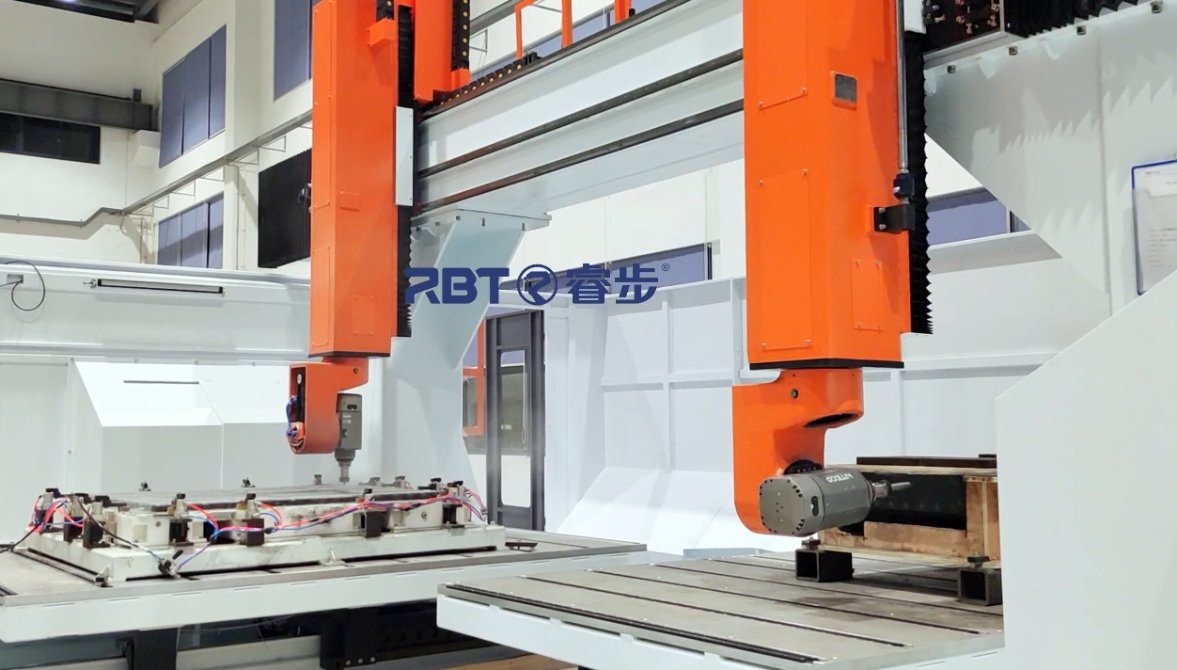

Dual independent cutting platforms allow simultaneous loading/unloading to double production efficiency.

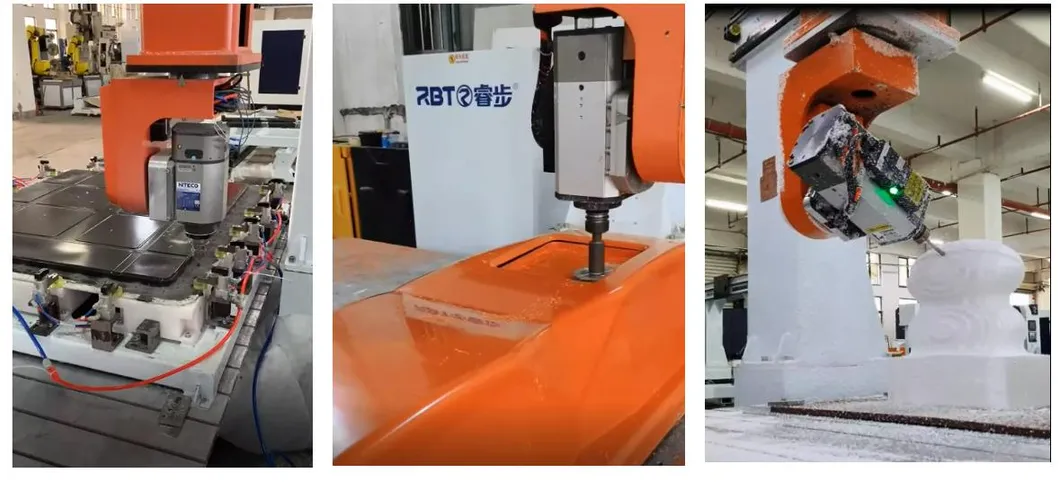

Applications & Materials

Composite Materials: Carbon fiber (PCM/RTM/SMC/LFT), glass fiber, carbon/carbon.
Plastics: ABS, PVC, PC, PP, PS, PE, PET, HDPE, PETG, Acrylic.
Others: High-density sponge, Styrofoam, wood, stone, plaster.

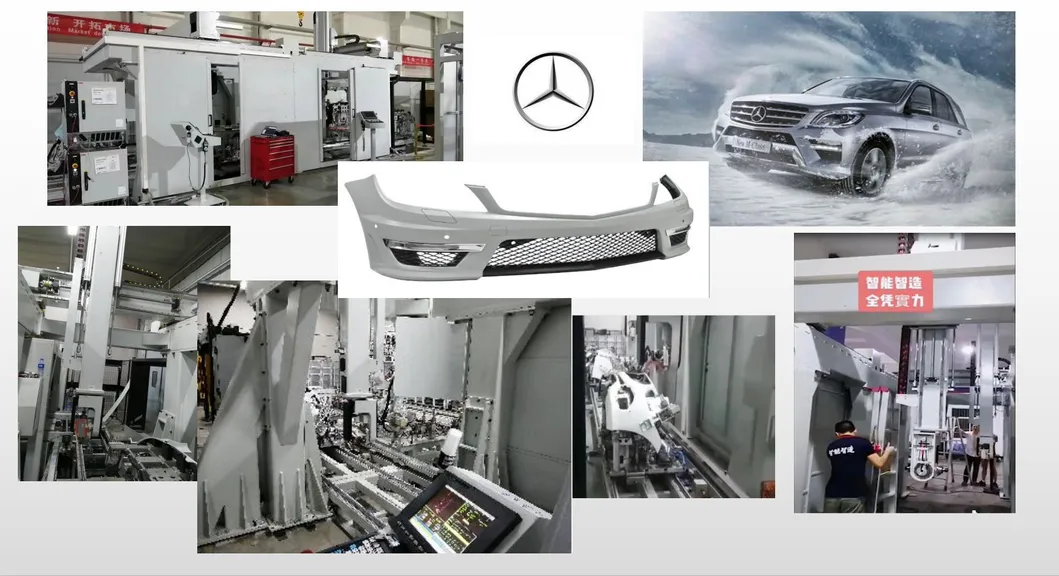

Successful Cases & Quality Control

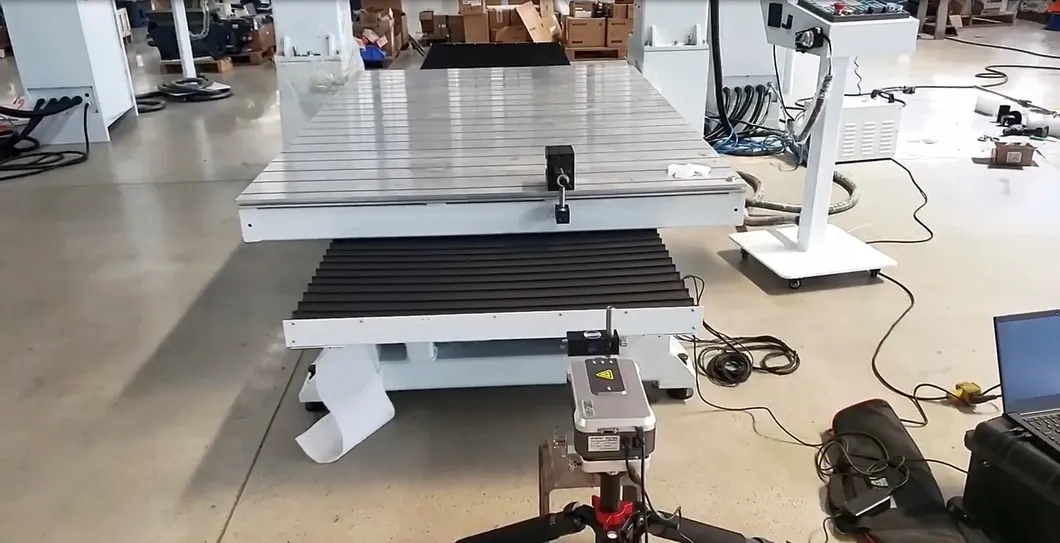

Position measurement and calibration: Utilizing laser interferometers to ensure maximum precision.

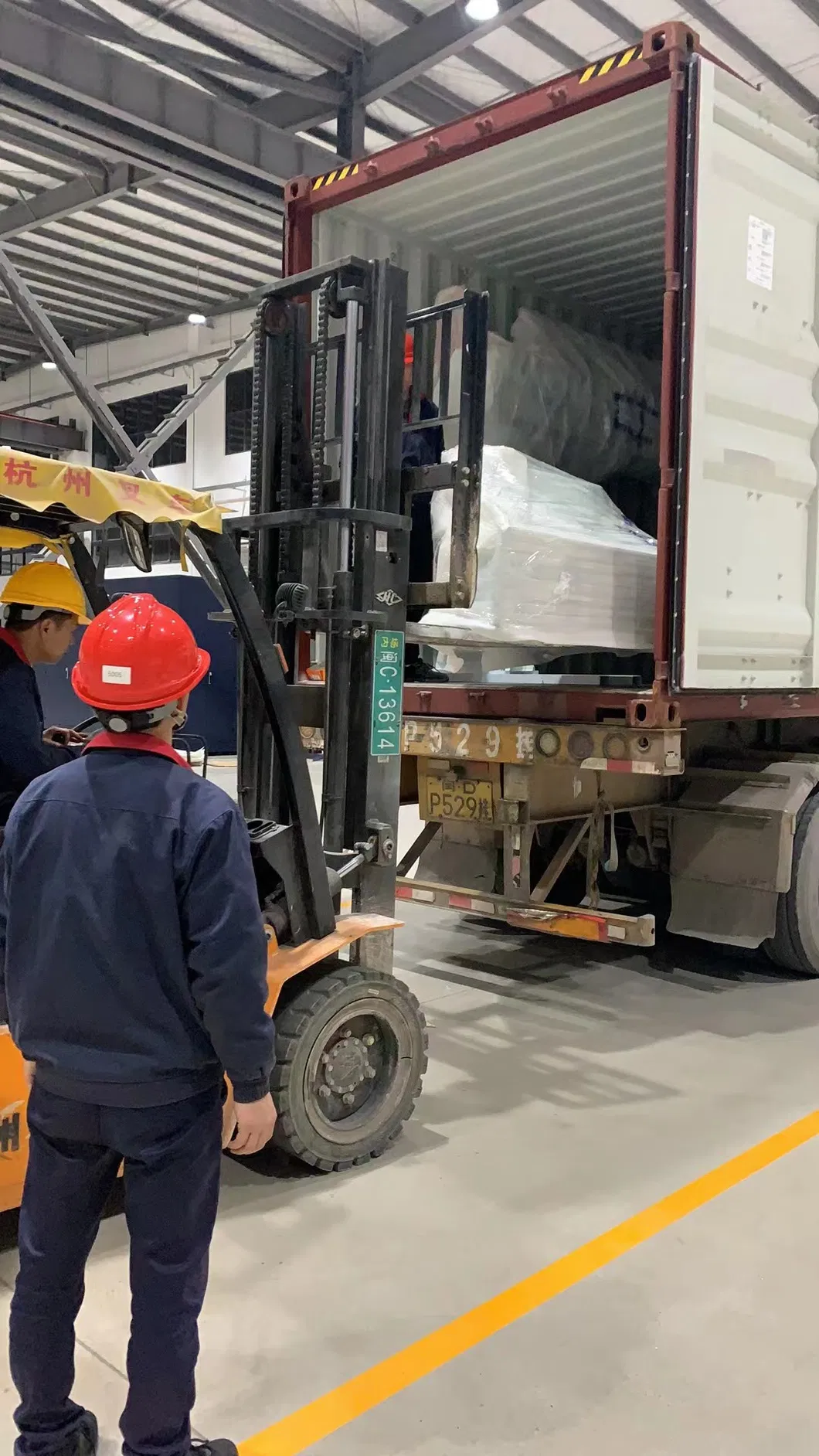

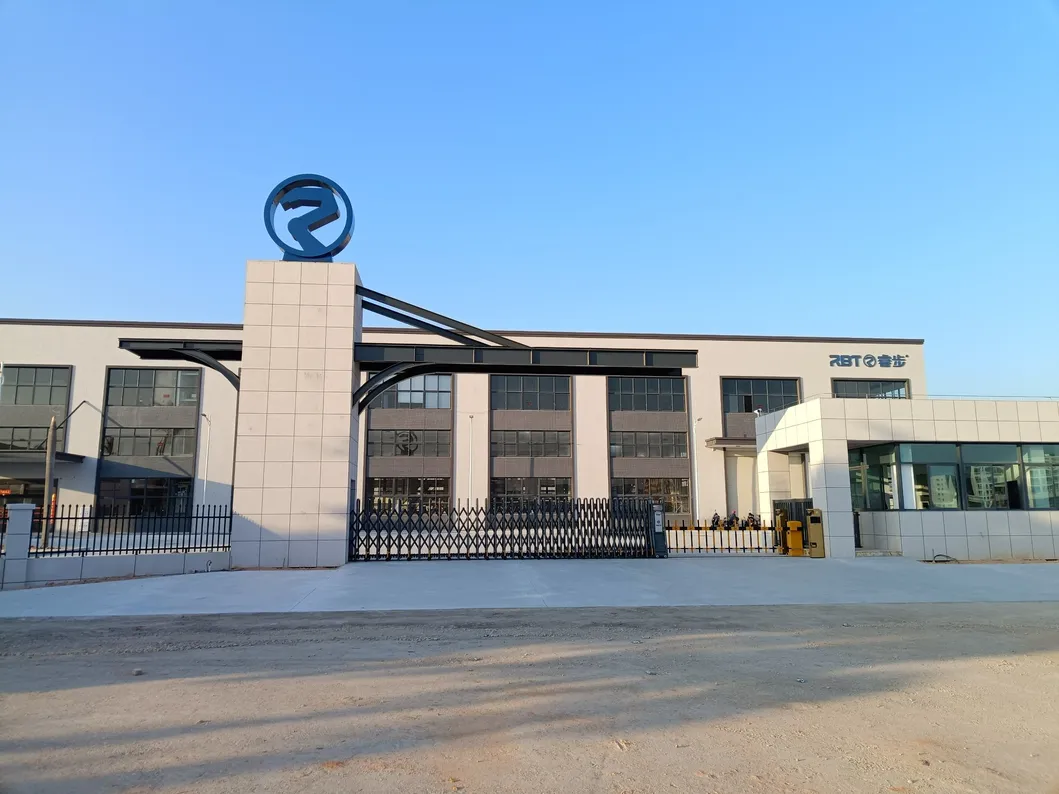

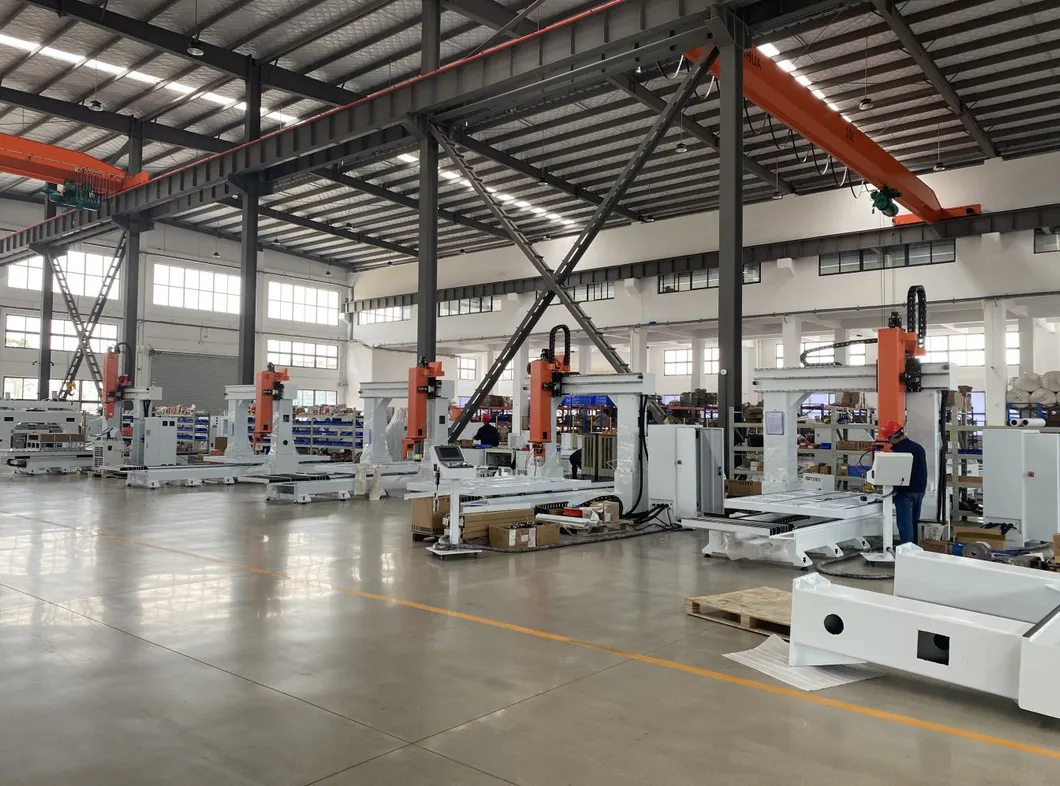

Workshop & Delivery

Frequently Asked Questions

How do I visit your factory?

Our factory is located in Fujian Province, China. You can fly to Jinjiang or Xiamen airport, and we will arrange to pick you up.

Can you customize machines based on specific requirements?

Yes, we have a professional R&D team. Machines can be customized based on your products, samples, or technical drawings.

Do you offer sample testing services?

We can provide sample testing based on your technical drawings to verify machine performance before purchase.

What is the Minimum Order Quantity (MOQ)?

Our standard MOQ is 1 set.

What is your quality testing process?

Every machine undergoes 100% testing and calibration before delivery to ensure operational accuracy.

What kind of after-sales support do you provide?

We provide online video guidance and conferencing. If required, technicians can be sent to your site for installation and training for a period of 7 days.
