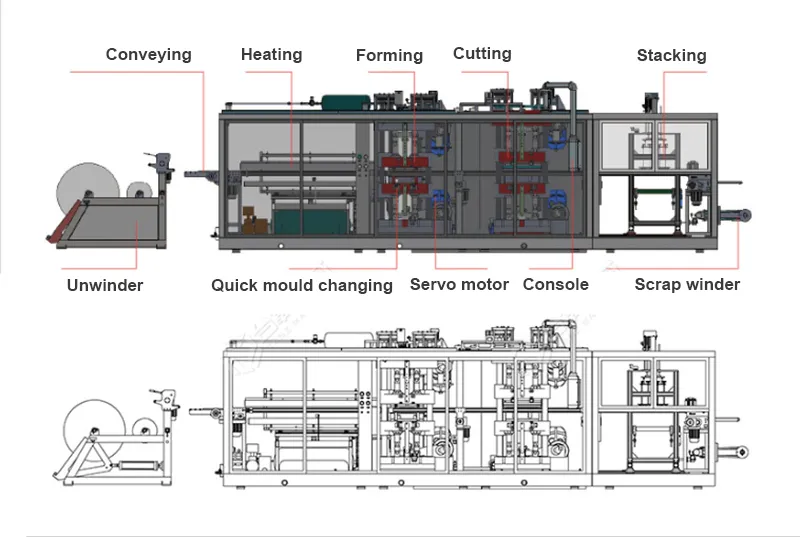

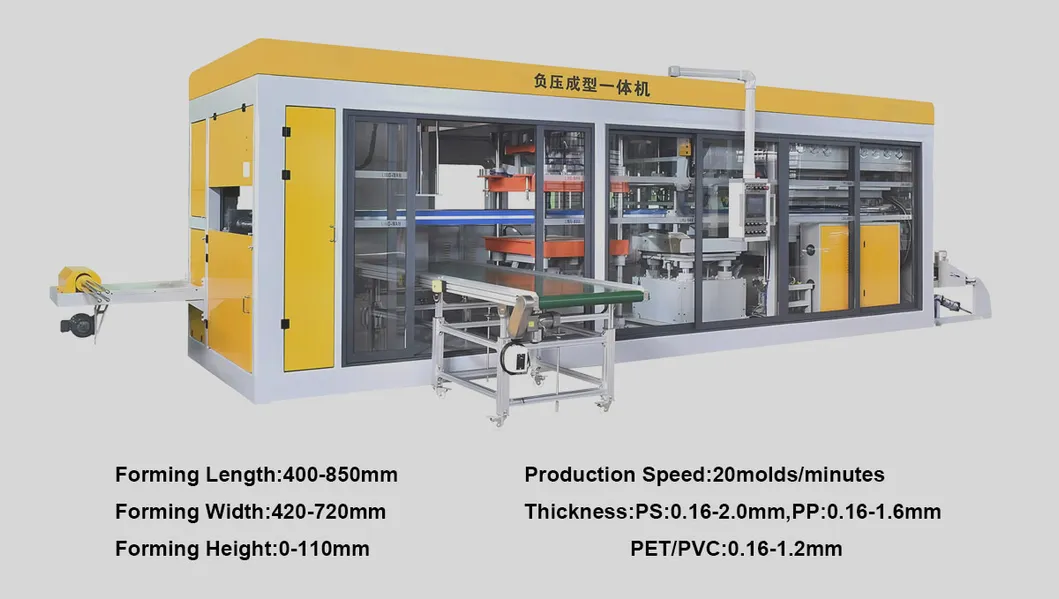

Fully Automatic Three Stations Negative Pressure Thermoforming Machine
1. Fully servo-driven system, noiseless and vibration-free, ensuring high speed and excellent thermoforming quality.
2. Automatic discharge device lowers during production to prevent board breakage and minimize material waste.
3. Electric furnace with intelligent automatic compensation control for uniform temperature and rapid heating.

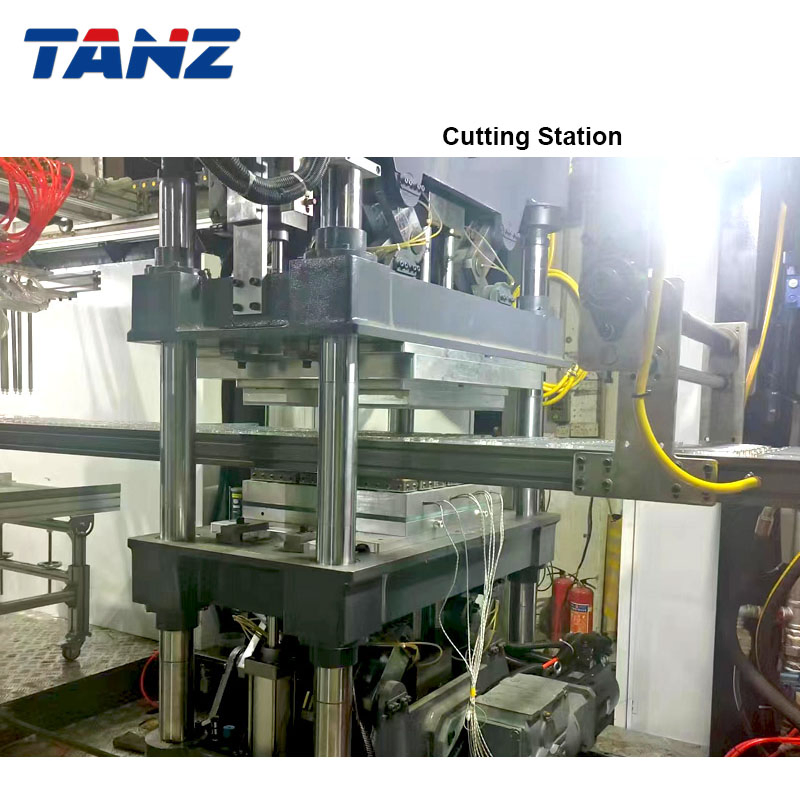

4. Servo-driven forming and cutting die with adjustable dual-direction strokes for upper and lower molds.

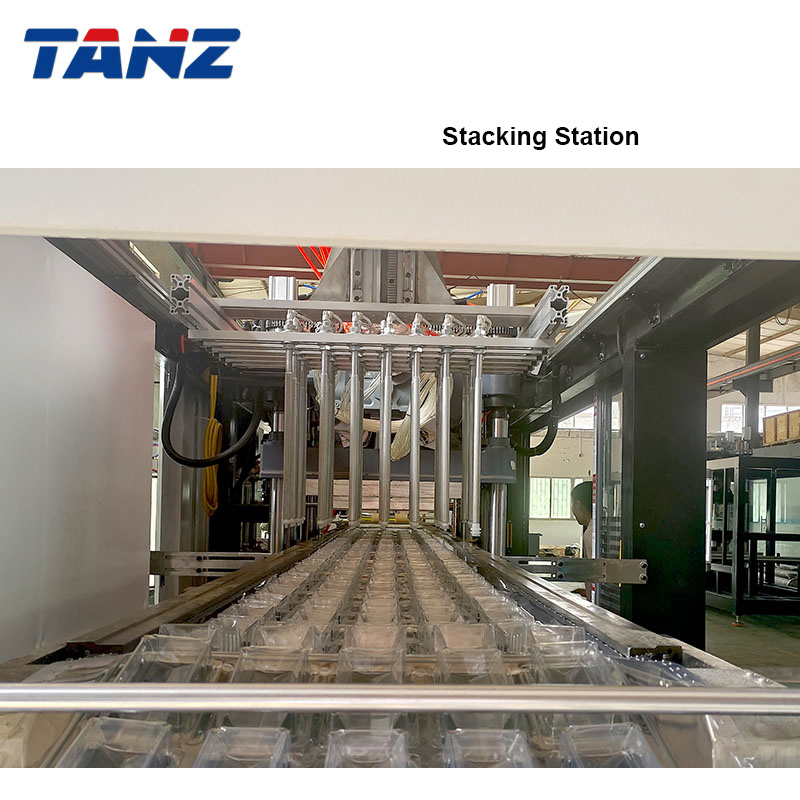

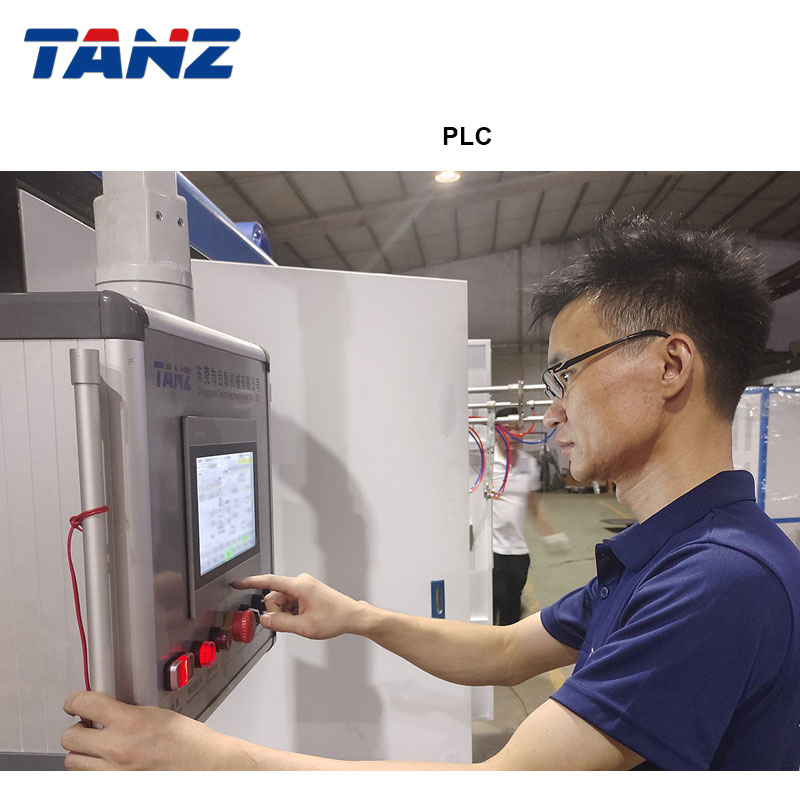

5. PLC-controlled automatic cutting, counting, and conveying, requiring only 1-2 operators for high efficiency.
| Parameter | Specification |
|---|---|
| Model | TZ-7695 |
| Forming Method | Negative Pressure Forming |
| Mould Size (Max.) | 760*950mm |
| Forming Depth (Max.) | Standard 120mm (Custom up to 150mm) |
| Sheet Thickness | 0.16-2.0mm |
| Forming Speed (Max.) | 20 times/min |
| Air Pressure | 0.6-0.8mpa |
| Sheet Width (Max.) | 430-790mm |
| Suitable Materials | PP, PS, HIPS, PET, PVC, PLA |
| Heating Power | 90KW |
| Rated Power | 120Kw |
| Weight | Approx. 11T |

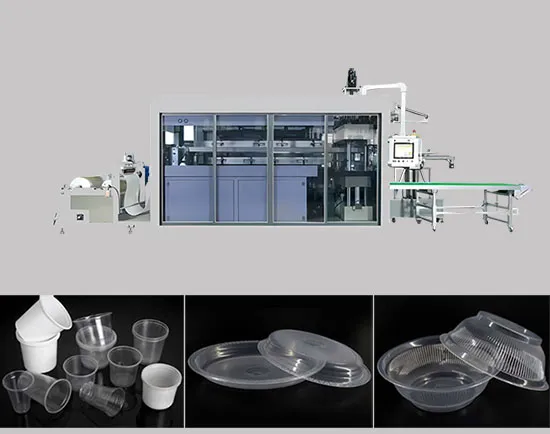

This equipment is ideal for producing high-transparency and high-tensile thermoplastic products (0.15 - 2.0 mm) including:

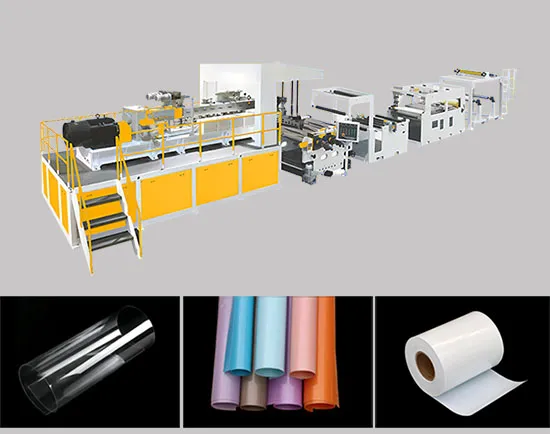

Plastic Sheet Extrusion Machines

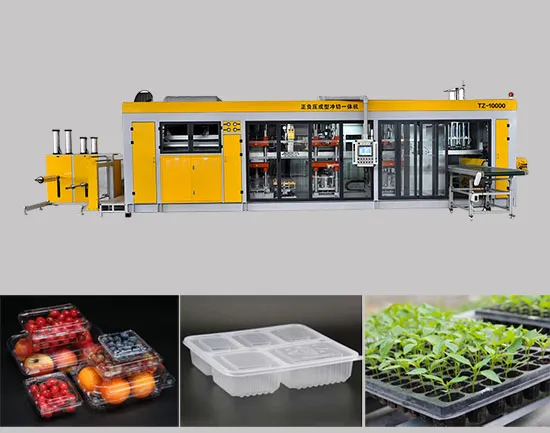

Plastic Cup Making Machine
Specialized team providing professional suggestions for the entire production workflow.
Independent department arranging global delivery with famous shipping companies for economic logistics.
Technical dispatch available for factory setup and hand-to-hand operator training.
One-year guarantee for all machines with lifetime technical support.
