Basic Information
Application
Machinery & Hardware
Computerized
Non-Computerized
After-sales Service
1 Year
Core Components Warranty
1 Year
Type
Vacuum Forming Machine
Applicable Industries
Manufacturing Plant
Dimension (L*W)
4500*3200mm
Product Description
Automatic vacuum forming machine, easy to operate, one hour can produce approximately 16 formings.
Expert manufacturer of both vacuum forming machines and acrylic/ABS bathtubs and shower trays.

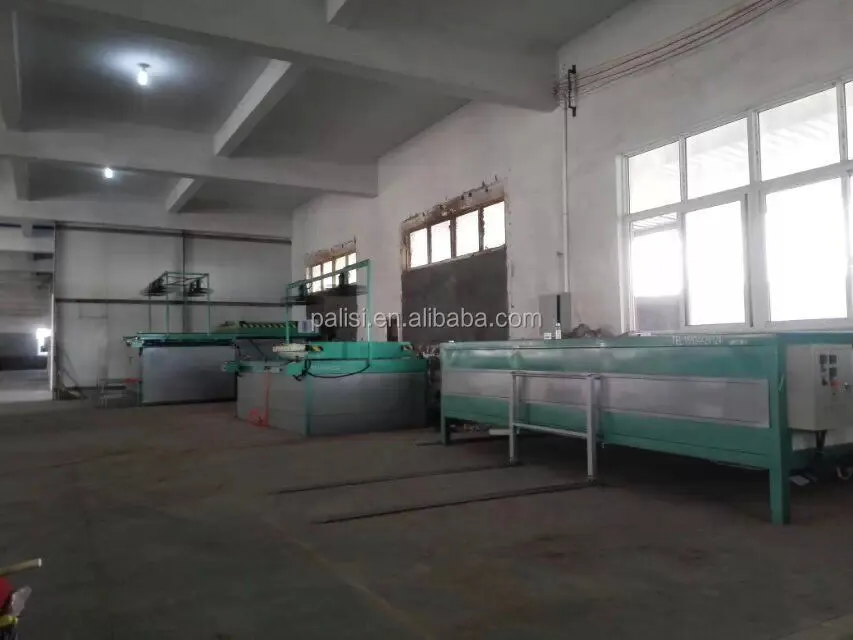

Required Devices for Bathtub Production Line
Acrylic bathtub vacuum forming machine
Air and vacuum system (Vacuum pump, vacuum tank, air compressor, air tank)
Edge trimming machine (for cutting bathtub and shower tray edges)
Resin and stone powder mixer
Fiber glass and resin spray gun (manual option available)
Bathtub designs and bathtub moulds
Forming Machine Technical Specifications

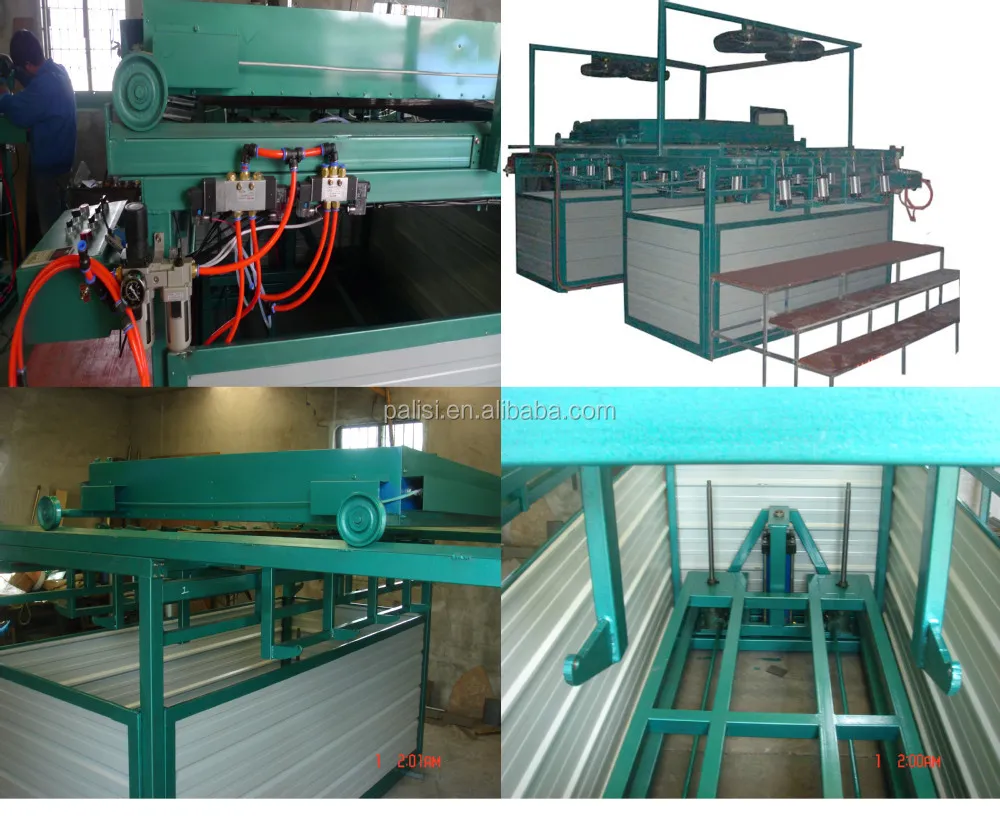

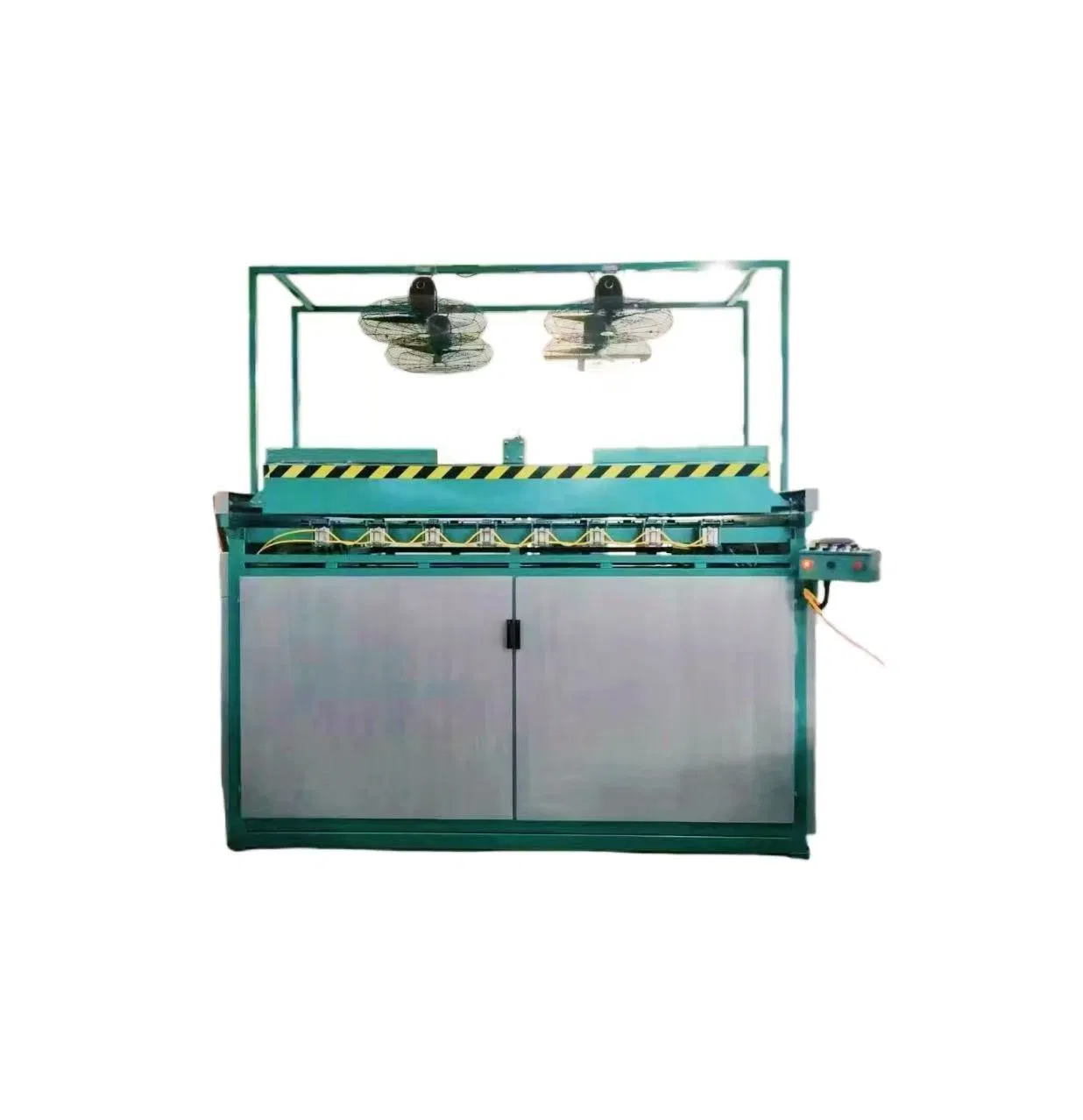

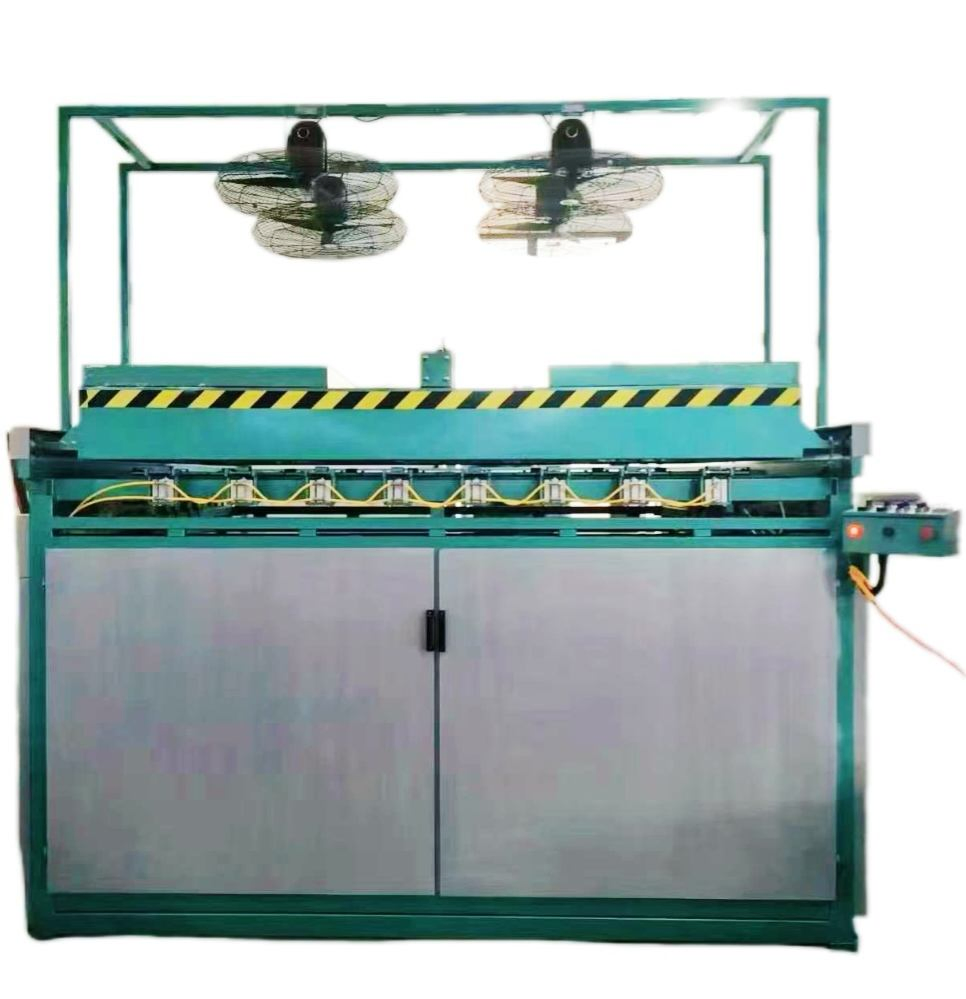

Model: DGW-SP-1520 fast heating single workstation automatic forming machine. Designed for ABS, acrylic bathtubs, and wash basins. Compact structure and high forming precision.

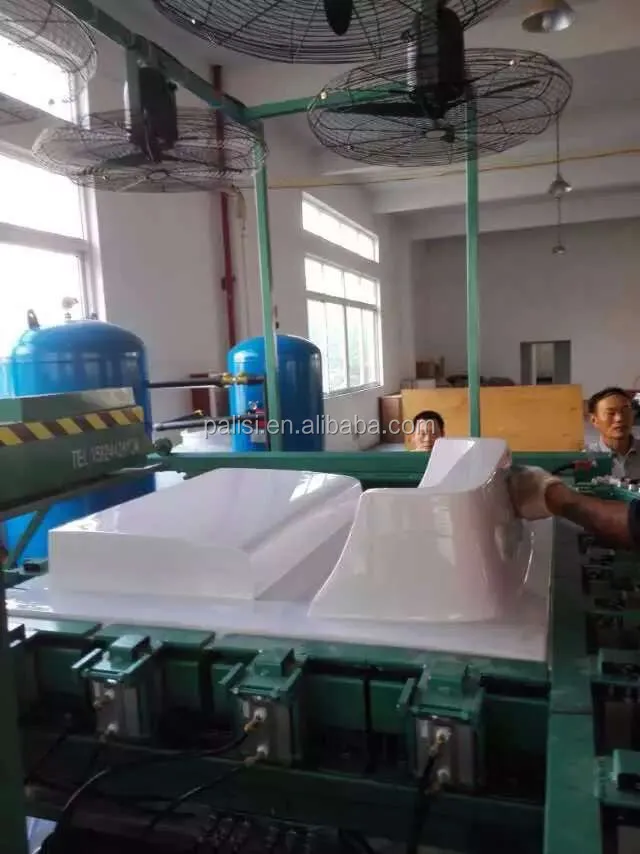

- Heating elements: Electric heating evenly distributed
- Power consumption: 42KW (adjustable based on product size)
- Power supply: 380V three phase and N wire
- Temperature control: Left, middle, right automatic control
- Up heating cover furnace: Pneumatic moving
- Maximum vacuum forming area: 1500x2000mm
- Mould adjustment: Electric adjustment and pneumatic lift (pressure 2000KG)
- Lifting distances: Electric adjust 550mm, pneumatic lifting 350mm
- Vacuum systems: Manual vacuum aspiration and exhaust systems
- Cooling: Integrated cooling fan
- Control: Manual operation control
- Weight: 1800kgs | Dimension: 4500x3200mm
Technical Support and Training Skills
Comprehensive training is available for the whole production line setup, including:
Connecting moulds to forming machines and vacuum pipes
Connecting air pipes to compressors and tanks
Resin and fiber glass spraying techniques
Chemical mixing ratios (Blue/White chemicals, resin, CaCO3) for different weather conditions
Timing for resin spray steps and oven heating control
Acrylic board softness evaluation and forming area adjustment
Creating holes for bathtub drains and edge trimming
Fitting stainless steel frames and final packaging

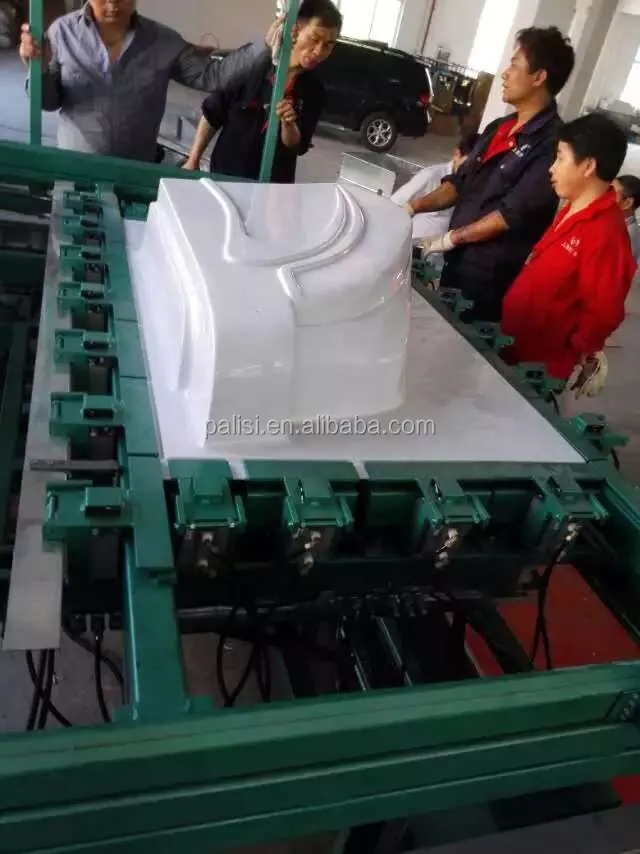

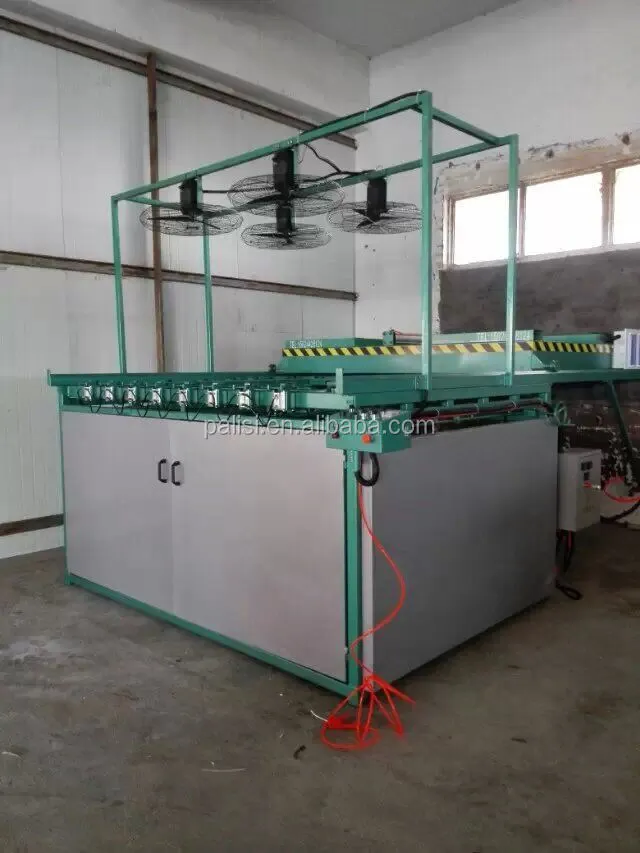

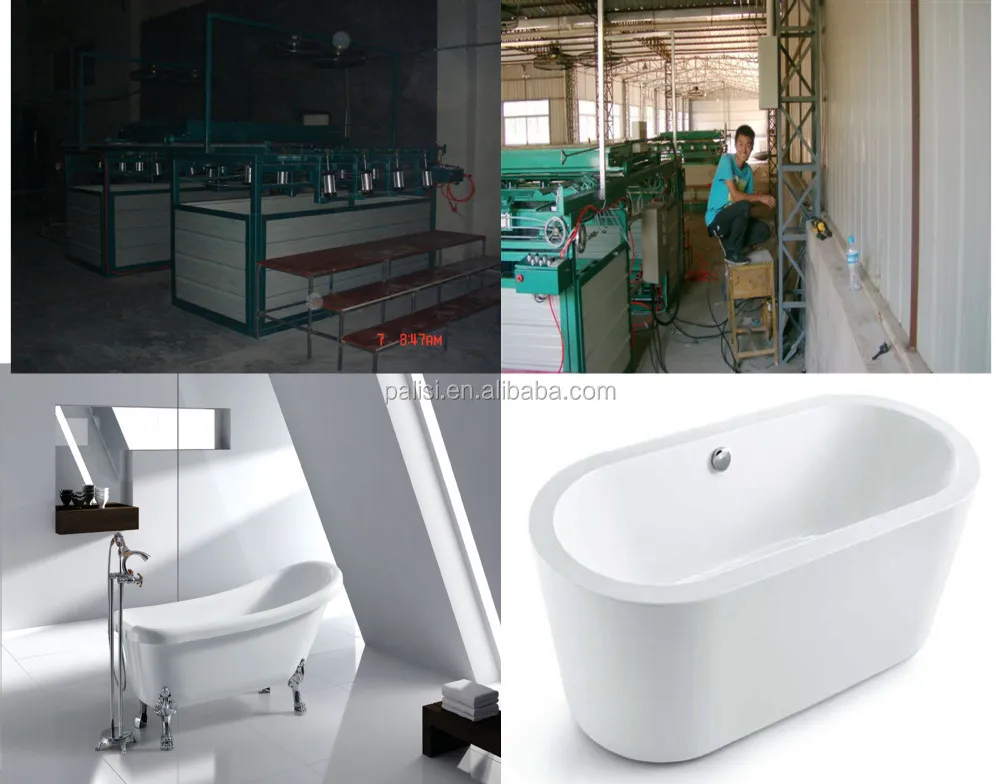

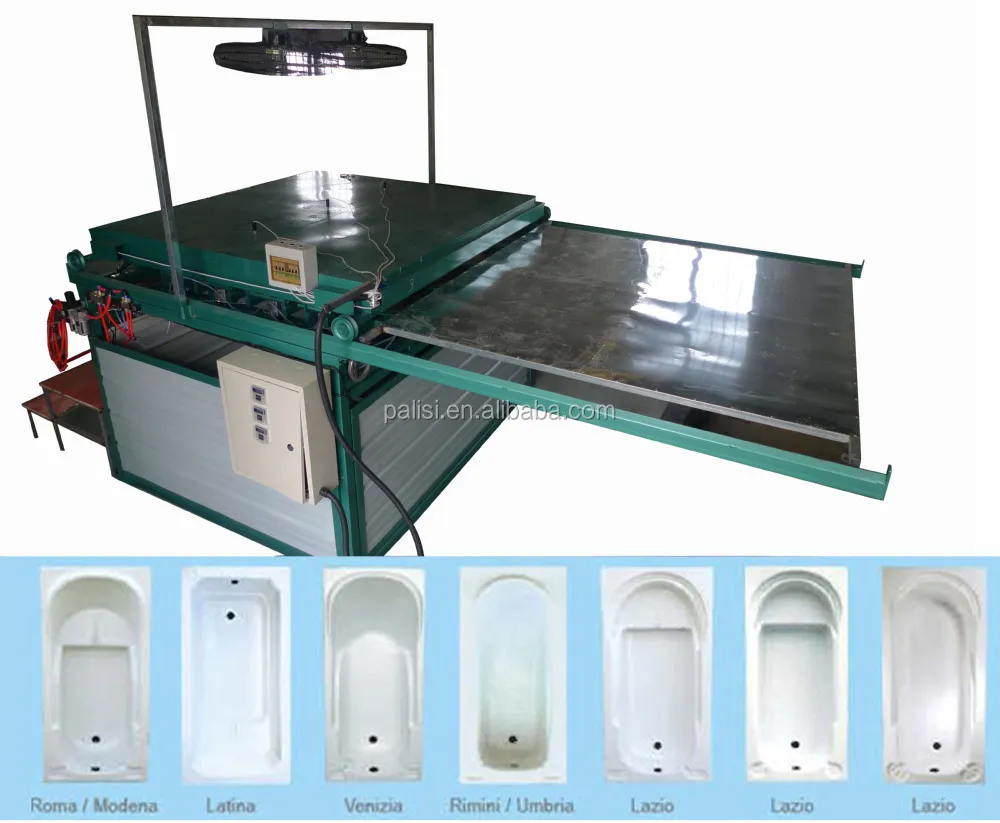

Product Visuals
Frequently Asked Questions
What is the production capacity of this machine?
The automatic vacuum forming machine can produce approximately 16 formings per hour.
What materials can be processed with this equipment?

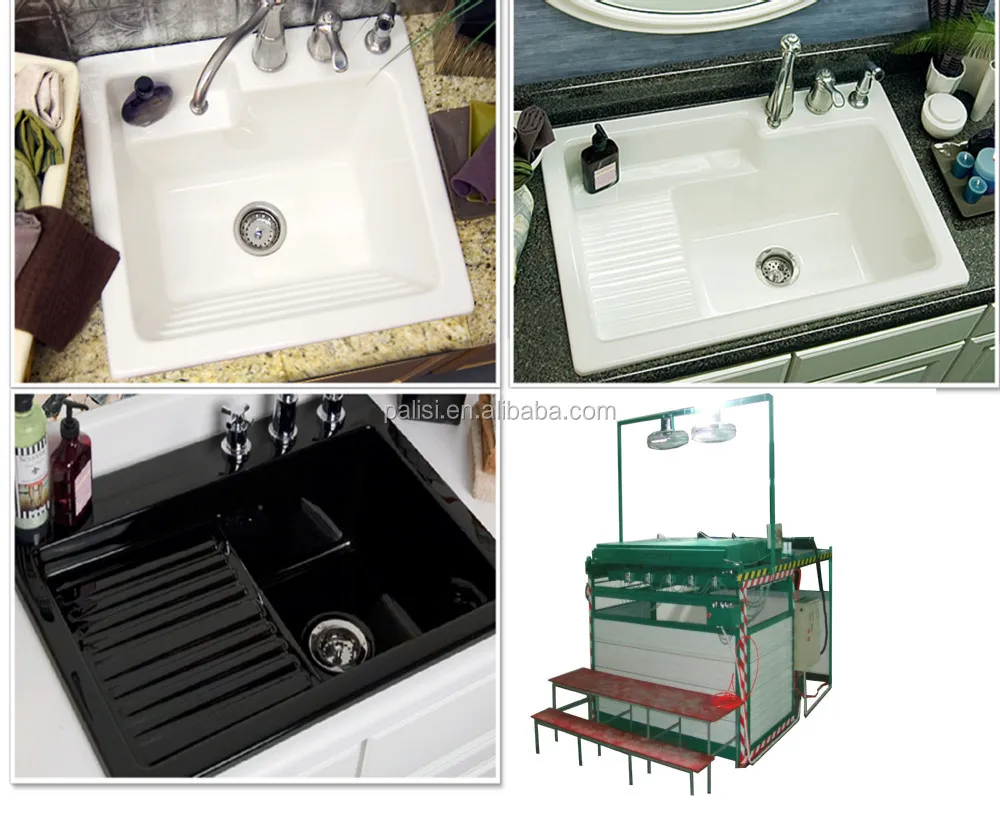

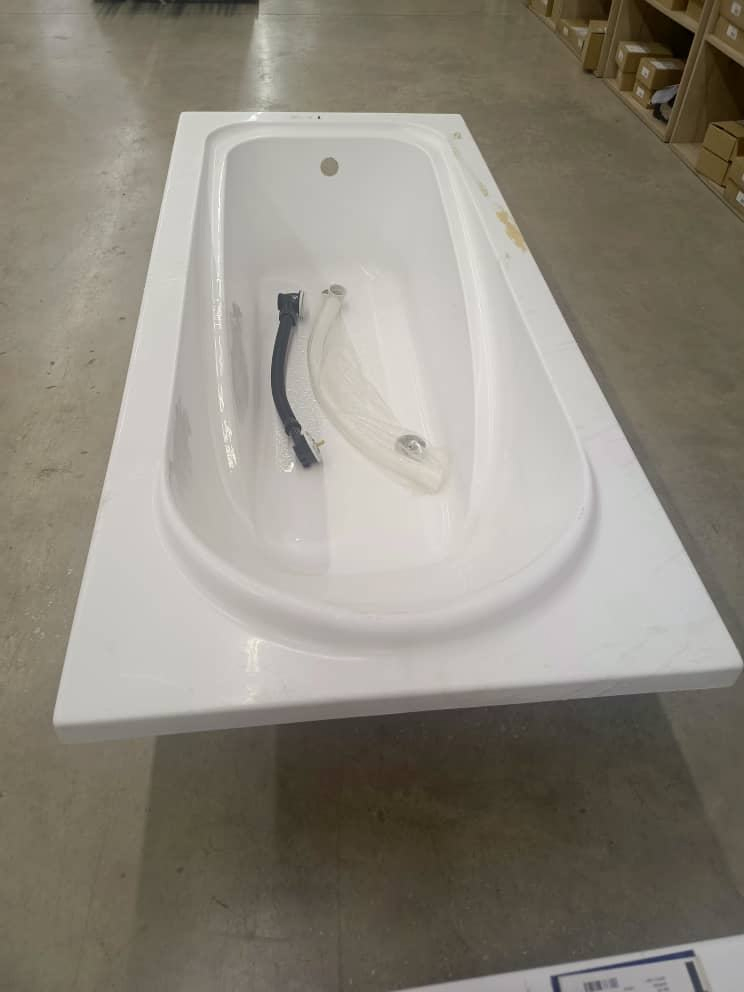

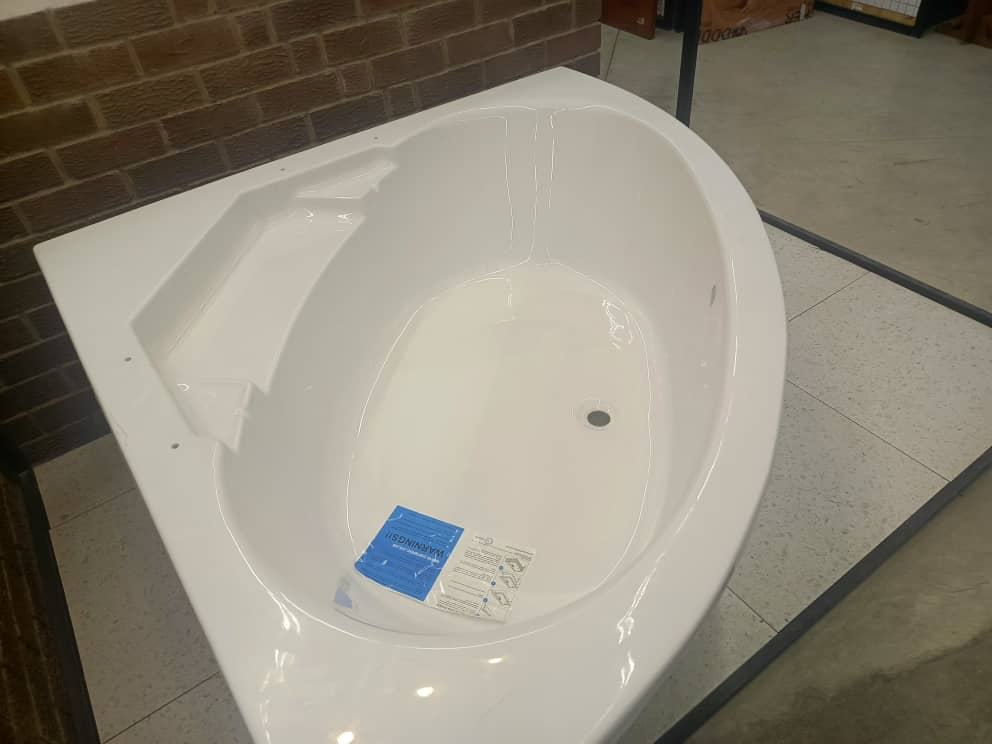

This machine is specifically designed for ABS and Acrylic sheets, commonly used for bathtubs, sinks, and shower trays.
What is the maximum forming size?
The largest vacuum forming area is 1500mm x 2000mm, with a maximum forming height of 600mm.
Does the machine support automatic temperature control?
Yes, the machine features automatic temperature settings for left, middle, and right zones to ensure even heating.
Do you provide technical training for bathtub making?
Yes, we offer comprehensive training covering everything from mould connection and chemical mixing to resin spraying and final product trimming.
What are the power and voltage requirements?
The machine operates on a 380V three-phase power supply with a total power consumption of 23-45KW depending on the heating zones used.
