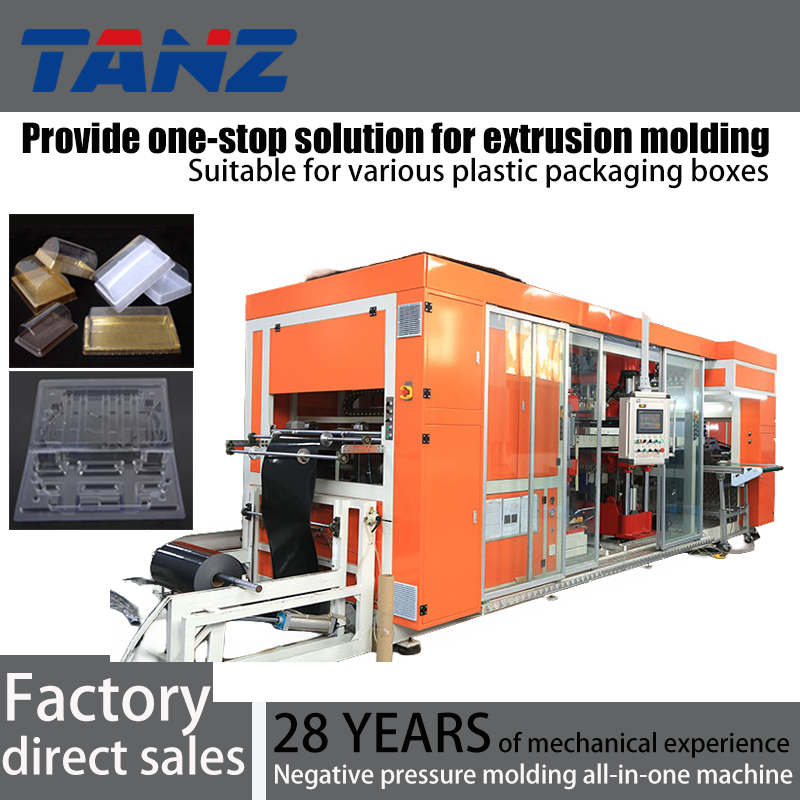

Blister Molding Length Adjustable Thermoforming System

Customization:	Available
After-sales Service:	Lifetime Maintenance (Except Man-Made Damage and N
Warranty:	1 Year

i

Basic Information

Model NO.:TANZ-B

Certification:CE, ISO

Molding Method:Pultrusion

Automatic Grade:Automatic

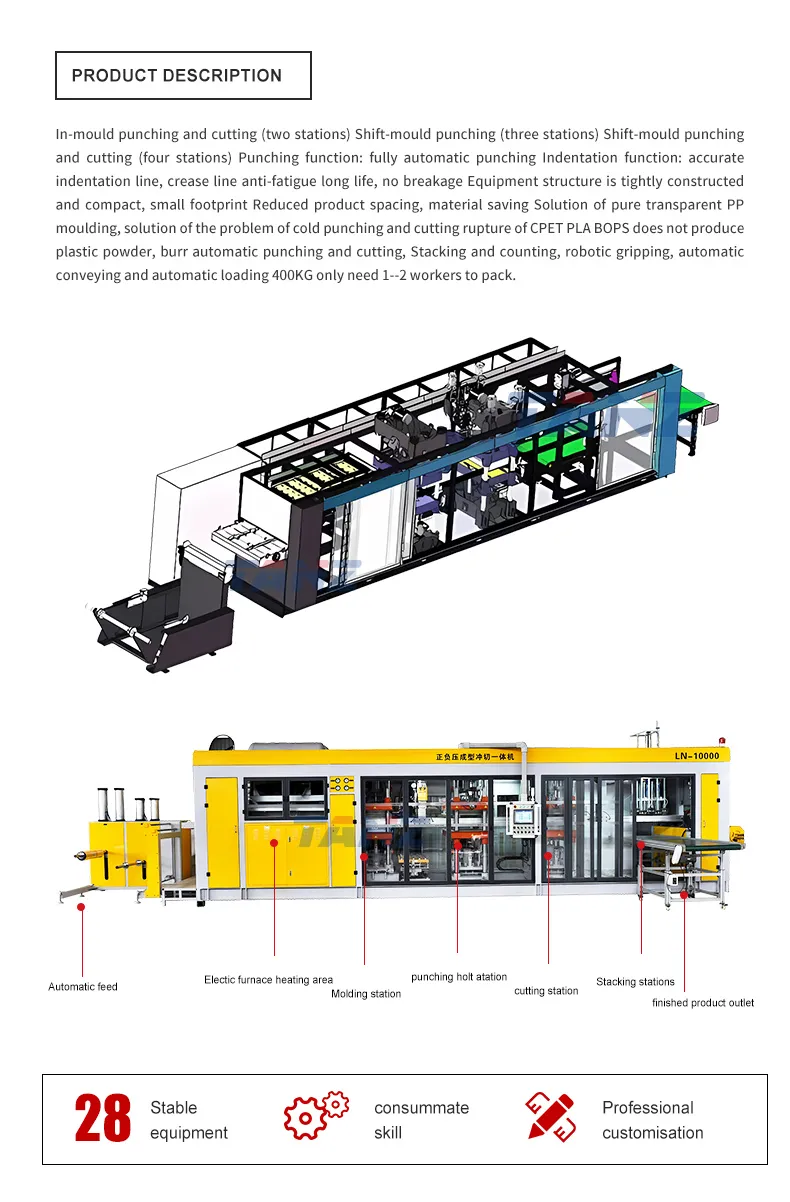

Work Station:Forming, Punching and Stacking

Blister Molding Length:450-850mm

Blister Molding Width:420-720mm

Cooling System:3HP Chiller

Temperature Control:84 Groups (One Touch Screen)

Production Capacity:500 Sets per Year

★

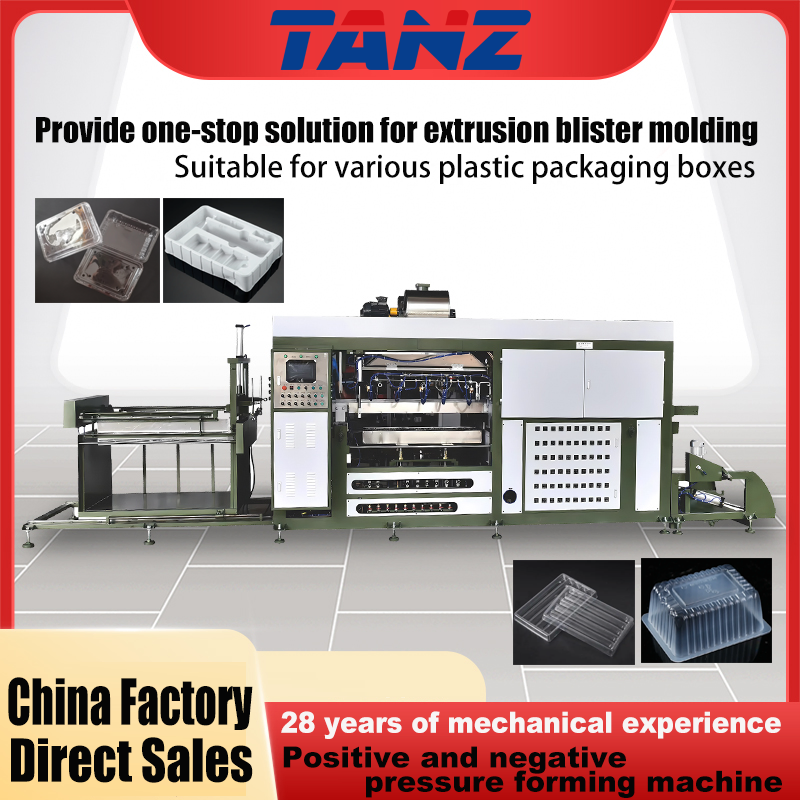

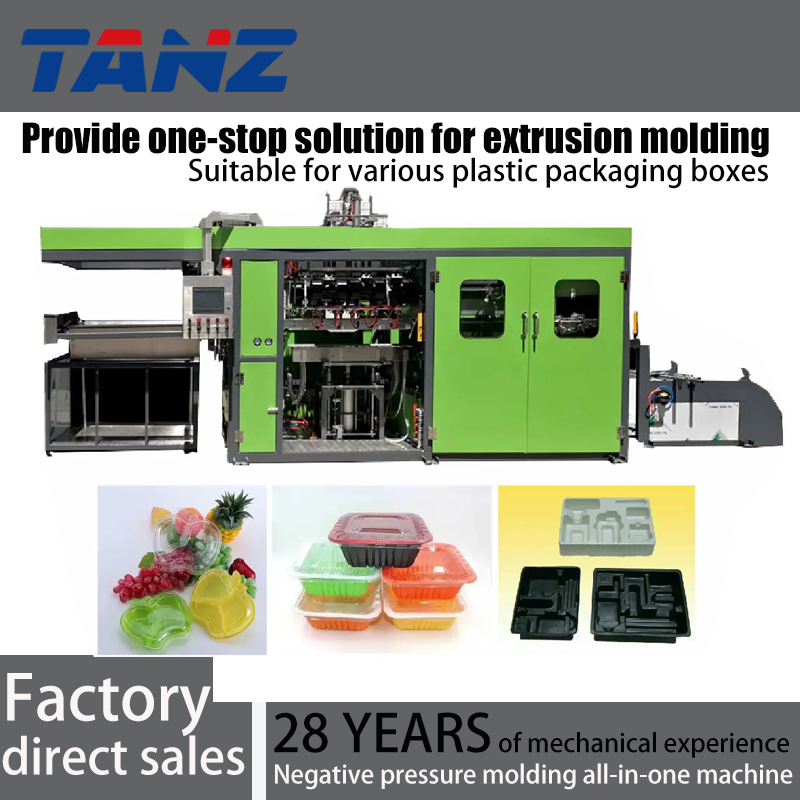

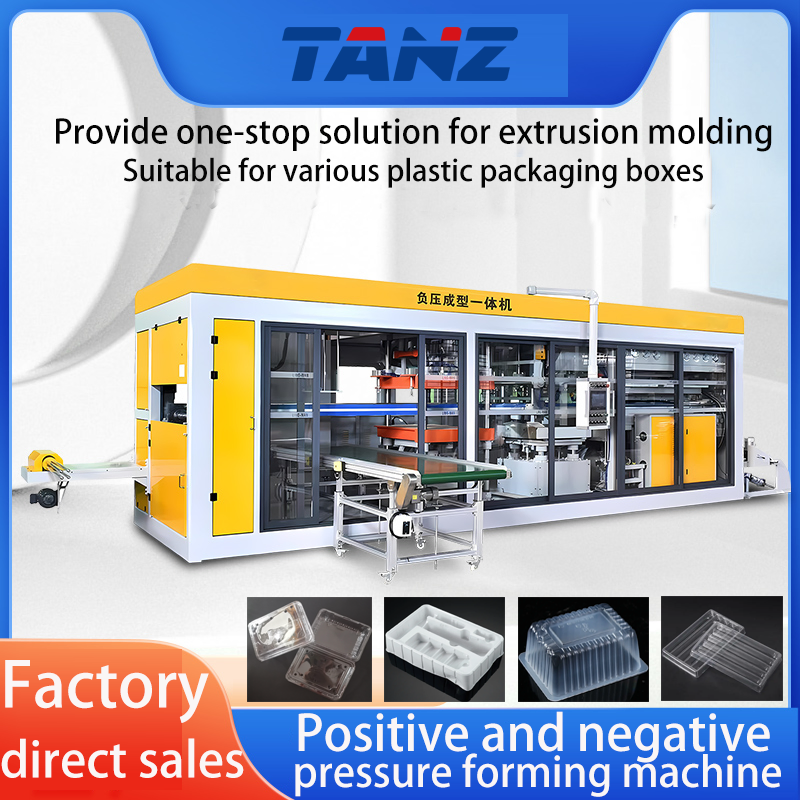

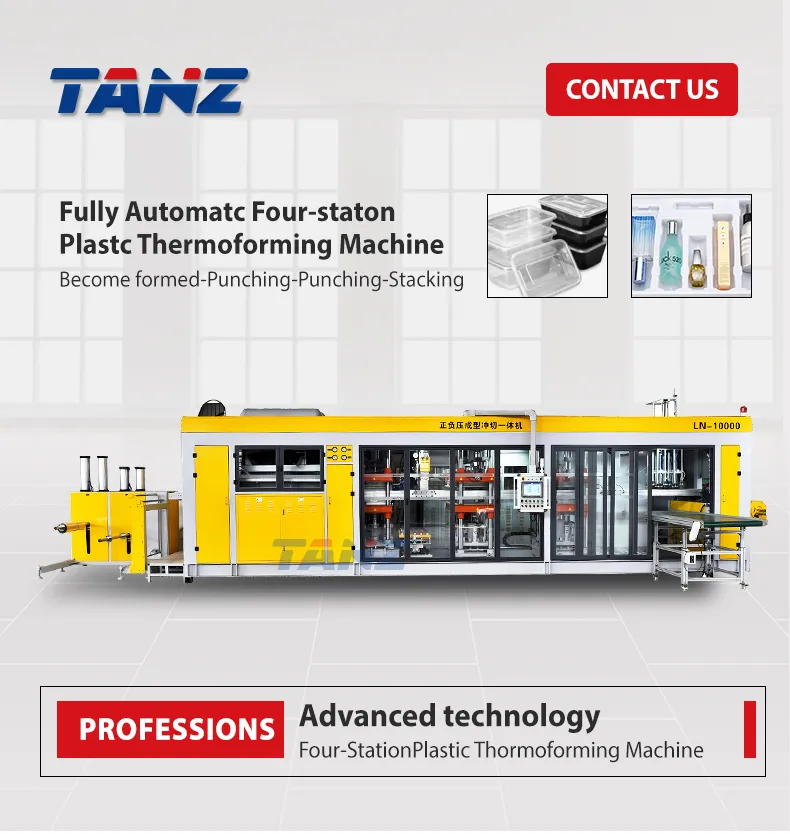

Positive and Negative Pressure Integrated Molding Machine

The Positive and Negative Pressure Integrated Molding Machine is expertly designed for producing various types of high-quality plastic packaging. It integrates advanced energy-saving capabilities, high output capacity, and labor-saving benefits into a single automated system.

✔

High Production Efficiency: Operates at a rapid processing speed, allowing for quick production of high-quality plastic products with a short response time and robust capacity.

✔

Wide Range of Application: Offers unique characteristics enabling the production of diverse plastic products such as cups and packaging boxes.

✔

Low Production Cost: Provides cost-effectiveness through simplified processing and reduced labor requirements, significantly increasing profitability.

⚙

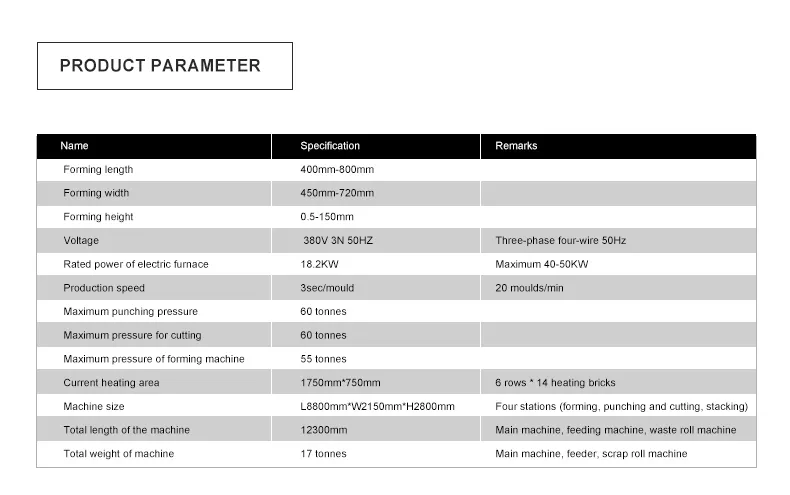

Technical Specifications

Finished product width	400-850mm
Forming width	420-720mm
Molding height	0-110mm
Operating voltage	380V 3N 50HZ
Electric furnace rated power	30KW (Max 40-50KW)
Production speed	5-20 seconds/mold
Maximum punch pressure	50 tons
Heating area	870*750mm (84 heating bricks)
Total machine weight	~9 tons

📷

Product Showcase

?

Frequently Asked Questions

What materials are suitable for this molding machine?

The machine is designed for various plastic materials suitable for pultrusion and blister molding, commonly used in food and consumer goods packaging.

How does the integrated positive and negative pressure system work?

This system combines both pressure types to ensure precise molding of complex shapes, providing better detail and structural integrity for plastic products compared to single-pressure systems.

What is the production speed of the TANZ-B model?

The production speed ranges from 5 to 20 seconds per mold, depending on the material thickness and product complexity.

Does the machine require manual intervention during operation?

No, this is an automatic grade machine that handles forming, punching, and stacking integrated within the work station.

What cooling mechanism is used in the molding process?

The system utilizes a 3HP Chiller combined with 8 customized cold water spray guns to ensure rapid and even cooling of the molded products.

How is the temperature controlled for different molding zones?

It features 84 groups of temperature control units managed via a centralized touch screen, allowing for precise thermal management across the upper and lower furnaces.
