| Model NO. | PZ-420 | Application | Electronic Component, Drug, Food, Medicine, Hardware etc. |
|---|---|---|---|
| Power | Electric | Automation | Automatic |
| Inflatable Device | Without Inflatable Device | Type | Stretch Film Vacuum Packing Machine |
| Object State | Paste, Powdery, Liquid, Solid, Particle | Condition | New |
| Available Width of Film | 384mm | Voltage | Customization |
| Weight | About 1800 Kgs | Packing Speed | 6-8 Cycles / Min |
| Packing Capacity | 4600-5000 Pieces / Hour | Transport Package | Container |
| Specification | 6600*1000*1800mm | HS Code | 8422400000 |

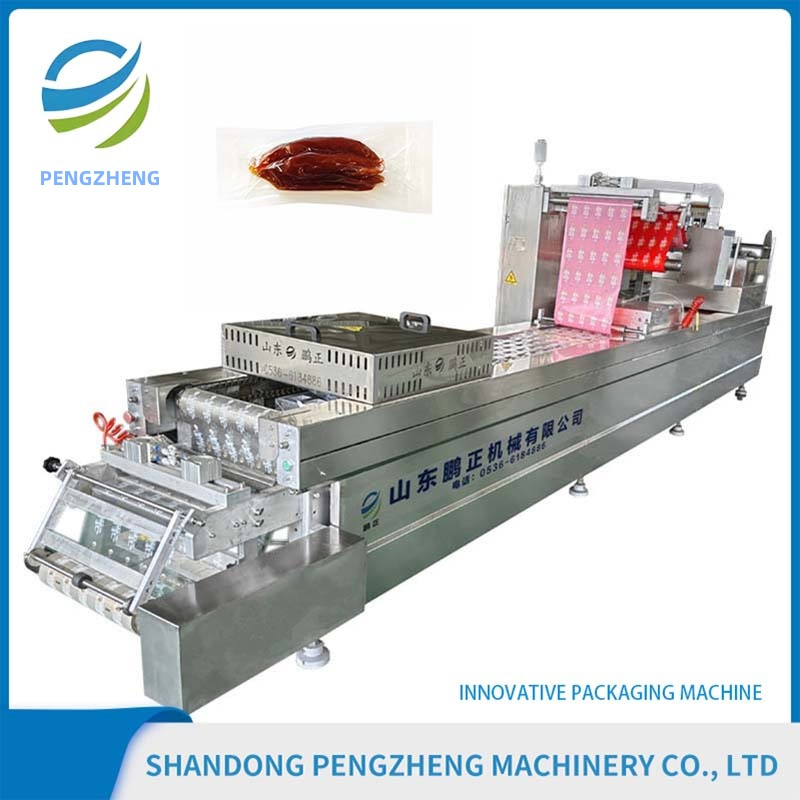

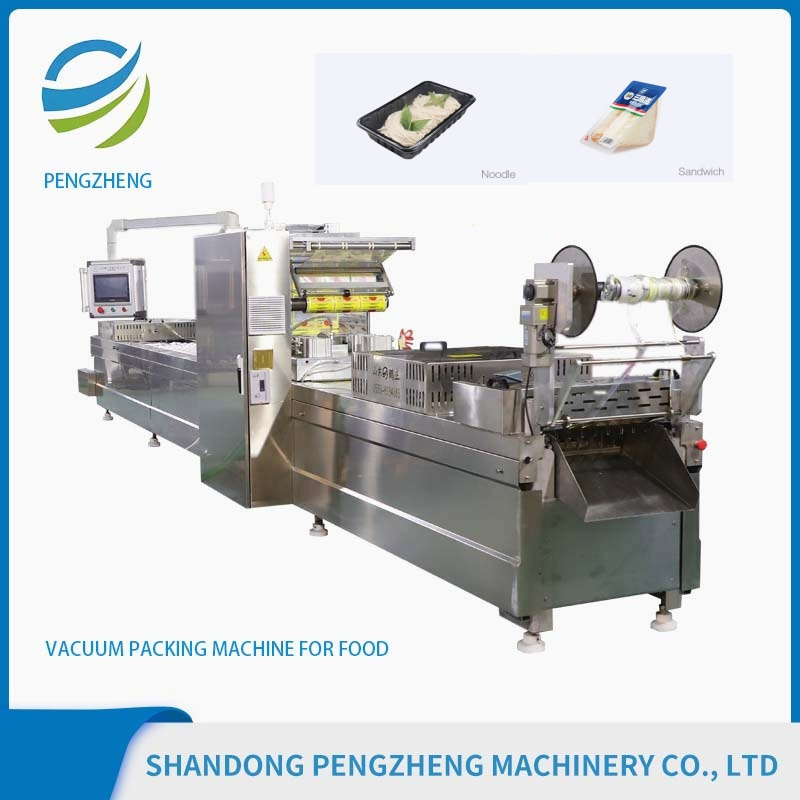

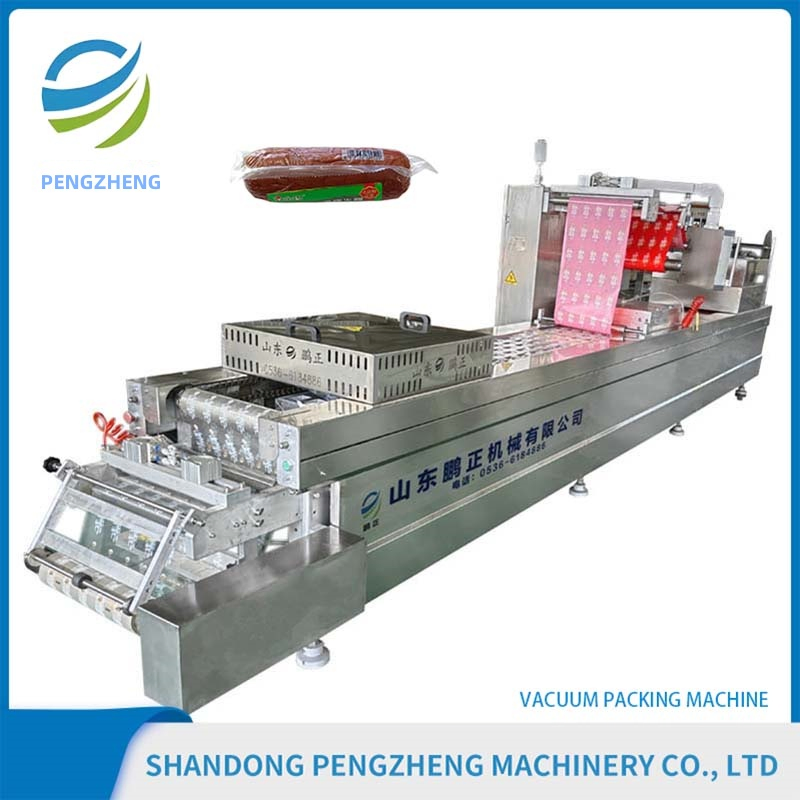

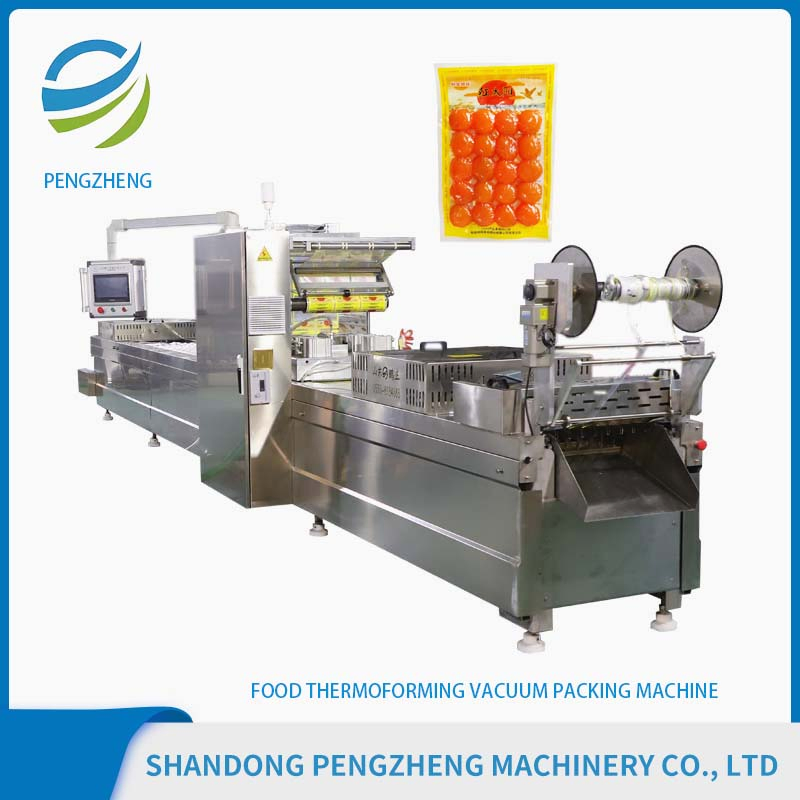

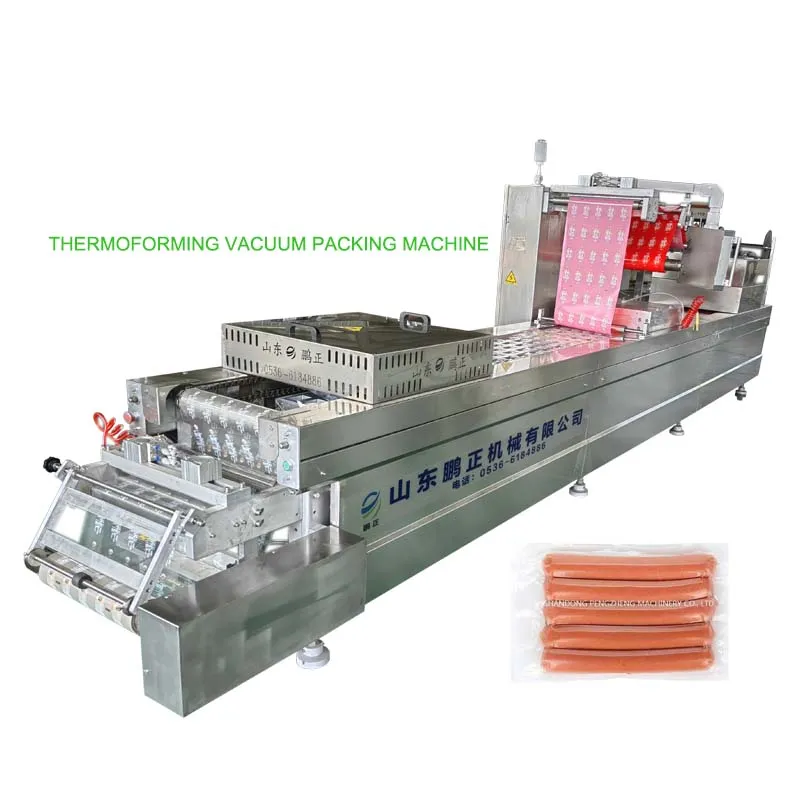

Innovative Automatic Thermoforming Vacuum Packaging Machine for food such as sausages, fish, shrimp, steak, beef, beef jerky, dried bean curd, goat, mutton, chicken, and toys.
This machine is designed to efficiently package a variety of food items and toys, ensuring freshness and extending shelf life. With automatic operation, it streamlines the packaging process, saving time and labor costs. Say goodbye to manual packaging and hello to precision and convenience.
| Details | Traditional Bag | Single Side Stretch | Double Side Stretch |
|---|---|---|---|
| Stretch Film Qty | Without | Single Side | Double Side |
| Forming Depth | Without | Max. 120mm | Max. 120mm*2 |
| Efficiency | Low | High | Middle |
| Cost | High | Low | Middle |

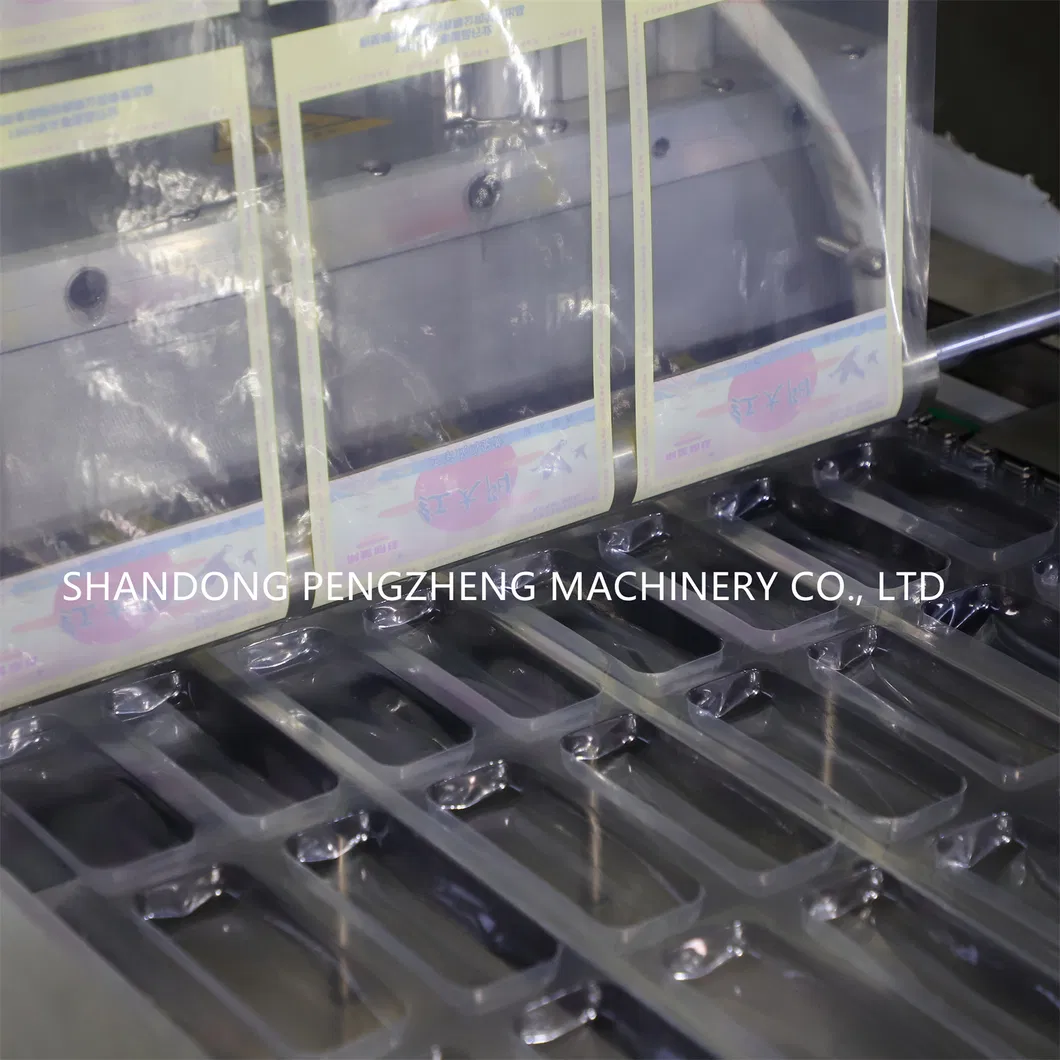

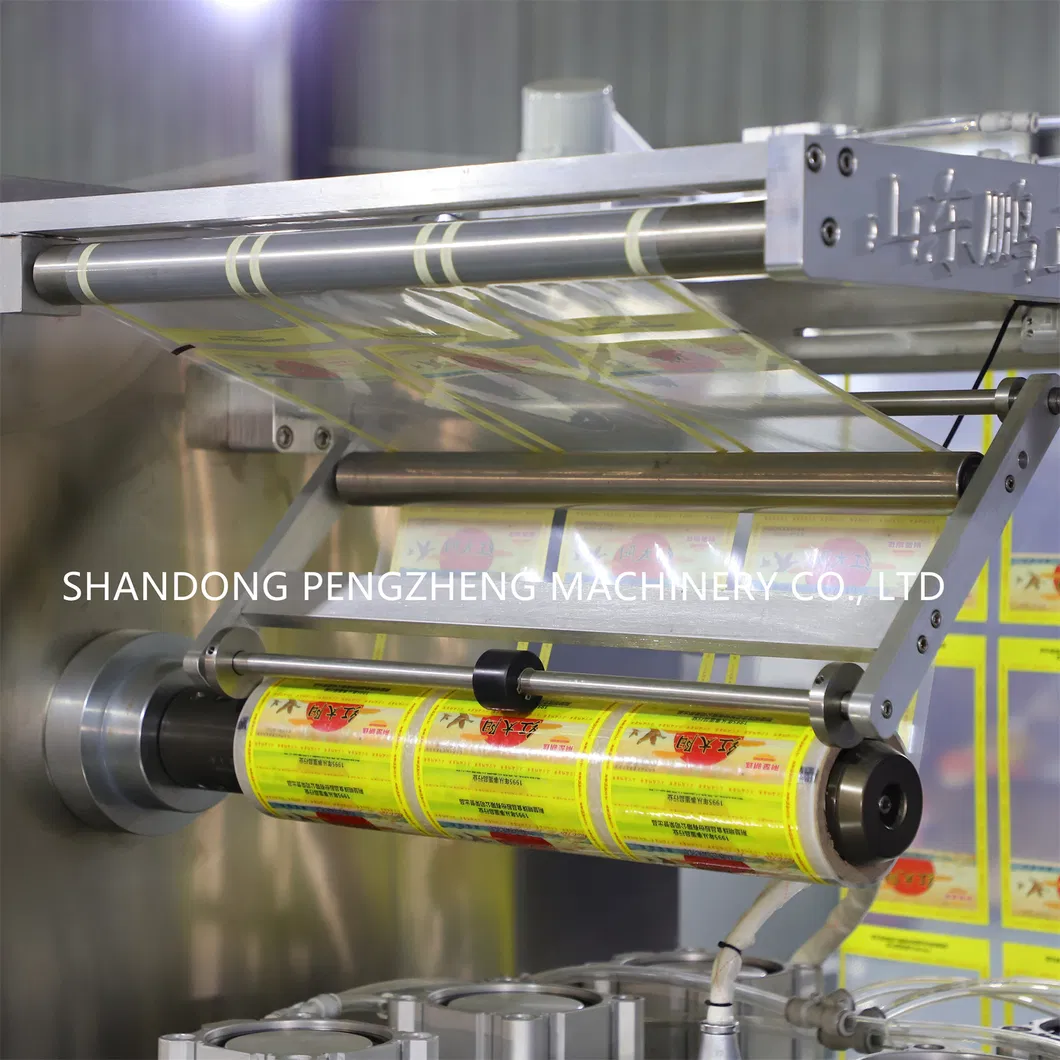

Incorporates automatic intelligent calibration for top and bottom films. Includes automatic left-right correction and cursor conditioning to prevent deviation and falling off.

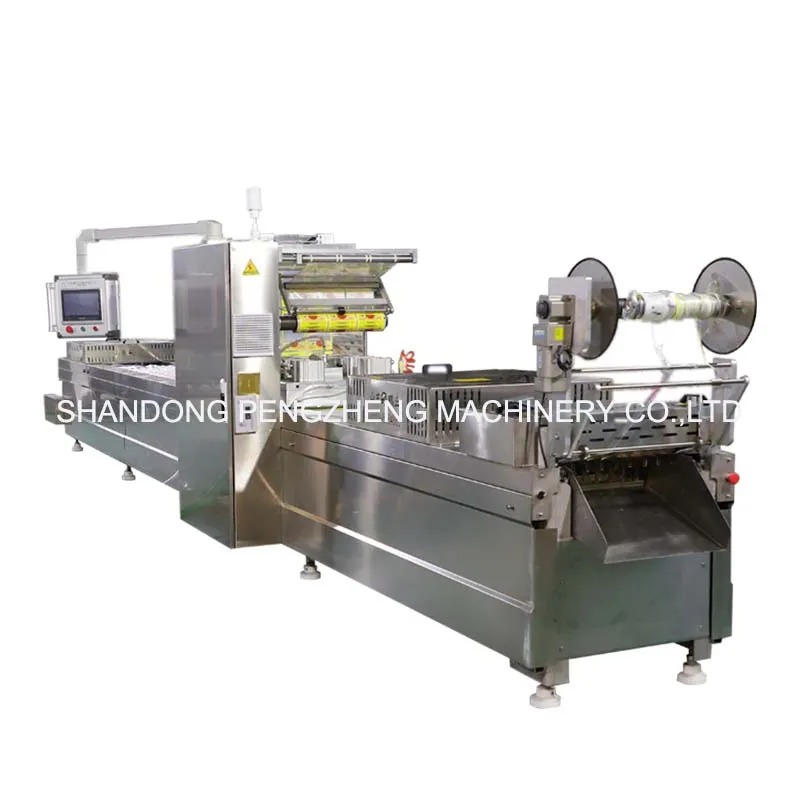

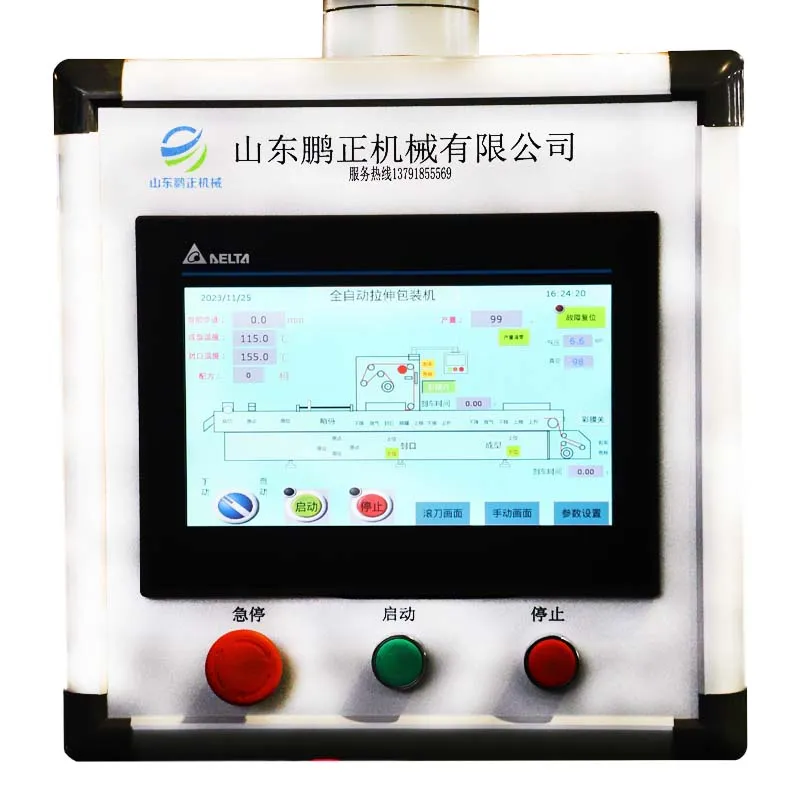

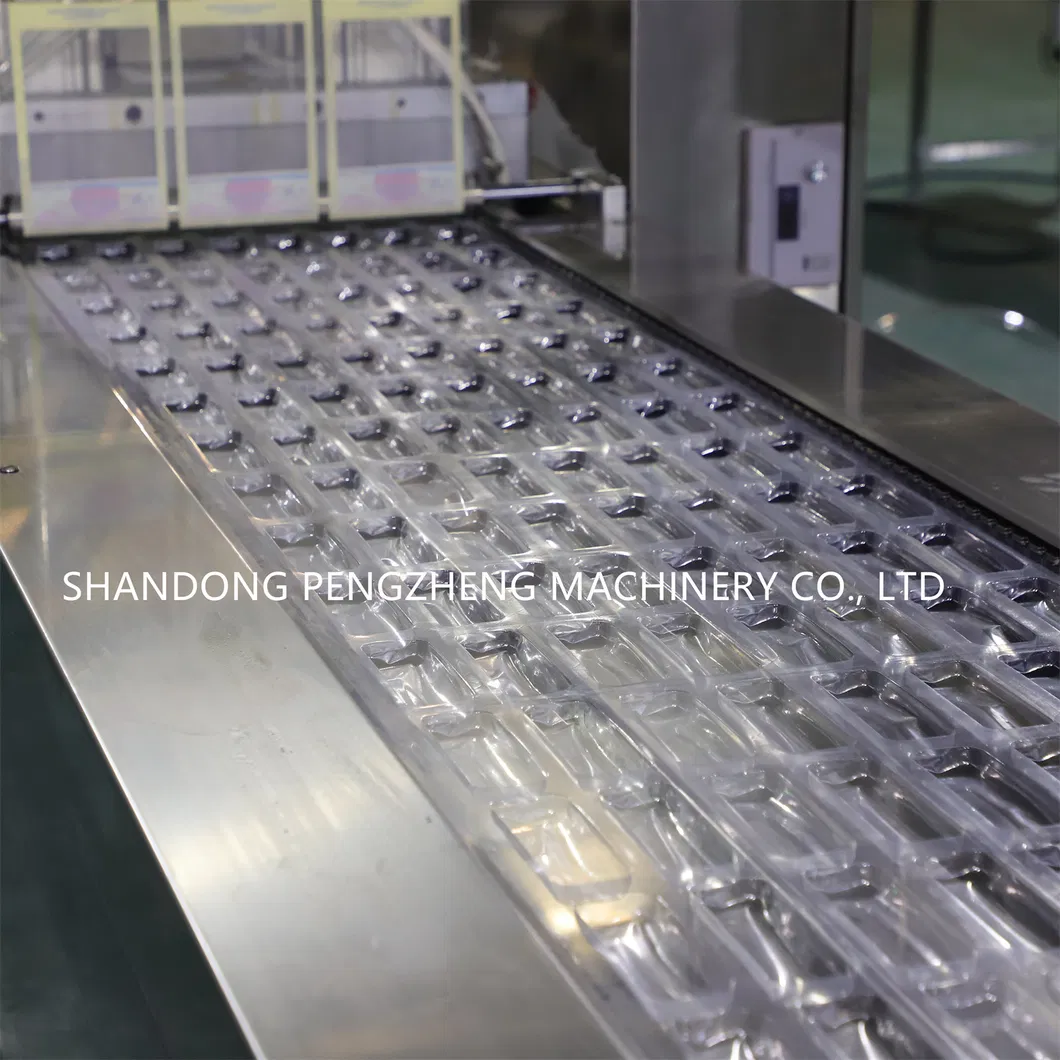

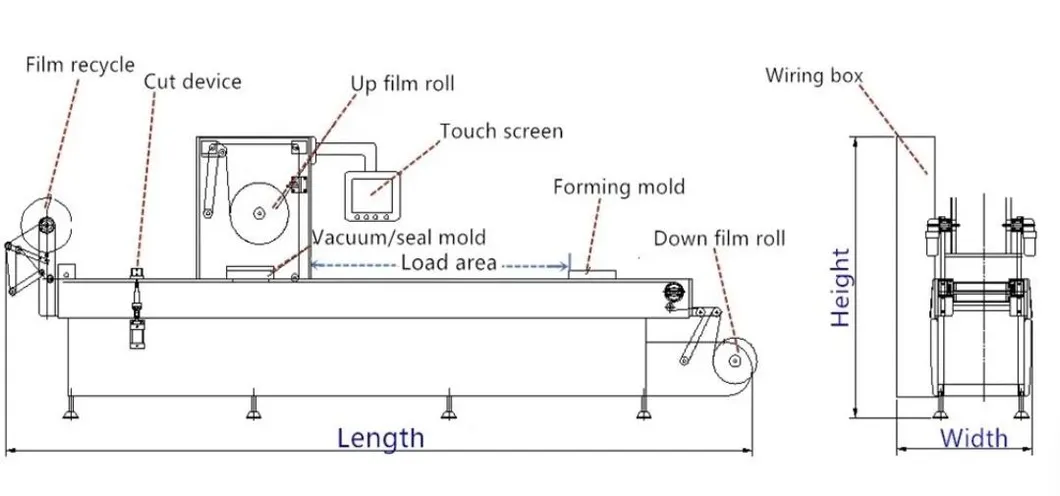

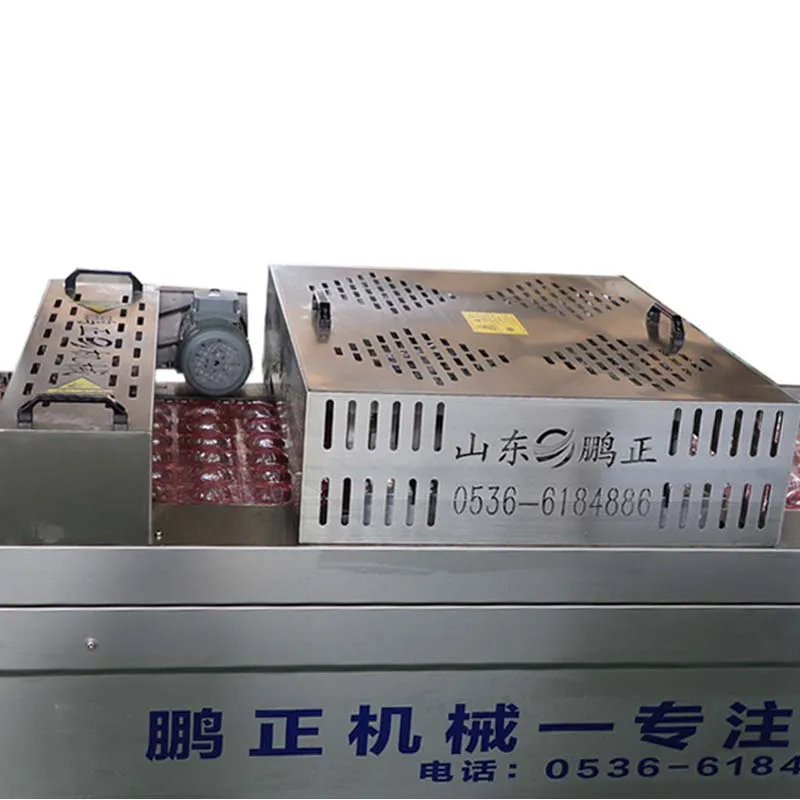

Sensors are installed under covers for auto-stop functions. The machine handles the entire process: package forming, vacuum-sealing, cutting, and output automatically via PLC touch screen.
| Machine Specs | Working Data | ||
|---|---|---|---|
| Vacuum Pump | RIETSCHLE (Germany) | Top Film Width | 425mm |
| Electrical | Schneider (French) | Bottom Film Width | 398mm |
| Servo Motor | Schneider (French) | Sealing Temp | 125-150°C |
| Structure | Stainless Steel 304 | Vacuum Degree | ≤200 Pa |
| Dimensions | 6600*1000*1800mm | Capacity | 4600-5000 pcs/h |
Expert guidance on unloading and placing equipment. Senior engineers provide step-by-step instructional videos for installation and debugging to ensure smooth setup.
A1: It usually takes 45 working days, including 10 days for technical drawing, 15 days for parts manufacturing, and 20 days for assembly and final tuning.
A2: We require the dimensions of your packaging and your daily production volume requirements. Any other special material requests should be mentioned upfront.
A3: Yes. While we recommend initial online troubleshooting, we can send engineers to your facility for personalized assistance if required.
A4: This intelligent function ensures the machine automatically shuts down when films run out, preventing mechanical wear and material loss.

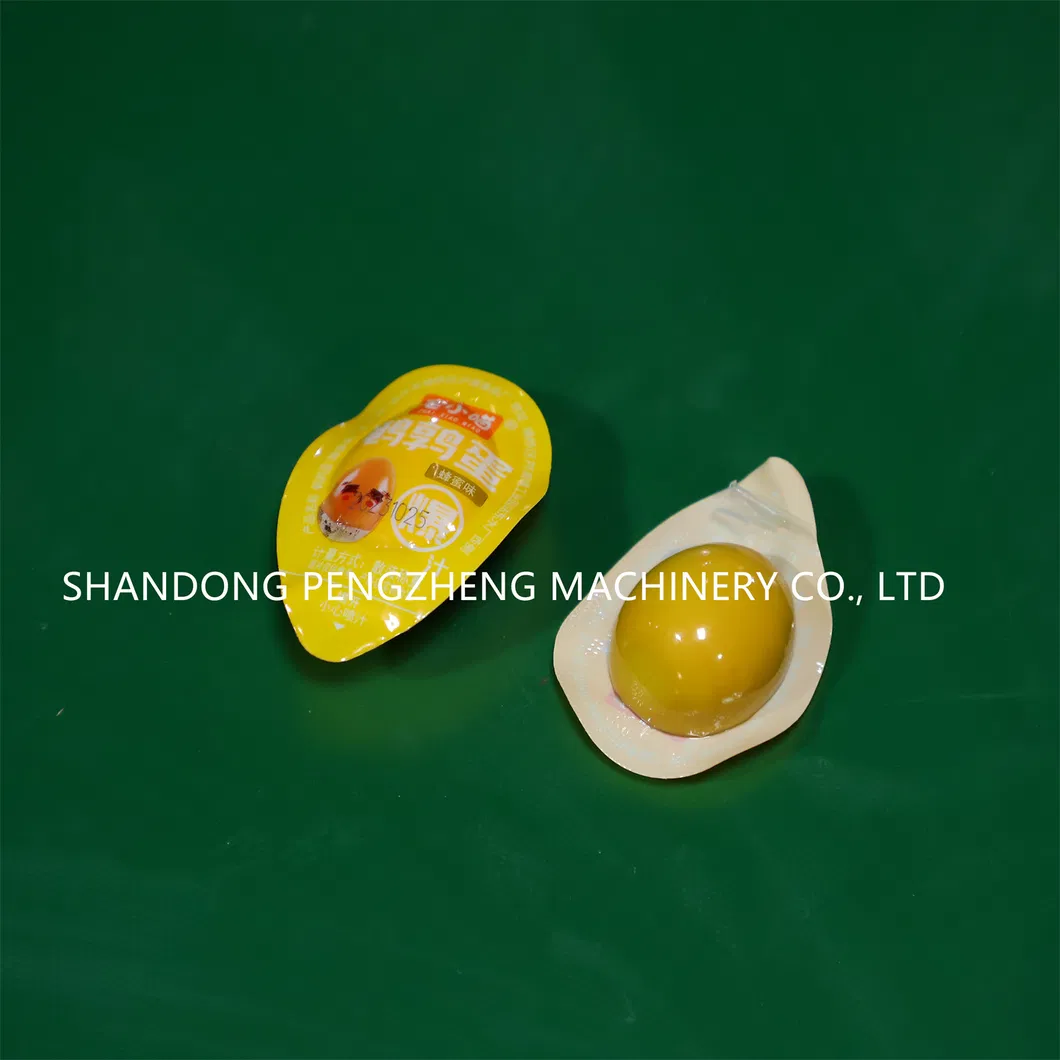

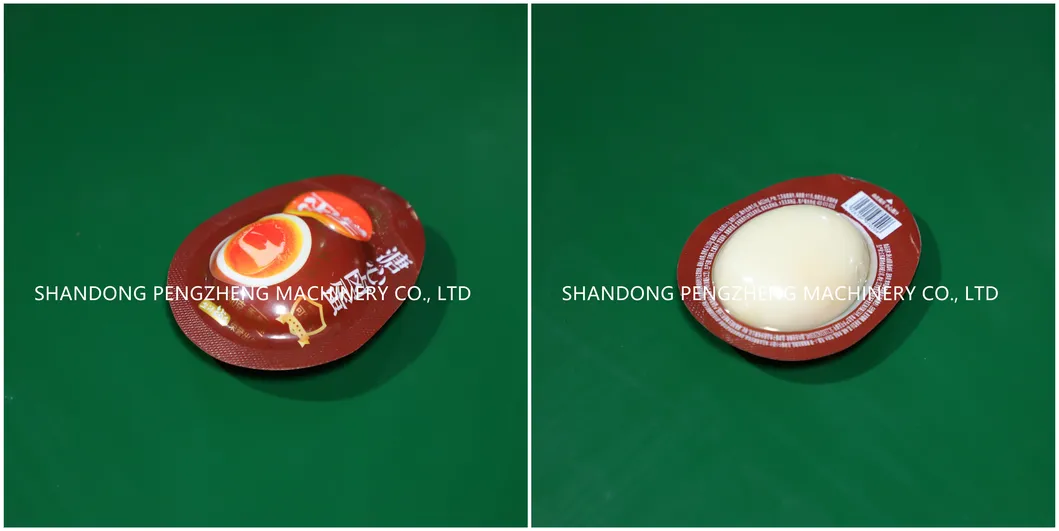

A5: Yes, the equipment features mould diversification and can be equipped with multiple sets of moulds, suitable for packing items from 40g to 100g.
A6: The main structure is built with high-quality Stainless Steel 304 with a 6mm thickness to ensure durability and food-grade hygiene.
