Advanced Plastic Forming and Stacking System

Customization:	Available
After-sales Service:	Lifetime Maintenance (Except Man-Made Damage and N
Warranty:	1 Year

Basic Specifications

Model NO.

TANZ-B

Certification

CE, ISO

Molding Method

Pultrusion

Automatic Grade

Automatic

Work Station

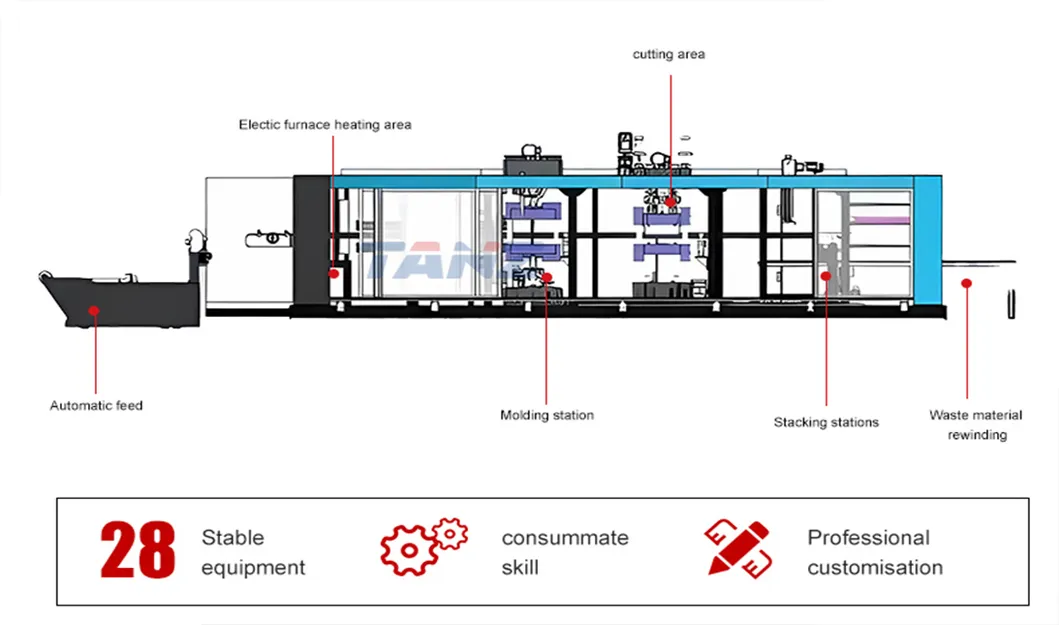

Forming, Punching and Stacking

Molding Length

450-850mm

Molding Width

420-720mm

Molding Height

0-140mm

Cooling System

3HP Chiller

HS Code

84774090

With nearly three decades of industry experience, our expertise focuses on PET, PLA, PP, PS, PC, ABS, HIPS, and PMMA single-layer or multi-layer extrusion production lines. We provide comprehensive solutions including thermoforming multi-station machines and recycling equipment. Our technology ensures high-quality manufacturing that meets international industry standards, offering efficiency and cost-effectiveness for plastic packaging production.

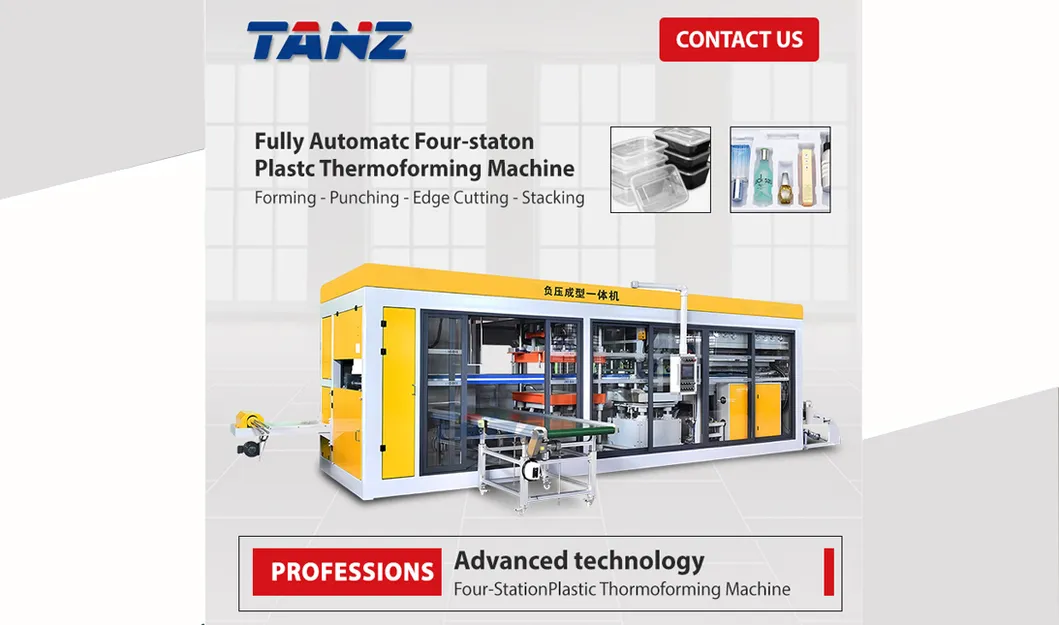

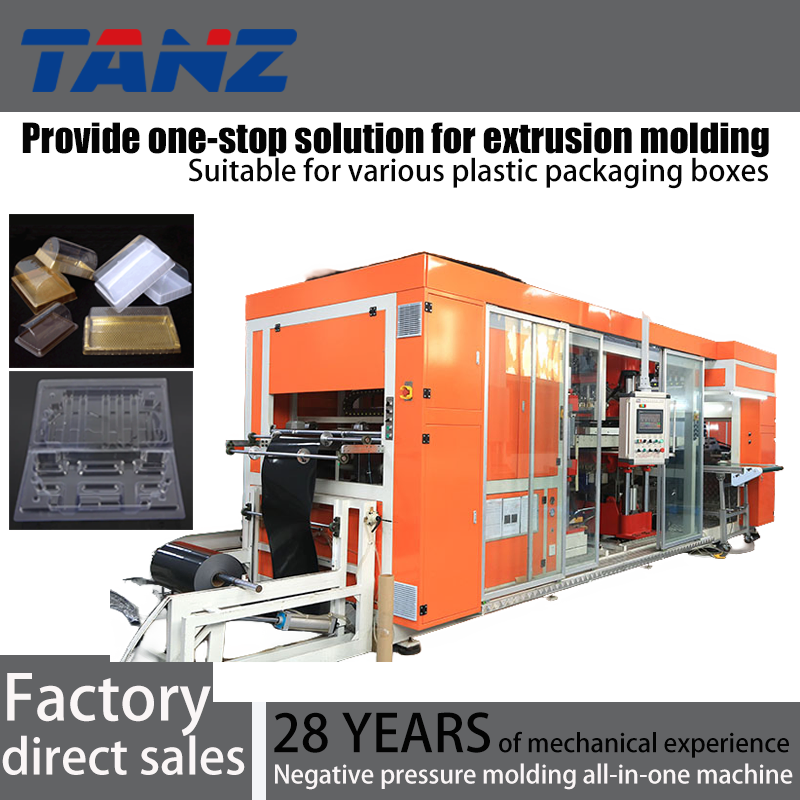

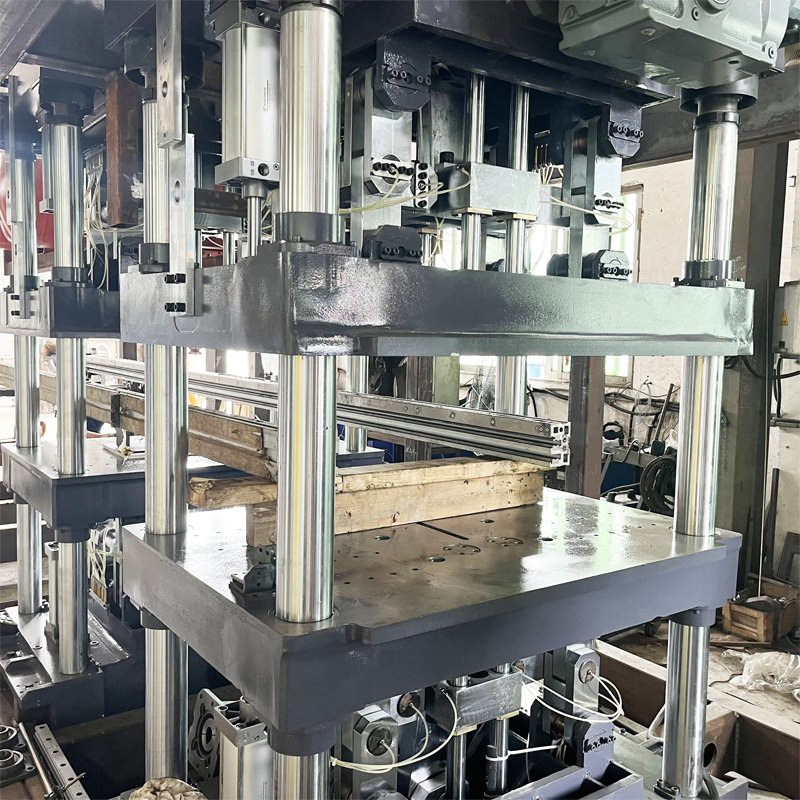

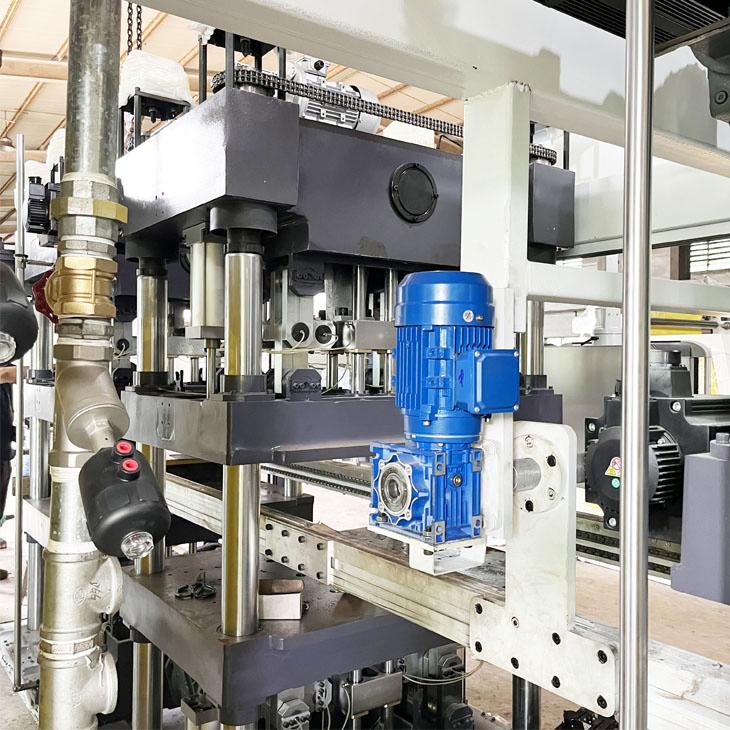

Positive and Negative Pressure Integrated Molding Machine

This integrated molding system is engineered for producing high-quality plastic packaging with superior energy-saving capabilities and high output capacity. It streamlines the manufacturing process, significantly reducing labor requirements.

01

High Production Efficiency: Rapid processing speeds allow for quick production cycles and robust capacity for various high-quality plastic products.

02

Wide Application Range: Advanced pressure control enables the production of diverse items, including cups, trays, and specialized packaging boxes.

03

Cost-Effectiveness: Simplified processing and automated features reduce operational costs while increasing overall profitability.

Technical Parameters

Parameter Name	Specification	Remarks
Forming Length	400mm-800mm	Adjustable
Forming Width	450mm-720mm	Adjustable
Voltage	380V 3N 50Hz	Three-phase four-wire
Production Speed	3sec/mould	Up to 20 moulds/min
Punching Pressure	60 tonnes	Maximum
Machine Size	L6500W2150H2800MM	Three working stations
Total Weight	11 tonnes	Includes feeder & scrap roll

Production & Service

Production Process:

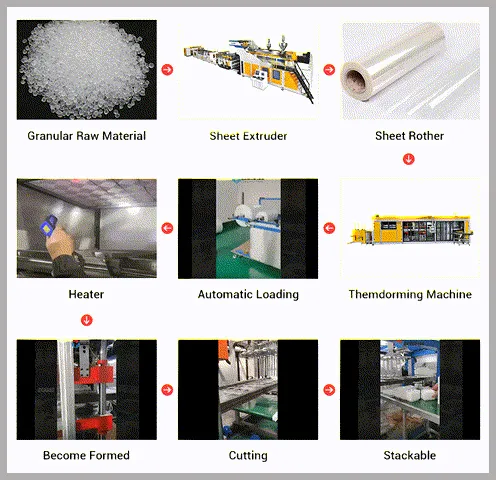

Raw materials → Sheet extruder → Finished sheet → Vacuum forming machine → Automatic feeding → Heating → Forming → Cutting → Stacking.

Pre-sales expert consultation
Professional shipping & documentation
Technical installation support
Comprehensive operator training
1-year machine warranty

Frequently Asked Questions

What is the standard delivery timeframe for the machinery?

Production is usually completed within 45 days after receiving the 30% advanced payment, depending on the current production schedule and stock.

What are the accepted payment terms?

We accept T/T with 30% in advance and 70% before shipment. L/C at sight is also an available option.

How long does the installation and training process take?

On-site installation and operator training are typically completed within 15 days by our technical team.

What is the warranty period for these machines?

All machines come with a one-year guarantee, starting from the day the installation is finalized.

How many operators are required to run the machine?

Under normal operating conditions, a single machine typically requires 1 to 2 trained operators.

Can you assist with raw material sourcing?

Yes. In addition to blister machines, we produce sheet extruders. We can also help you order specific raw materials and coordinate shipment with your machinery.
