Advanced Plastic Sheet Forming System

Customization:	Available
After-sales Service:	Lifetime Maintenance (Except Man-Made Damage and N
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.TANZ-B

CertificationCE, ISO

Molding MethodPultrusion

Automatic GradeAutomatic

ModelTzx-10000

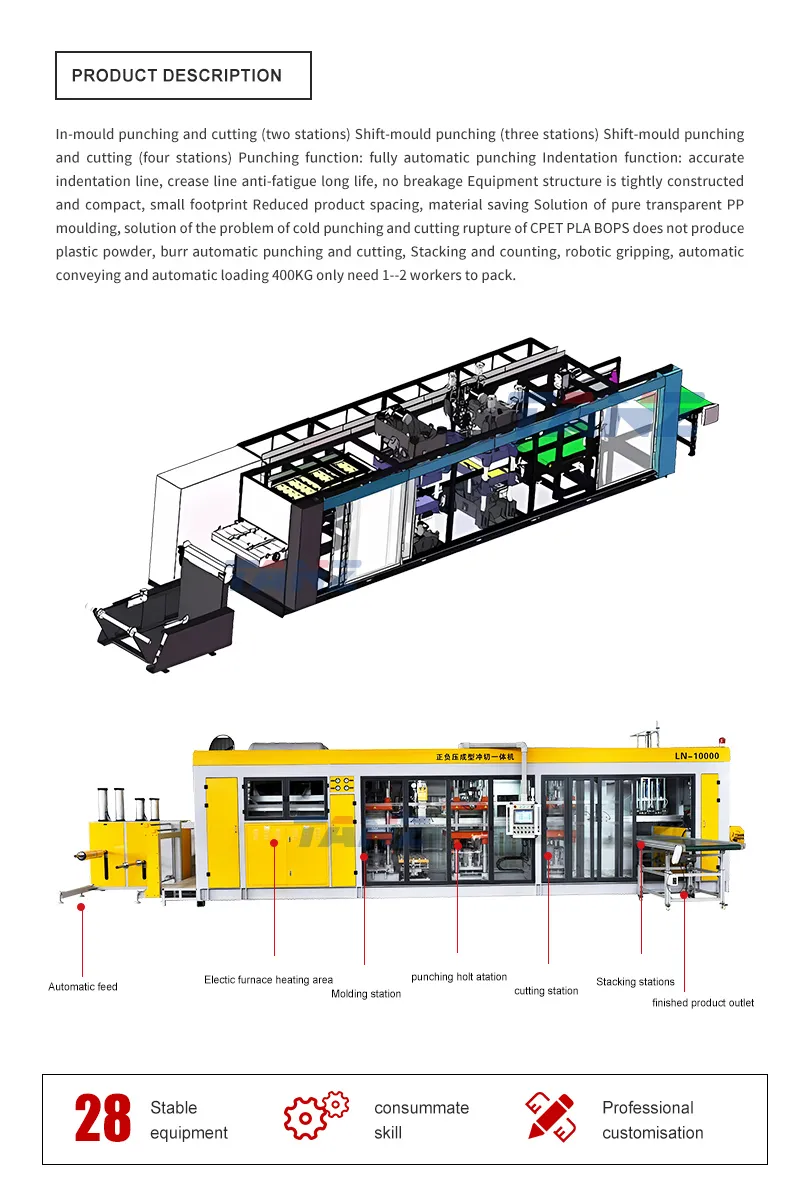

Work StationForming, Punching and Stacking

Blister Molding Width420-720mm

Blister Molding Height0-140mm

Cooling System3HP Chiller

Control SystemTemperature Control (84 Groups)

HS Code8422400000

Production Capacity500 Sets/Year

Product Description

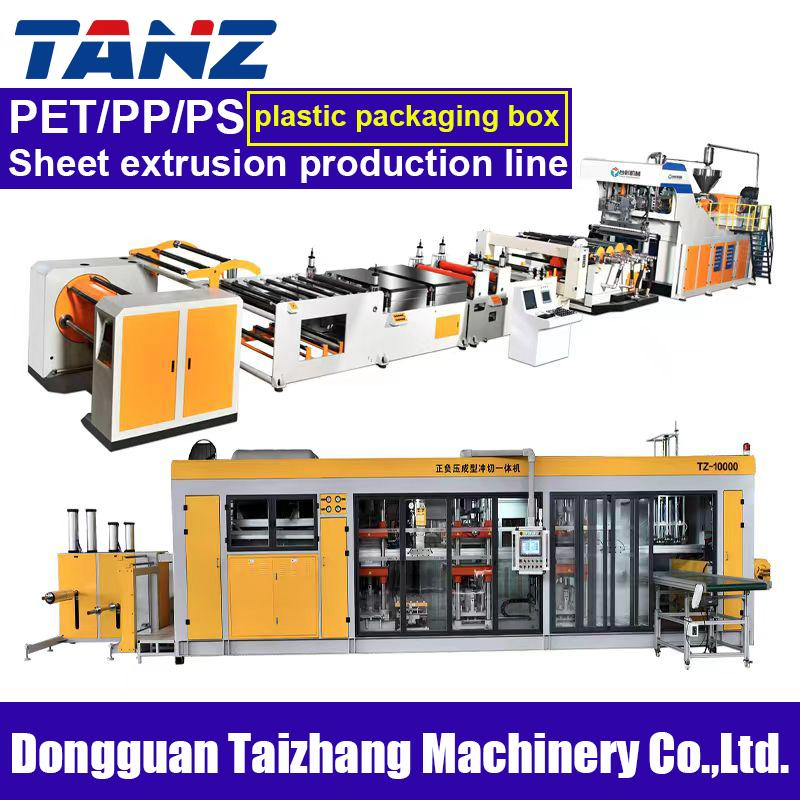

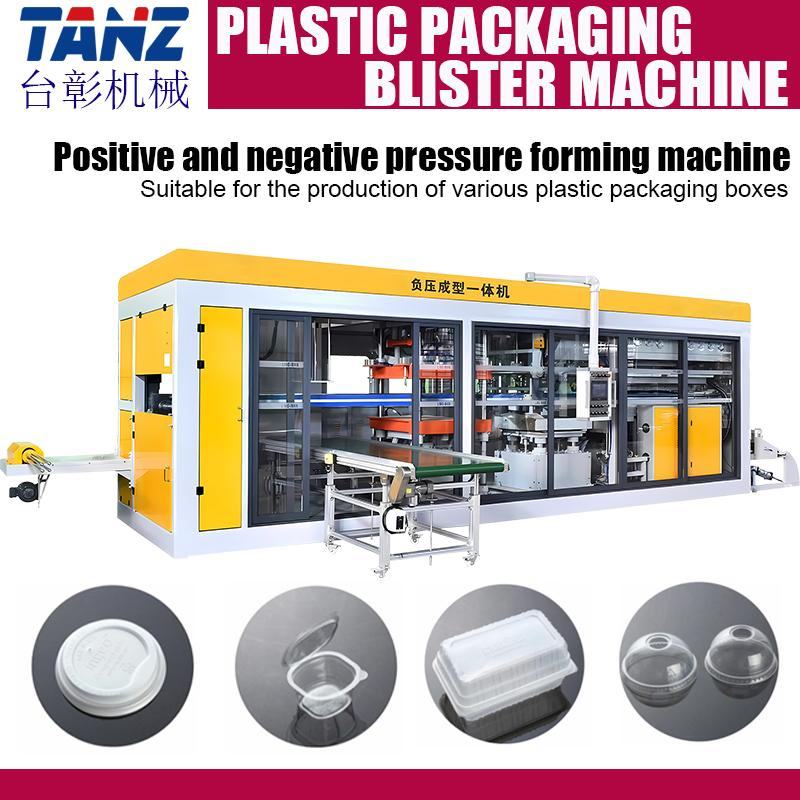

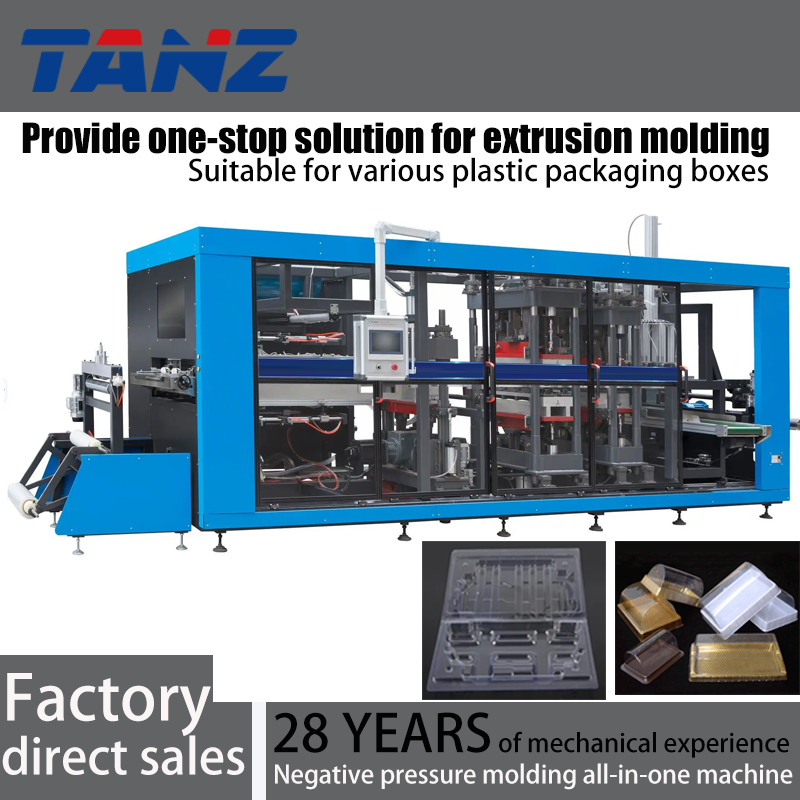

Positive and Negative Pressure Integrated Molding Machine

This integrated molding machine is engineered for the high-efficiency production of various plastic packaging. It combines energy-saving capabilities with high output capacity and labor-saving benefits to optimize your manufacturing process.

Key Advantages

High Production Efficiency: Rapid processing speed allows for quick production of high-quality plastic products with short response times and robust capacity.

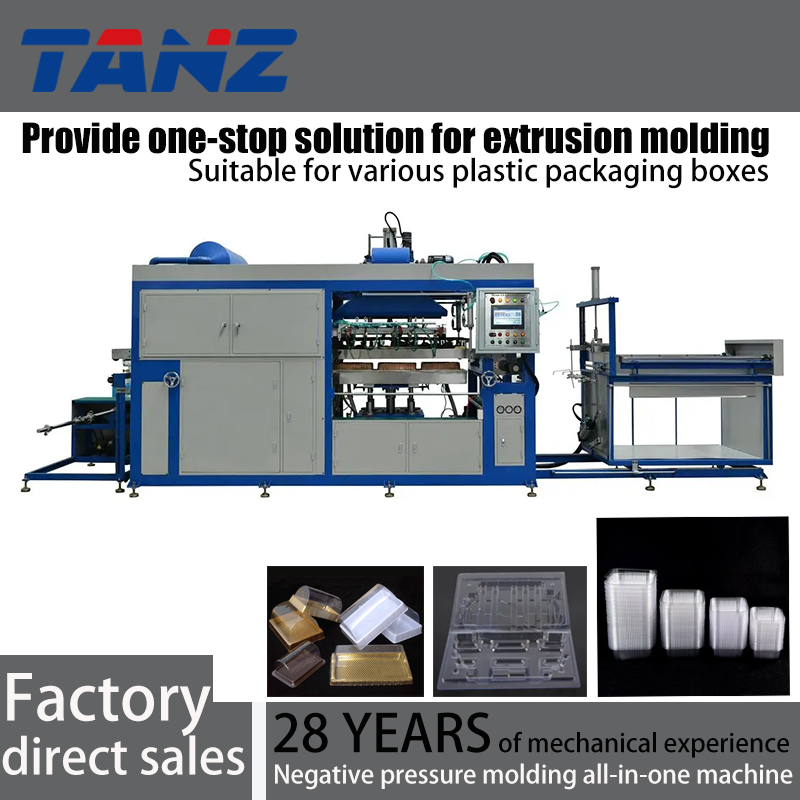

Wide Range of Application: Features unique capabilities to produce diverse plastic products such as cups, containers, and packaging boxes.
Low Production Cost: Provides a cost-effective solution through simplified processing and reduced labor requirements, maximizing profitability.

Finished product width	400-850mm
Forming width	420-720mm
Molding height	0-110mm
Operating voltage	380V 3N 50HZ
Electric furnace rated power	30KW (Max 40-50kw)
Production speed	5-20 seconds/mold
Maximum punch pressure	50 tons
Maximum pressure to cut	50 tons

Maximum machine pressure	55 tons
Heating area	870*750mm (84 heating bricks)
Machine host size	8800mm
Total length	8800mm
Total machine weight	9 tons

Frequently Asked Questions

Q1: What types of products can this machine produce? A: The machine is designed for various plastic packaging products, including cups, packaging boxes, and blister-molded items.

Q2: What is the typical production speed for the molding process? A: The production speed ranges from 5 to 20 seconds per mold, depending on the material and product complexity.

Q3: Does the machine support both positive and negative pressure? A: Yes, it is an integrated system that utilizes both positive and negative pressure for superior molding precision and efficiency.

Q4: What are the main electrical requirements? A: The machine operates on 380V 3N 50HZ (three-term, four-wire) with a rated furnace power of 30KW.

Q5: How is the temperature controlled during production? A: It features a high-precision system with 84 groups of temperature controls managed through a one-touch screen interface.

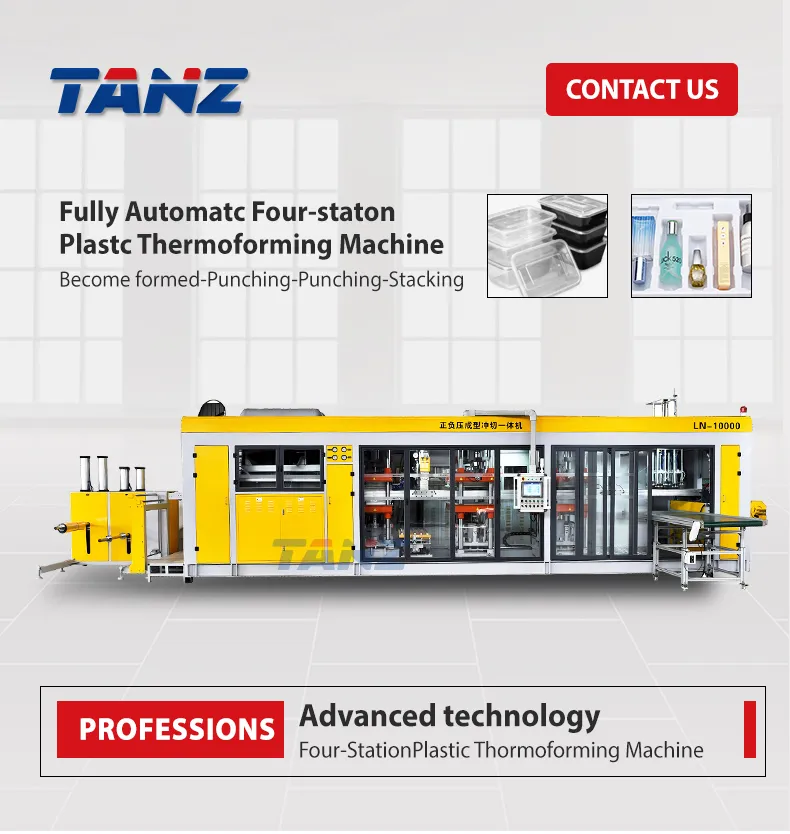

Q6: Is the machine fully automated? A: Yes, the machine is classified as Automatic Grade, featuring automatic forming, punching, and stacking work stations.
