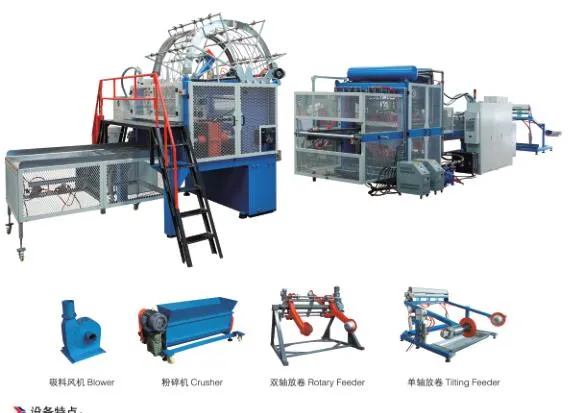

This versatile machine includes not only the primary forming machine but also an efficient cutting machine, ensuring seamless operations and superior product quality.
Key Machine Features
- Outstanding features include a large forming and trim area, ensuring high production efficiency with a remarkable maximum forming speed of less than 2 seconds per cycle.
- Boasting a high clamping force of 60 Tons, this machine guarantees the production of high-quality products, ideal for vacuum forming, press forming, and vacuum pressing processes.
- Equipped with a trimming press that incorporates automatic sheet feeding, precise position detecting, reliable counting, and efficient stacking.
- Compatible with a variety of sheet materials, including EPS, PVC, PP, BOPS, HIPS, PLA, PET, and more, offering unmatched versatility.
- Powered by high-precision servo systems, a user-friendly human-computer interface, and advanced PLC control for superior automatic management.

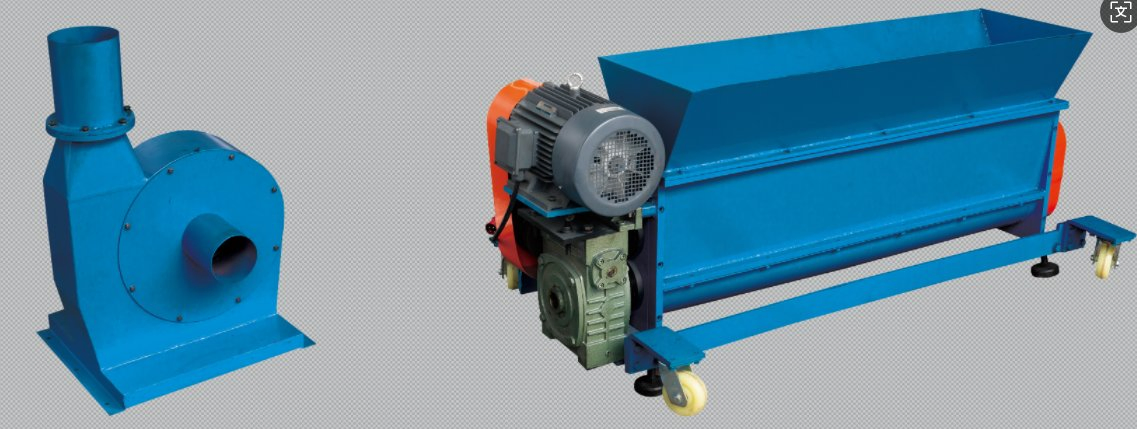

- In-line crusher seamlessly integrates crushed materials, which can be directed to a plastic recycle machine, promoting sustainability.
Model Parameters: HLRCH-1100/1300 - HLZCZ-1100
Forming System:
Max Forming Area: 1120x1295 mm²
Max Forming Depth: 127 mm
Clamp Force: 60 Tons
Dry Speed: 30 cycles/min
Oven Length: 5300 mm
Cutting System:
Max Cutting Area: 1120 x 400 mm²
Max Cutting Height: 130 mm
Max Cutting Force: 35 Tons
Dry Speed: 150 cycles
Power & Size:
Installed Power: 330 KW + 22 KW
Total Weight: 11 Tons + 8 Tons
Forming Size: 14 x 2.2 x 2.5 m
Cutting Size: 5 x 4.5 x 3.5 m
