Advanced Thermoforming Making Machine for Clamshell Packaging Solutions

1 / 5

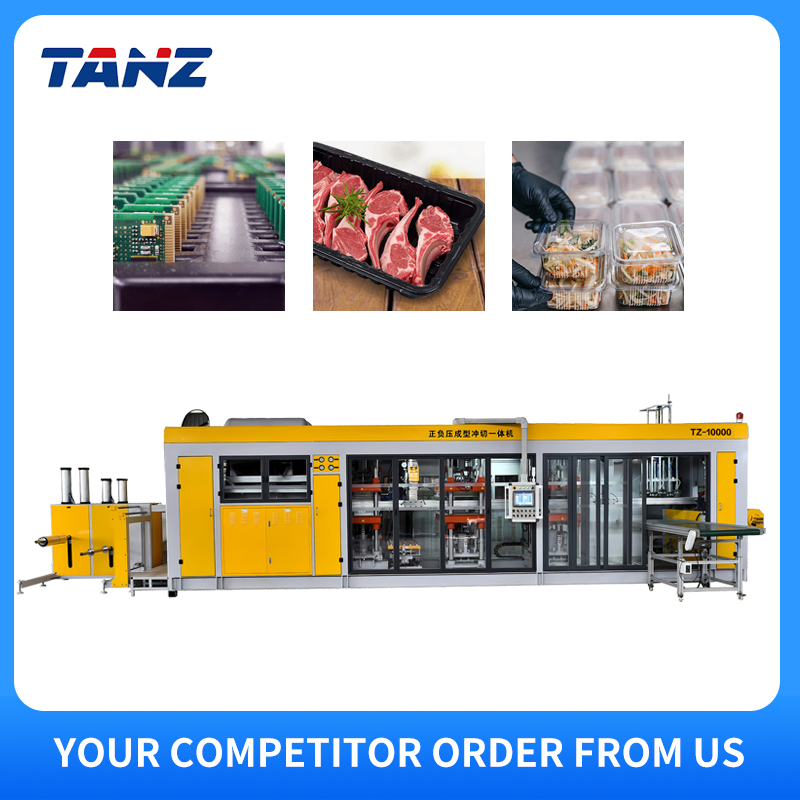

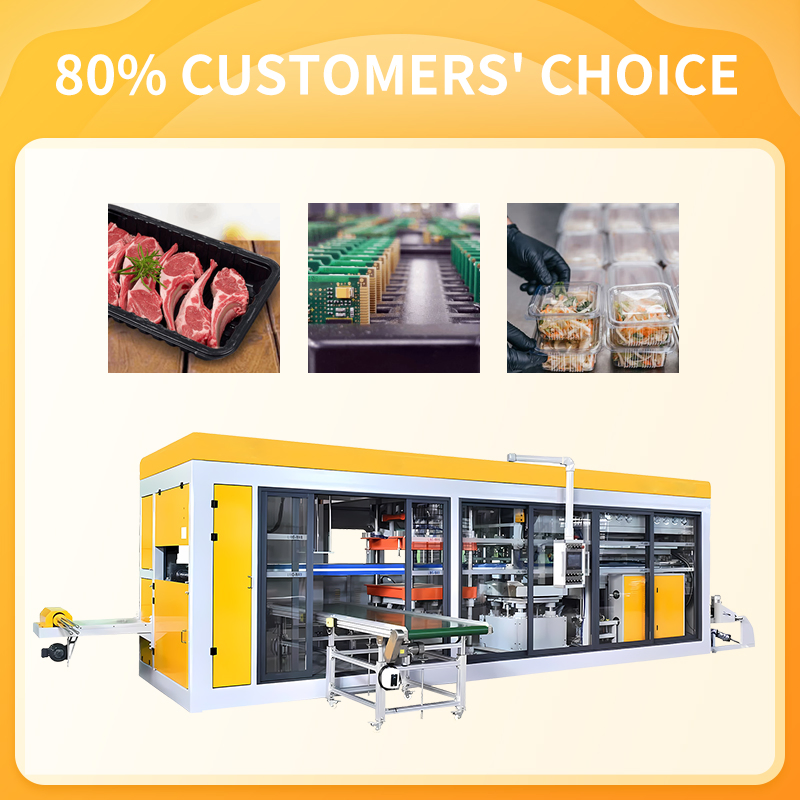

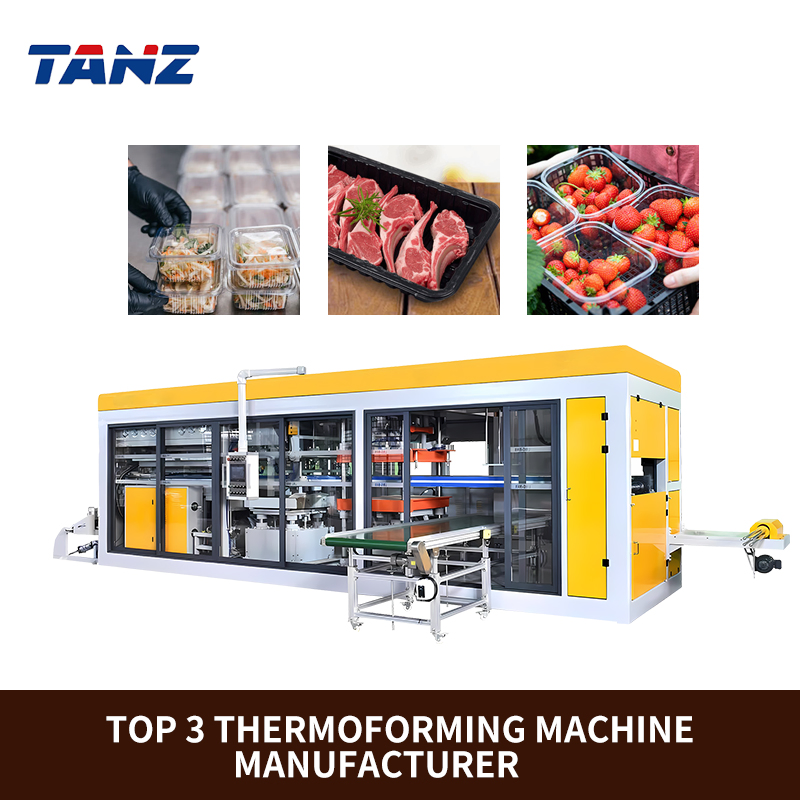

Advanced Thermoforming Making Machine for Clamshell Packaging Solutions

Customization:	Available
After-sales Service:	Lifetime Maintenance (Except Man-Made Damage and N
Warranty:	1 Year

Send Inquiry

Product Description

📋 Basic Information

Model NO.TZ-10000

CertificationCE, ISO

Molding MethodPultrusion

Automatic GradeAutomatic

WorkstationsForming, Punching and Stacking

Molding Length450-850mm

Molding Width420-720mm

Molding Height0-140mm

Cooling System3HP Chiller

Control System84 Groups Temperature Control

🚀 Product Description

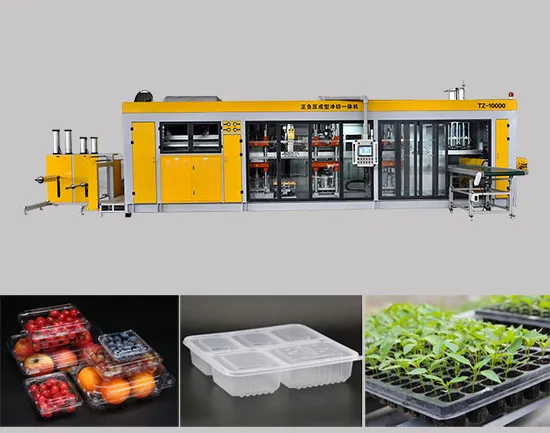

Explore the 3 in 1 & 4 in 1 Plastic Clamshell Package solutions: Ideal for crafting Fruit Egg Trays, Seedling Trays, Electronic Trays, Tray Lids, Plates, and Flowerpots.

This fully-automatic disposable food container manufacturing equipment features a large formation area. With a molding area extending to 850mm by 720mm, it supports board thickness ranging from 0.2mm to 2mm. Powered by a servo motor, it ensures stability, efficiency, and safety for your production line.

🛠️ Suitable Sheet Materials

The equipment supports an extensive variety of sheet materials, ensuring versatile thermoforming solutions:

Standard: PP, Transparent PP, PE, PS, HIPS

Specialty: KPS, PVC, PET, GPET, ABS

Eco-Friendly: CPET, PLA, BOPS

⭐ Core Features

✅Mold Versatility: Multi-station options (2 to 4 stations) for punching and cutting.

✅Automated Precision: Fully automatic punching, stacking, counting, and robotic gripping.

✅Space-Saving: Compact structure designed to minimize footprint while maximizing efficiency.

✅Clean Production: No generation of plastic powder or burrs, maintaining high product quality.

✅Robust Feeding: Handles up to 400KG material with automatic winding for waste.

📊 Product Parameters

Parameter Name	Specifications	Remarks
Forming Length	400-850mm	-
Forming Width	420-720mm	-
Forming Depth	0-110mm	-
Suitable Materials	PS, PP, PET, PVC, BOPS, PLA, etc.	-
Production Speed	3 seconds/time	Up to 20 times/minute
Max. Pressure	50 - 55 tons	Forming/Punching/Cutting
Machine Weight	11 tons	Complete host system

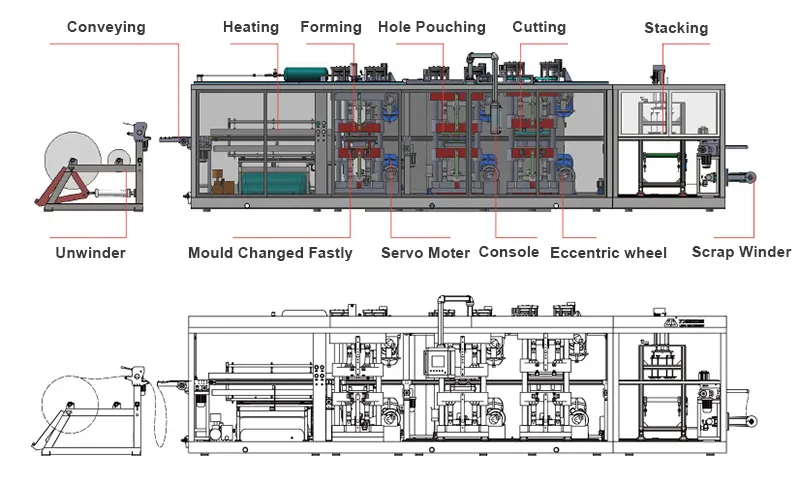

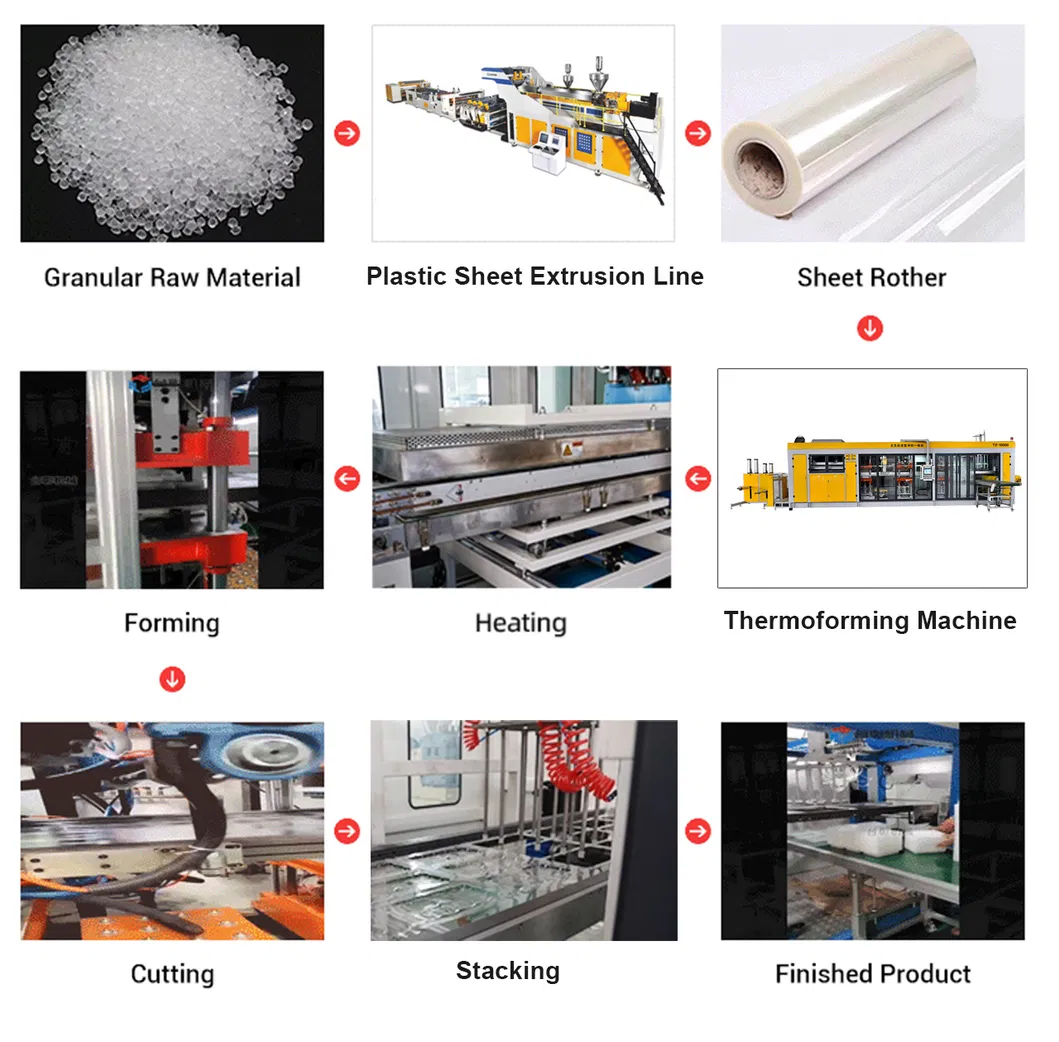

🔍 Application & Process

⚙️ Related Equipment

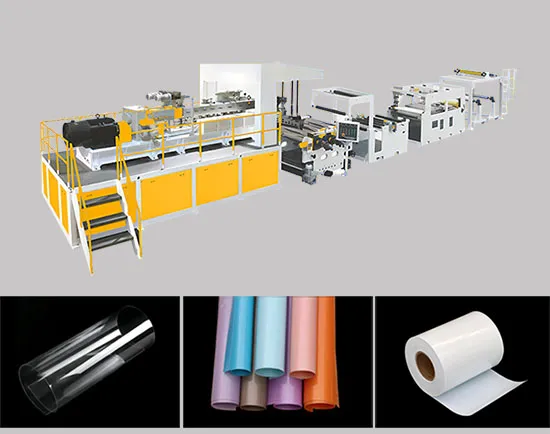

Plastic Sheet Extrusion Machines
For PET, PP, PE, PS, ABS, and more.

Multi-Station Thermoforming
Specialized for food containers and lids.

Plastic Cup Making Machine
High efficiency for disposable cups and boxes.

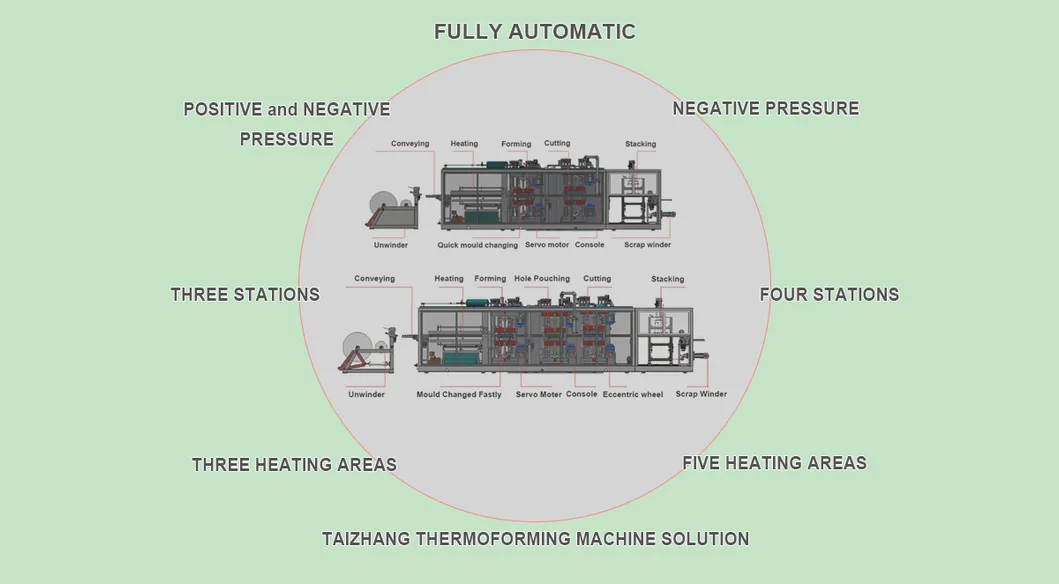

📜 Certifications & Fast Guide

Frequently Asked Questions

1. Which plastic materials are compatible with this machine?

The equipment is highly versatile and supports PP, transparent PP, PE, PS, HIPS, KPS, PVC, PET, GPET, ABS, and even biodegradable materials like PLA and CPET.

2. What is the maximum production speed of the TZ-10000?

The machine can operate at a speed of approximately 3 seconds per cycle, reaching up to 20 times per minute depending on the material and product depth.

3. Does the machine handle stacking and waste recycling automatically?

Yes, the system is fully integrated. It includes automatic punching, stacking, counting, and a specialized automatic winding system for waste recycling.

4. What are the key components used in the control system?

We utilize high-quality international components such as Omron relays, Fuji/Mitsubishi air switches, and Aoyi temperature control systems with 10-inch touchscreens.

5. Can this machine produce complex shapes like electronic trays or flowerpots?

Absolutely. The positive and negative pressure forming process allows for precise molding of intricate items such as electronic trays, seedling trays, and deep flowerpots up to 140mm in height.

6. How many workers are required to operate the production line?

Due to the high level of automation, including robotic arm gripping and automatic conveying, only 1-2 workers are typically required for the final packing stage.
