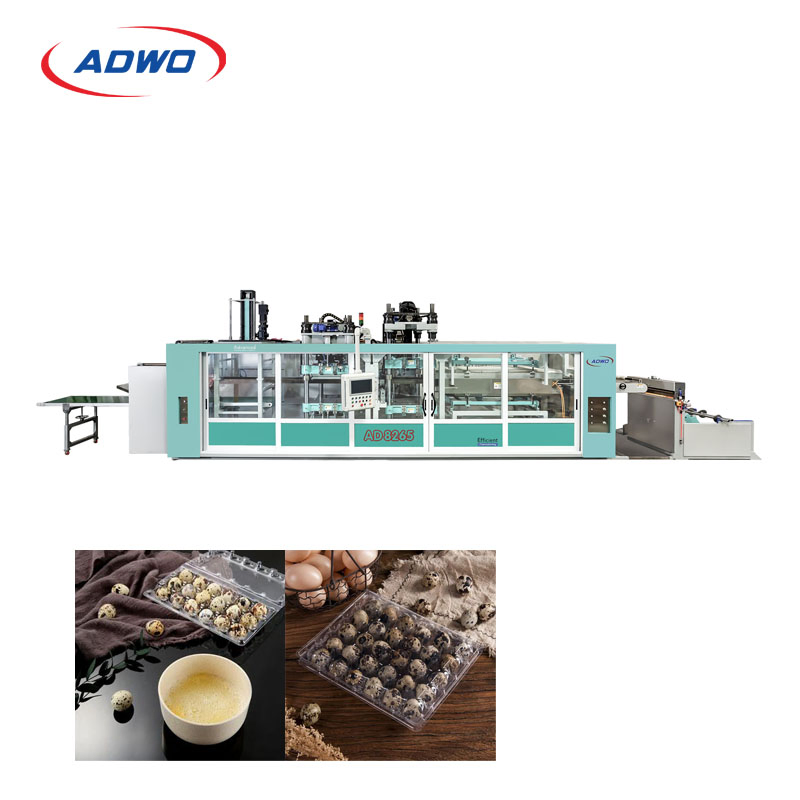

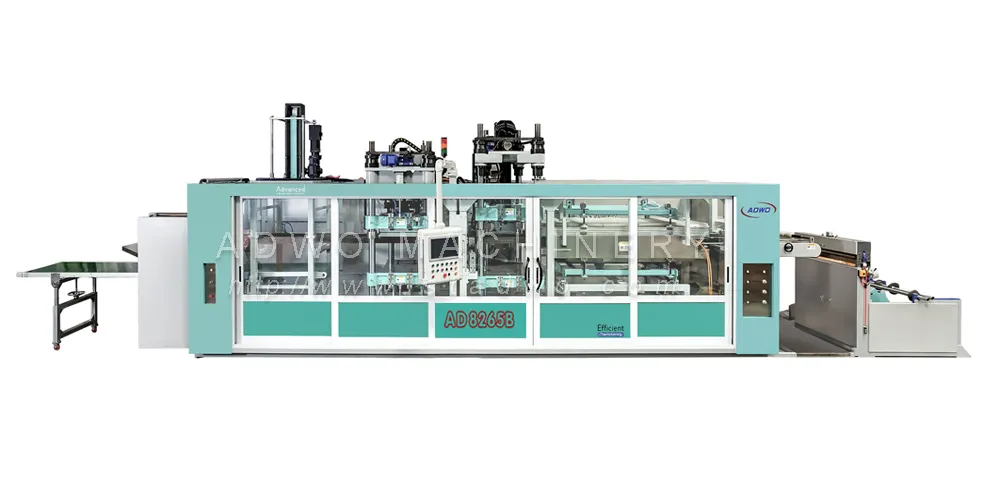

This positive and negative pressure high-speed thermoforming machine is a premier solution developed with advanced equipment technology. It is perfectly suited for producing high-quality plastic products from materials such as PP, PET, BOPS, HIPS, OPS, PVC, CPLA, CPET, and APET. Common applications include fast food boxes, fruit trays, bowl lids, medical packaging, and industrial blister packs.
| Model | AD8265B |
| Available Material | PP, PET, BOPS, HIPS, OPS, PVC, CPLA, CPET, APET |
| Max. Formed Area | 820 × 650 mm |
| Max. Cutting Area | 800 × 630 mm |
| Sheet Thickness Range | 0.12 - 2 mm |
| Max. Formed Depth | 150 mm |
| Max. Formed Speed | 50 cycles / min |
| Power Supply | 380V / 50Hz (3 Phase 4 Line) |
| Main Motor Power | 7.5 kw |
| Total Power | 253 kw (Servo 50kw + Heating 203kw) |
| Air Pressure Required | 0.6 - 0.8 MPa |
| Machine Dimensions | 14800 x 3300 x 3500 mm |
| Weight | Approx. 18,000 kg |
Servo-Driven Precision: Features electronic cam motion control with full servo-driven feeding, forming, stretching, cutting, and stacking for maximum accuracy.
Advanced Heating: Utilizes a 4-section ceramic heating method, ensuring precise temperature control and uniform sheet plasticizing.
Intelligent Control: 15-inch industrial PC touch screen operating system with storage for up to 9,999 sets of data.
Energy Efficient: Multi-station design allows simultaneous processing, reducing downtime and achieving 30% - 80% energy savings.

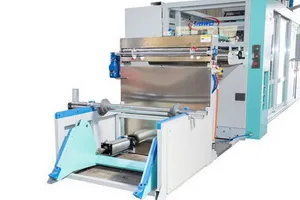

Sheet Unwinder: Driven by reduction motor with infrared sensors. Supports rolls up to 1000kg and 1000mm diameter.
Ceramic Heating Oven: Precise 4-section temperature control to improve product quality and reduce waste.

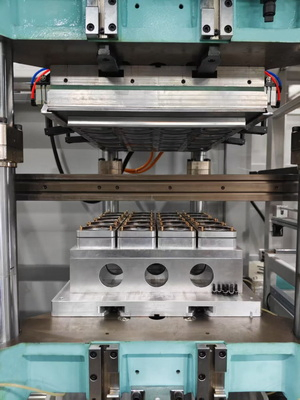

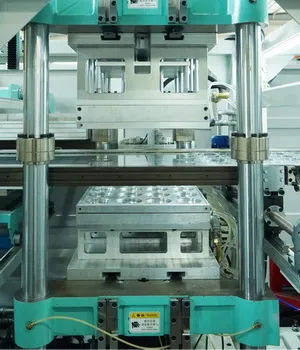

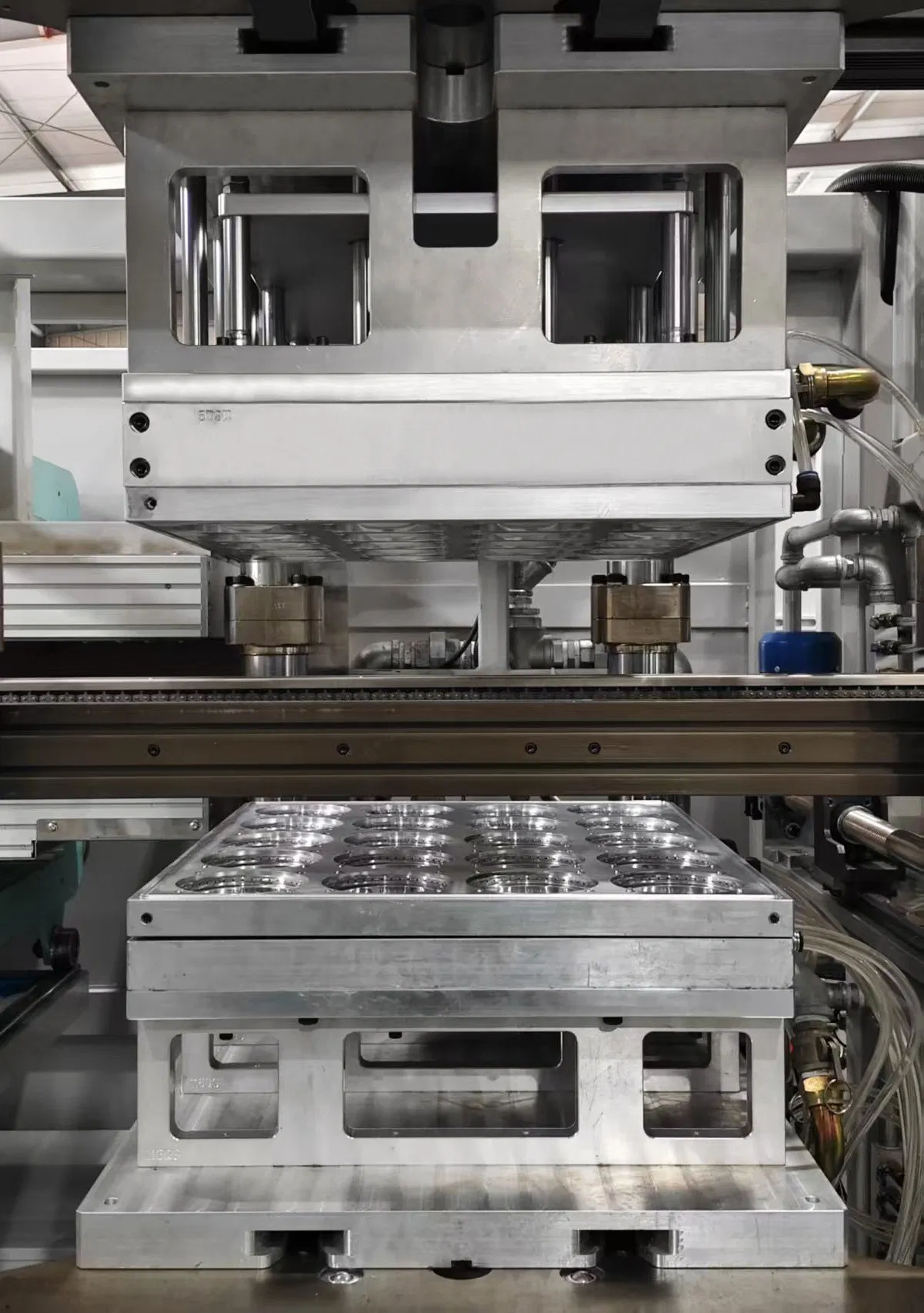

Precision Mold Table: Made of nodular cast iron, compatible with KIEFEL moulds. 150mm opening height.

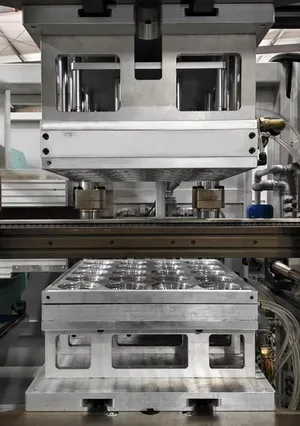

Forming Station: Delta servo drive with auxiliary stretching for deep cavity products and thick sheets.
Cutting Station: High-power servo drive with laser blade heating to prevent burrs and extend blade life.

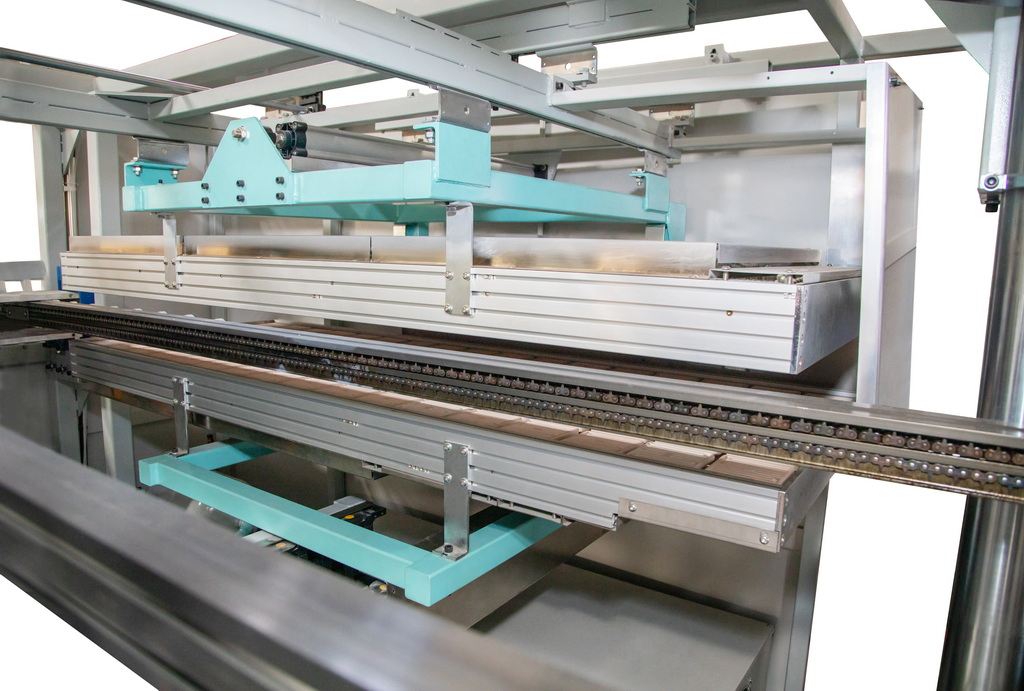

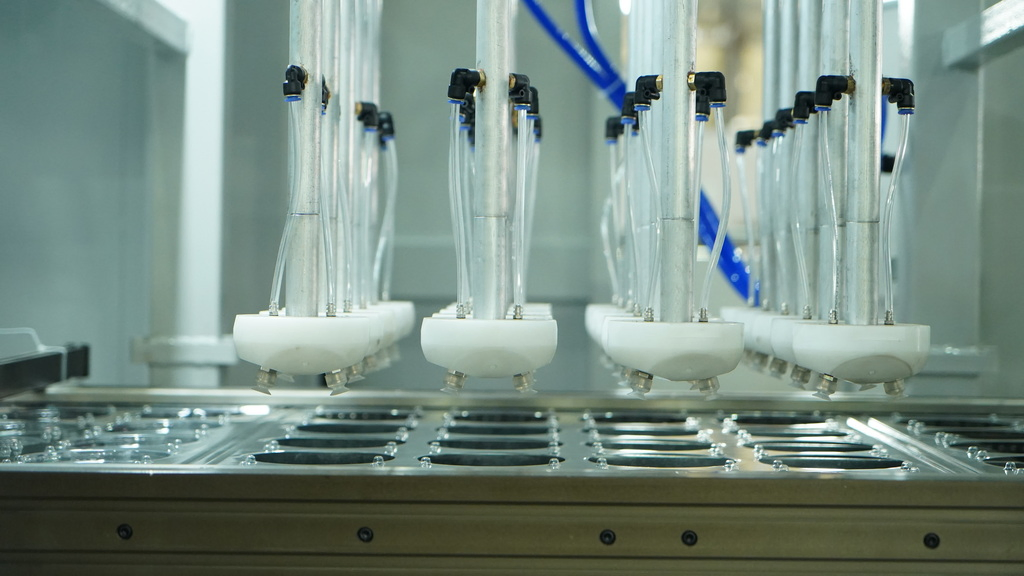

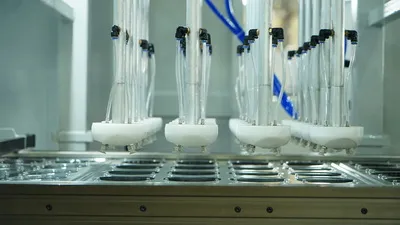

Stacking & Counting: Automated aluminum alloy rack system for smooth conveying and accurate counting.

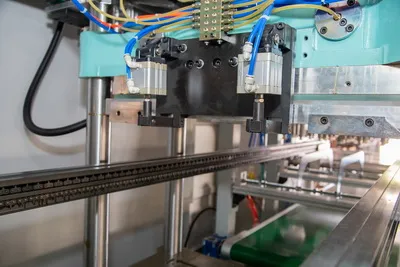

Water-Cooled Rails: One-piece die-cast aluminum guide rails with HV700 hardness treatment for durability.

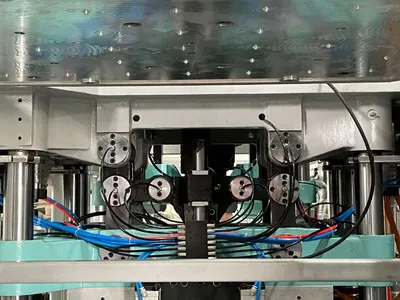

5-Pivot Structure: Robust transmission system ensuring stable, high-efficiency production cycles.

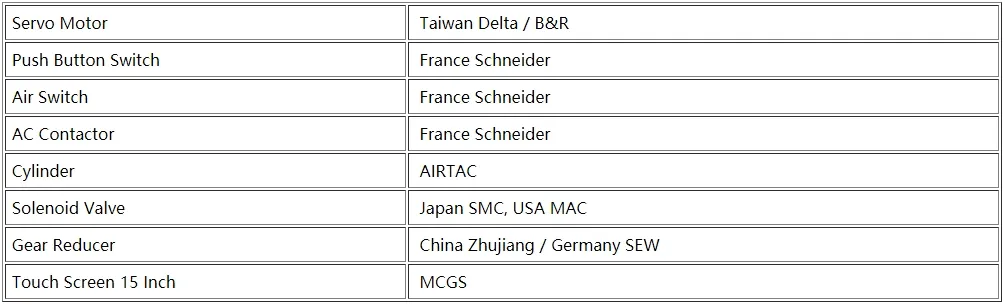

Main Electrical Components Configuration
With over 20 years of industry experience, our team provides comprehensive solutions including thermoforming technology, specialized equipment, and custom molds. We utilize high-efficiency transmission systems and premium hardware components to cast high-quality equipment that meets rigorous international standards. Our dedicated service team ensures professional technical guidance and rapid-response after-sales support.
