| Model NO. | AD8265B | Column number | Four Column |
| Molding Method | Pultrusion | Automatic Grade | Automatic |
| Process | Forming-Cutting-Stacking | Application | Plastic Medical Blister Box |
| Available Material | PP, PET, BOPS, HIPS, OPS, PVC, CPLA, CPET, APET | Sheet Thickness | 0.12-2mm |
| Max. Formed Area | 820×650mm | Max. Cutting Area | 800X630mm |
| Max. Formed Depth | 150mm | Max Formed Speed | 50 cycle/Min |
| Air Pressure | 0.6-0.8MPa | Power Supply | 380V/50Hz 3 Phase |

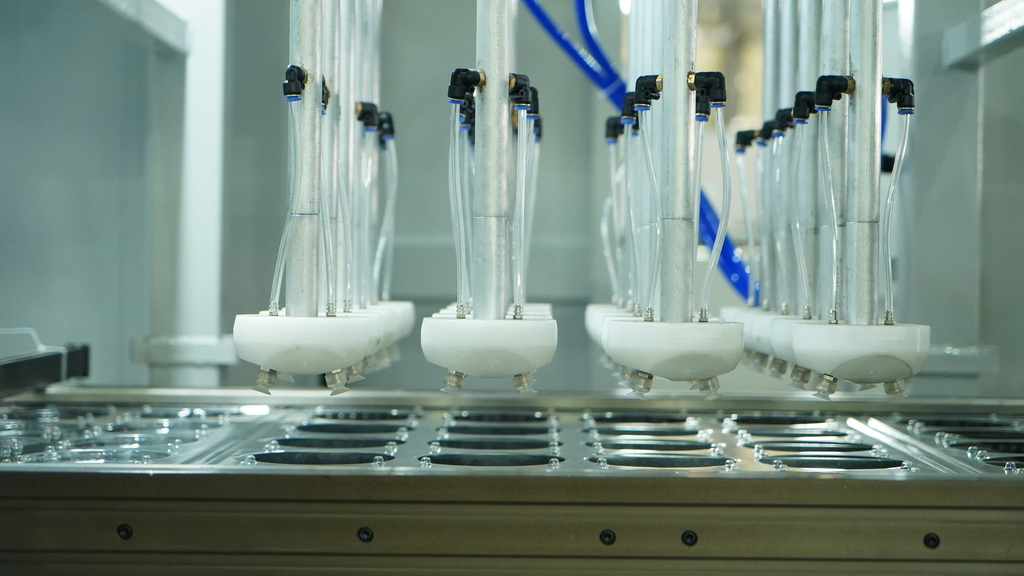

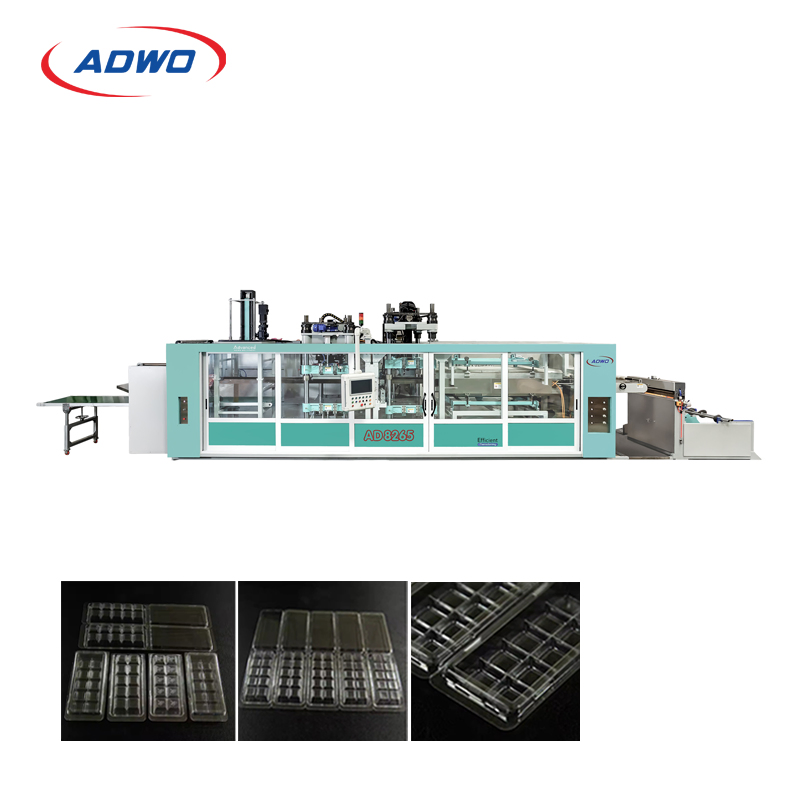

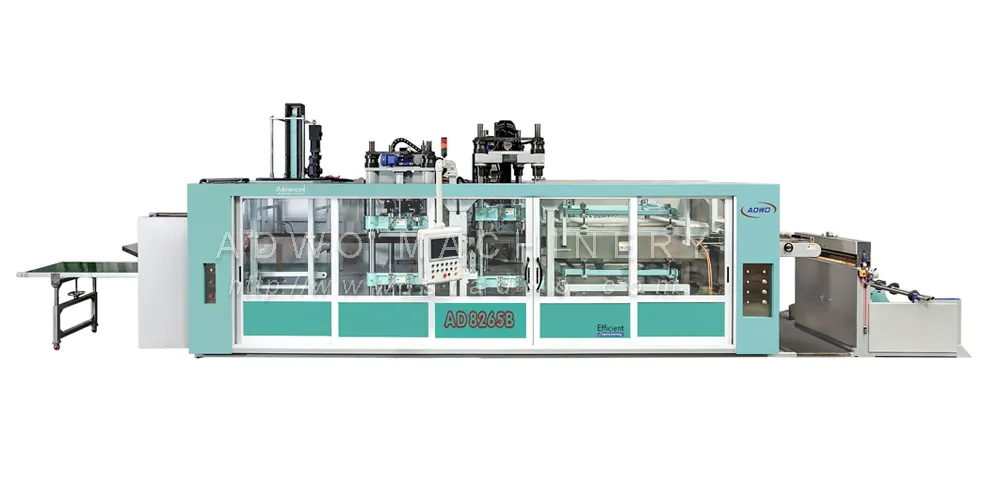

The AD8265B positive and negative pressure high speed thermoforming machine is an advanced equipment solution suitable for the production of various plastic products including fast food boxes, fruit trays, medical packaging, and electronic industrial packaging. It is compatible with materials such as PP, PET, BOPS, HIPS, PVC, and corn starch.
The system features a full motion control architecture with electronic cam and servo driven mechanisms for sheet feeding, forming, stretching, cutting, and stacking. Equipped with a 15-inch touch screen industrial PC, it allows for seamless operation and storage of up to 9999 sets of data.
Safe, efficient, energy-saving and hygienic construction suitable for diversified production lines.
Ideal for medical blister packaging, electronic packaging, lunch boxes, and egg trays.
Adopts 4-section heating method for exact temperature management and product consistency.
Simultaneous processing of loading, heating, and forming. Energy saving effect can reach 30%-80%.

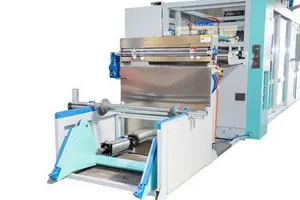

Sheet Unwinder: Driven by reduction motor, infrared sensor control, max diameter 1000mm.
Ceramic Oven: 4-section heating for precise control and reduced energy consumption.

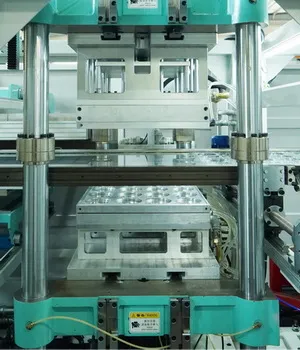

Mold Table: Nodular cast iron material, high precision, compatible with KIEFEL moulds.

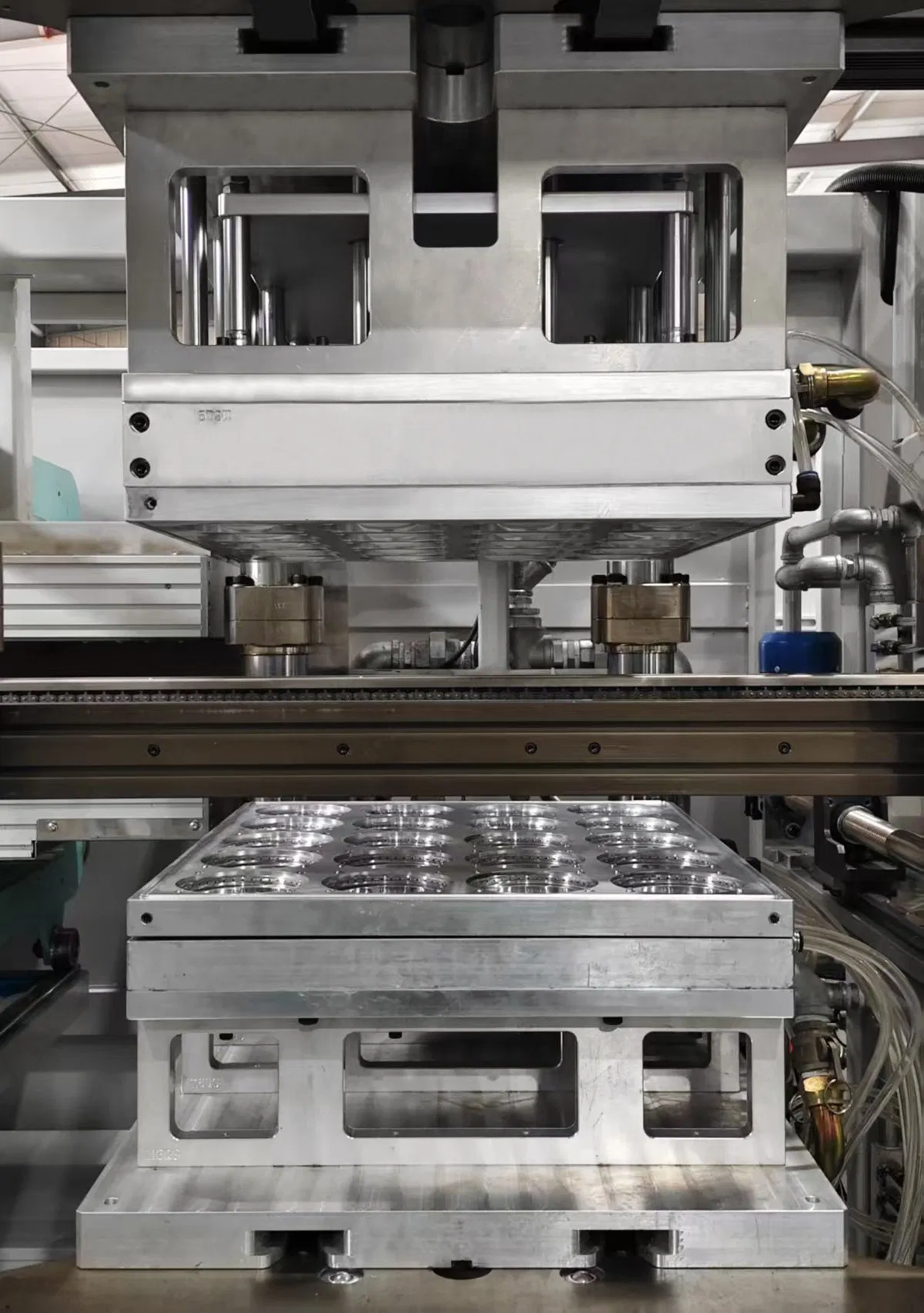

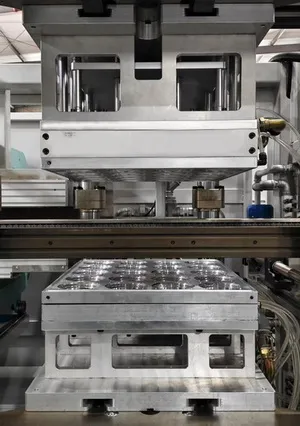

Forming Station: Delta servo drive with auxiliary stretching for thick sheets.

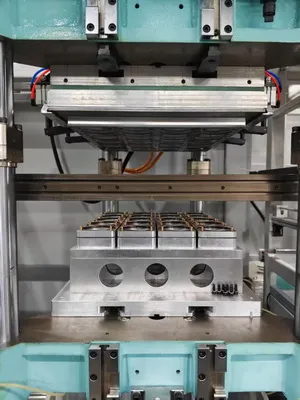

Cutting Station: High-power servo drive with laser blade heating to prevent burrs.

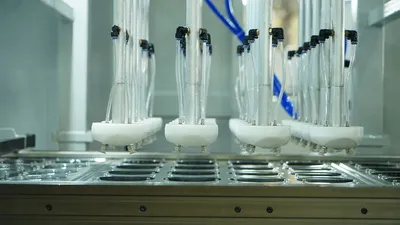

Stacking Station: Automatic counting and stacking for ergonomic production flow.
Our team consists of professional technical personnel with over 20 years of experience in the thermoforming industry. We provide complete solutions including technology, equipment, and molds. By selecting famous hardware brands and intelligent control systems, we ensure our equipment meets the highest standards of quality and efficiency.
