Raw Material
PP, BOPS, PVC, Pet, PS, HIPS, PLA
Driven Type
Electrical, Pneumatic & Mechanical
Application
Container/Box/Bowl/Tray/Lid
Max. Forming Area
760*540mm
Thickness of Sheet
0.2-2.0mm
Max. Sheet Roller Dia.
1000mm
Power Supply
AC 380V, 50/60 Hz
Production Capacity
20sets/Year

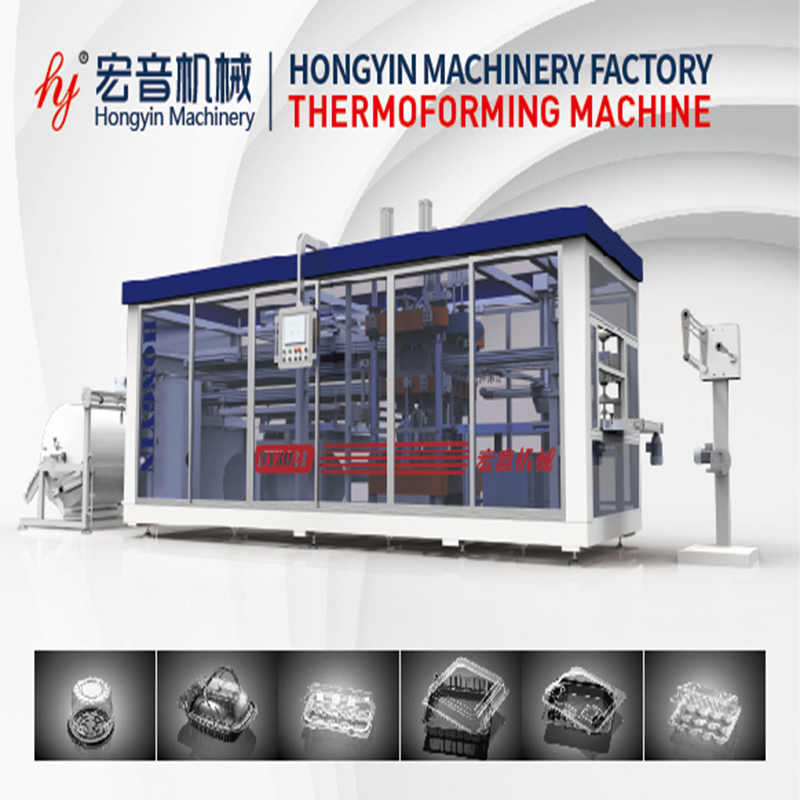

HY-3021 Positive and Negative Plastic Thermoforming Machine
Application Scope
HY-3021 plastic thermoforming machine is mainly used to produce all kinds of high transparent, high tensile turn-up and flat products, such as food box, bowl, plate, lid, tray for daily necessities, medicine and drugs, wine, electrical parts and etc.
Main Features
- Suitable for PP, HIPS, PET, PVC & PS, PLA, BOPS
- Positive and negative forming for superior detail
- In-mould cutting ensuring consistent and accurate trim
- Multi-zone upper and lower ovens incorporating an infrared heating system
- Advanced diagnostics system for easy maintenance
- Optional stacking systems available
Purchase Service: Specialized and efficient working team. New customers can provide samples for professional suggestions on the entire production workflow.
Installation Service: Assignment of 1 technician for coordination, installation, commissioning, and training.
Warranty Service: 12 months limited warranty starting from arrival date (excluding wear parts).
❓ Frequently Asked Questions
What types of raw materials are compatible with the HY-3021?
The HY-3021 machine is highly versatile and supports materials including PP, BOPS, PVC, PET, PS, HIPS, and PLA.
What is the maximum forming area and depth?
The maximum forming area is 760 * 540 mm, and the maximum forming depth is 120 mm.
What is the production speed of this thermoforming machine?
The machine operates at a speed of 600 to 1500 cycles per hour, depending on the material and product complexity.
What kind of heating system does it use?
It features a multi-zone upper and lower oven system incorporating advanced infrared heating for precise temperature control.

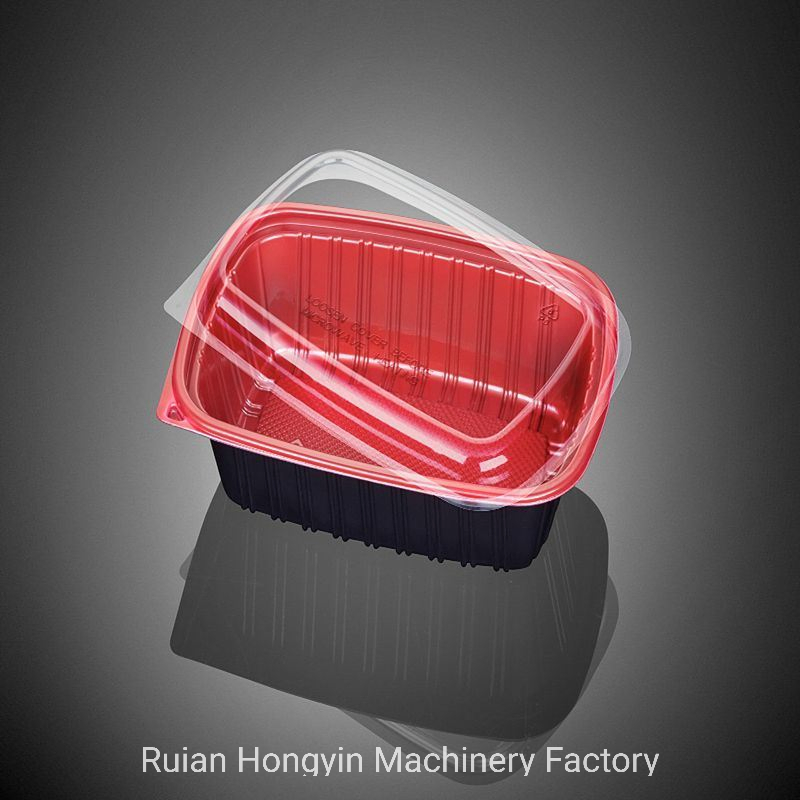

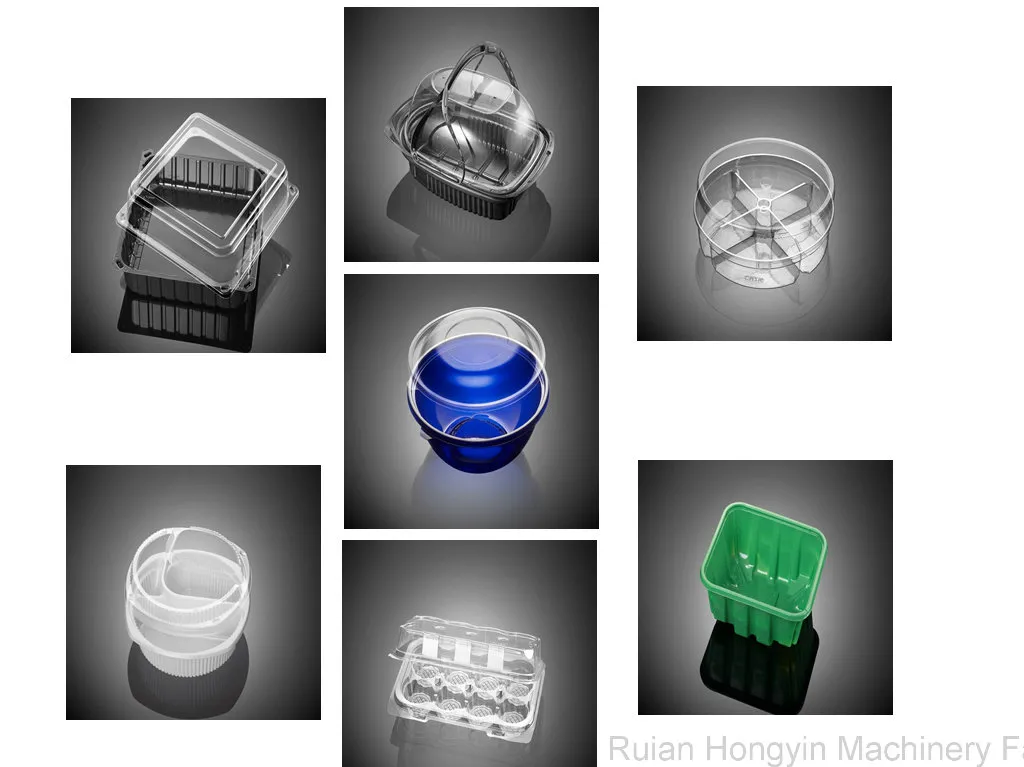

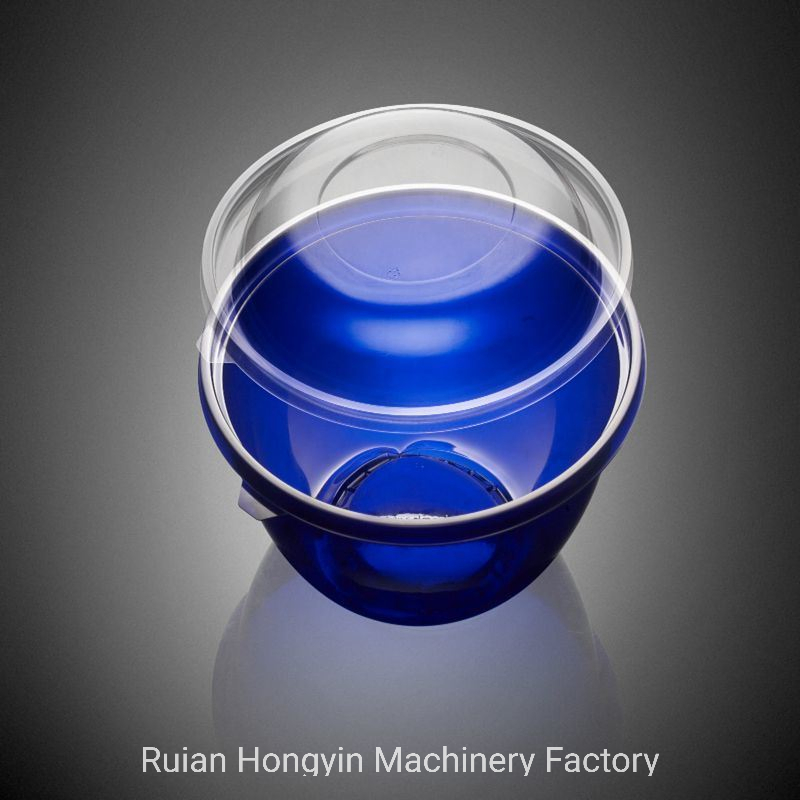

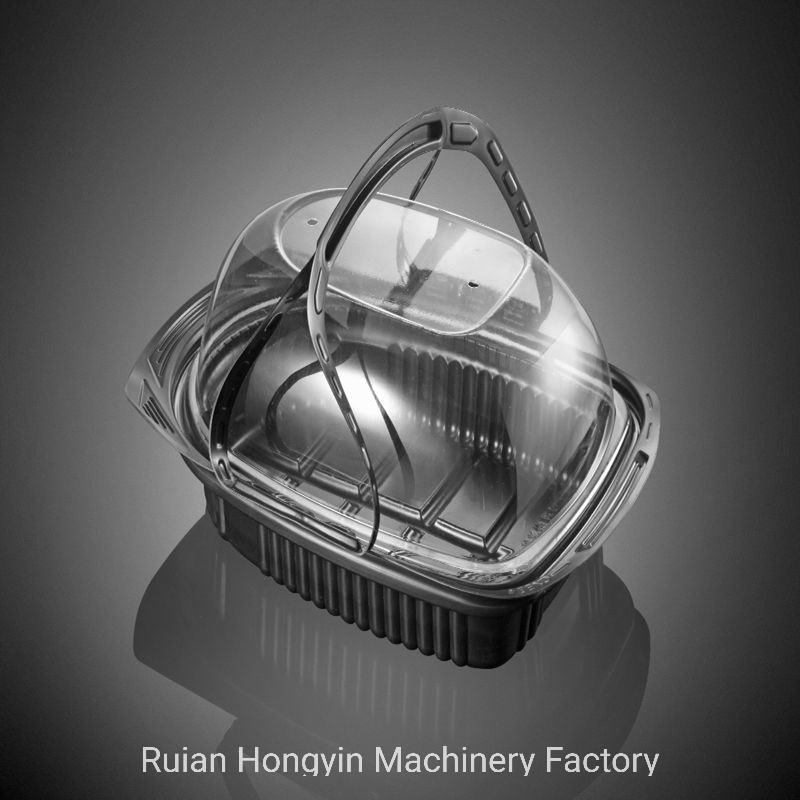

What products can be manufactured with this machine?
It is ideal for producing food boxes, bowls, plates, lids, trays for medicine, wine, electrical parts, and various daily necessities.
What are the power and air requirements?
The machine requires an AC 380V, 50/60 Hz power supply, with an air pressure of 0.7 Mpa and air consumption of 3500 liter/min.
