Alu-PVC Blister Packaging and Auto Cartoner Full Production Line (BZX-120B)

1 / 5

Alu-PVC Blister Packaging and Auto Cartoner Full Production Line (BZX-120B)

Customization:	Available
Usage:	Packaging of Goods, Produce Packing Belt
Packaging Material:	Plastic

Send Inquiry

Product Description

Basic Info.

Model NO.

BZX-120B

Packaging

Alu-PVC Blister Packaging

Driven Type

Electric

Type

Packaging Production Line

Function

Sales Packing

Application

Cosmetics, Skin Care Products, Tea, Hair Care Products

Main Motor Power

1.5kw 380V 50Hz

Production Capacity

50-100cartons/ Minute

Package Size

8.00cm * 4.20cm * 3.30cm

Gross Weight

10000.000kg

Product Description

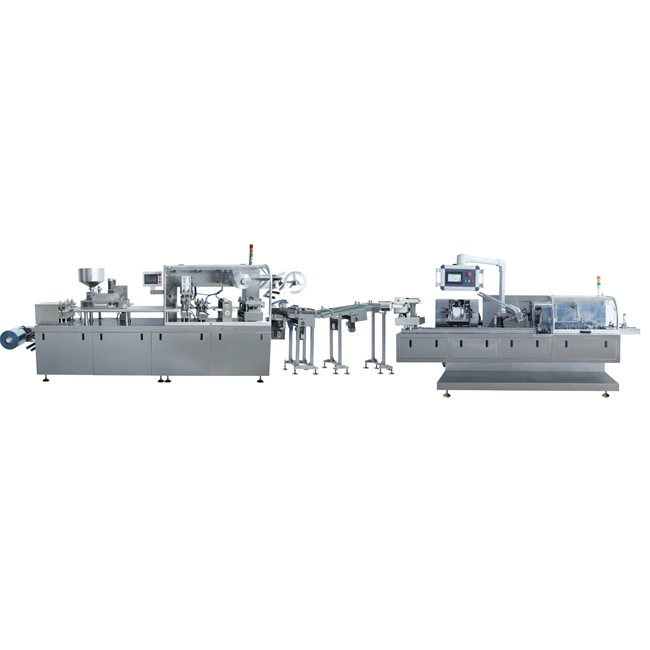

ALU-PVC Blister Packaging and Auto Cartoner Full Production Line (BZX-120B)

BZX-120B automatic cartoning production line is DPP-260H2 high speed alu-pvc (Al-Al) blister packing machine and WZH-120 automatic horizontal cartoning machine, with vision inspection systems, real-time monitoring of materials filling and case filling incomplete version of the drug material defects were excluded to ensure that qualified packaged goods.

Performance Characteristics

Separate control system for equipment operation and maintenance.
Imported servo motor traction device improves running stability, automatic forming, feeding, and sealing.
User-friendly hardware and software design for full automation adjustment.
Transitional soft connection and flexible layout for efficient space usage.
Split packaging design conducive to handling and installation.

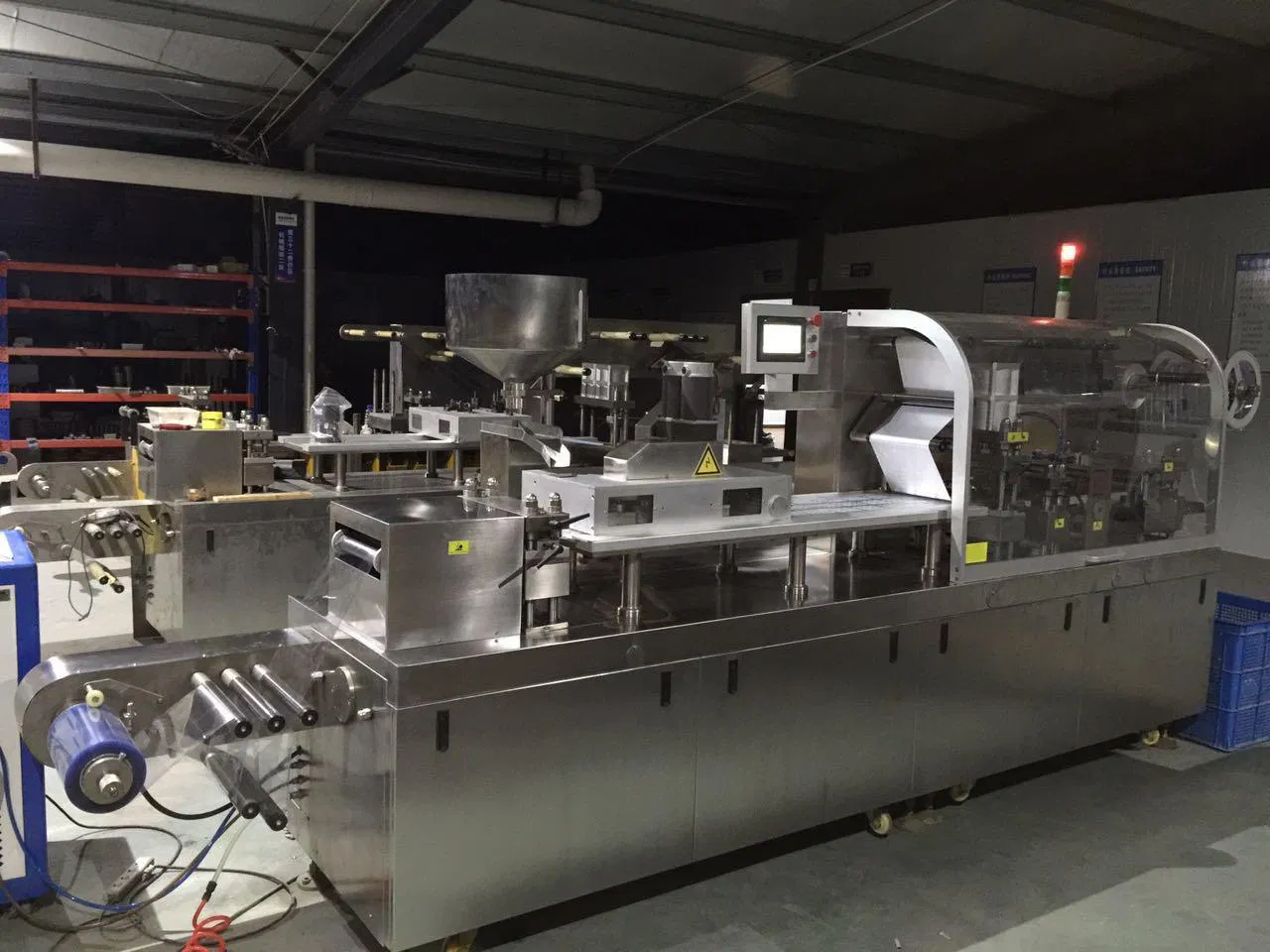

DPP-260H2 Technical Parameters

MODEL	DPP-260H2
Cutting Frequency	Al/plastic 25-60 times/min
Production Capacity	Al/plastic: 140 thousand Grains/hour
Max Forming Depth	22mm (customized available)
Travel Range	30-120 mm (up to 140mm made to order)
Total Power	380V 50HZ 8.5KW
Overall Dimensions	4460×760×1620mm
Weight	1850kg

WZH-120 Technical Parameters

Speed	50-100 cartons/Minute
Box dimension range	L(60-180)mm × W(20-80)mm × H(15-70)mm
Main motor power	1.5KW 380V 50Hz
Air pressure	0.5-0.8 Mpa
Air consumption	120-160L/min
Overall dimensions	About 3170×1260×1750 mm
Weight	1200Kg

Frequently Asked Questions

What types of products are suitable for the BZX-120B production line?

This line is highly versatile and ideal for packaging cosmetics, skin care products, tea, and hair care products using Alu-PVC blister packaging and automatic cartoning.

What is the production capacity of this cartoning line?

The production capacity ranges from 50 to 100 cartons per minute, depending on the specific product and material specifications.

How does the machine ensure the quality of the final package?

The system is equipped with advanced vision inspection systems that monitor material filling in real-time, automatically excluding any defective or incomplete versions to ensure a 100% qualification rate.

What are the power requirements for this equipment?

The production line operates on a standard industrial power supply of 380V at 50Hz, with the main motor for the cartoner using 1.5KW.

Is the machine easy to maintain and install?

Yes, the line features a separate control system and a split packaging design, which makes handling, transportation, installation, and routine maintenance very convenient.

What materials can be used for the blister packaging?

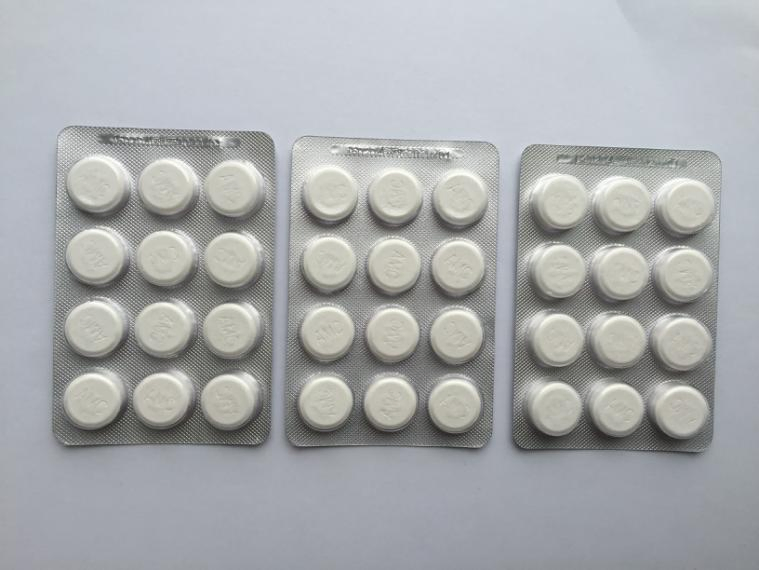

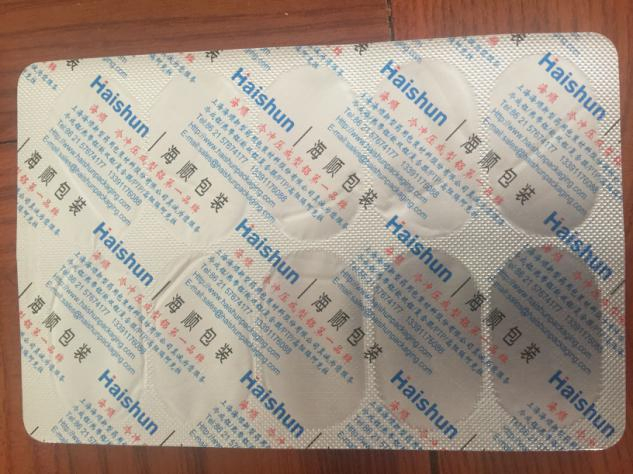

It supports PVC rigid sheets (0.25-0.5×260 mm), PTP Aluminum Foil (0.02-0.035 ×260 mm), and Dialysis Paper (50-100g×260 mm).
