Auto Pressure Forming Machinery
Auto Pressure Forming Machinery
Auto Pressure Forming Machinery
Auto Pressure Forming Machinery
Auto Pressure Forming Machinery
1 / 5
Auto Pressure Forming Machinery
Auto Pressure Forming Machinery
Auto Pressure Forming Machinery
Auto Pressure Forming Machinery
Auto Pressure Forming Machinery

Auto Pressure Forming Machinery

Customization: Available
Certification: CE
Column number: Four Column
Send Inquiry

Product Description

i

Basic Info.

Model NO.
LX3122HF-IM-C286
Molding Method
Pressing
Automatic Grade
Automatic
Forming Area
800mm*600mm Max./750*400mm Max.
Forming Depth
120mm Max. /180mmmax.
Dry Run Speed
40cycles/Min Max.
Film Thickness
0.2-2mm
Sheet Width
800mm Max.
Suitable Material
PP PS Pet PVC BOPS
Air Pressure
0.7MPa
Production Range
Container, Clamshell, Tray and Lid
Automaticity
Forming, Cutting, Stacking and Conveying
Cooling Water
13 Liters/Min 15° - 20°c
Transport Package
Plastic Film with Anti-Rust Oil
Specification
1200*2600*2500mm
Origin
China
HS Code
8477409000
Capacity
20sets/Year
D

Product Description

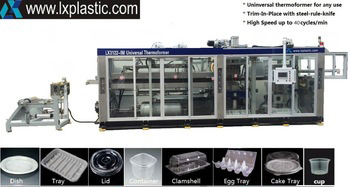

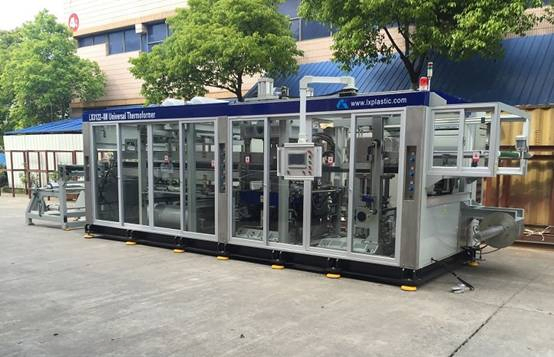

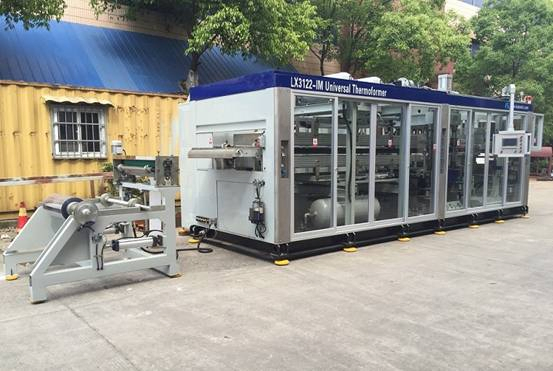

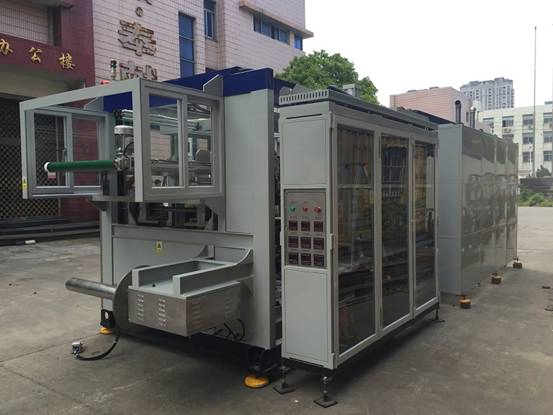

Auto Pressure Forming Machinery

BRIEF: HF-IM auto pressure forming machinery is a trim-in-place type thermoforming machine which takes advantage of mould with rules steel knife for performing forming and cutting in the same station. The second and the third cut-station are available for performing function of post-trim and hole-punch.

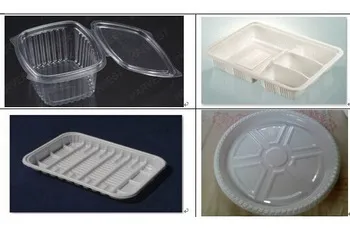

It is perfect for making parts of PP, PET, PS etc. and completely automatically produces disposable rectangular, square, or round shaped roll-edged containers and trays with forming, trimming, and stacking conveying on one operation cycle.

★

Design Features

  • Use Steel-Rule-knife for performing forming and cutting in the same station.
  • Trim-in-place for processing PP PET PS PVC BOPS material etc. (Specially perfect for PP).
  • Second and Third cut-press available for hole punching and post-trim.
  • Automatic stacking, counting unit, and conveying system.
  • Trim-in-place for parts with rolled edge (turn-down lip).
  • Technology brings neat and identical trimming/cutting.
  • Plug assistant for deep forming of draw.
  • Floating knife and free knife available for film with high shrinkage rate.
  • Extra Contact Heat plate for minimizing power consumption.
S

Technical Specification

Specification Item LX3122IM Details
Mould Area800*600mm Max
Depth of Draw under sheet120 mm Max
Depth of Draw above sheet30mm Max / 120mm Max
Clamping force750KN
The Second Cut-PressAvailable
The Third Cut-PressAvailable
Suitable materialPP PET PS PVC BOPS
Sheet Width460- 850 mm
Material Thickness Range0.2-1.5mm
Material Roll Diameter1000 Max
Dry run Speed45 cycles/min Max.
Power ConsumptionApprox. 35 kilowatts/hr
Air Pressure / Consumption0.7Mpa / 2500 Liters/min
Cooling Water Consumption13 Liters/min 15° - 20°C
Dimensions (L*W*H)9.5m * 2.2m * 2.2m
P

Operation Modules

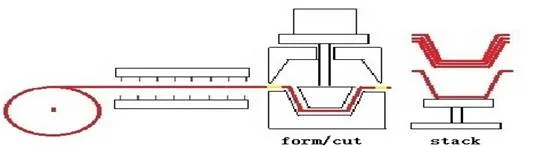

Trim-in-place IM-2in1
Trim-in-place IM-2in1

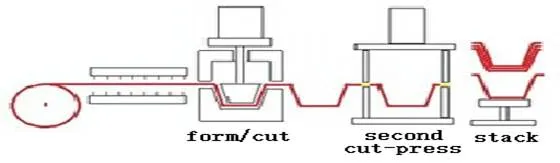

Trim-in-place IM-3in1
Trim-in-place with second cut-press IM-3in1

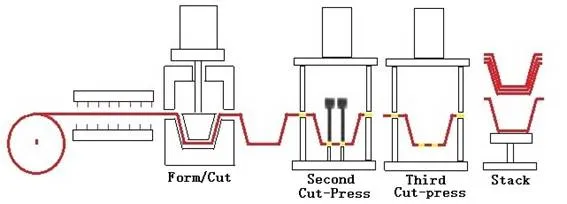

Trim-in-place IM-4in1
Trim-in-place with 2nd & 3rd cut-press IM-4in1
S

Service & Applications

Service Image 1
Service Image 2
?

Frequently Asked Questions

What materials are suitable for this pressure forming machinery?
The machinery is designed to process a wide range of materials including PP, PET, PS, PVC, and BOPS. It is especially effective for processing PP.
What is the advantage of the trim-in-place technology?
Trim-in-place technology uses a steel-rule-knife to perform forming and cutting in the same station, which ensures a very neat and identical trimming result for high-quality product finishes.
Can this machine produce containers with rolled edges?
Yes, the system is specifically designed for trim-in-place production of parts with rolled edges or turn-down lips.
What are the options for additional cut-press stations?
The machine offers modular options (IM-3in1 and IM-4in1) that include a second and third cut-press station for auxiliary functions like hole punching and post-trimming.
What is the production capacity and speed?
The machine features a dry run speed of up to 45 cycles per minute. The overall production capacity is approximately 20 sets per year.
How is the finished product handled after forming?
The machine includes an integrated automatic stacking and counting unit, along with a conveying system to ensure a fully automated workflow from sheet to finished stack.
