Auto Pressure Forming Equipment Machine
Auto Pressure Forming Equipment Machine
Auto Pressure Forming Equipment Machine
Auto Pressure Forming Equipment Machine
Auto Pressure Forming Equipment Machine
1 / 5
Auto Pressure Forming Equipment Machine
Auto Pressure Forming Equipment Machine
Auto Pressure Forming Equipment Machine
Auto Pressure Forming Equipment Machine
Auto Pressure Forming Equipment Machine

Auto Pressure Forming Equipment Machine

Customization: Available
Certification: CE
Column number: Four Column
Send Inquiry

Product Description

Basic Specifications
Model NO.
LX3122HF-IM-C290
Molding Method
Pressing
Automatic Grade
Automatic
Forming Area
800mm*600mm Max./750*400mm Max.
Forming Depth
120mm Max. /180mmmax.
Dry Run Speed
40cycles/Min Max.
Film Thickness
0.2-2mm
Sheet Width
800mm Max.
Suitable Material
PP PS Pet PVC BOPS
Air Pressure
0.7MPa
Production Range
Container, Clamshell, Tray and Lid
Automaticity
Forming, Cutting, Stacking and Conveying
Origin
China
HS Code
8477409000
Product Description

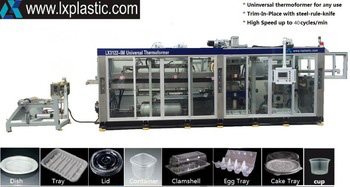

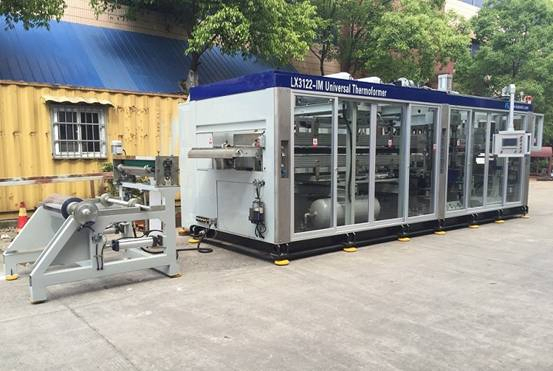

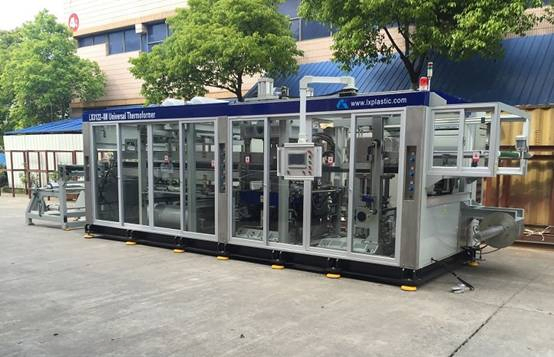

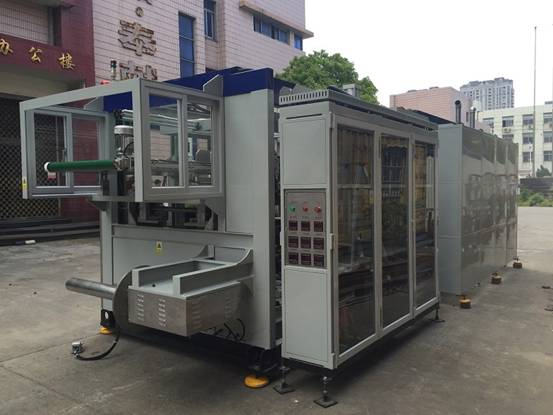

Auto Pressure Forming Equipment Machine

BRIEF: HF-IM auto pressure forming equipment is a trim-in-place type thermoforming machine which takes advantage of mould with rules steel knife for performing forming and cutting in the same station. The second and the third cut-station are available for performing function of post-trim and hole-punch.

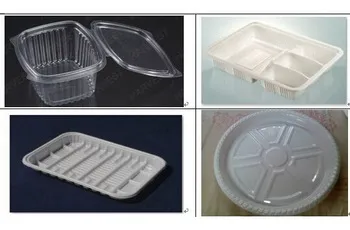

It is perfect for making parts from PP, PET, PS, etc., and completely automatically produces disposable rectangular, square, or round-shaped roll-edged containers and trays with forming, trimming, and stacking conveying in one operation cycle.

Key Design Features
  • Use Steel-Rule-knife for performing forming and cutting in the same station.
  • Trim-in-place for processing PP, PET, PS, PVC, BOPS material, etc. (specially perfect for PP).
  • Second cut-press and Third cut-press are available for hole punching and post-trim.
  • Automatic stacking, counting unit, and conveying system.
  • Trim-in-place for parts with rolled edge (turn-down lip).
  • Technology of trim-in-place brings a neat and identical trimming/cutting.
  • Plug assistant for deep forming of draw.
  • Floating knife and free knife are available for post-trimming film with high shrinkage rate.
  • Extra Contact Heat plate for minimizing power consumption is available.
Detailed Specification (LX3122IM)
Parameter Specification Details
Mould Area800*600mm Max
Depth of Draw under sheet120 mm Max
Depth of Draw above sheet30mm Max/120mm Max
Clamping force750KN
Second/Third Cut-PressAvailable (Optional)
Suitable MaterialPP PET PS PVC BOPS
Sheet Width460- 850 mm
Material Thickness Range0.2-1.5mm
Dry run Speed45 cycles/min Max.
Power ConsumptionApprox. 35 kilowatts/hr
Air Consumption2500 Liters/min
Dimensions9.5m * 2.2m * 2.2m (L*W*H)
Machine Configurations

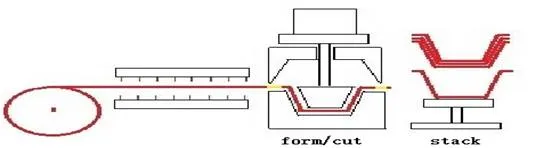

Trim-in-place IM-2in1

Trim-in-place IM-2in1

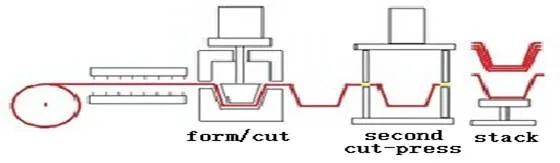

Trim-in-place IM-3in1

Trim-in-place with second cut-press

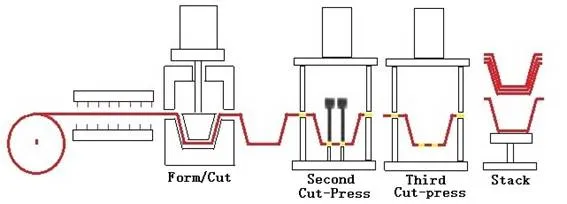

Trim-in-place IM-4in1

Trim-in-place with second and third cut-press
Service & Support
Service Image 1

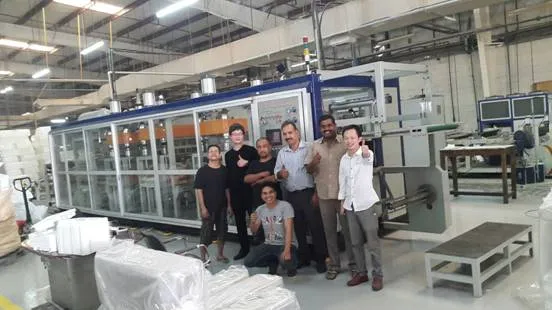

Service Image 2
Frequently Asked Questions
Q: What types of materials can this pressure forming equipment process? A: This machine is designed to process various plastic sheets, including PP, PET, PS, PVC, and BOPS, with a thickness range of 0.2mm to 2mm.
Q: What is the main advantage of the "Trim-in-place" technology? A: It performs forming and cutting in the same station using a steel-rule-knife, ensuring a neat, identical trim and making it particularly efficient for deep draw parts.
Q: Can the machine produce containers with holes or complex trimming? A: Yes, optional second and third cut-stations can be added for hole punching and post-trimming requirements.
Q: What is the maximum production speed of the LX3122HF-IM series? A: The machine can achieve a dry run speed of up to 40 to 45 cycles per minute depending on the specific model and material.
Q: Is the stacking and conveying process manual or automatic? A: The machine features a fully automatic stacking, counting unit, and conveying system to streamline the production cycle.
Q: What are the cooling and air requirements for operation? A: It requires an air pressure of 0.7Mpa with a consumption of 2500 Liters/min, and a cooling water flow of 13 Liters/min (15° - 20°C).
