Auto Pressure and Vacuum Thermoforming Forming Machine Equipment

1 / 5

Auto Pressure and Vacuum Thermoforming Forming Machine Equipment

Customization:	Available
Certification:	CE
Column number:	Four Column

Send Inquiry

Product Description

Technical Specifications

Model NO.

LX3122HF-IM-C284

Molding Method

Pressing

Automatic Grade

Automatic

Forming Area

800mm*600mm Max./750*400mm Max.

Forming Depth

120mm Max. /180mmmax.

Dry Run Speed

40cycles/Min Max.

Film Thickness

0.2-2mm

Sheet Width

800mm Max.

Suitable Material

PP PS Pet PVC BOPS

Air Pressure

0.7MPa

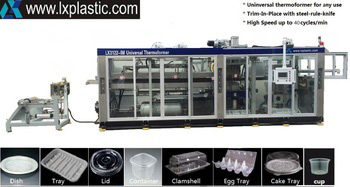

Production Range

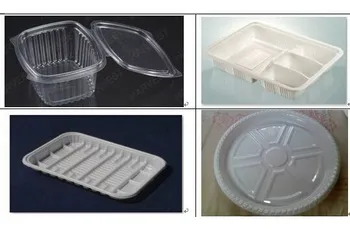

Container, Clamshell, Tray and Lid

Automaticity

Forming, Cutting, Stacking and Conveying

Cooling Water Consumption

13 Liters/Min 15° - 20°c

Transport Package

Plastic Film with Anti-Rust Oil

Specification

1200*2600*2500mm

Origin

China

HS Code

8477409000

Production Capacity

20sets/Year

Product Overview

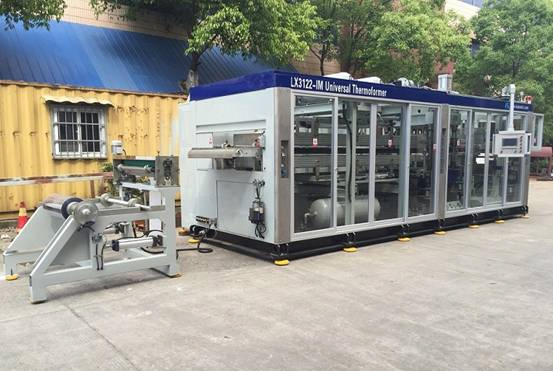

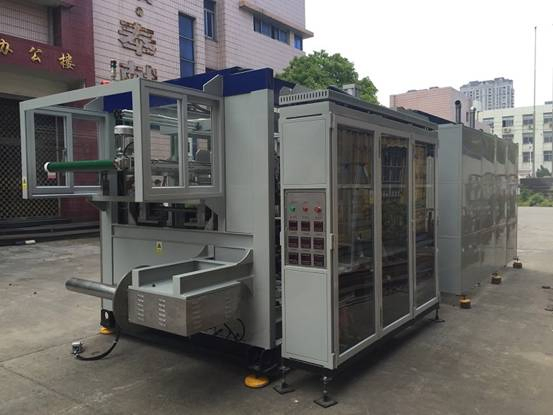

Auto Pressure and Vacuum Thermoforming Machine

BRIEF INTRODUCTION

The HF-IM auto pressure and vacuum forming machine is a high-efficiency trim-in-place type thermoforming machine. It utilizes molds with rule steel knives to perform both forming and cutting in a single station. For enhanced functionality, second and third cut-stations are available for post-trimming and hole-punching operations.

This equipment is ideal for processing PP, PET, PS, and other materials. It provides a fully automatic production cycle for disposable rectangular, square, or round-shaped roll-edged containers and trays, covering forming, trimming, stacking, and conveying in one seamless operation.

Key Design Features

✔Steel-Rule-knife technology for simultaneous forming and cutting.
✔Specialized for PP, PET, PS, PVC, and BOPS materials.
✔Optional second and third cut-press units for hole punching and post-trimming.
✔Integrated automatic stacking, counting, and conveying systems.
✔Trim-in-place technology ensuring neat and identical edges for rolled-lip parts.
✔Plug assistant system for deep-draw forming requirements.
✔Available floating knife and free knife for high-shrinkage films.
✔Optional extra contact heat plate to minimize power consumption.

Detailed Specifications (LX3122IM)

Specification Item	Details
Mould Area	800*600mm Max
Depth of Draw under sheet	120 mm Max
Depth of Draw above sheet	30mm Max / 120mm Max
Clamping force	750KN
The Second Cut-Press	Available
The third Cut-Press	Available
Suitable material	PP PET PS PVC BOPS
Sheet Width	460 - 850 mm
Material Thickness Range	0.2 - 1.5mm
Material Roll Diameter	1000 Max
Dry run Speed	45 cycles/min Max.
Power Supply	3-N AC380V ± 15V (others at request)
Power Consumption	Approx. 35 kilowatts/hr
Air Pressure	0.7Mpa
Air Consumption	2500 Liters/min
Cooling Water Consumption	13 Liters/min (15° - 20°C)
Dimensions (LWH)	9.5m * 2.2m * 2.2m

Processing Capabilities

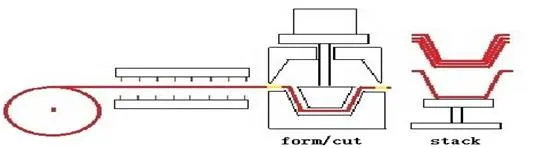

Trim-in-place IM-2in1

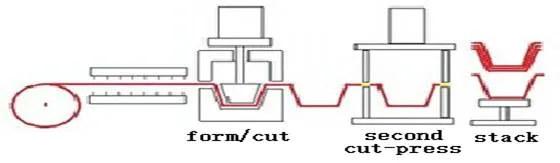

IM-3in1 (Optional)

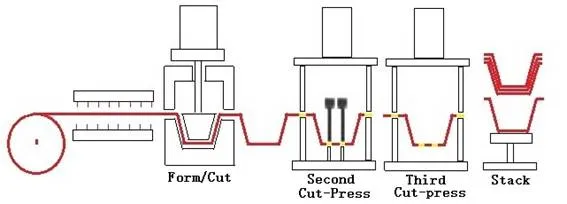

IM-4in1 (Optional)

Equipment Service & Components

Frequently Asked Questions

What types of materials can this thermoforming machine process?

This machine is designed for a wide range of thermoplastic materials including PP, PET, PS, PVC, and BOPS, with a thickness range of 0.2 to 2mm.

What is the maximum production speed of the LX3122IM?

The machine features a dry run speed of up to 45 cycles per minute, allowing for high-efficiency mass production depending on material and mold design.

Does the machine support multiple cutting stages?

Yes, in addition to the standard trim-in-place station, optional second and third cut-press units can be integrated for hole punching and post-trimming tasks.

What is the maximum forming area and depth available?

The maximum forming area is 800mm x 600mm. It supports a maximum forming depth of 120mm under the sheet and up to 120mm above the sheet.

Is the stacking and conveying process automated?

Yes, the machine includes an integrated automatic stacking unit, counting unit, and conveying system to provide a complete hands-free production cycle.

What are the power and air requirements for operation?

The machine requires a 3-N AC380V power supply with approximately 35kw/hr consumption. It also requires an air pressure of 0.7Mpa with a consumption of 2500 Liters/min.
