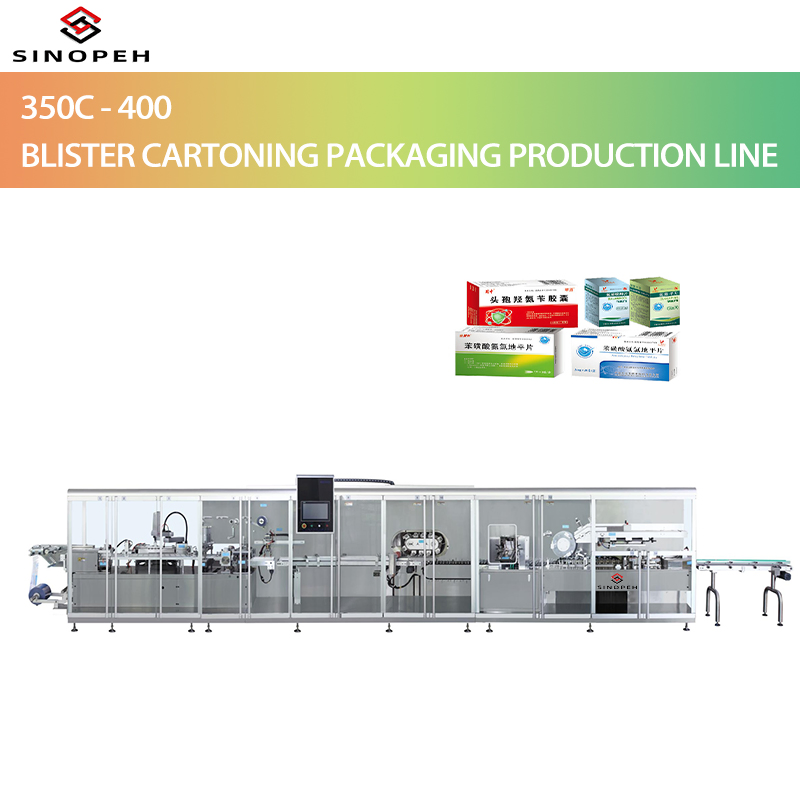

Automatic Blister Cartoning Integrated Packaging Production Line for Pharmaceutical Manufacturing
Automatic Blister Cartoning Integrated Packaging Production Line for Pharmaceutical Manufacturing
Automatic Blister Cartoning Integrated Packaging Production Line for Pharmaceutical Manufacturing
Automatic Blister Cartoning Integrated Packaging Production Line for Pharmaceutical Manufacturing
Automatic Blister Cartoning Integrated Packaging Production Line for Pharmaceutical Manufacturing
1 / 5
Automatic Blister Cartoning Integrated Packaging Production Line for Pharmaceutical Manufacturing
Automatic Blister Cartoning Integrated Packaging Production Line for Pharmaceutical Manufacturing
Automatic Blister Cartoning Integrated Packaging Production Line for Pharmaceutical Manufacturing
Automatic Blister Cartoning Integrated Packaging Production Line for Pharmaceutical Manufacturing
Automatic Blister Cartoning Integrated Packaging Production Line for Pharmaceutical Manufacturing

Automatic Blister Cartoning Integrated Packaging Production Line for Pharmaceutical Manufacturing

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
350C-400
Application
Cleaning, Detergent, Skin Care, Medical
Type
Packing Machine
Forming Species
Box Molding
Driven Type
Electric
Material Type
Medical
Packaging
Cartons
Packaging Material
Paper
Punching Frequency
16-30 Cycles/Min
Max Forming Area
220×360 mm
Main Motor Power
2.2 Kw
Cartoning Capacity
200 Cartons/Min
Power Supply
380 V, 50 Hz
🚀

Product Description

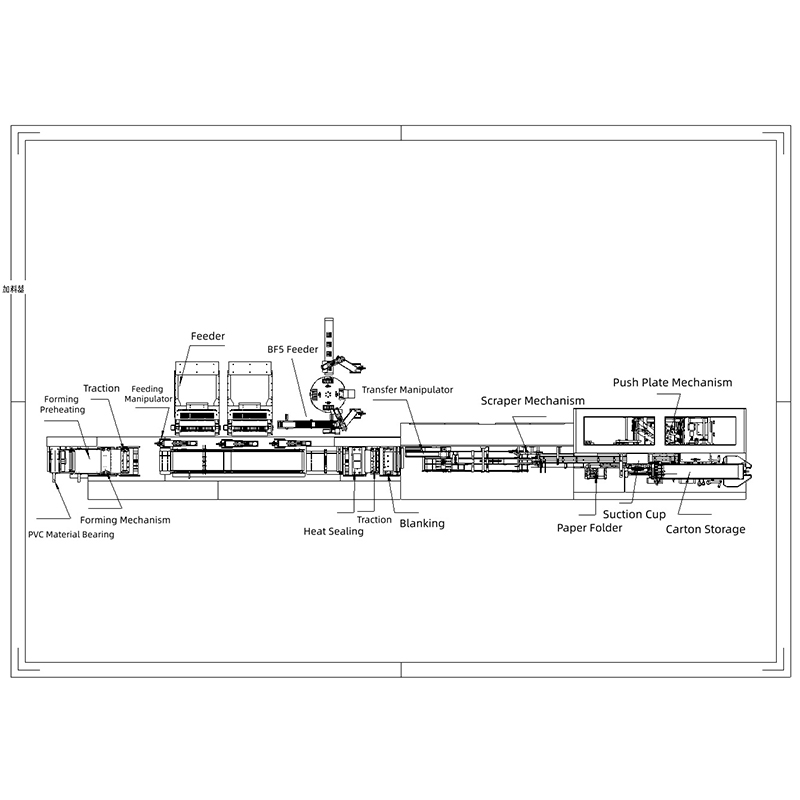

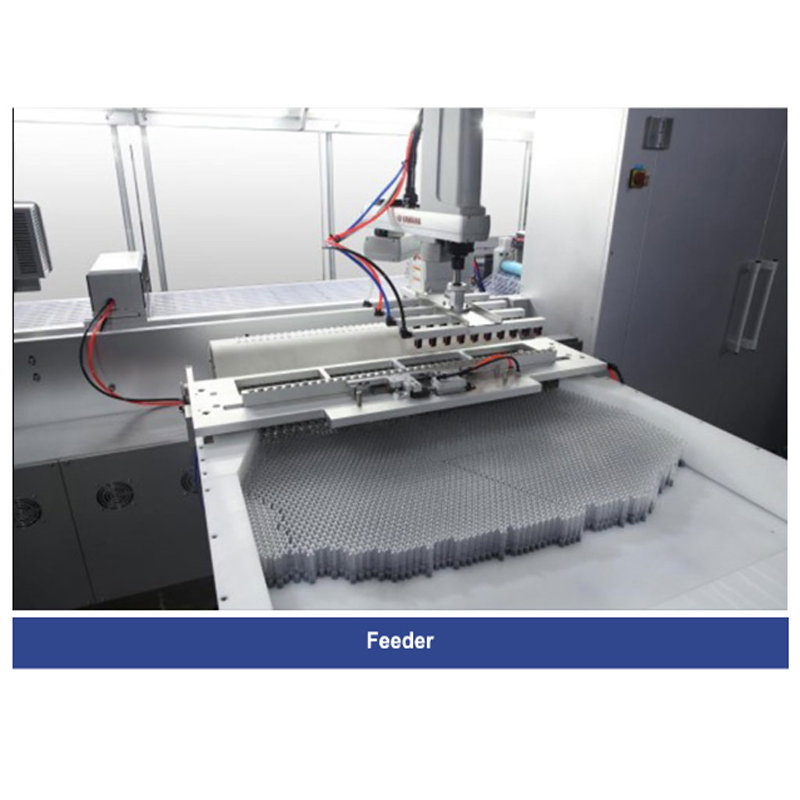

This machine integrates blister packaging and cartoning functions, capable of implementing a full-cycle process: bottle feeding → blister forming → blister cutting → automatic loading → carton opening → leaflet folding → cartoning → carton sealing.

Key Features:
  • Designed for oral liquid bottled pharmaceuticals.
  • Equipped with alarm devices for all material hoppers.
  • Fault shutdown protection with visible diagnostics.
  • Advanced computer control for counting and status monitoring.
  • GMP standard compliant with separated transmission and packaging areas.
  • High automation: PVC forming to final cartoning in one seamless line.
⚙️

Technical Parameters

Punching frequency16–30 cycles/min
Maximum forming area220×360 mm
Stroke range50–220 mm (servo-controlled)
Packaging materialNon-toxic PVC rigid sheet (0.15–0.5×350 mm)
Electric heating powerPVC preheating plate – 2×4.5 KW
Main motor power2.2 KW / 3.5 KW
Carton specification (L×W×H)(65–180)×(35–90)×(16–75) mm
Cartoning capacity200 cartons/min
Overall dimension (L×W×H)13500×2700×2050 mm
Total machine power24 KW
Air supply pressure0.6–0.8 MPa
🖼️

Product Display

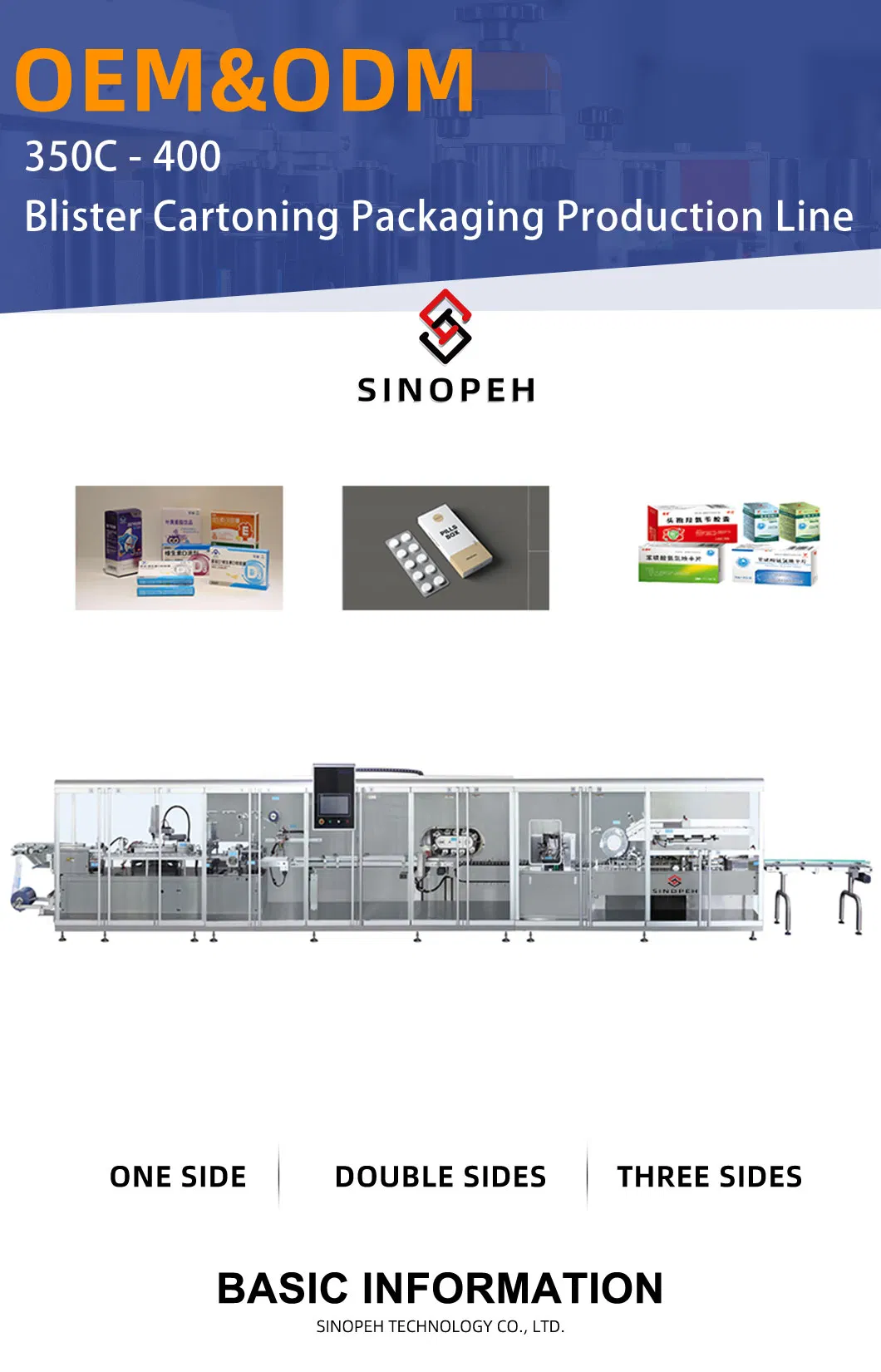

Integrated Packaging Production Line
Packaging Line Detail
Automatic Blister Cartoning
Pharmaceutical Manufacturing Line

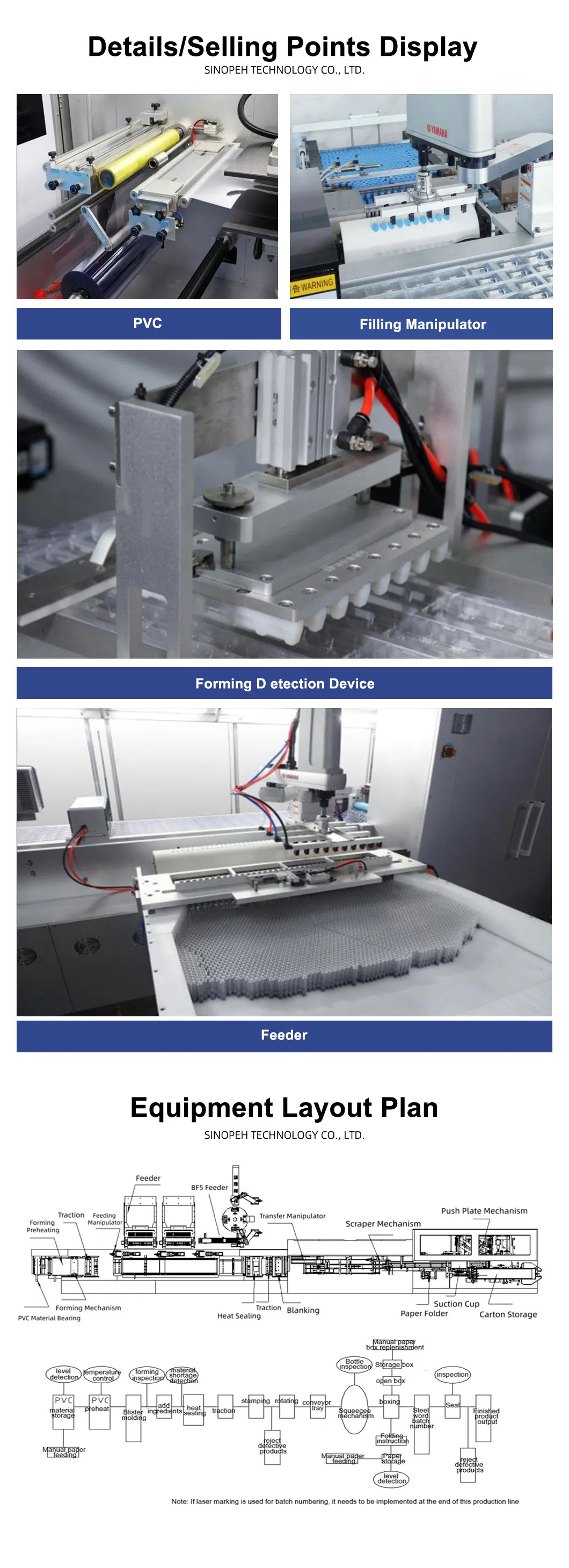

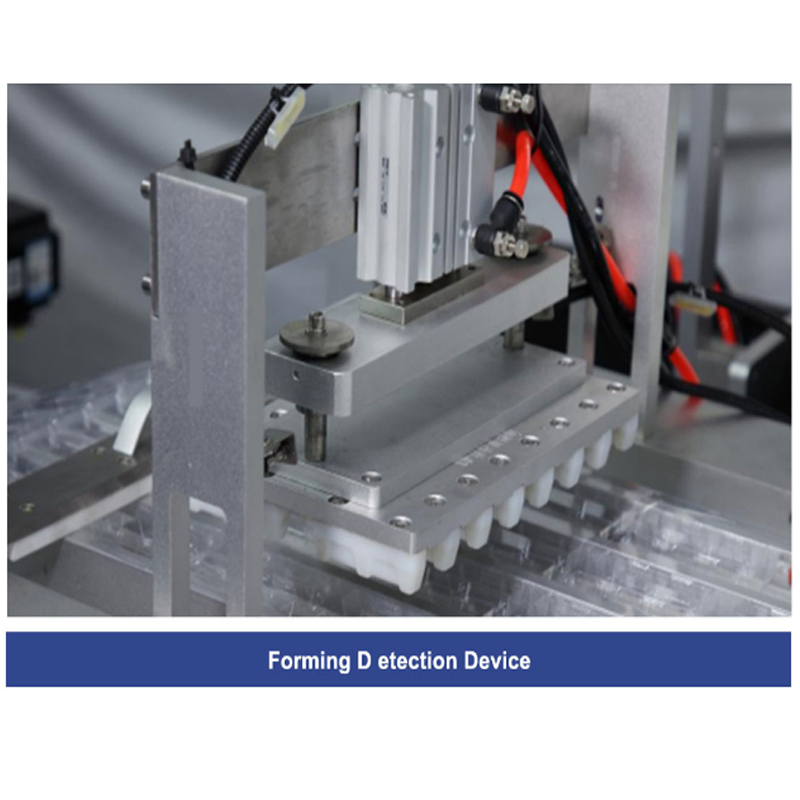

Machine Component Detail
Integrated System View
Production Workflow
Machine Interface and Control
Final Packaging Unit
❓

Frequently Asked Questions

Are you a manufacturer?
Yes, we are a professional source manufacturer. We welcome clients to visit our facilities to witness our production standards and technology first-hand.
Why should I choose your packaging equipment?
With decades of industry experience, we have dedicated departments for technology, production, quality inspection, and after-sales. We provide customized programs to meet specific client needs ensuring high-quality output.
What is the warranty period for the machine?
We provide an 18-month warranty for the whole machine (excluding human factors) and life-long consultation services with 24-hour technical support.
Can you handle special design requests for the production line?
Absolutely. We provide customized design services to ensure the production line fits your specific workflow and product requirements.
How do you ensure the machine fits our local voltage?
Our sales team confirms voltage requirements during the order process. We can customize the electrical configuration to match your local standards perfectly.
How do you guarantee machine quality before delivery?
Before shipping, we provide detailed installation and operation videos, testing documents, and certification. We also support third-party FAT (Factory Acceptance Testing) and SAT (Site Acceptance Testing).
