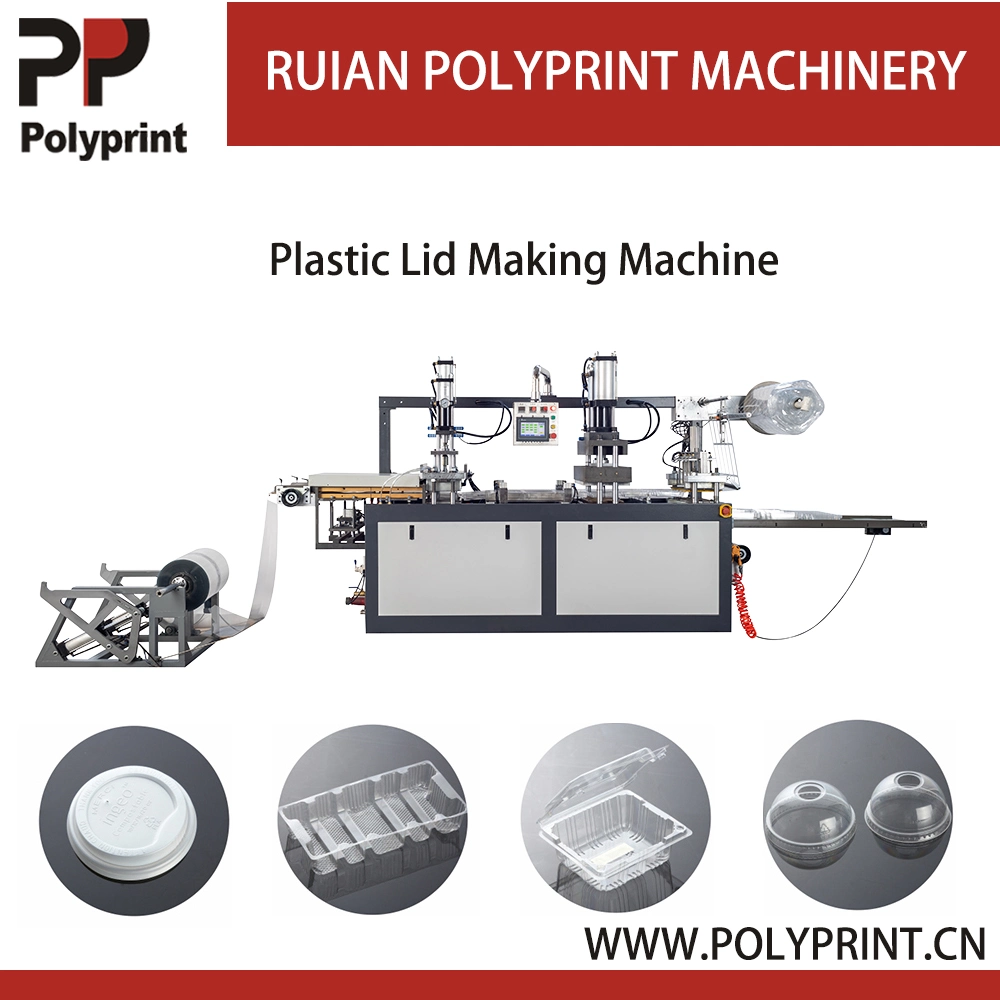

Automatic Plastic Coffee Lid Food Packaging Container Clamshell Box Making Machine
Automatic Plastic Coffee Lid Food Packaging Container Clamshell Box Making Machine
Automatic Plastic Coffee Lid Food Packaging Container Clamshell Box Making Machine
Automatic Plastic Coffee Lid Food Packaging Container Clamshell Box Making Machine
Automatic Plastic Coffee Lid Food Packaging Container Clamshell Box Making Machine
1 / 5
Automatic Plastic Coffee Lid Food Packaging Container Clamshell Box Making Machine
Automatic Plastic Coffee Lid Food Packaging Container Clamshell Box Making Machine
Automatic Plastic Coffee Lid Food Packaging Container Clamshell Box Making Machine
Automatic Plastic Coffee Lid Food Packaging Container Clamshell Box Making Machine
Automatic Plastic Coffee Lid Food Packaging Container Clamshell Box Making Machine

Automatic Plastic Coffee Lid Food Packaging Container Clamshell Box Making Machine

Customization: Available
Warranty: 1year
Certification: CE, ISO
Send Inquiry

Product Description

1

Overview & Basic Info

Model NO.
PPBG-500
Column number
Four Column
Molding Method
Pressing
Automatic Grade
Automatic
Working Speed
10-32 Cycles/Min
Stroke Range
30-340mm
Max. Forming Depth
50mm
Max. Forming Area
480X320mm
Main Motor Power
3kw
Heating Power
12kw
Production Capacity
10000-15000PCS/Hr
Origin
China
2

Product Details

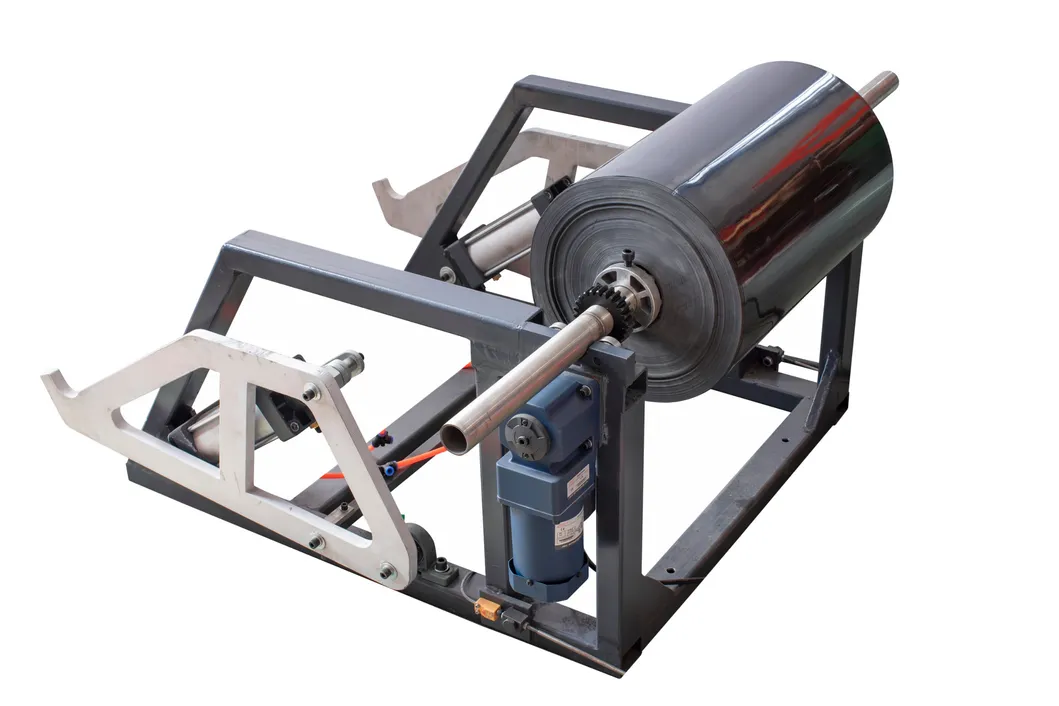

Unwinding Station
Unwinding Station

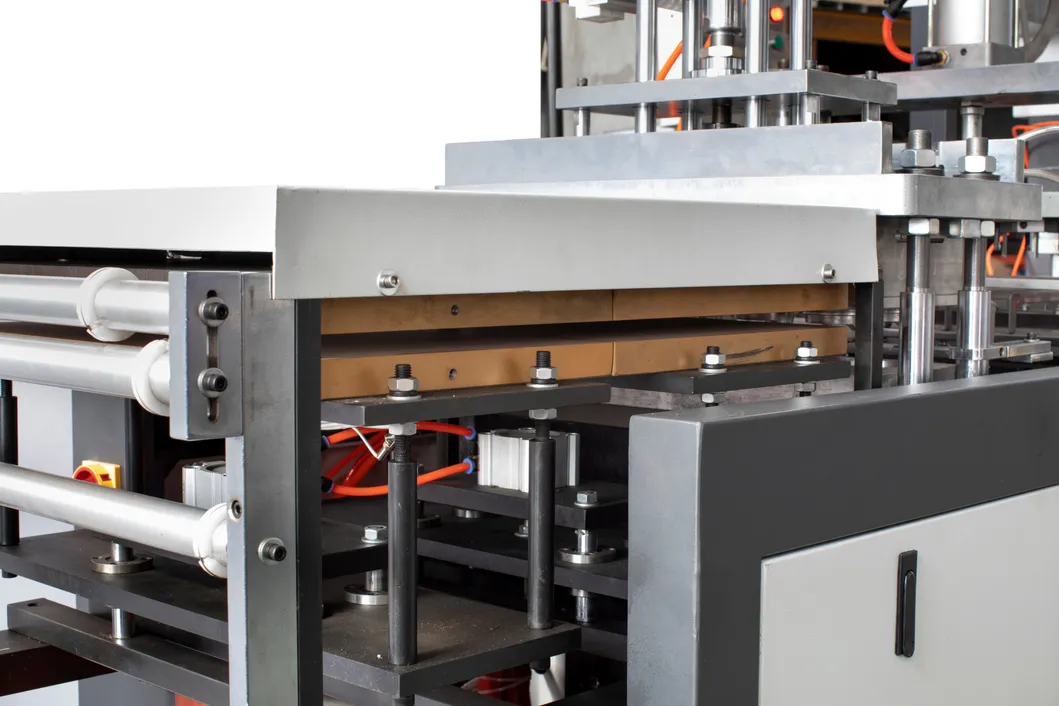

Heating Station
Heating Station

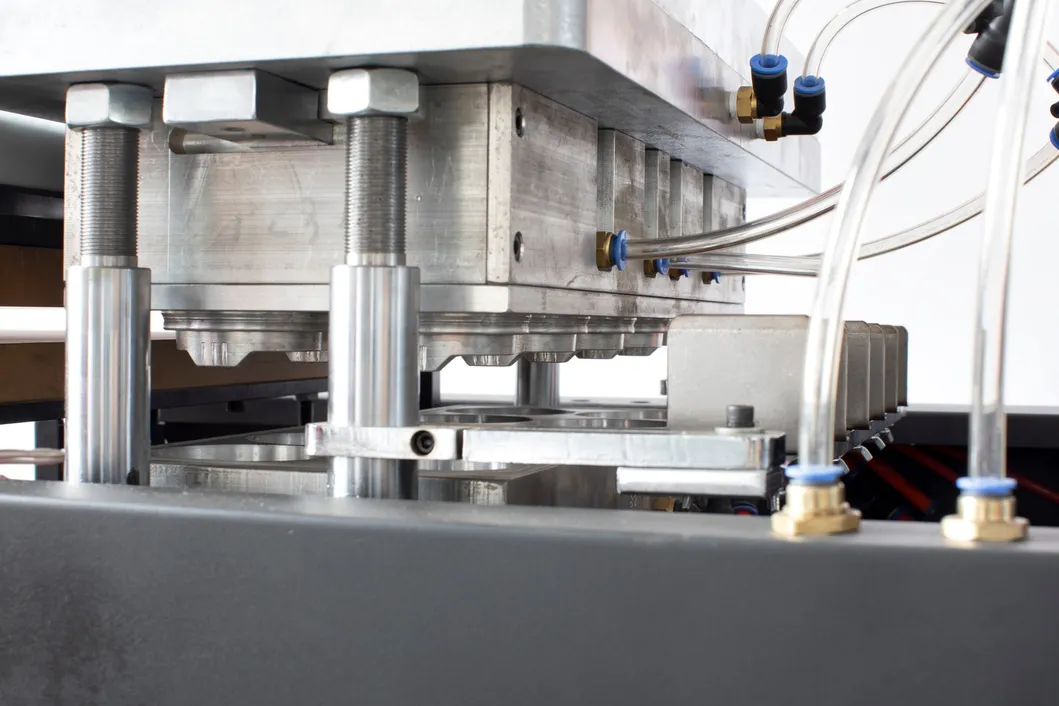

Forming Station
Forming Station

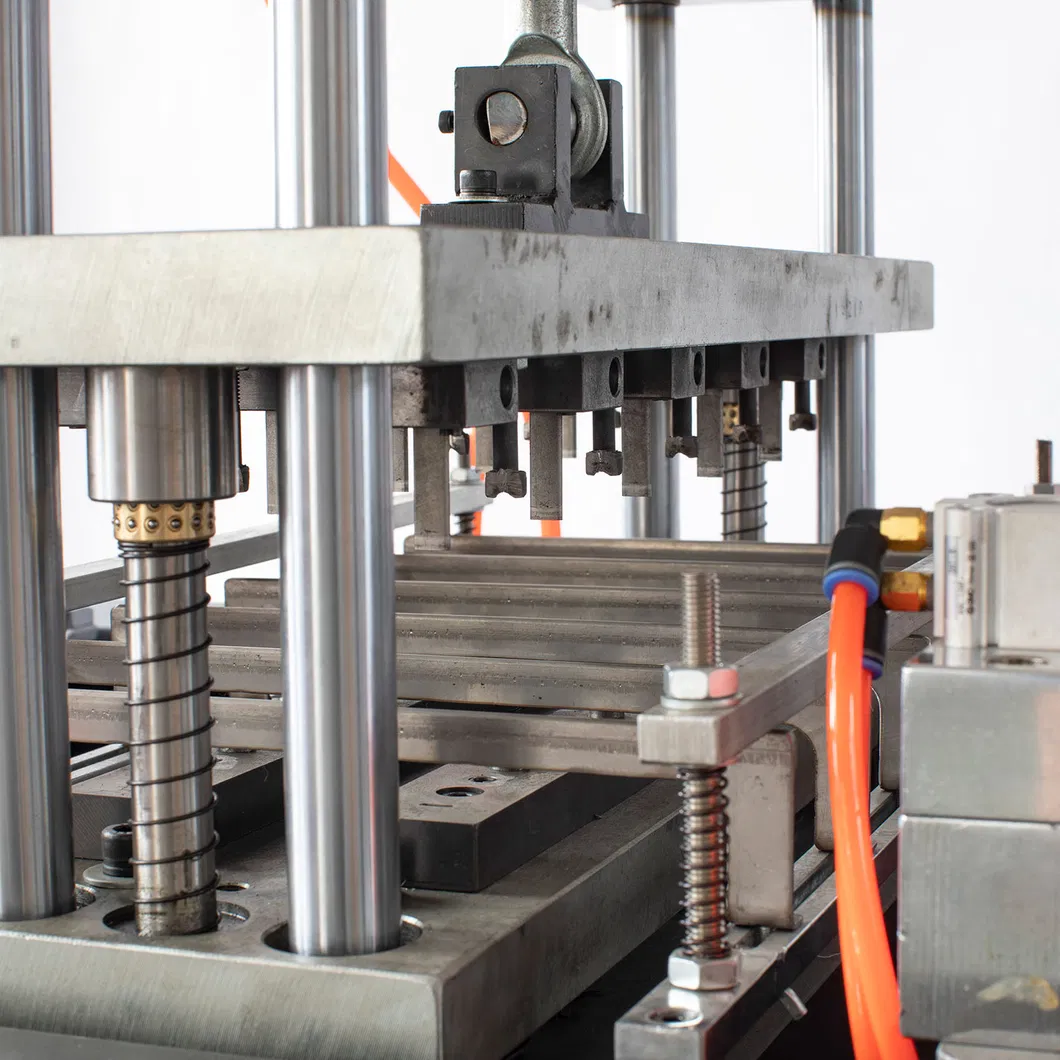

Punching Station
Punching Station

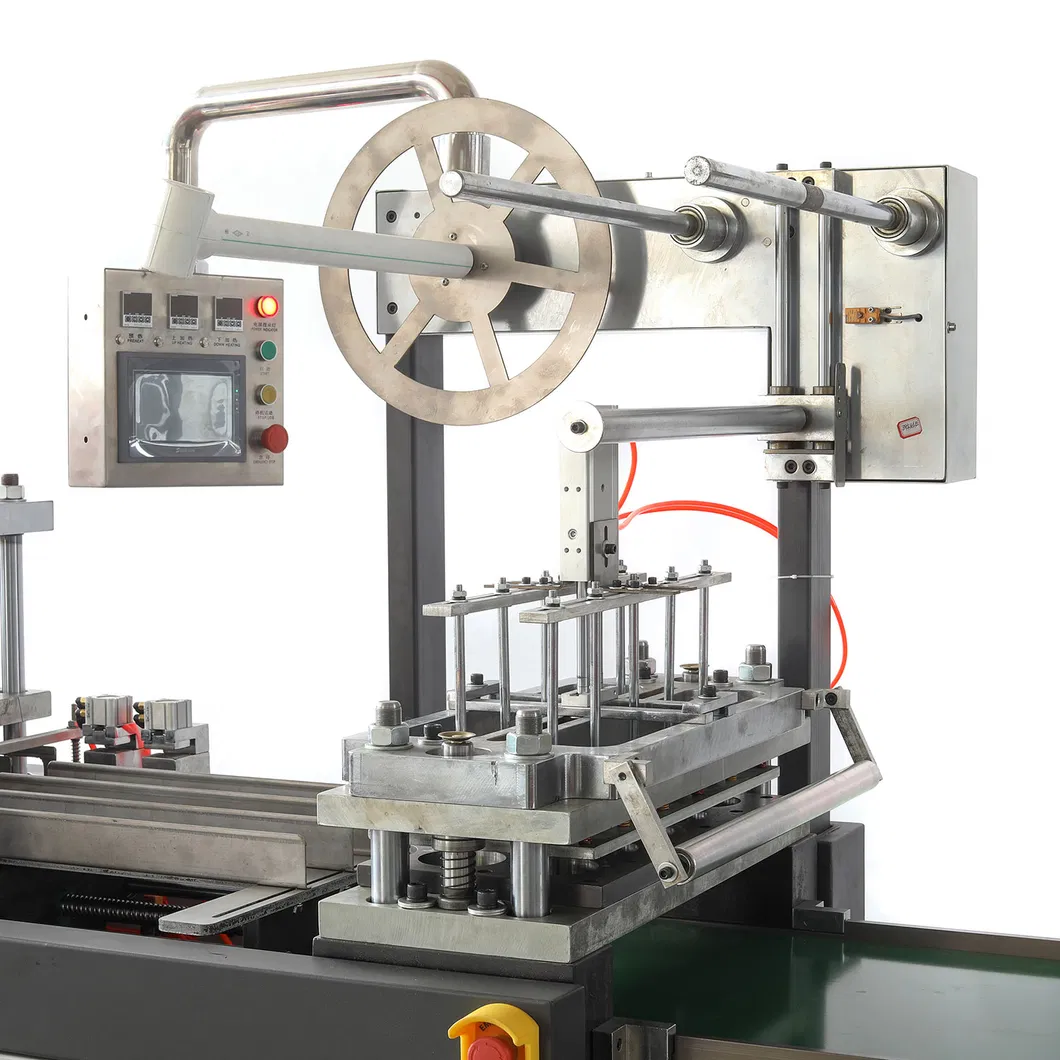

Stacking Robot
Stacking Robot
3

Key Features

1. PPBG-500 lid forming machine is a new type that combines advantages of several types of main forming machines and also brings more improvement and innovation.
2. Designed for easy operation, calm running, convenient maintenance, and stable function.
3. Highly versatile: It can produce all kinds of covers using PVC, PS, PET, and other materials.
4

Technical Parameters

1Working Speed10-32 Cycles/min
2Stroke Range30-340mm
3Max. Forming Depth50mm
4Max. Forming Area480×320mm
5Voltage380V/50Hz (Three Phase, Four Wires)
6Main Motor Power3kw
7Heating Power12kw
8Servo Power0.75kW
9Air Pressure0.5-0.7MPa
10Air Consumption≥ 0.22 m³/h
11Noise Level75Db
12Machine Dimension2760×950×1720mm
13Weight1900kg
5

Services & Packaging

Warranty: 1 year warranty after installation. Free replacement parts provided if broken during the warranty period.
Installation: Technical support available; engineers can be sent for setup and training.
Quotation: Valid for 60 days.

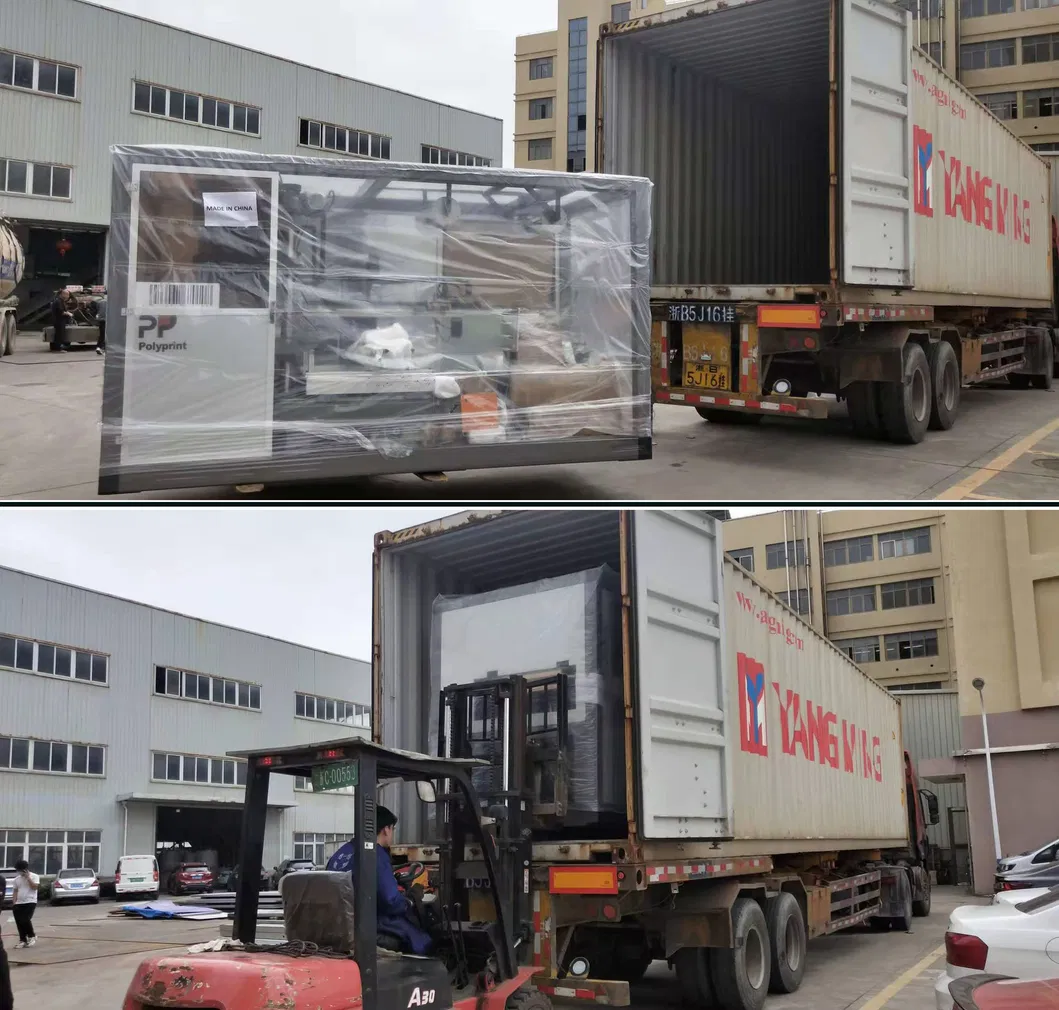

Packaging and Shipping
?

Frequently Asked Questions

What types of materials can the PPBG-500 process?
The machine is compatible with a wide range of plastic materials including PVC, PS, and PET to produce various types of lids and covers.
What is the maximum production capacity?
The PPBG-500 has a production capacity of approximately 10,000 to 15,000 pieces per hour, depending on the material and lid design.
What are the power requirements for this equipment?
The machine requires a voltage of 380V/50Hz (Three Phase). The main motor power is 3kw and the heating power is 12kw.
Does the machine support automatic stacking?
Yes, the system includes a Stacking Robot station for automatic handling of finished products, increasing efficiency and reducing labor.
What is included in the after-sales service?
We provide a 1-year warranty on the machine. Additionally, we offer installation and training services where engineers can be dispatched to your location.
