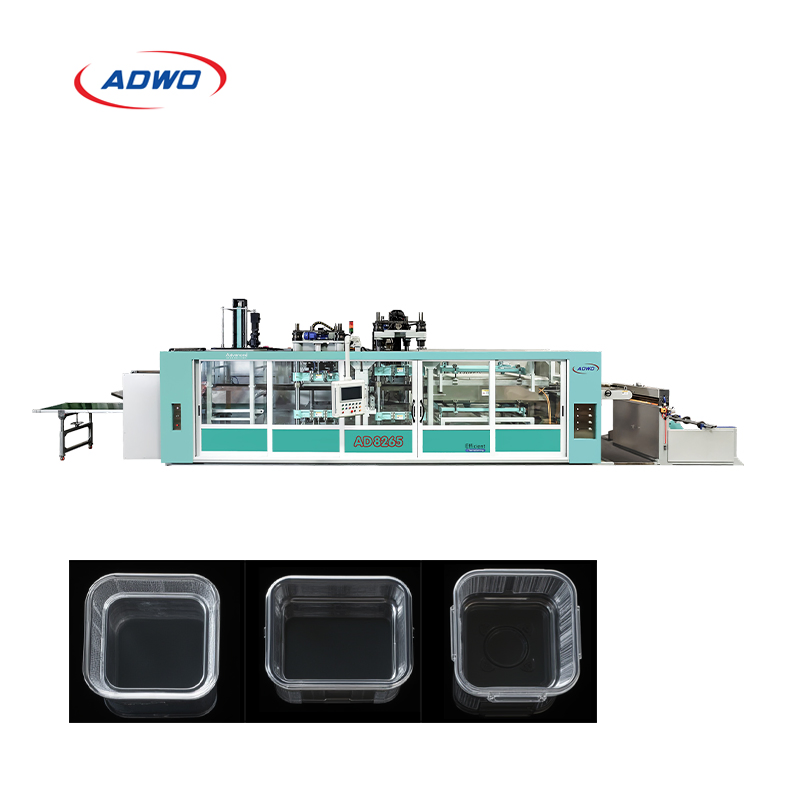

| Model NO. | AD8265B |
| Column number | Four Column |
| Molding Method | Pultrusion |
| Automatic Grade | Automatic |
| Available Material | PP, Pet, HIPS, OPS, PVC, PLA |
| Power | Servo Driving |
| Sheet Thickness | 0.16-1.8mm |
| Max. Formed Area | 800×630mm |
| Max. Formed Speed | 45cycle/Min |
| Dimension | 14800x3300x3500mm |

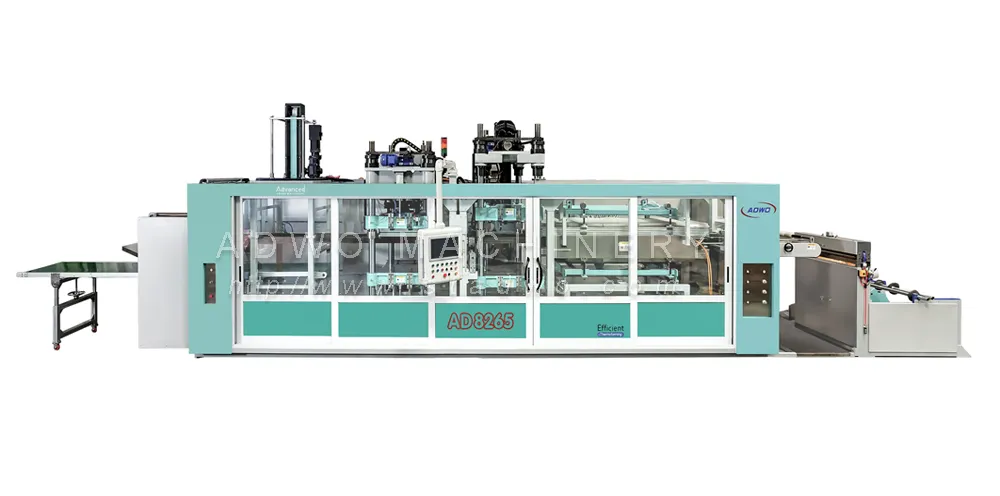

| Technical Parameters | |
|---|---|
| Formed Area (mm) | 820 × 650 |
| Formed Depth (mm) | ≤ 150 |
| Max Cutting Area (mm) | 800 × 630 |
| Max Sheet Width (mm) | 860 |
| Power Supply | 380V/50HZ 3 phase 4 line |
| Total Power (kw) | Servo Motor 50kw + Heating Power 203kw |
| Air Pressure (Mpa) | 0.6-0.8 |
| Gas Consumption | 5000 ~ 6000 L/min |

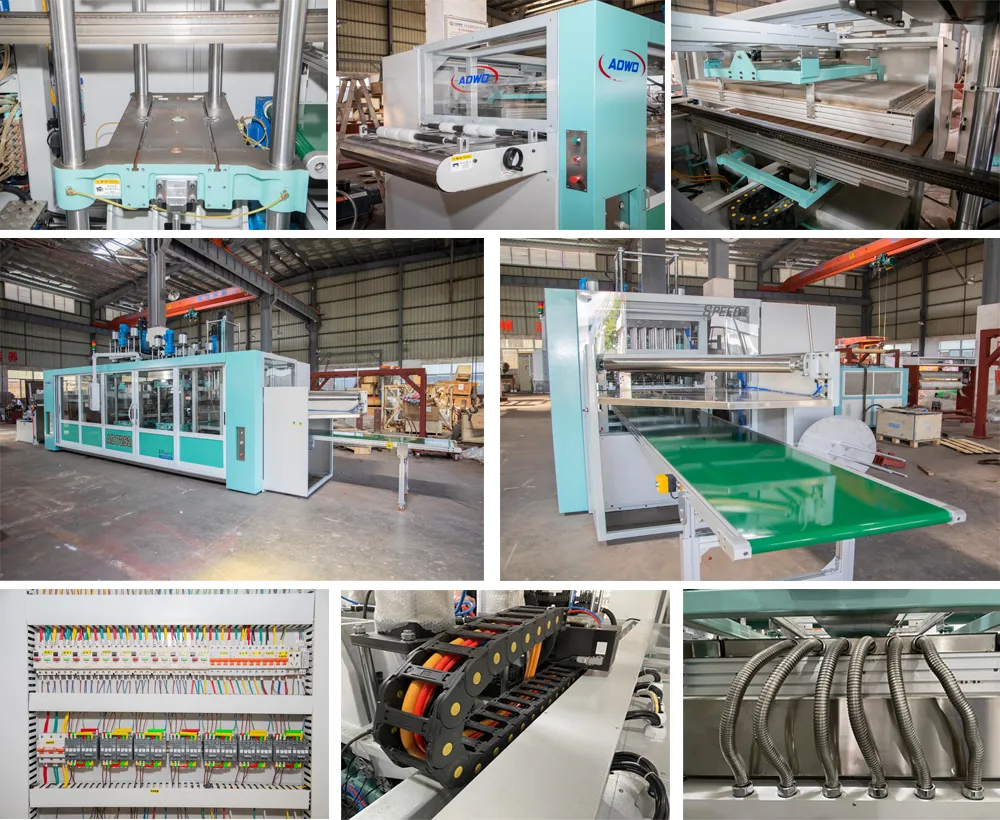

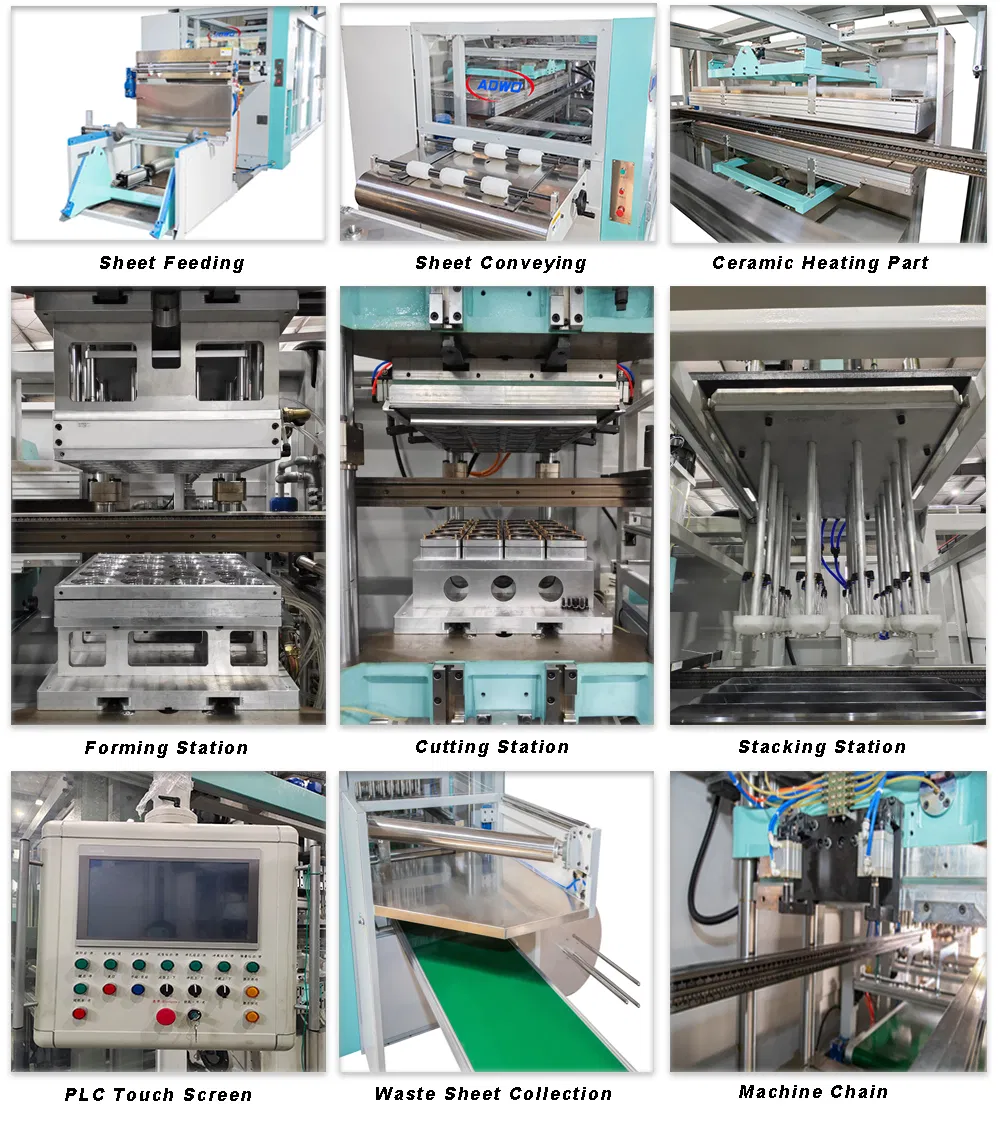

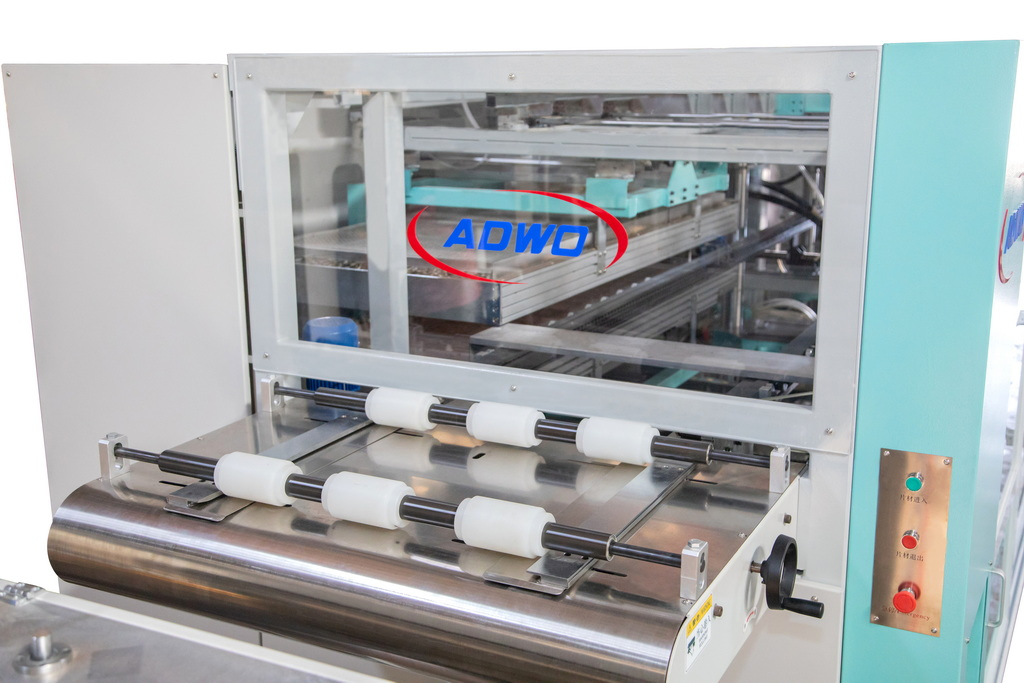

Sheet Feeding System: Features a gear motor drive and infrared sensor for height control, ensuring no contact with pollutants. Supports 1000mm coil diameter with pneumatic loading.

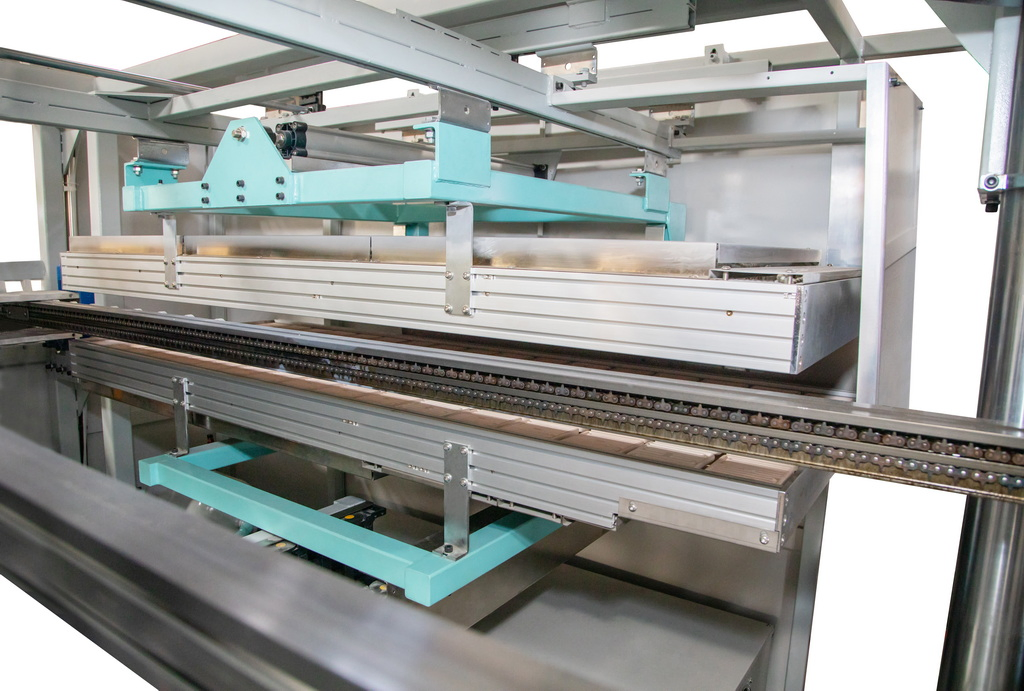

Heating Furnace: New aluminum frame design for fast heat dissipation. Features point-to-point temperature control and four-stage heating to ensure energy efficiency.

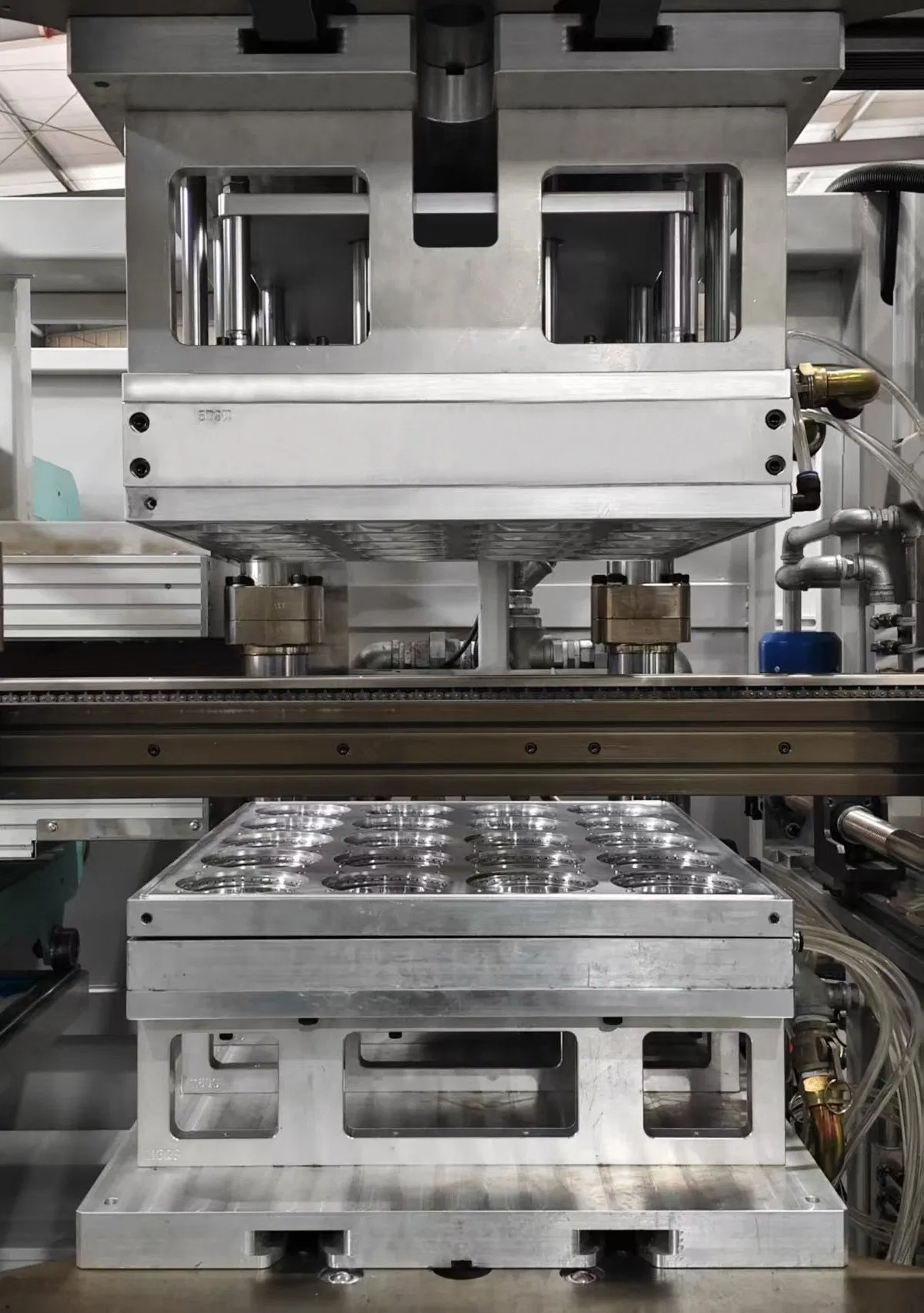

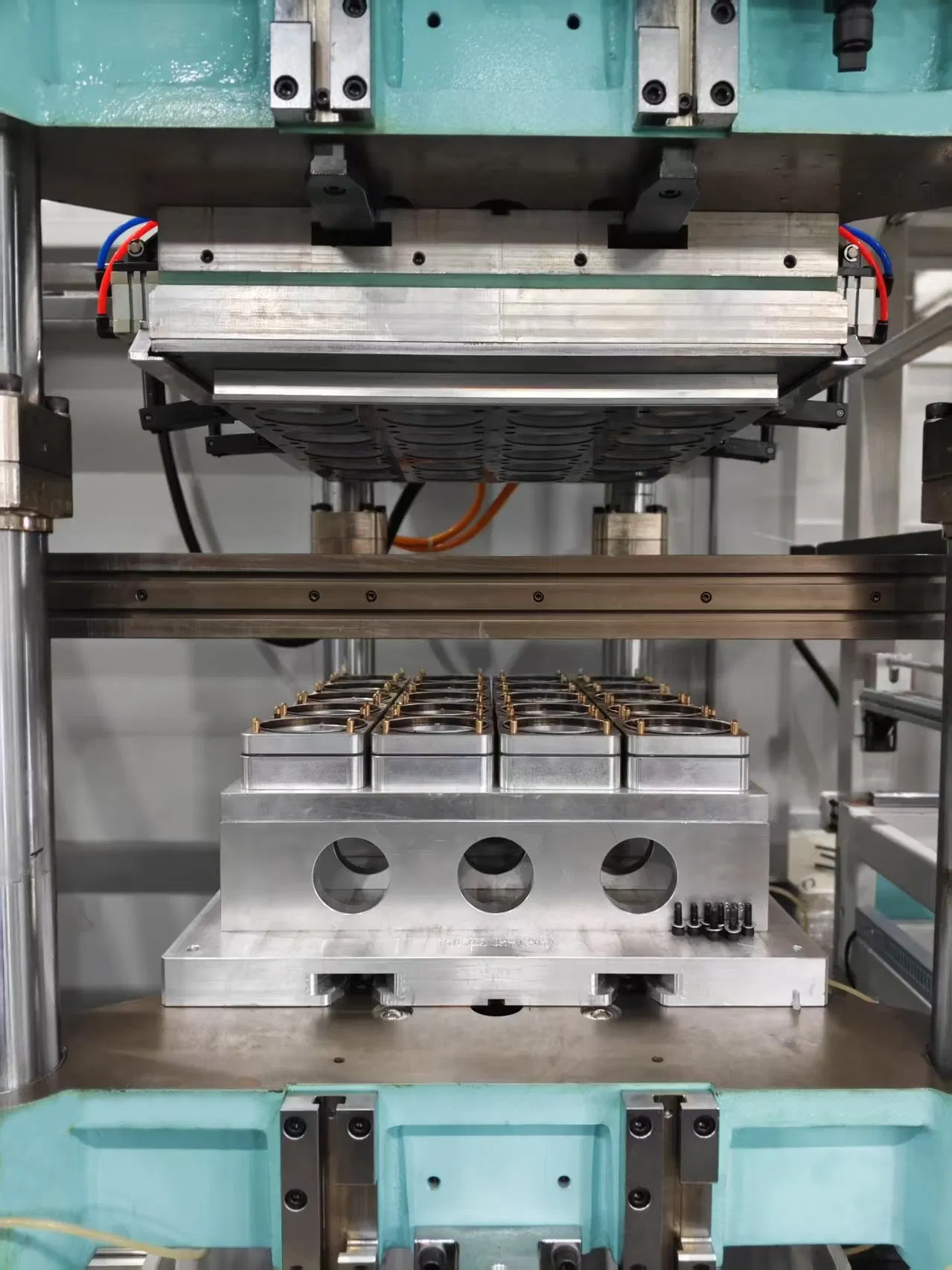

Forming & Cutting Stations: Driven by high-power servo systems. Includes quick mold installation mechanisms and directional positioning slots for simple debugging.

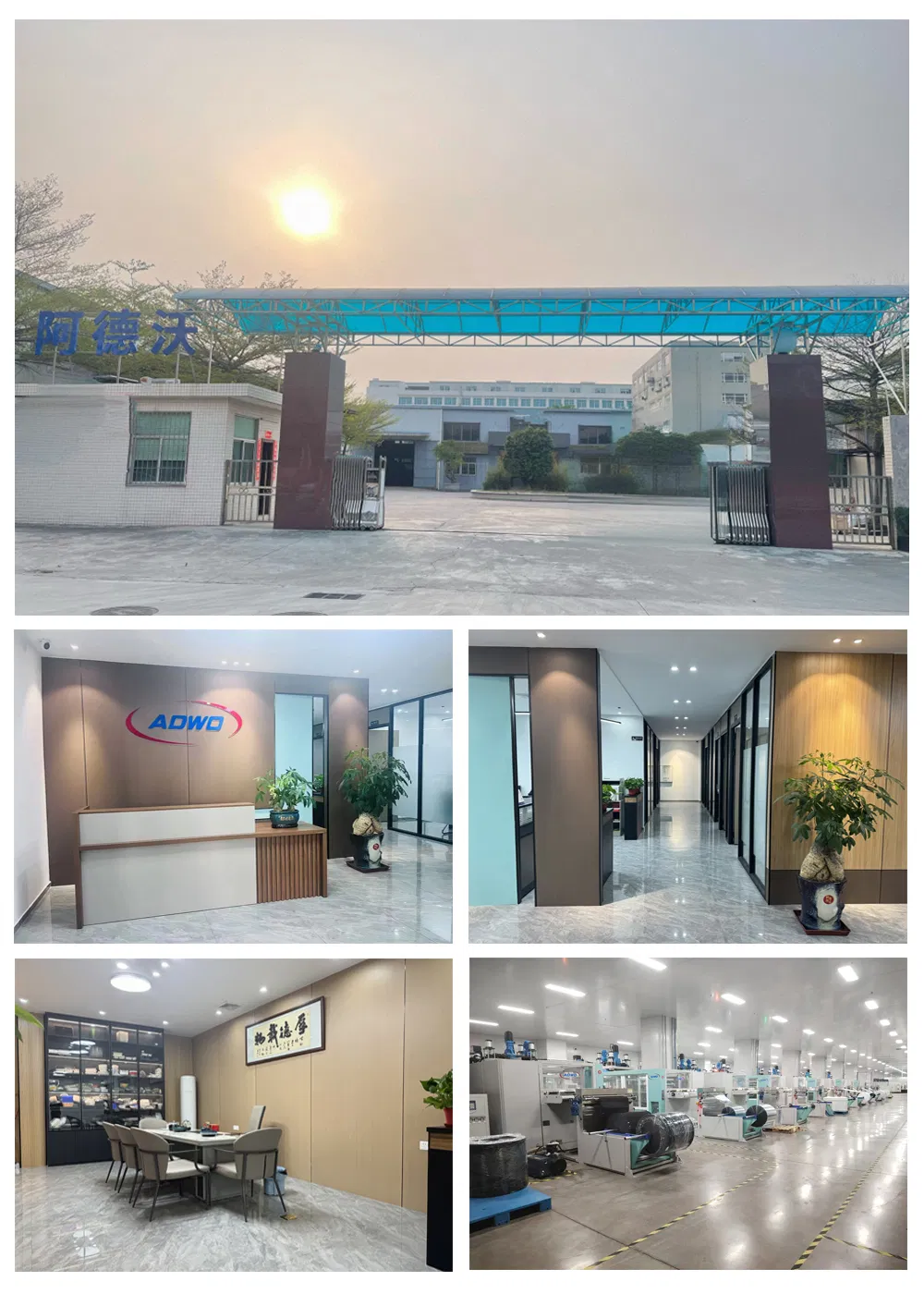

We are a national high-tech enterprise integrating R&D, production, and sales. We focus on creating service-oriented and innovation-driven corporate cultures, providing high-quality thermoforming equipment based on decades of technical accumulation.
