| Model NO. | PZ-420 | Application | Electronic Component, Drug, Food, Medicine, Hardware etc. |
|---|---|---|---|
| Power | Electric | Automation | Automatic |
| Type | Stretch Film Vacuum Packing Machine | Object State | Paste, Powdery, Liquid, Solid, Particle |
| Condition | New | Available Width of Film | 384mm |
| Voltage | Customization | Weight | About 1800 Kgs |
| Packing Speed | 6-8 Cycles / Min | Packing Capacity | 4600-5000 Pieces / Hour |

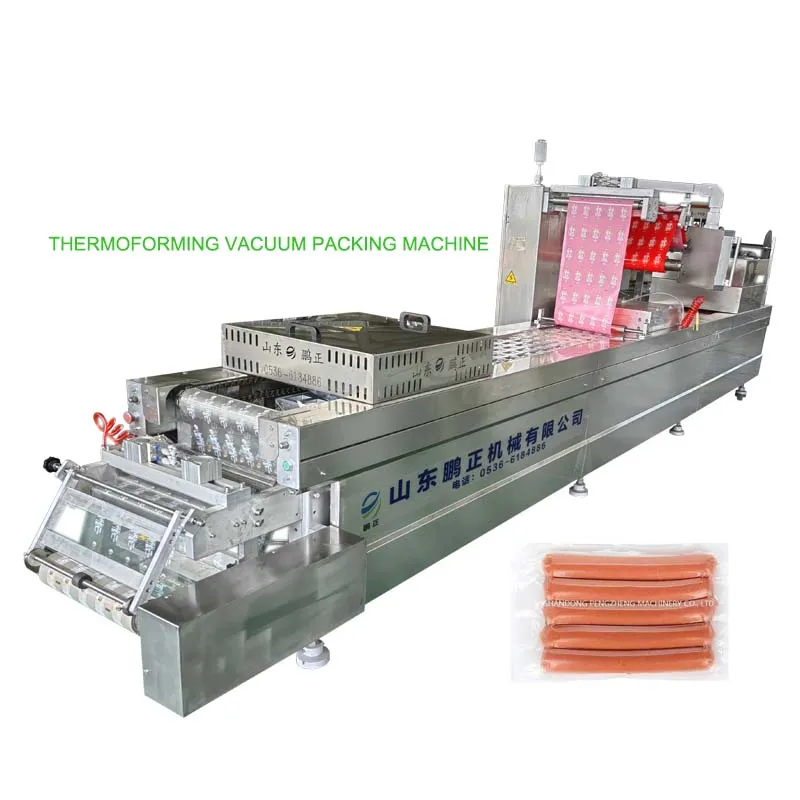

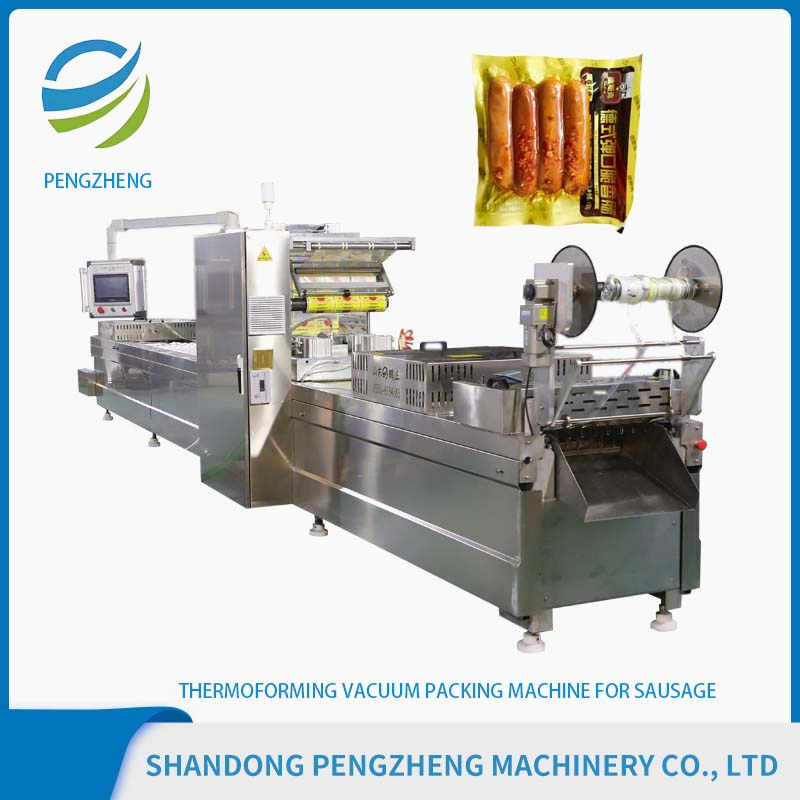

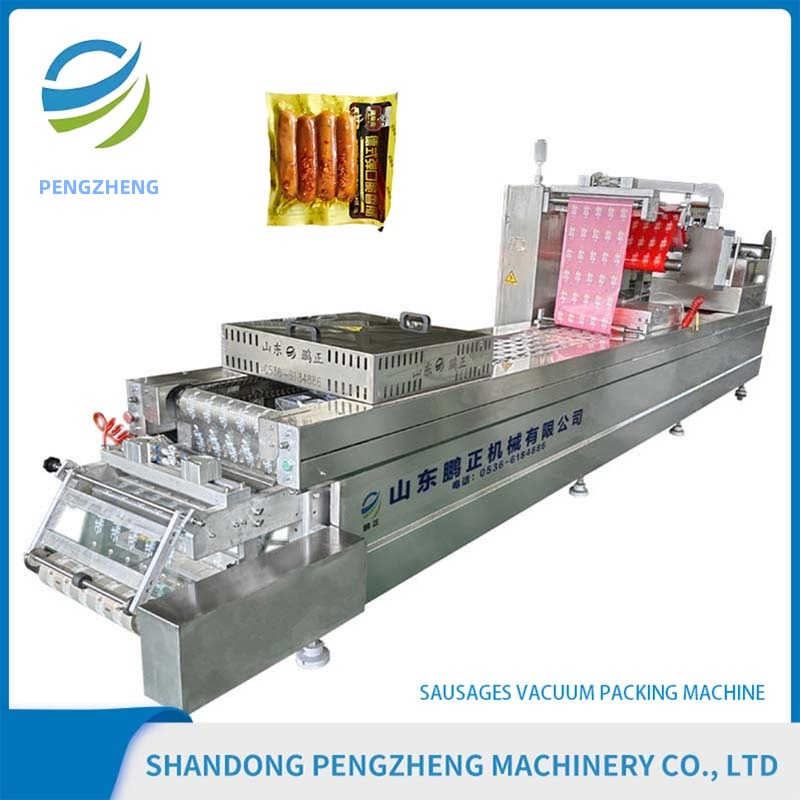

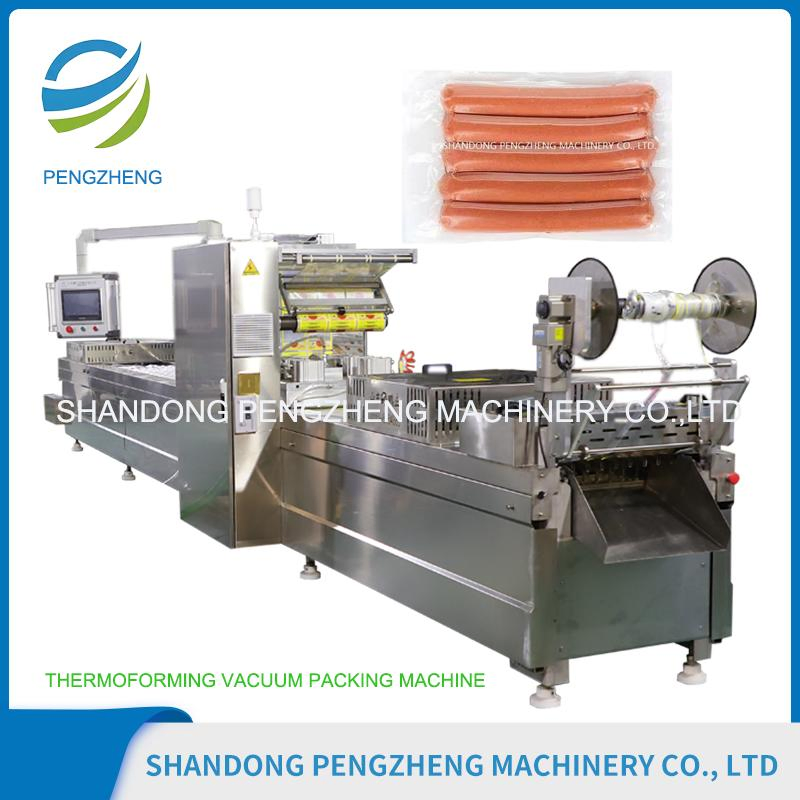

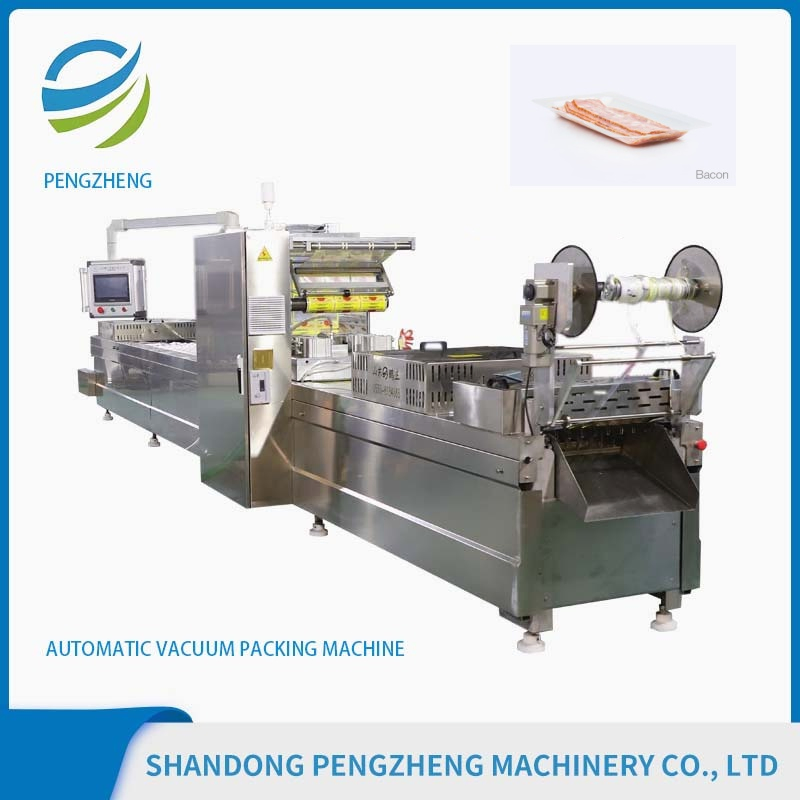

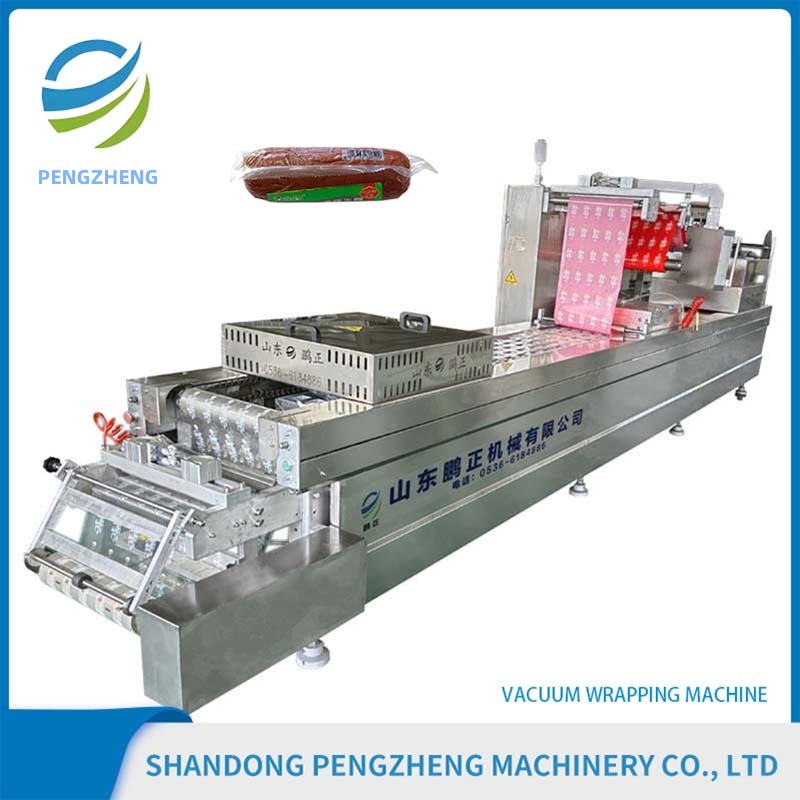

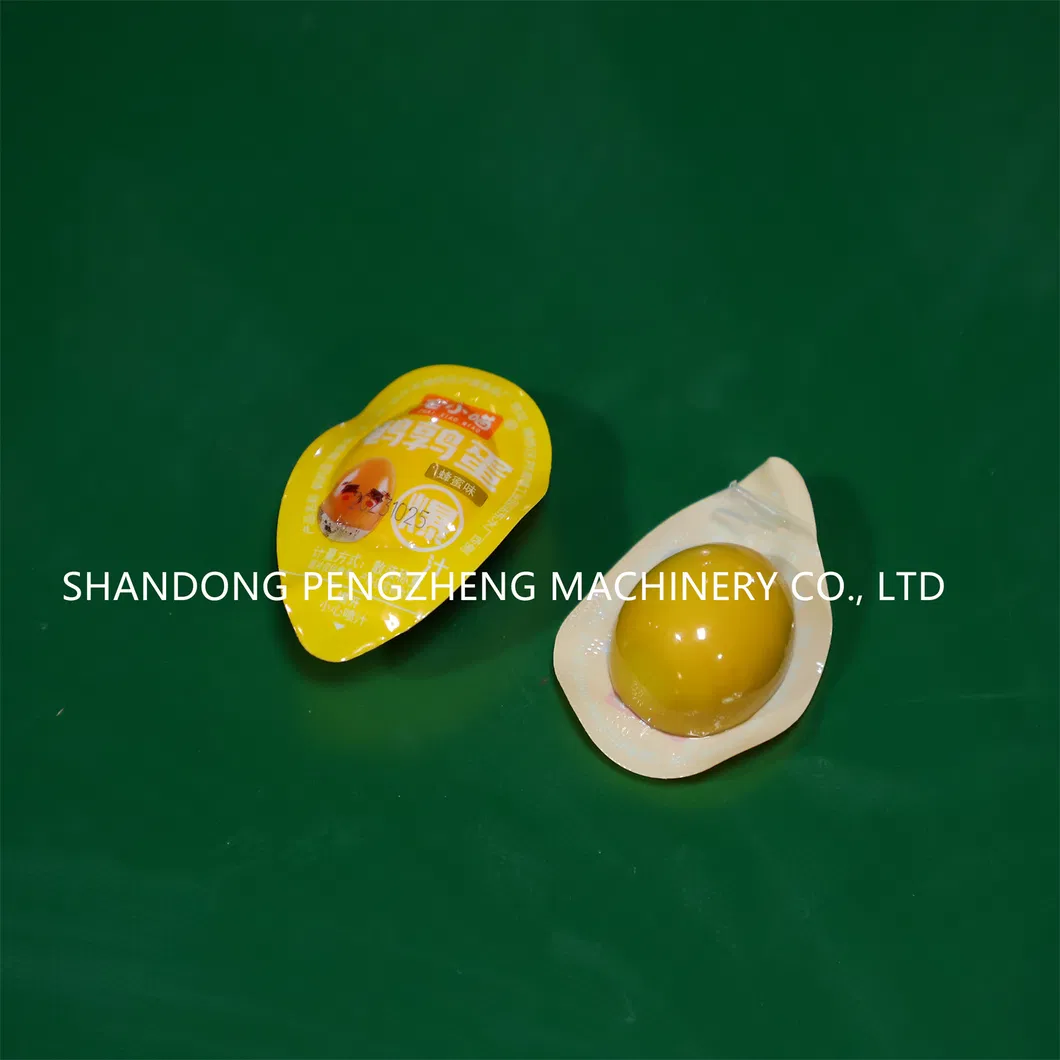

Innovative Automatic Thermoforming Vacuum Packaging Machine for food such as sausages, fish, shrimp, steak, beef, beef jerky, dried bean curd, goat, mutton, chicken, and toys.
This cutting-edge machine is designed to provide efficient and reliable vacuum packaging for a variety of products. Its automatic thermoforming feature ensures airtight packaging, extending the shelf life of food items and maintaining their freshness. Ideal for both commercial and industrial use, this machine offers convenience and precision in packaging various items.
Automatic Single-Side Stretch Film Vacuum Packaging Machine: Tailored to meet diverse packaging needs, this machine excels in single-side stretching and forming. The process begins with heating a bottom film to conform to a mold, placing materials, applying a top film, and flawless vacuum-sealing.

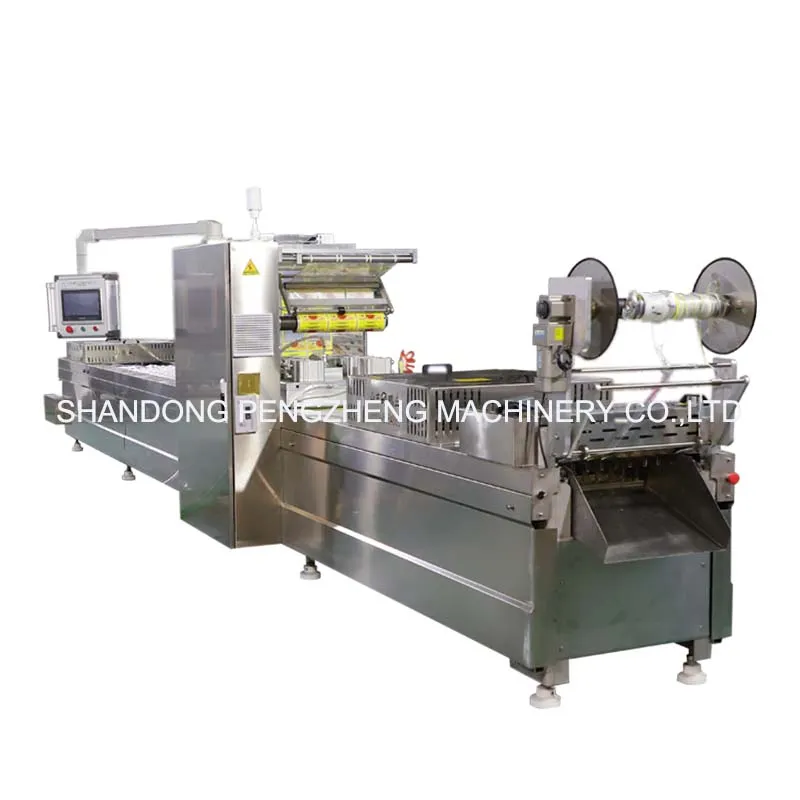

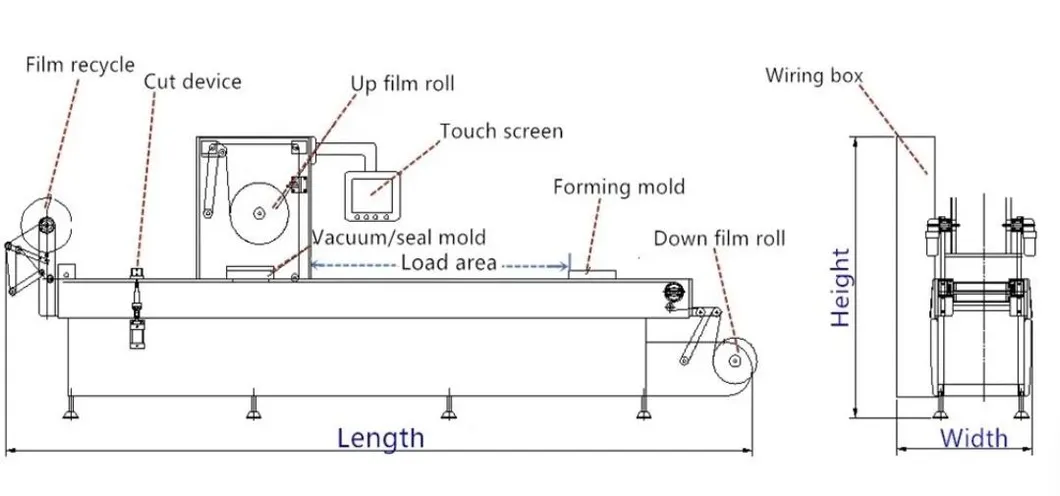

| 1. Main Structure: Stainless Steel 304 (6mm) | 2. Bottom Film Device |

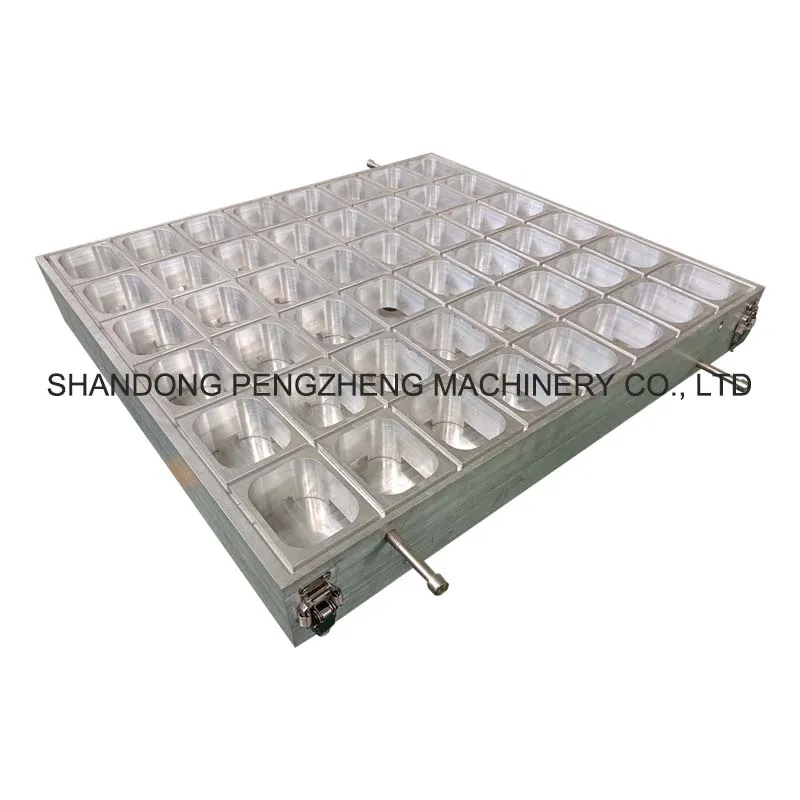

| 3. Electronic Magnetic Preload Device | 4. Forming Device (Heat & Form) |

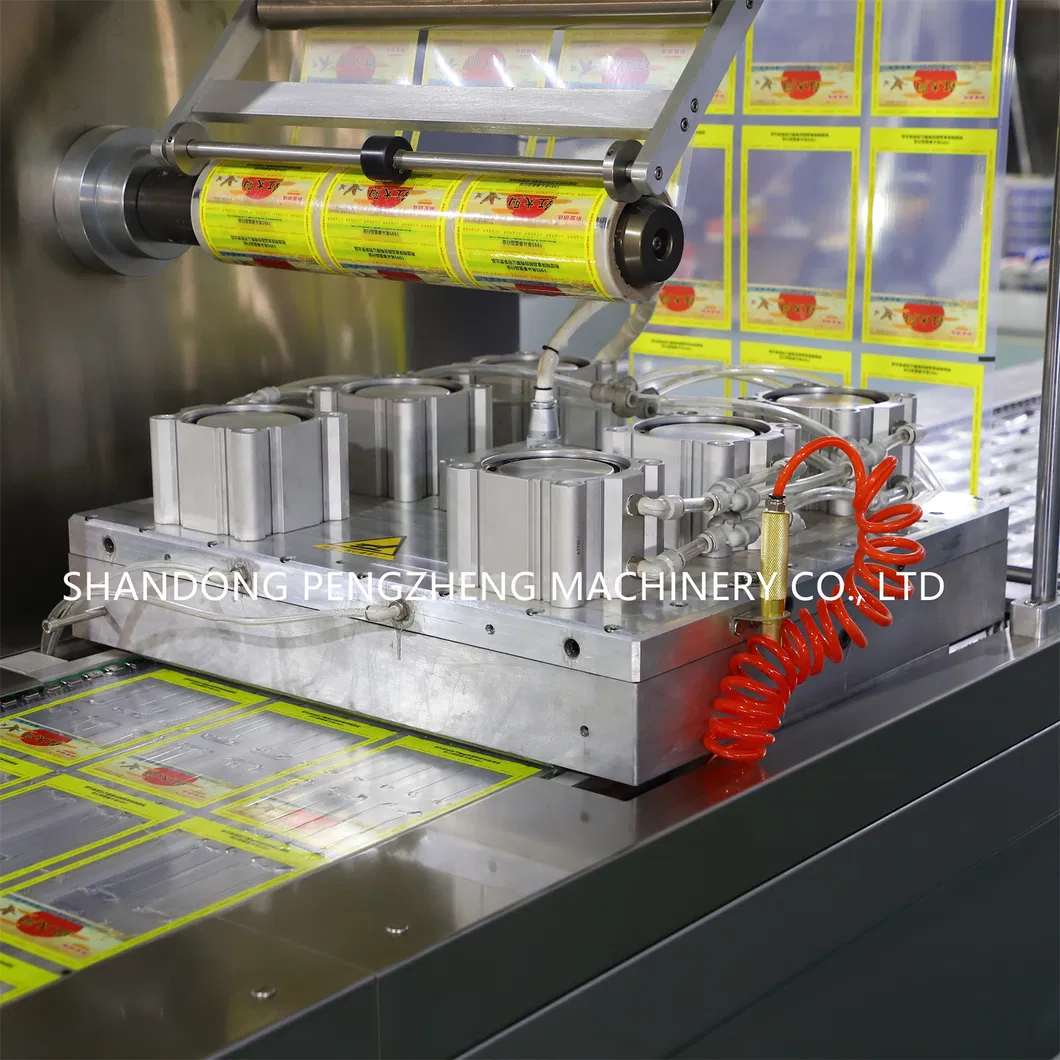

| 5. Loading Area | 6. Vacuum / Sealing Device |
| 7. Top Film Device | 8. Touch Screen PLC |
| 9. Precision Cutting Device | 10. Waste Film Collection |
| Details | Traditional Bag | Single Side Stretch | Double Side Stretch |
|---|---|---|---|
| Forming Depth | None | Max 120mm | Max 120mm * 2 |
| Efficiency | Low | High | Middle |
| Cost | High | Low | Middle |
| Appearance | Beautiful | More Beautiful | Most Beautiful |

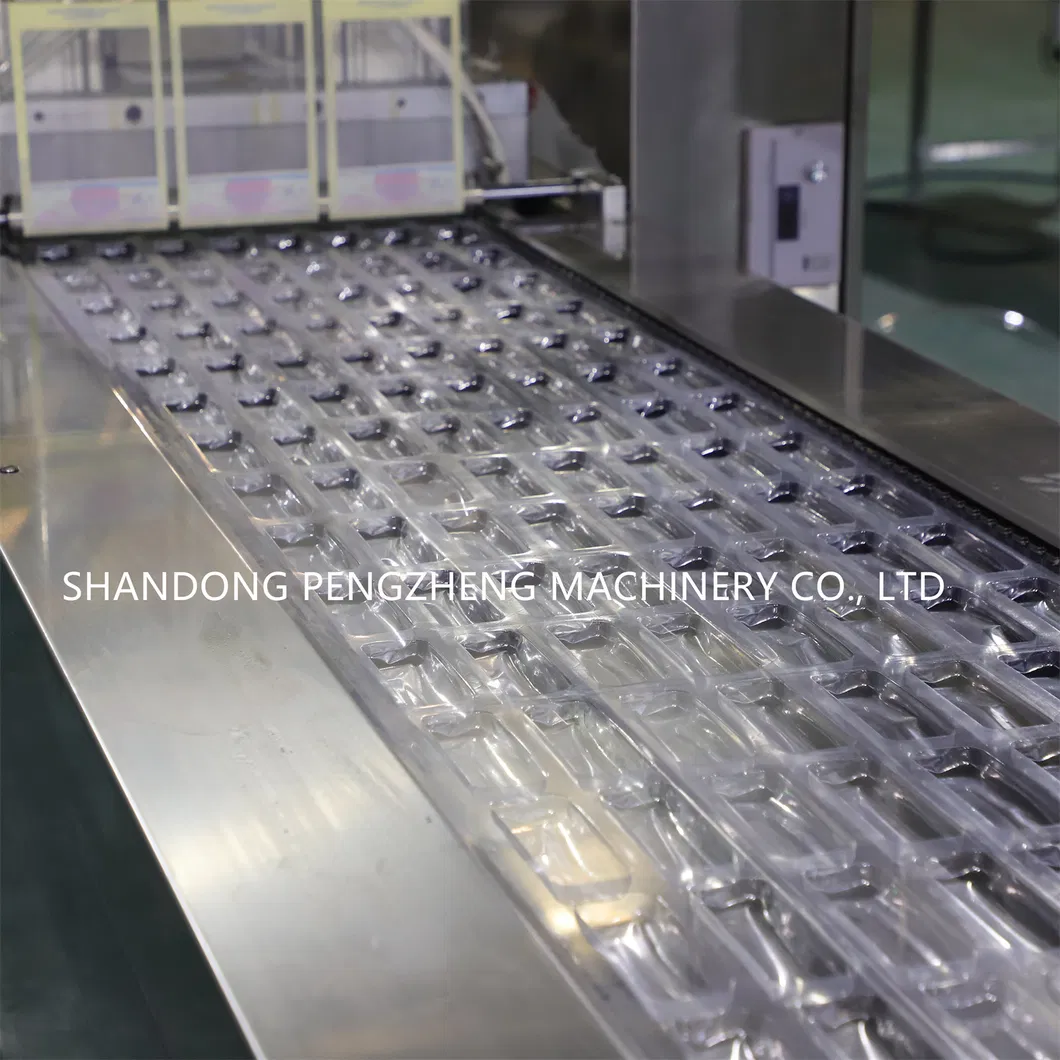

Fully automatic intelligent calibration including left-right correction and cursor conditioning of top and bottom films to prevent deviation.

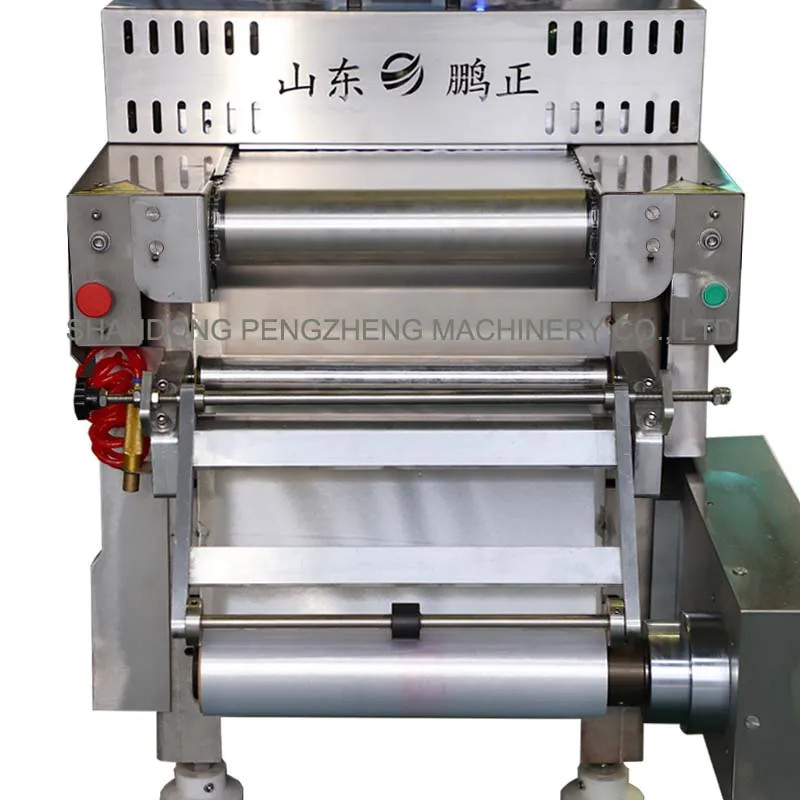

Multiple sensors installed under covers to ensure auto-stop when opened, protecting both workers and the machine.
| Main Brand Components | Machine Working Specs | ||
|---|---|---|---|
| Vacuum Pump | RIETSCHLE (Germany) | Thermoforming Temp | 70-120°C |
| Electrical | Schneider (France) | Sealing Pressure | 0.15 - 0.3 MPa |
| Servo Motor | Schneider (France) | Vacuum Degree | ≤200 Pa |
| Chain | TYC (Taiwan) | Packing Speed | 6-8 cycles / min |
Standard Dimensions: 660cm * 100cm * 180cm | Gross Weight: approx. 1800 Kgs.
