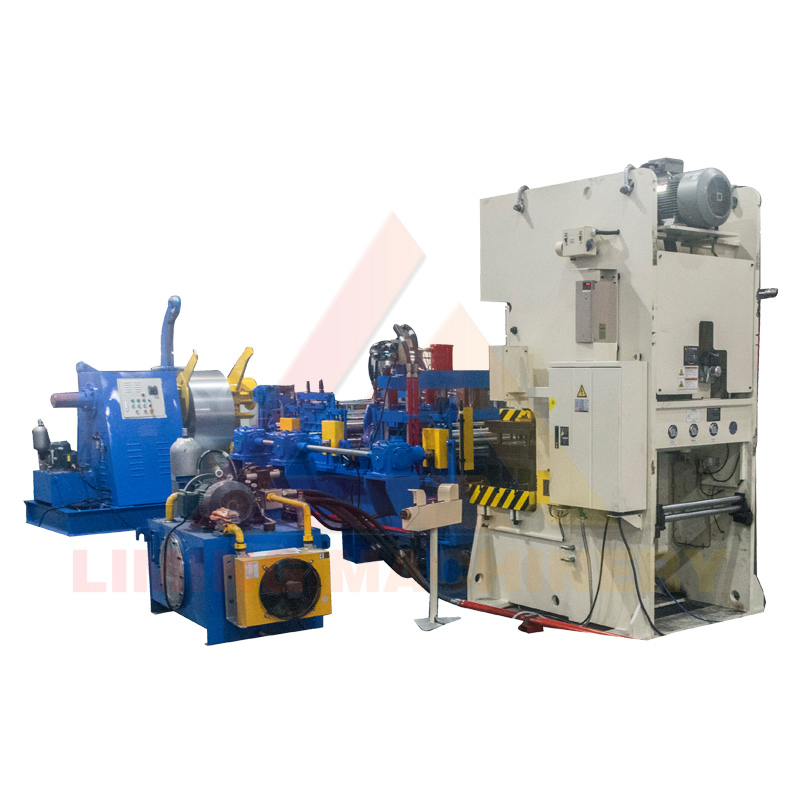

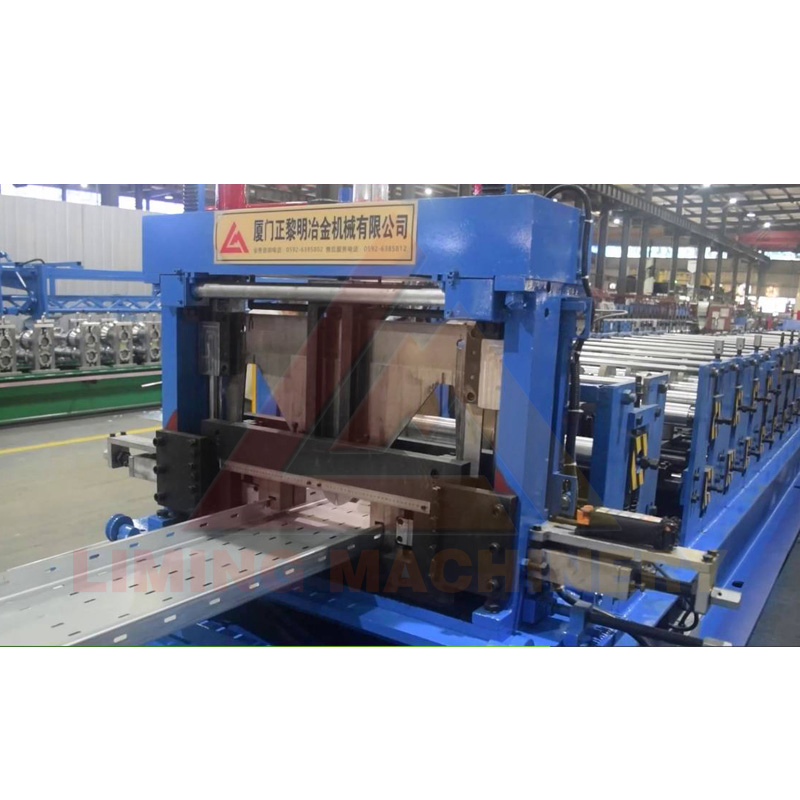

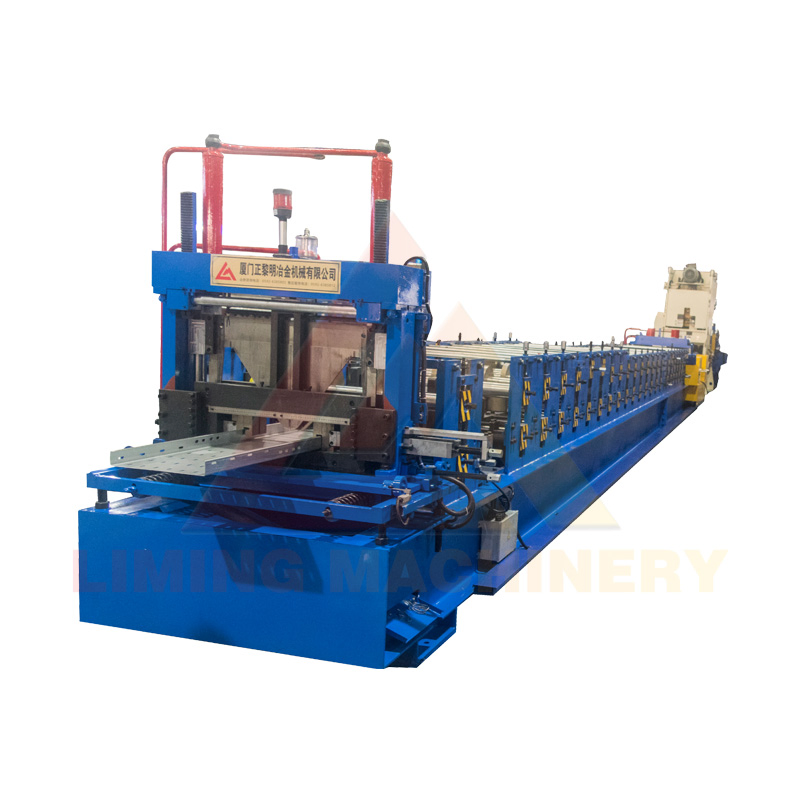

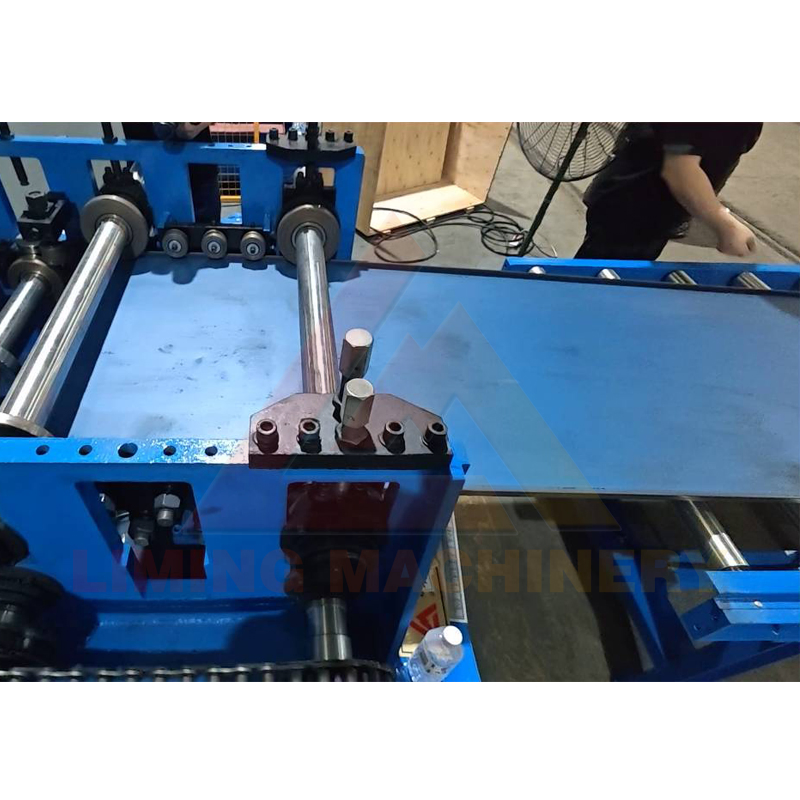

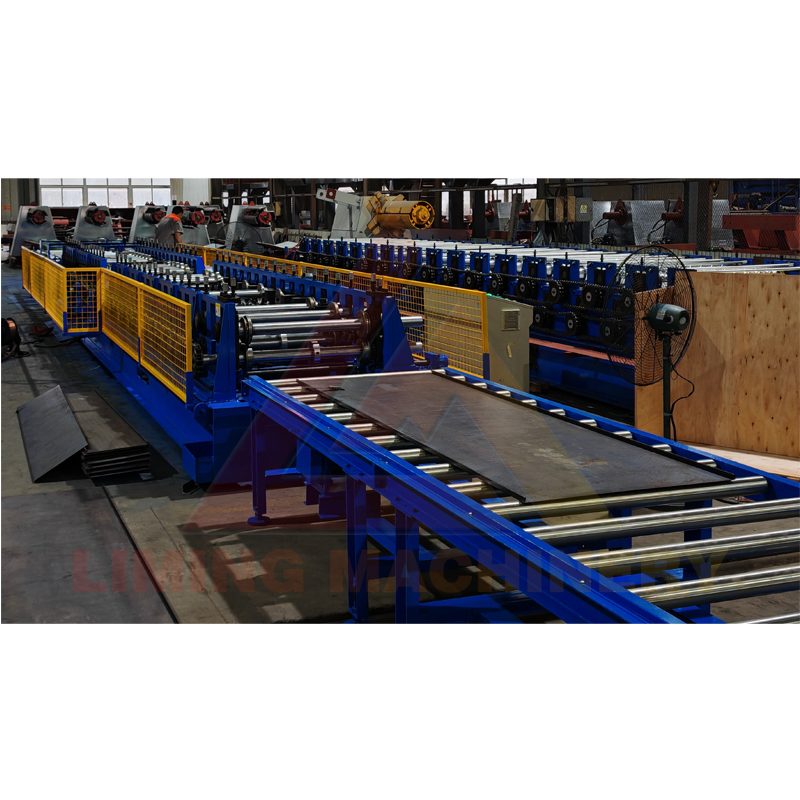

Automatic Galvanized Steel Punching for Industrial Electrical Laying Cable Tray Roll Forming Machine
Automatic Galvanized Steel Punching for Industrial Electrical Laying Cable Tray Roll Forming Machine
Automatic Galvanized Steel Punching for Industrial Electrical Laying Cable Tray Roll Forming Machine
Automatic Galvanized Steel Punching for Industrial Electrical Laying Cable Tray Roll Forming Machine
Automatic Galvanized Steel Punching for Industrial Electrical Laying Cable Tray Roll Forming Machine
1 / 5
Automatic Galvanized Steel Punching for Industrial Electrical Laying Cable Tray Roll Forming Machine
Automatic Galvanized Steel Punching for Industrial Electrical Laying Cable Tray Roll Forming Machine
Automatic Galvanized Steel Punching for Industrial Electrical Laying Cable Tray Roll Forming Machine
Automatic Galvanized Steel Punching for Industrial Electrical Laying Cable Tray Roll Forming Machine
Automatic Galvanized Steel Punching for Industrial Electrical Laying Cable Tray Roll Forming Machine

Automatic Galvanized Steel Punching for Industrial Electrical Laying Cable Tray Roll Forming Machine

After-sales Service: 1 Year Warranty
Warranty: 1 Year
Certification: CE, ISO9001
Send Inquiry

Product Description

Overview & Basic Info

ConditionNew
Automatic GradeManual
SizeC100-500
Thickness1-1.2mm
Shafts Diameter75mm
Hydraulic Group Power22kw
Pump Power11kw
Max. Line Speed25m/Min
Production Capacity600
Package Size8350cm * 1560cm * 1650cm
Gross Weight8000.000kg

Product Description

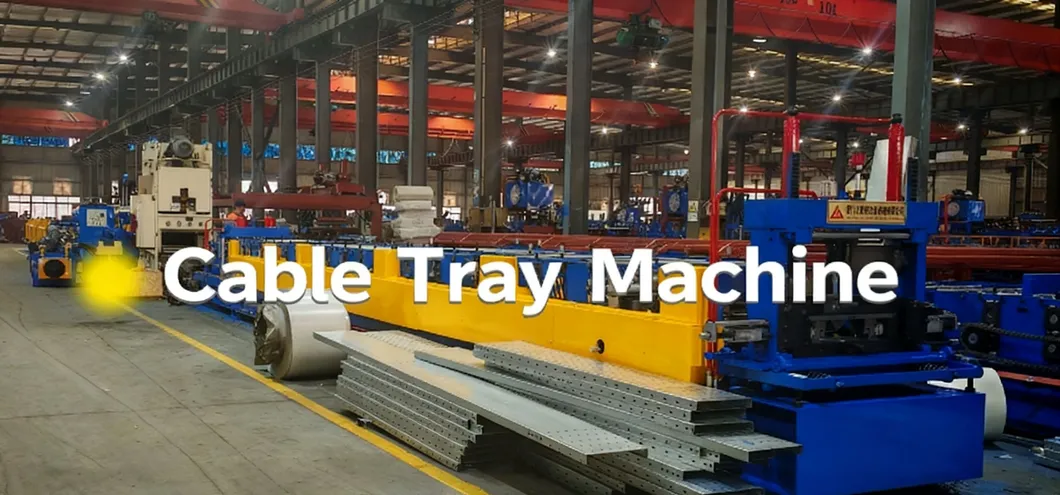

Cable Tray Roll Forming Machine

Multi-Size Metal Plank Making for Trunking Manufacturing Cable Tray Roll Forming Machine

Professional Composition: Equipped with a highly adaptable hydraulic uncoiler, feeding-leveling machine to eliminate coil marks, and a high-speed hydraulic punching machine with pre-punching function.
Intelligent Control: Features an advanced PLC control system with high-quality touch components to accurately control dimensional tolerances.
Flexibility: Supports multiple specifications with automatic size adjustment to adapt to different production requirements.
Durability: Core components undergo special heat treatment for extended service life and reduced maintenance costs.

Technical Parameters

Shearing ThicknessUp to Max. 2 mm
Frame DesignWall-plate-frame / New-stand-frame
Roll Stages24 stages
Roller MaterialCr12, Heat Treatment
Shafts DiameterΦ75mm, Precision Machined
Main Motor Power22KW
Max. Line Speed0-25m/min
Cutting Blade MaterialCr12(D3), Heat Treatment
Electric Standard380V / 50Hz / 3PH (Customizable)

More Options & Variations

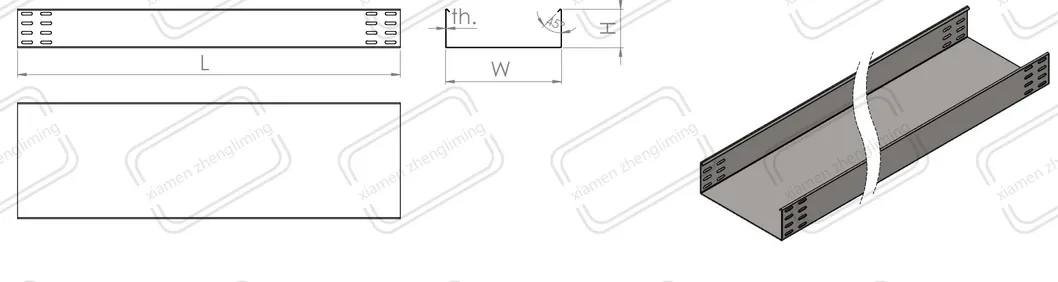

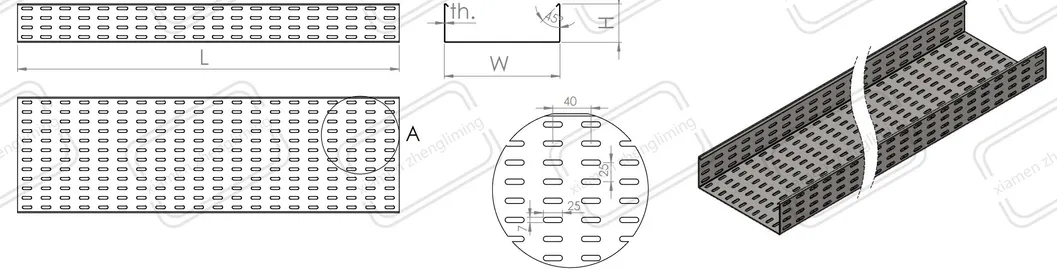

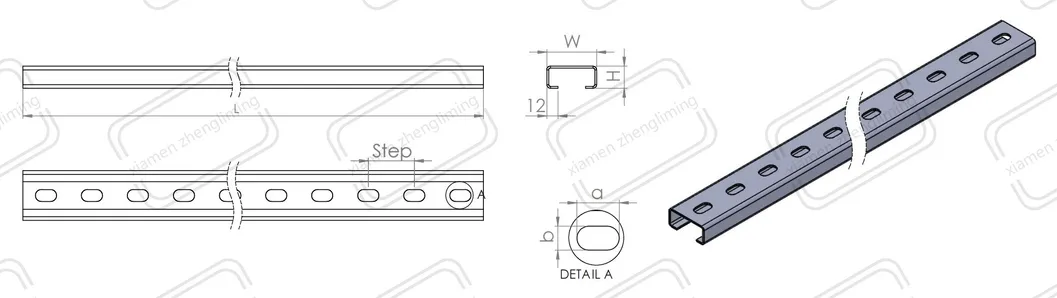

Machine Variation 1 Machine Variation 2 Machine Variation 3

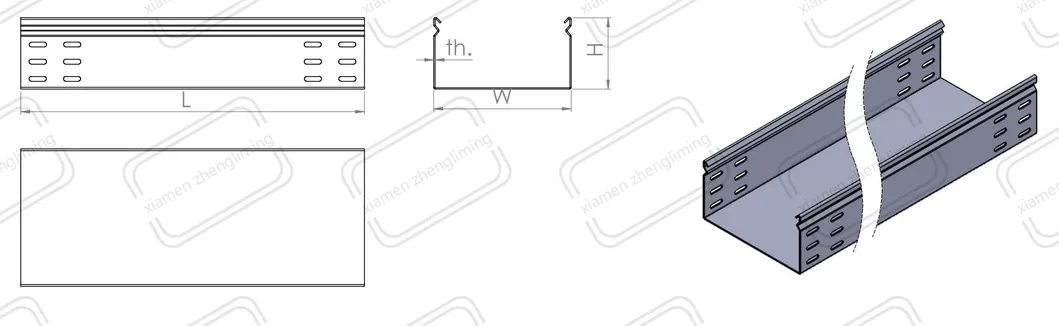

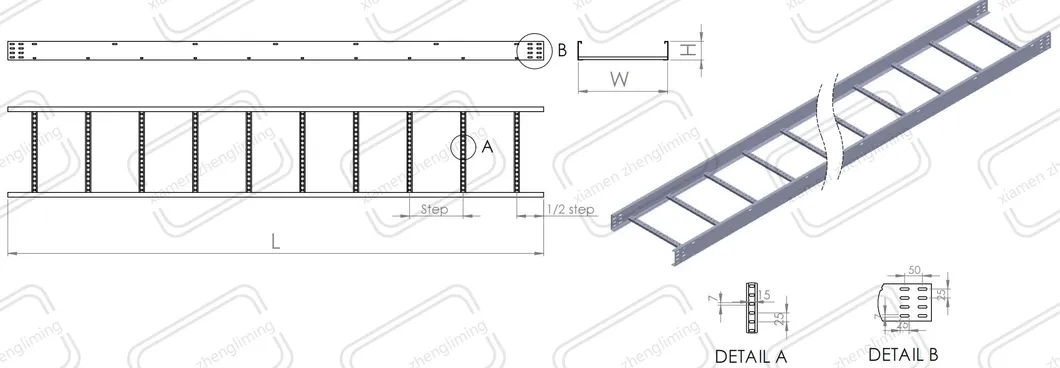

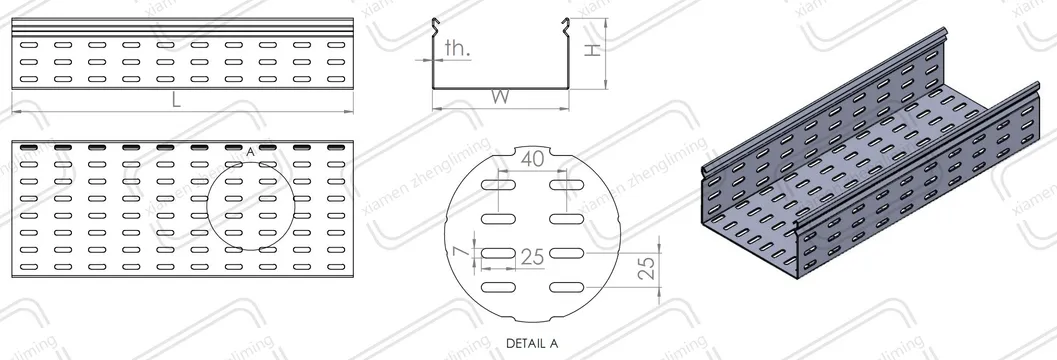

Machine Detail 1 Machine Detail 2 Machine Detail 3

Our Expertise

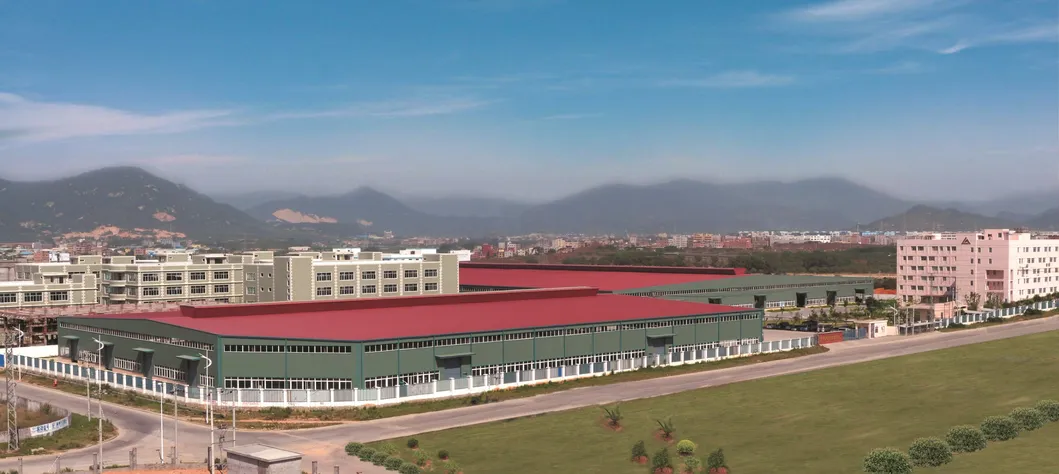

Factory Overview
Founded in 1989, our facility covers over 100,000 square meters and stands as a pioneer in the global roll forming equipment industry. As a national high-tech enterprise, we have led the formulation of numerous national and industrial standards for roll forming machinery. With a team of nearly 100 professionals and over 130 patents, our workshops are equipped with advanced laser cutting machines and welding robots to ensure the highest precision.

Service & Trade

Warranty: One-year guarantee for the machine (excluding electric elements) under correct operation and maintenance.
Installation: We provide technical assistance for regulation. Technicians can be dispatched to the buyer's factory if required.
Payment: 30% T/T deposit, 70% T/T balance before shipment.

Frequently Asked Questions

Are you an experienced manufacturer?
Yes, we have been in the manufacturing industry of various cold rolling mills and roll forming lines for more than 30 years, operating a facility of over 100,000 square meters.
Do you provide after-sales technical support?
We provide technical support for the entire life cycle of the machine. Skilled technicians are available for staff training and troubleshooting.
How is the quality of the machines controlled?
Quality is our priority. We utilize an in-house laboratory, 146 sets of high-end production equipment, and multiple inspection processes. Every machine is fully assembled and tested before shipment.
Can the machines be customized?
Absolutely. Most of our roll forming machines are built according to customer specifications using top-tier brand components to meet specific production needs.
What are your innovation capabilities?
We have nearly 100 R&D and production staff members, focusing on advanced solutions and holding over 130 patents in the metallurgical machinery field.
