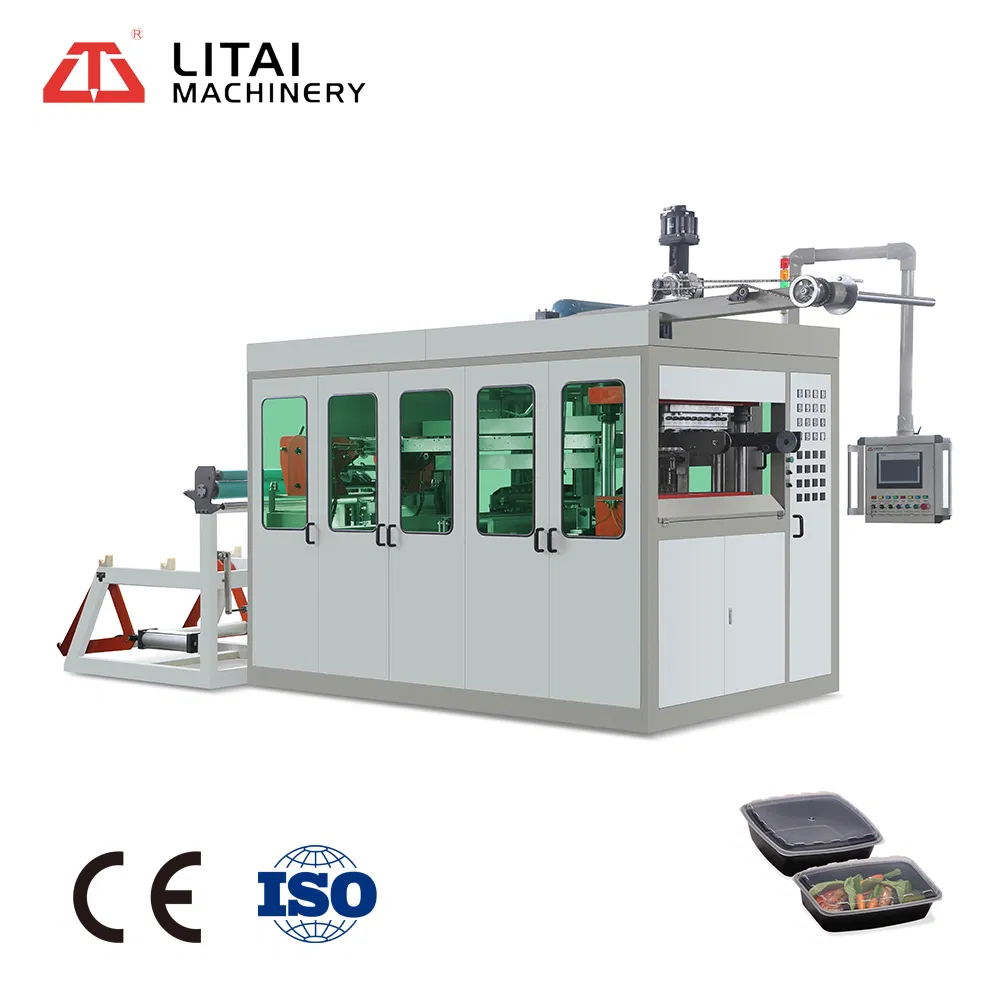

Fully Automatic Positive and Negative Hydraulic Pressure PP Pet Plastic Cup Jewelry Box Forming Making Machine
Fully Automatic Positive and Negative Hydraulic Pressure PP Pet Plastic Cup Jewelry Box Forming Making Machine
Fully Automatic Positive and Negative Hydraulic Pressure PP Pet Plastic Cup Jewelry Box Forming Making Machine
Fully Automatic Positive and Negative Hydraulic Pressure PP Pet Plastic Cup Jewelry Box Forming Making Machine
Fully Automatic Positive and Negative Hydraulic Pressure PP Pet Plastic Cup Jewelry Box Forming Making Machine
1 / 5
Fully Automatic Positive and Negative Hydraulic Pressure PP Pet Plastic Cup Jewelry Box Forming Making Machine
Fully Automatic Positive and Negative Hydraulic Pressure PP Pet Plastic Cup Jewelry Box Forming Making Machine
Fully Automatic Positive and Negative Hydraulic Pressure PP Pet Plastic Cup Jewelry Box Forming Making Machine
Fully Automatic Positive and Negative Hydraulic Pressure PP Pet Plastic Cup Jewelry Box Forming Making Machine
Fully Automatic Positive and Negative Hydraulic Pressure PP Pet Plastic Cup Jewelry Box Forming Making Machine

Fully Automatic Positive and Negative Hydraulic Pressure PP Pet Plastic Cup Jewelry Box Forming Making Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO. TQC-650B
Certification CE, ISO
Column number Four Column
Molding Method Pultrusion
Automatic Grade Automatic
Maximum Forming Area 650mm*320mm
Maximum Forming Depth 125mm
Sheet Thickness 0.3-1.8mm
Fastest Forming Speed 20-25times/Min
Maximum Sheet Width 660mm
Rated Power 98kw
Power Supply AC 380V, 50Hz Three-Phase and Four-Wire
Dimension L7000*W2000*H3200mm
Production Capacity 10set/Month
Fully Automatic Positive and Negative Hydraulic Pressure Forming Machine
⚙️ Product Parameters
Max. Forming Speed 35 times/min
Air Pressure 0.6-0.8mpa
Air Consumption 2.0m³/min
Water Consumption 0.5m³/h
Used Power 69Kw
Weight About 5T
💡 Summary of Machine

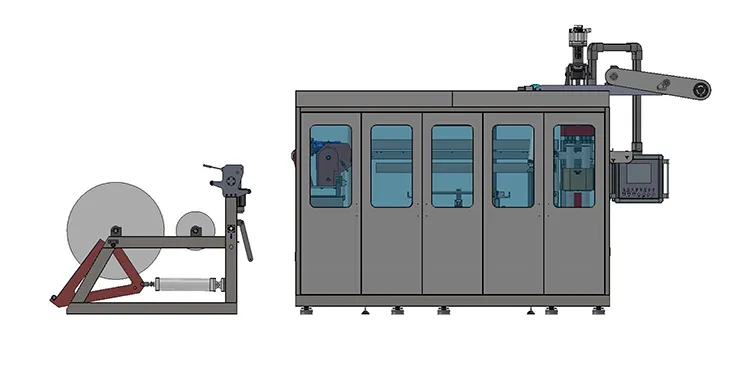

Machine Summary
01
Automatic sheet feeder with square steel structure, high wear resistance, more stable, efficiently, the accuracy of feeding size could be improved by automatic feeding.
02
Material holder combines with the machine, which is controlled by cylinder, can move up and down. It is easy for operation, and saving more space.
03
Machine adopts PID temperature system, it shows high precision, and temp control tolerance < 1ºC.
04
Movably mould device is conveniently to assemble and dismantle mold, and the vibration of the machine could be reduced by machine's counterbalance valve.

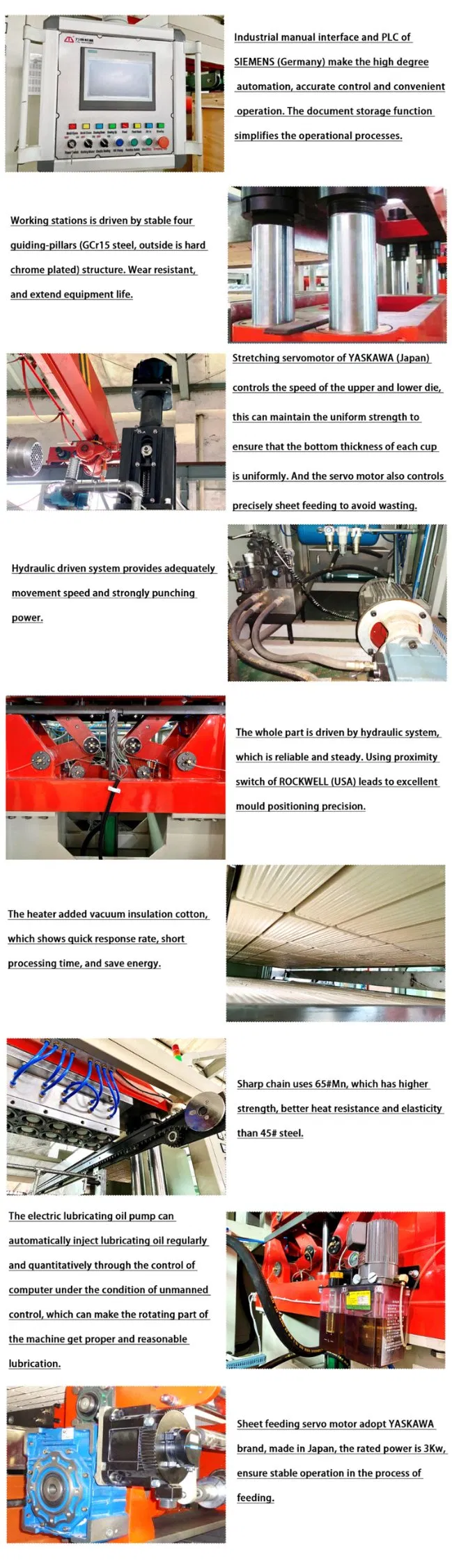

Technical Details
🛠️ Application & Process

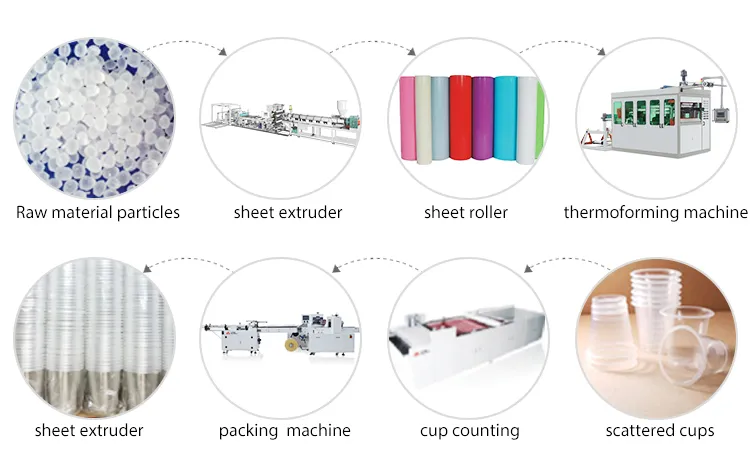

Production Process

Plastic cup thermoforming machine is our lasted developed product. Sheet feeding and stretching parts are driven by servo motor. Machine produces disposable products, such as plastic cups, bowls, lids, and boxes through the workflow of sheet feeding, heating, forming, cutting and blowing.

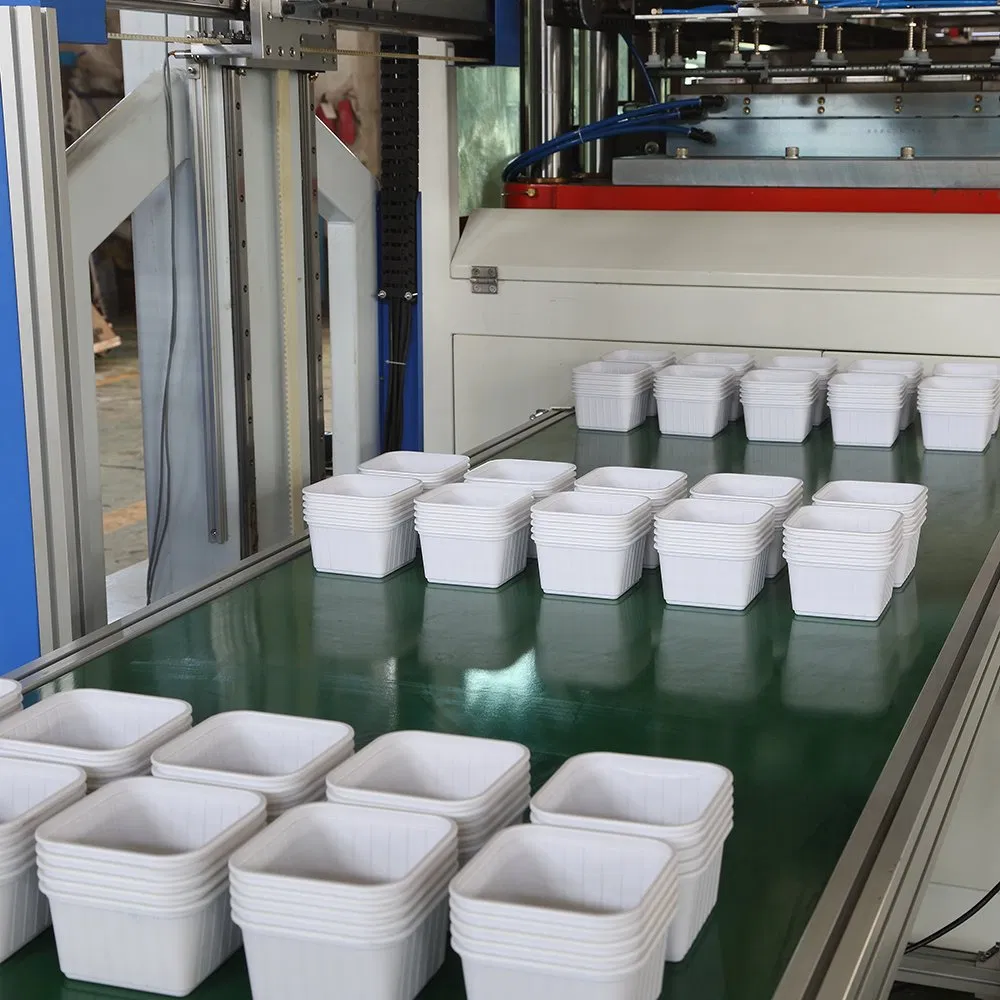

Product Samples
🏭 Production & Display
Production Facility
Factory Workshop
Machine Assembly
🌐 Global Presence
Guest Department
Exhibition Photo 1
Exhibition Photo 2
📦 Transport Packaging
Wood Packaging for Transport
❓ Frequently Asked Questions
Are you a factory or trading company?
We are a factory and have been exporting our specialized machines to more than 80 countries worldwide since 2001.
How long is the warranty period for the machine?
The warranty period is 13 months, calculated from the date of shipment from our factory. During this time, spare parts are provided free of charge for maintenance (excluding artificial damage).
How is the machine installed at my location?
We provide professional technical support by sending a technician to your factory to install the machine and provide comprehensive training for your operators.
What materials can this machine process?
This machine is designed to handle various plastic sheets including PP, PET, PS, and other thermoforming materials with a thickness range of 0.3mm to 1.8mm.
What kind of products can be produced?

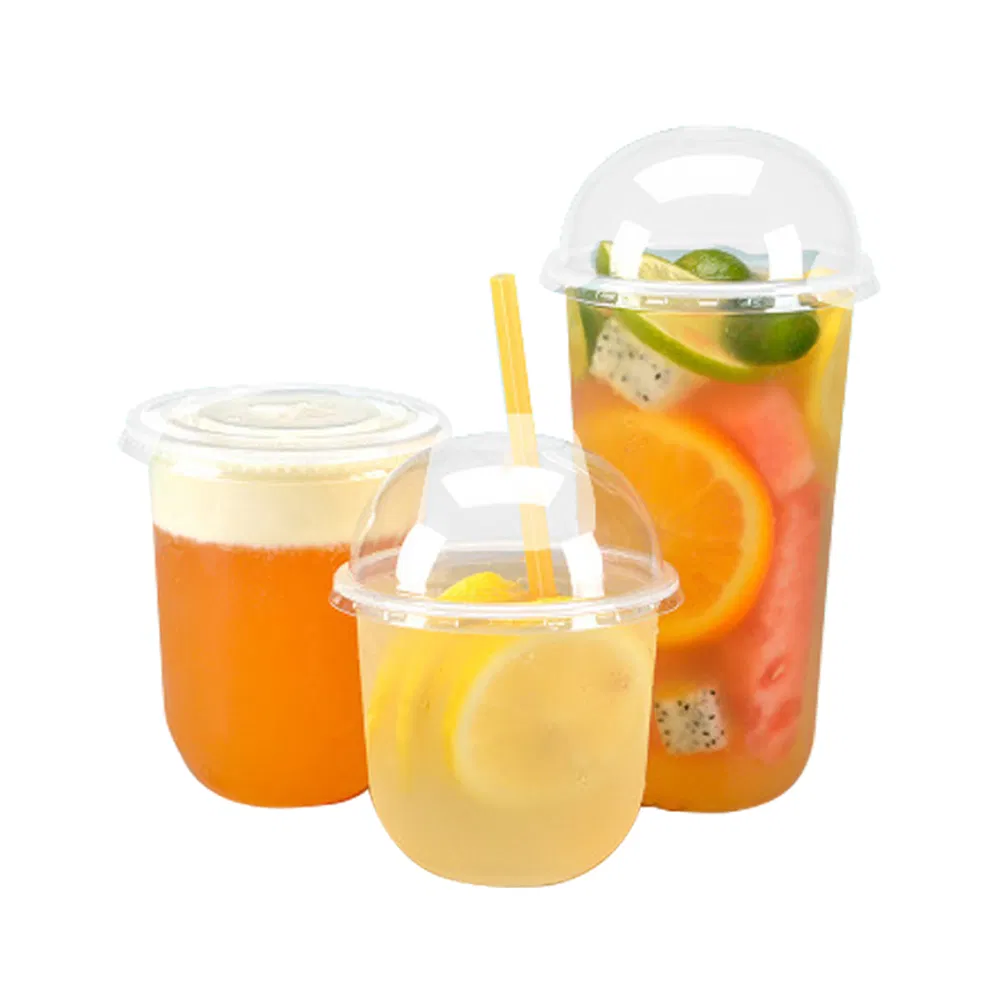

It is ideal for high-speed production of disposable items such as plastic cups, bowls, containers, lids, and jewelry boxes.
What are the power requirements?
The machine requires an AC 380V, 50Hz Three-phase and Four-wire power supply. The rated power is 98kw with a typical used power of around 69kw.
