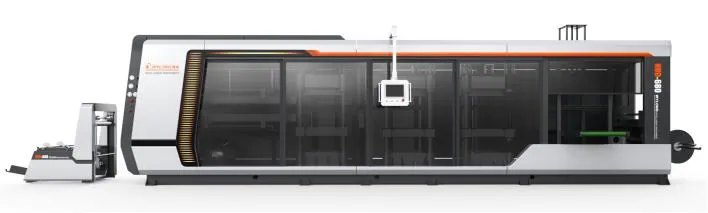

🔧 Technical Specifications
Model NO.ZHD-680/450
CertificationCE
Molding MethodPressing
Automatic GradeAutomatic
Processing TypePlastic Thermoforming
Plastic TypePP, PET, PVC, PS, PLA
Forming Area680X450mm
Production Speed10-35 Mould/Min
Sheet Thickness0.2-2 mm
Heating Power80kw
Weight9 Ton
HS Code8477590000
🌟 Key Features
⚙️Easy Operation: Highly automated system designed for user-friendly control.
💎Multi-Material Support: Handles A-PET, R-PET, C-PET, BOPS, HIPS, PP, PLA, and PVC.

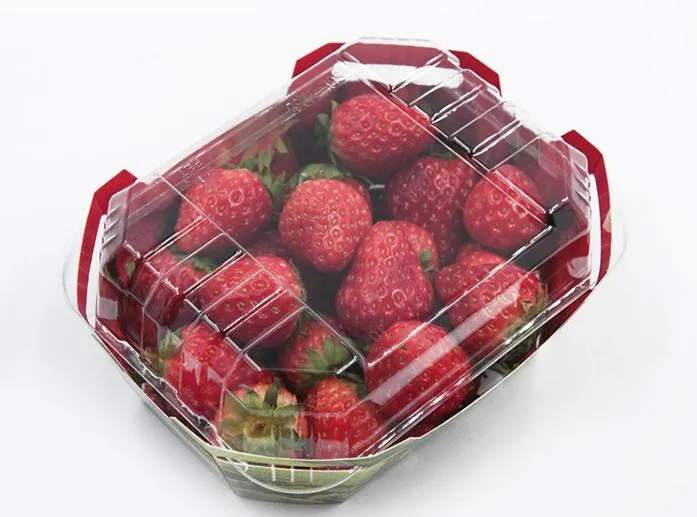

📦Wide Application: Perfect for producing trays, lids, fruit boxes, flower pots, and nursery trays.

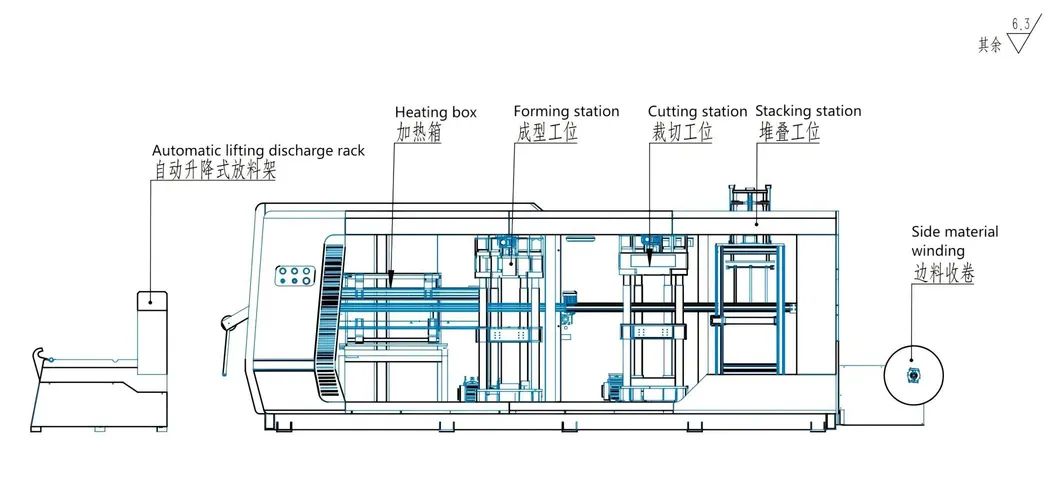

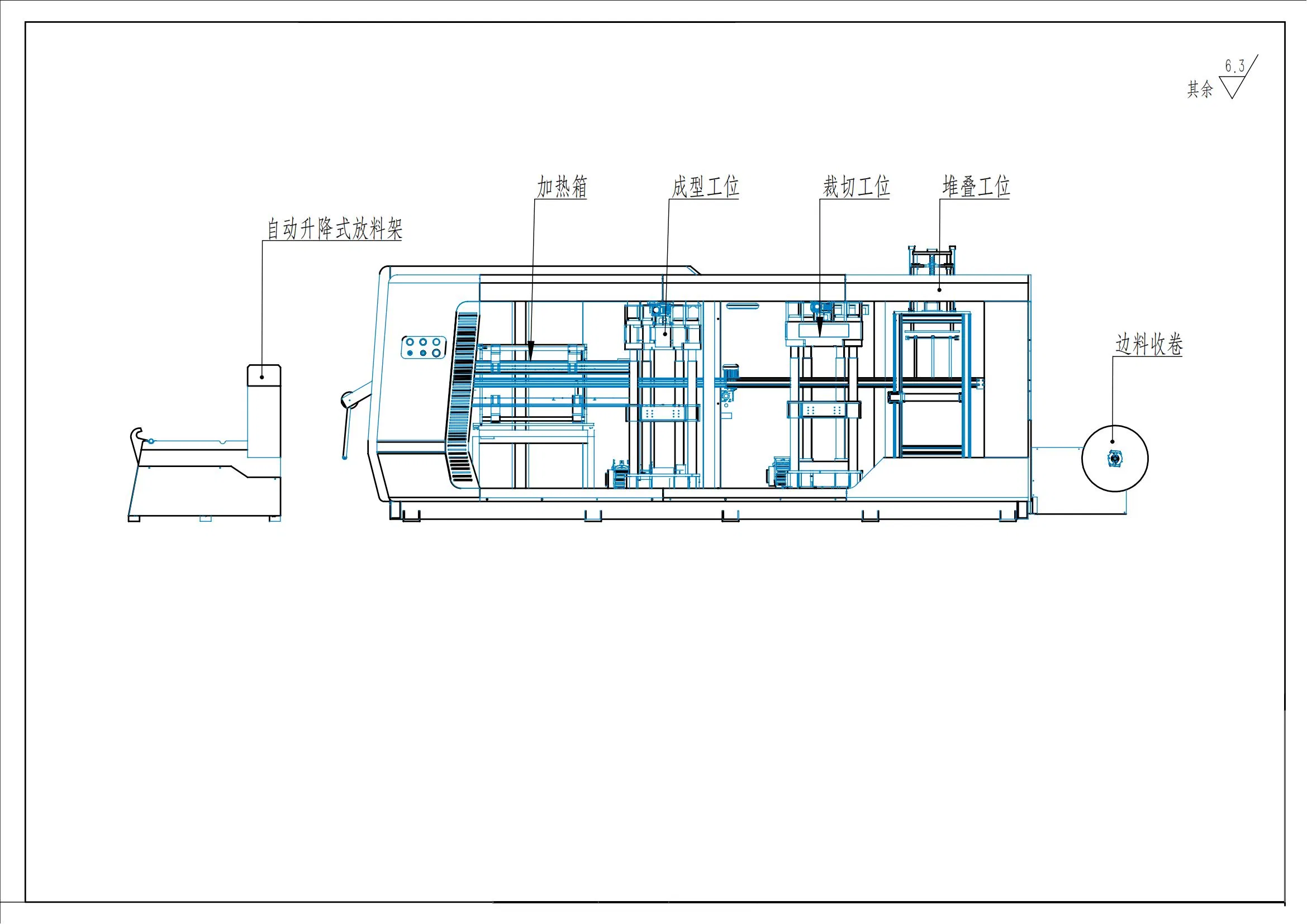

🚀High Efficiency: Multi-station design enables production of complex items like PLA products and connected clamshells.
❓ Frequently Asked Questions
Do you have different models for each machine?
Yes, we have various models and can customize the machine according to your specific requirements.
What is the standard production time?
Normally, the production cycle takes around 45 days.
What kinds of products can this machine produce?
It can produce all kinds of disposable plastic cups, bowls, plates, boxes, yogurt cups, plant pots, and food containers.
Which materials are compatible with the thermoforming machine?
It supports PP, PS, PVC, and PET materials with a thickness ranging from 0.3mm to 2mm.
What are the air and water requirements for operation?
Compressed air volume should be higher than 2.4 mm³/min at 6kg pressure. Water displacement should exceed 1.5 m³/min at 2kg pressure, with temperatures between 30°-50°.
What are the electricity requirements?
It requires a three-phase four-wire system. Copper core cables should be larger than 25 mm³, and aluminum core cables should be larger than 50 mm³.
