Automatic Multi-Station Plastic Containers Production Line
Automatic Multi-Station Plastic Containers Production Line
Automatic Multi-Station Plastic Containers Production Line
Automatic Multi-Station Plastic Containers Production Line
Automatic Multi-Station Plastic Containers Production Line
1 / 5
Automatic Multi-Station Plastic Containers Production Line
Automatic Multi-Station Plastic Containers Production Line
Automatic Multi-Station Plastic Containers Production Line
Automatic Multi-Station Plastic Containers Production Line
Automatic Multi-Station Plastic Containers Production Line

Automatic Multi-Station Plastic Containers Production Line

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Overview - Basic Information
Model NO.:FSCT-680/450
Certification:CE
Molding Method:Thermoforming
Automatic Grade:Full Automatic
Forming Area:680X450mm
Max. Forming Depth:140/140mm
Applicable Sheet:PP, HIPS, PS, PET, etc.
Sheet Thickness:0.15-2mm
Overall Power:130kw
Process:Forming-Punching-Cutting-Stacking
📦
Packaging & Delivery
Package Size: 1212.00cm * 250.00cm * 260.00cm
Gross Weight: 31000.00kg
Product Description

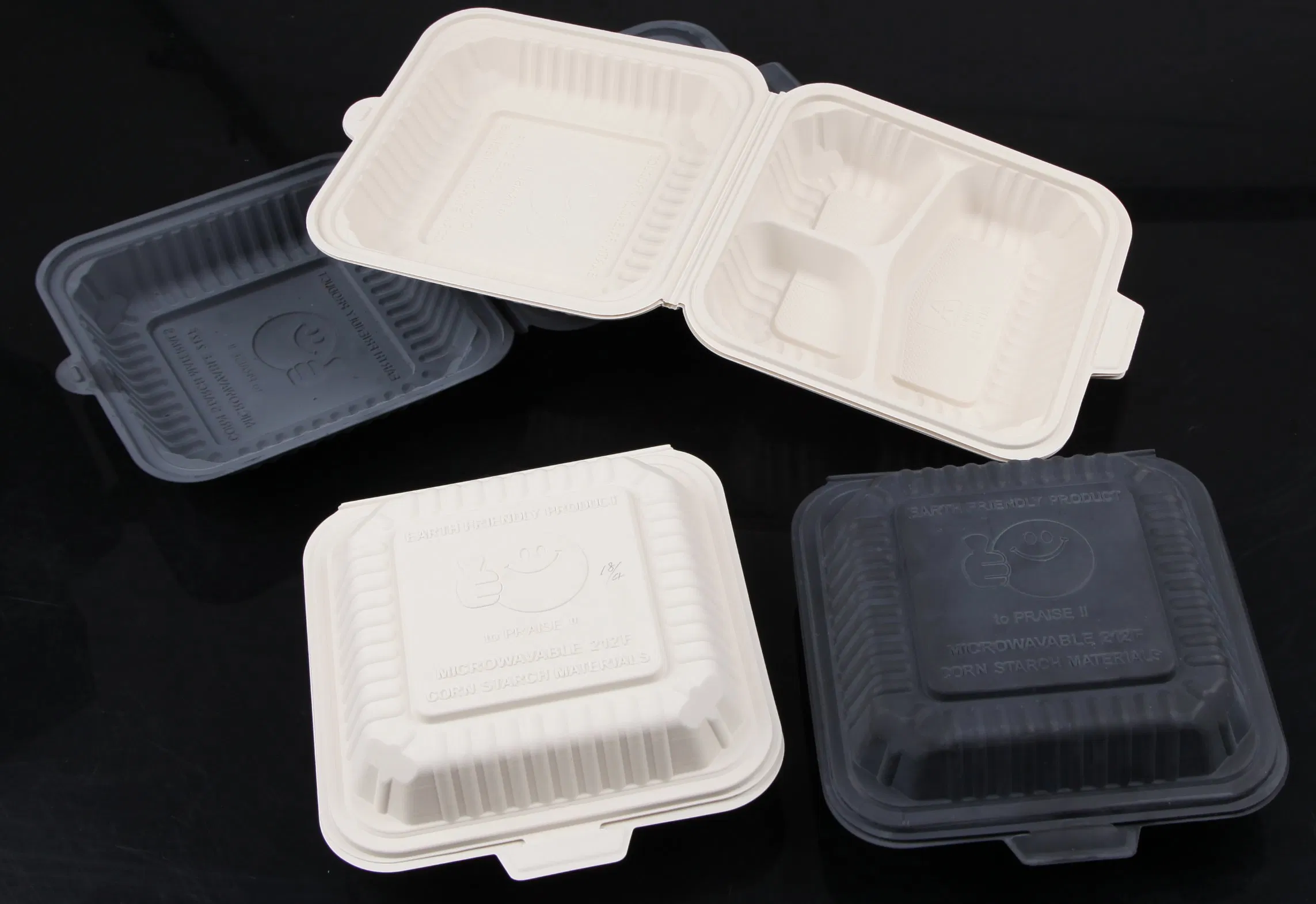

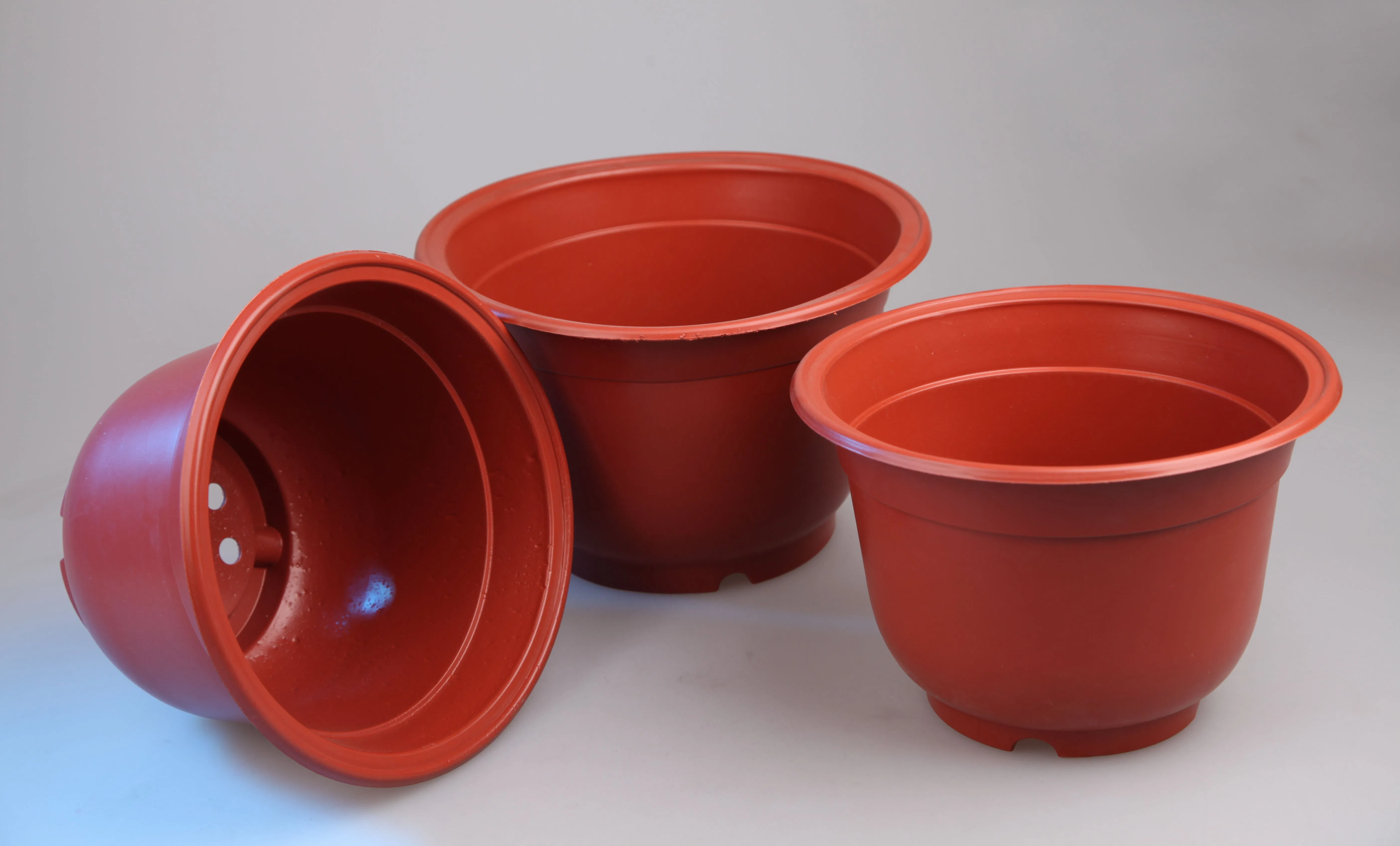

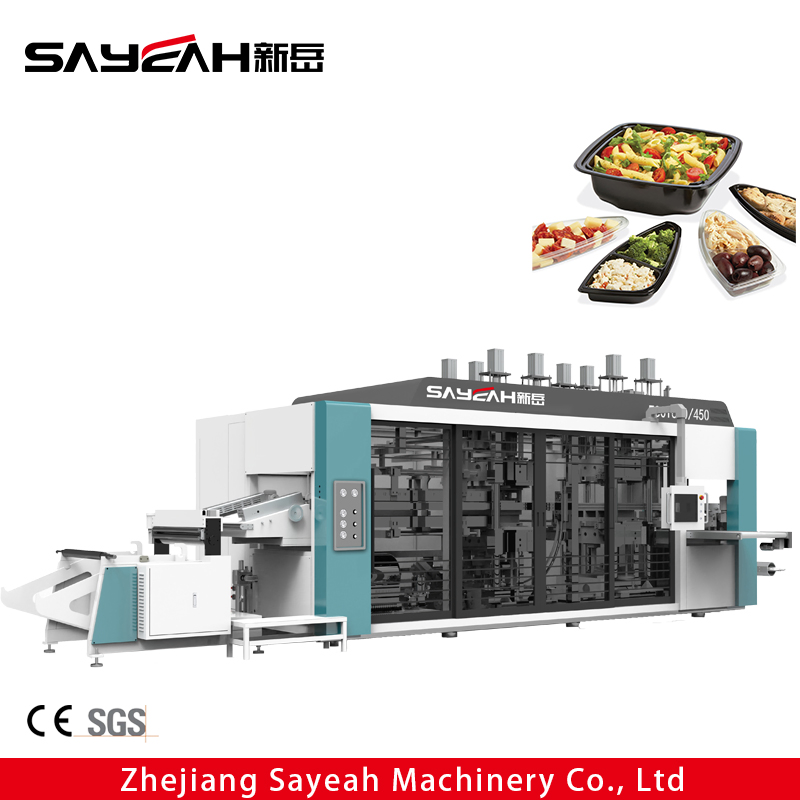

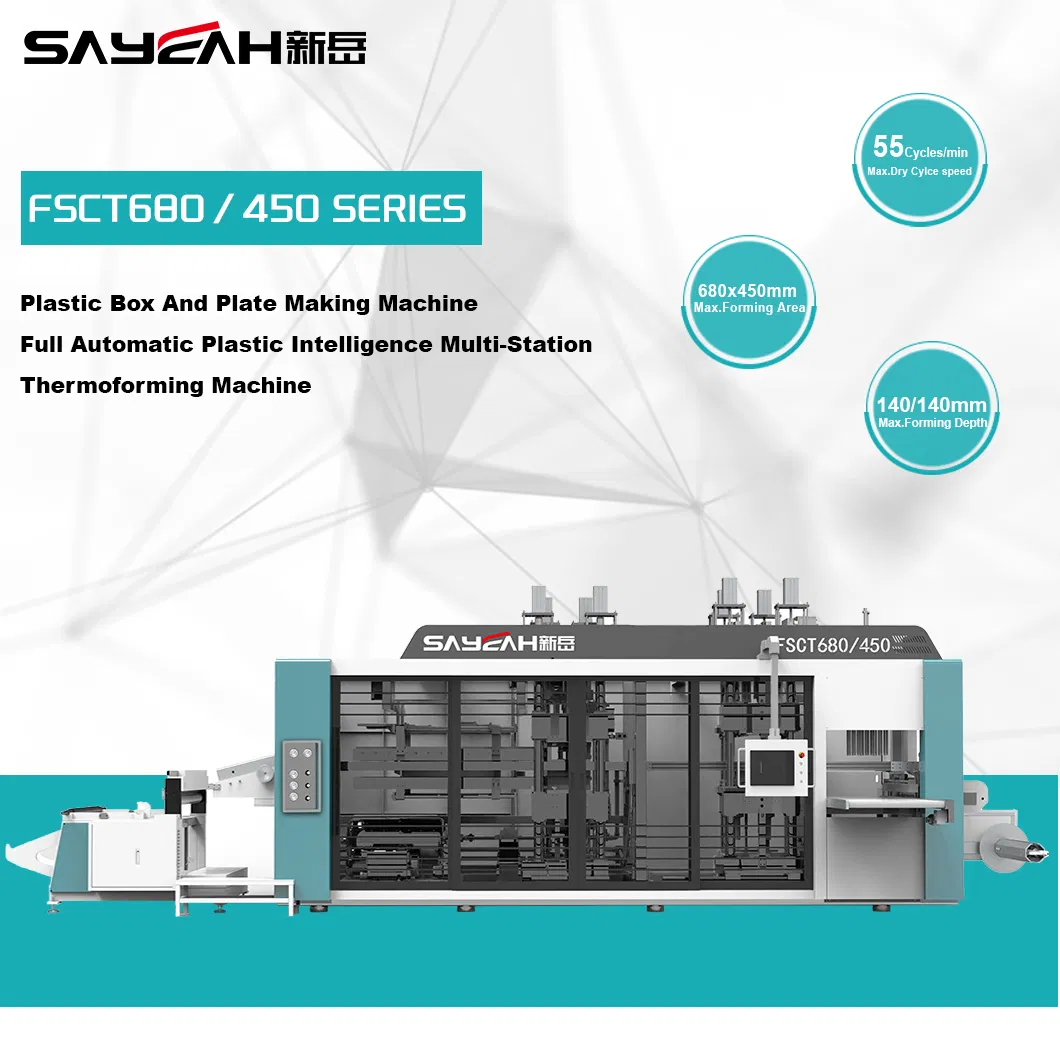

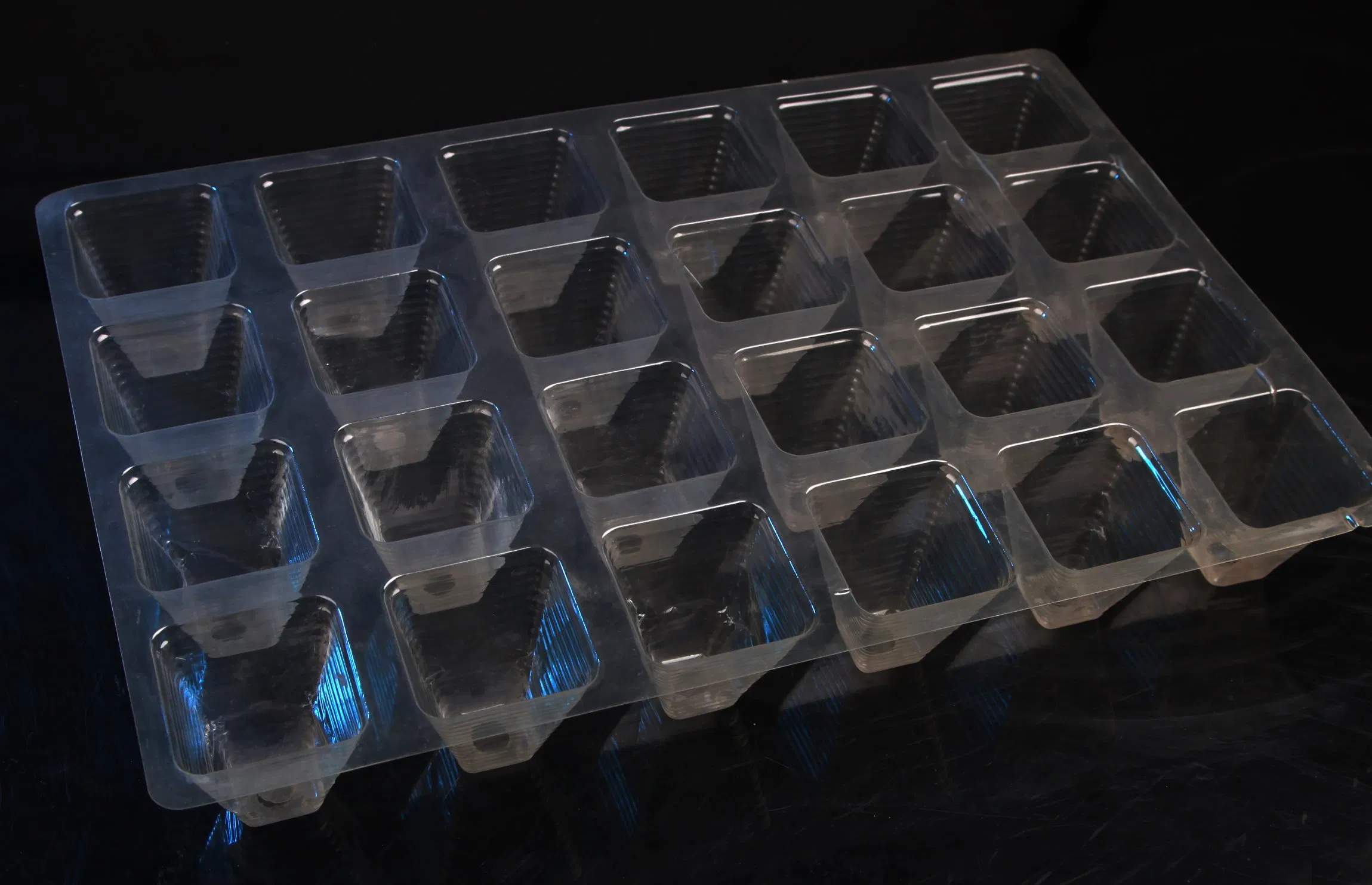

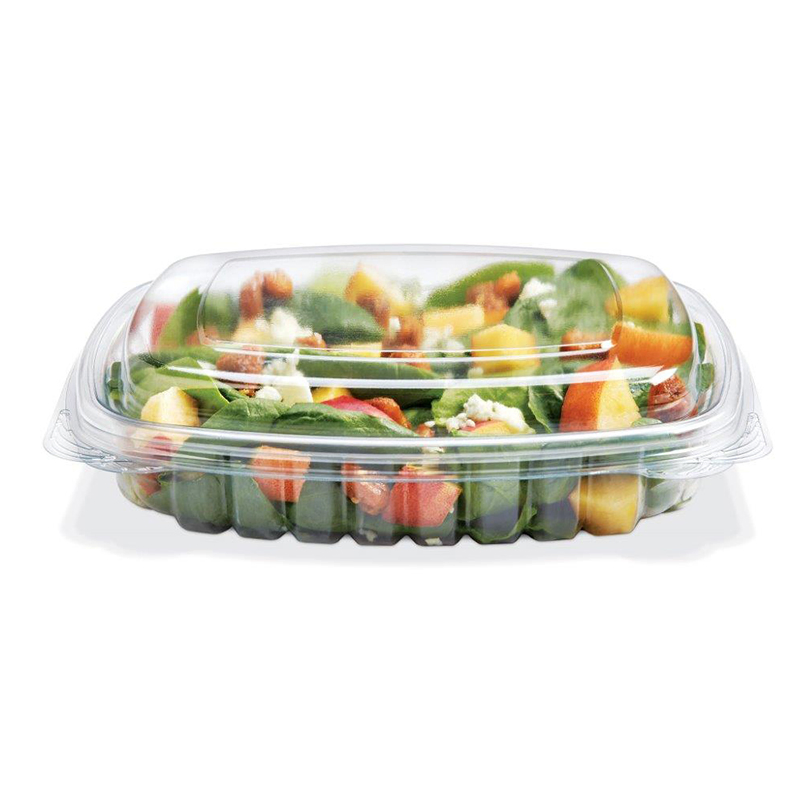

The FSCT-680/450 thermoforming machine is a multi-station plastic containers production line that combines forming, punching, cutting, and stacking in one seamless process. This advanced equipment is specialized for processing materials such as PP, PS, HIPS, PVC, PET, OPS, EPS, C-PET, PLA, and ABS. It is widely used for manufacturing high-quality plastic trays, containers, boxes, lids, and other food or non-food packaging solutions.

Automatic Multi-Station Plastic Containers Production Line
Key Features
  • European Standard Design: High efficiency, energy-saving, and hygienic operation.
  • Electric Lifting Station: Double roll holder allowing single operator loading up to 1T.
  • Operator-Friendly HMI: Intelligent control system with remote connection capabilities.
  • Precision Control: Temperature control system (error ± 1 degree) with material drop detection.
  • Smart Formula Storage: Intelligent operation with automatic adjustment without system shutdown.
  • Global Mold Compatibility: Can share molds with most well-known international brands.
  • Fast Changeover: Quick mold change system to reduce downtime and improve safety.
Technical Parameters
Model FSCT680/450-3 FSCT680/450-4
Qty of Stations34
Max. Forming Area680x450mm680x450mm
Max. Forming Depth140/140mm140/140mm
Max. Sheet Width720mm720mm
Max. Dry Cycle Speed55 Cycles/min55 Cycles/min
Overall Power120kw130kw
Machine Weight13T17T

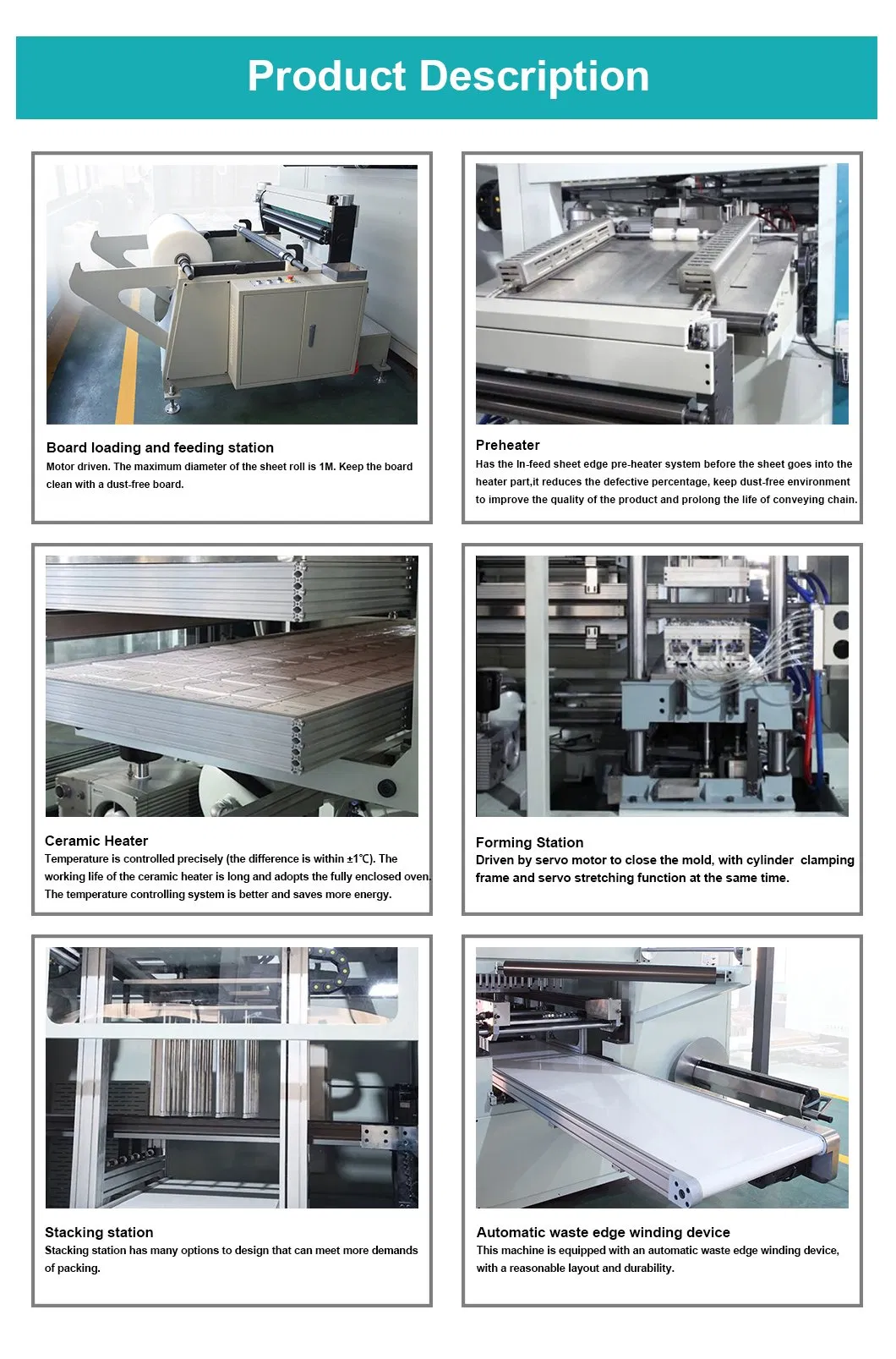

Technical Specifications Detail
Main Electrical Components
Control System / PLCDELTA / Inovance
Touch Screen InterfaceDELTA / Inovance
Servo Motors & DrivesDELTA / Inovance
Vacuum PumpRUFUS
Infrared Ceramic HeaterTianbao (3 Years Warranty)
Pneumatic ComponentsMAC (USA) / SMC (Japan)

* Lenze systems are available as an optional choice based on requirements.

Our Advantages & Manufacturing

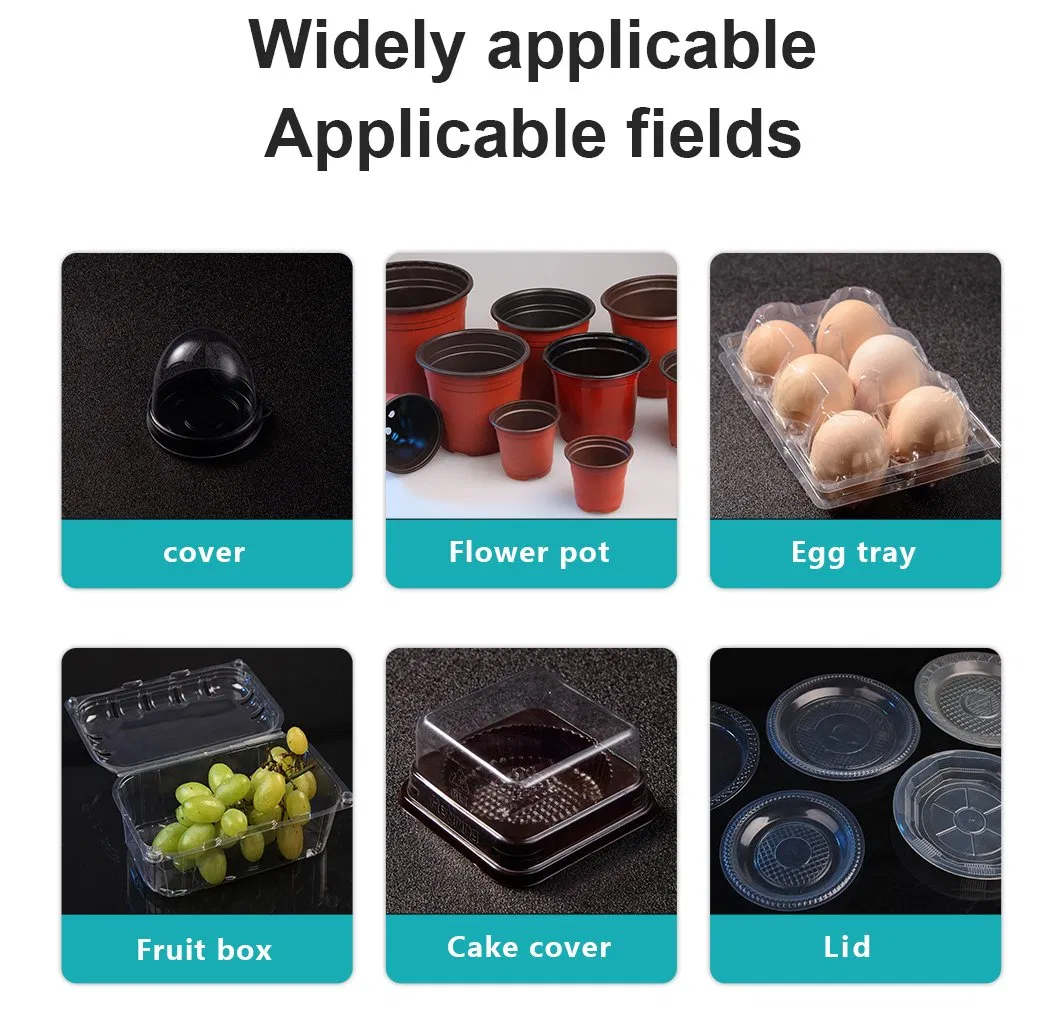

Factory Advantage 1 Factory Advantage 2 Factory Advantage 3
Certifications
Certification 1 Certification 2
Related Products

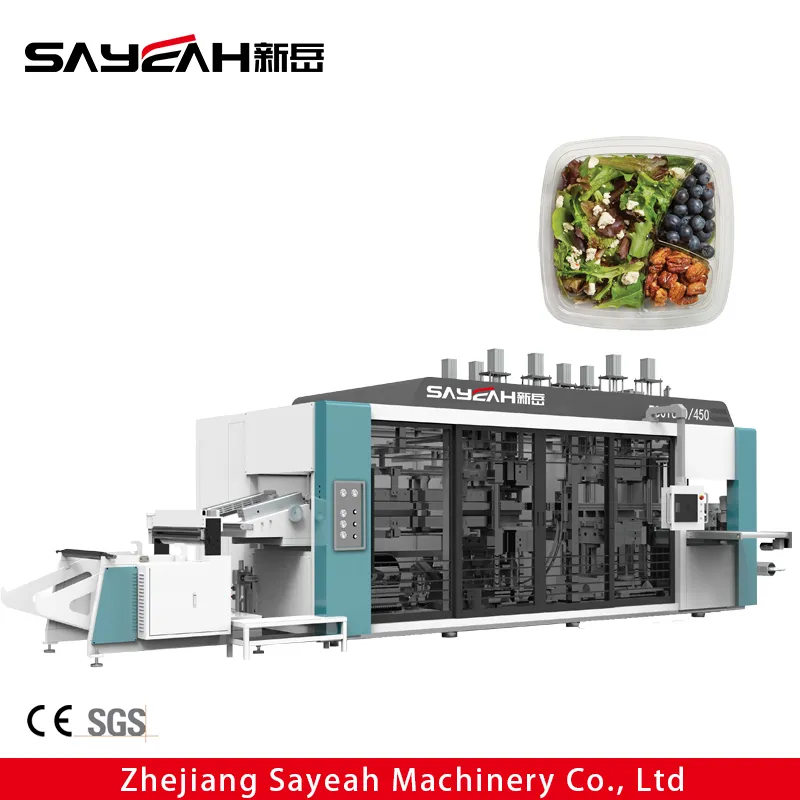

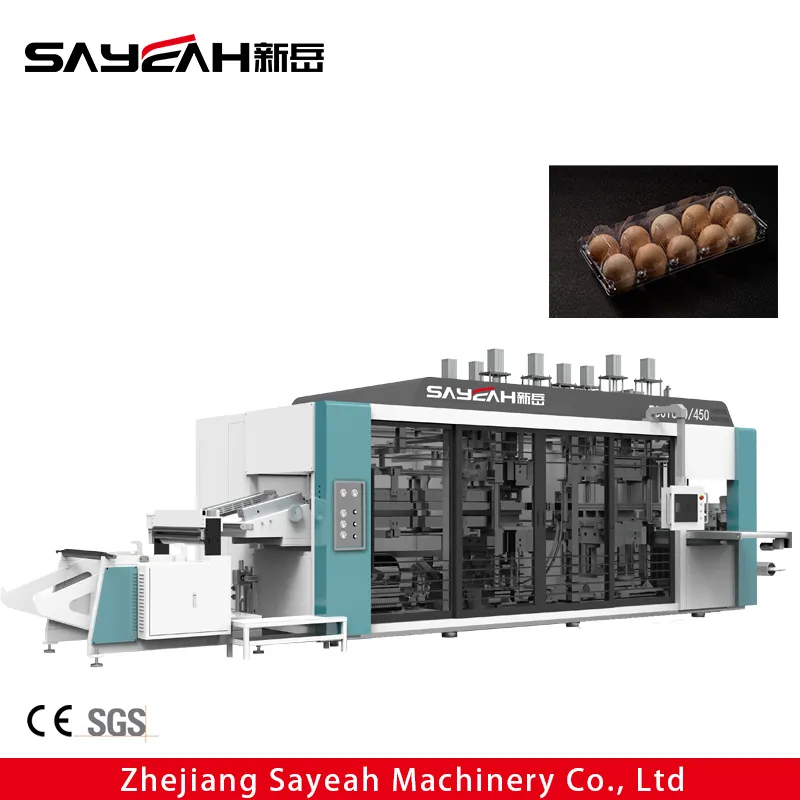

Related Machine 1 Related Machine 2
Frequently Asked Questions
Q1: Are you a factory or trading company?
We are a specialized manufacturing factory, and we export our high-performance machines to more than 80 countries worldwide.
Q2: How long is the warranty period for this machine?
The warranty is 12 months from the date of shipment. During this period, spare parts are provided free of charge for non-artificial damage.
Q3: What types of plastic materials can this machine process?
This equipment is designed to handle a wide range of materials including PP, PS, HIPS, PVC, PET, OPS, EPS, C-PET, PLA, and ABS.
Q4: What is the maximum production speed of the FSCT-680/450?
The machine features a maximum dry cycle speed of up to 55 cycles per minute, ensuring high-efficiency output for large-scale production.
Q5: Does the machine support remote monitoring or connection?
Yes, the system is equipped with a user-friendly HMI that includes remote connection functions for efficient technical support and monitoring.
Q6: Is it possible to use existing molds with this machine?
Absolutely. Our machine is designed to be compatible with molds from most well-known domestic and international brands.
