Automatic Weighing, Palletizing and Packaging System for Valve Bags of Chemical Products

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.:Bag Packing Machine

Automatic Grade:Automatic

Material Type:Powder

Filling Valve Head:Single-Head

Dosing Device:Plunger

Accuracy:±0.1%

Packaging Material:Composite Materials

Production Speed:4-20 Bags/H

Machine Material:SUS304

Suitable Industry:Chemicals

★

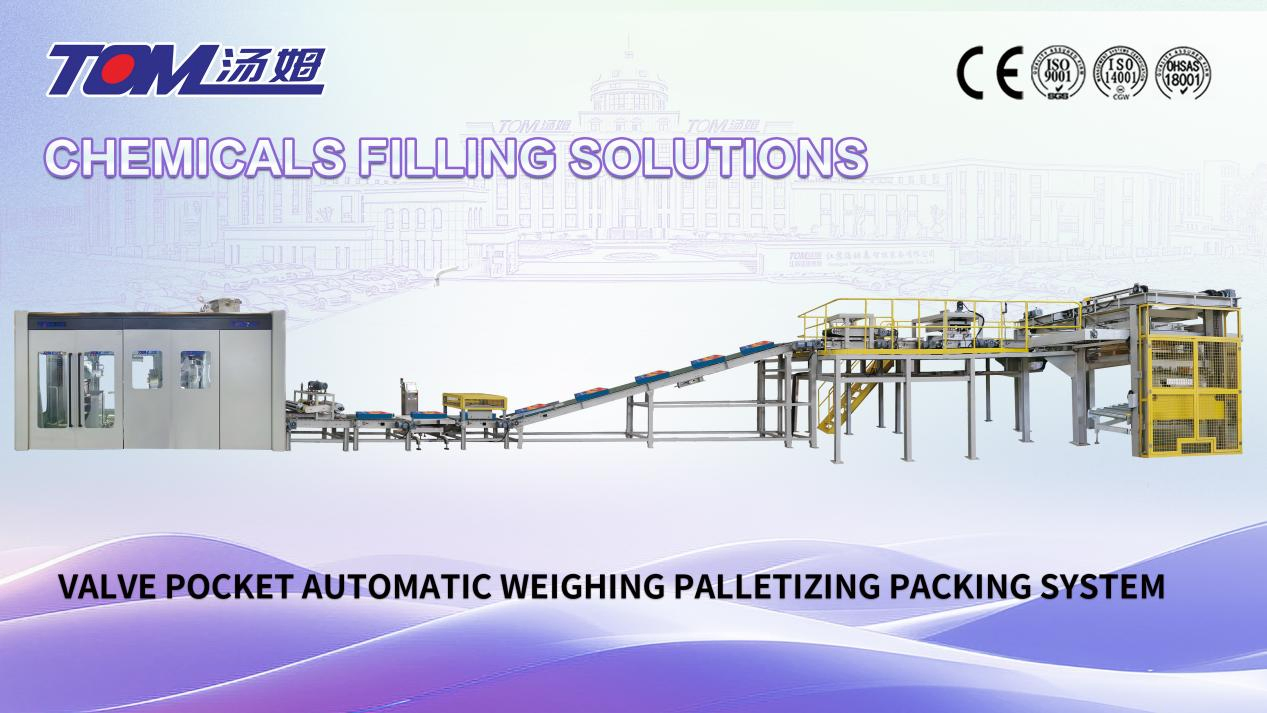

Valve Pocket Automatic Weighing And Palletizing Packing System

Scope of application: Applicable to 10-50kg paper, PPEE and PPPP valve bags and composite valve bags.

Main Features:

Excellent adaptability for different materials and flow characteristics.
High speed clean filling process.
Continuous filling without clogging or bridging.
Maintains superior weight accuracy during high-speed filling.
Simple maintenance and easy cleaning procedures.
Optional auto-adjustment for various packing materials and bags.

⚙

Technical Parameters

Parameter Item	Specifications
Compressed air consumption	40-45 m³/h
Air pressure	>6 bar
Total dust removal air volume	2000m³/h
Bag length range	400mm - 550mm
Bag width (Maximum)	500mm
Thickness of bag bottom	100 - 120mm

✦

Application & Bag Types

Specifically designed for industrial chemical products requiring precise weight control and stable palletizing.

◈

Main Configuration

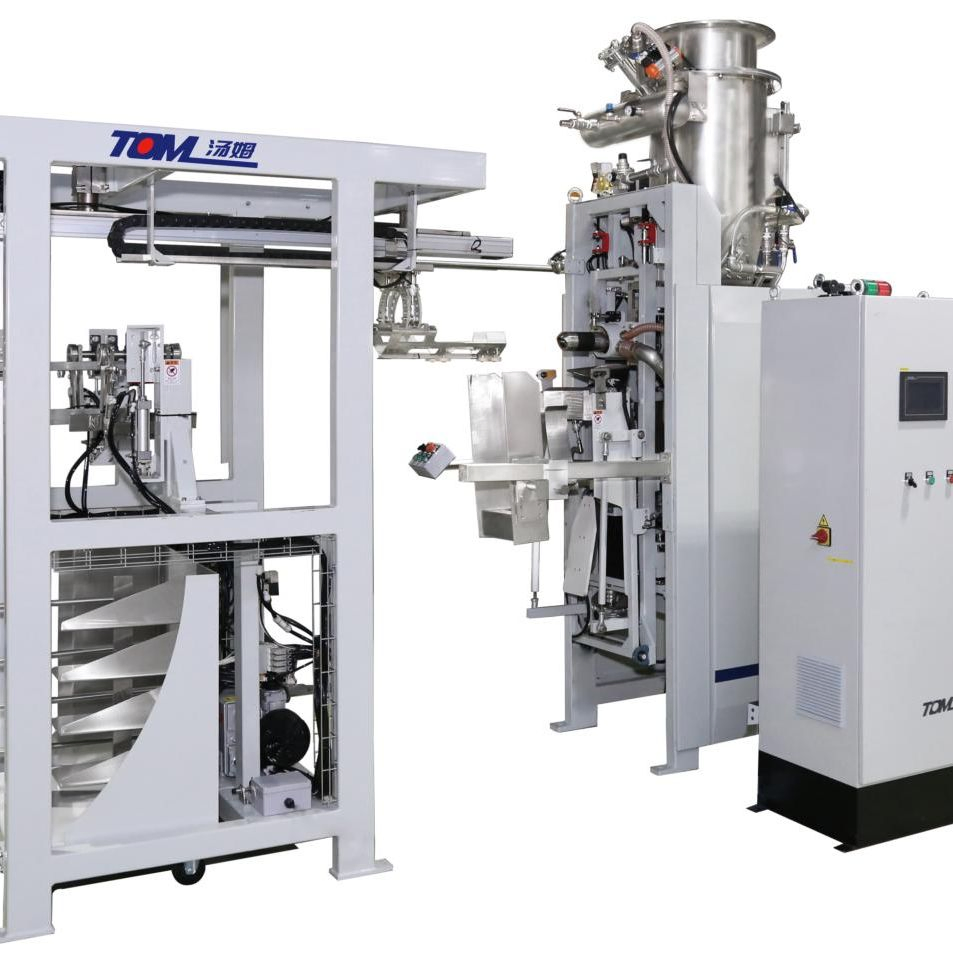

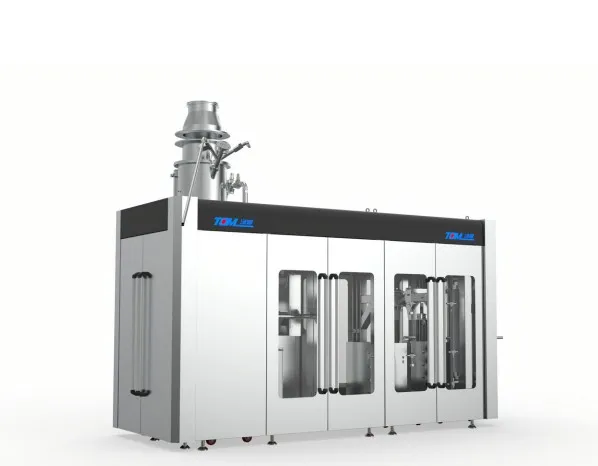

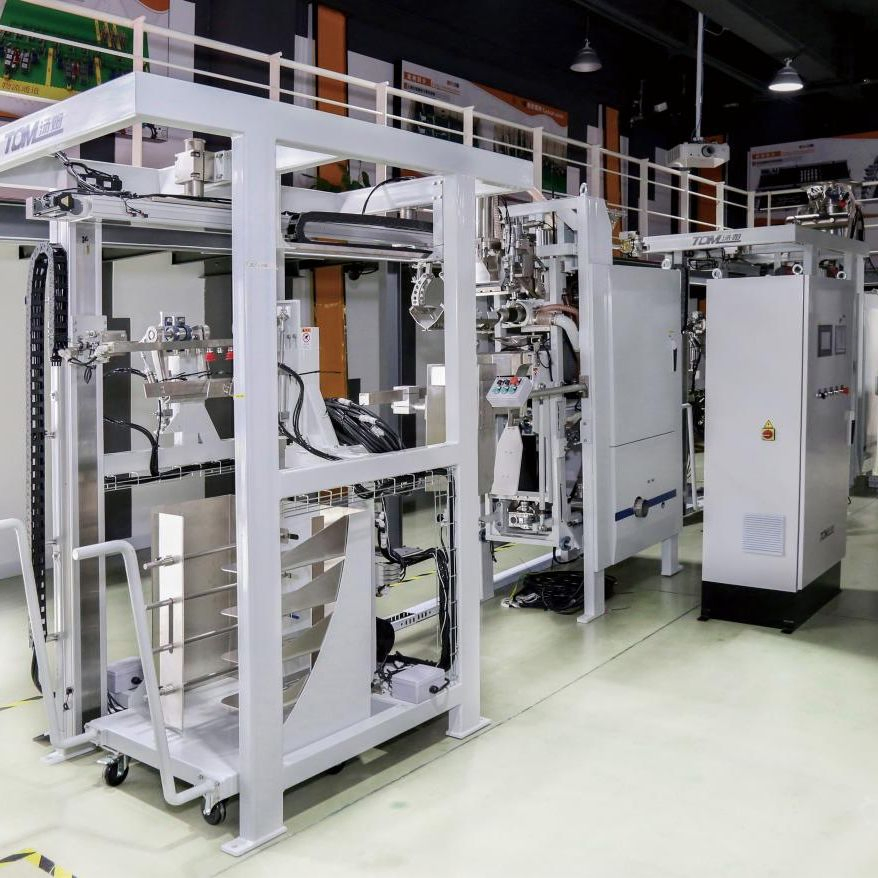

Intelligent Valve Pocket Packaging Machine

Packaging range: 10-50kg
Packing speed: 7-8 tons / hour (e.g., tile adhesive)
Measuring accuracy: ±100-150g/bag
Operational temperature: -5 ºC to 45 ºC

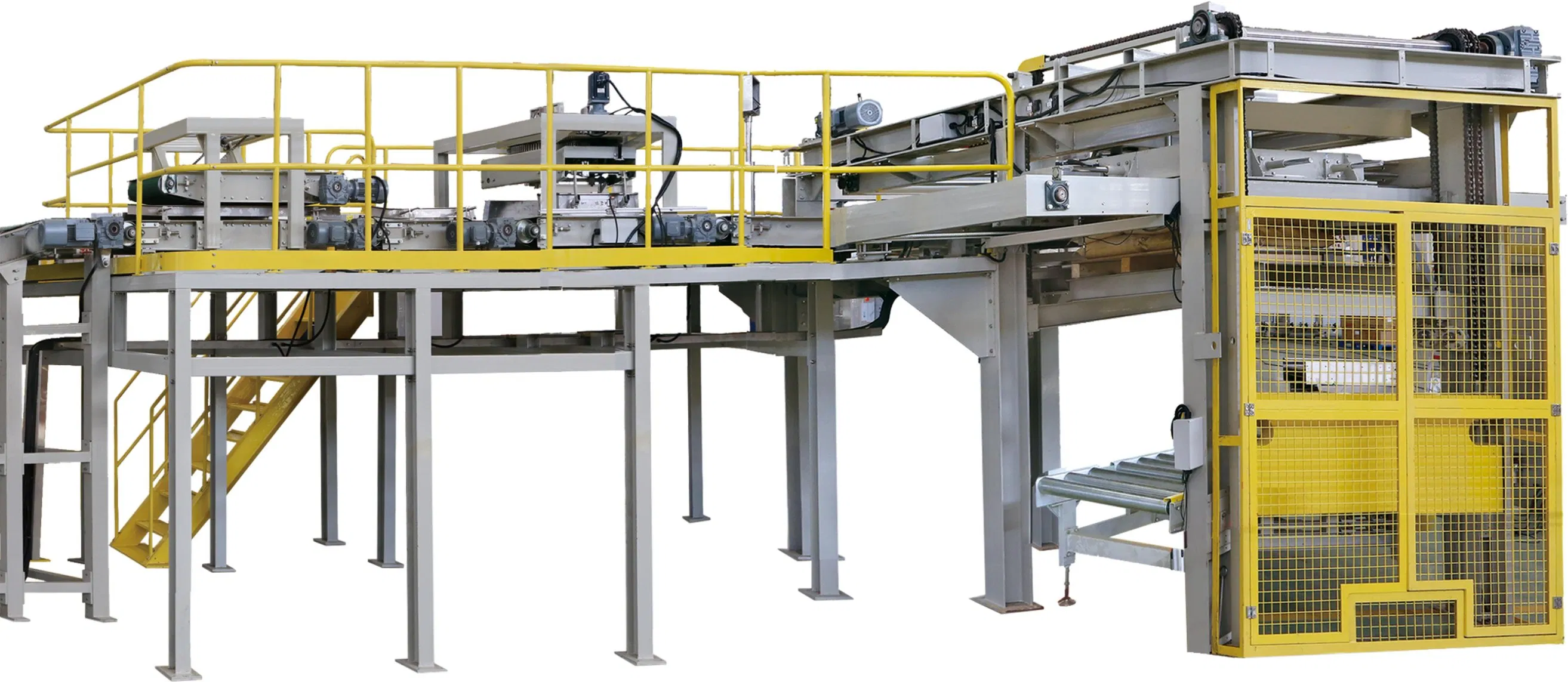

High-Level Palletizer

Weighing range: 20 - 50 kg per package
Accuracy: ≤ ± 0.2%
Capacity: 500 - 1500 packages per hour

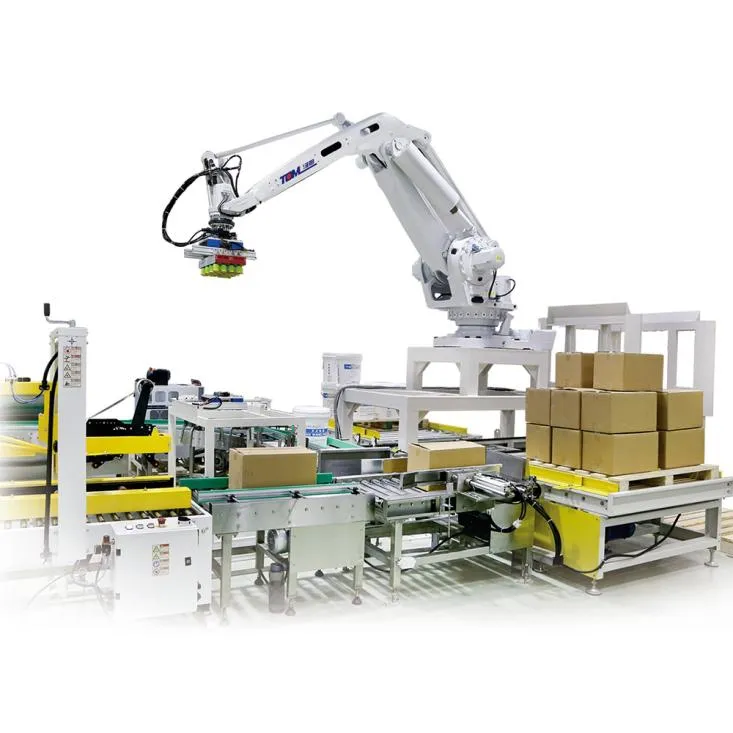

Robot Palletizer System

Maximum load: 110Kg
Reset positioning accuracy: 0.1mm
Arrival distance: 2400mm

Company Profile

Specializing in the production of intelligent packaging machines since 1998, the enterprise covers 150 acres and employs over 700 professionals. We provide full-service research, design, and production for intelligent filling lines, catering to Industry 4.0 standards with EPC general contracting engineering.

Core Product Categories:

· Pesticide and Fertilizer packaging machines
· Shampoo and Detergent packaging machines
· Edible Oil, Sauce & Condiment packaging machines
· Lubricant packaging machines
· Coating and Paint packaging machines
· Chemical packaging machines

⚓

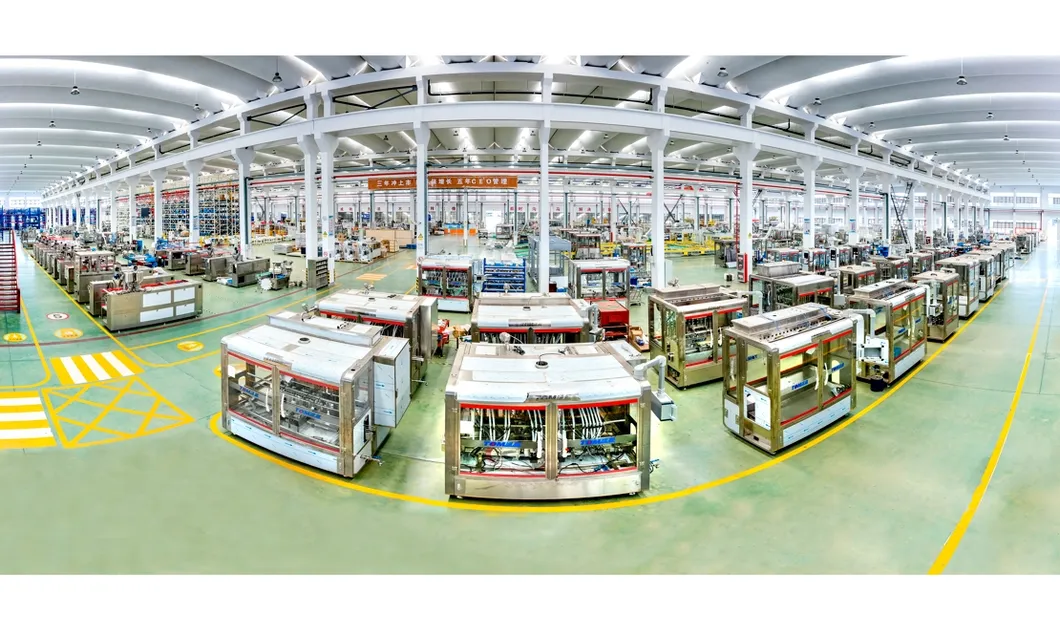

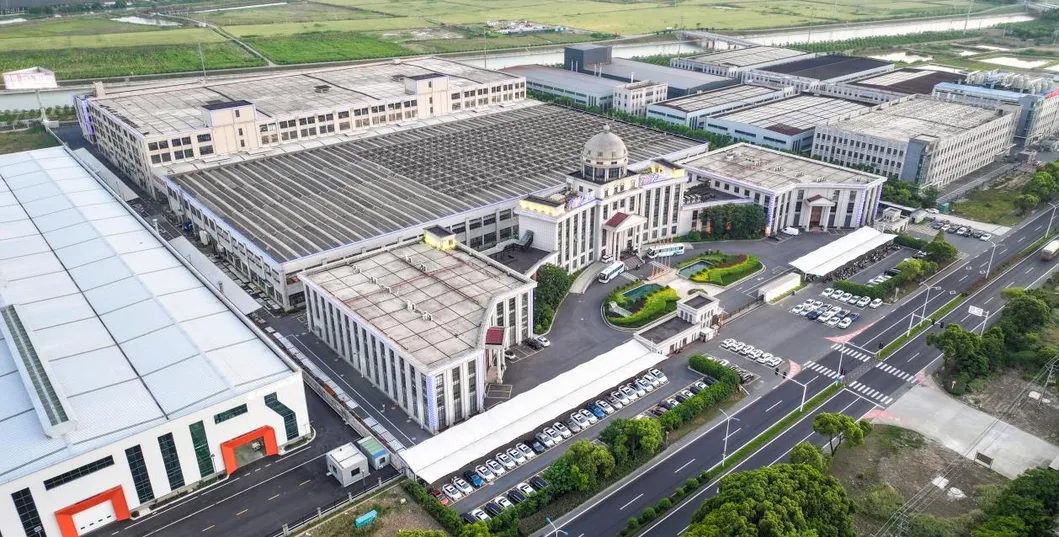

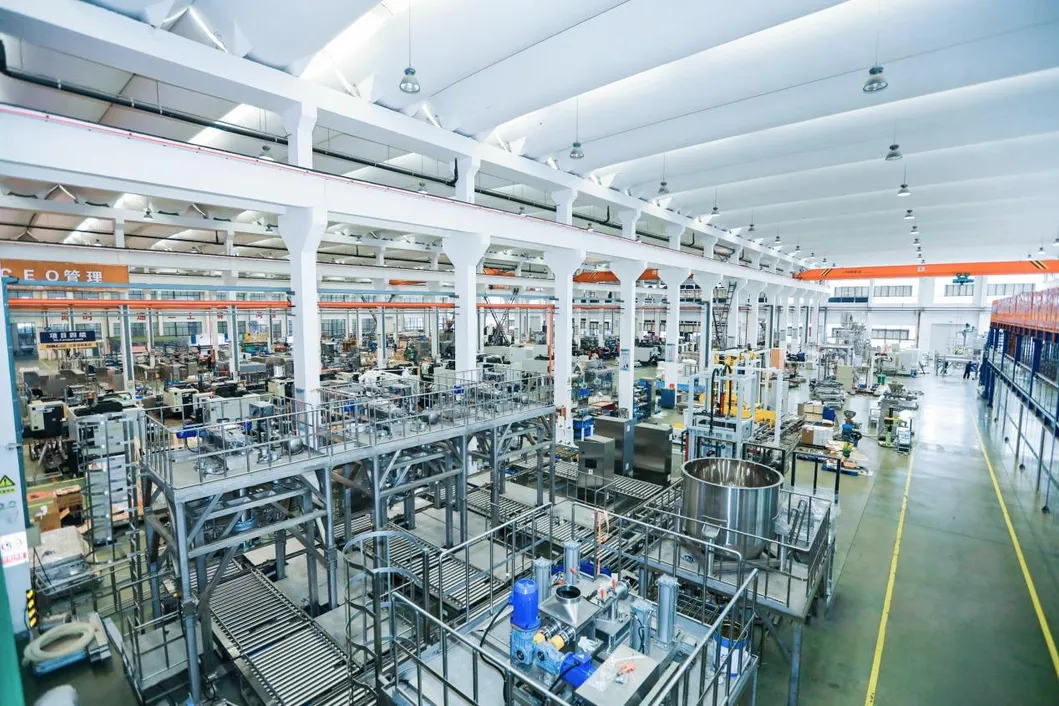

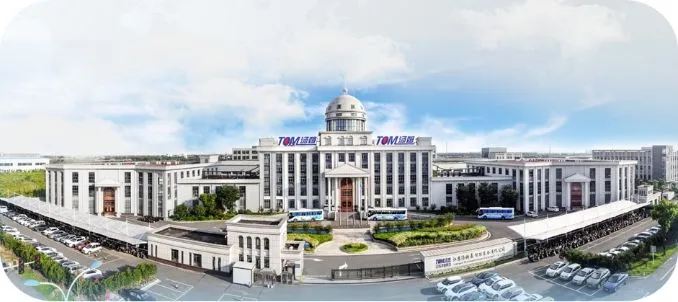

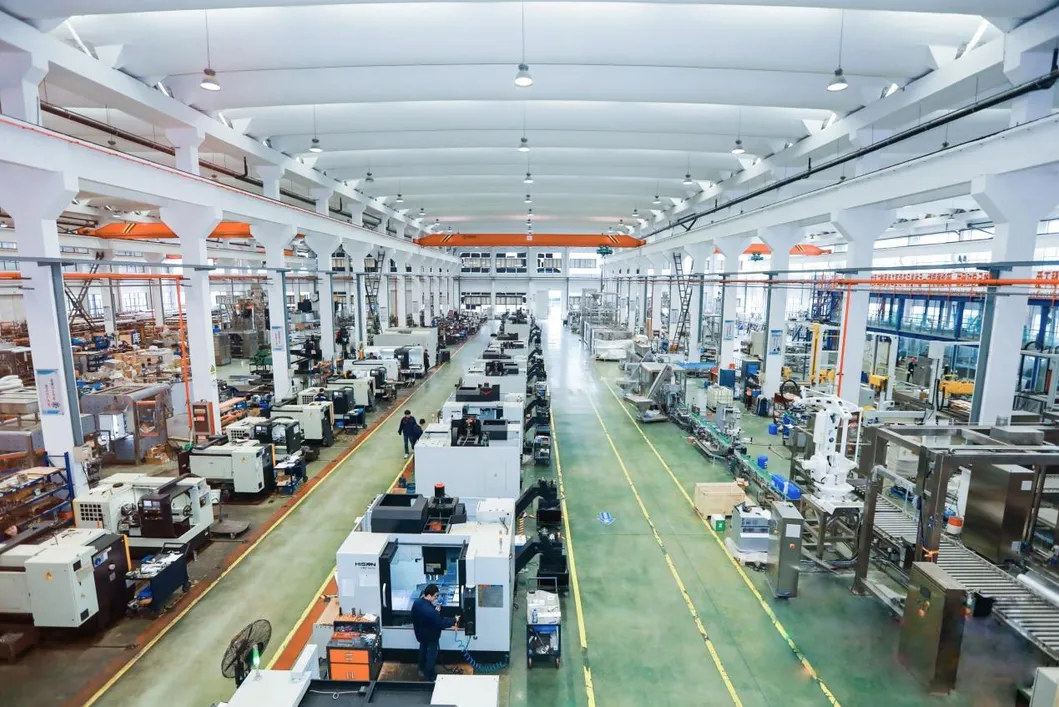

Factory Tour

Frequently Asked Questions

Q1: What is the packaging range for this machine? A: The system is designed for a packaging range of 10kg to 50kg per bag.

Q2: What types of bags are compatible with the system? A: It is compatible with paper, PPEE, and PPPP valve bags, as well as various composite valve bags.

Q3: What is the weighing accuracy of the packaging machine? A: The intelligent valve pocket machine achieves an accuracy of ±100-150g per bag, while the high-level palletizer system accuracy is ≤ ± 0.2%.

Q4: Can the machine handle high-speed production? A: Yes, it can reach speeds of 7-8 tons per hour, depending on the material (like tile adhesive) and bag size.

Q5: What are the main power and air requirements? A: The system requires an air pressure of ≥ 6 bar and has a compressed air consumption of 40-45 m³/h.

Q6: Is the machine suitable for the chemical industry? A: Absolutely. It is specifically designed for powders and granules in the chemical industry, ensuring clean and dust-free filling.
