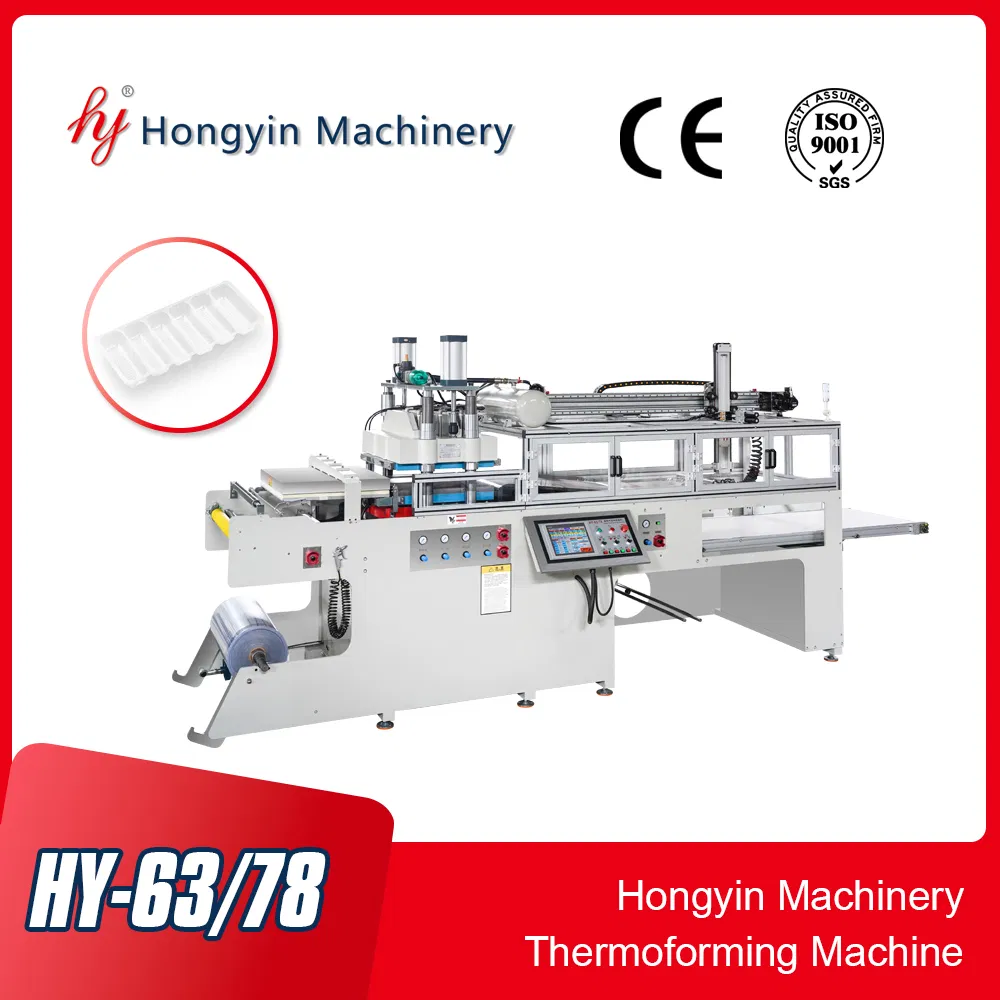

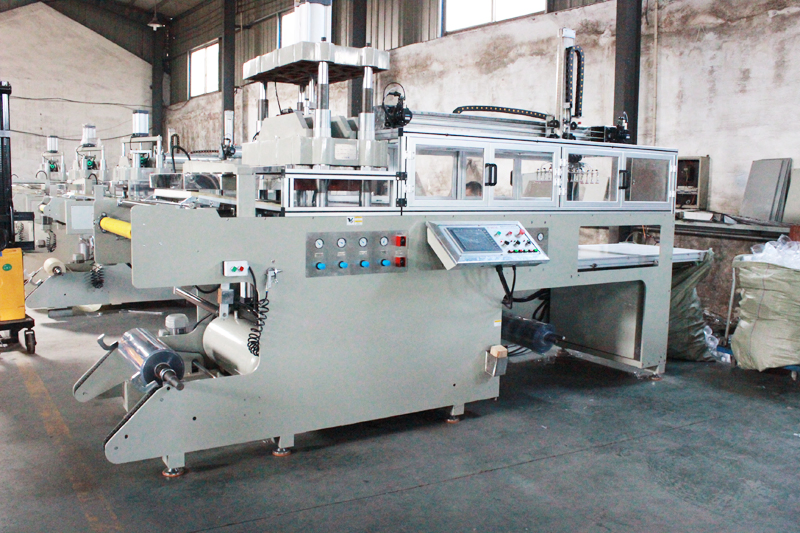

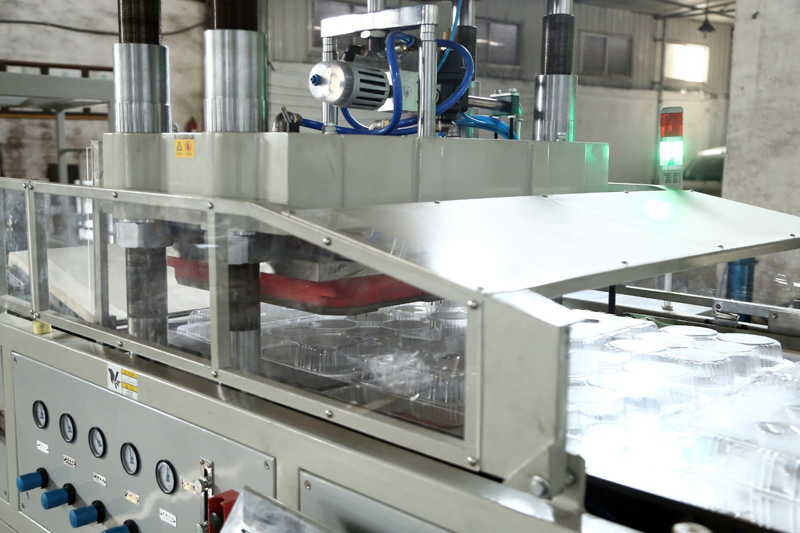

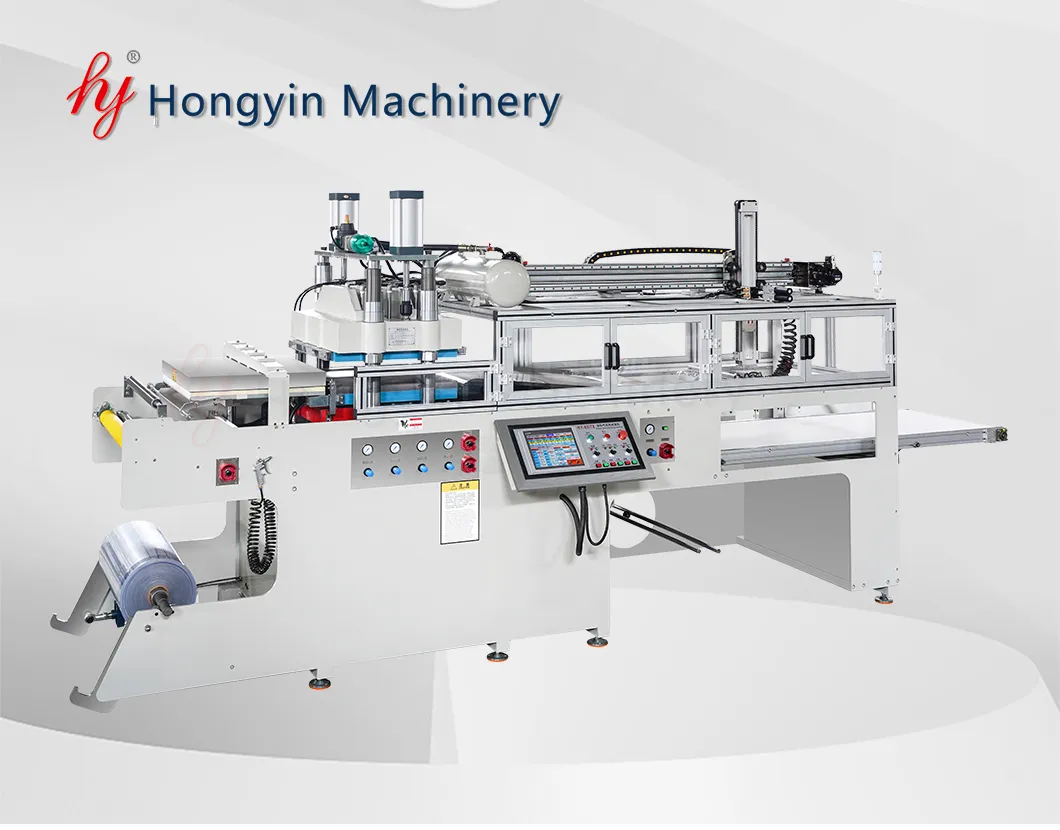

This series of machine is a plastic thermoforming equipment with integrated design of machine, electricity and gas, PLC control system, touch screen operation, sheet feeding-heating-molding-cutting-stacking one-time. HY-63/78 is suitable for BOPS, PS, APET, PVC, PLA and other thermoplastic materials. It can form a variety of lids, boxes, dishes, trays, such as the lids of fast food box, sushi, paper bowl, aluminum foil, the trays of moon cake, pastry, supermarket, and it also can produce medical device packaging, like oral liquid tray, medicine injection tray.
| Forming Area | 630x780mm (24.9" x 30.7") maximum |
| Depth of Draw | 125mm (5") maximum |
| Knife Length | OPS: 13000mm / APET: 9000mm |
| Material Thickness Range | 0.12-1.0mm (0.005"-0.040") |
| Air Pressure | 0.7Mpa |
| Air Consumption | 1500 Litres/min |
| Cooling Water Consumption | 8 Litres/min |
| Power Consumption | 10kw/hr (Approximate) |
| Heating Power | 30kw |
| Motor Power | 9kw |
| Working Speed | 600-1200 Cycles/hr |

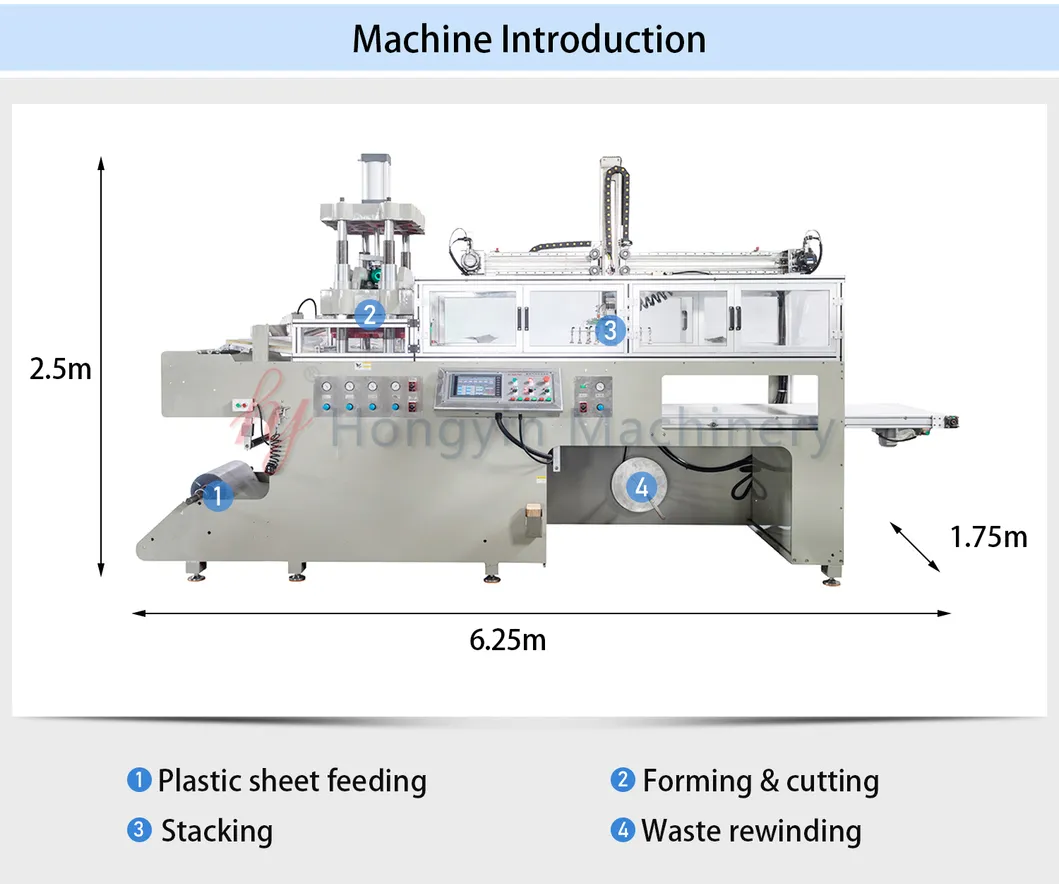

| Machine Dimensions | 5600x1750x2500mm |

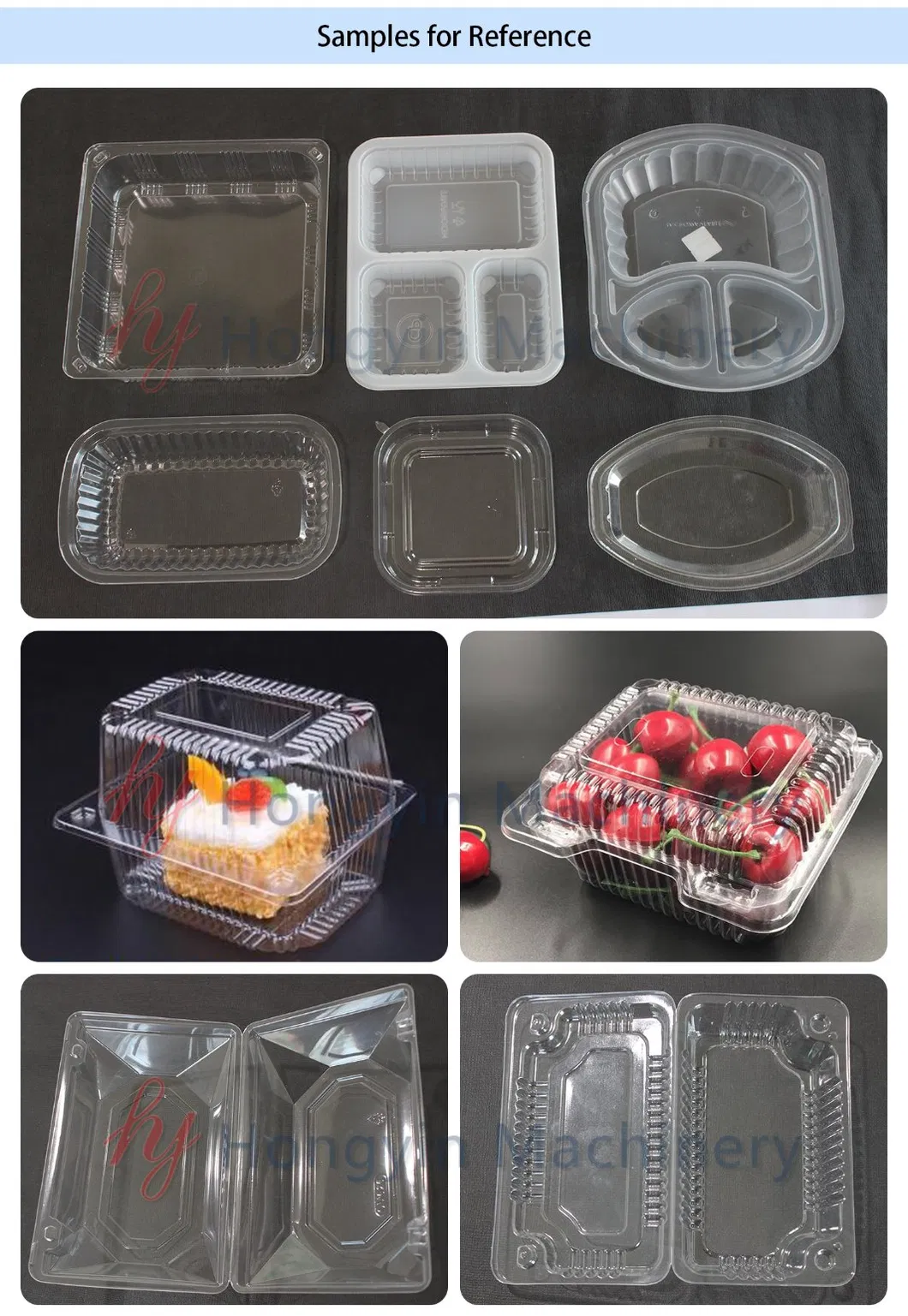

Use for forming BOPS/HIPS/PS/PVC/PET plastic sheets into various boxes, dishes, trays, bowls and lids.

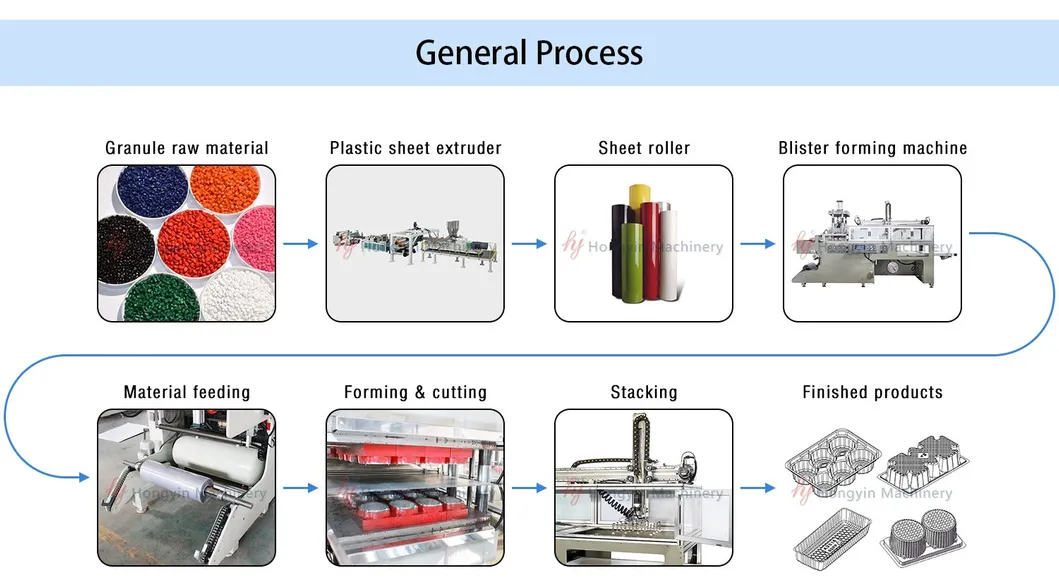

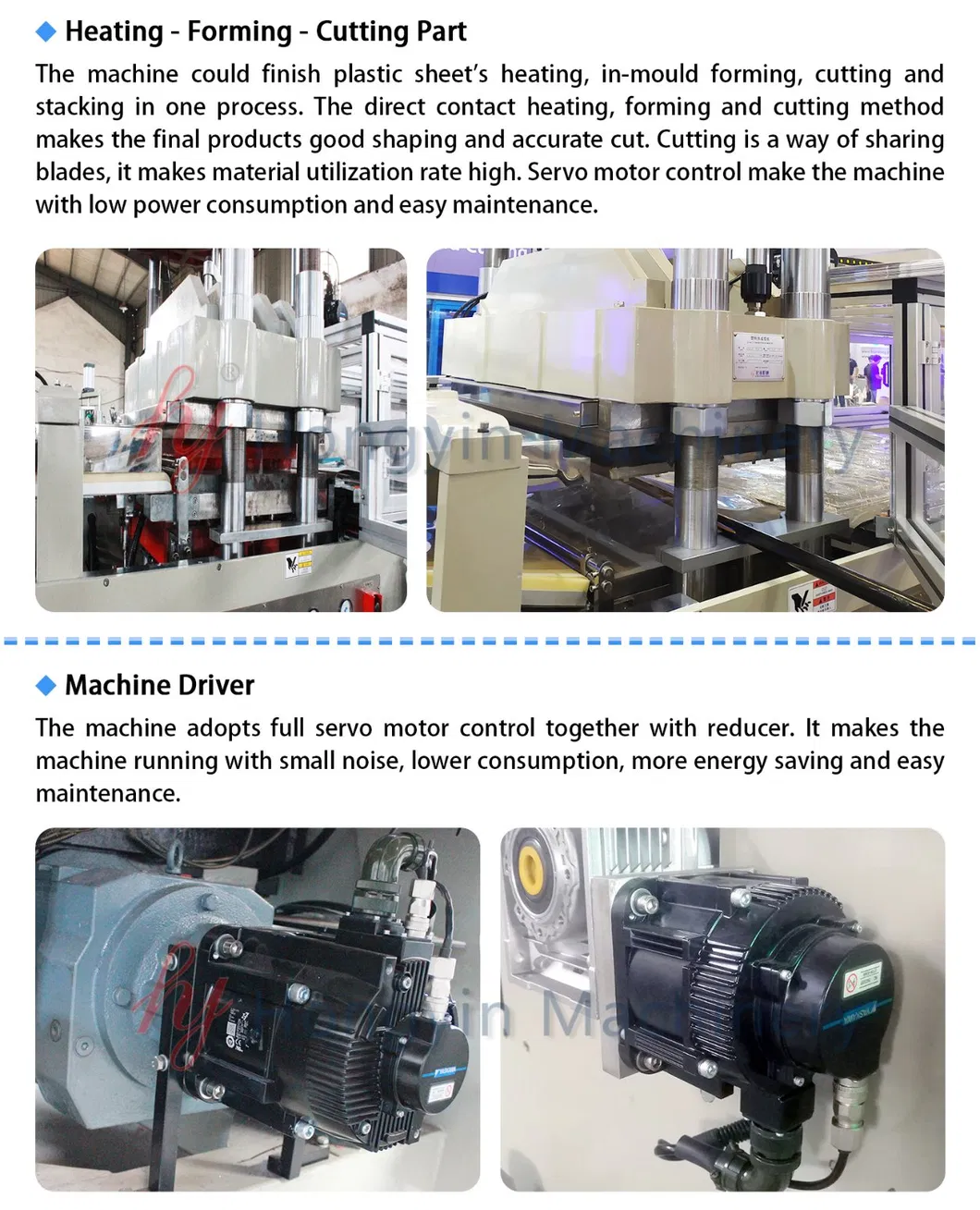

Combines material sending, heating, forming and cutting into one process. Final products are cut individually.
The whole system is controlled by a micro PLC with a man-interface, ensuring reliable, safe, and jarless operation.

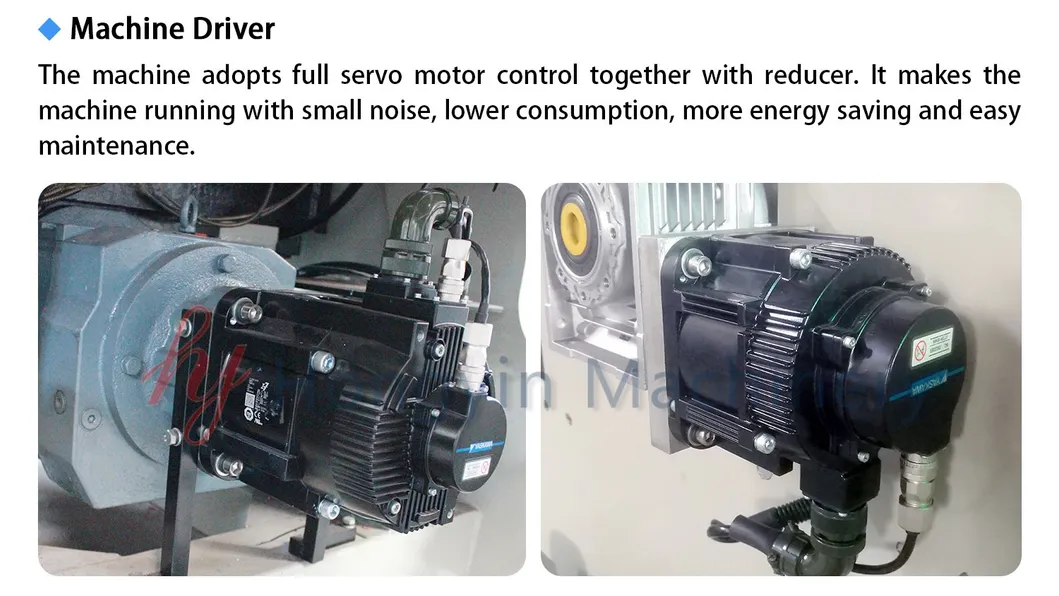

Advanced servo motor drives the sheet transport system for high precision and speed.
Quick production capacity, high utilization of plastic sheets, and low air consumption/maintenance.
Equipped with telecommuting capabilities and memory reserve functions for operational convenience.
