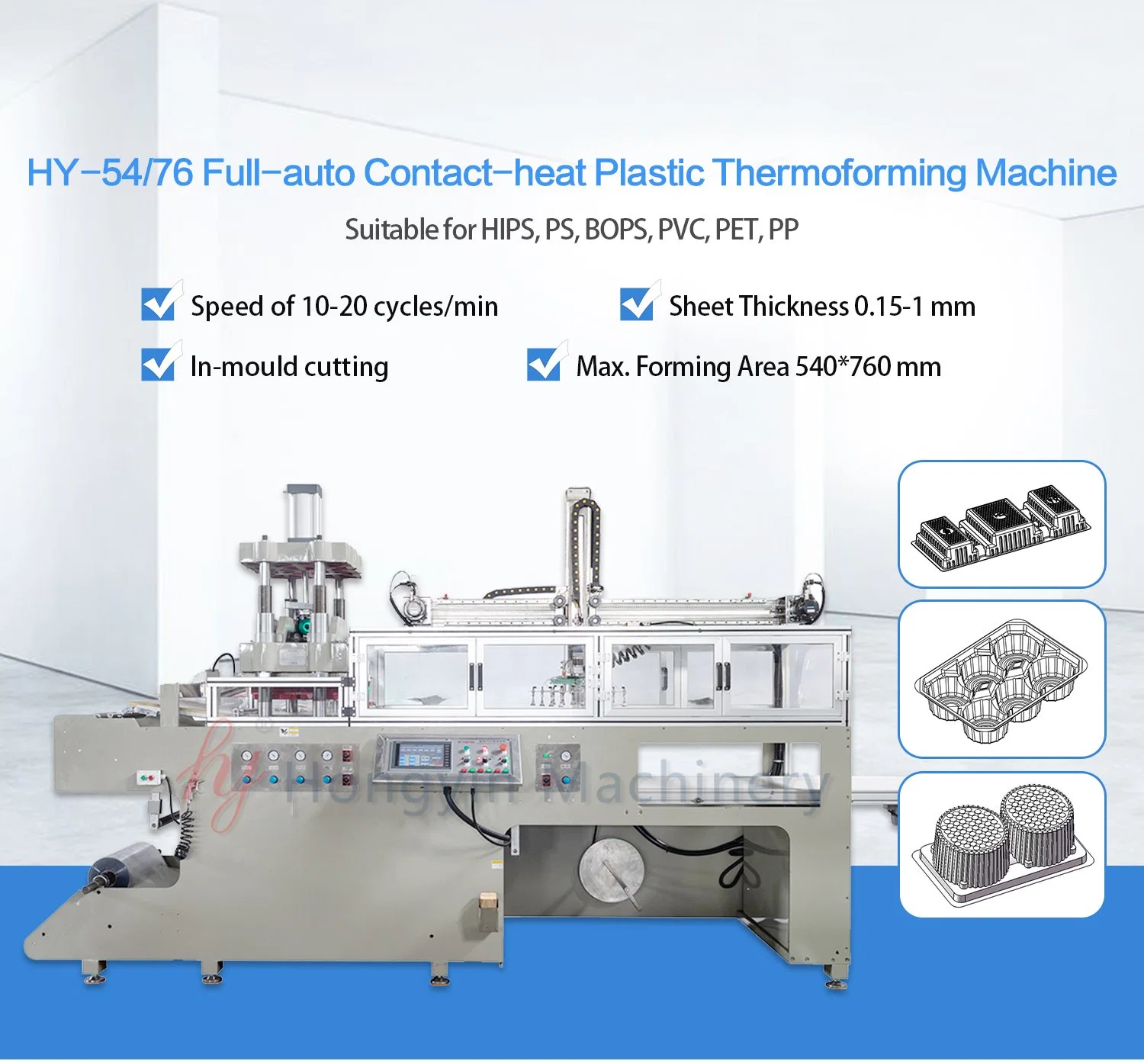

in-Mould Cutting Automatic Roll-Fed Plastic Cup Lid Thermoforming Machine
in-Mould Cutting Automatic Roll-Fed Plastic Cup Lid Thermoforming Machine
in-Mould Cutting Automatic Roll-Fed Plastic Cup Lid Thermoforming Machine
in-Mould Cutting Automatic Roll-Fed Plastic Cup Lid Thermoforming Machine
in-Mould Cutting Automatic Roll-Fed Plastic Cup Lid Thermoforming Machine
1 / 5
in-Mould Cutting Automatic Roll-Fed Plastic Cup Lid Thermoforming Machine
in-Mould Cutting Automatic Roll-Fed Plastic Cup Lid Thermoforming Machine
in-Mould Cutting Automatic Roll-Fed Plastic Cup Lid Thermoforming Machine
in-Mould Cutting Automatic Roll-Fed Plastic Cup Lid Thermoforming Machine
in-Mould Cutting Automatic Roll-Fed Plastic Cup Lid Thermoforming Machine

in-Mould Cutting Automatic Roll-Fed Plastic Cup Lid Thermoforming Machine

After-sales Service: Video Technical Support, Free Spare Parts
Warranty: 1 Year
Certification: CE, ISO
Send Inquiry

Product Description

Basic Specification
Model NO.HY-54/76
Column numberFour Column
Molding MethodPressing
Automatic GradeAutomatic
Raw MaterialBOPS, PVC, Pet, HIPS, PS
ApplicationContainer/Box/Lid/Tray
Processing TypePlastic Thermoforming Machine
Max. Forming Area540*760 mm
Thickness of Sheet0.15-1.0mm
Max. Forming Depth120mm
Product Description

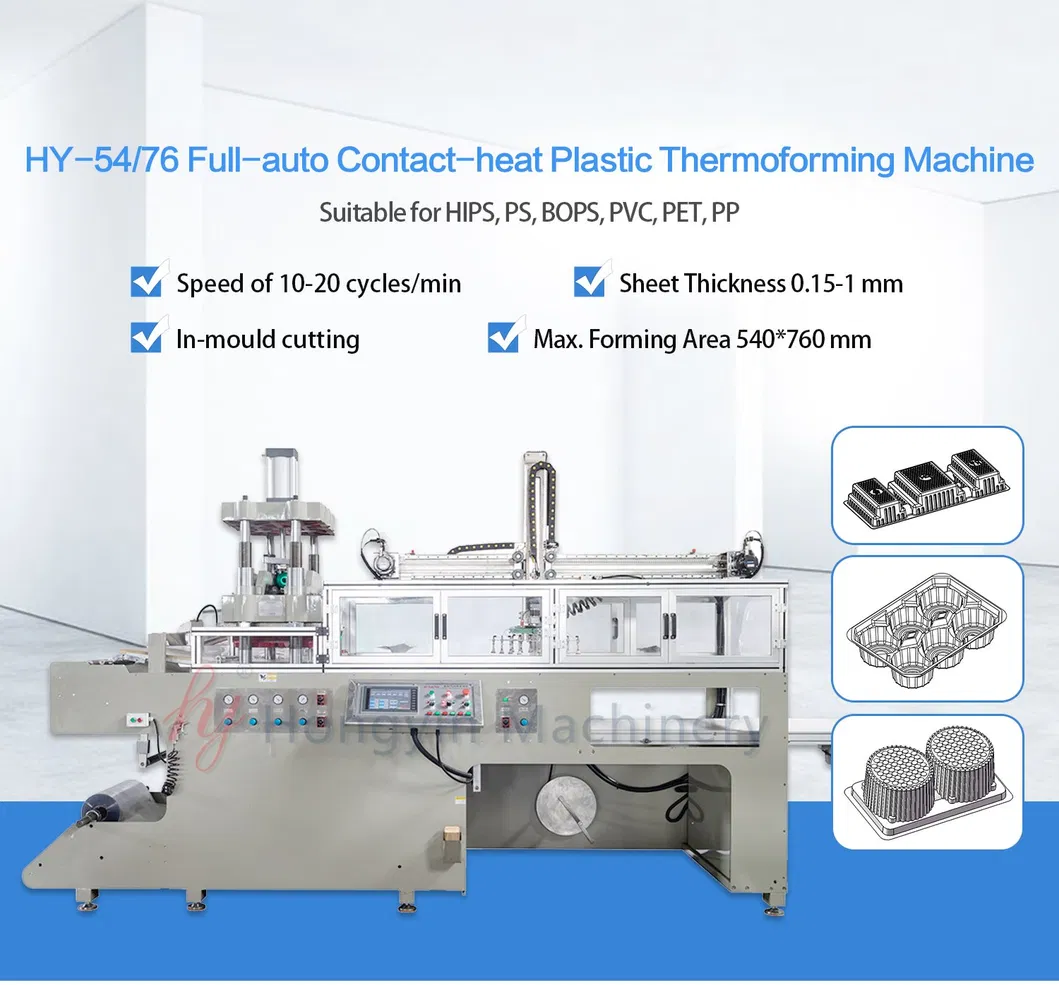

Automatic Plastic Thermoforming Machine

The plastic thermoforming machine is a high-performance combination of mechanical, electrical, and pneumatic components. The entire system is controlled by a micro PLC, featuring a user-friendly man-interface for seamless operation.

It integrates material feeding, heating, forming, and cutting into a single automated process. The machine supports three operation modes: "Manual", "Semi-automatic", and "Automatic", making it a next-generation ideal packaging equipment.
Application Area

This fully automatic plastic forming machine is engineered to process various plastic sheets, including PP, BOPS, HIPS, PS, PVC, and PET. It is highly versatile and capable of producing:

  • Food Boxes & Cake Boxes
  • Fast-food Containers
  • Supermarket Trays
  • Oral Liquid Trays
  • Dishes & Bowls
  • Lids for various containers

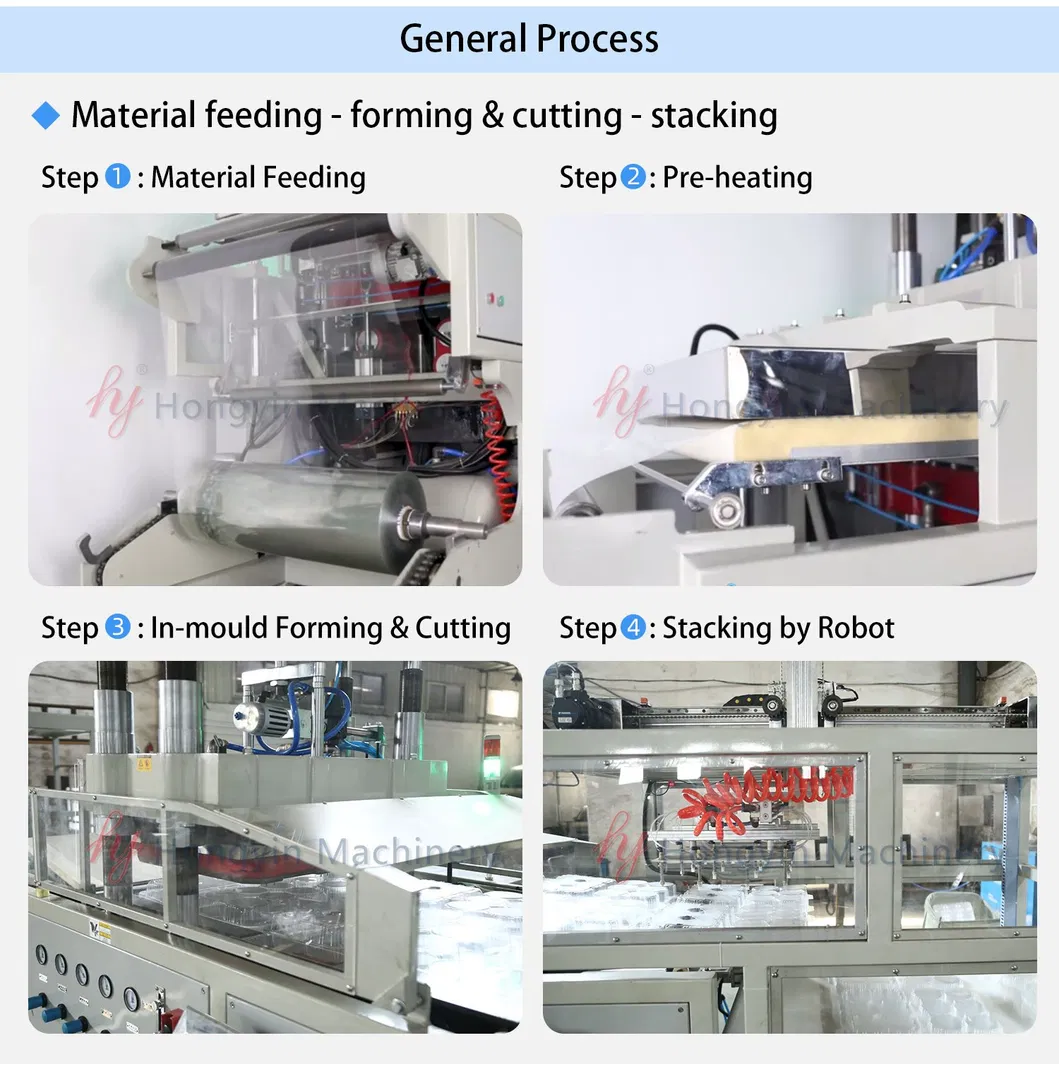

Machine Detail 1

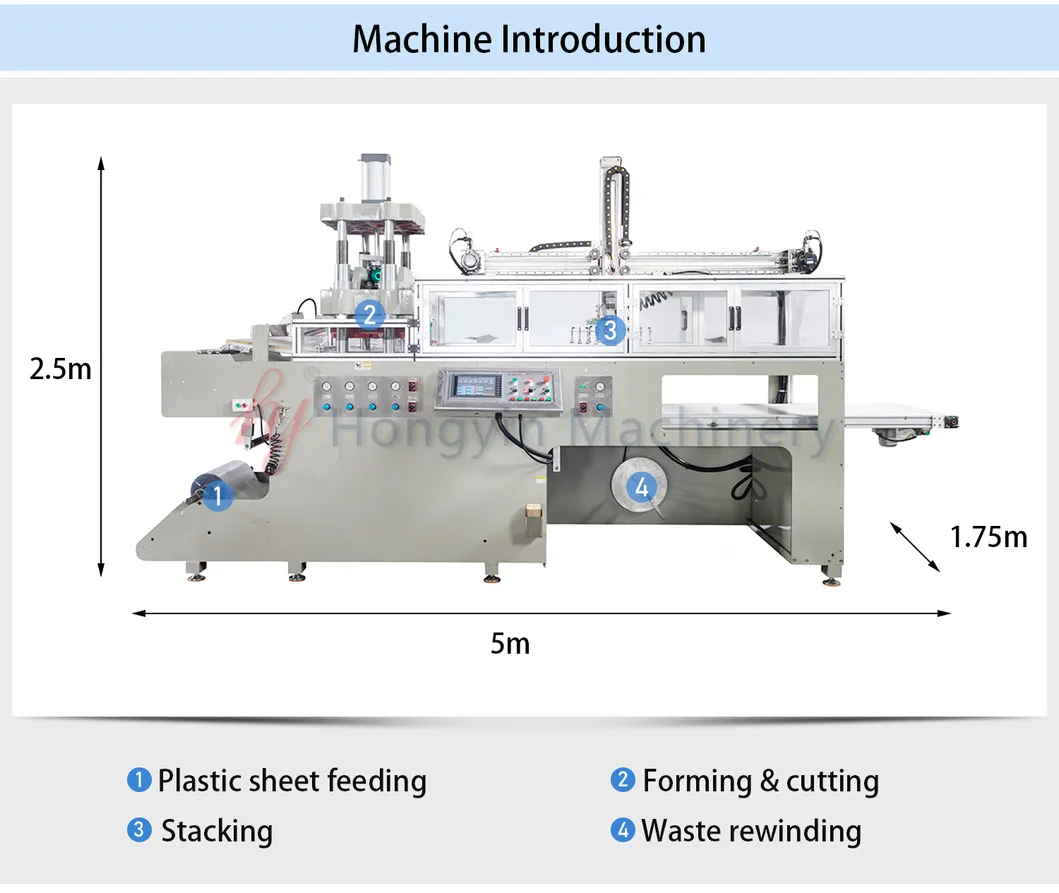

Machine Detail 2

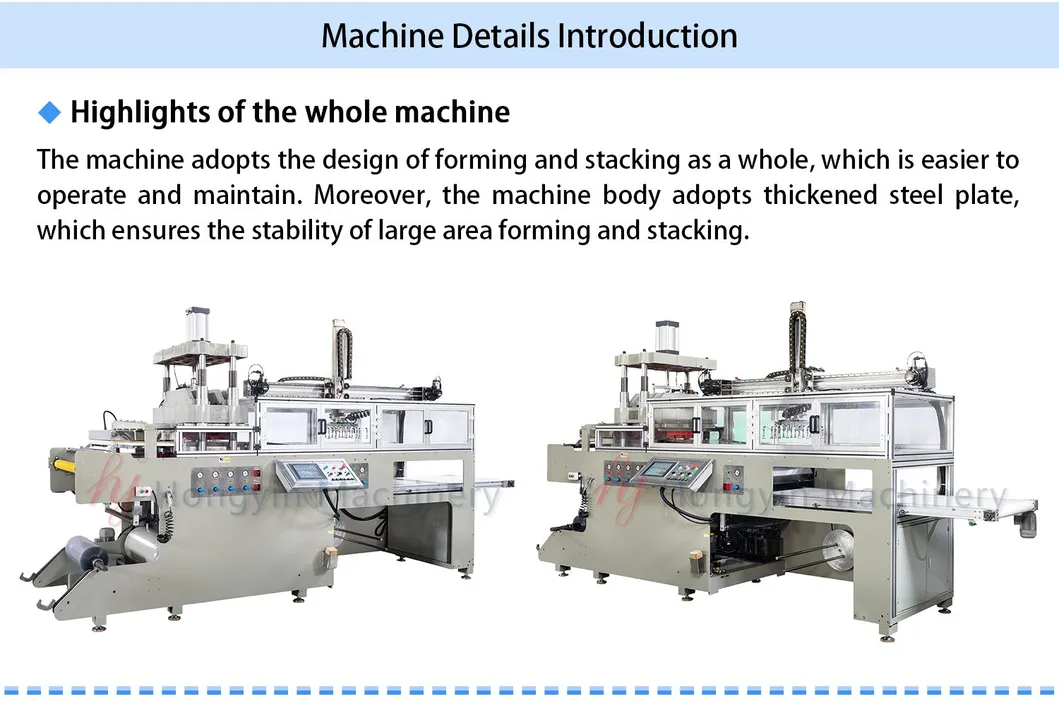

Machine Detail 3

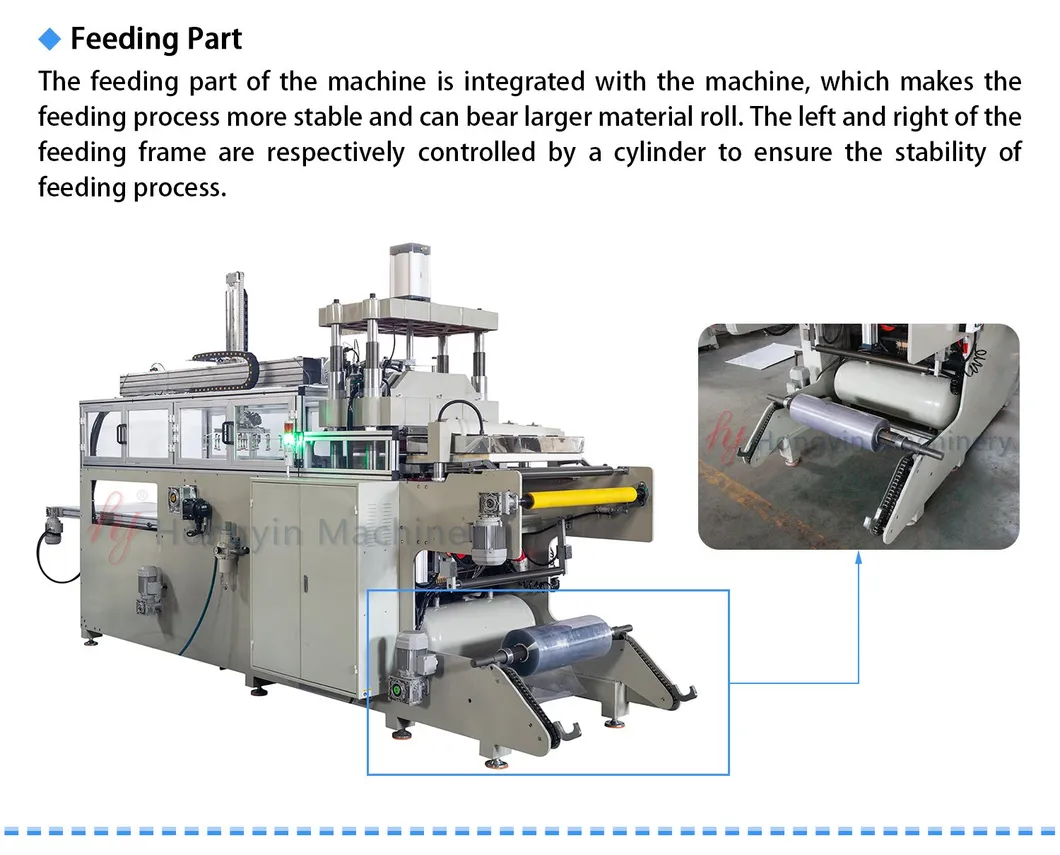

Machine Detail 4

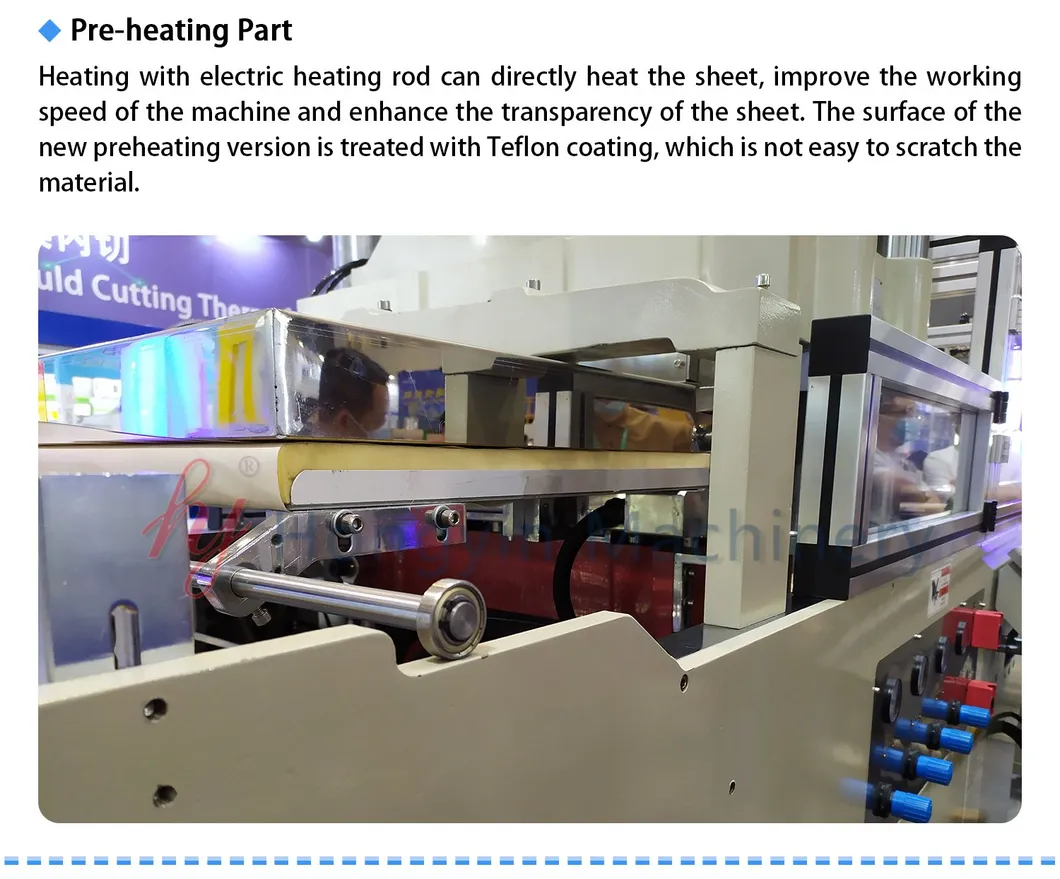

Machine Detail 5

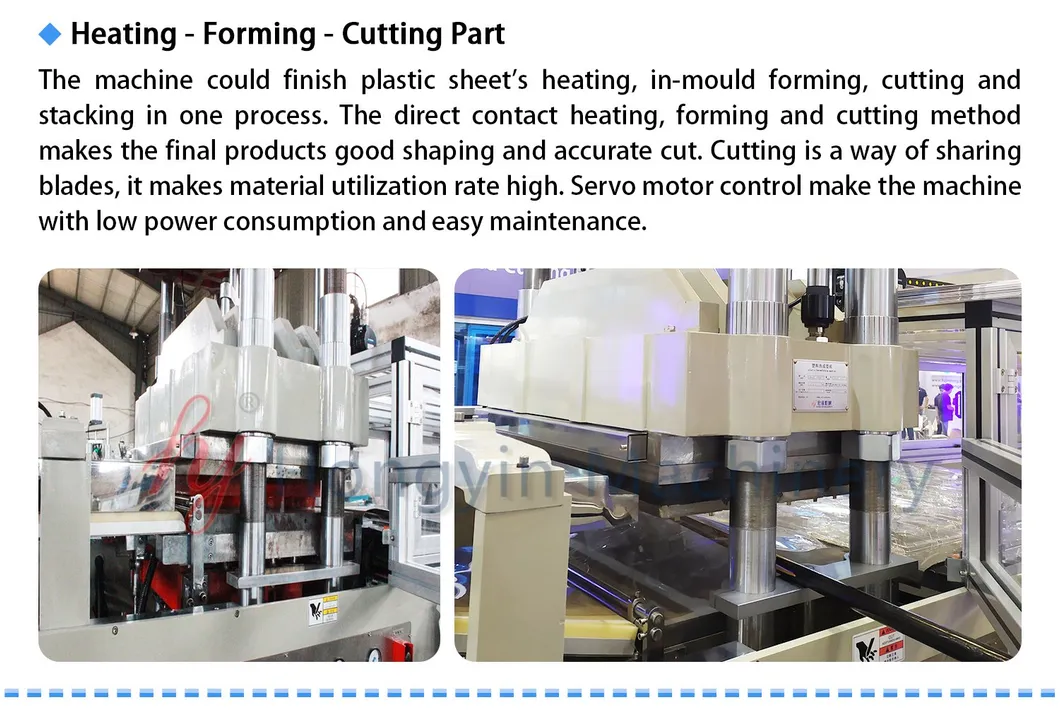

Machine Detail 6
Technical Parameters
  • Speed
    • Main Thermoforming Machine
    Forming Area540 × 760 mm
    Forming Depth100 mm
    Sheet Thickness Range0.15 - 1 mm
    Sheet Roller Diameter710 mm
    Air Pressure0.7 Mpa
    Air Consumption2400 Liters/min
    600 - 1500 cycles/hour
    Heating Plate Power18 kw
    Machine Dimensions3320 × 1660 × 2660 mm
    Weight3500 kg
    Stacker Unit Parameters
    Forming Area540 × 760 mm
    Air Consumption200 Liters/min
    Power1.8 kw
    Dimensions2100 × 1410 × 2420 mm
    Weight300 kg

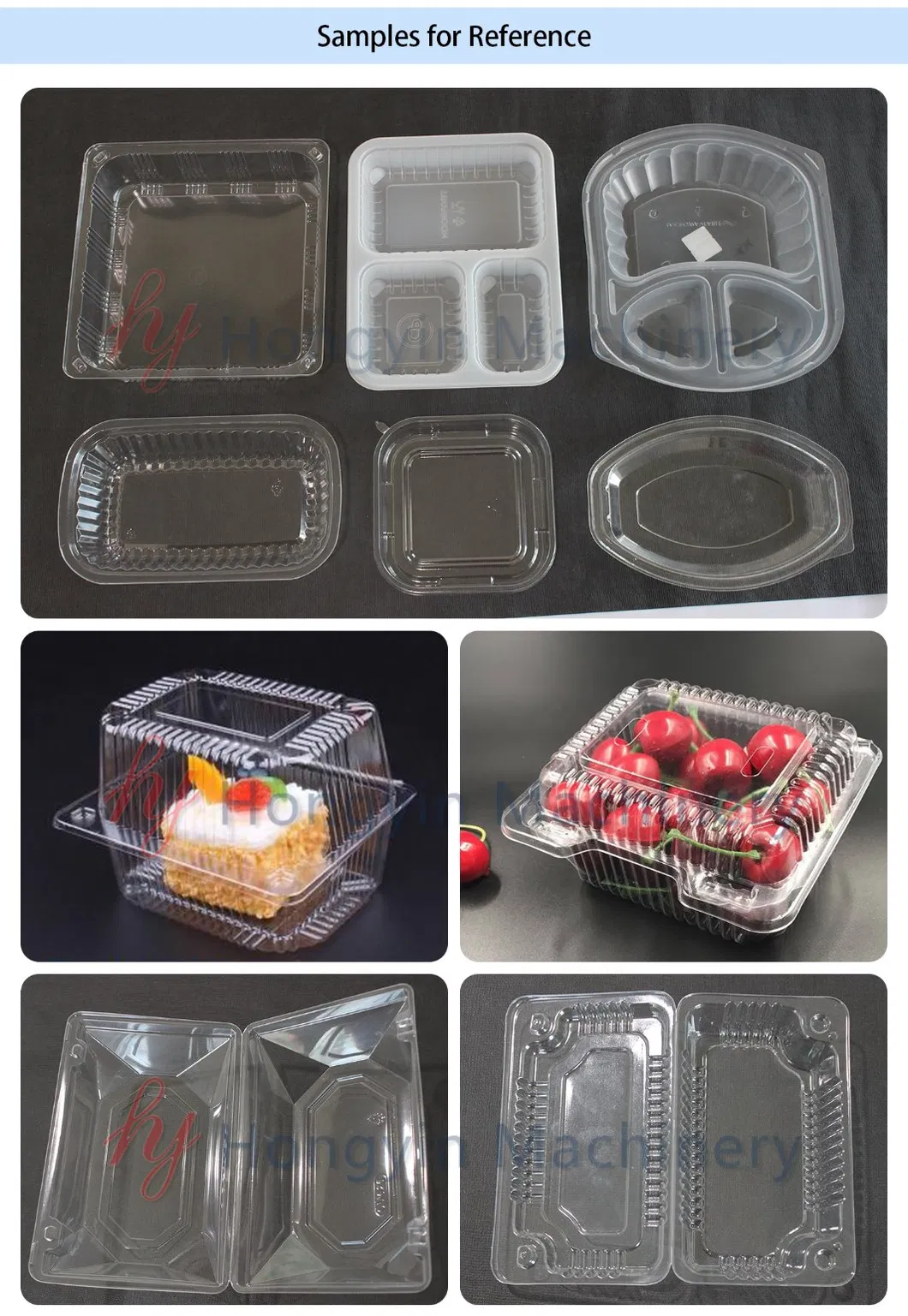

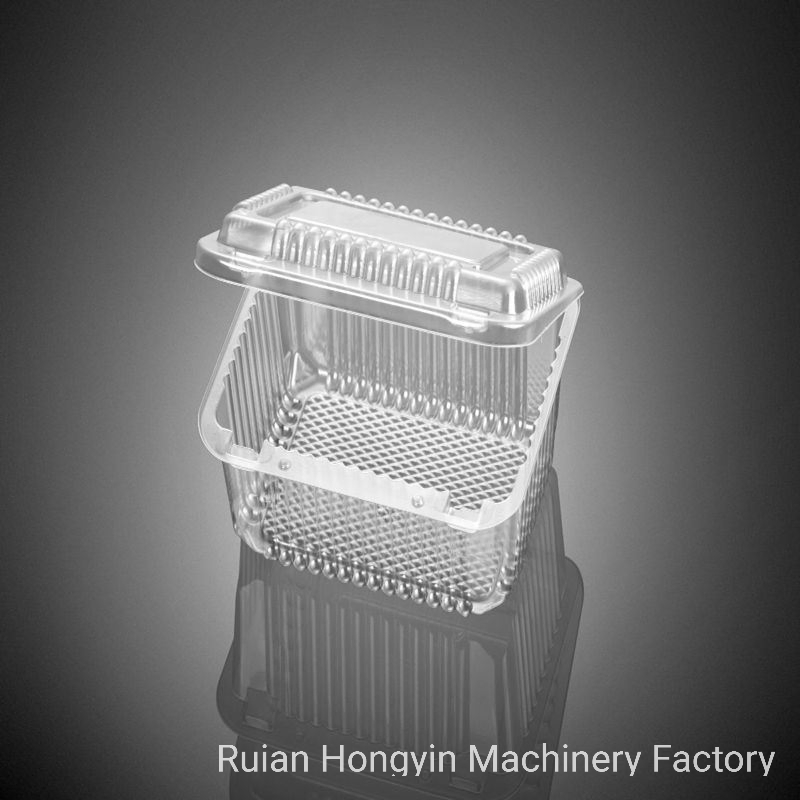

    Product Samples
    Production Line

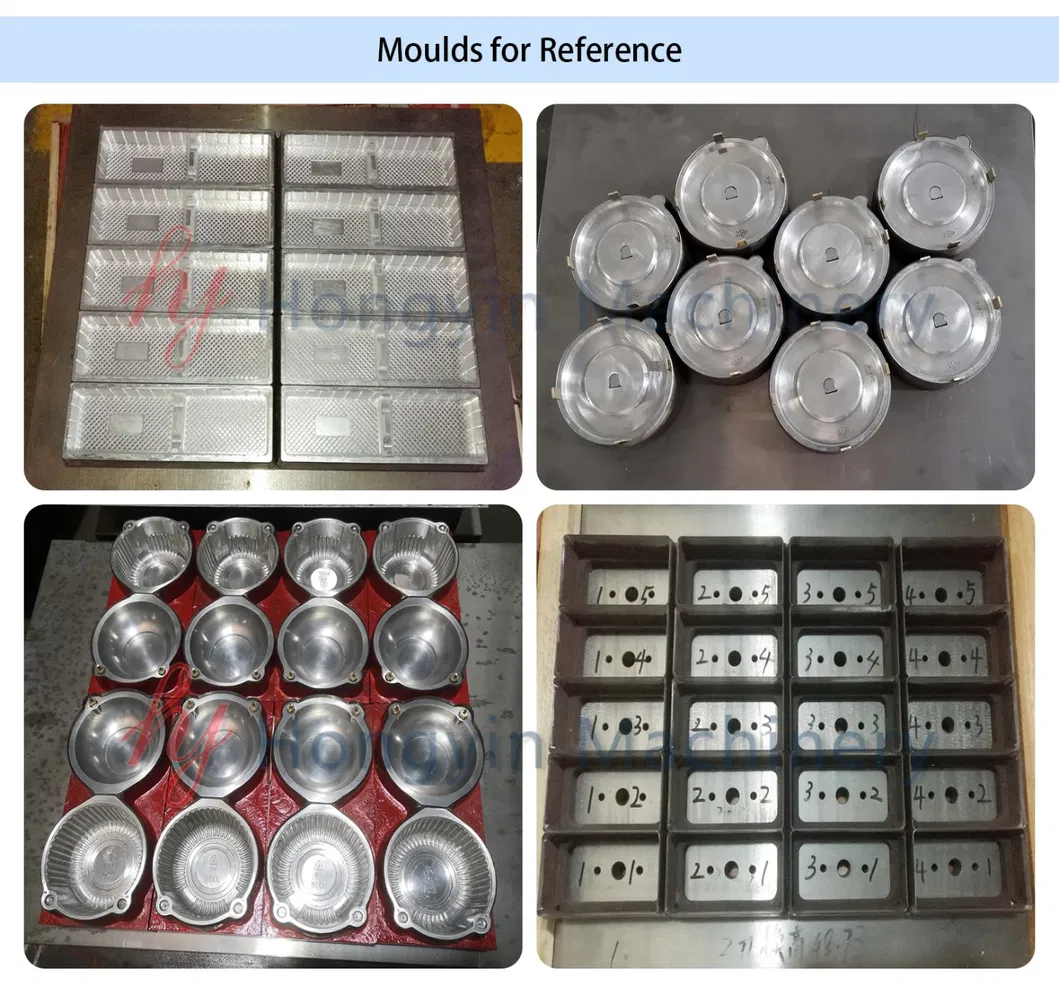

    Mould System
    Professional Services
    01

    Pre-sales Service

    We provide a specialized and efficient working team. If you are new to the plastic forming area, we are happy to offer professional suggestions for your entire workflow.

    02

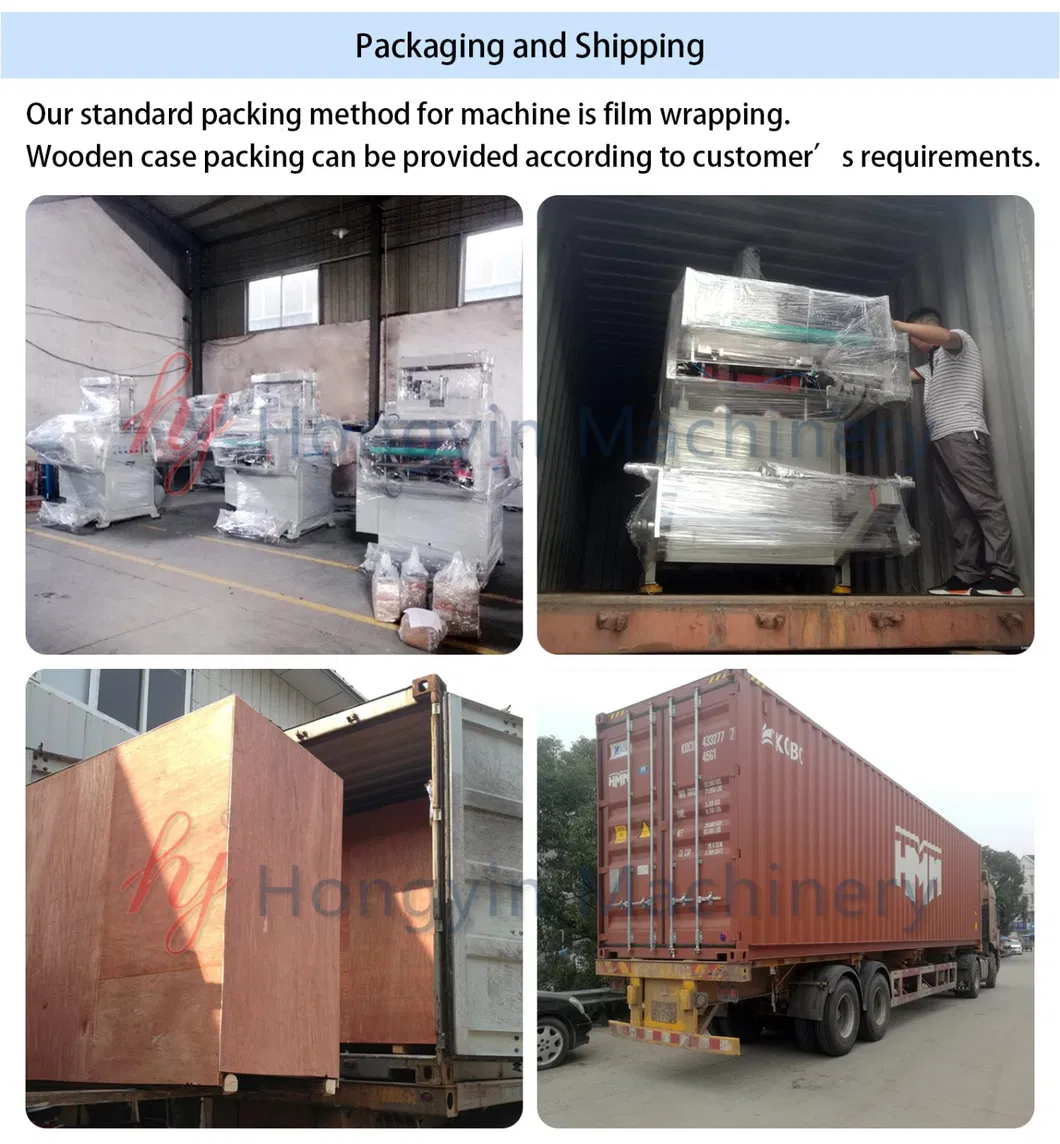

    Shipping Service

    Our independent department arranges shipments smoothly, preparing all necessary documents and cooperating with top shipping companies for economic logistics.

    03

    Installation Service

    Technicians can be dispatched to the buyer's factory for installation and preparation. We ensure the machine is ready for production on-site.

    04

    Clients Training

    Buyers can send their own technicians to our factory to learn machine operation through hands-on training until they can operate it independently.

    05

    After Sales Service

    We provide a one-year guarantee. Essential spare parts are included in the toolbox with every machine to ensure continuous operation.

    FAQ
    What types of materials can this thermoforming machine process?
    The machine is compatible with a wide range of plastic sheets, including PP, BOPS, HIPS, PS, PVC, and PET.
    Is the operation fully automatic?
    Yes, the system is fully automatic, integrating material sending, heating, forming, and cutting into one continuous process controlled by a PLC.
    What is the maximum forming area and depth?
    The maximum forming area is 540 x 760 mm, with a maximum forming depth of 120 mm.
    Does the machine come with a warranty?
    Yes, all machines come with a one-year guarantee and a set of easy-to-replace spare parts in the tool box.
    Do you provide on-site installation and training?
    Yes, we can dispatch technicians to your factory for installation and offer hands-on training for your operators.
    What kind of products can be manufactured?
    It is ideal for producing various containers, such as food boxes, fruit trays, coffee lids, supermarket trays, and medical packaging.
