| Basic Information | |
|---|---|
| Model NO. | TQC-750 |
| Certification | CE |
| Column number | Four Column |
| Molding Method | Pressing |
| Automatic Grade | Automatic |
| Keyword | Water Cups Thermoforming |
| Hydraulic System | Positive and Negative Pressure |

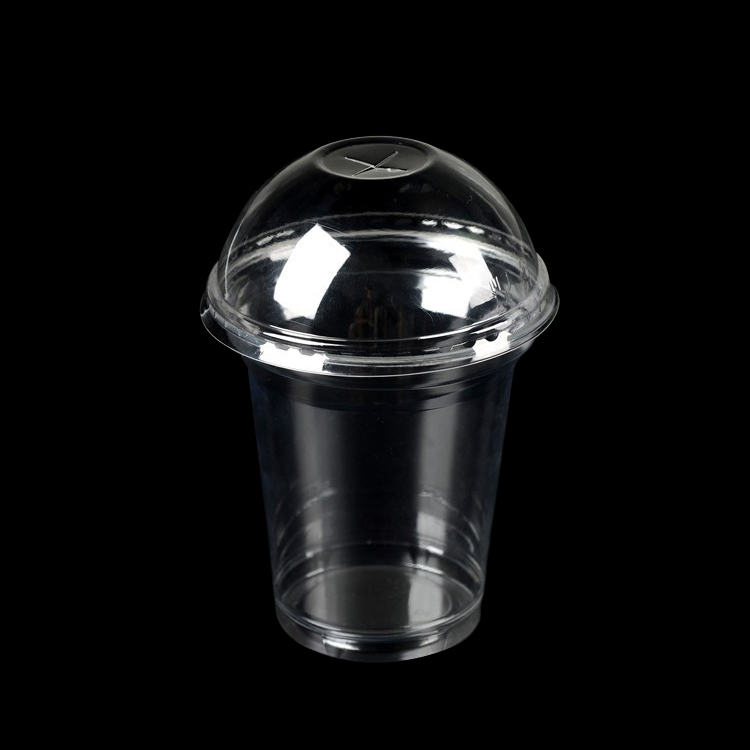

| Finished Products | Plastic Cup, Pizza Box, Biscuit Box, Cake Box |
| Suitable Material | PP/PS/PET/HIPS/PVC |
| Processing Type | Heating, Forming, Cutting Into One |
| Transport Package | Full Wooden Box Packing with Fumigation |
| Specification | L8500*W2200*H3100mm |
| Origin | Zhejiang, China |
| HS Code | 8477409000 |
| Technical Parameters | ||
|---|---|---|
| Model | TQC-750 | TQC-650B |
| Max. Forming Area | 750*480mm | 650*320mm |
| Max. Forming Depth | 125-180mm (custom height) | |
| Sheet Thickness | 0.3-1.8mm | |
| Sheet Width | 760mm | 650mm |
| Max. Forming Speed | 30 times/min | |
| Air Pressure | 0.6-0.8mpa | |
| Power Supply | AC 380V, 50Hz, Three-phase | |
| Weight | About 6.5T | About 5T |
| Touch Screen/PLC | SIEMENS (Germany) |
| Servo Motor | YASKAWA (Japan) |
| AC Contactor | SCHNEIDER (France) |
| Proximity Switch | ROCKWELL (USA) |
| Hydraulic Valves | YUKEN (Taiwan) |
| Forming Valve | CKD (Japan) |
| Solenoid Valve | SMC (Japan) / Mindman (Taiwan) |
APPLICATION AREA & ADVANTAGES
Our TQC series plastic cup thermoforming machine offers five major advantages:

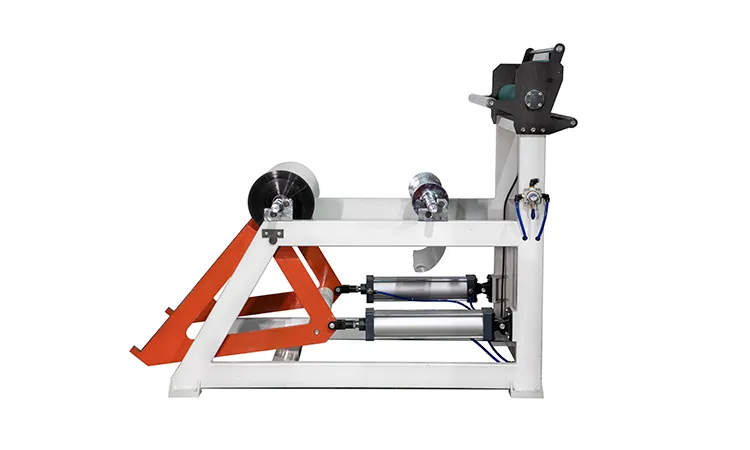

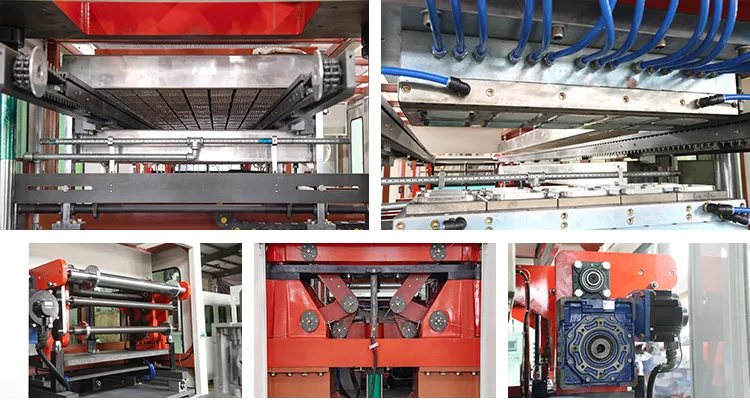

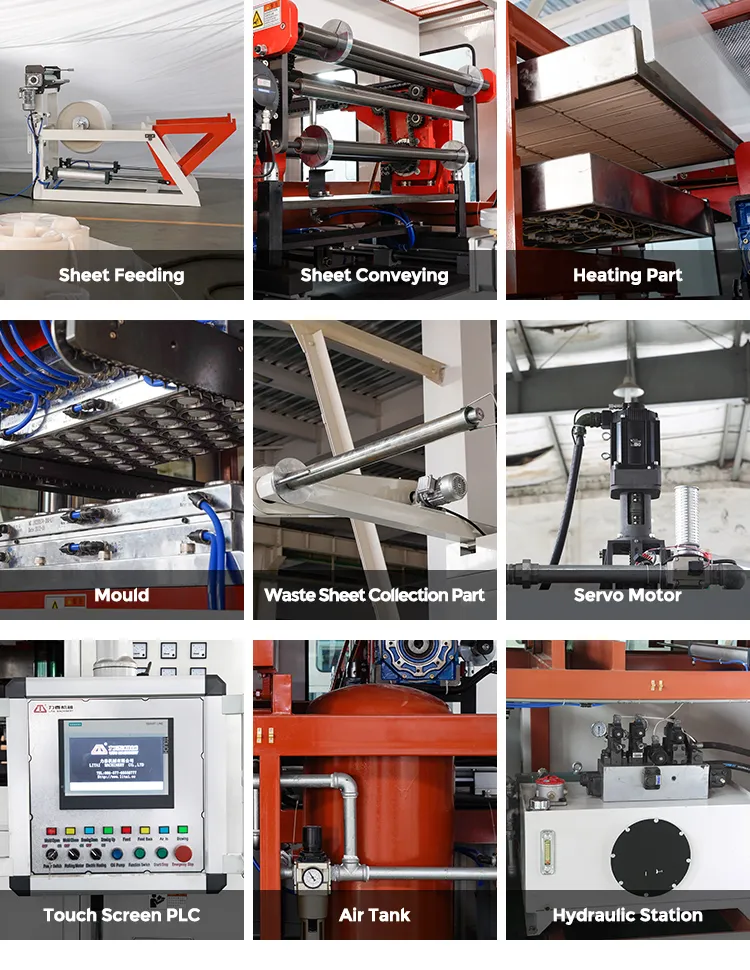

Sheet Loader: Automated loading system reduces human resource costs. Double stations with proximity switch control ensure stable sheet conveying without sagging.

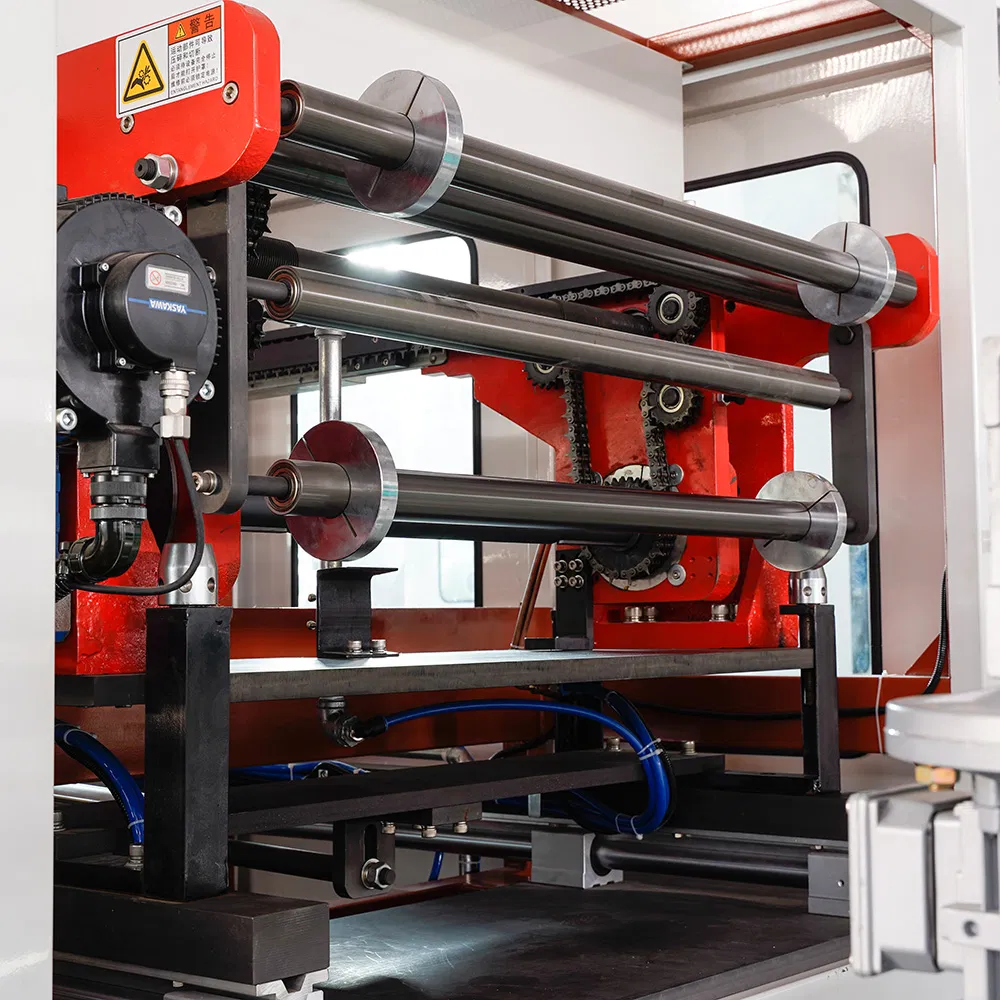

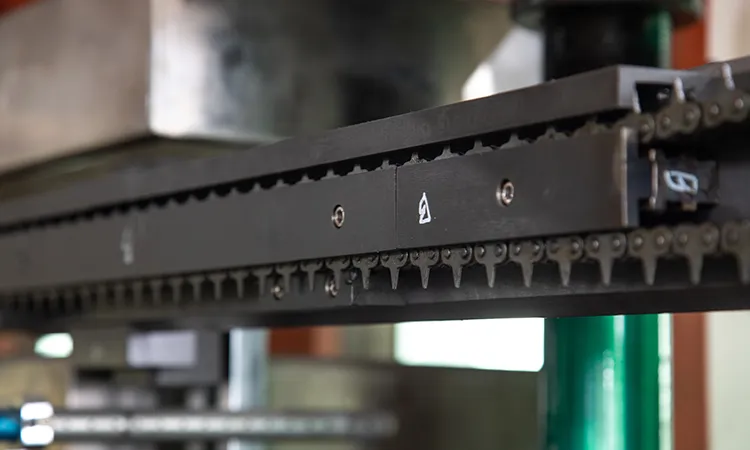

Conveying Part: Aluminum guide rails with water cooling. Driven by servo motors for accurate positioning. 65Mn specialized toothed chain for durability.

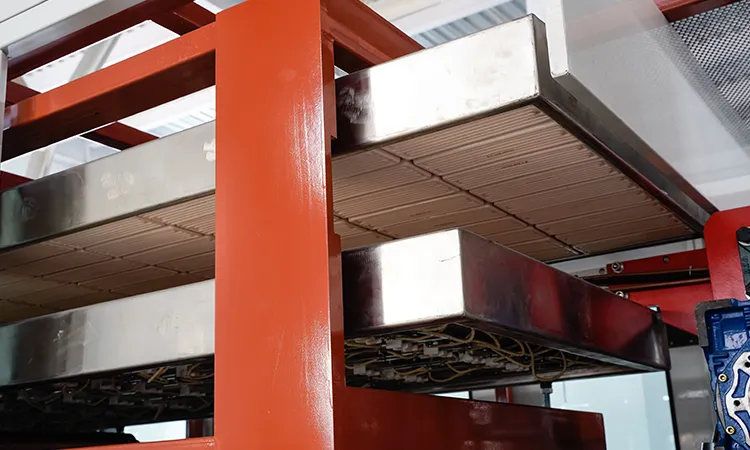

Heating Part: Top-tier heating tiles with high insulation performance. Temperature accuracy is controlled within 1°C. Energy-saving design reduces power consumption significantly.

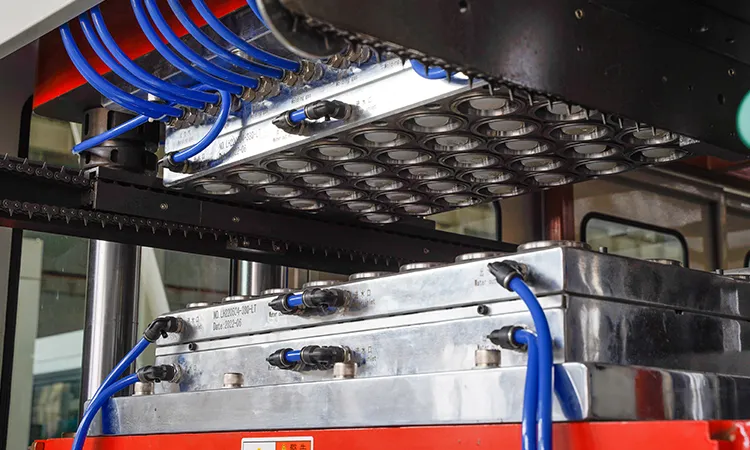

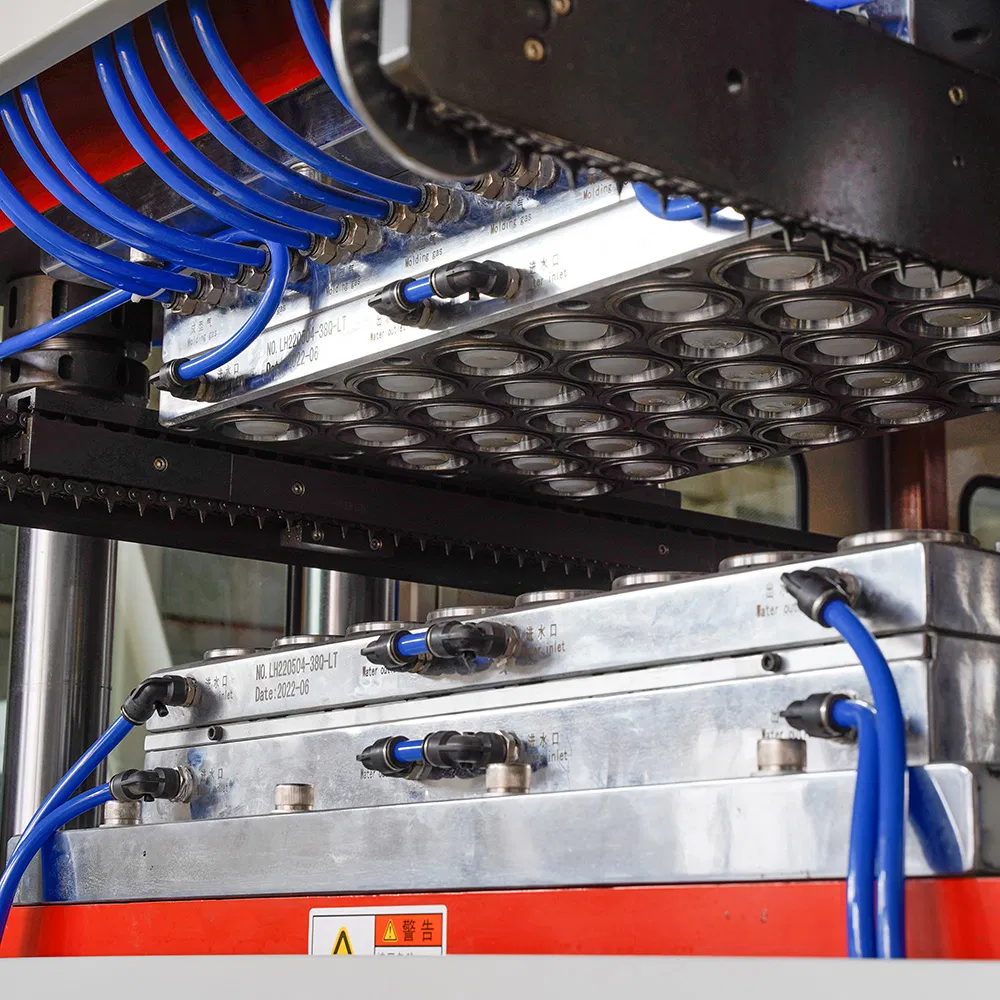

Forming System: Four-pillar structure (40Cr steel) provides superior stability. Hydraulic drive system ensures reliable power. Parallelism misalignment is controlled within 0.05mm for high-precision results.

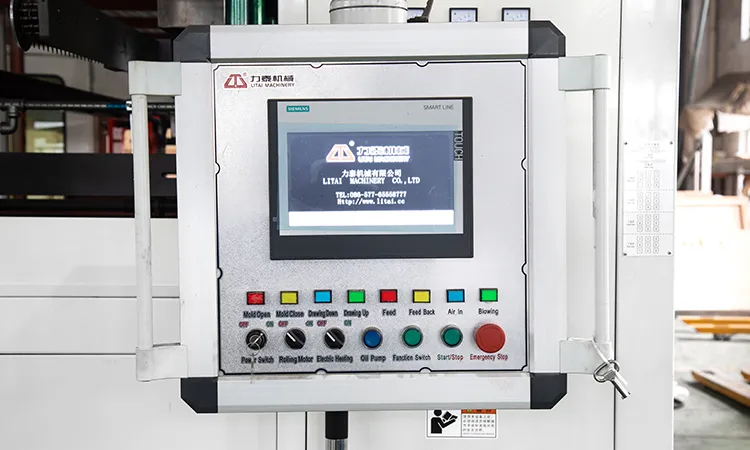

Touch Screen PLC: User-friendly interactive interface with large data storage. One-key function for reading and storing product data, making operation flexible and visualized.
