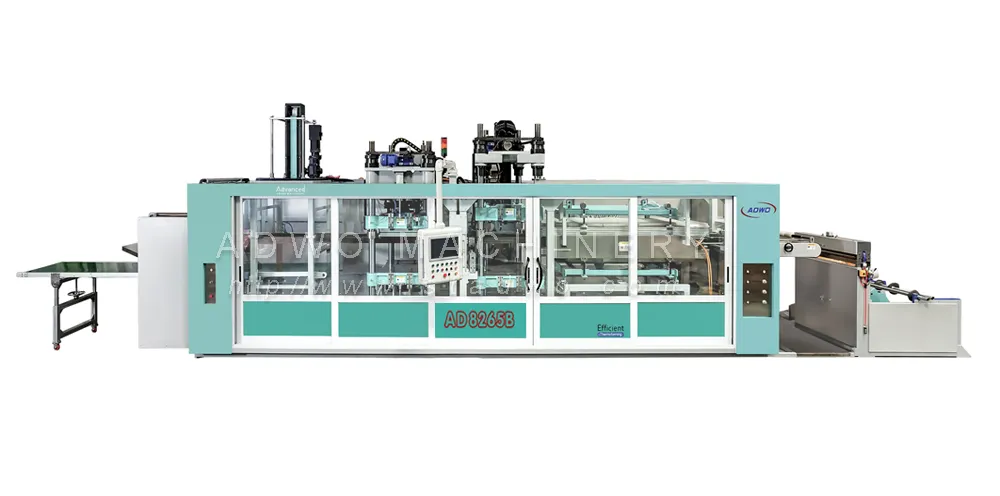

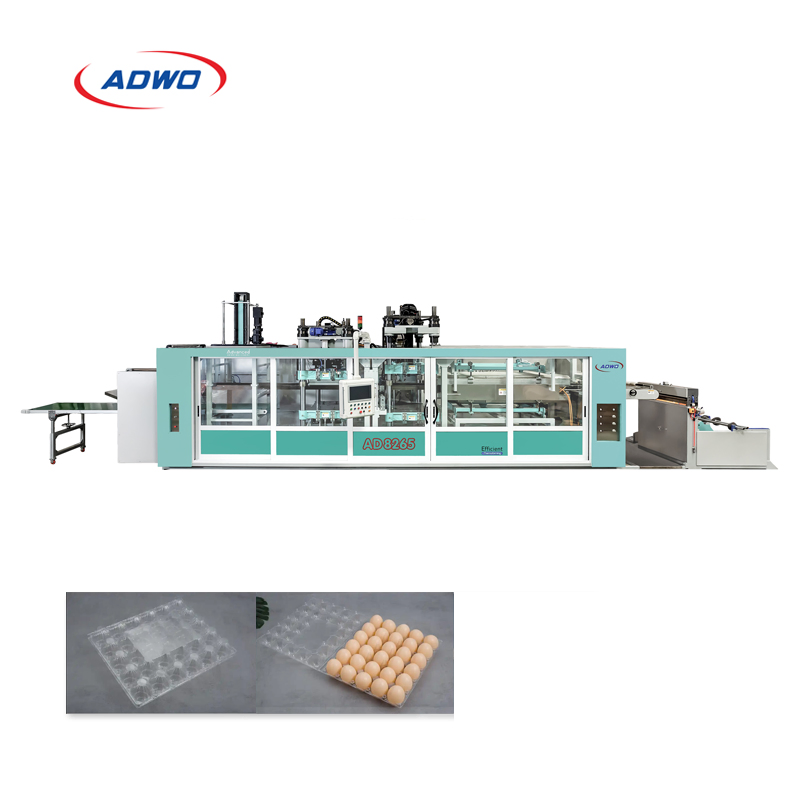

AD8265B positive and negative pressure high speed thermoforming machine is a new model developed based on advanced thermoforming equipment technology. It is suitable for the production of PP, PET, BOPS, HIPS, OPS, PVC, CPLA, CPET, APET, corn starch and other plastic products.

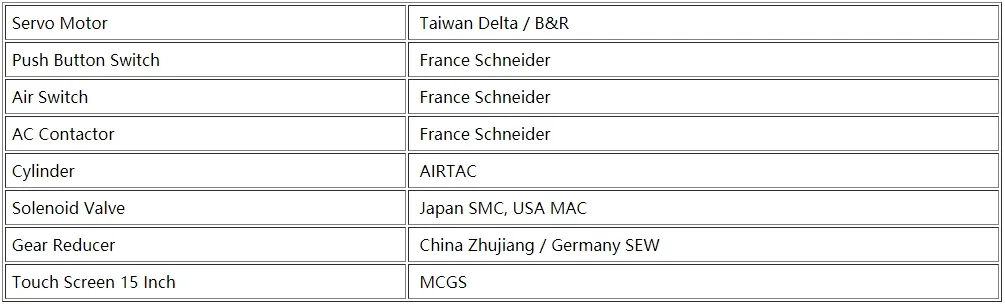

The whole machine adopts motion control with electronic cam and servo driven sheet feeding, servo forming, servo assisted stretching, servo cutting, servo stacking and counting. It features a compact structure with a 15-inch touch screen industrial PC operating system.
| Model | AD8265B |
| Available Materials | PP, PET, BOPS, HIPS, OPS, PVC, CPLA, CPET, APET |
| Formed Area (mm) | 820×650 |
| Formed Depth (mm) | ≤ 150 |
| Max Cutting Area (mm) | 800×630 |
| Sheet Thickness (mm) | 0.12-2 |
| Formed Speed | ≤ 50 cycles/min |
| Power Supply | 380V/50Hz 3 Phase 4 Line |
| Total Power | 253kw (Servo 50kw + Heating 203kw) |
| Dimensions (mm) | 14800x3300x3500 |
| Weight | Approx. 18000kg |
Complete functions suitable for diversified production lines; safe, efficient, and energy-saving.
Adopts 4-section heating method for precise temperature control ensuring high product quality.
Multi-station design allows loading, heating, and forming to be carried out simultaneously.

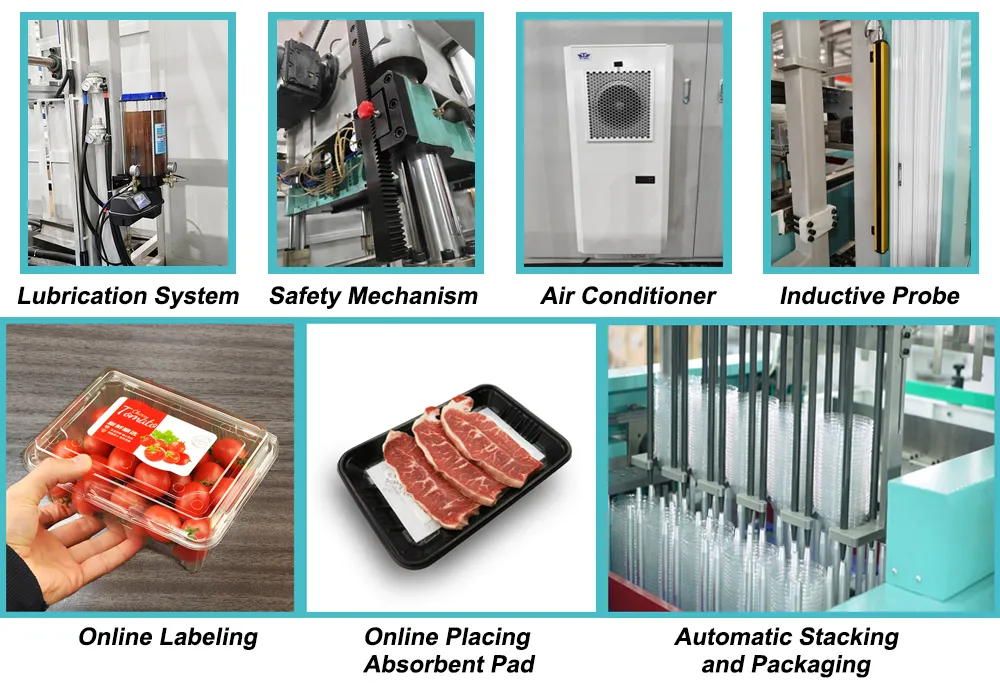

Integrated online labeling and automatic stacking solutions to reduce labor costs significantly.

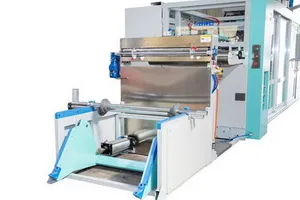

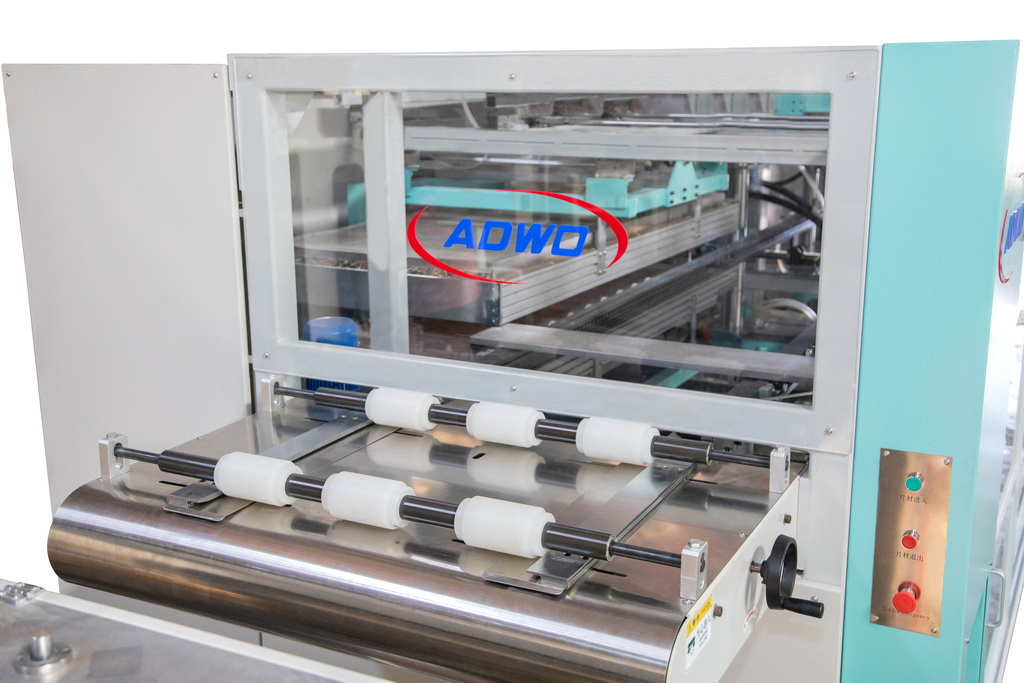

Driven by reduction motor, controlled by infrared sensors to prevent contamination. Max roll weight up to 1000kg with pneumatic feeding device.

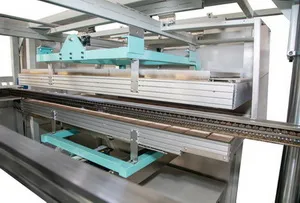

4-section heating for precise temperature control, improving production efficiency and reducing energy consumption.

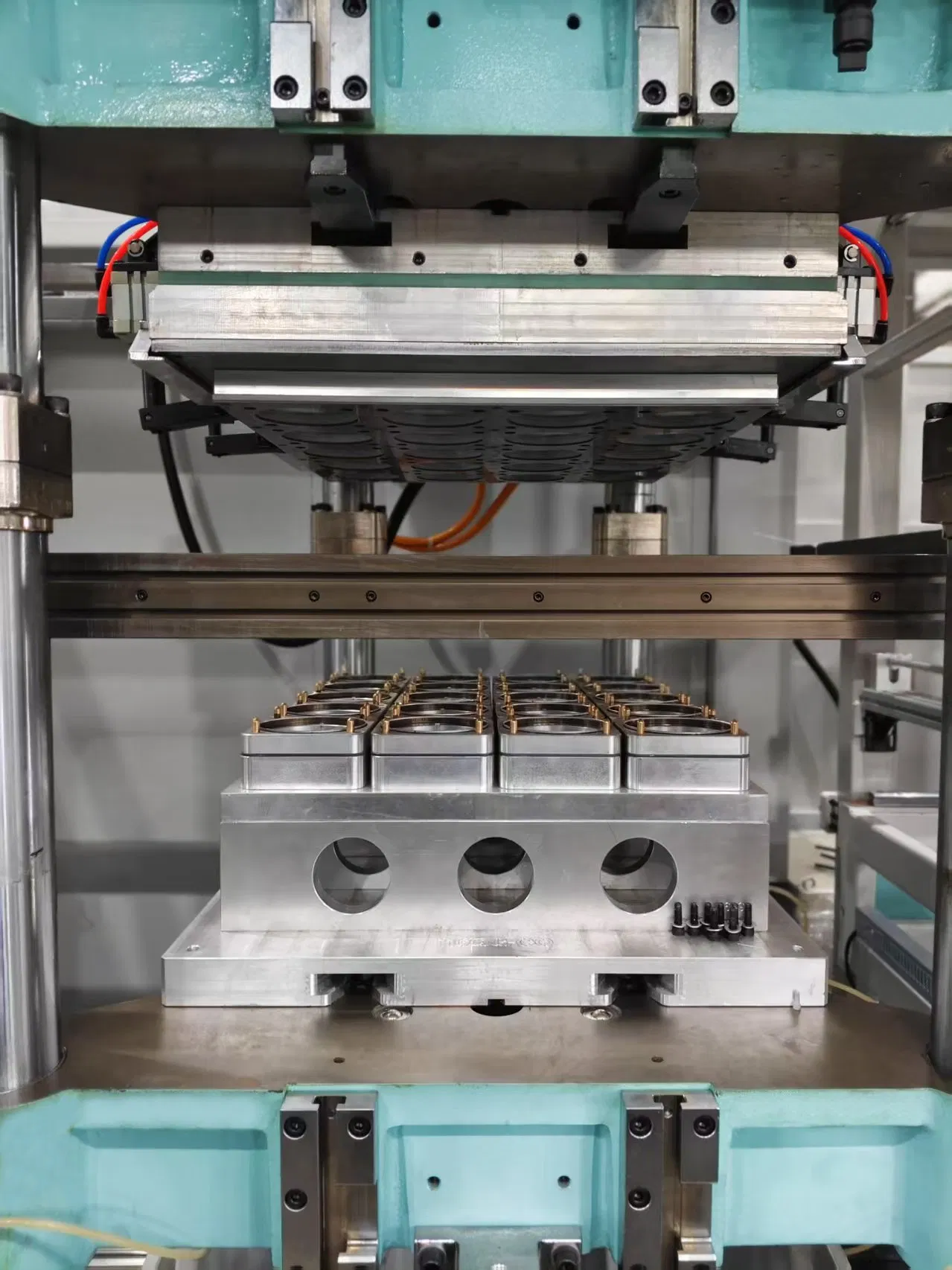

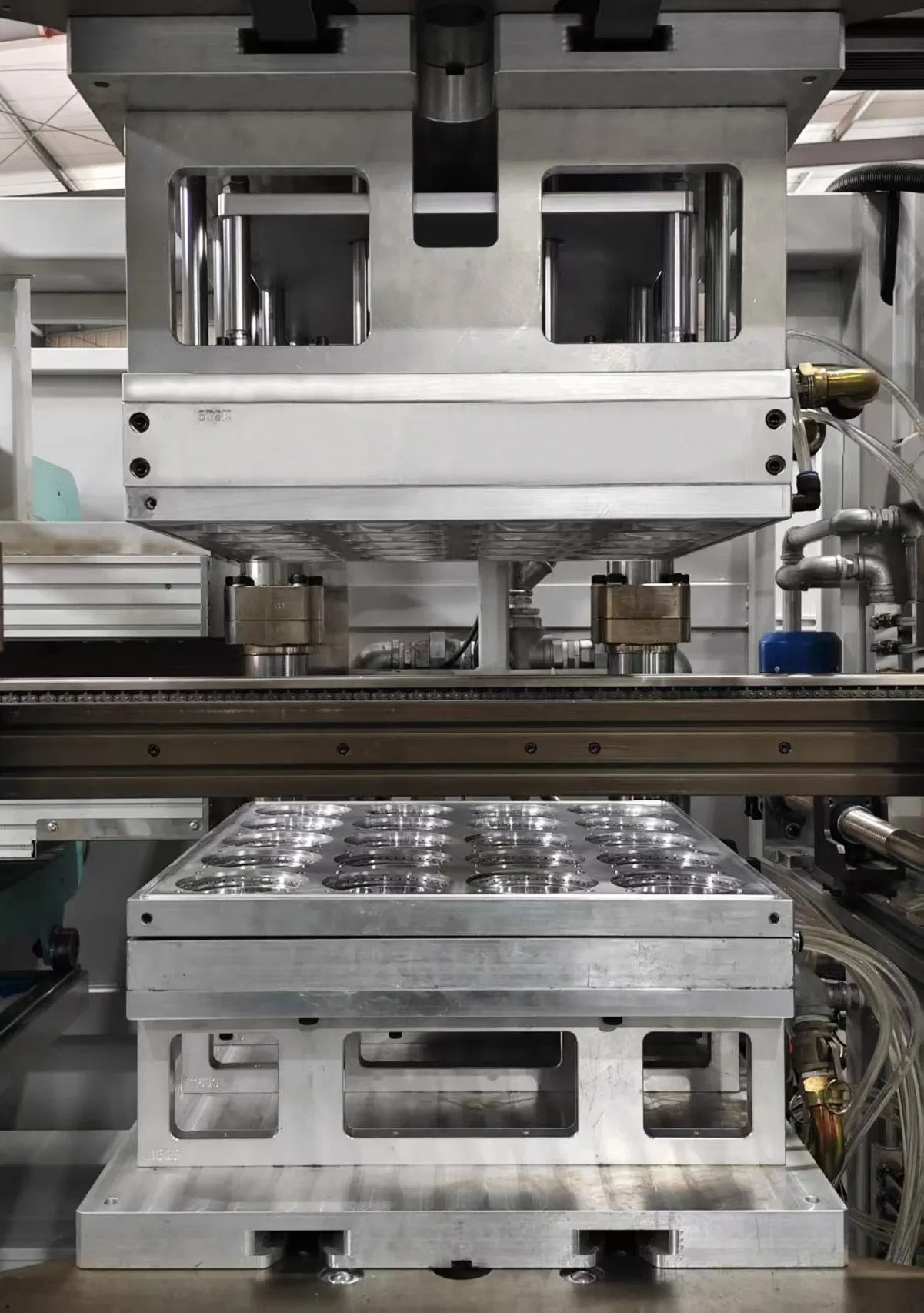

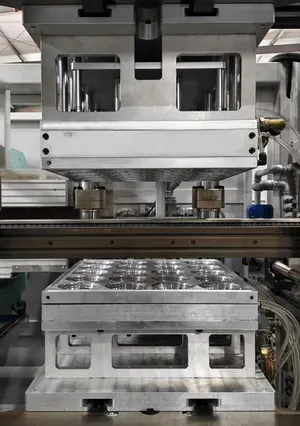

Delta servo drive with quick mold installation mechanism. Includes auxiliary stretching for high-quality deep cavity products.

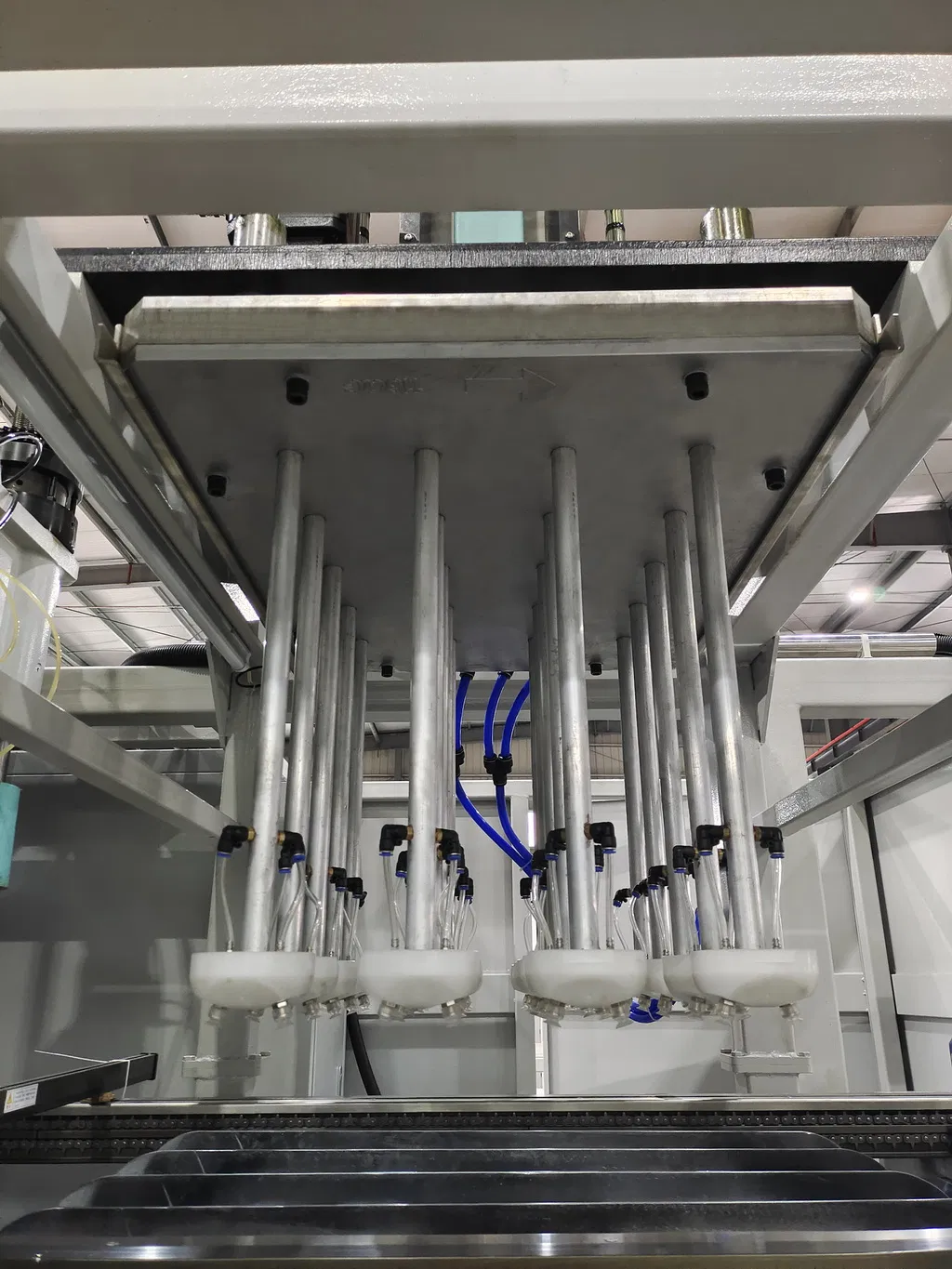

High-power servo drive ensures stable transmission and accurate positioning. Stacking station uses aluminum alloy transmission racks for ergonomic operation.
