| Model NO. | AD8265B |
| Column number | Four Column |
| Molding Method | Pultrusion |
| Automatic Grade | Automatic |

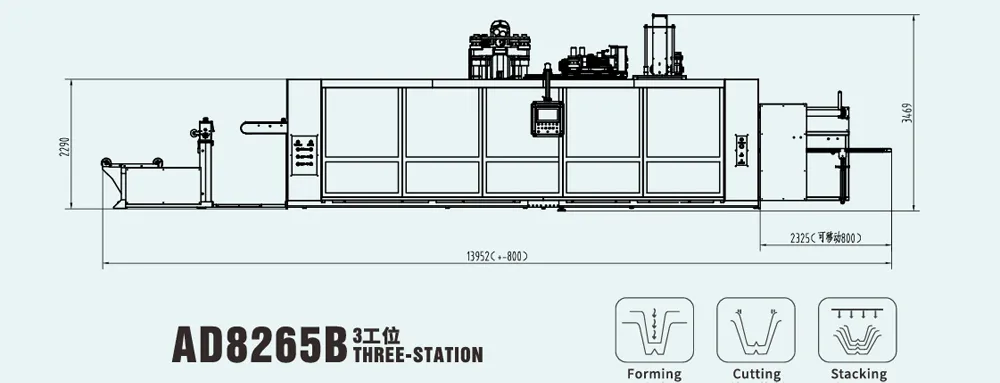

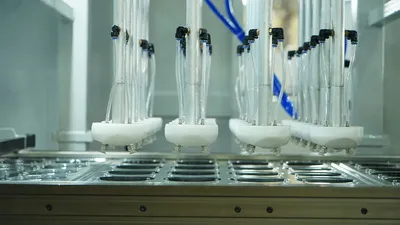

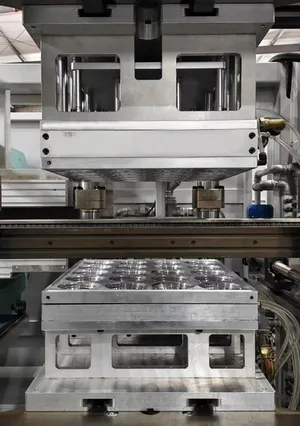

| Process | Forming-Cutting-Stacking |
| Application | Plastic Medical Container Packaging Tray |
| Available Material | PP, Pet, BOPS, HIPS, OPS, PVC, Cpla, Cpet, APET |
| Sheet Thickness | 0.12-2mm |
| Max. Formed Area | 820×650mm |
| Max. Cutting Area | 800X630mm |
| Max Sheet Width | 860mm |
| Max. Formed Depth | 150mm |
| Max Formed Speed | 50cycle/Min |
| Air Pressure | 0.6-0.8MPa |
| Gas Consumption | 5000~6000L/Min |
| Power Supply | 380V/50Hz 3 Phase 4 Line |
| Total Power | 253kw |

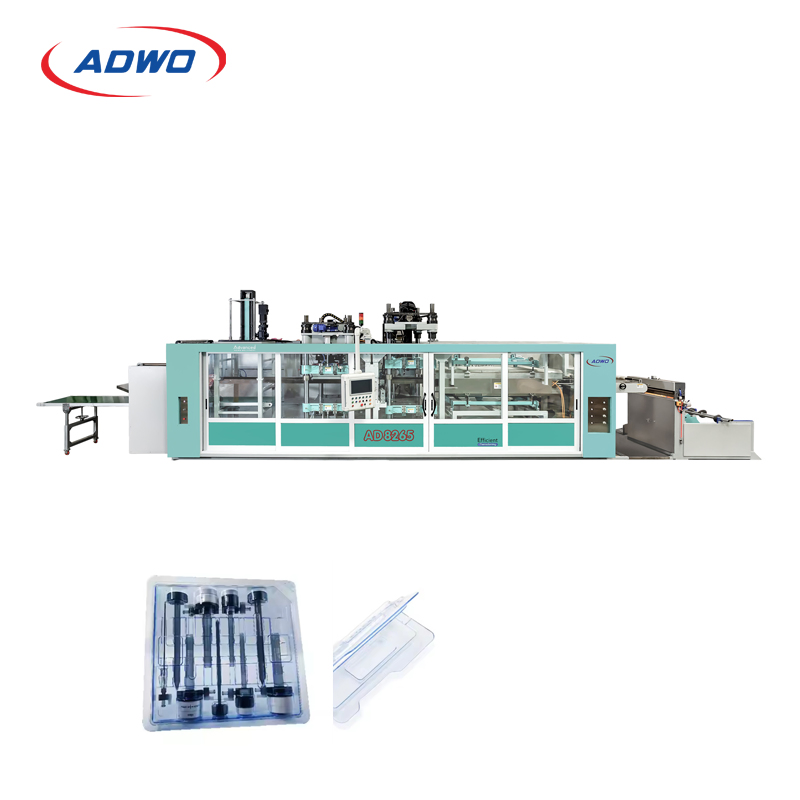

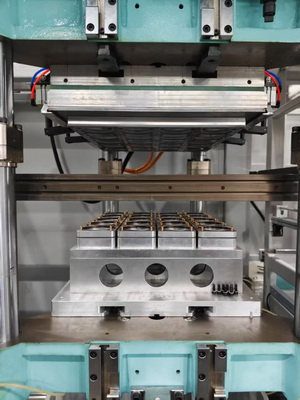

Fully Automatic 3-Station Plastic Medical Packaging Production Equipment Vacuum Forming Thermoforming Machine.

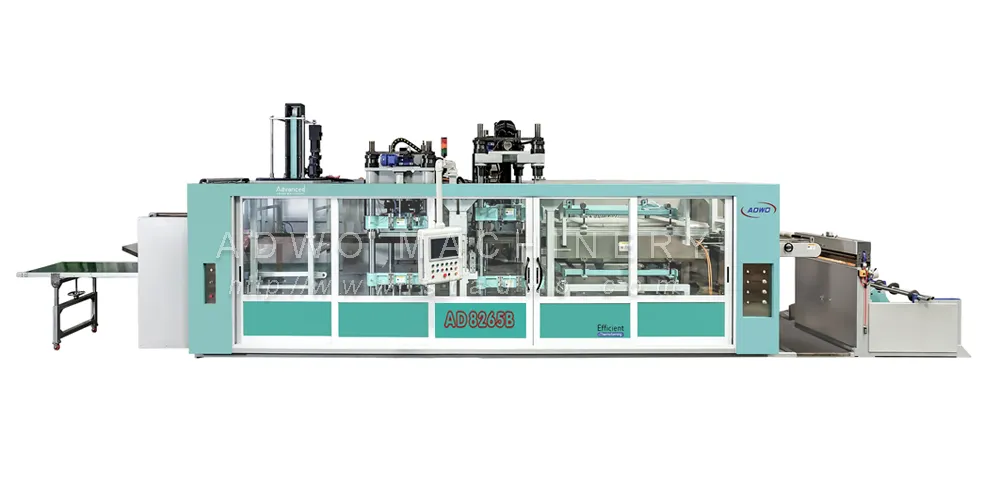

The AD8265B positive and negative pressure high speed thermoforming machine is a state-of-the-art model developed for high-efficiency production. It is widely used for medical packaging, fast food boxes, fruit trays, and industrial hardware electronic packaging. The system is compatible with various materials including PP, PET, BOPS, HIPS, CPLA, and corn starch.
Which Products Could Be Made By This Machine?

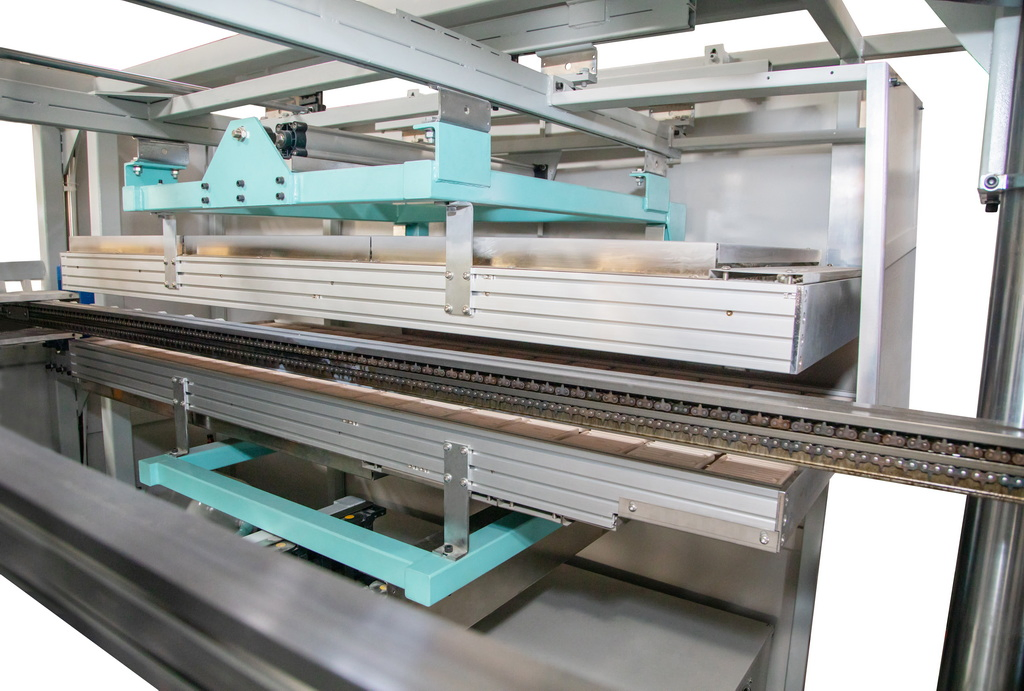

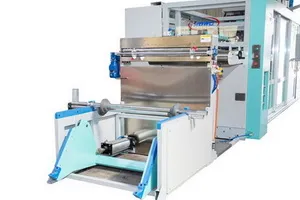

The machine utilizes advanced motion control with electronic cams. Features include servo-driven sheet feeding, servo-assisted stretching, and precise counting systems. The 15-inch industrial touch screen allows for flexible operation and can store up to 9,999 sets of data.
Our team consists of professionals with over 20 years of experience in the thermoforming industry. We provide complete solutions encompassing technology, equipment, and customized molds.
| Package Size | 1480.00cm * 330.00cm * 350.00cm |
| Package Gross Weight | 18000.000kg |

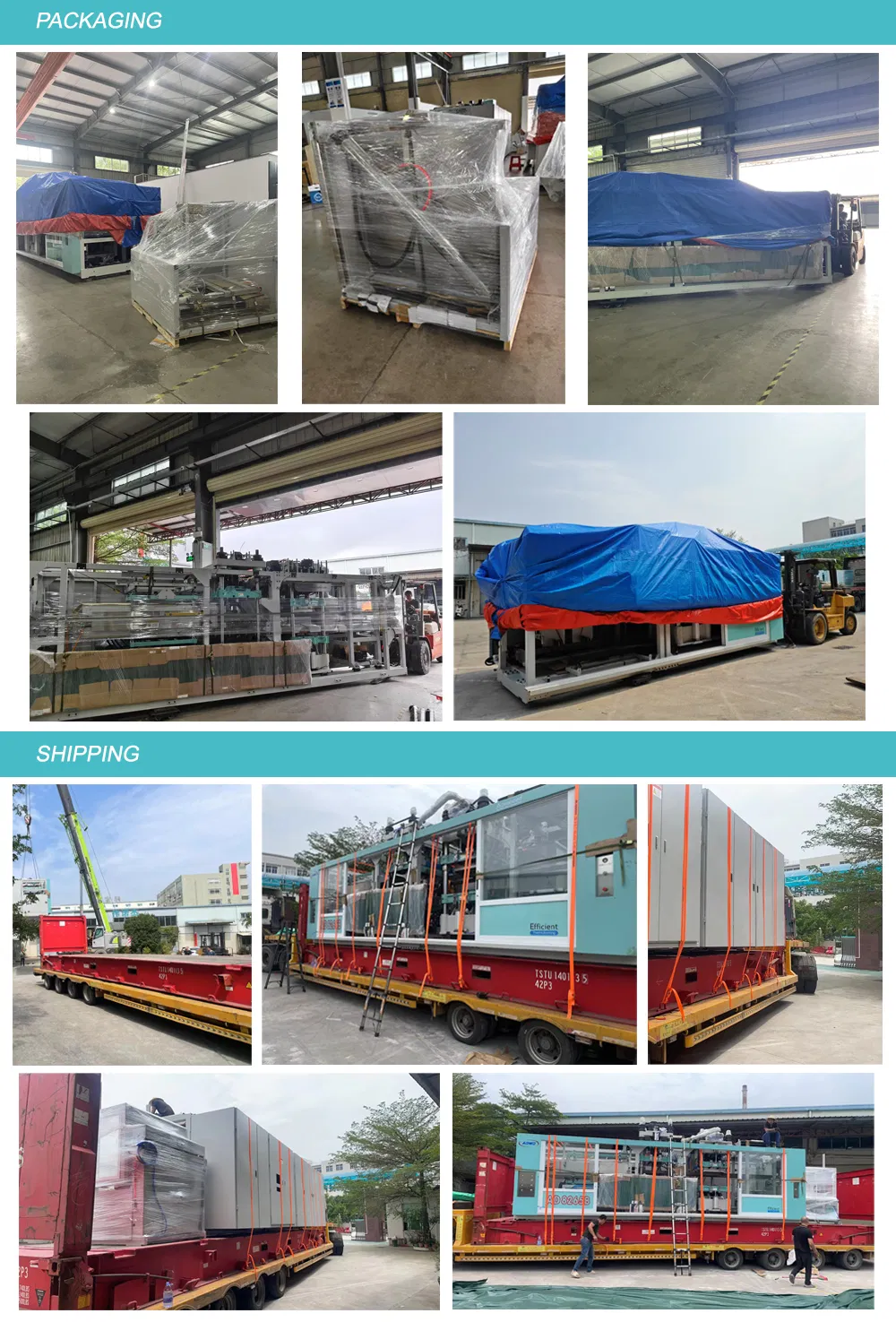

| Protection | Streched Film Covered |
