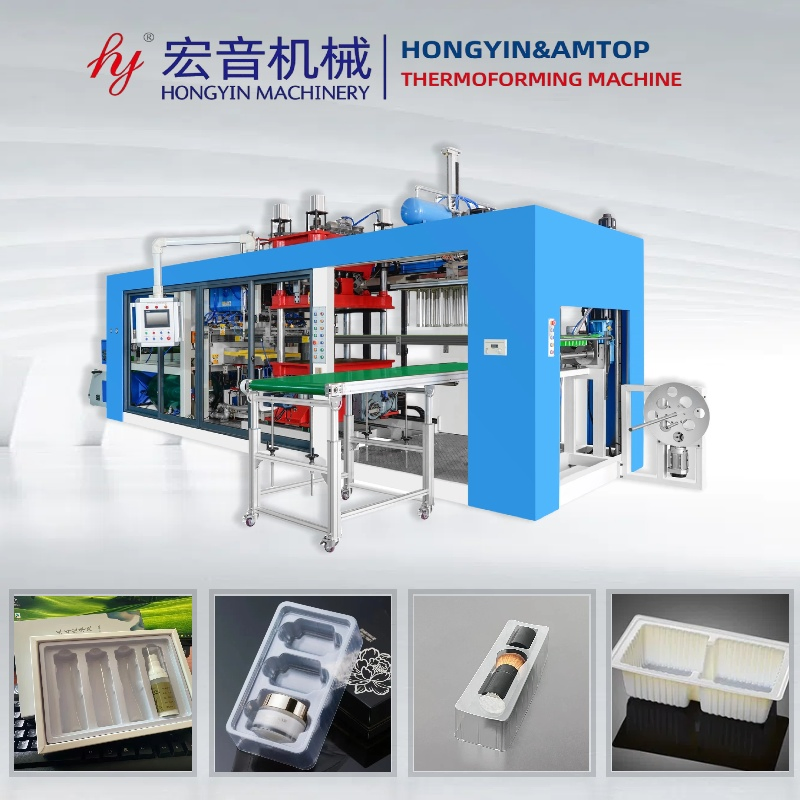

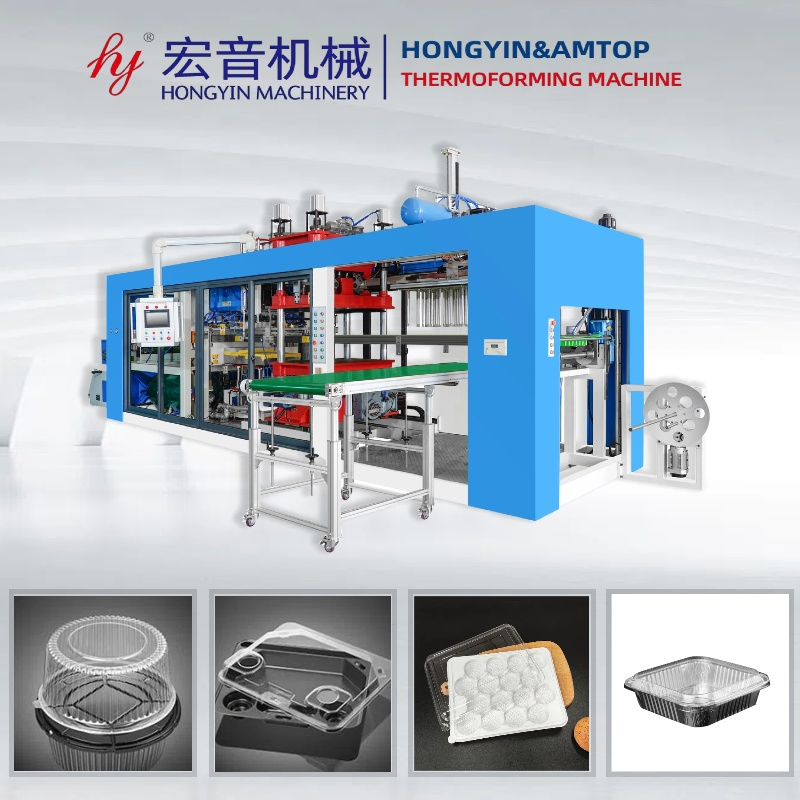

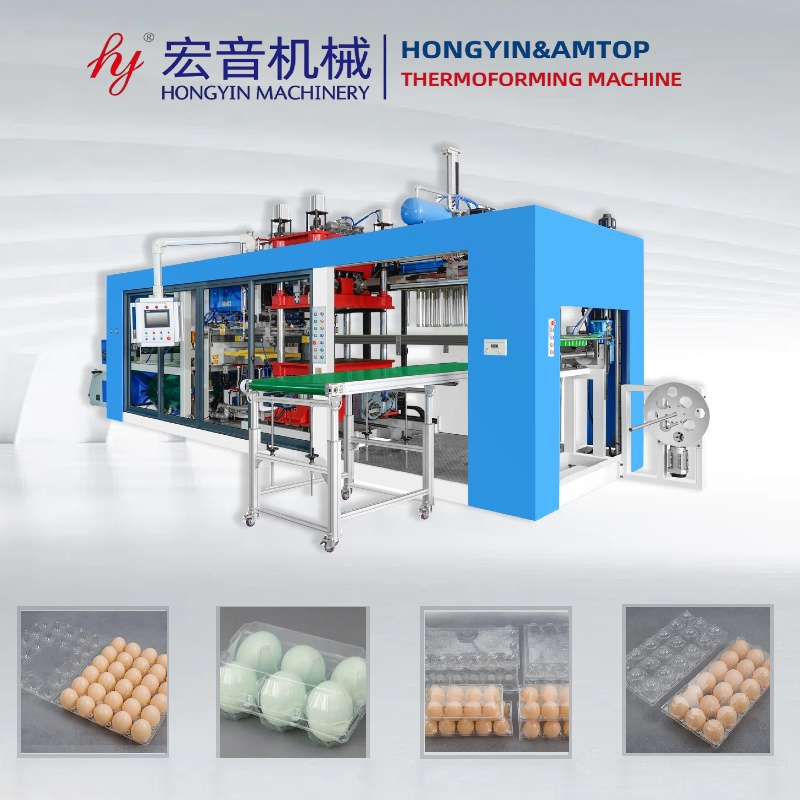

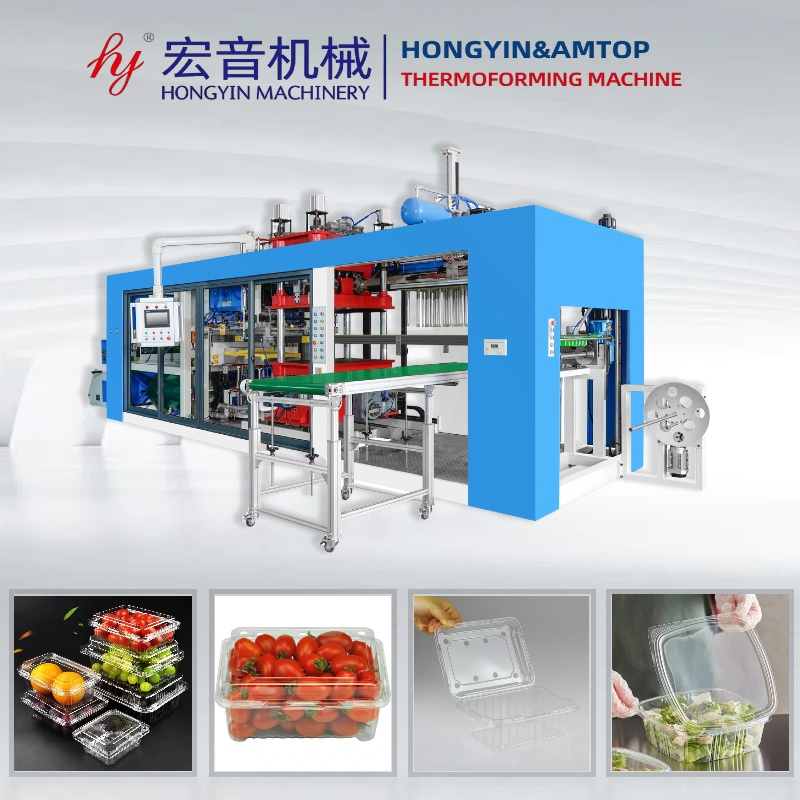

Automatic 3 Station Plastic Plate Food Container Clamshell Box Vacuum Pressure Forming Machine
Automatic 3 Station Plastic Plate Food Container Clamshell Box Vacuum Pressure Forming Machine
Automatic 3 Station Plastic Plate Food Container Clamshell Box Vacuum Pressure Forming Machine
Automatic 3 Station Plastic Plate Food Container Clamshell Box Vacuum Pressure Forming Machine
Automatic 3 Station Plastic Plate Food Container Clamshell Box Vacuum Pressure Forming Machine
1 / 5
Automatic 3 Station Plastic Plate Food Container Clamshell Box Vacuum Pressure Forming Machine
Automatic 3 Station Plastic Plate Food Container Clamshell Box Vacuum Pressure Forming Machine
Automatic 3 Station Plastic Plate Food Container Clamshell Box Vacuum Pressure Forming Machine
Automatic 3 Station Plastic Plate Food Container Clamshell Box Vacuum Pressure Forming Machine
Automatic 3 Station Plastic Plate Food Container Clamshell Box Vacuum Pressure Forming Machine

Automatic 3 Station Plastic Plate Food Container Clamshell Box Vacuum Pressure Forming Machine

Warranty: 1 Year
Automation: Automatic
Raw Material: PP, PVC, Pet, PS, HIPS
Send Inquiry

Product Description

Basic Specifications

Model NO.
ATM-72/85
Application
Machinery & Hardware, Food & Beverage, Medical, Toys, Chemical, Plastic Box/Bowl/Tray/Lid/Container
Driven Type
Servo Motor
Computerized
Computerized
Certification
ISO9001:2008, CE
After-sales Service
1 Year
Max. Forming Area
720*850mm
Thickness of Sheet
0.2-1.5mm
Max. Forming Depth
150mm
Vacuum Pump
150cc
Power Supply
AC 380V, 50/60 Hz
Dimension
L11000*W2850*H2660mm
Weight
9500kgs
Transport Package
Wooden Case
Trademark
AMTOP
HS Code
847780000

Product Description

ATM-72/85 Negative three station vacuum forming machine

ATM-72/85 Machine

🚀 Application Area:

This machine is suitable for forming HIPS, PS, PP, PVC, PET, sheet that can produce boxes, trays, fast food boxes, dishes, lids, cookies tray, egg tray, mobile phone tray & other blister tray.

⚙️ Technological Process:

Carrying material (cylinder drives the chain) → Heating (electric furnace lift) → Pulling → Lifting lower die & falling upper die → Vacuum forming → Cooling (spray gun & air blowing) → Drawing of patterns → Pulling-cutting → Stacking on line.

Main Features

  • PLC Control: Whole machine adopts PLC to control the production technical process with modern computer memory.
  • Vertical Pulling: Adopts cylinder verticality pulling-sheet design for high-speed operation and electricity saving.
  • Advanced Heating: Infrared ceramic heating bricks with individual solid regulators, saving over 50% electricity.
  • Enclosed Electric Stove: Uniform heat distribution with manual switches for vertical lifting control.
  • Superior Cooling: Equipped with wind cooling, water cooling chassis, and high-speed cold water spraying.
  • Cost Efficient: Supports simple molds to significantly reduce mold investment costs.
  • User Friendly: Negative forming is easy to operate and provides excellent production control.

Technical Parameters

Max Forming area720*850mm
MaterialPET, APET, PP, PS, PVC, ABS
Material thickness0.2-1.8mm
Forming height0-150mm
Production speed200-600 times/hour
Mould-up moveElectromotion
Vacuum pump power4.0 KW / 150m³
Servo motor3kw
Power380V 50HZ
Air consumption6.5kg/cm, 1000-1500 Liter/min
Overall diameter(L)11000 * (W)2850 * (H)2660mm
Weight9500kg

Workshop & Equipment Display

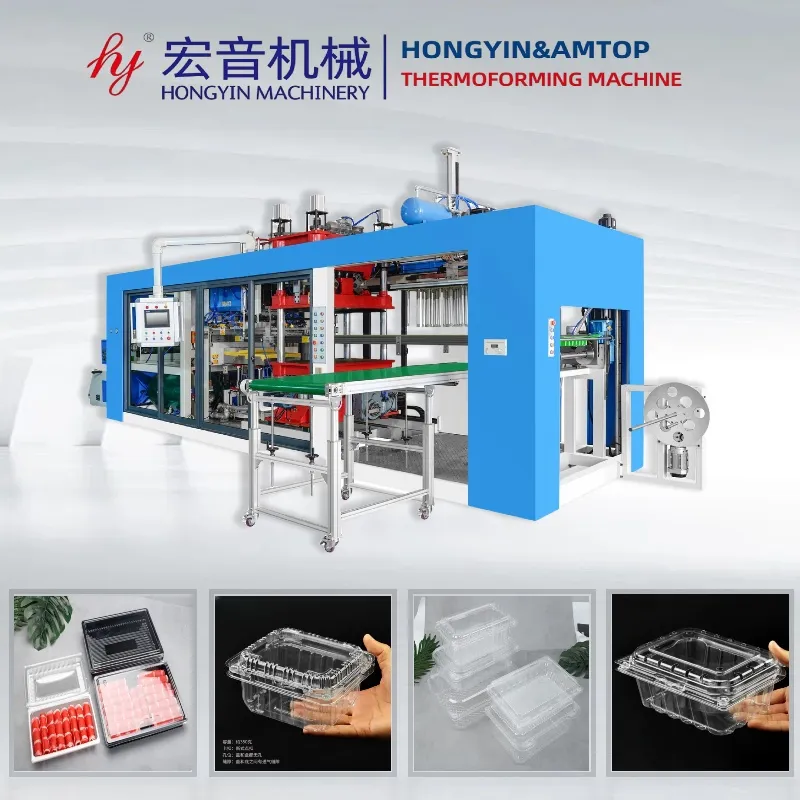

Machine Overview

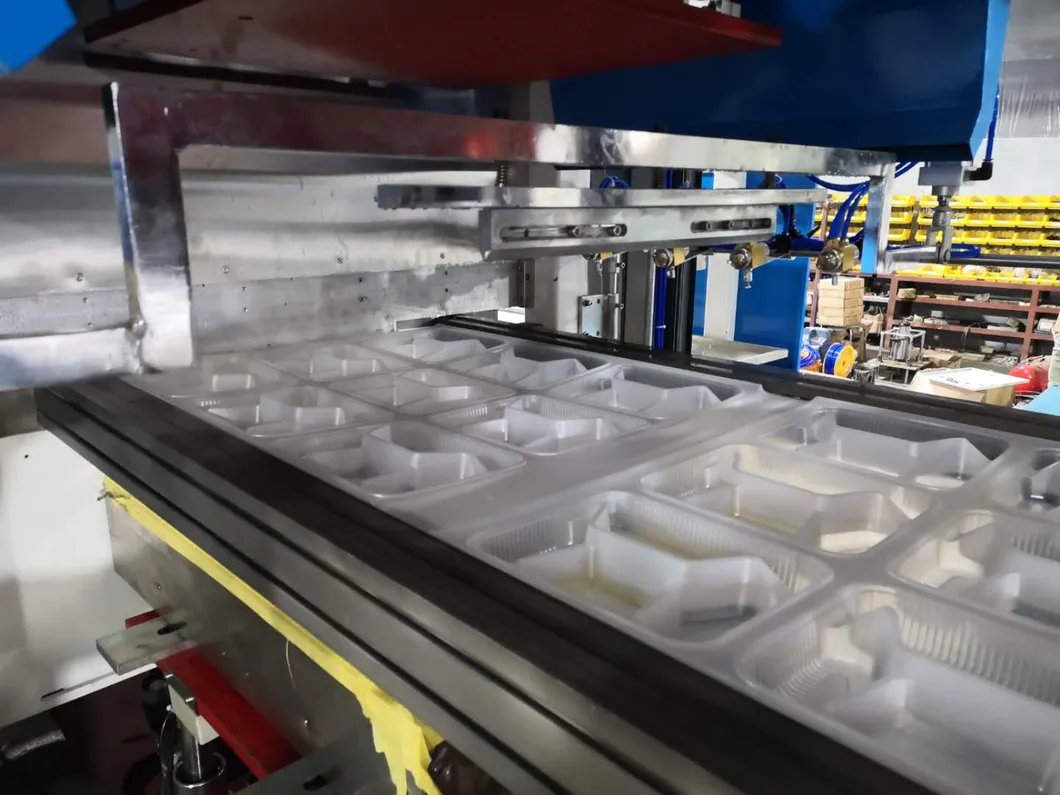

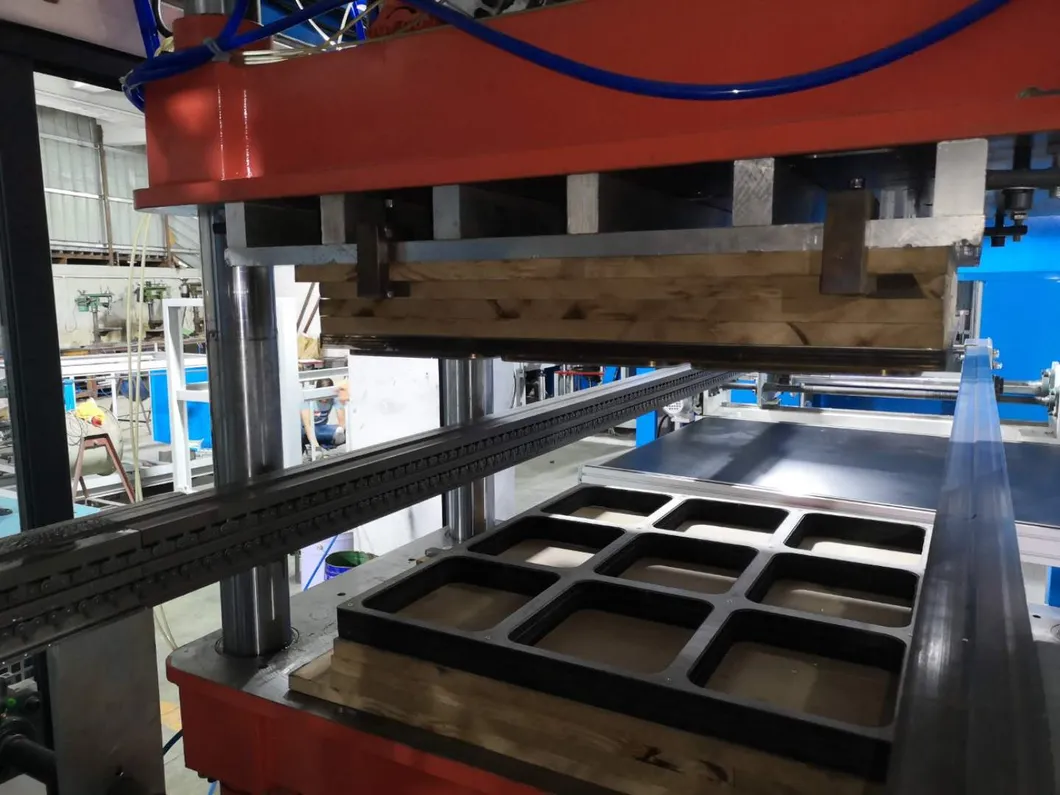

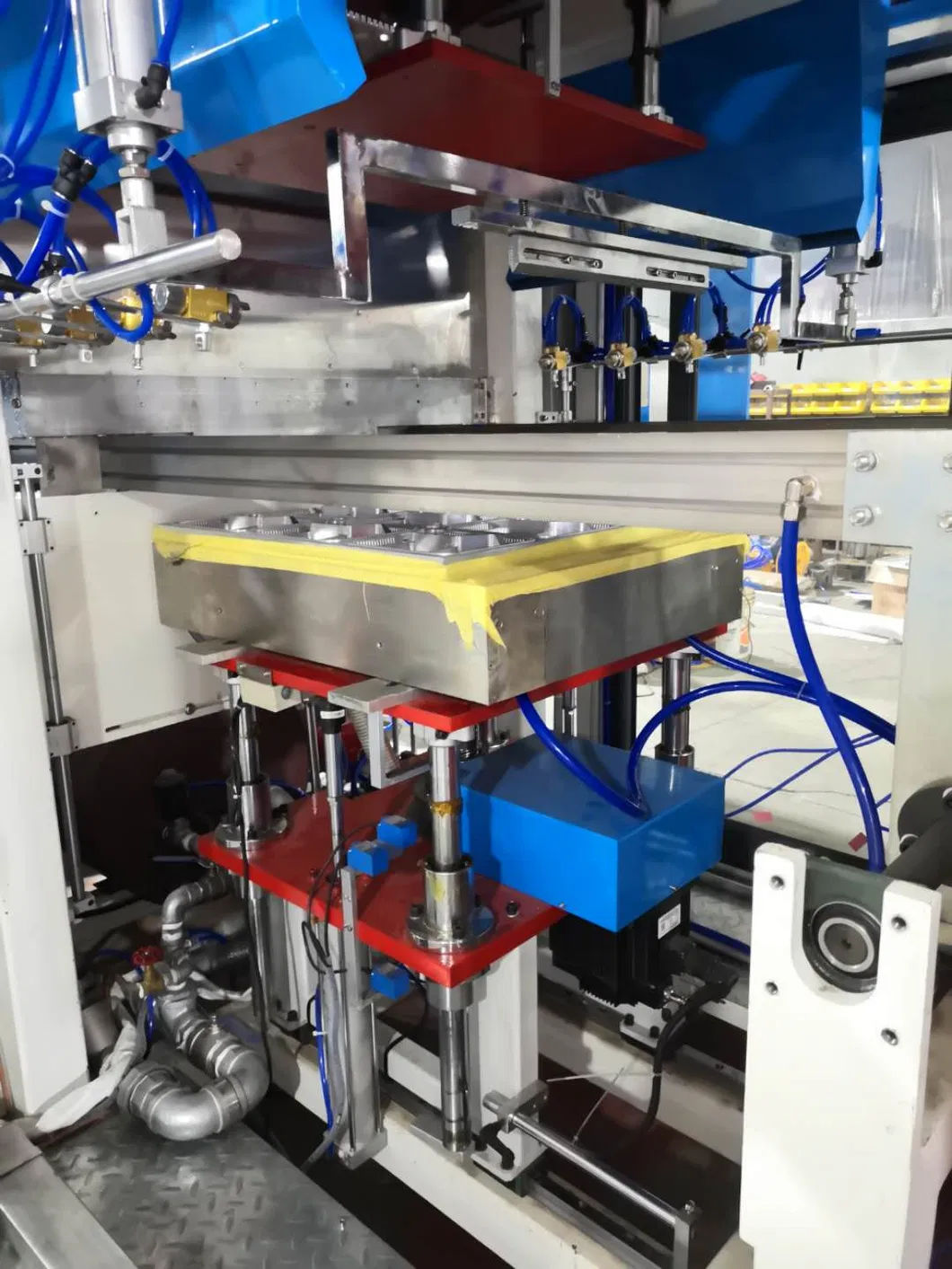

Workshop view 1 Workshop view 2 Workshop view 3

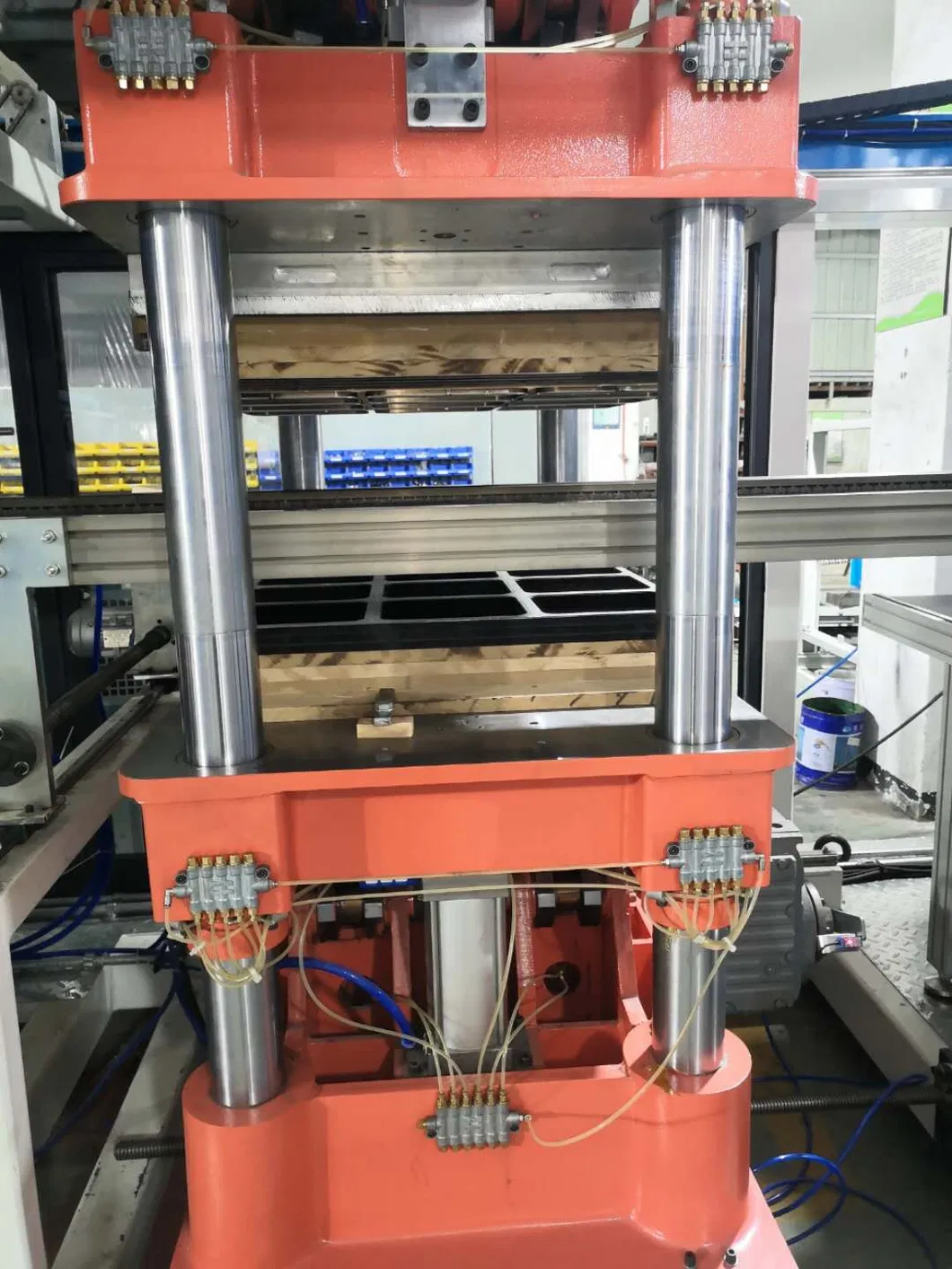

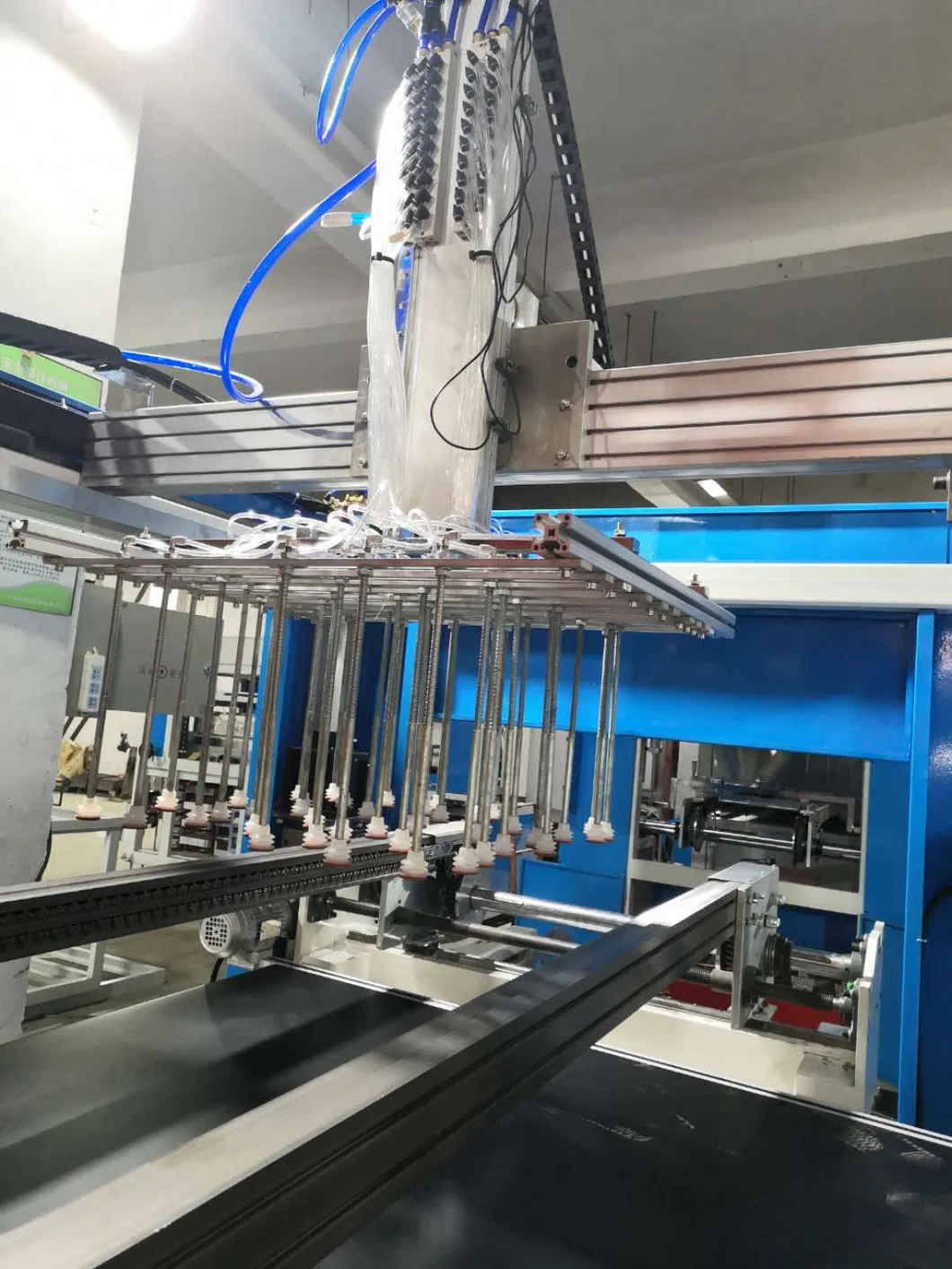

Workshop view 4 Workshop view 5

Service & Support

1. Professional Guidance: Efficient working team providing professional suggestions based on your product samples.

2. Installation Service: Technician coordination for installation, commissioning, and training available.

3. Warranty: 12 months limited warranty starting from the date of machine arrival (excluding wear parts).

Frequently Asked Questions

What materials can the ATM-72/85 process?
The machine is compatible with a wide range of plastic sheets including PET, APET, PP, PS, PVC, HIPS, and ABS.
What is the maximum forming area and depth?
The maximum forming area is 720*850mm, with a forming depth capability ranging from 0 to 150mm.
How does the machine save energy?
It utilizes infrared ceramic heating bricks with individual regulators and an enclosed electric stove, saving over 50% electricity compared to traditional machines.
What kind of products can be manufactured?
It is ideal for producing food containers, clamshell boxes, trays, lids, egg trays, and mobile phone packaging.
What is the production speed?
The machine operates at a high-efficiency speed of 200 to 600 cycles per hour, depending on the material and mold design.
Is the machine computerized?
Yes, the entire production process is controlled by a high-performance PLC system for precision and ease of operation.
