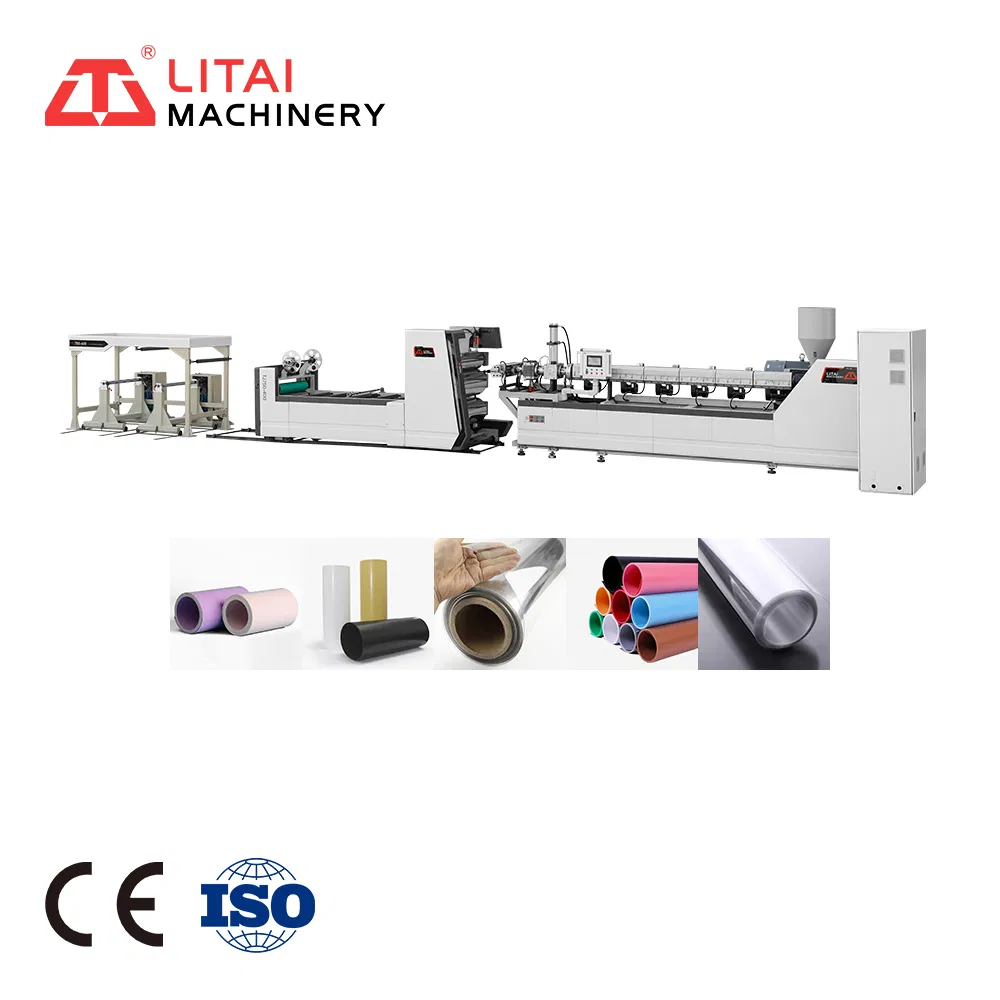

Fully Automatic PP PS Plastic Rolls Extruder Production Line for Plastic Thermoforming Machine
Fully Automatic PP PS Plastic Rolls Extruder Production Line for Plastic Thermoforming Machine
Fully Automatic PP PS Plastic Rolls Extruder Production Line for Plastic Thermoforming Machine
Fully Automatic PP PS Plastic Rolls Extruder Production Line for Plastic Thermoforming Machine
Fully Automatic PP PS Plastic Rolls Extruder Production Line for Plastic Thermoforming Machine
1 / 5
Fully Automatic PP PS Plastic Rolls Extruder Production Line for Plastic Thermoforming Machine
Fully Automatic PP PS Plastic Rolls Extruder Production Line for Plastic Thermoforming Machine
Fully Automatic PP PS Plastic Rolls Extruder Production Line for Plastic Thermoforming Machine
Fully Automatic PP PS Plastic Rolls Extruder Production Line for Plastic Thermoforming Machine
Fully Automatic PP PS Plastic Rolls Extruder Production Line for Plastic Thermoforming Machine

Fully Automatic PP PS Plastic Rolls Extruder Production Line for Plastic Thermoforming Machine

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

🔹 Basic Information
Model NO.:TJ-750C
Type:Sheet Extruder
Plastic Processed:PP/PS
Feeding Mode:One Feed
Screw:Single-Screw
Automation:Automatic
Max. Sheet Width:750mm
Sheet Thickness:0.3~2mm
Output Capacity:400kg/Hour
Origin:China
📊 Technical Parameters

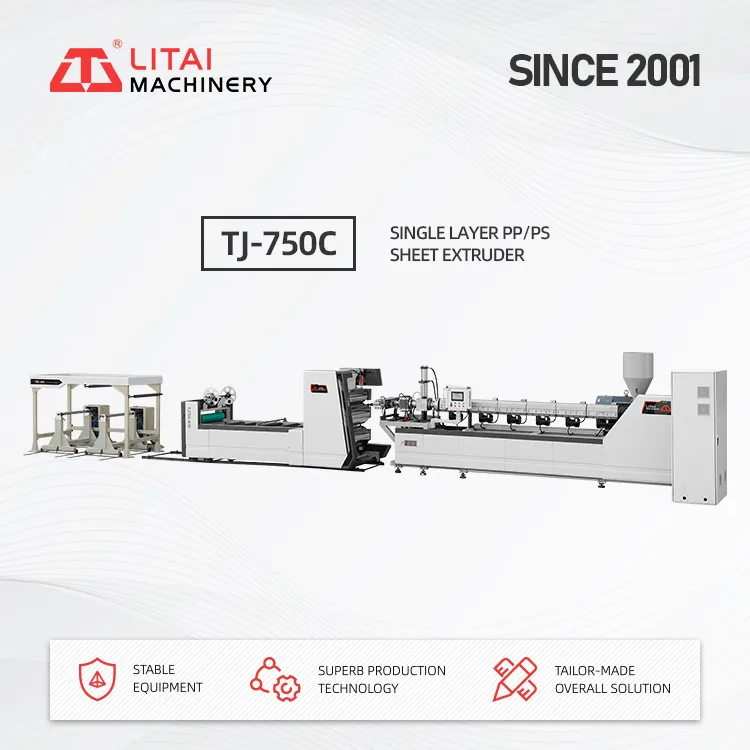

Production Line
Model TJ-750C TJ-750D
Suitable Sheet PP, PS
Sheet Width (Max.) 750mm 770mm
Sheet Thickness 0.3-2.0mm
Screw Rod Dia 125mm 110mm
Screw L/D Ratio 35:1 32:1
Max. Output 400kg/hour 240kg/hour
Main Motor Power 132kw 75kw
Power Supply AC 380V, 50Hz, Three-phase
Weight About 12T About 8T
✨ Product Display & Application

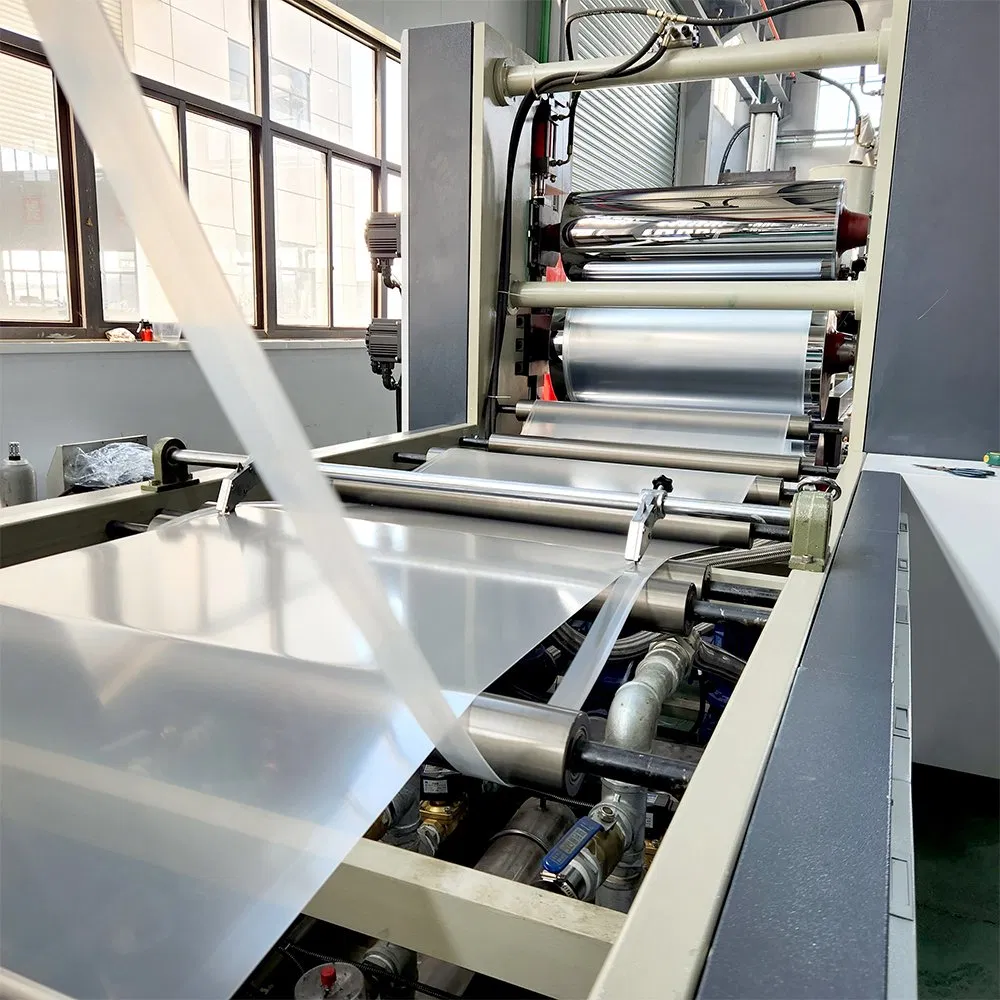

The sheet extruder is designed for high efficiency, featuring abrasion and corrosion resistance for high-temperature operations. It produces PP/PS sheets used for plastic thermoforming products such as cups, food containers, trays, and bowls.

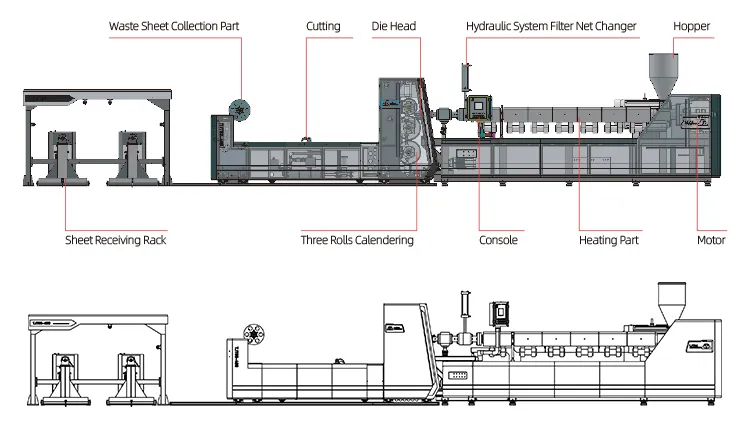

App 1

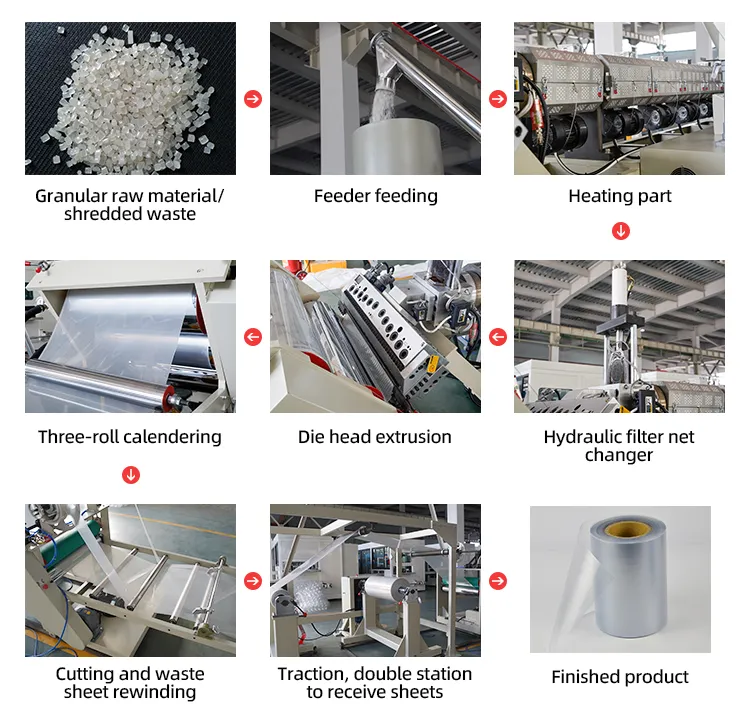

App 2

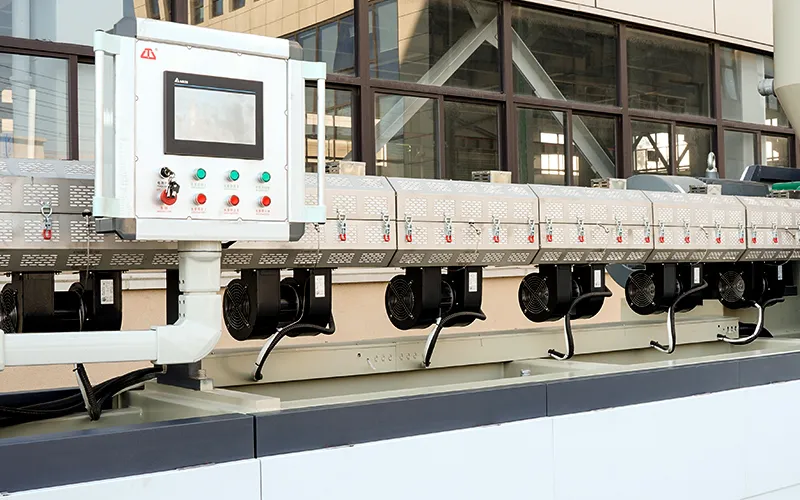

Screw and Barrel
1. Screw and Barrel: Made of 38CrMoAlA with nitriding treatment for maximum hardness and long service life.

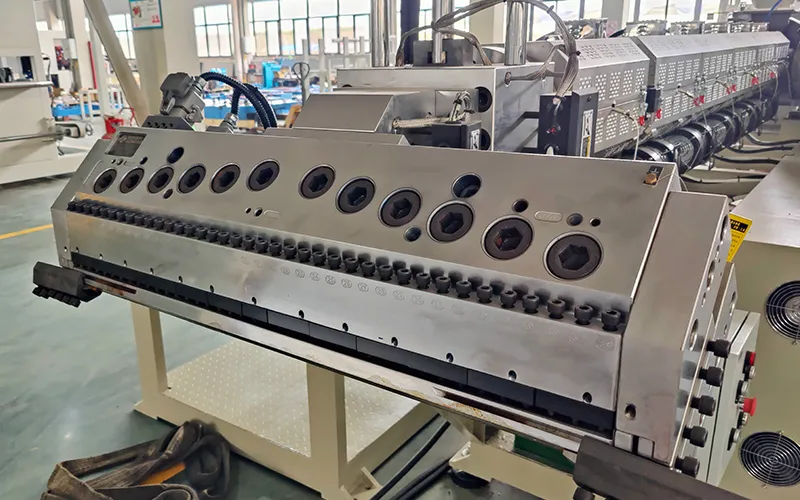

T-die Design
2. T-die Design: Cloth-hanger type design ensures even flow of melting material from the outlet.

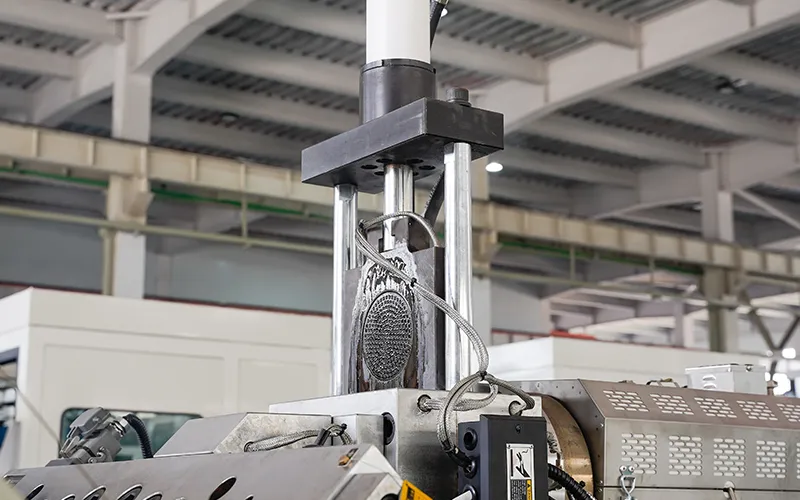

Filter Part
3. Filter Part: Equipped with a Worm-Gear Case and 7.2kw heating power for efficient filtration.

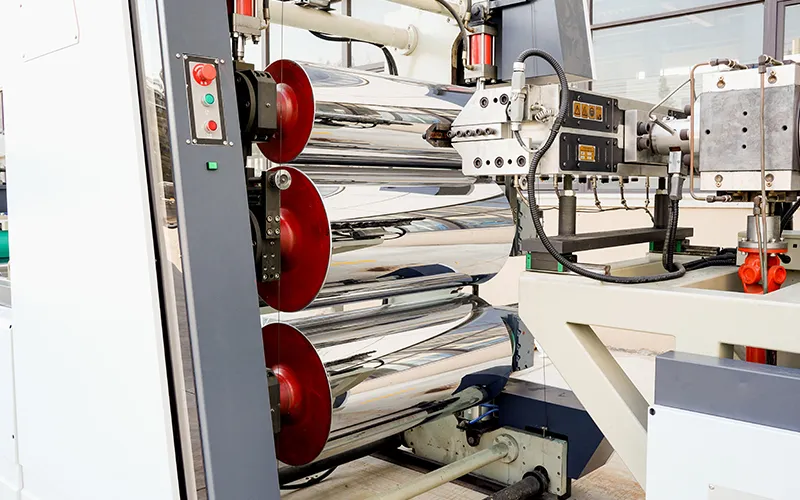

Roller Layout
4. Roller Layout: Spiral cooling method inside each drum ensures effective and uniform cooling.

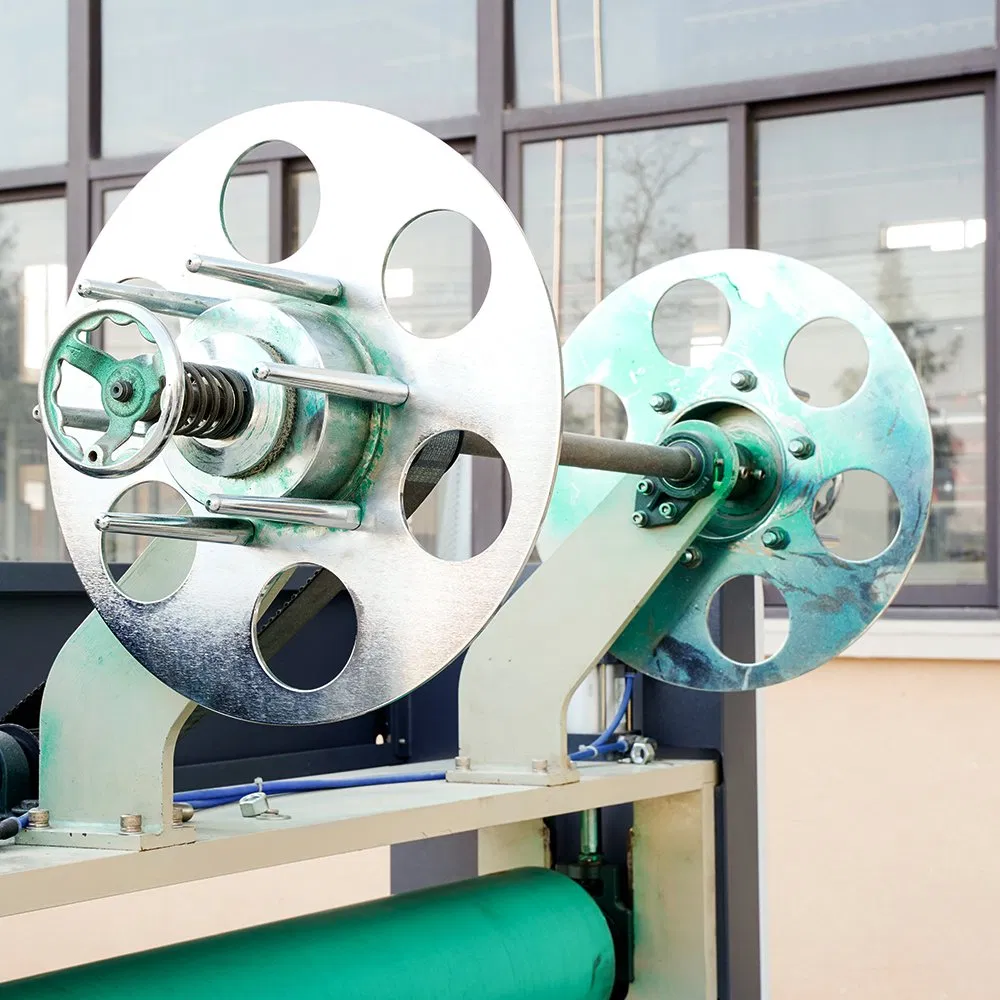

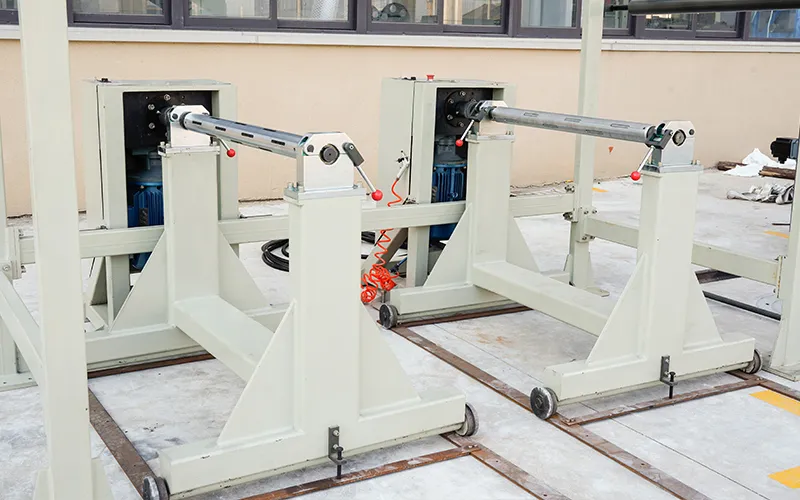

Double Station
5. Double Working Station: Allows for continuous sheet receiving, saving time when changing rolls.
🏭 Production & Logistics
Factory Partners Packaging
❓ Frequently Asked Questions
What materials can this extruder process?
This machine is specifically designed to process PP and PS granules into high-quality sheets.
How long is the warranty period?
The warranty period is 13 months from the date of shipment. During this time, spare parts are provided free of charge for non-artificial damage.
Is technical support available for installation?
Yes, technicians can be dispatched to your facility to install the machinery and provide operational training for your staff.
What is the maximum production capacity?
The TJ-750C model offers a maximum output capacity of up to 400kg per hour.
How is the sheet thickness controlled?
Thickness is kept even through a low-resistance die head channel and precision roller settings, ranging from 0.3mm to 2.0mm.
What kind of maintenance is required for the screw?
The screw is made of high-quality 38CrMoAlA with nitriding treatment, minimizing wear. Periodic inspection and proper cleaning of the heating zones are recommended.
