| Model NO. | AD8265B |
| Column number | Four Column |
| Molding Method | Pultrusion |
| Automatic Grade | Automatic |
| Process | Forming-Cutting-Stacking |
| Application | Plastic Medical Container Packaging |
| Available Material | PP, Pet, BOPS, HIPS, OPS, PVC, Cpla, Cpet, APET |
| Sheet Thickness | 0.12-2mm |
| Max. Formed Area | 820×650mm |
| Max. Cutting Area | 800X630mm |
| Max Sheet Width | 860mm |
| Max. Formed Depth | 150mm |
| Max Formed Speed | 50cycle/Min |
| Air Pressure | 0.6-0.8MPa |
| Gas Consumption | 5000~6000L/Min |
| Power Supply | 380V/50Hz 3 Phase 4 Line |
| Main Motor Power | 7.5kw |
| Total Power | 253kw |
| Transport Package | Stretchin Film Covered |

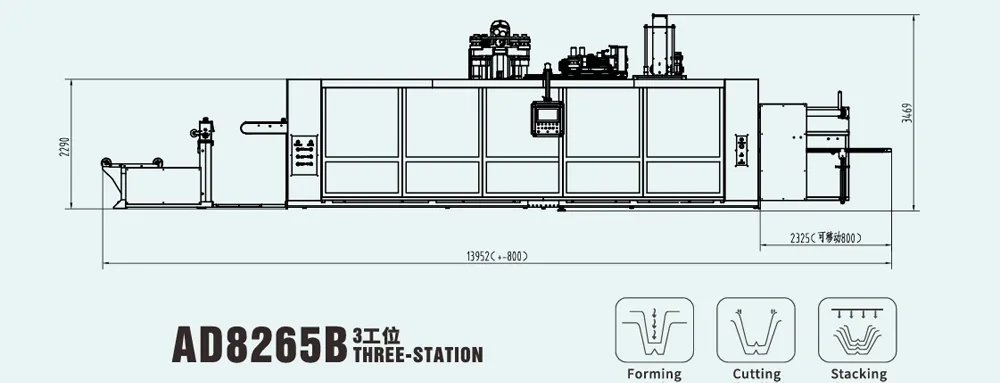

| Specification | 14800x3300x3500mm |

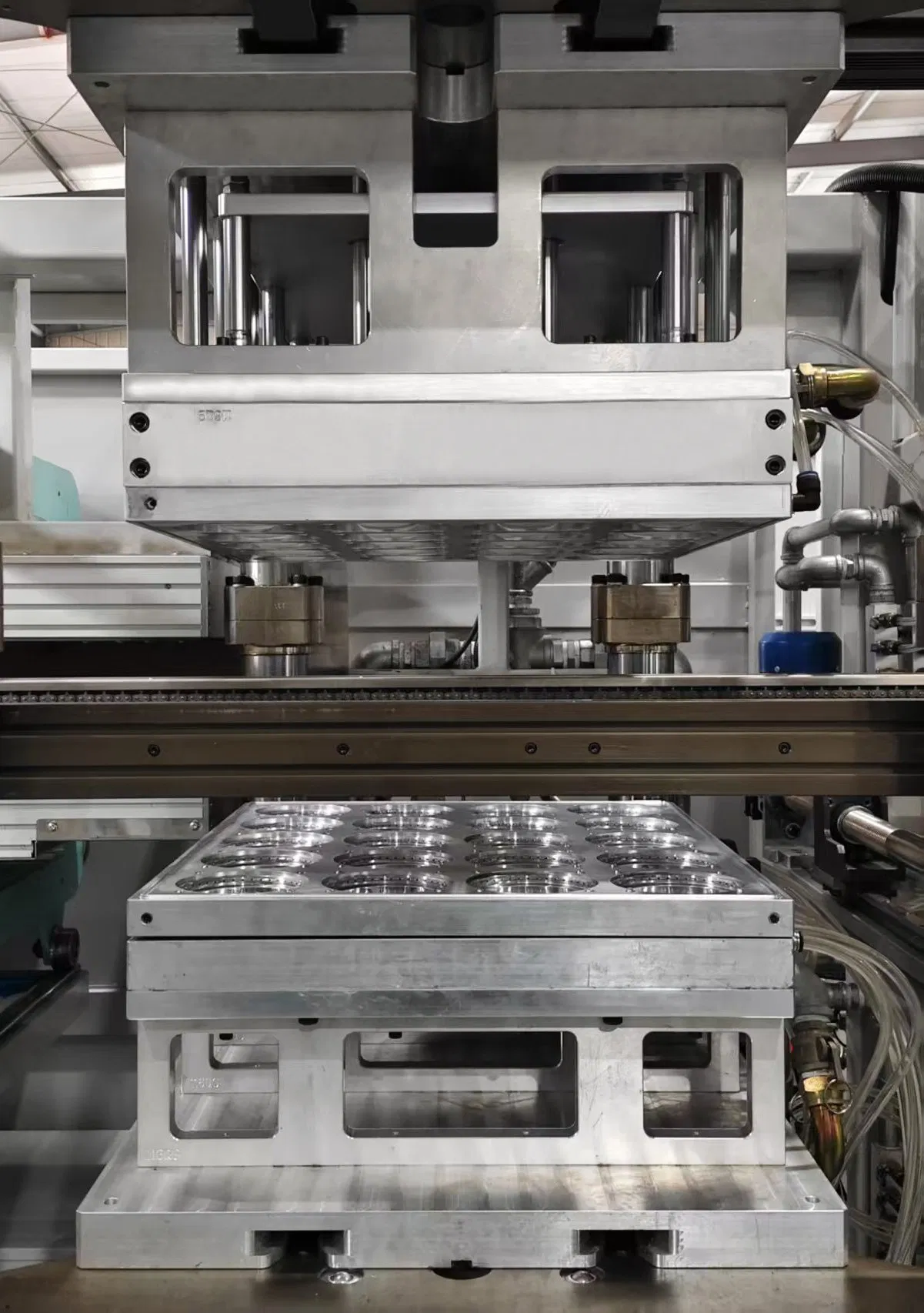

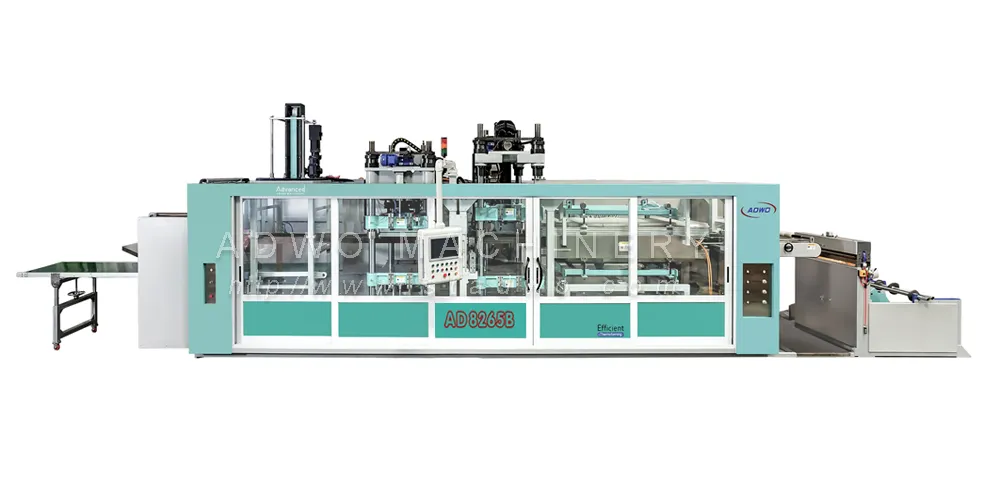

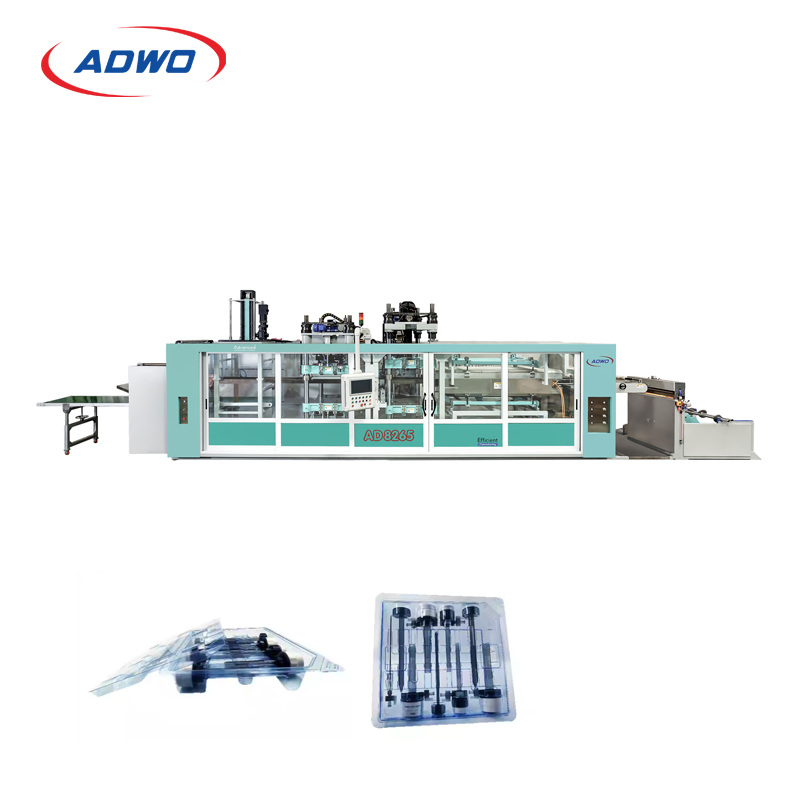

Fully Automatic Plastic PVC Medical Container Packaging Vacuum Forming Thermoforming Making Machine. AD8265B positive and negative pressure high speed thermoforming machine is a new model developed based on advanced thermoforming equipment technology, suitable for the production of PP, PET, BOPS, HIPS, OPS, PVC, CPLA, CPET, APET, corn starch and other plastic products.

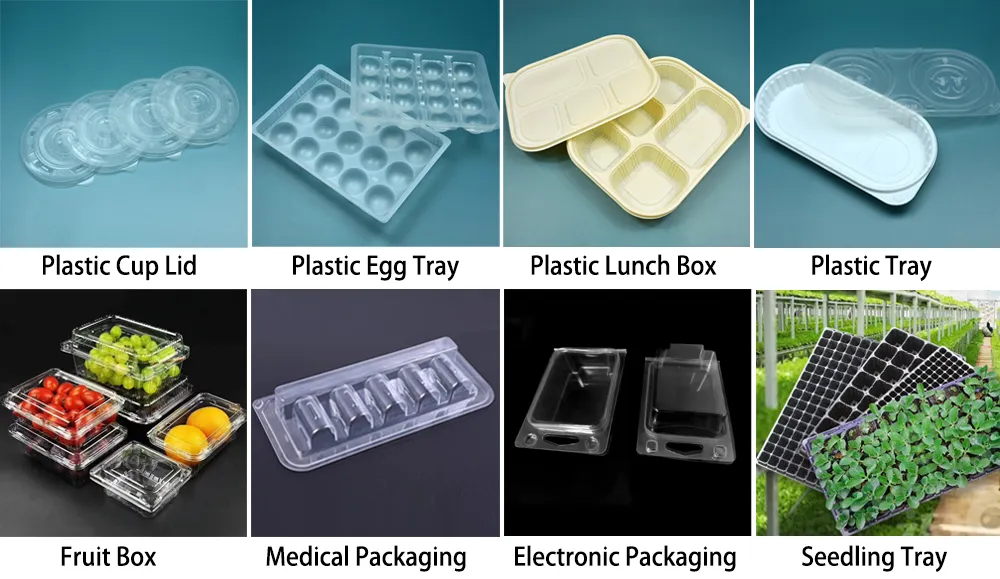

Widely used in fast food boxes, fruit boxes, bowl lids, baking bread boxes, hardware electronic industrial packaging products, food bowls, frozen products packaging boxes, medical packaging, chain catering packaging boxes and other disposable plastic products.
| Available Sheet | PP, PET, BOPS, HIPS, OPS, PVC, CPLA, CPET, APET |
| Formed Area(mm) | 820×650 |
| Formed Depth(mm) | ≤ 150 |
| Max Cutting Area(mm) | 800×630 |
| Sheet Thickness(mm) | 0.12-2 |
| Formed Speed | ≤ 50 cycles/min |
| Total Power | Servo Motor 50kw + Heating Power 203kw |
| Dimension(mm) | 14800x3300x3500 |
| Weight | About 18000kg |
Complete functions, suitable for diversified production lines, safe, efficient, and energy-saving.
Adopts 4-section heating method to precisely control temperature and ensure product quality.
Multi-station design allows loading, heating, and forming simultaneously, improving output.

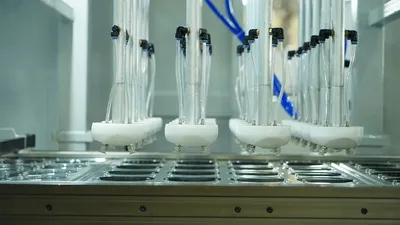

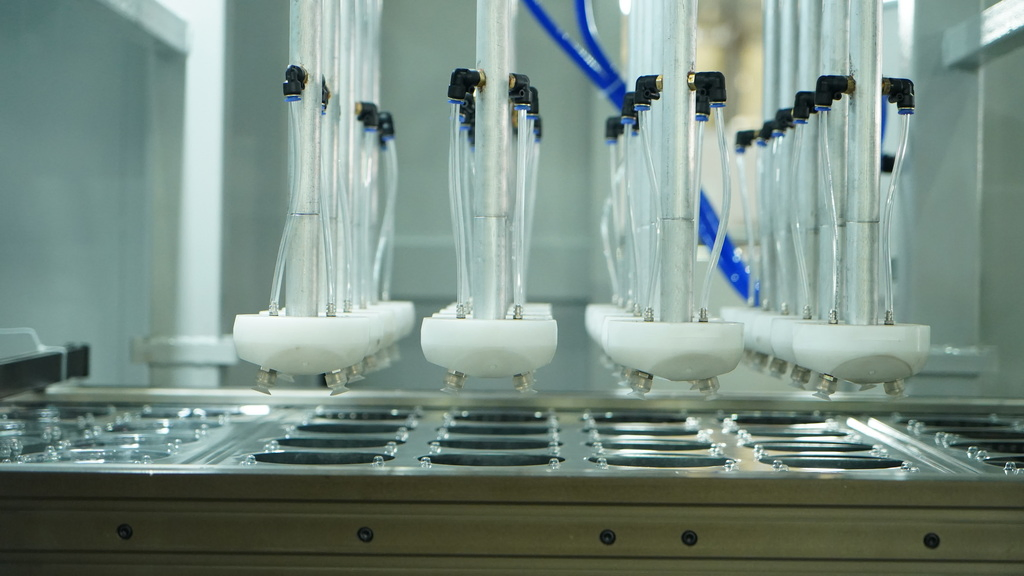

Integrated online labeling and automatic stacking solutions to reduce labor costs.

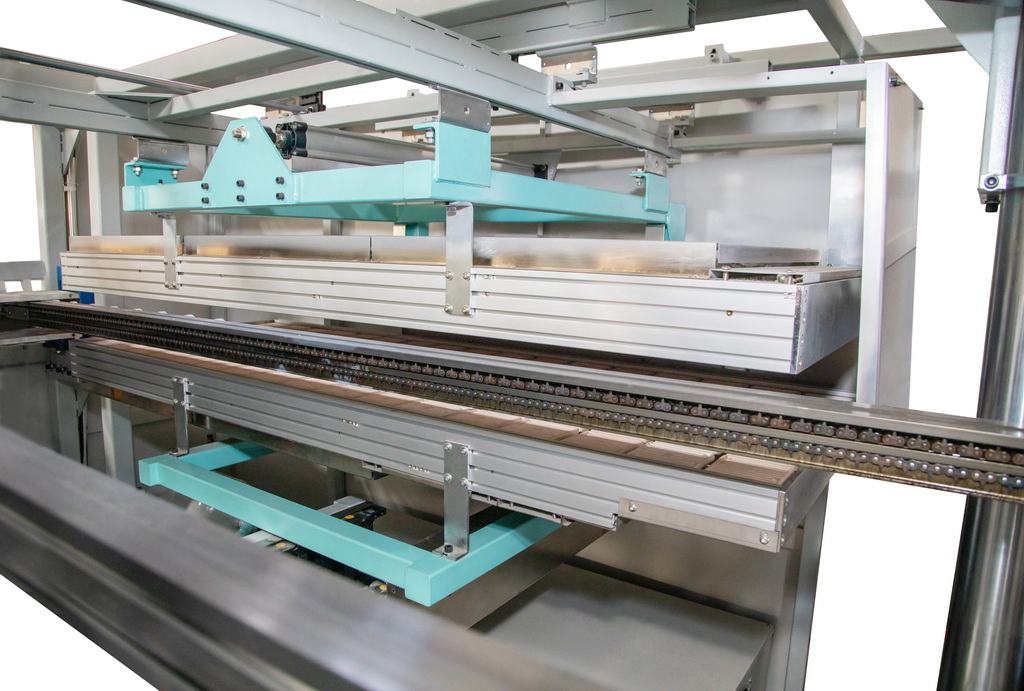

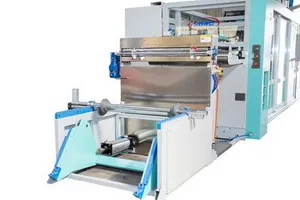

The unwinder is driven by a reduction motor with infrared sensors. The ceramic heating oven features 4-section heating for precise temperature management and energy reduction.

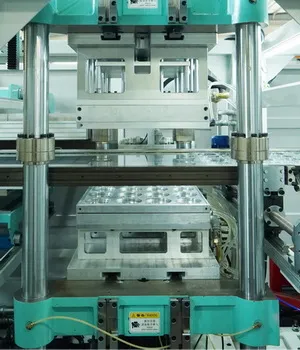

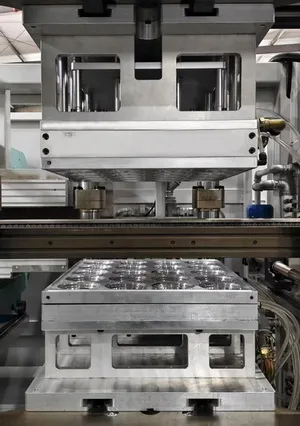

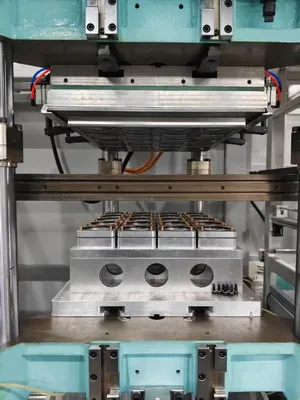

Mold table made of nodular cast iron with high precision. The forming station adopts Delta servo drives for high efficiency and start-up performance.
Our team consists of professional technical personnel with over 20 years of experience in the thermoforming industry. We offer complete solutions including technology, equipment, and molds. Our equipment adopts high-efficiency transmission systems and mature intelligent control systems, ensuring high standards of quality control and processing.

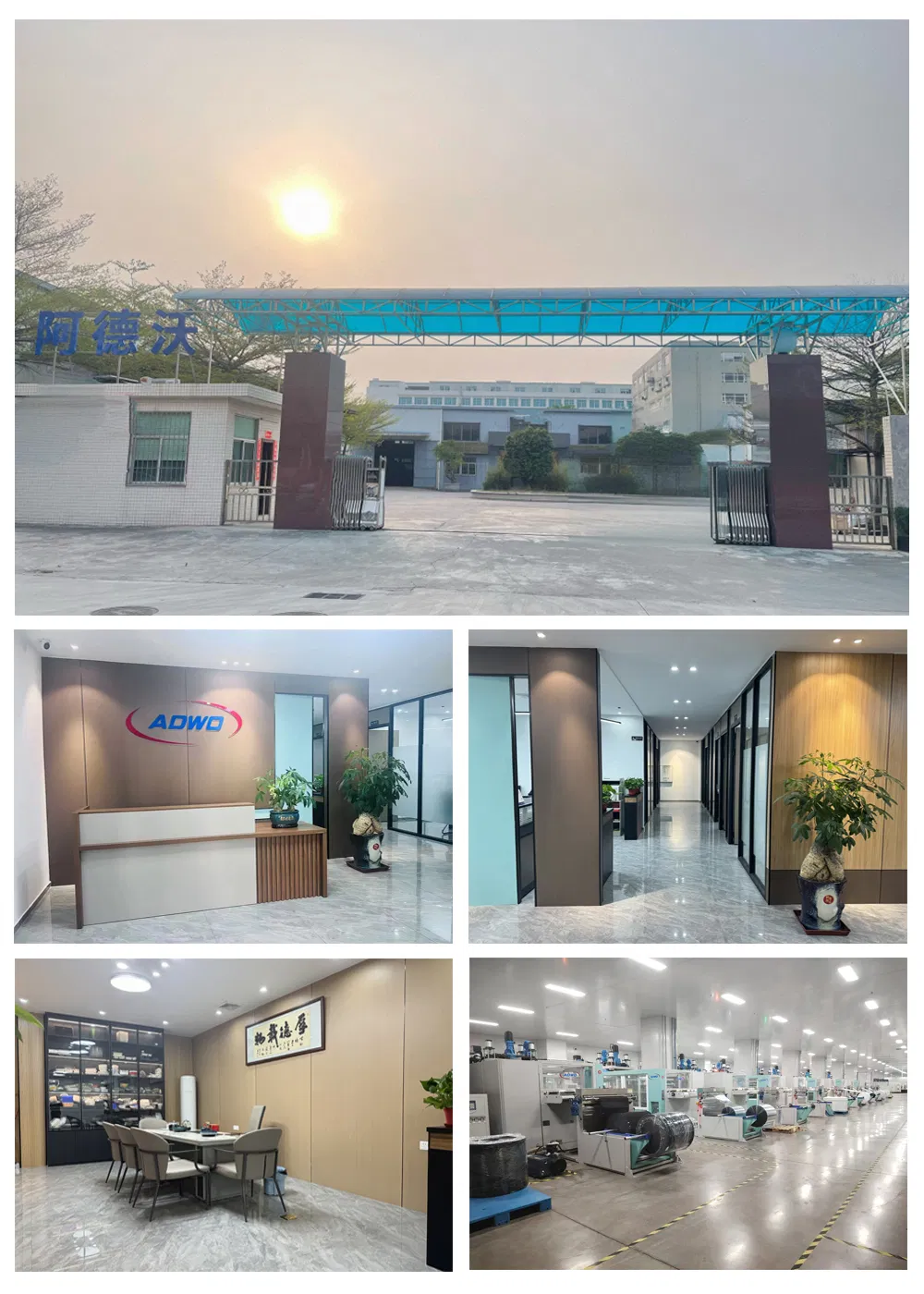

As a national high-tech enterprise, we integrate research, development, production, and sales. We focus on creating a service-oriented and innovation-oriented corporate culture. With years of technology accumulation, we provide high-quality thermoforming equipment to the global market.
