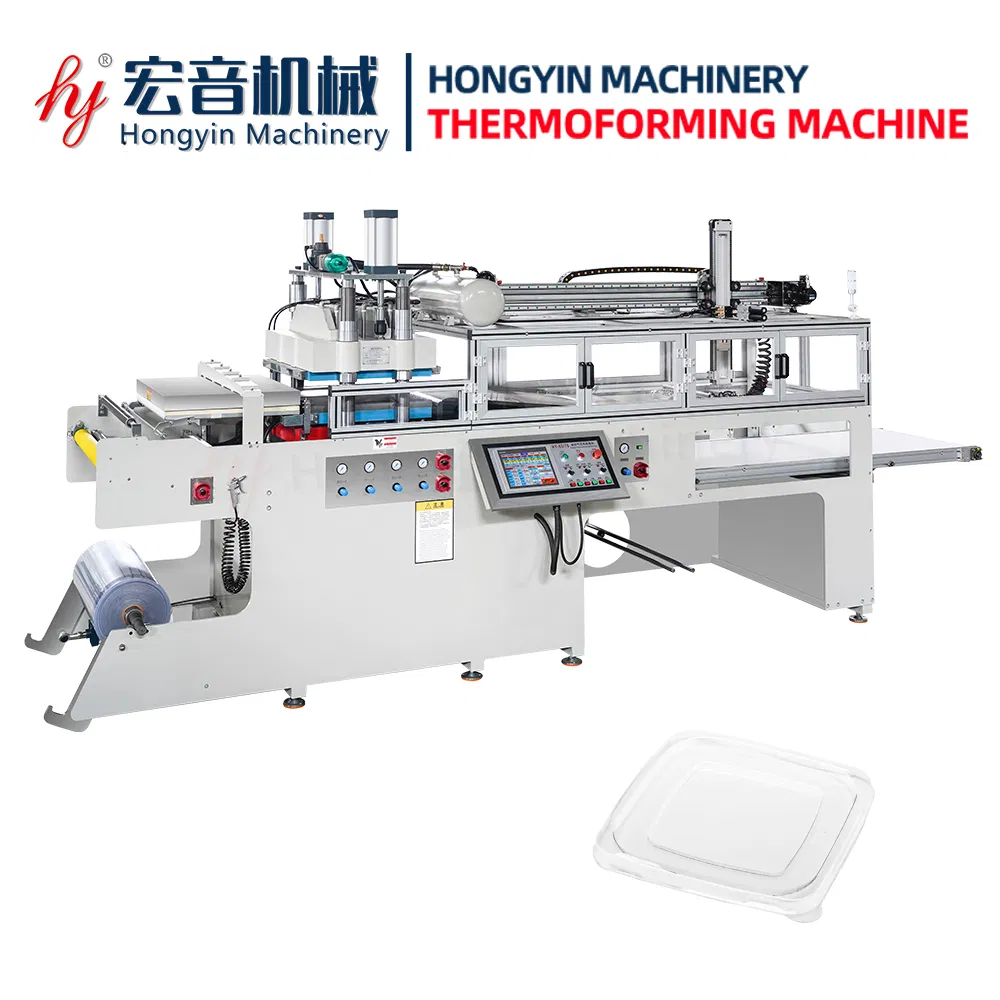

Automatic Roll-Fed Minimum 0.15mm Plastic Cup Lid Forming Machine Price
Automatic Roll-Fed Minimum 0.15mm Plastic Cup Lid Forming Machine Price
Automatic Roll-Fed Minimum 0.15mm Plastic Cup Lid Forming Machine Price
Automatic Roll-Fed Minimum 0.15mm Plastic Cup Lid Forming Machine Price
Automatic Roll-Fed Minimum 0.15mm Plastic Cup Lid Forming Machine Price
1 / 5
Automatic Roll-Fed Minimum 0.15mm Plastic Cup Lid Forming Machine Price
Automatic Roll-Fed Minimum 0.15mm Plastic Cup Lid Forming Machine Price
Automatic Roll-Fed Minimum 0.15mm Plastic Cup Lid Forming Machine Price
Automatic Roll-Fed Minimum 0.15mm Plastic Cup Lid Forming Machine Price
Automatic Roll-Fed Minimum 0.15mm Plastic Cup Lid Forming Machine Price

Automatic Roll-Fed Minimum 0.15mm Plastic Cup Lid Forming Machine Price

After-sales Service: Video Technical Support, Free Spare Parts
Warranty: 1 Year
Certification: CE, ISO
Send Inquiry

Product Description

📋 Basic Information
Model NO.
HY-54/76
Column number
Four Column
Molding Method
Pressing
Automatic Grade
Automatic
Max. Forming Area
540*760 mm
Thickness of Sheet
0.15-1.0 mm
Max. Forming Depth
120 mm
Machine Dimension
5000*1750*2500 mm
Raw Material
BOPS, PVC, Pet, HIPS, PS, PP
Processing Type
Plastic Thermoforming Machine
🚀 Product Description

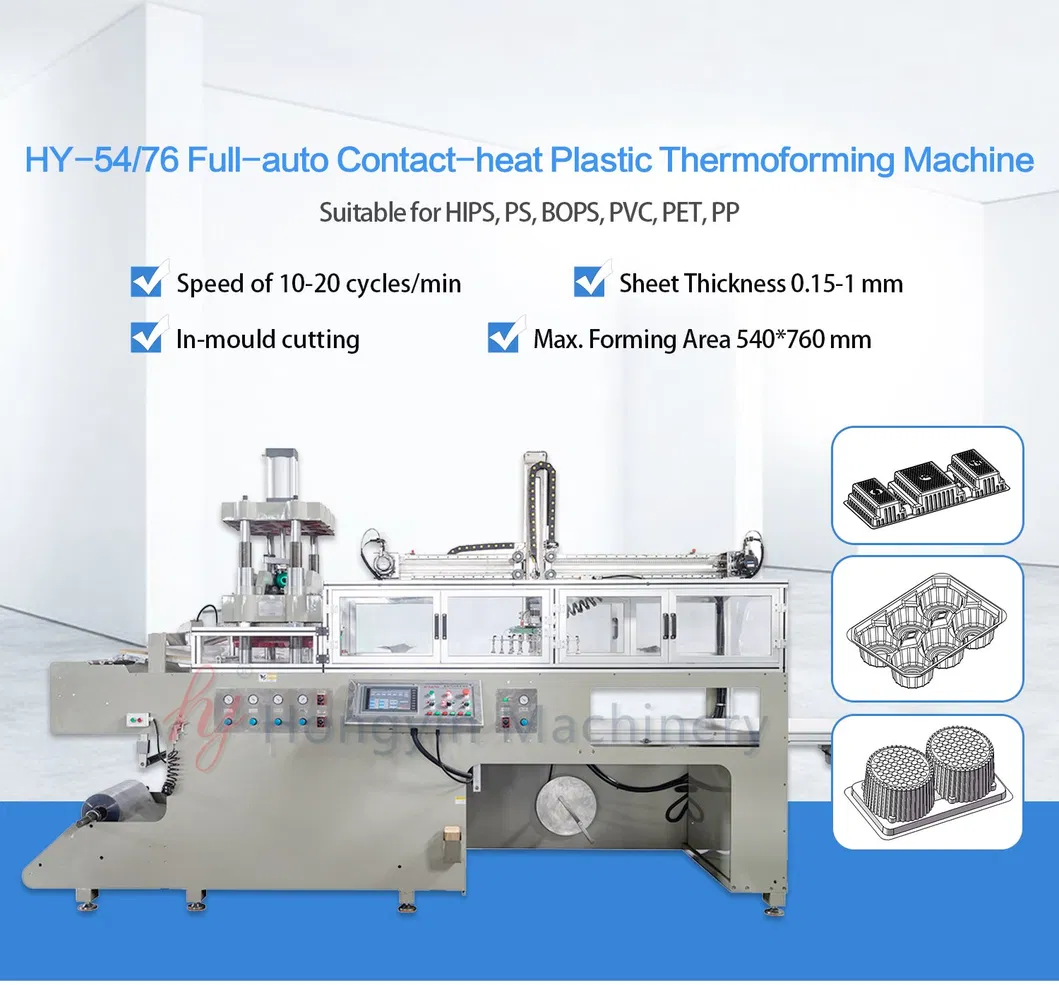

Plastic Cup Lid Forming Machine

🌟 Application Range

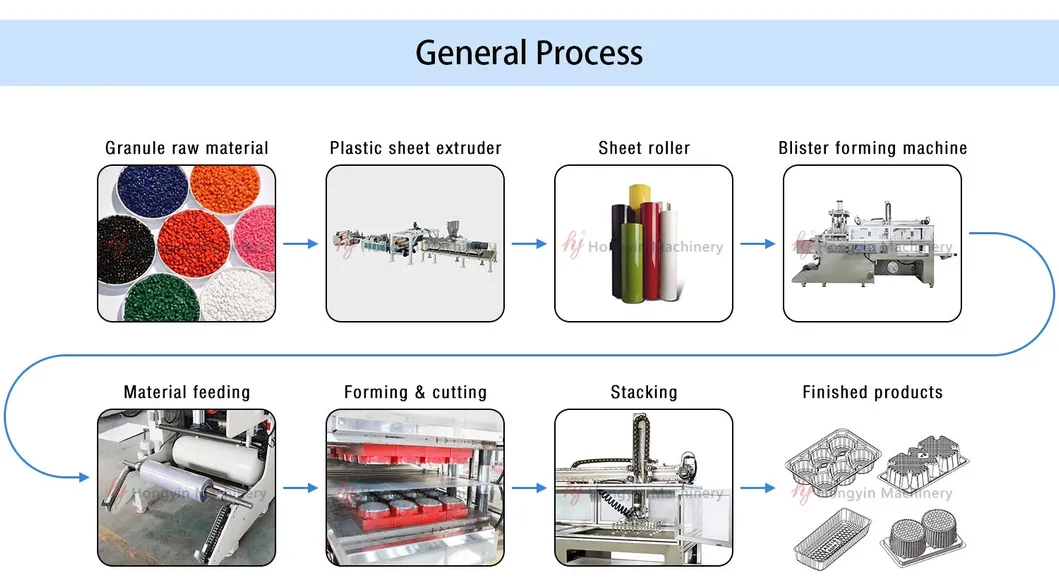

HY-54/76 automatic forming machine is suitable to form PP, BOPS, HIPS, PS, PVC, and PET plastic sheets, etc. It can produce various boxes, dishes, trays, bowls, and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, and oral liquids trays.

Application 1

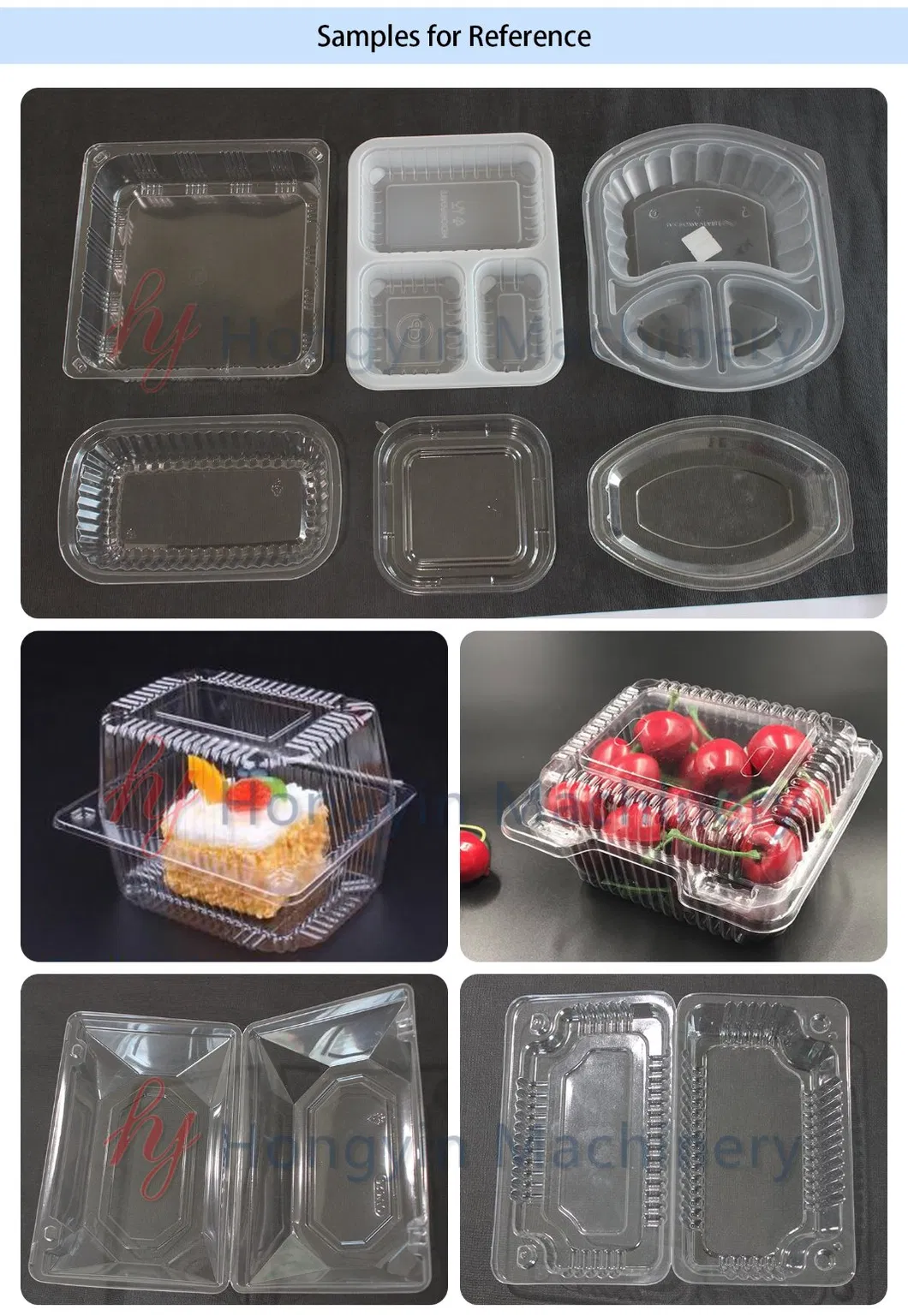

Application 2
Application 3

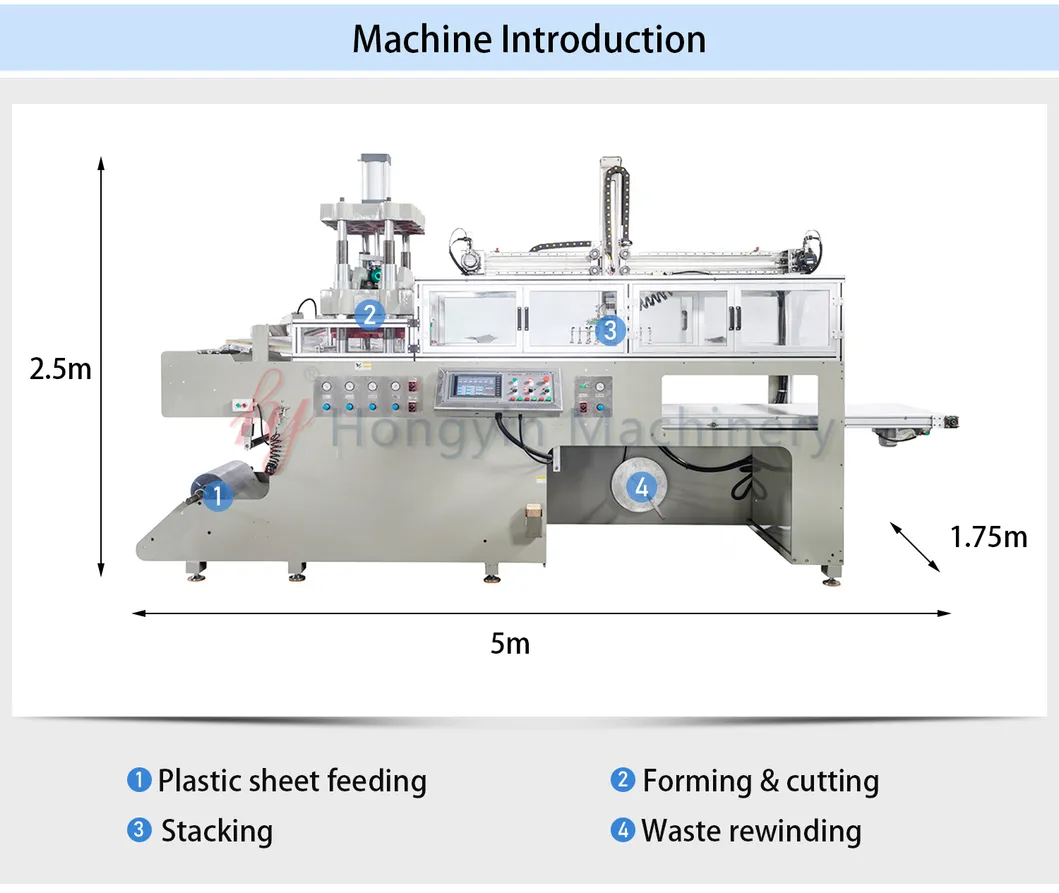

⚙️ Machine Introduction

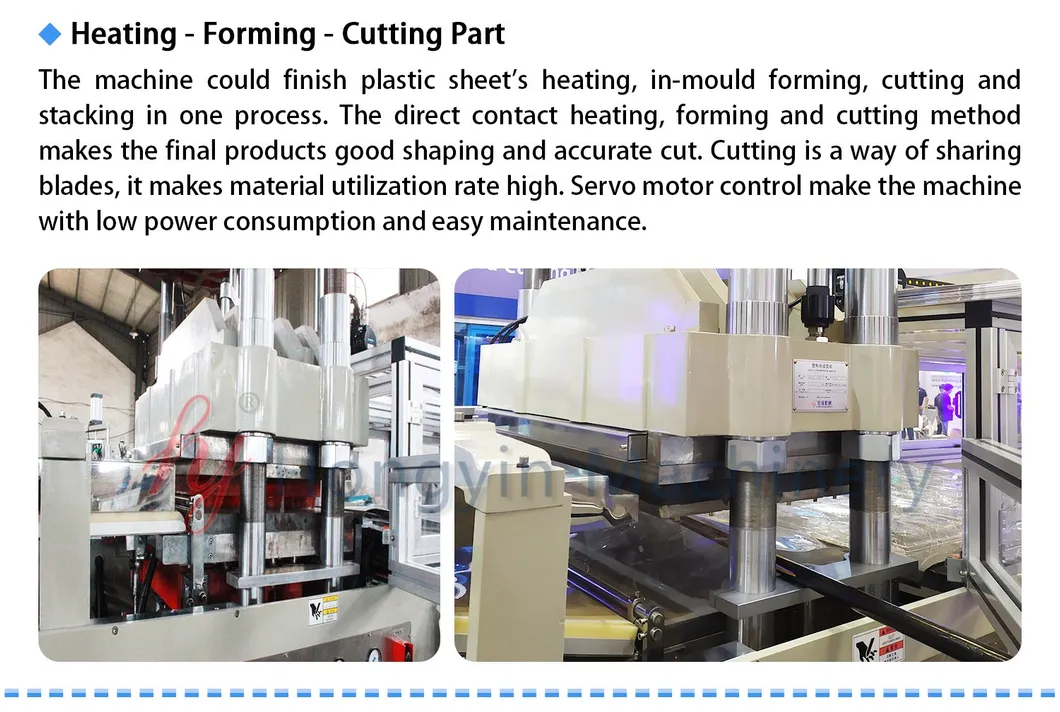

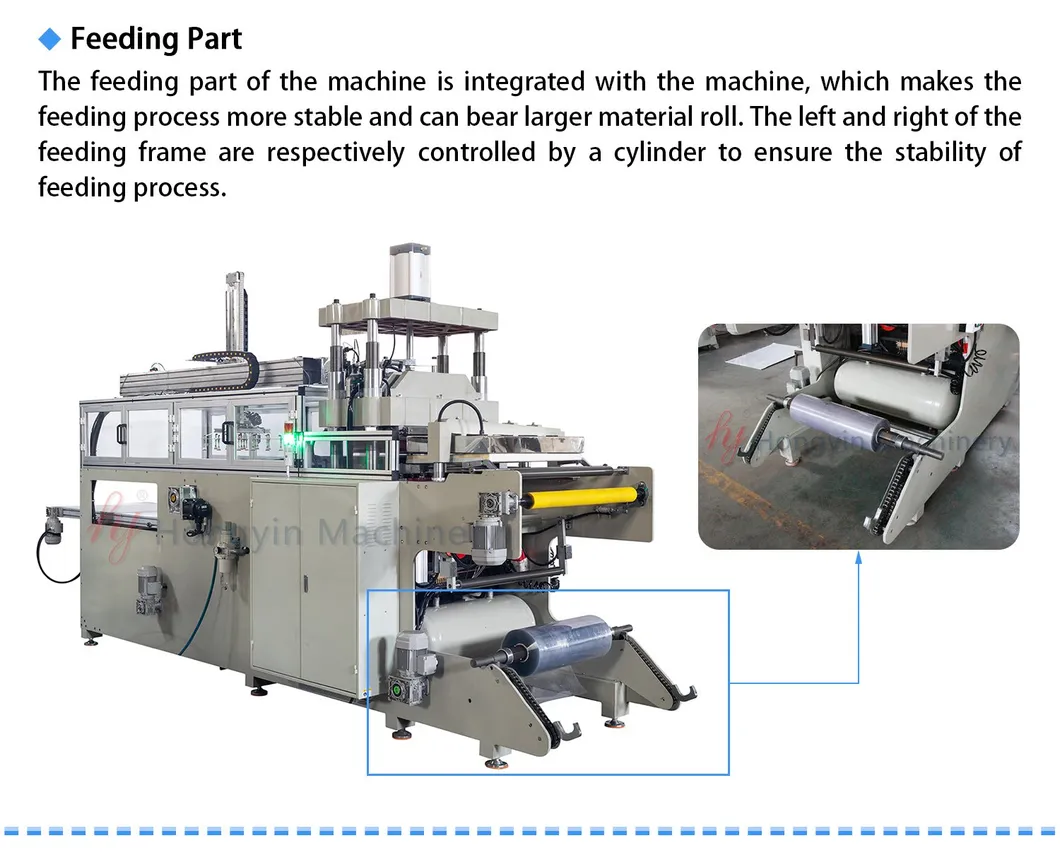

This plastic thermoforming machine is a combination of mechanical, electrical, and pneumatic components. The whole system is controlled by a micro PLC with a user-friendly interface. It integrates material feeding, heating, forming, cutting, and stacking counting into a single seamless process.

Available operation models: Manual, Semi-automatic, and Automatic.

📊 Technical Specifications
Forming Area 540 * 760mm
Forming Depth 120 mm
Sheet Thickness Range 0.15-1.0 mm
Sheet Roller Diameter 710mm
Air Pressure 0.7 Mpa
Water Consumption 15 Liters/min (15-20ºC)
Air Consumption 2400 Liters/min
Production Speed 600-1200 recycles/hr.
Voltage Three-phase, AC380V±15V, 50HZ
Heating Plate Power 18 kw
Dimensions (L×W×H) 5000*1750*2500 mm

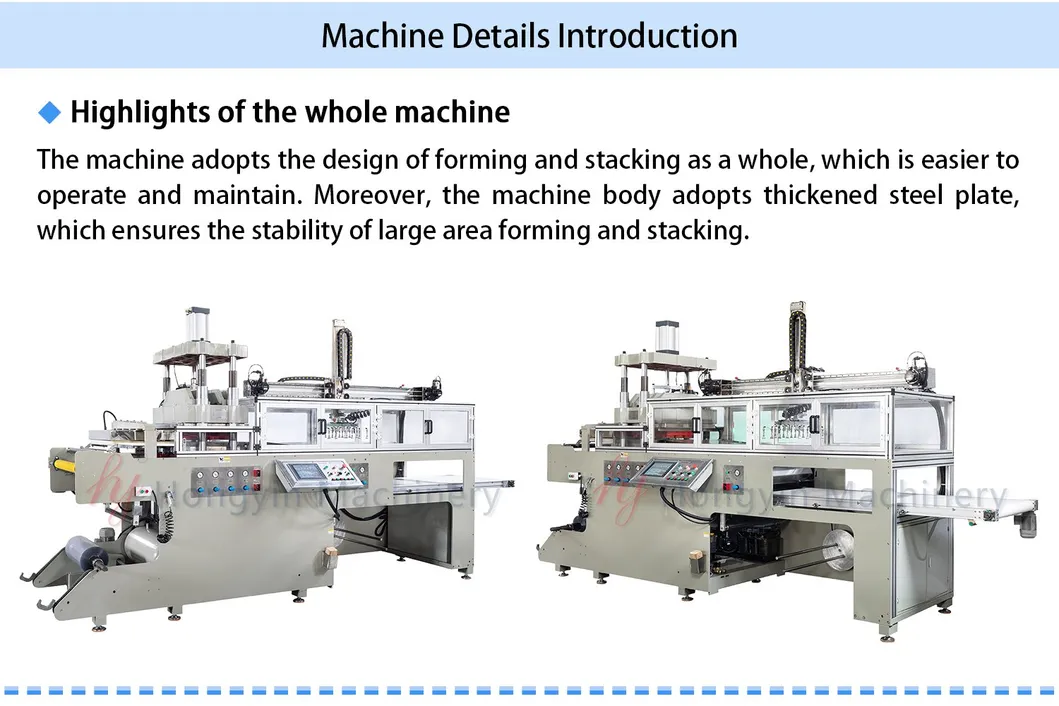

Machine Detail 1
Machine Detail 2

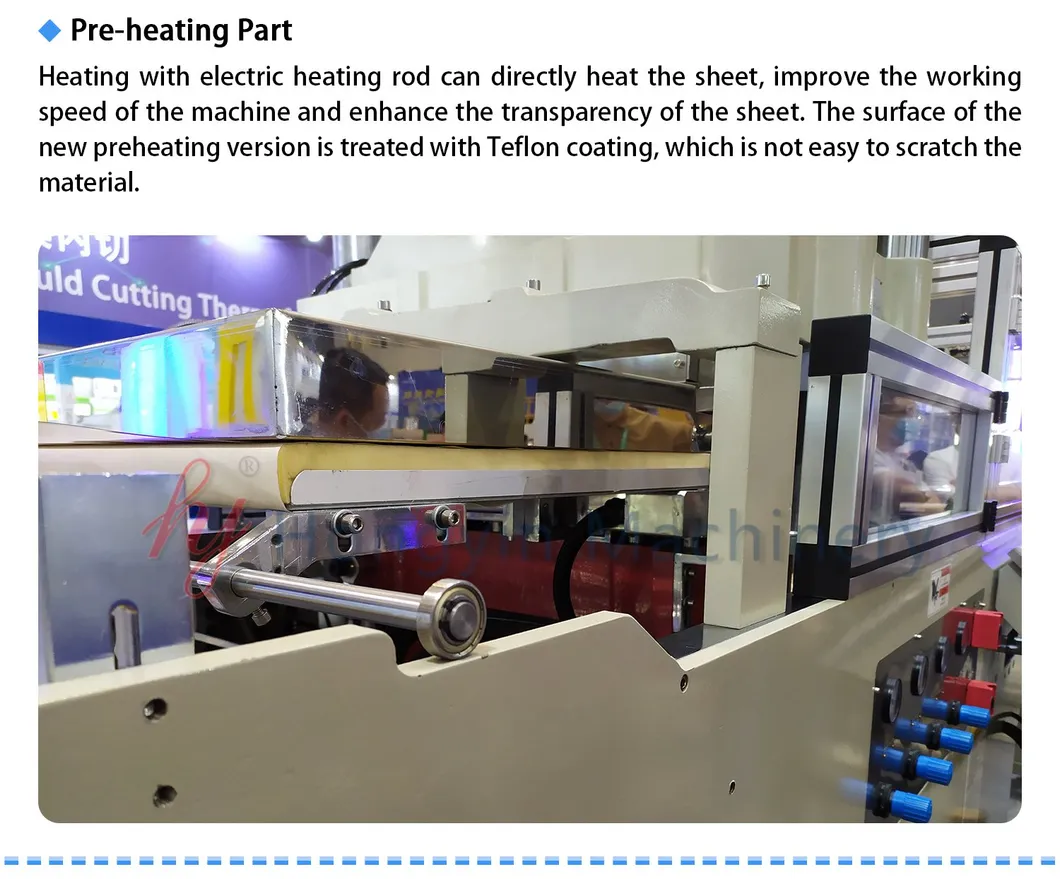

Machine Detail 3
Machine Detail 4

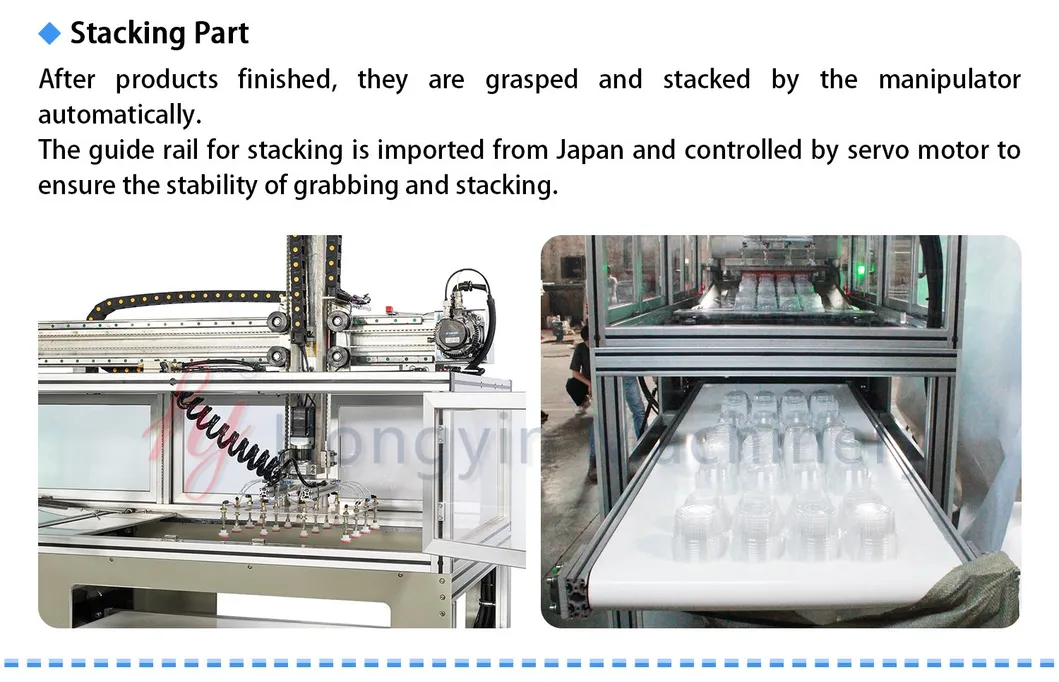

Machine Detail 5

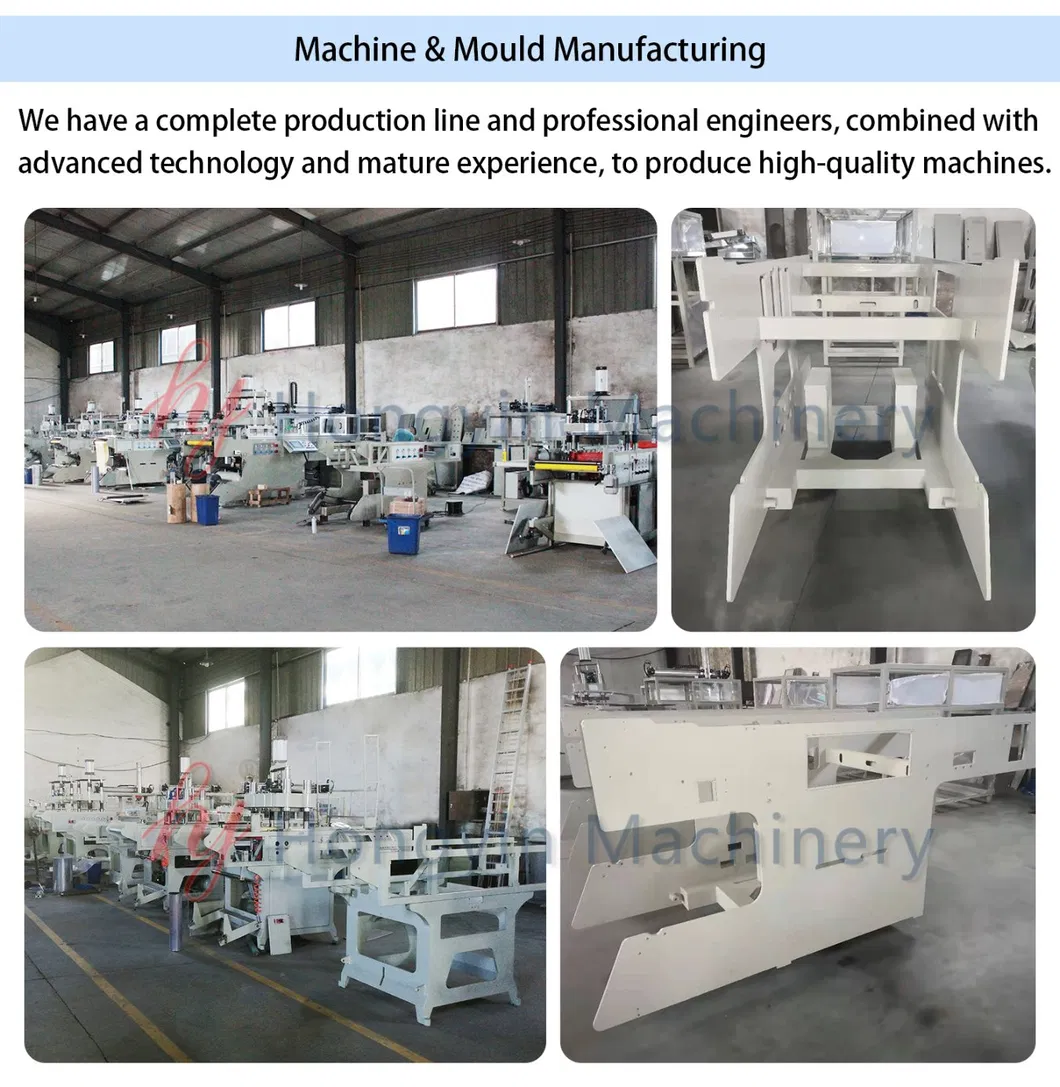

Machine Detail 6

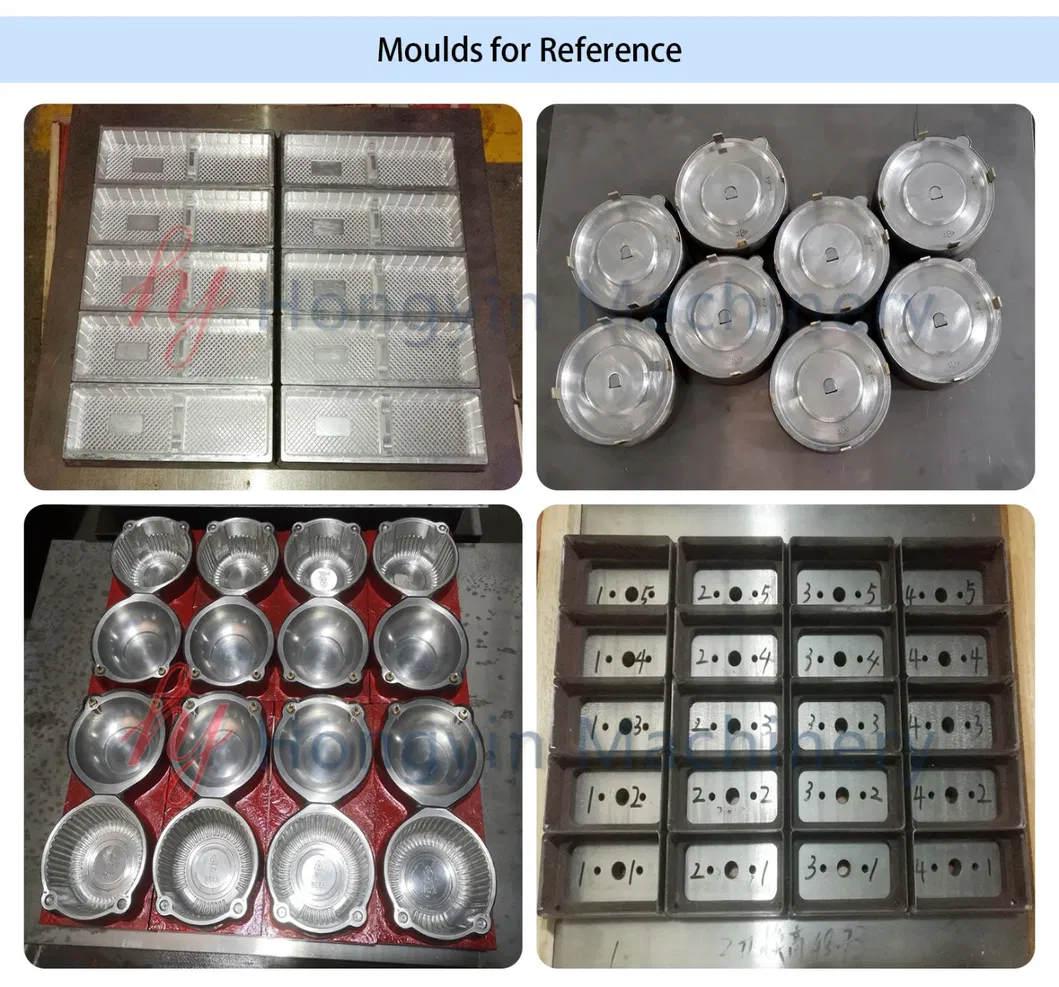

Machine Detail 7
Machine Detail 8
🛠️ Our Services

Pre-Purchase Support

Our efficient working team provides professional suggestions. If you are new to the printing and packing area, share your product samples for expert guidance on the complete workflow.

Installation & Training

We assign technicians to coordinate installation, commissioning, and staff training. This ensures your team can operate the machinery safely and efficiently from day one.

Warranty Policy

12 months limited warranty starting from the date of machine arrival, excluding wear parts. Support is provided for technical maintenance and part replacement during this period.

❓ Frequently Asked Questions
What materials can the HY-54/76 machine process?
The machine is designed to process a variety of plastic sheets including PP, BOPS, HIPS, PS, PVC, and PET.
What is the maximum forming depth of this model?
The HY-54/76 can achieve a maximum forming depth of 120 mm, suitable for various containers and lids.
Is the machine fully automatic?
Yes, it features a fully automatic grade and includes material feeding, heating, forming, cutting, and stacking in one process.
What is the typical production speed?
The production speed ranges from 600 to 1200 recycles per hour, depending on the material and product complexity.
What kind of control system does the machine use?
It utilizes a micro PLC control system with a human-interface for easy operation and monitoring.
What products can be produced with this equipment?
It is ideal for manufacturing food boxes, cake boxes, supermarket trays, medical oral liquid trays, and various plastic lids.
