| Model NO. | TTF-820AF |
|---|---|
| Certification | CE, ISO |
| Column number | Four Column |
| Molding Method | Pultrusion |
| Automatic Grade | Automatic |
| Suitable Material | PP/PS/Pet/PVC/HIPS/Corn Starch |
| Machine Name | Plastic Thermoforming Machine |
| Drive System | Servo Motor Drive |
| Production Capacity | 10set/Month |
| Model | TTF-820AF | TTF-700AF | TTF-520AF |
| Mould Size (Max.) | 820*650mm | 700*550 mm | 520*400mm |
| Forming Depth (Max.) | 140mm | 120mm | 110mm |
| Sheet thickness | 0.2-1.6mm | ||
| Forming Speed (Max.) | 30times/min | ||
| Rated power | 246Kw | 211Kw | 136Kw |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | ||

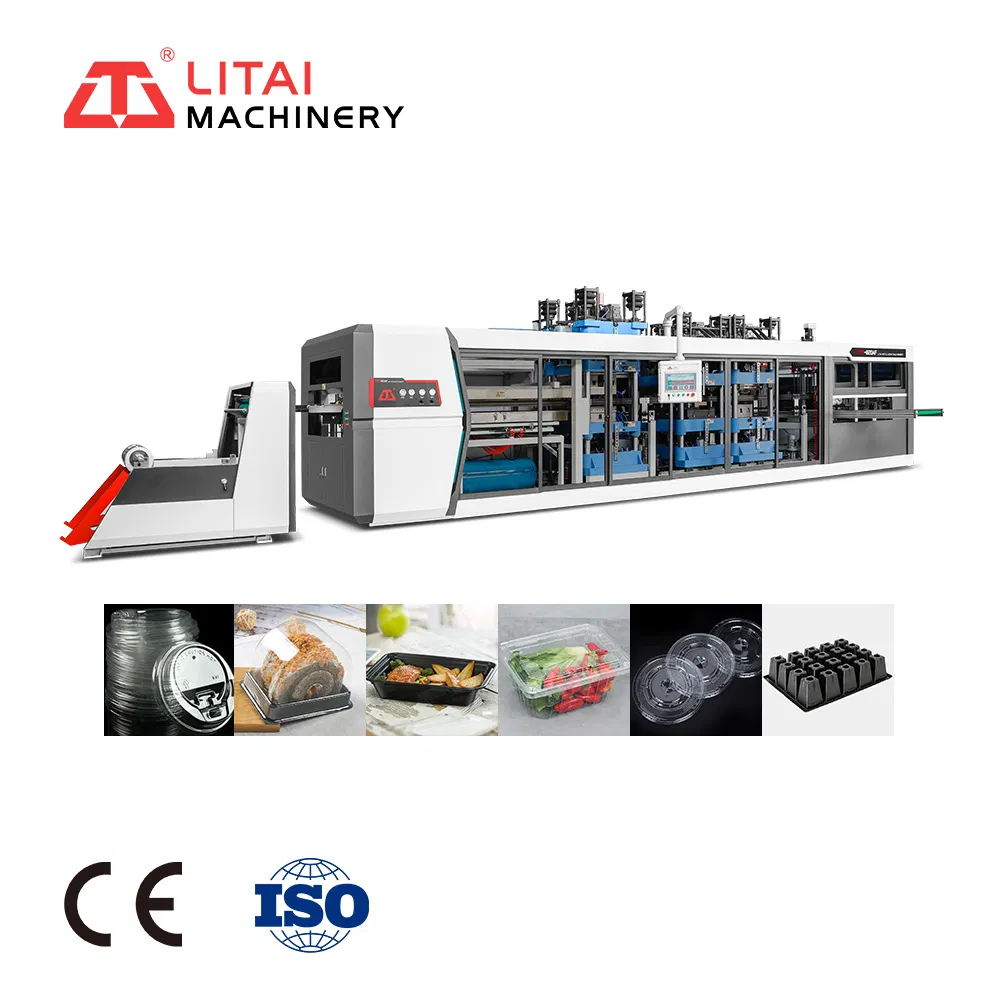

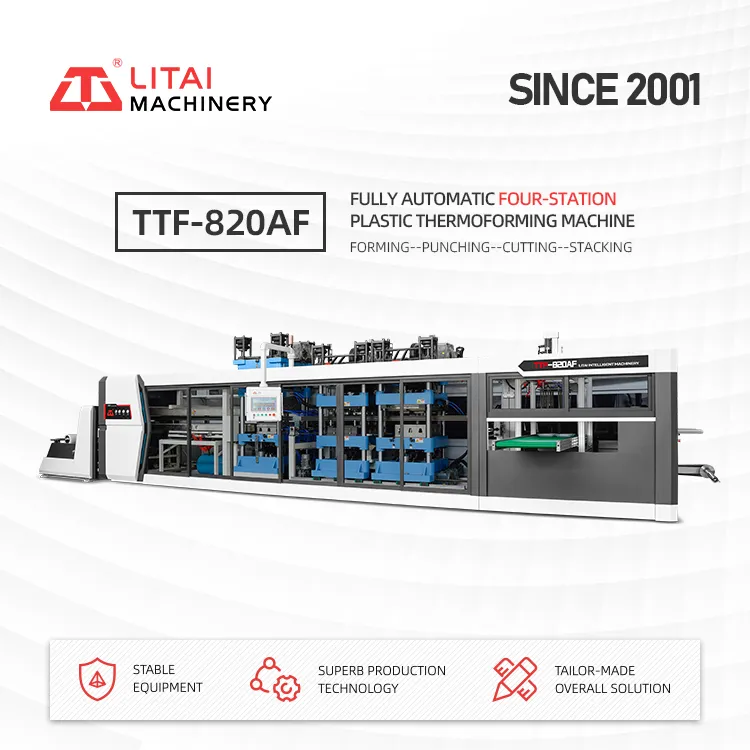

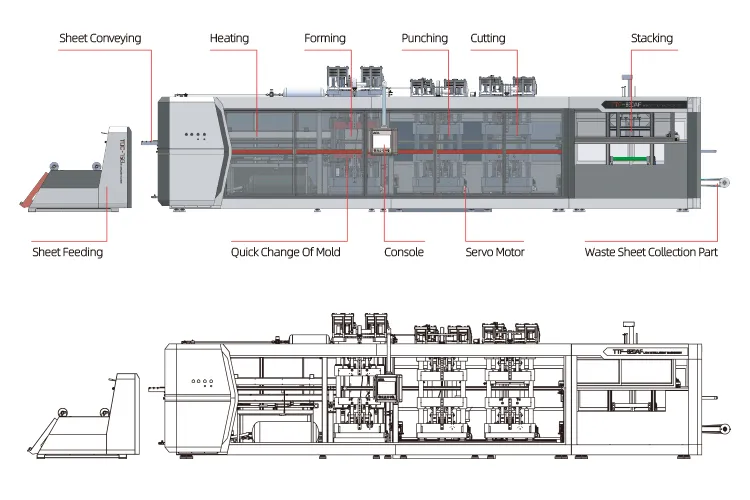

TTF series multi-step high-speed thermoforming machine is our latest developed product, adopting big forming area and high efficiency drive. It is suitable for most plastic products as requested. The machine uses positive and negative pressure integrated thermoforming with a servo motor driven system.

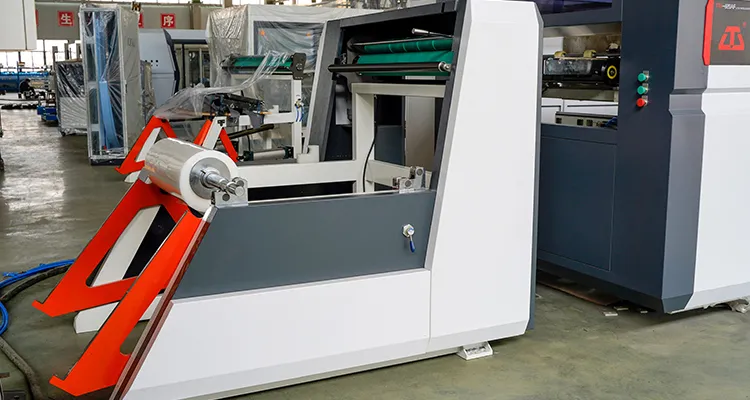

Automatic loading lowers human resource costs. Features double stations and big diameter to reduce the frequency of changing sheet coils.

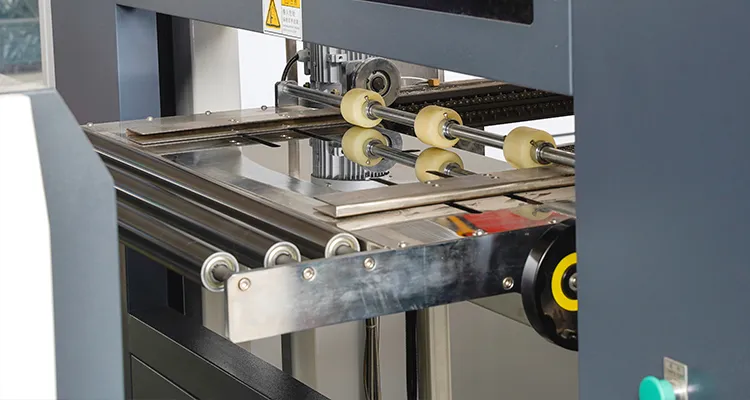

Aluminum guide rails with cooled water. Servo motor driven for accurate and efficient sheet conveying.

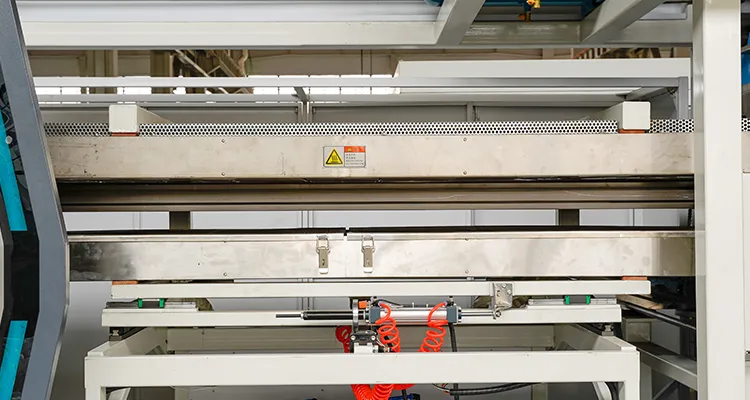

Adopts Elstein heating tiles from Germany for excellent insulation. Divided into 44 separate temperature control units for precision.

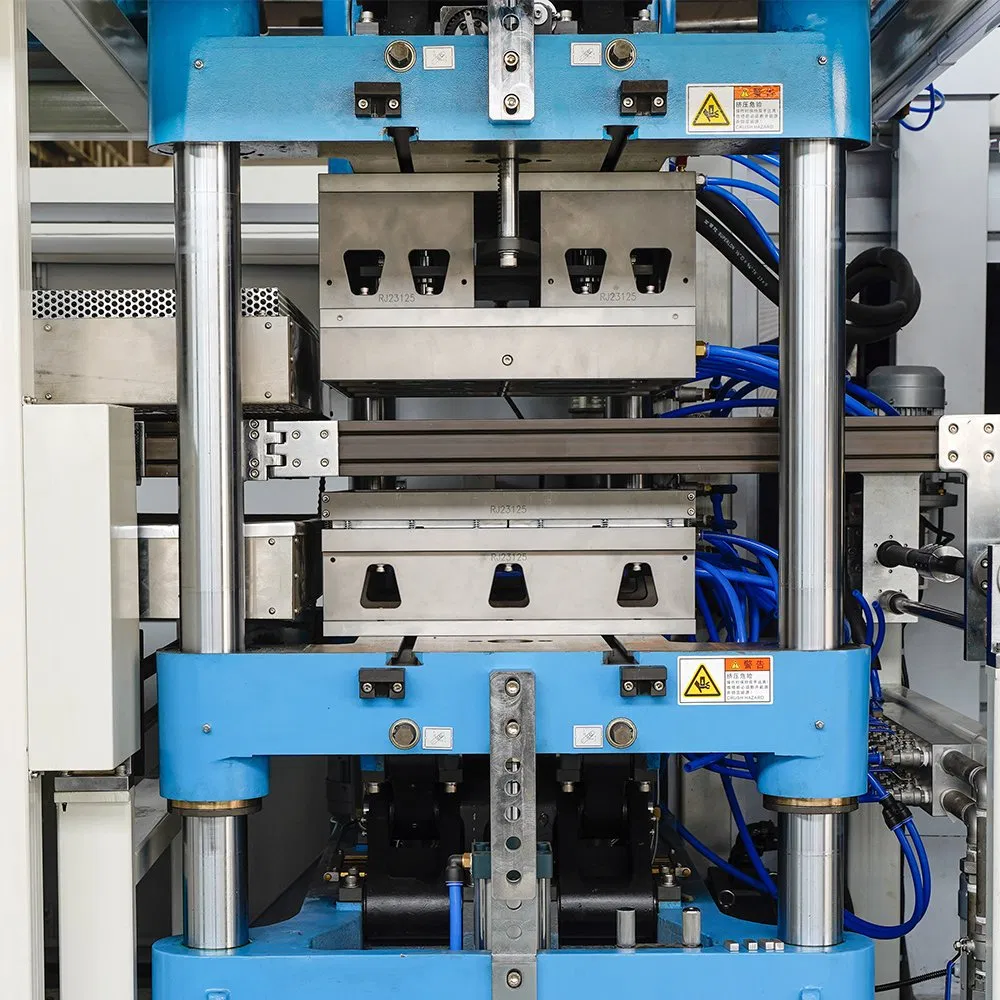

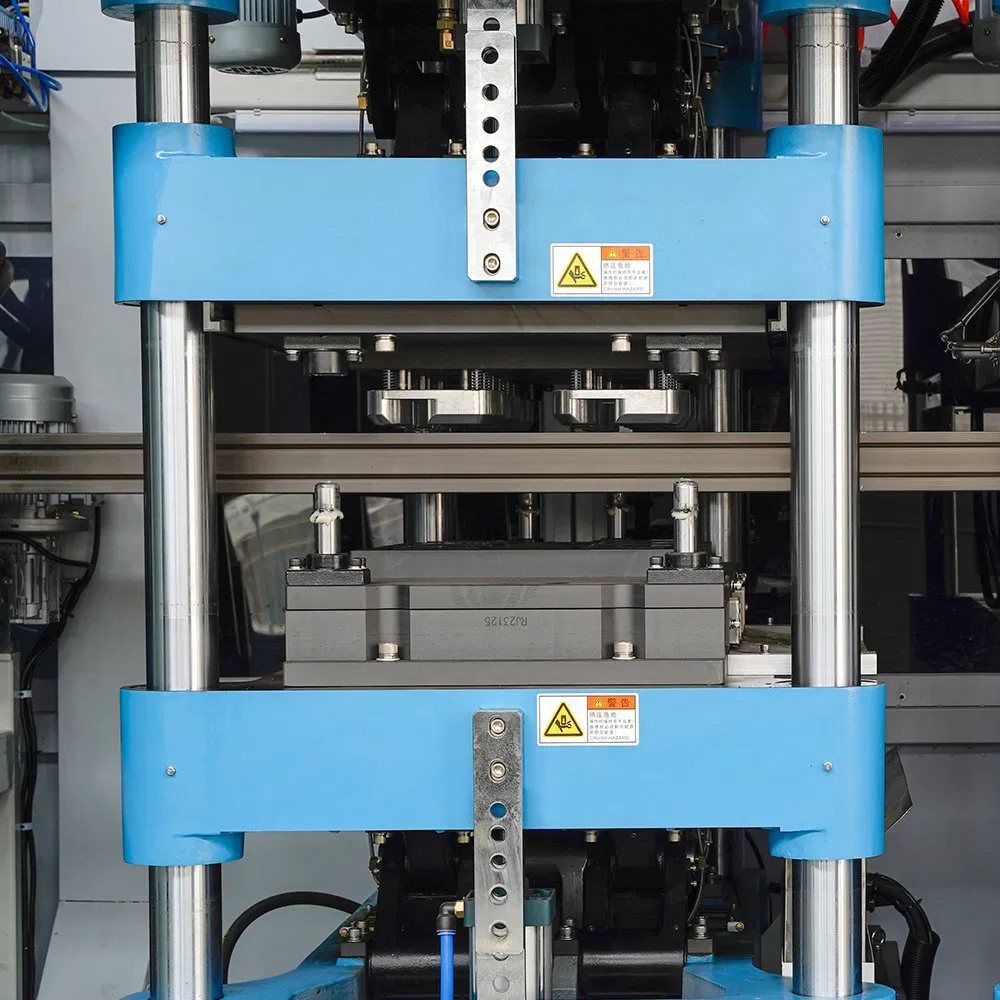

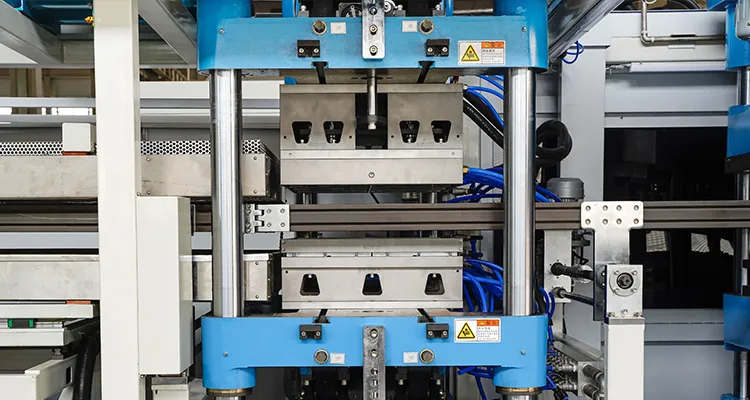

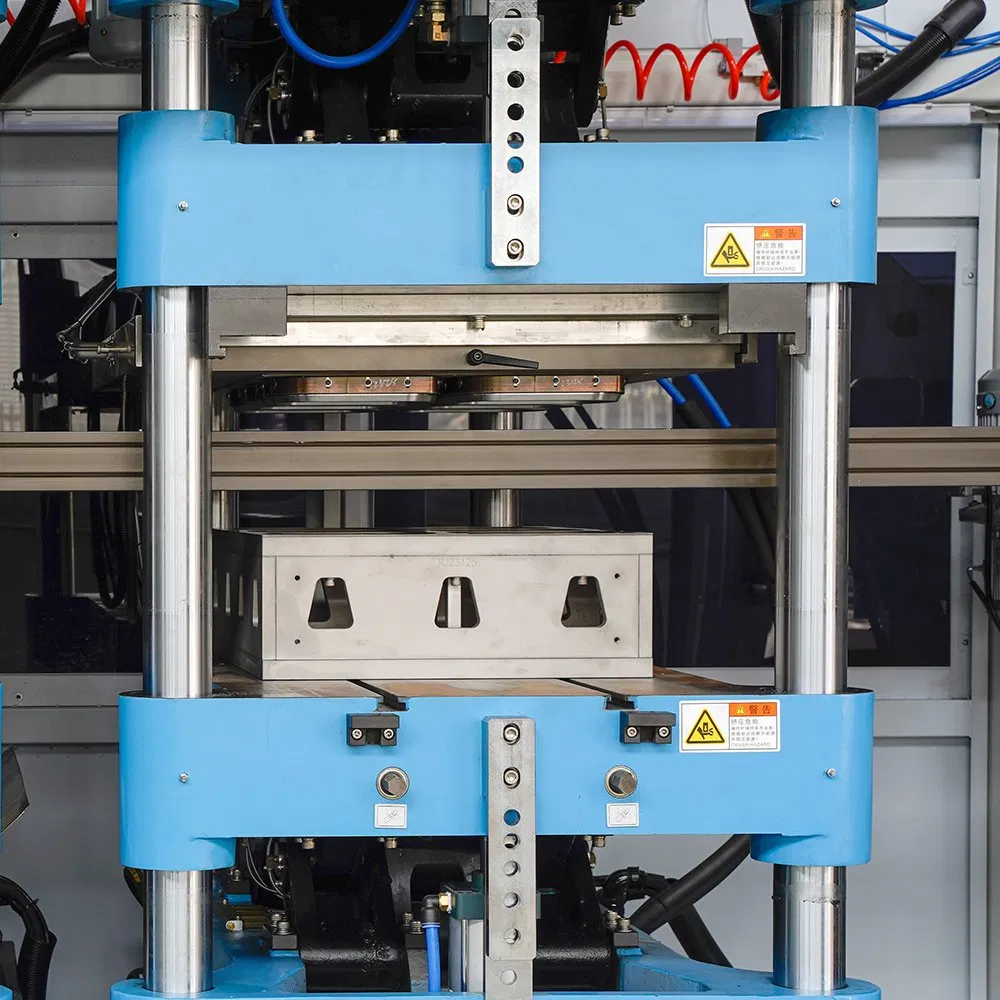

Four-pillar structure for stability. Combination of positive and negative pressure with assisting stretching by nylon plugs.

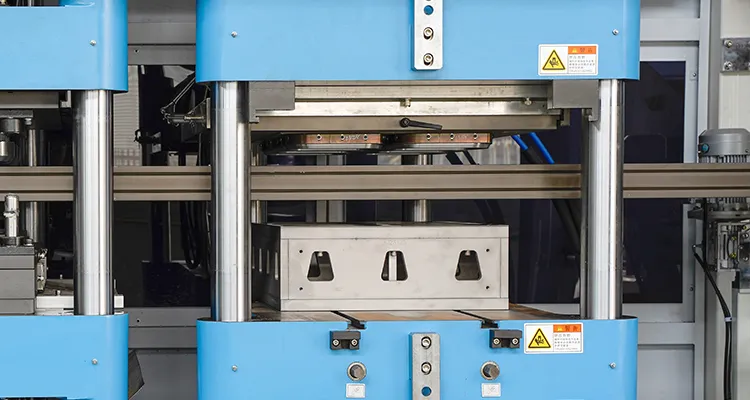

High-power servo drive ensures powerful force. The workstation adjusts up/down and left/right automatically with anti-collision functions.

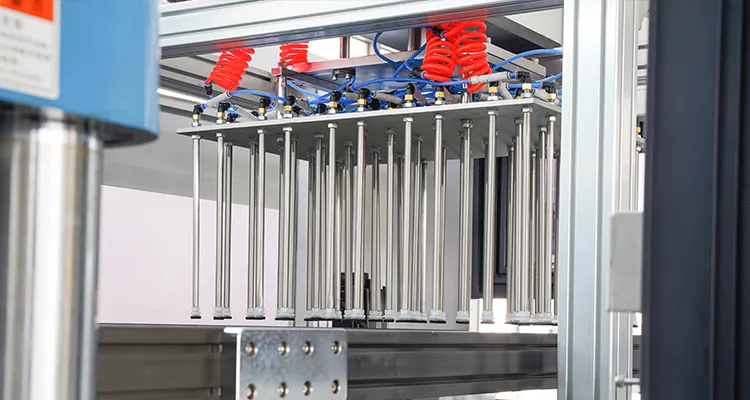

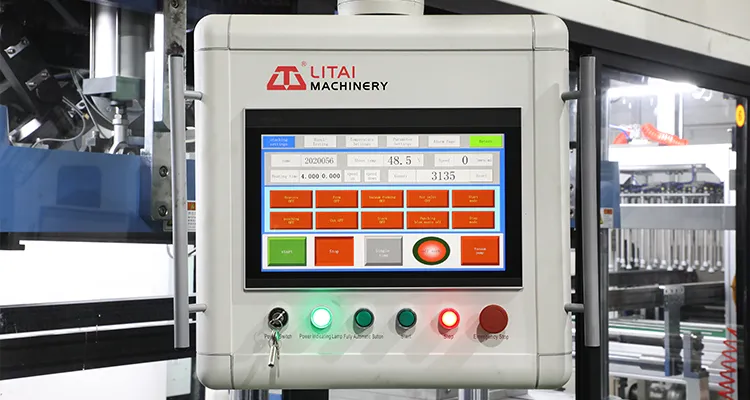

Servo driven push-down stacking and a user-friendly touch screen PLC for data visualization and easy control.
