Automatic Sheet Former Vacuum Forming Thermoforming Machine for Plastic ABS PVC Sign Shell Prop Cosplay
Automatic Sheet Former Vacuum Forming Thermoforming Machine for Plastic ABS PVC Sign Shell Prop Cosplay
Automatic Sheet Former Vacuum Forming Thermoforming Machine for Plastic ABS PVC Sign Shell Prop Cosplay
Automatic Sheet Former Vacuum Forming Thermoforming Machine for Plastic ABS PVC Sign Shell Prop Cosplay
Automatic Sheet Former Vacuum Forming Thermoforming Machine for Plastic ABS PVC Sign Shell Prop Cosplay
1 / 5
Automatic Sheet Former Vacuum Forming Thermoforming Machine for Plastic ABS PVC Sign Shell Prop Cosplay
Automatic Sheet Former Vacuum Forming Thermoforming Machine for Plastic ABS PVC Sign Shell Prop Cosplay
Automatic Sheet Former Vacuum Forming Thermoforming Machine for Plastic ABS PVC Sign Shell Prop Cosplay
Automatic Sheet Former Vacuum Forming Thermoforming Machine for Plastic ABS PVC Sign Shell Prop Cosplay
Automatic Sheet Former Vacuum Forming Thermoforming Machine for Plastic ABS PVC Sign Shell Prop Cosplay

Automatic Sheet Former Vacuum Forming Thermoforming Machine for Plastic ABS PVC Sign Shell Prop Cosplay

Customization: Available
Warranty: 1 Years
Automation: Automatic
Send Inquiry

Product Description

i

Basic Information

Model NO.:BSX-1200
Raw Material:Acrylic, PU Leather, ABS, PVC, Pet etc
Shaping Mode:Vacuum Machine for Climbing Holds
Application:Industrial Manufacture
Driven Type:Electric
Certification:CE, SGS
Working Area:1200*1200mm
Forming Area:1040*1040mm
Max Forming Height:300mm
Total Power:11kw
Vacuum Pump:63m³/H
Working Voltage:380V/50Hz/3p or Customized

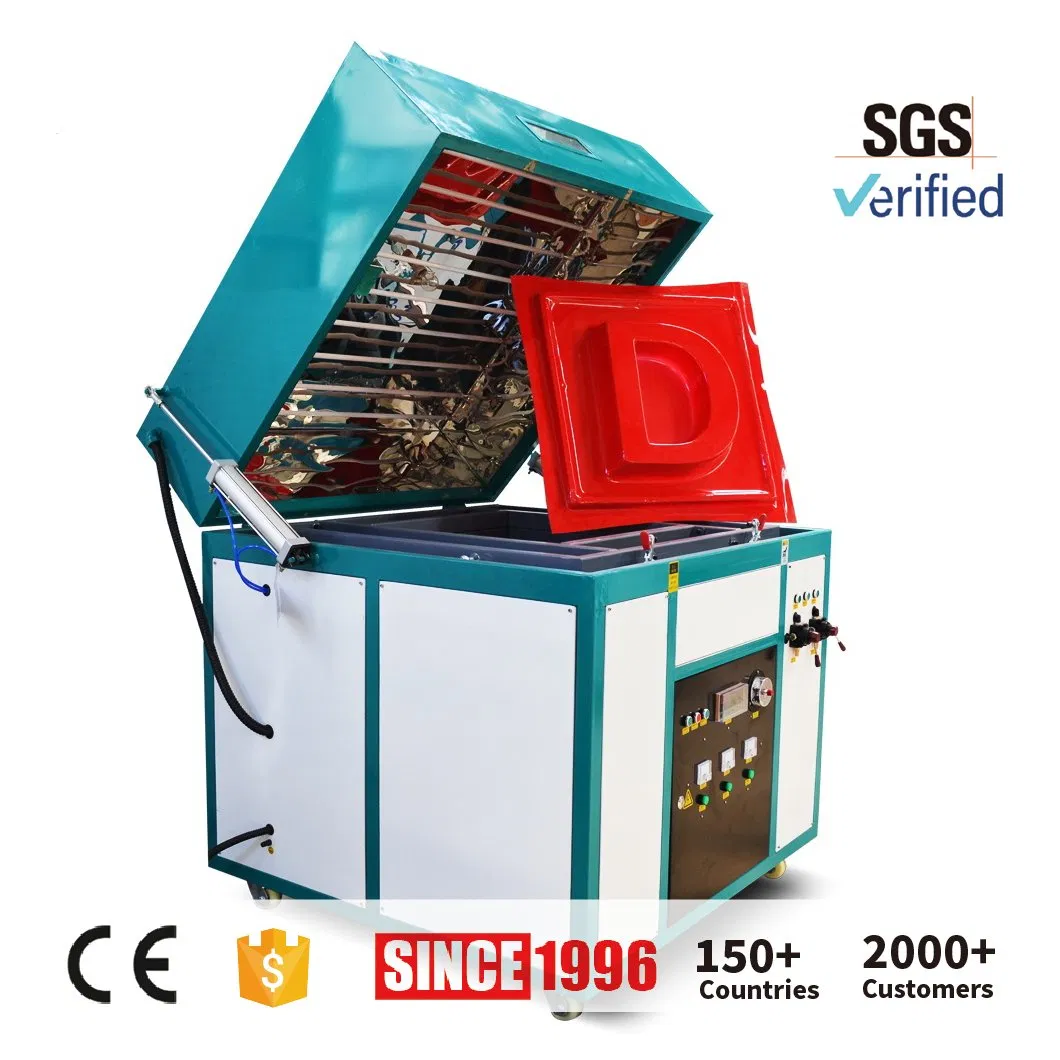

Vacuum Forming Machine

Deepness Vacuum Forming Machine for Advertising Signs and Light Box

Specialized for creating high-quality plastic ABS, PVC shells, props, and cosplay elements through efficient thermoforming processes.

★

Key Features

Detail 1
Detail 2

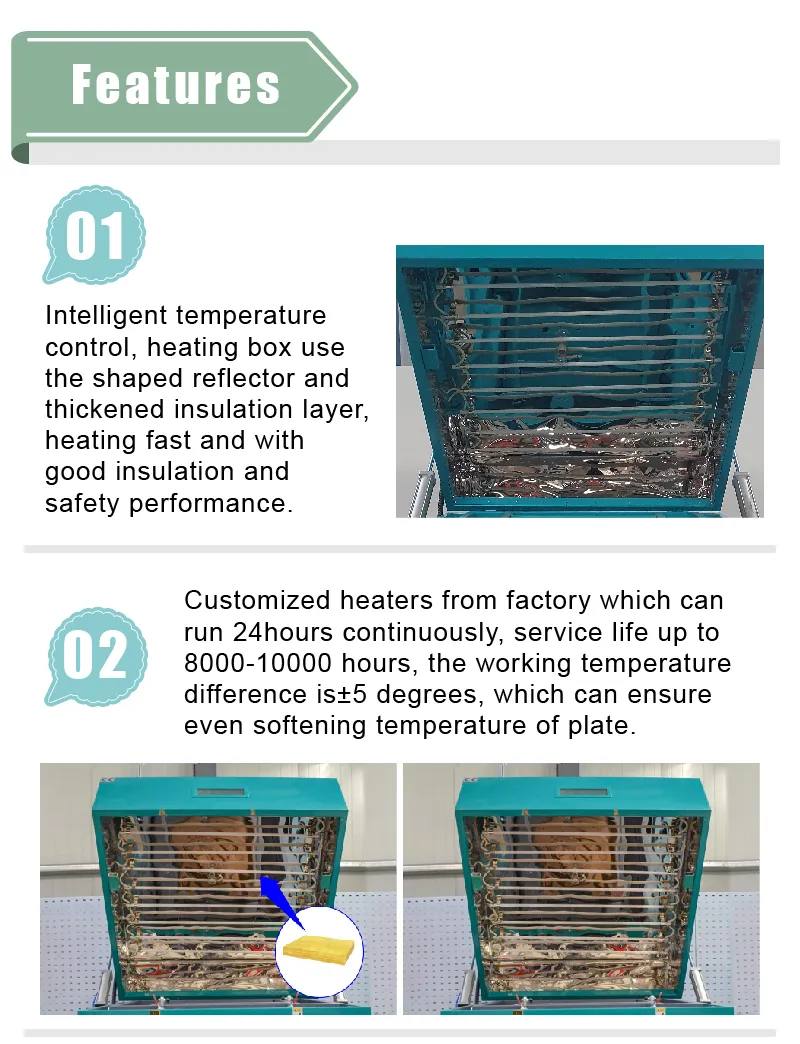

  • Intelligent Control: Heating box with shaped reflectors and thickened insulation for fast heating and safety.
  • Long-life Heaters: Industrial heaters capable of 24h continuous operation (8,000-10,000 hours life).

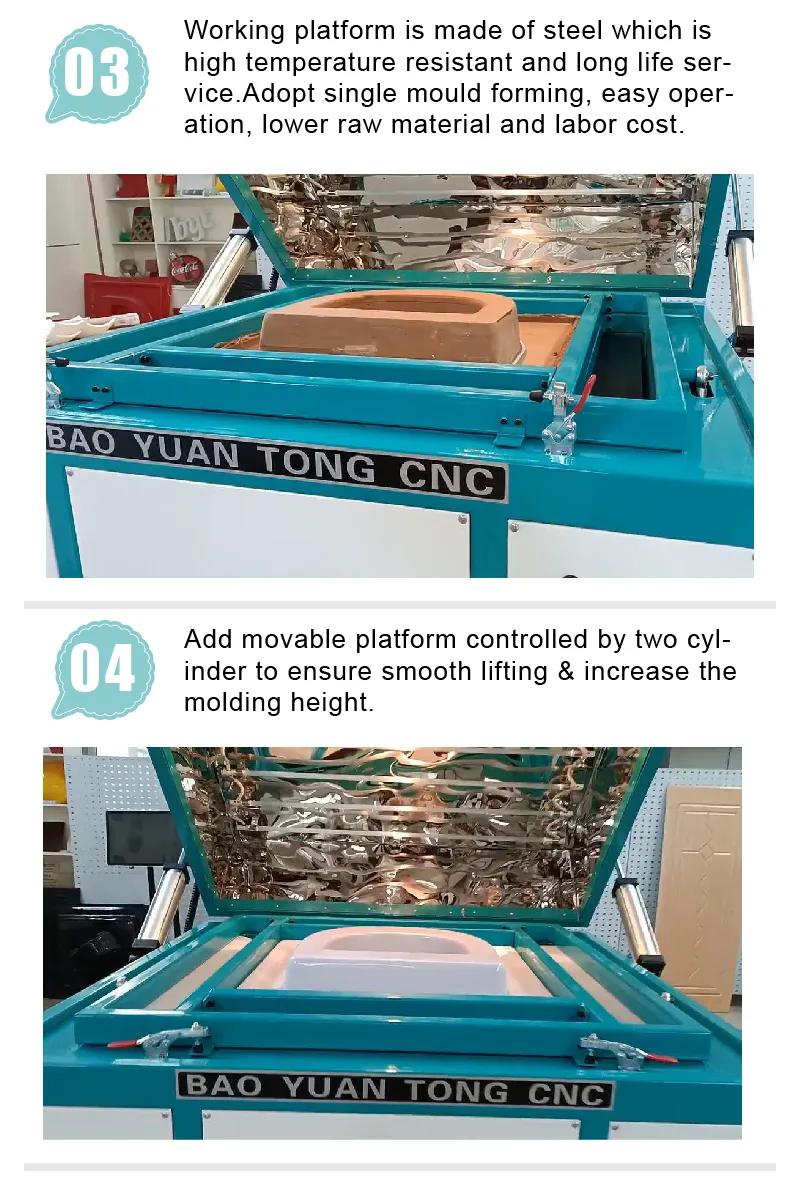

  • Durable Platform: Steel working platform resistant to high temperatures; single mould forming reduces labor costs.
  • Precision Pressing: Aluminum alloy press frame controlled by dual cylinders for superior sealing.

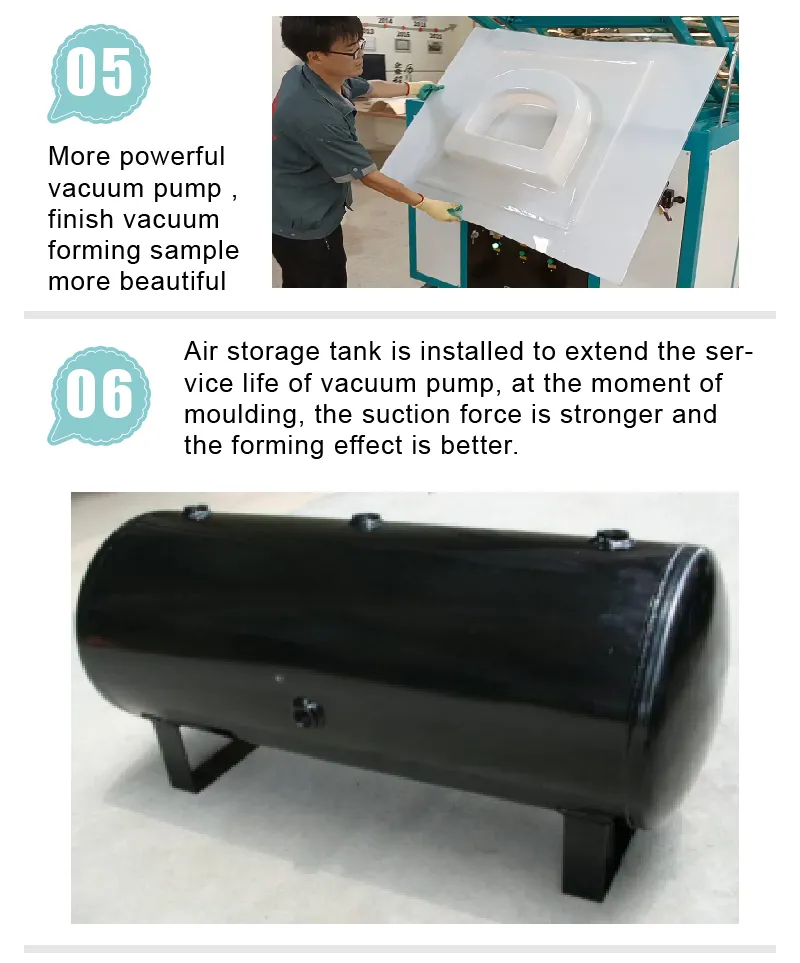

  • Powerful Vacuum: High-capacity vacuum pump combined with an air storage tank for stronger suction and better molding effects.
  • Dual Function: Includes both suction and blowing functions for easy demoulding and spherical molding.
⚙

Technical Specifications

Model BSX-1200 BSX-1224 BSX-2030
Working area (mm) 1200*1200 1200*2400 2000*3000
Forming area (mm) 1040*1040 1040*2240 1840*2840
Function Suction & Blow Suction & Blow Suction & Blow
Max. Depth (mm) 300 300 300
Vacuum Output 63m³/h 63m³/h 100m³/h
Total Power (kw) 11 20.5 34
⚒

Industry Applications

Application 1
Application 2
Application 3

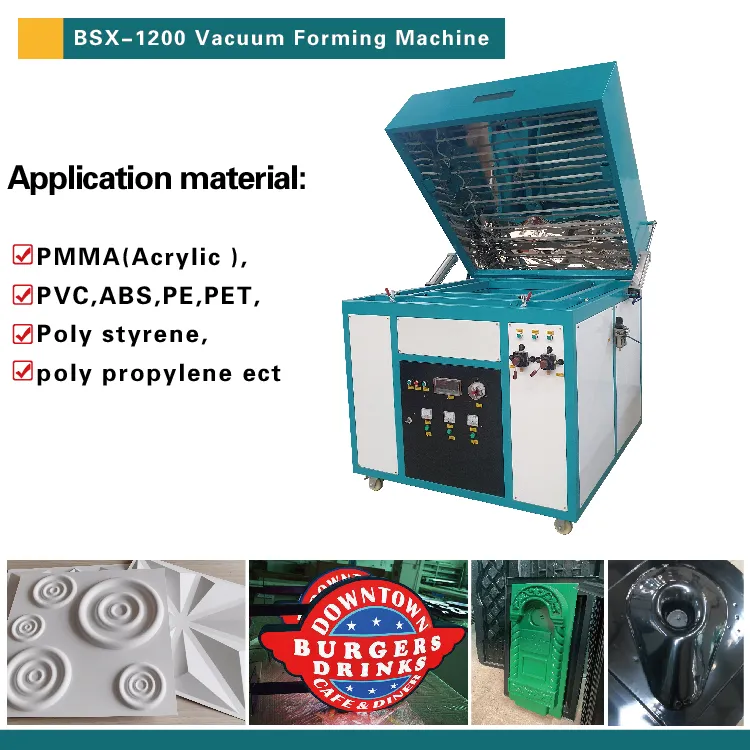

Suitable Materials: PMMA (Acrylic), PVC, ABS, PE, PET, Polystyrene, Polypropylene, etc.

Target Industries: Advertising signage, Plastic molding & masks, University research, Chocolate/Cake packaging, Automobile decoration.

▶

Demonstration

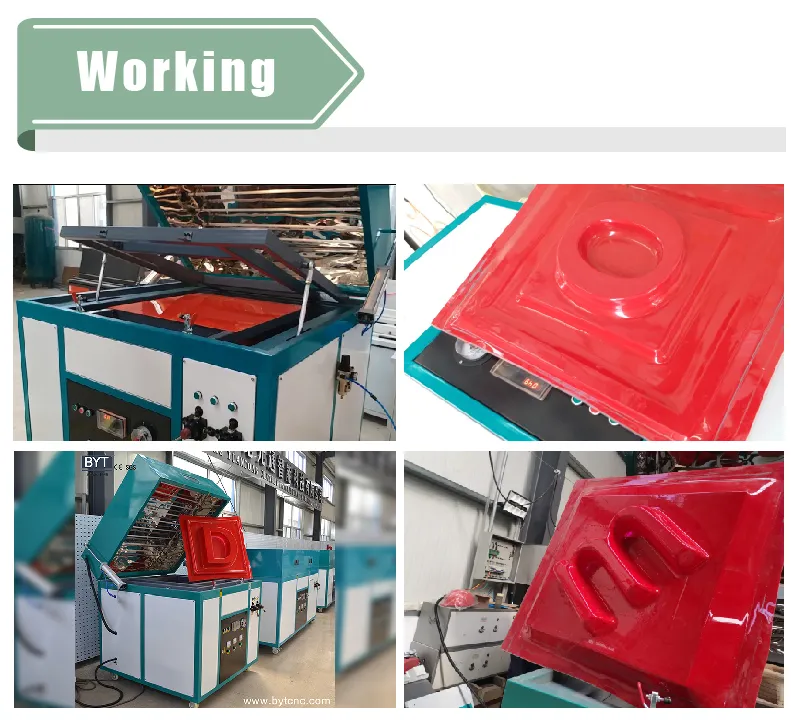

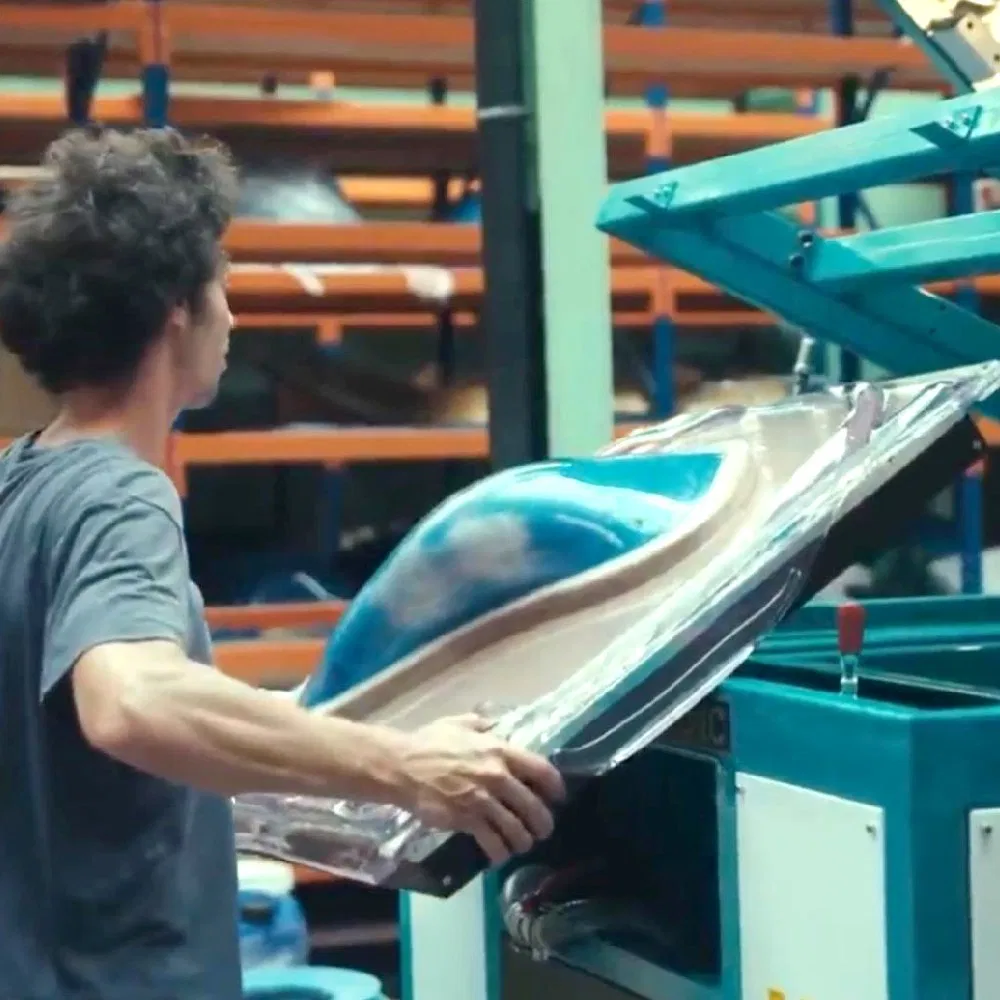

Process View
Finished Product

Frequently Asked Questions

Q1: What materials can the BSX-1200 vacuum forming machine process?
The machine is compatible with a wide range of thermoplastic materials including Acrylic (PMMA), PVC, ABS, PE, PET, Polypropylene, and more.
Q2: What is the maximum forming depth of this machine?
The BSX series offers a maximum suction forming depth of up to 300mm, making it ideal for deep sign shells and 3D objects.
Q3: How long do the heaters last under continuous operation?
The customized industrial heaters are designed for 24-hour continuous work with a service life ranging from 8,000 to 10,000 hours.
Q4: Does the machine support automatic operation?
Yes, the machine features an automatic opening oven and computerized control for consistent temperature management and ease of use.
Q5: Why is an air storage tank included in the design?
The air storage tank extends the life of the vacuum pump and ensures a powerful instantaneous suction force for better molding precision.
Q6: Can this machine be used for sphere or ball molding?
Yes, the machine includes a specialized blowing function that allows for ball blow molding in addition to standard suction forming.
