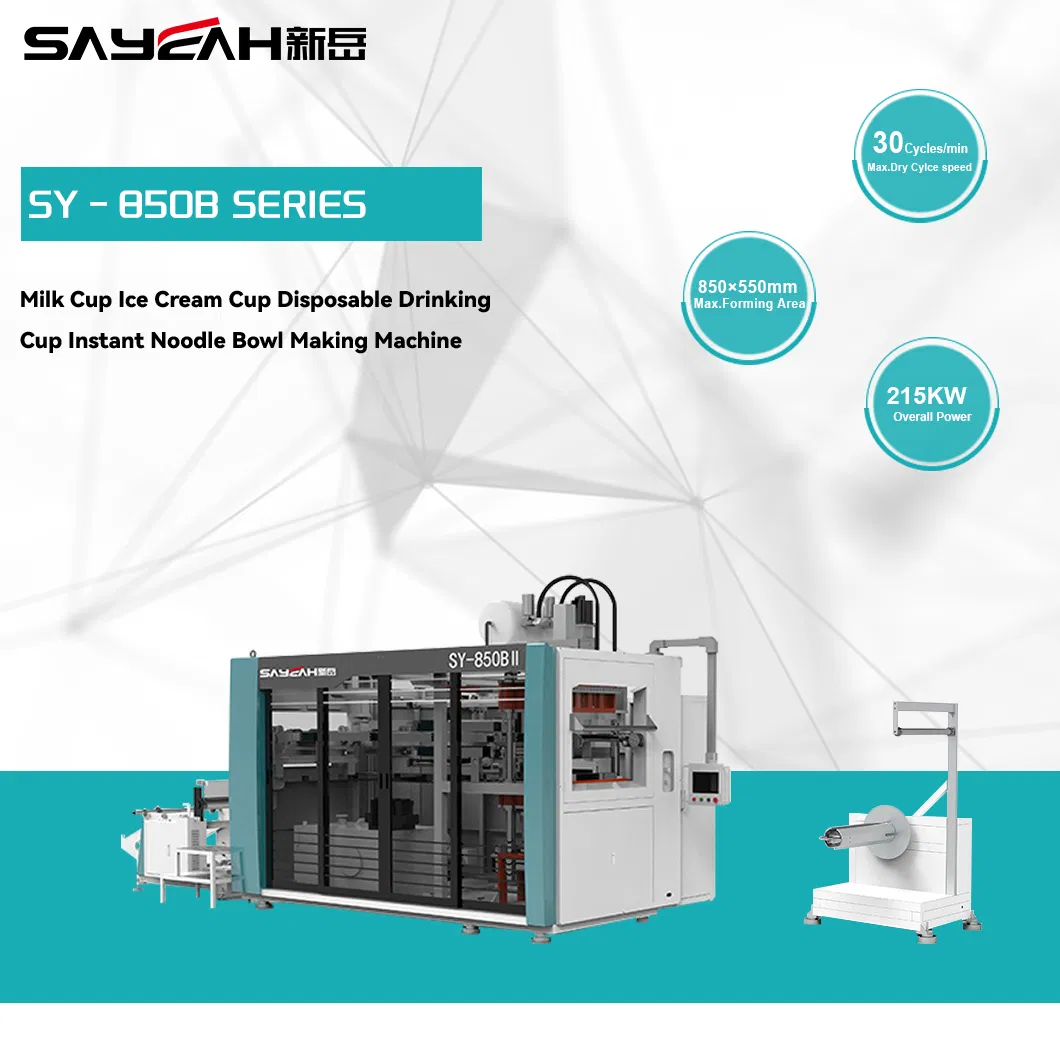

Automatic Plastic Thermoforming Machine Production Line
Automatic Plastic Thermoforming Machine Production Line
Automatic Plastic Thermoforming Machine Production Line
Automatic Plastic Thermoforming Machine Production Line
Automatic Plastic Thermoforming Machine Production Line
1 / 5
Automatic Plastic Thermoforming Machine Production Line
Automatic Plastic Thermoforming Machine Production Line
Automatic Plastic Thermoforming Machine Production Line
Automatic Plastic Thermoforming Machine Production Line
Automatic Plastic Thermoforming Machine Production Line

Automatic Plastic Thermoforming Machine Production Line

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Overview - Basic Information

Model NO.
SY-850B
Certification
CE, ISO
Column Number
Double Column
Molding Method
Pultrusion
Automatic Grade
Automatic
Transport Package
Wood Packaging
Specification
6800x3380x3300
HS Code
8477409000
Production Capacity
300

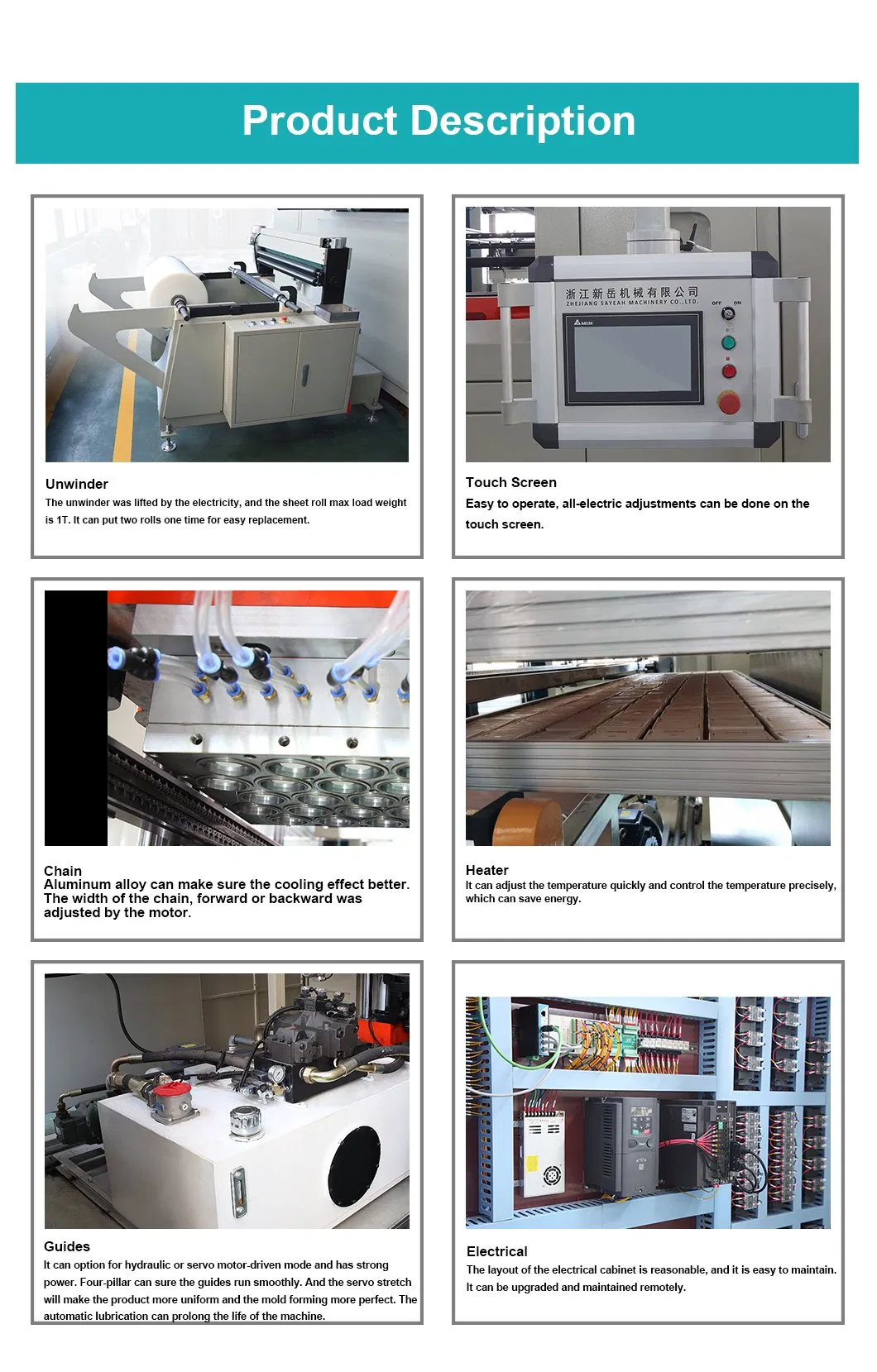

Product Description

Disposable Hot/Cold Drink Cup Making Forming Machine

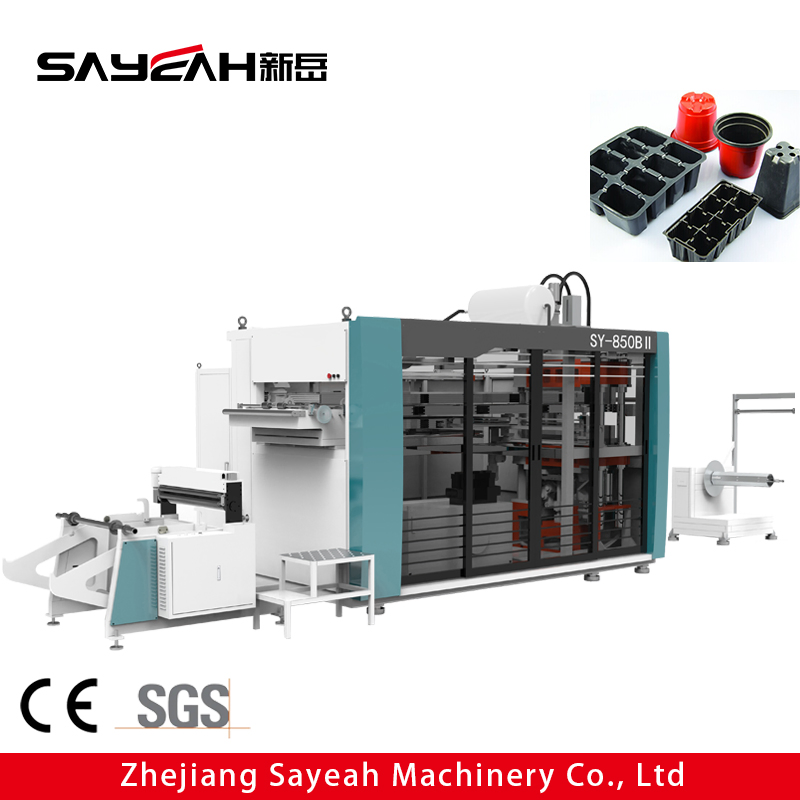

Automatic Plastic Thermoforming Machine
  • Operation controlled by PLC and touch screen
  • Mold guide plate adopts four guide posts for clamping accuracy

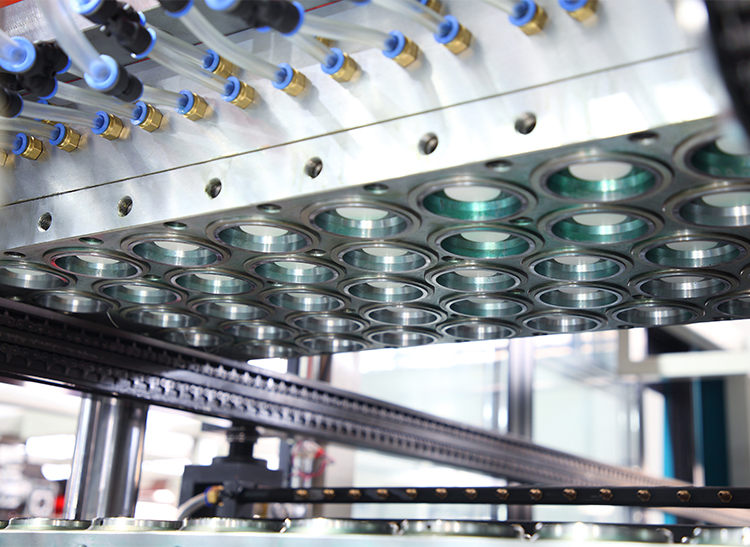

  • Chain frame with fast cooling and wear-resistant design
  • Safe mold change system reduces difficulty and downtime
  • 5-6 heating sections ensure materials are fully heated
  • Adjustable cup blowing angle and air volume
  • Integrated hydraulic system for easy overhaul and maintenance
  • Durable servo stretching system for quality assurance
  • Low noise operation with high-quality performance
  • Integrated electric cabinet simplifies assembly and wiring

Technical Parameters

Model SY-850BII SY-850BIII
Max. Forming Area850x550mm850x550mm
Max. No-Load Speed30 Cycles/min40 Cycles/min
Running PatternHydraulicServomotor
Feeding DrivenMotor With Encoder
Stretching PatternServomotor
Sheet SpecificationTHK:0.2-2mm, W:Max.870mm
Max. Forming Depth≤140mm(robot) / ≤175mm(blowing)
Max. Sheet Roll Dia1100mm, 1T
Electrical Consumption90kw/h80kw/h
Overall Power215kw215kw
Dimension (LxWxH)6800x3380x3300
Weight8T8T
Machine Production Line
Main Electrical Components
Industrial Control SystemDELTA TAIWAN / Inovance
PLCDELTA TAIWAN / Inovance
Touch ScreenDELTA TAIWAN / Inovance
Servo-Motors (Feeding/Stacking/Forming/Cutting)DELTA TAIWAN / Inovance
Vacuum PumpRUFUS, Jiangsu
Infrared Ceramic HeaterTianbao, CHINA (3 years Warranty)
Pneumatic ComponentsMAC (USA) / SMC (Japan) / Germany

* Optional: Lenze system available upon requirement.

Our Advantages & Details

Advantage 1
Advantage 2

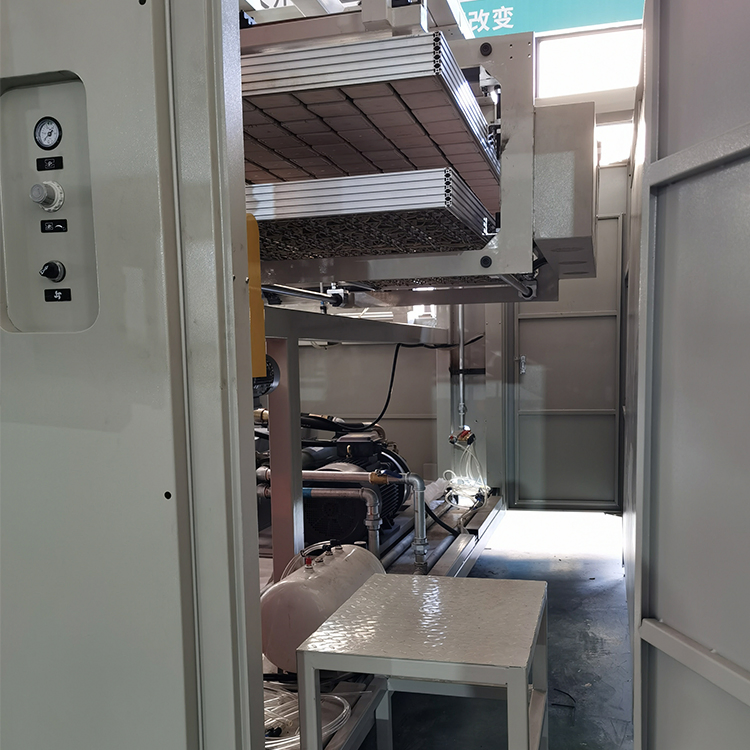

Machine Detail
Component 1
Component 2
Component 3
Final Product
Frequently Asked Questions
What types of products can this machine produce?
This machine is specifically designed for making disposable hot and cold drink cups using plastic thermoforming technology.
What is the difference between the SY-850BII and SY-850BIII models?
The main difference lies in the running pattern: the BII model uses a hydraulic system with a speed of 30 cycles/min, while the BIII model utilizes a servomotor for higher efficiency, reaching up to 40 cycles/min.
How does the machine ensure heating uniformity?
The machine features 5-6 independent heating sections within the furnace, ensuring that the plastic sheet material is fully and evenly heated before forming.
Is the mold changing process complicated?
No, the machine is designed with a safe mold change system that exits the frame, significantly reducing the difficulty and time required for mold replacement.
What is the maximum forming depth for the cups?
The maximum forming depth is ≤140mm when used with a robot or up to ≤175mm when using the blowing method.
What brands of electrical components are used?
We use high-quality international components, including PLC and servo systems from DELTA or Inovance, and pneumatic components from MAC (USA) or SMC (Japan).
