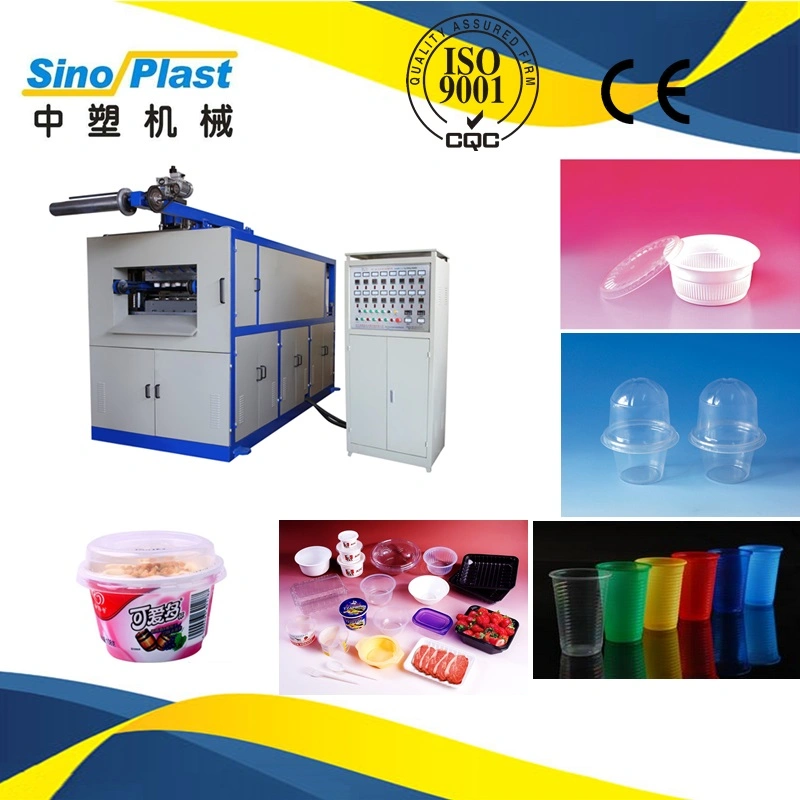

Full Automatic Thermoforming Production Line

Customization:	Available
Certification:	CE
Column number:	Four Column

Send Inquiry

Product Description

Basic Specifications

Model NO.

SP-660 / SPC-660C

Molding Method

Pressing

Automatic Grade

Automatic

Dimension(L*W*H)

3550*1330*2350mm

Voltage

380V/50Hz

Weight

4000kg

Power

45kw

Warranty

1 Year

Control Method

PLC

HS Code

8477409000

Capacity

100 Sets Per/Year

Product Usage

The SPC-660C Automatic Disposable Plastic Cup/Lid/Bowl/Plate Thermoforming Machine is specialized for processing PP, PS, PET, and PVC sheets into various disposable products. It is ideal for manufacturing hot/cold drinking cups, ice-cream cups, yogurt cups, jelly cups, and juice cups. Additionally, it can produce regular shapes like plates, bowls, dishes, and lids with different molds.

Main Features

✔ The stretching of plugs inside the upper mould is precisely controlled by air cylinder.

✔ Sheet feeding driven by pin chain, controlled by motor with inverter and encoder for exact length control.

✔ Sturdy four-pillar mold fixation system for maximum stability during production.

✔ Advanced twin cam drive for the down mould movement with a fixed upper mould design.

✔ 16 heating zones equipped with intelligent temperature control modules.

✔ Integrated production: feeding, heating, stretching, forming, in-mould cutting, and final product blowing.

✔ Reinforced square steel machine frame ensures long-term durability and vibration reduction.

✔ User-friendly PLC interface and touch screen control system.

Technical Parameters

Model	SPC-660C
Mould Driving Method	Cam
Max. Forming Area	660 x 300 mm
Running Speed	15-30 Stroke / min
Sheet Width Range	500 - 660 mm
Cutting Mode	In-mould automatic
Sheet Thickness	0.20 - 2.0 mm
Compatible Materials	PP, PS, PET, PVC, PLA
Max. Draw Depth	140 mm (Special designs available)
Oil Pump Motor	11KW, 6P
Feeding Motor	2.2KW
Heating Type	Top + Bottom IR Ceramic Heaters (120 pcs, 650W)
Temp. Control	PID K-Type
Power Consumption	Approx. 45KW/hr

Note: Based on a standard 75mm diameter round cup, the machine can accommodate molds with 20 to 21 cavities.

Finished Product Samples

Mould Samples

Frequently Asked Questions

Q1: What materials can the SPC-660C thermoforming machine process? A1: The machine is designed to work with PP, PS, PET, PVC, and PLA sheets with a thickness range of 0.20mm to 2.0mm.

Q2: What is the maximum production speed? A2: The running speed ranges from 15 to 30 strokes per minute, depending on the material type and product depth.

Q3: Can it produce cups deeper than 140mm? A3: The standard max draw depth is 140mm, but special designs can be customized to accommodate deeper products upon request.

Q4: Does the machine handle cutting within the mold? A4: Yes, it features an "In-mould automatic cutting" arrangement, which ensures high precision and cleaner edges for the finished products.

Q5: How is the heating system configured? A5: It utilizes 120 pieces of IR Ceramic Heaters (650W each) distributed across top and bottom heating zones, managed by PID K-Type temperature controllers.

Q6: Is the operation system easy for beginners? A6: Absolutely. The machine adopts a PLC and touch screen control system, making it intuitive to set parameters and monitor the production process.
