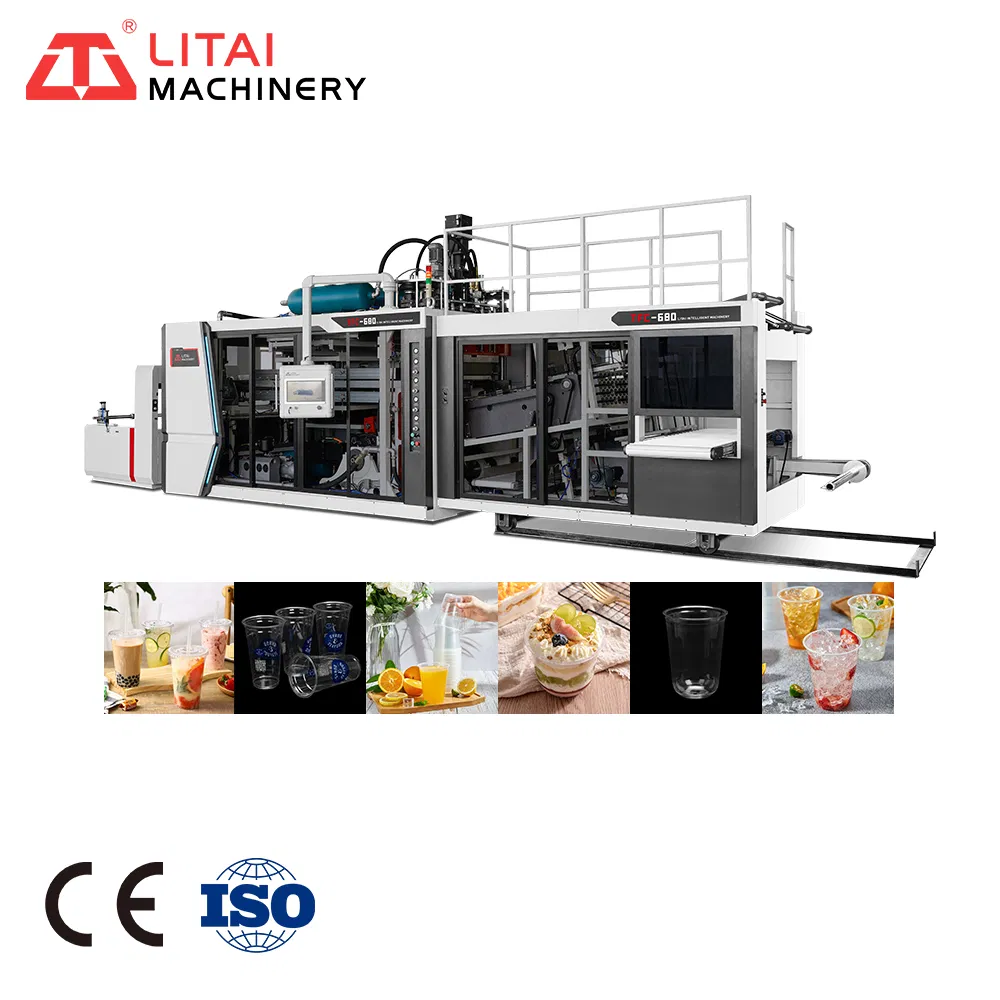

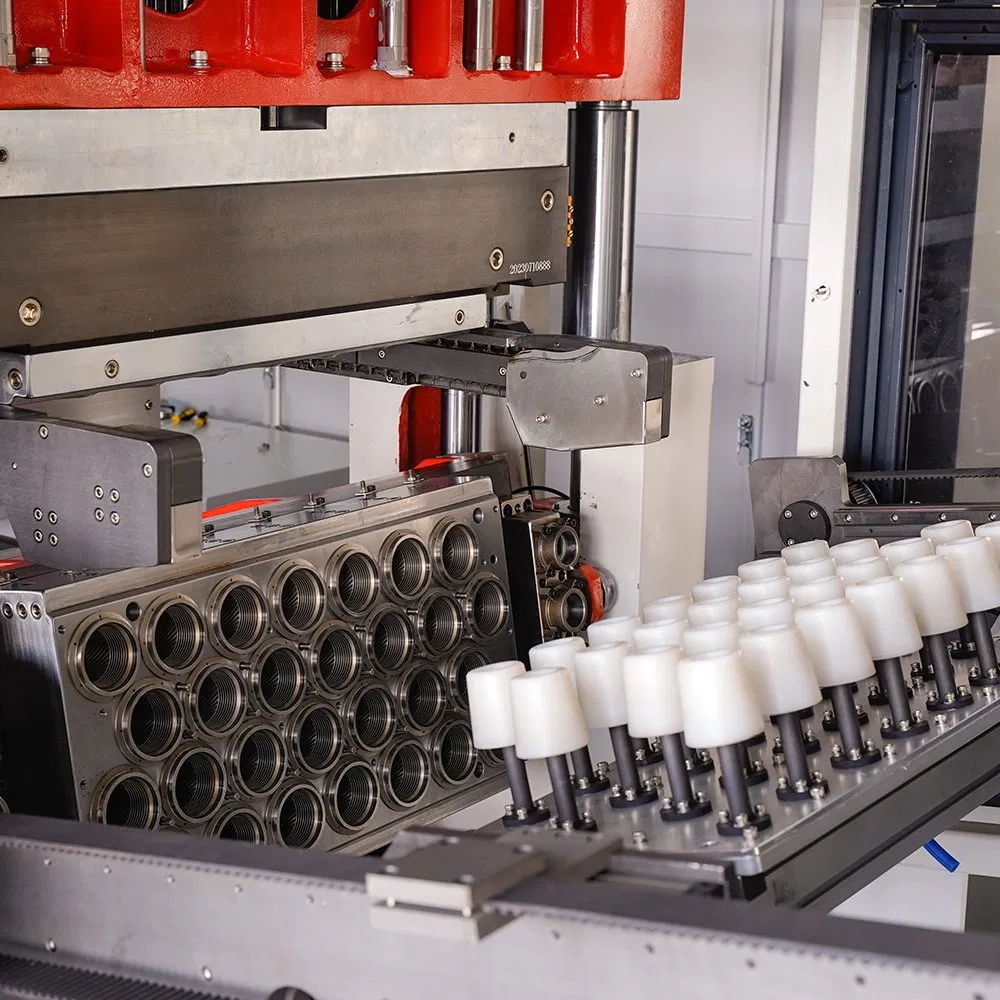

Fully Automatic Tilting Mould Thermoforming PVC Plastic Water Cup Making Machine Production Line

The Plastic Cup Tilting thermoforming machine is a newly developed solution specifically designed for manufacturing various plastic cup products. Utilizing positive and negative pressure forming, the system is controlled by full servo motors. It features a unique mould turning system driven by conjugate CAM connecting rods to complete tilting, lifting, and cutting actions.

This equipment is engineered for high output, low energy consumption, and high stability, making it the perfect choice for medium to high-capacity disposable cup production.

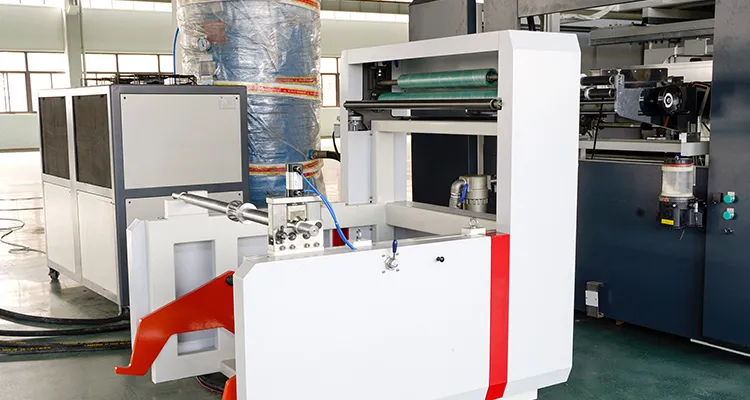

• Pneumatic feeding device with automatic loading to save human resources.
• Double-row roller chain with teeth and integrated cooling water channels for high efficiency and long life.
• High-precision servo motor drive for fast start/stop response.

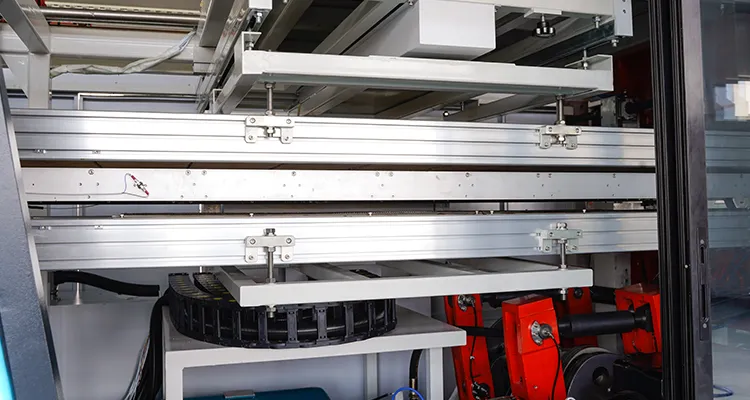

• German heaters with 48 individual heating zones for precise temperature control (error ≤±1ºC).
• Embedded ceramic far-infrared radiation components for safety and thermal efficiency.
• Vertical alarm system to prevent overheating and sheet melting.

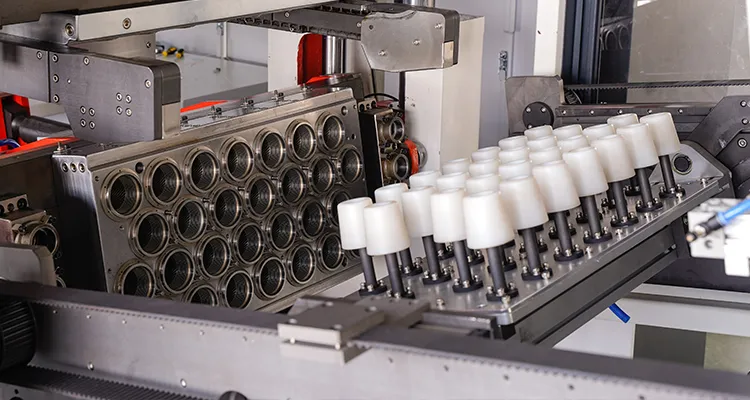

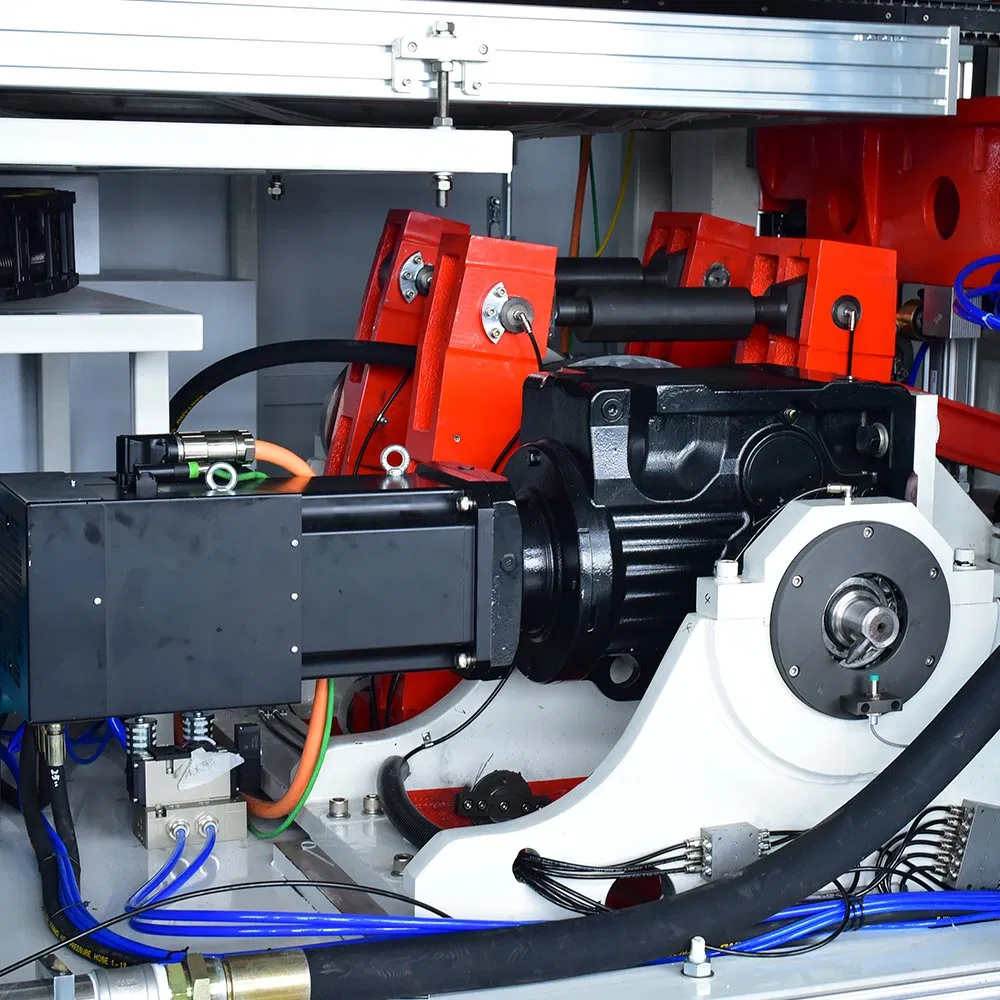

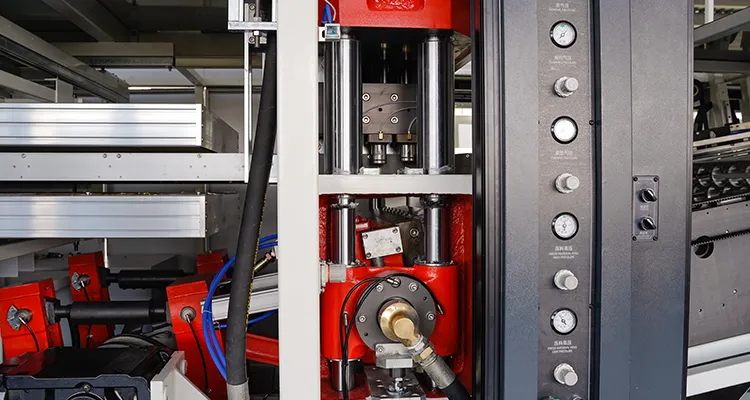

• Mould Table: Conjugate cam drive ensures stable rising/falling with minimal noise. Automatic turnover facilitates easy product stacking.
• Control System: B&R central controller with a user-friendly touch screen interface in English and Chinese.

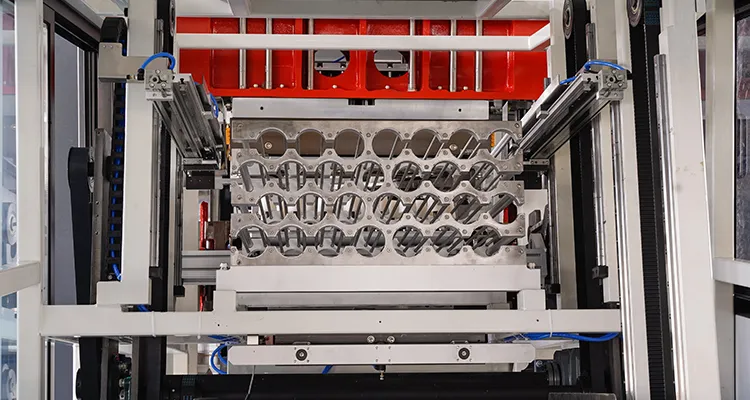

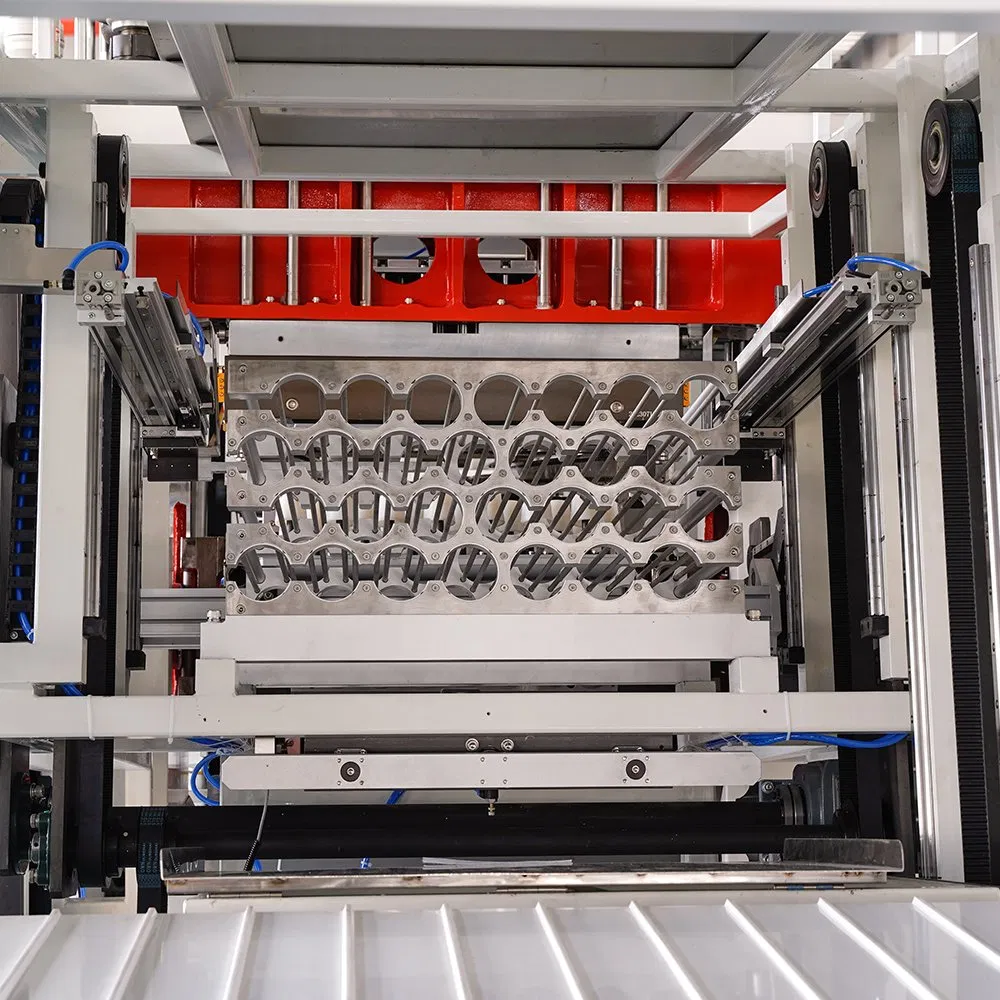

• Automatic Grafting: Servo-driven V-shaped turning device for fast suction, turning, and stacking of various cup calibers.
