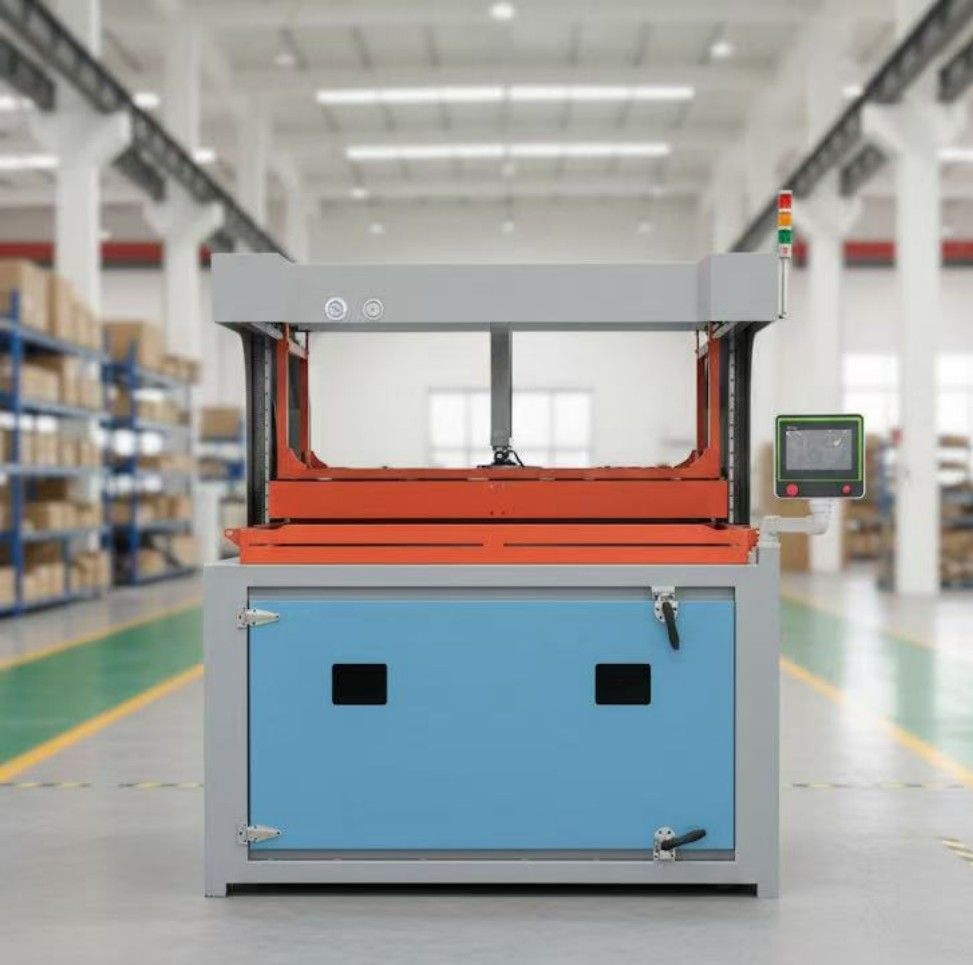

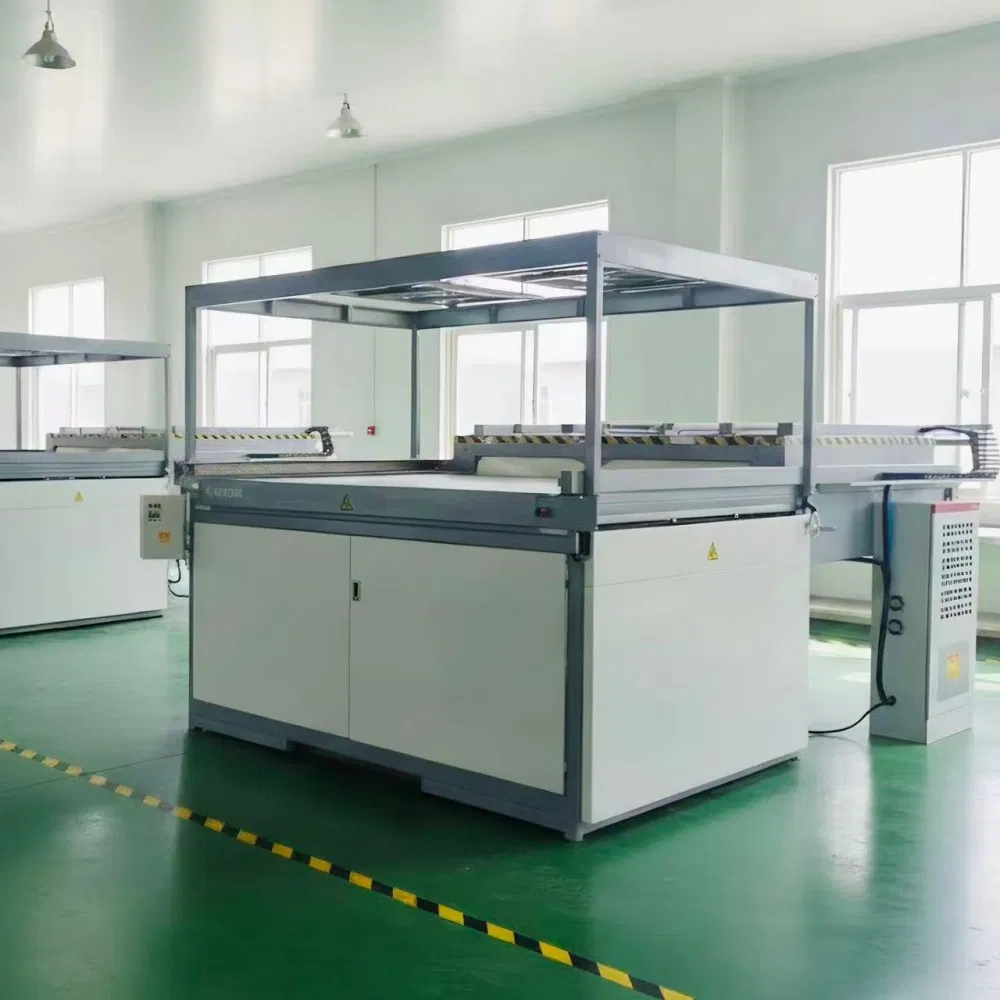

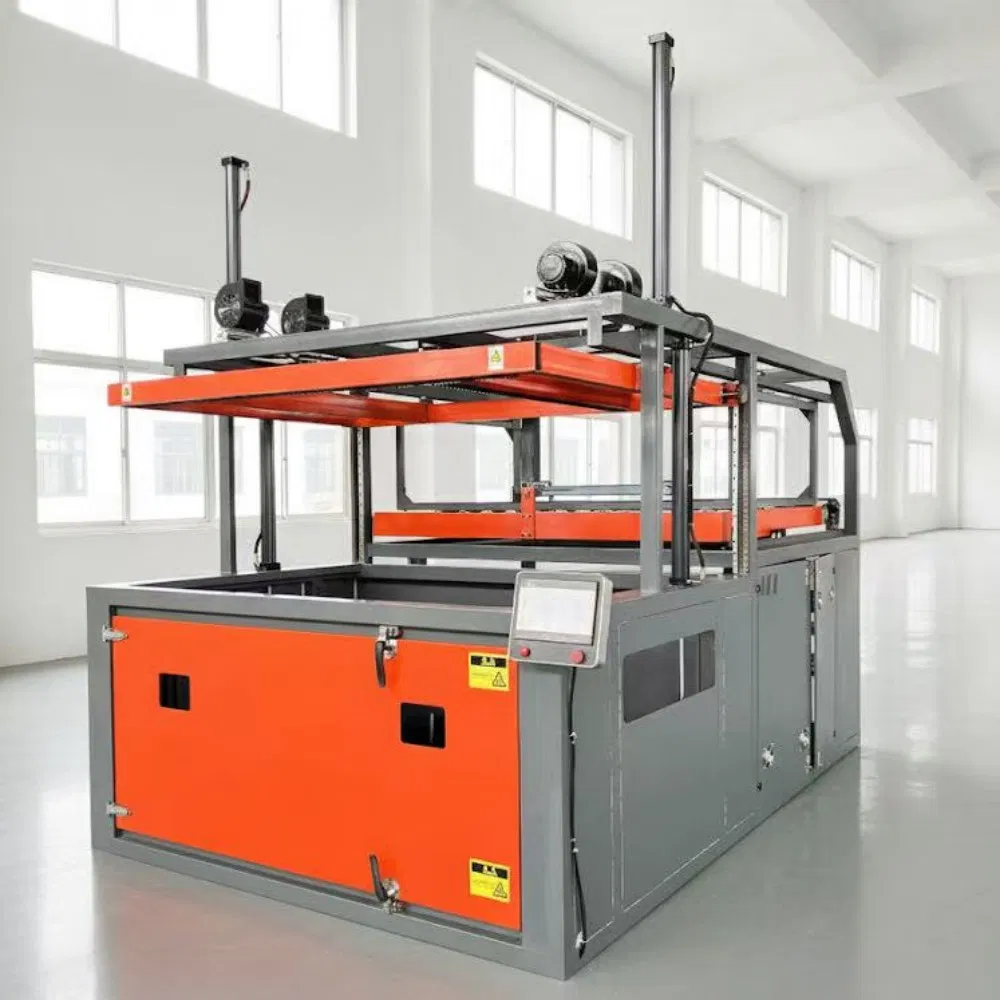

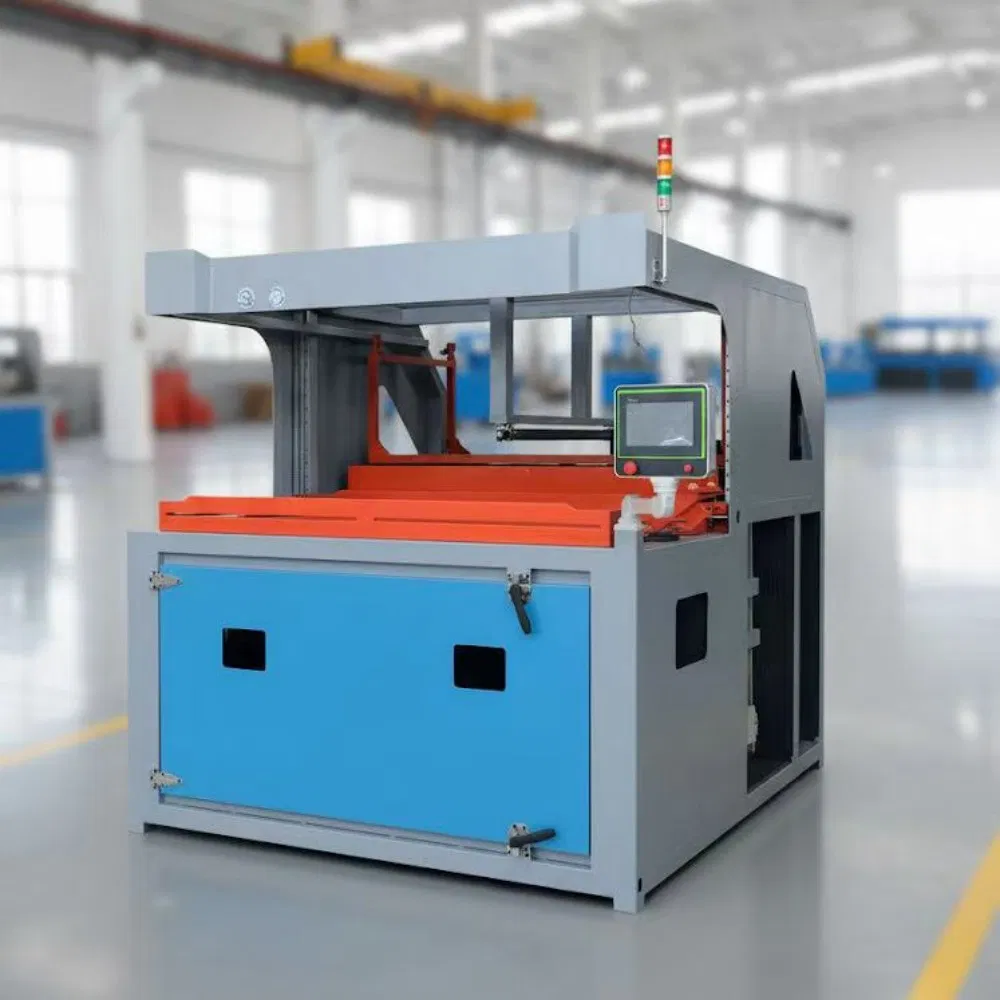

PROFESSIONAL BATHTUB VACUUM FORMING MACHINE
Our advanced bathtub vacuum forming machine is a high-performance plastic sheet vacuum forming machine designed for efficient manufacturing of bathtubs, automotive parts, and various thermoformed products.
This industrial-grade sheet vacuum forming machine features a spacious 2000mm x 1600mm heating zone, powerful 24-36KW heating capacity, and accommodates sheet thicknesses from 1.8-4.5mm. Built with durable stainless steel rope heating elements and equipped with dual cooling fans, it ensures reliable performance and optimal cycle times.
| Technical Parameter | Details |
|---|---|
| Heating Power | 24-36KW |
| Machine Size | 3200mm(L)*2200mm(W)*2200mm(H) |
| Max Heating Zone | 2000*1600mm |

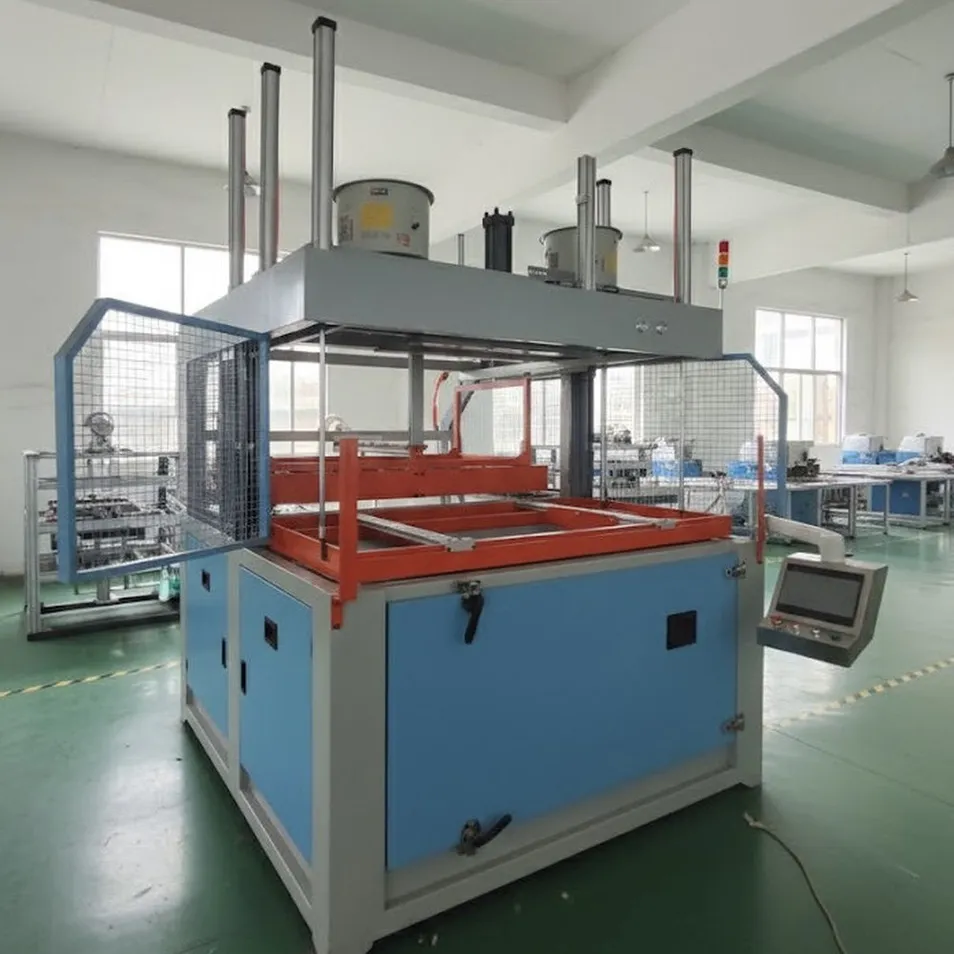

| Sheet Thickness Range | 1.8-4.5mm |
| Working Voltage | 380V |
| Machine Weight | 1500 kg |
| Main Application | Bathtub, trays, auto parts, etc. |

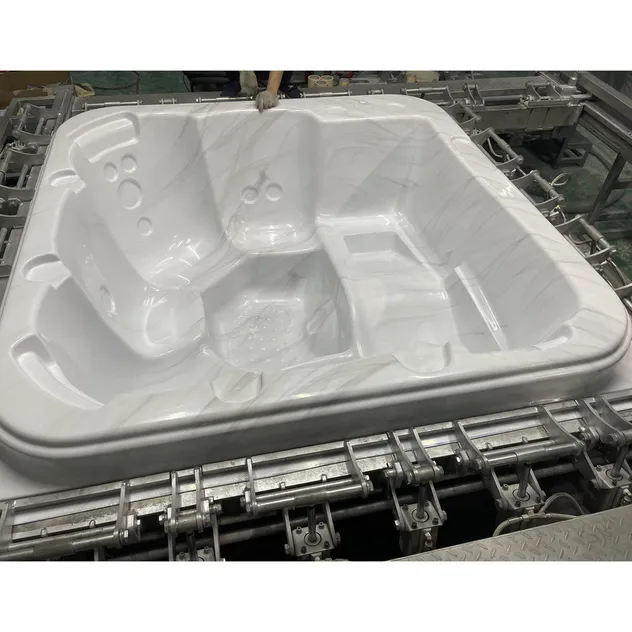

Bathtub Manufacturing: Engineered for acrylic and ABS bathtubs, shower trays, and spa components with precise contours.

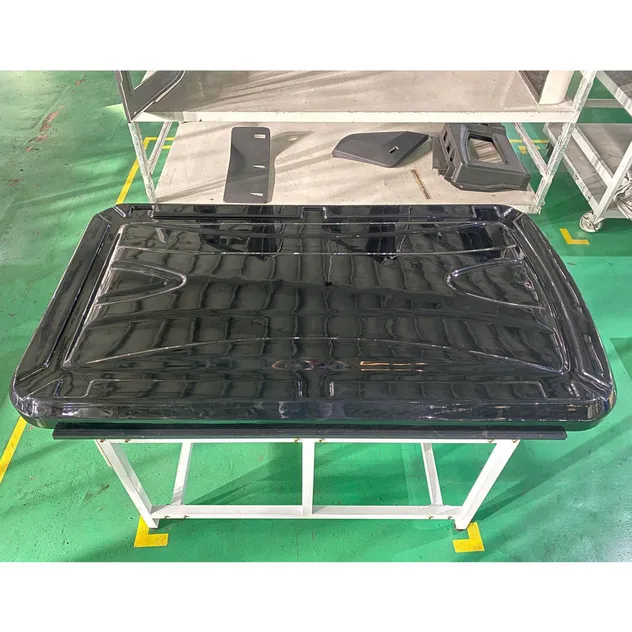

Automotive Components: Ideal for dashboard covers, door panels, trunk liners, and wheel arch covers.
Industrial Trays: Perfect for food service containers, storage bins, and heavy-duty reusable packaging.
The machine is optimized for various thermoplastic sheets including ABS, PMMA (Acrylic), PVC, and other composite materials with thicknesses ranging from 1.8mm to 4.5mm.
Yes, we support on-demand customization, including LOGO application, color customization, and specific appearance size adjustments to meet your facility requirements.

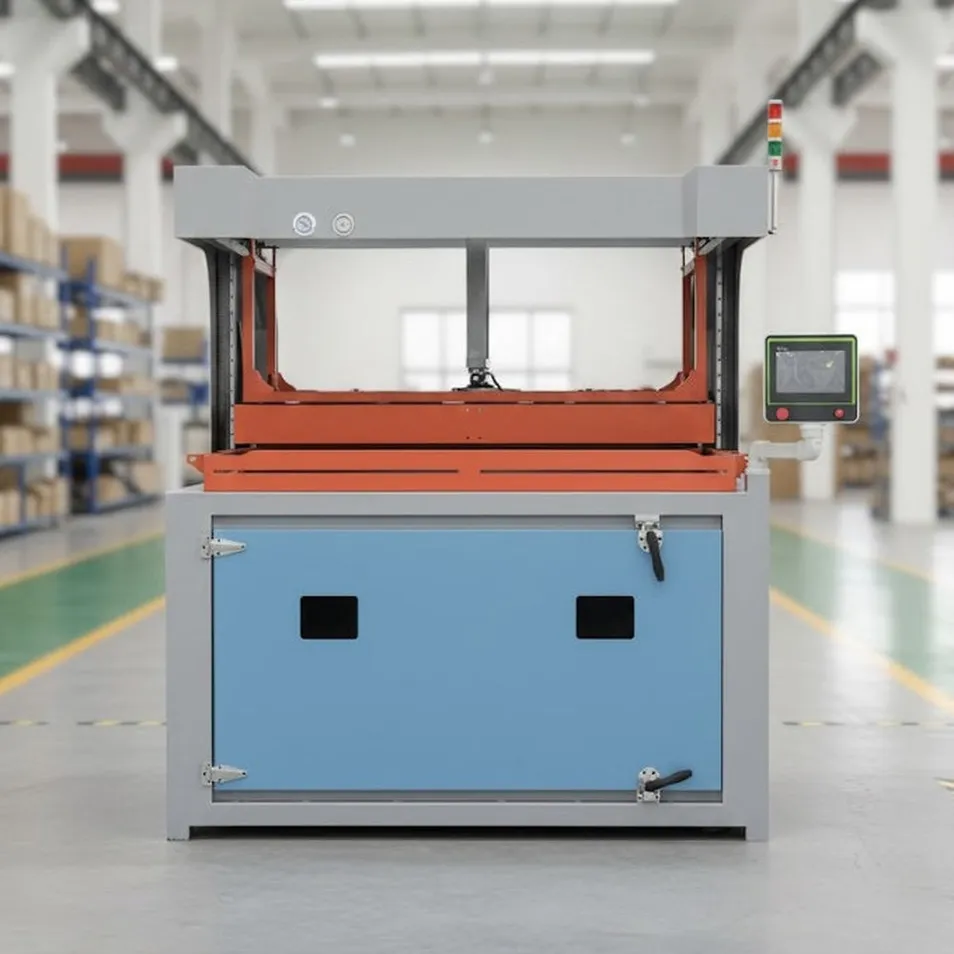

This large heating zone is specifically designed for full-size bathtub manufacturing, large automotive parts like door panels, and industrial-sized storage trays.

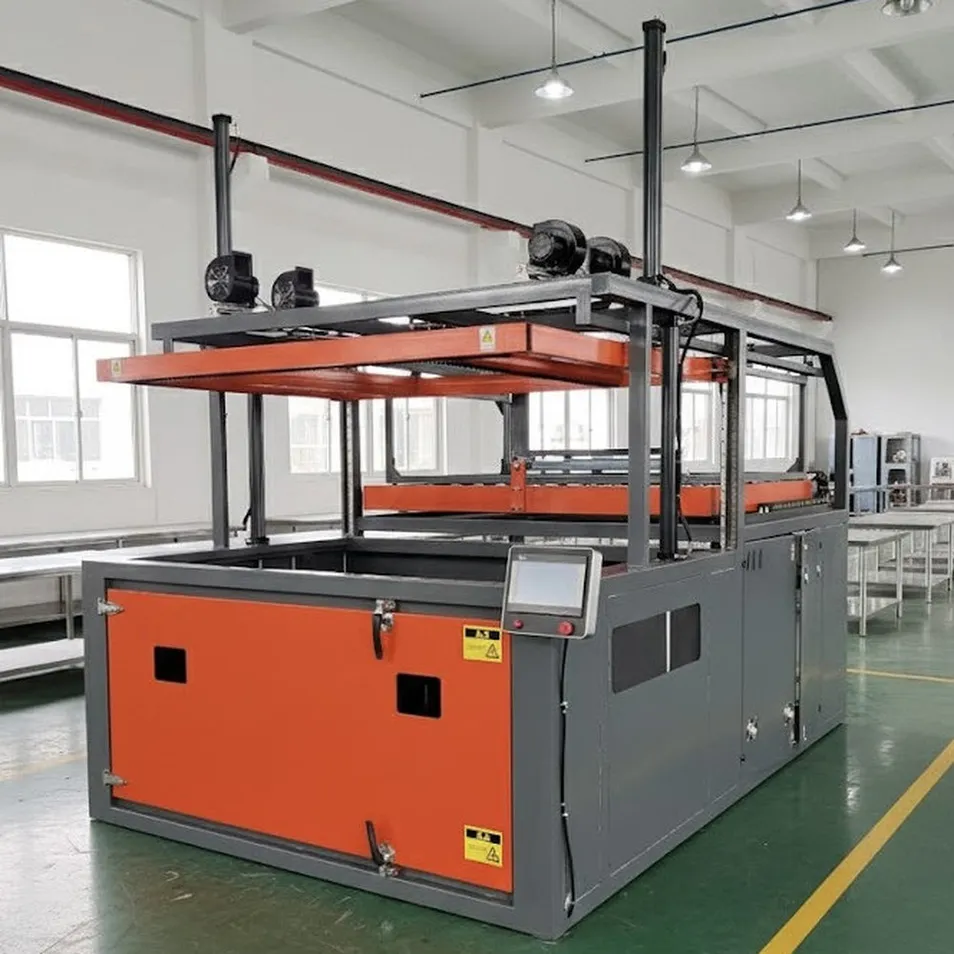

The machine uses high-efficiency stainless steel rope heating elements (24-36KW) which provide more uniform temperature distribution and faster heating cycles than standard tubes.
Yes, it features a dual control operation mode, allowing operators to switch between fully automatic cycles for mass production and manual control for prototyping or complex custom projects.
The standard working voltage is 380V, designed for industrial three-phase power systems to support the high-capacity heating and pneumatic systems.
