| No. | Technical Specification | Technical Parameters |
|---|---|---|
| 1 | Maximum molding area | 600mm×710mm |
| 2 | Minimum molding area | 340mm×410mm |
| 3 | Widest sheet | 780mm |
| 4 | Narrowest sheet | 340mm |
| 5 | Molding thickness | 0.2-2.0mm |
| 6 | Height of molding upper table | 120mm |
| 7 | Height of molding lower table | 120mm |
| 8 | Upper/Lower furnace length | 1850mm |
| 13 | Maximum cutting force | 80T |
| 14 | Cutting method | Laser wood molding/Aluminum frame with knives/Hardware Stamping |
| 18 | Total power of equipment | 146KW (normal use: 60KW-90KW) |
| 20 | Molding cooling method | Water-cooled + Air-cooled |
| 25 | Total weight | 15T |
| 26 | Machine Size | 12000 x 2500 x 2800mm |
| No. | Component Name | Brand & Description |
|---|---|---|
| 4 | Controller (PLC) | Delta (Taiwan) / Inovance (China) |
| 6 | Touchscreen | Delta 15 inch color touch screen |
| 7-11 | Servo Motors | Delta (Taiwan) Servo System |
| 13 | Beam adjustment motor | Siemens |
| 17-21 | Electrical Components | Schneider (France) |
| 22-23 | Sensors/Switches | OMRON (Japan) |
| 24-27 | Pneumatic Components | AT&T (Taiwan) |
| 28-30 | Guides/Screws | ABBA (Taiwan) |
| 35 | Chiller | 10HP Industrial chiller |
| 36 | Heating brick | Far-infrared ceramic energy-saving bricks |

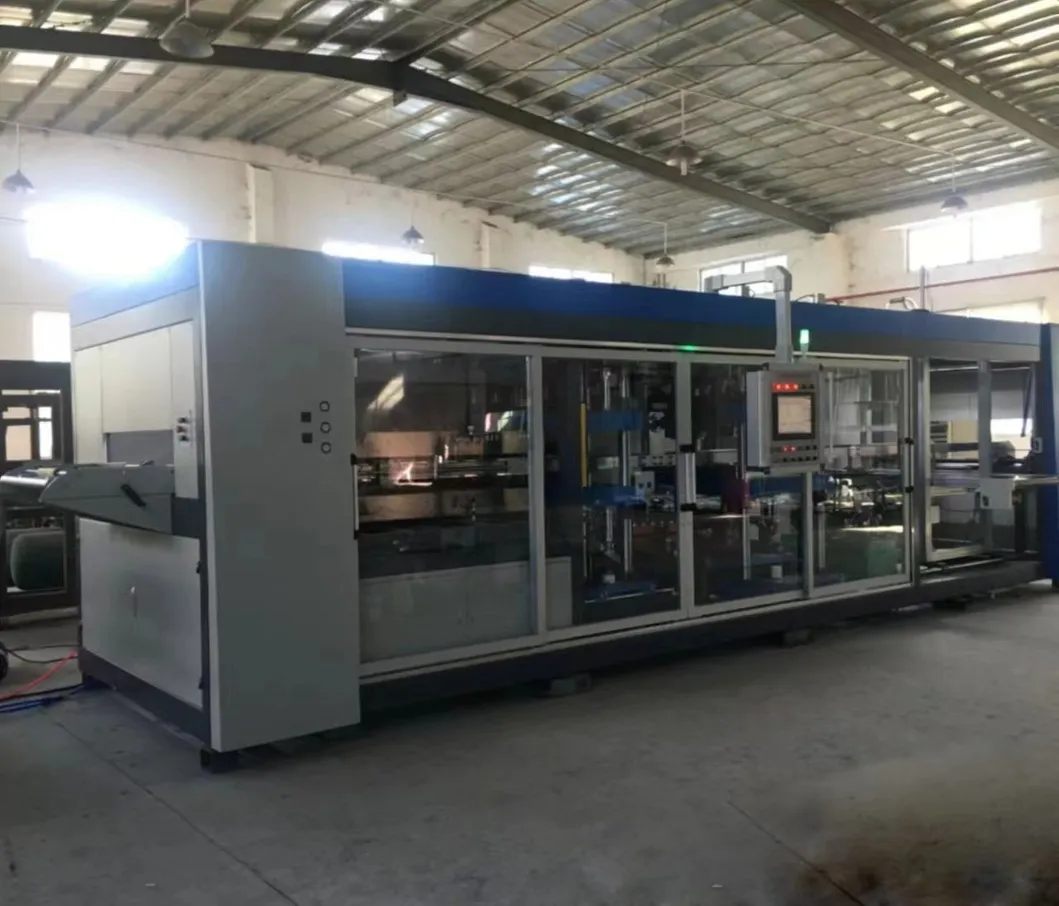

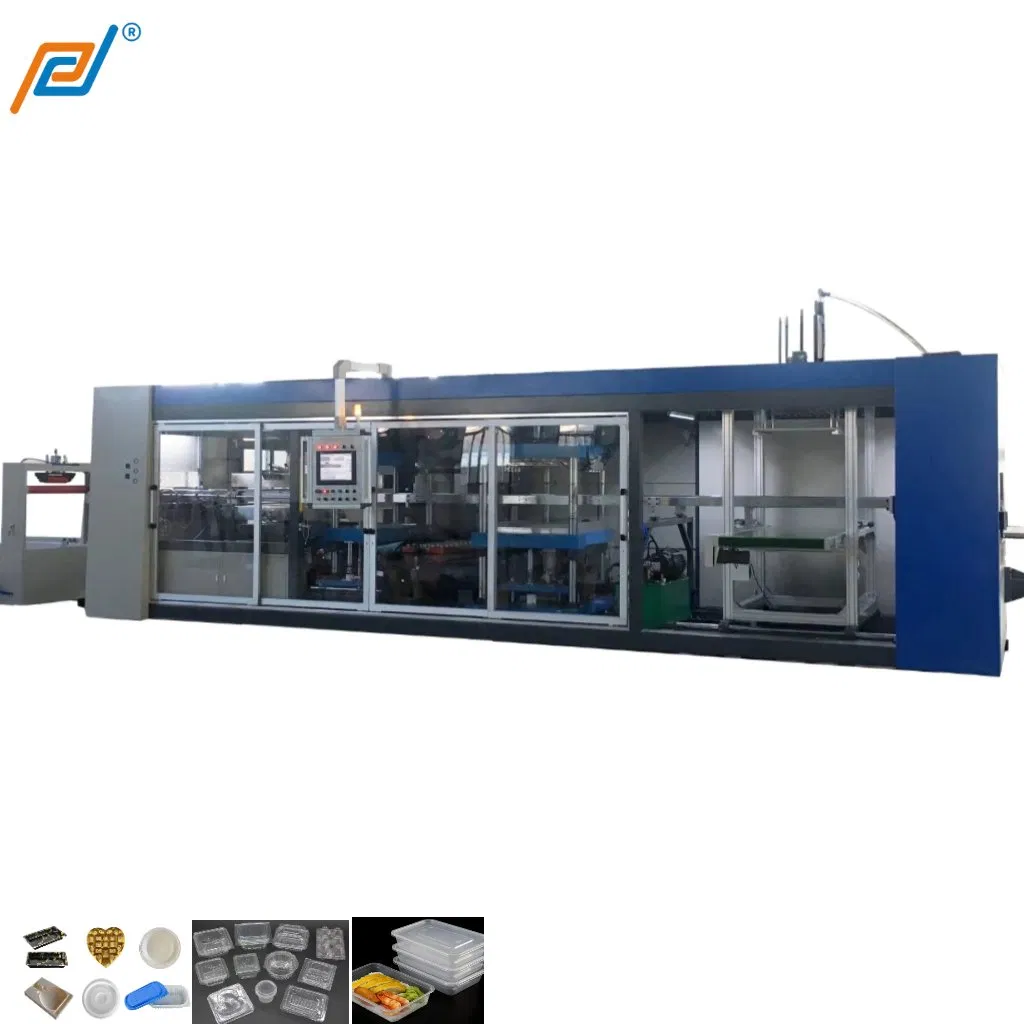

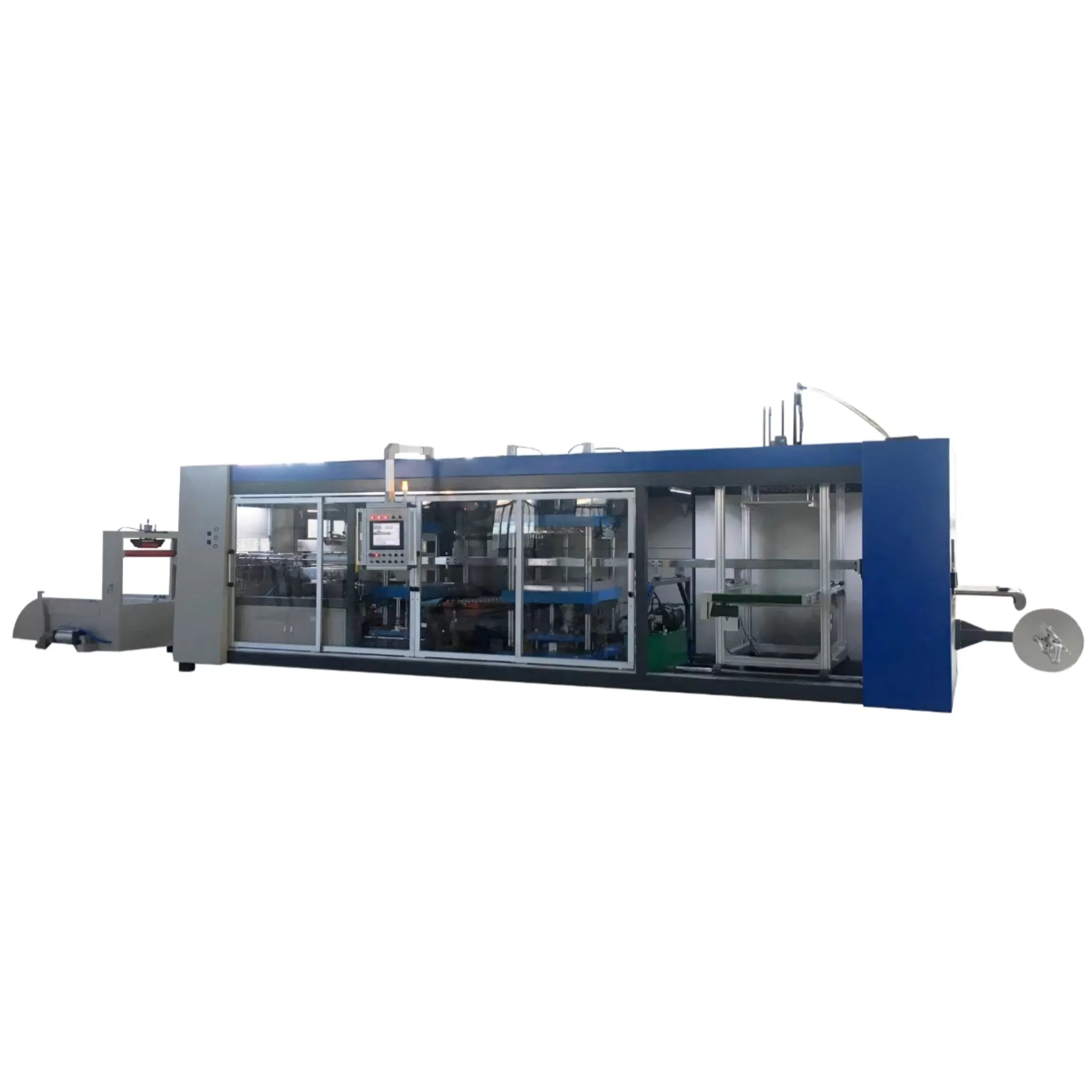

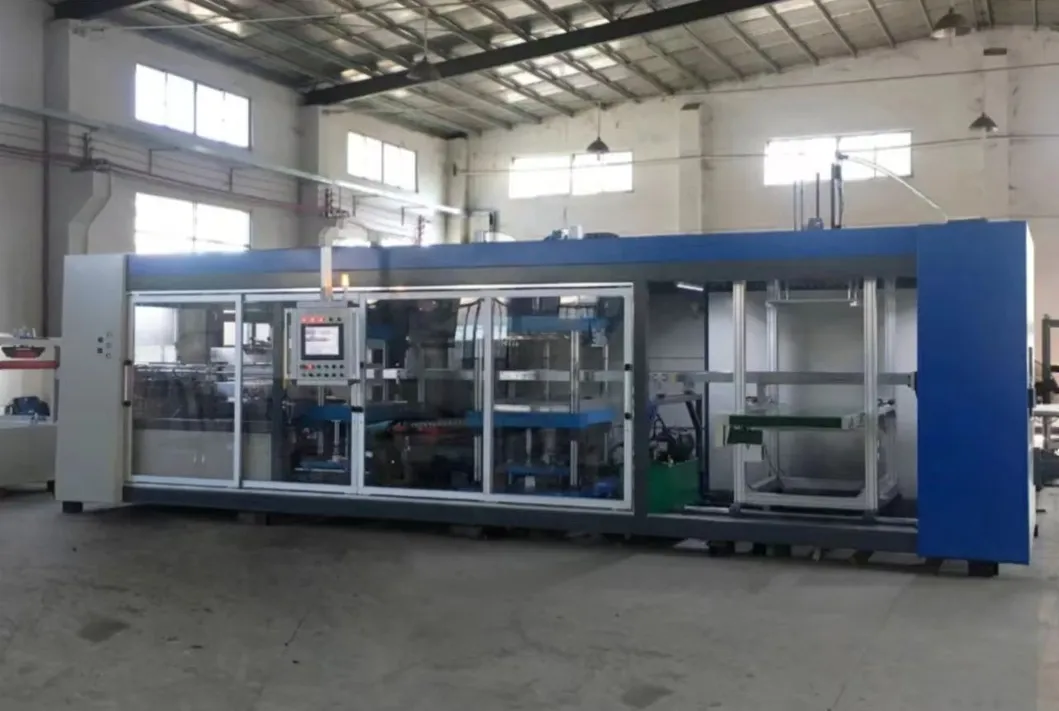

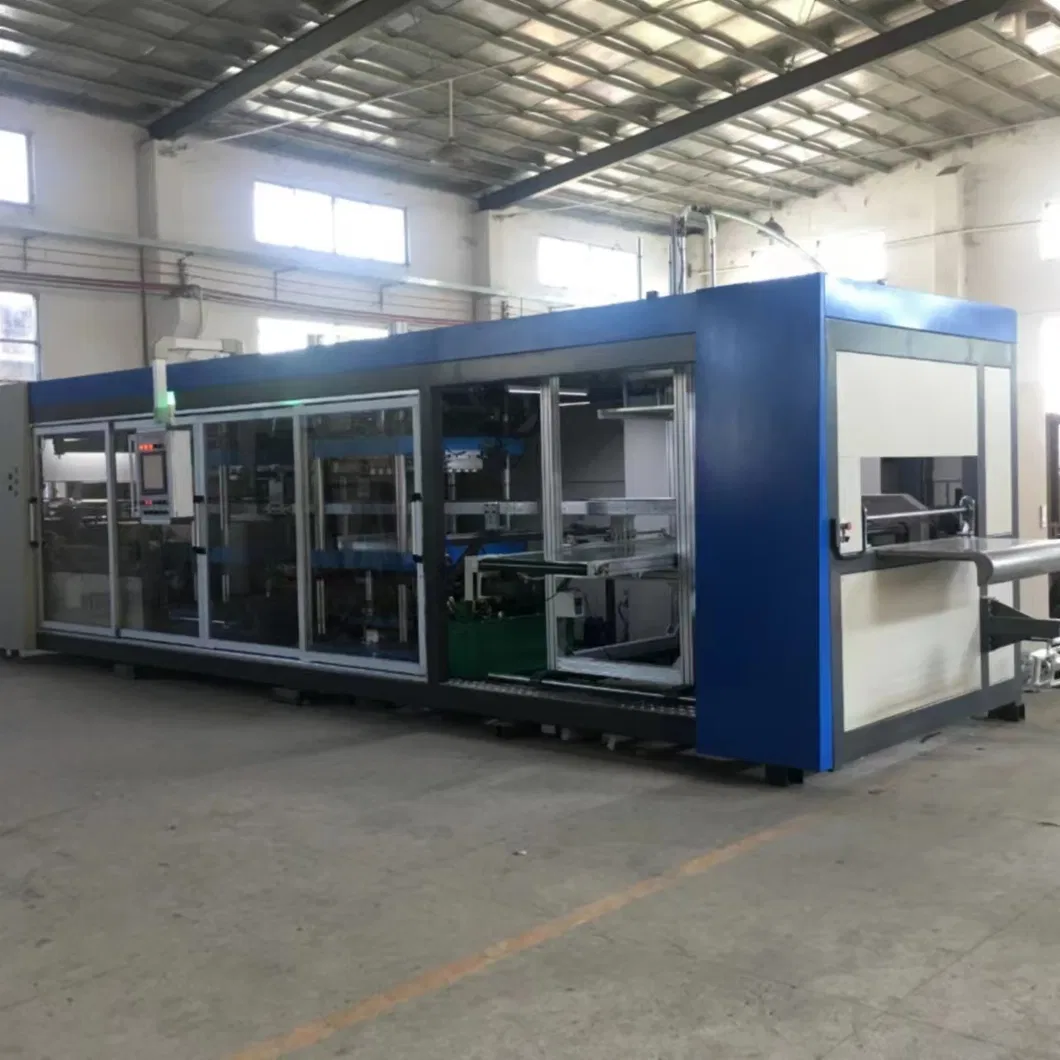

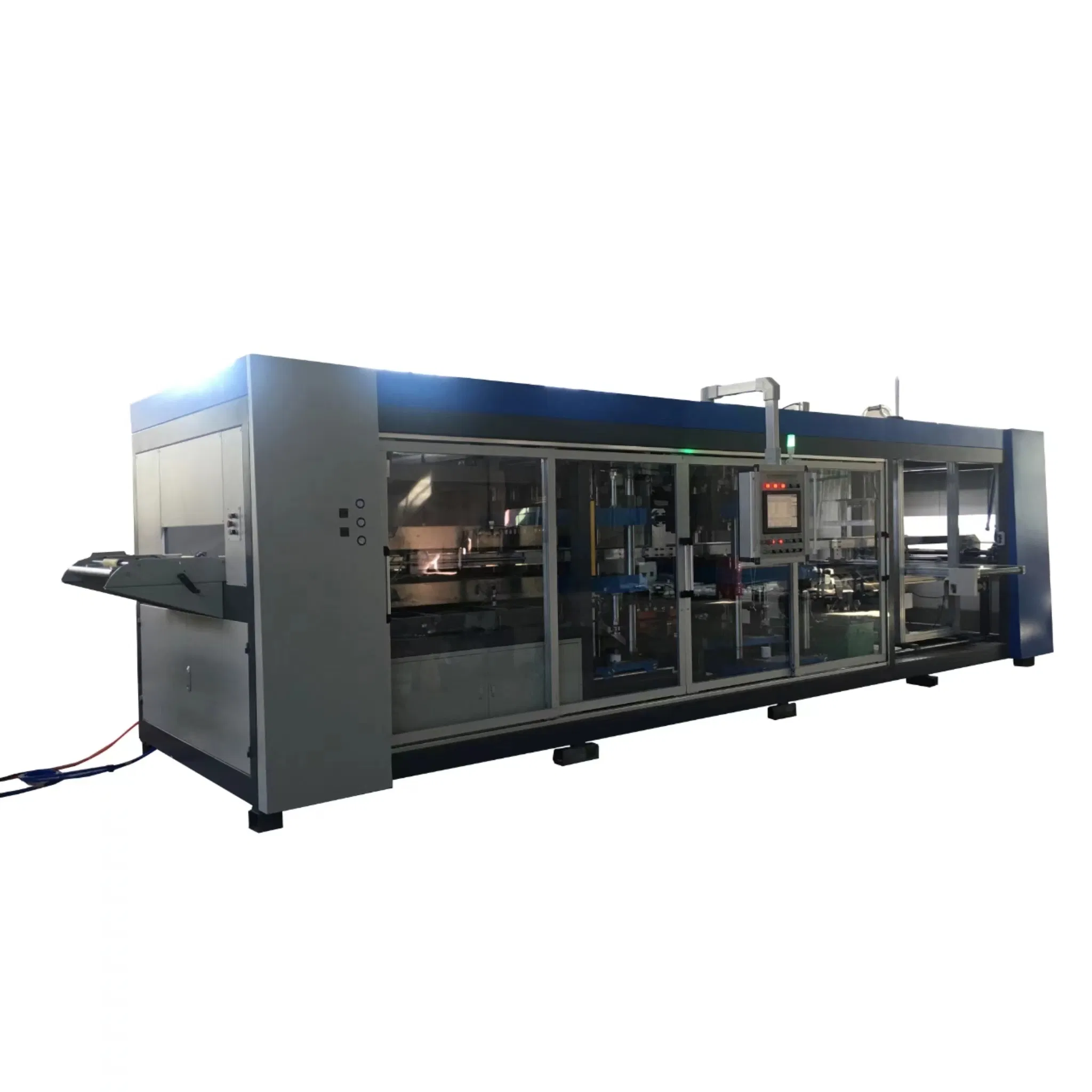

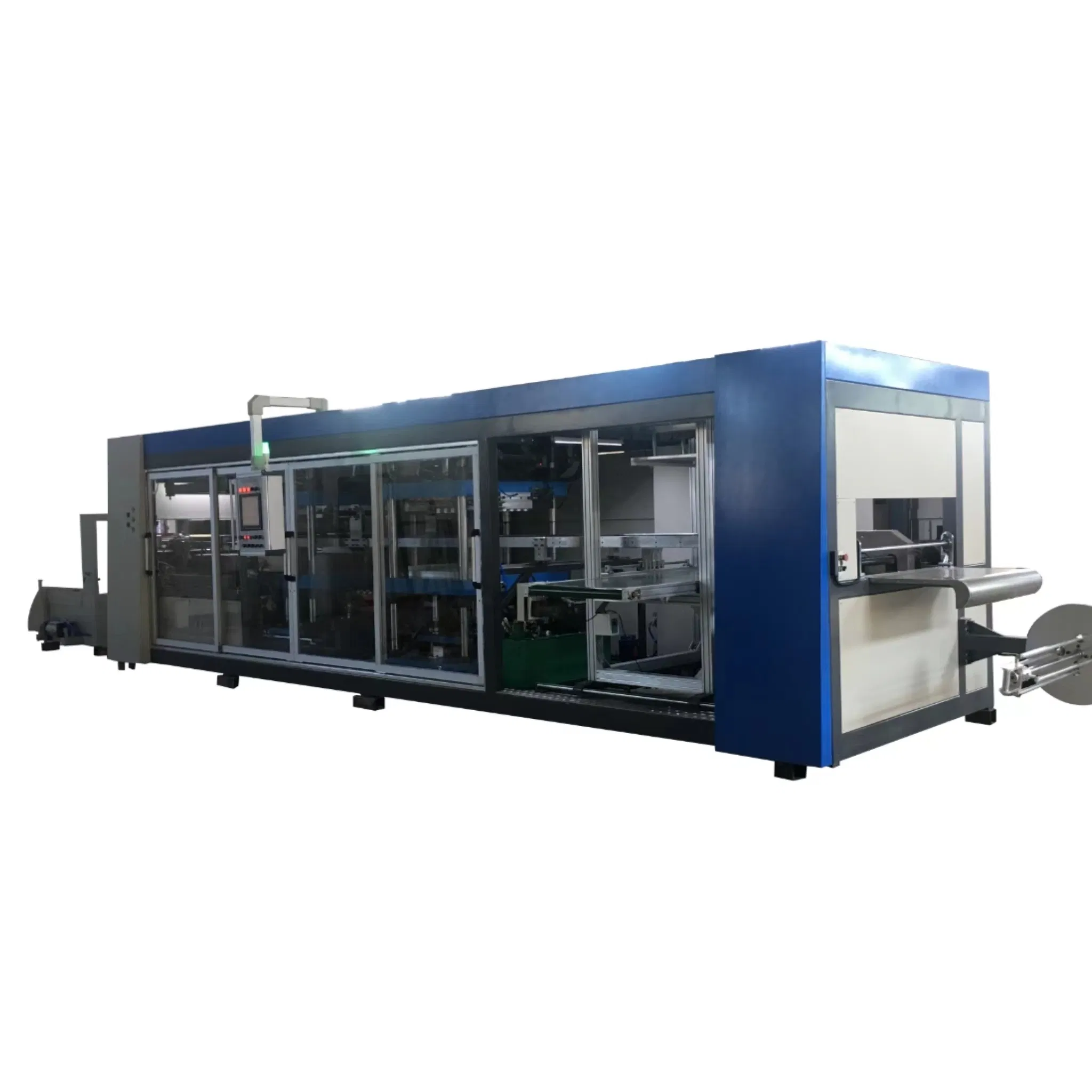

The equipment integrates mechanical, electrical, and pneumatic systems, featuring microcomputer PLC control and a 15-inch HMI. It handles feeding, heating, molding, cutting, and stacking in a single continuous process.
Suitable Materials: HIPS, PS, PP, PVC, PET, ABS and other plastic sheets.

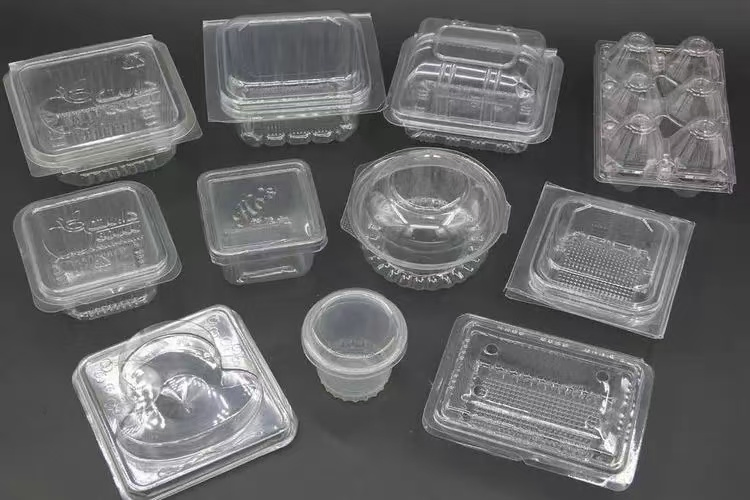

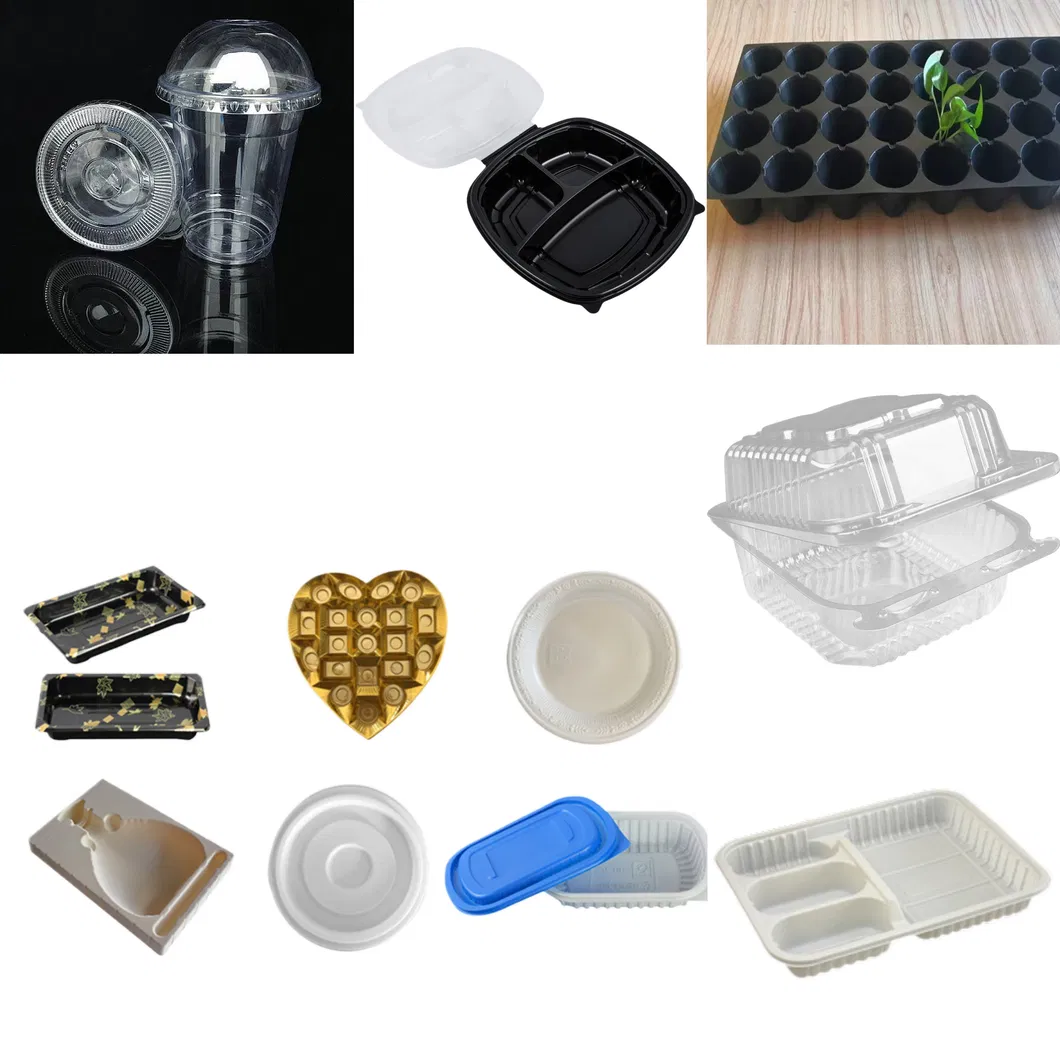

Applications: Highly transparent, high stretch, or irregular shapes including boxes, plates, trays, bowls, lids, and industrial packaging.

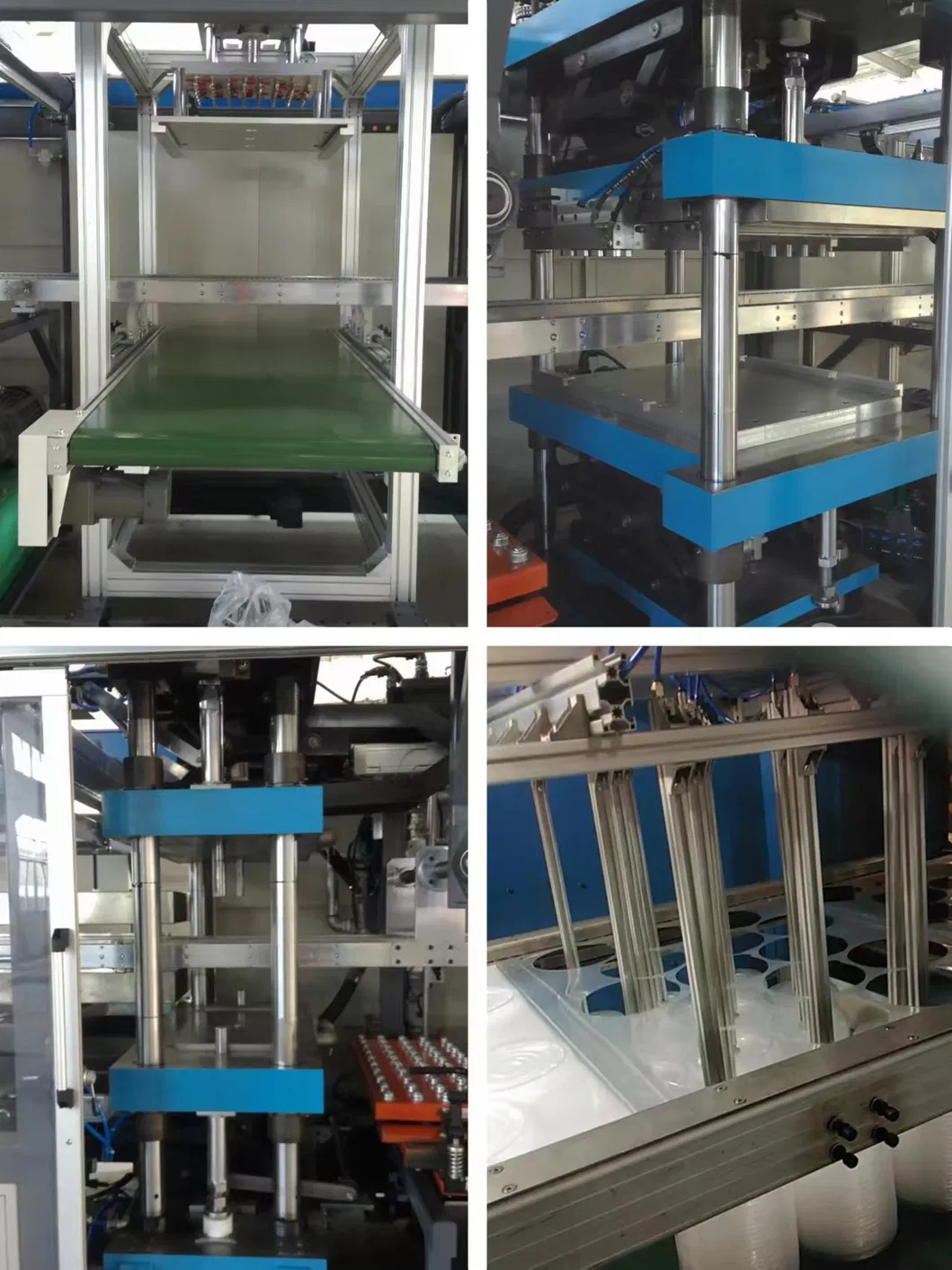

Process: Sheet Supply → Transportation → Double Heating → Molding & Cooling → Cutting → Decomposition & Stacking → Waste Reeling.
20 years of R&D and production experience in vacuum moulding technology.
One-stop non-standard customized solutions for unique production needs.

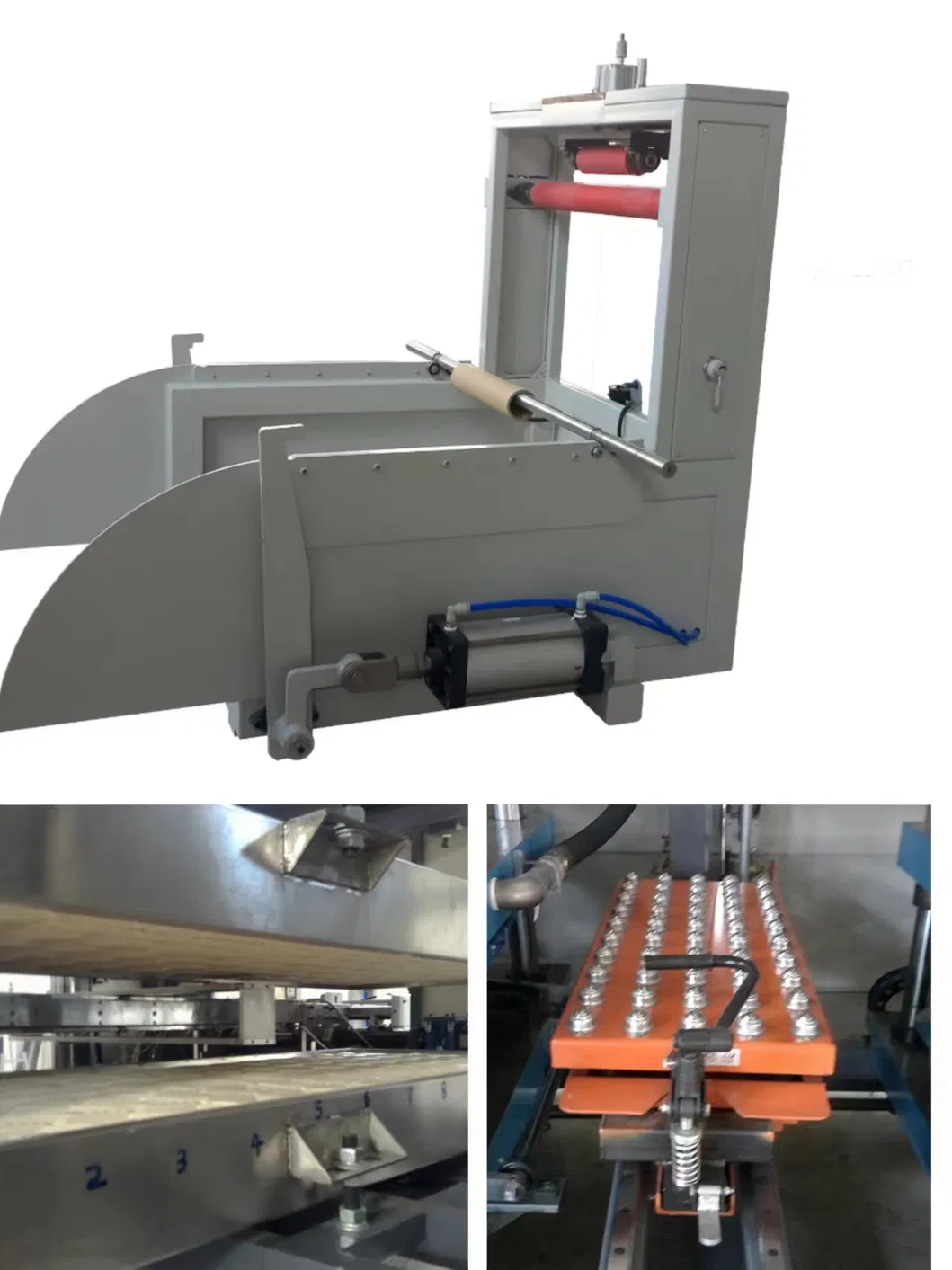

Mechanical parts are produced independently by CNC machining centers for high reliability.
Reasonable program planning, investment ratio analysis, and workshop planning schemes.
Installation, commissioning, and operator training to ensure ideal product output.
One-year warranty with parts exchange (excluding wearing parts) and lifetime maintenance at material cost.
