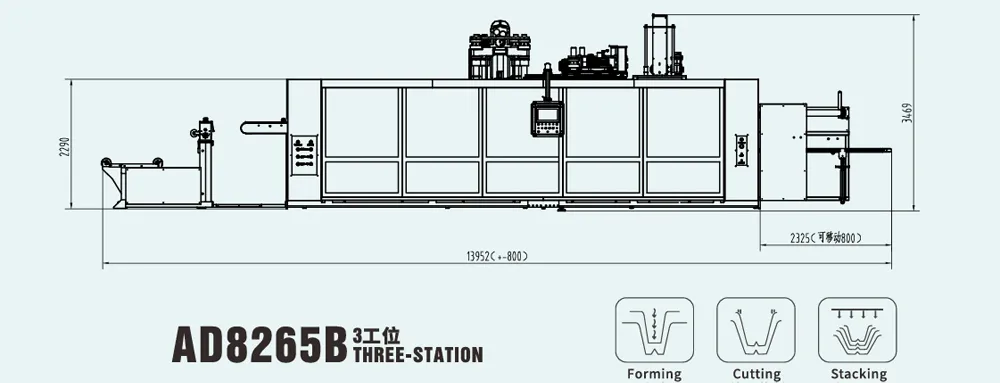

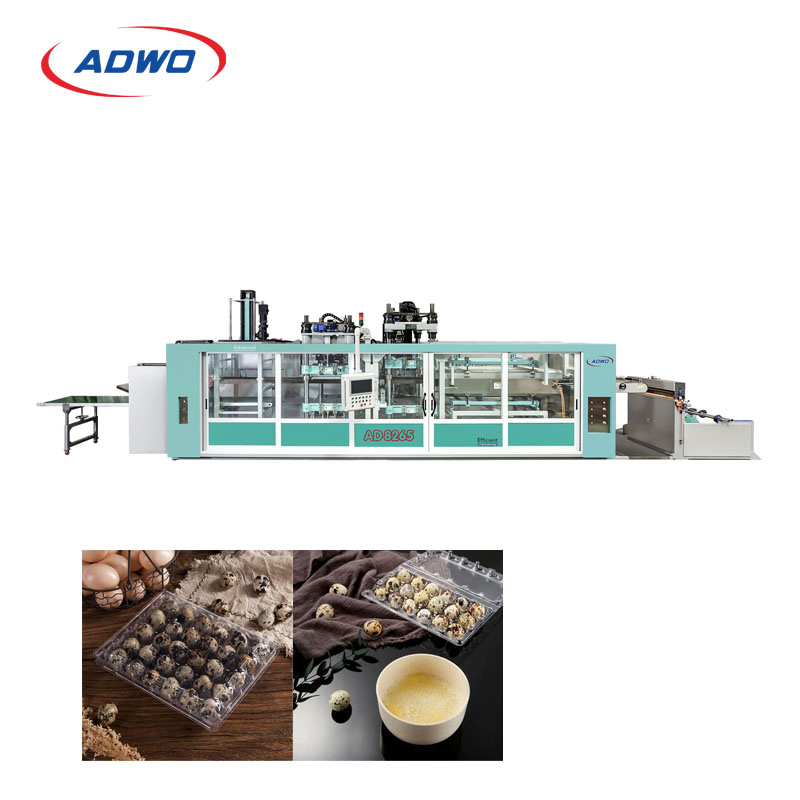

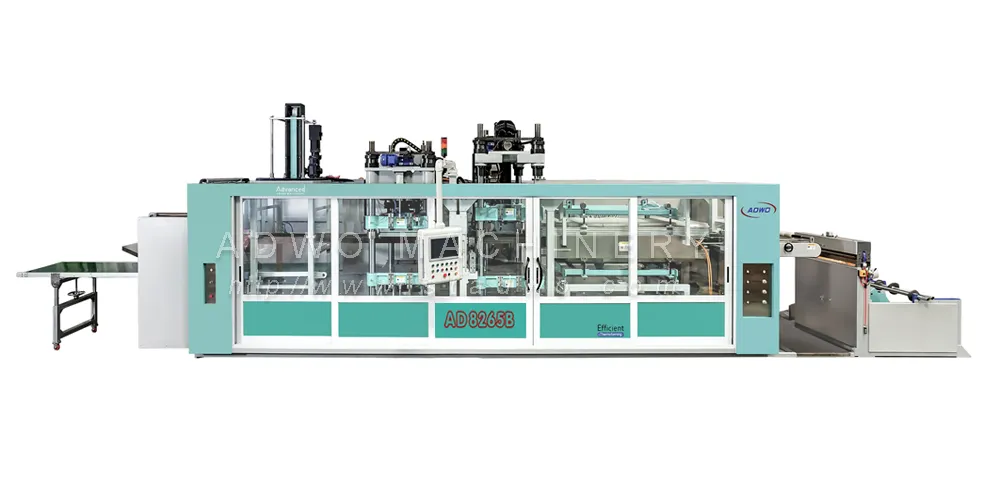

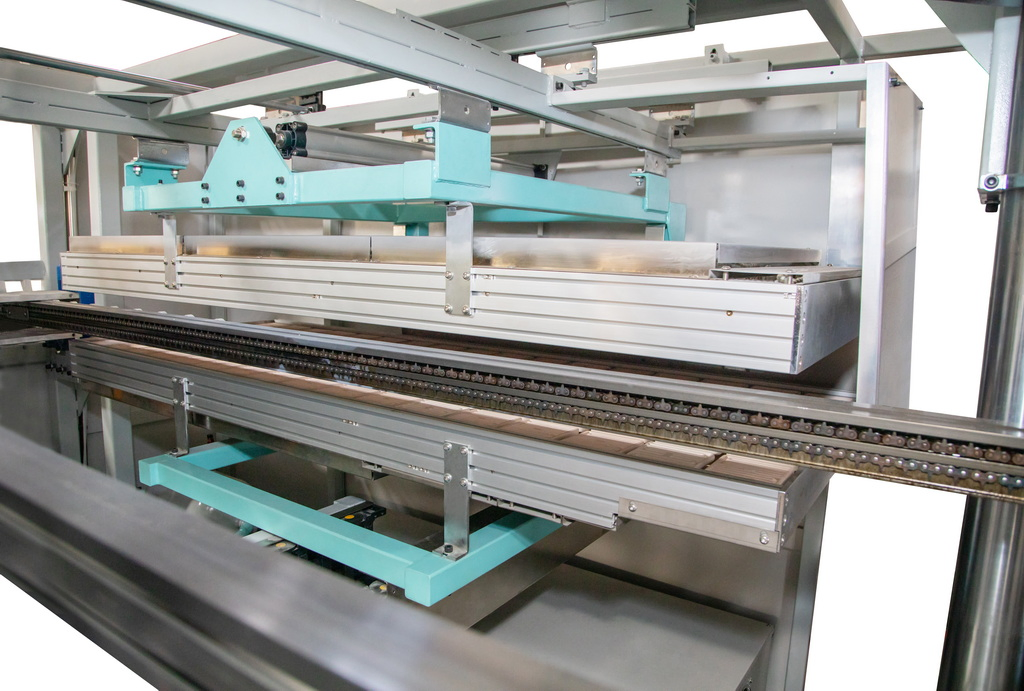

Fully Automatic 3-Station Vacuum Forming Thermoforming Industrial Plastic Egg Tray Making Machine

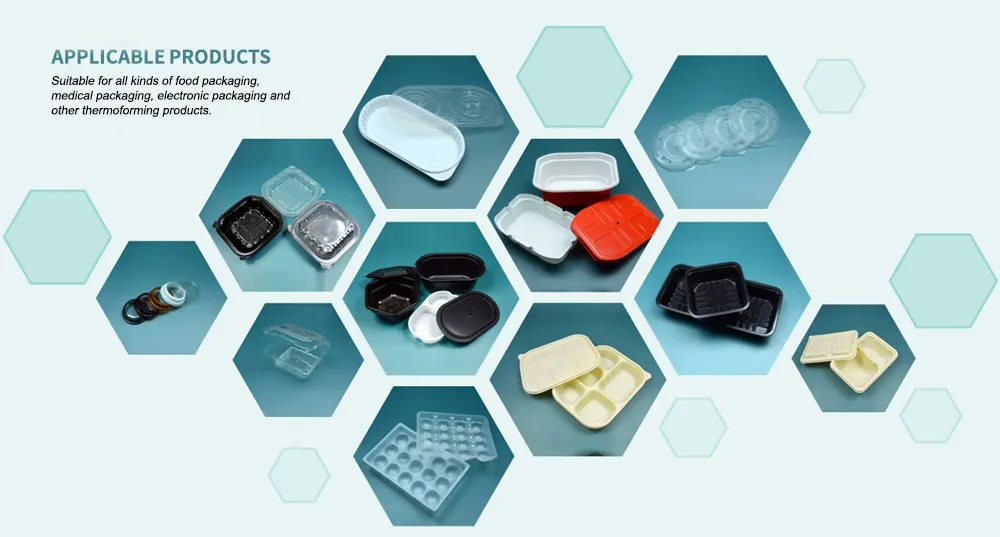

The AD8265B positive and negative pressure high speed thermoforming machine is an advanced equipment model suitable for the production of PP, PET, BOPS, HIPS, OPS, PVC, CPLA, CPET, APET, corn starch and other plastic products. It is widely used in fast food boxes, fruit boxes, bowl lids, baking bread boxes, hardware electronic industrial packaging, and other disposable plastic products.
| Model | AD8265B |
| Available Sheet | PP, PET, BOPS, HIPS, OPS, PVC, CPLA, CPET, APET |
| Formed Area (mm) | 820×650 |
| Formed Depth (mm) | ≤ 150 |
| Max Cutting & Punching Area (mm) | 800×630 |
| Sheet Thickness (mm) | 0.12-2 |
| Formed Speed (cycles/min) | ≤ 50 |
| Power Supply | 380V/50HZ 3 Phase 4 Line |
| Total Power (kw) | Servo Motor 50kw + Heating Power 203kw |
| Air Pressure (Mpa) | 0.6-0.8 |
| Gas Consumption (L/min) | 5000~6000 |
| Weight (kg) | Approx. 18,000kg |

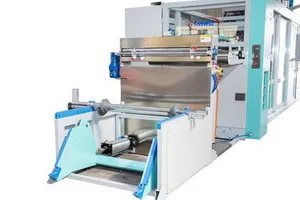

Sheet Unwinder: Driven by reduction motor, infrared sensor control, max diameter 1000mm.
Ceramic Heating Oven: 4-section heating for precise control and energy efficiency.

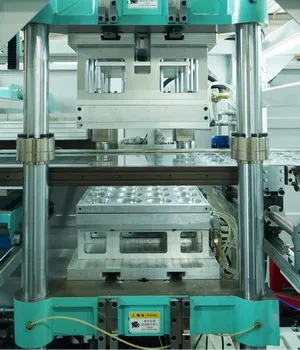

Mold Table: Made of nodular cast iron, high precision, compatible with KIEFEL moulds.

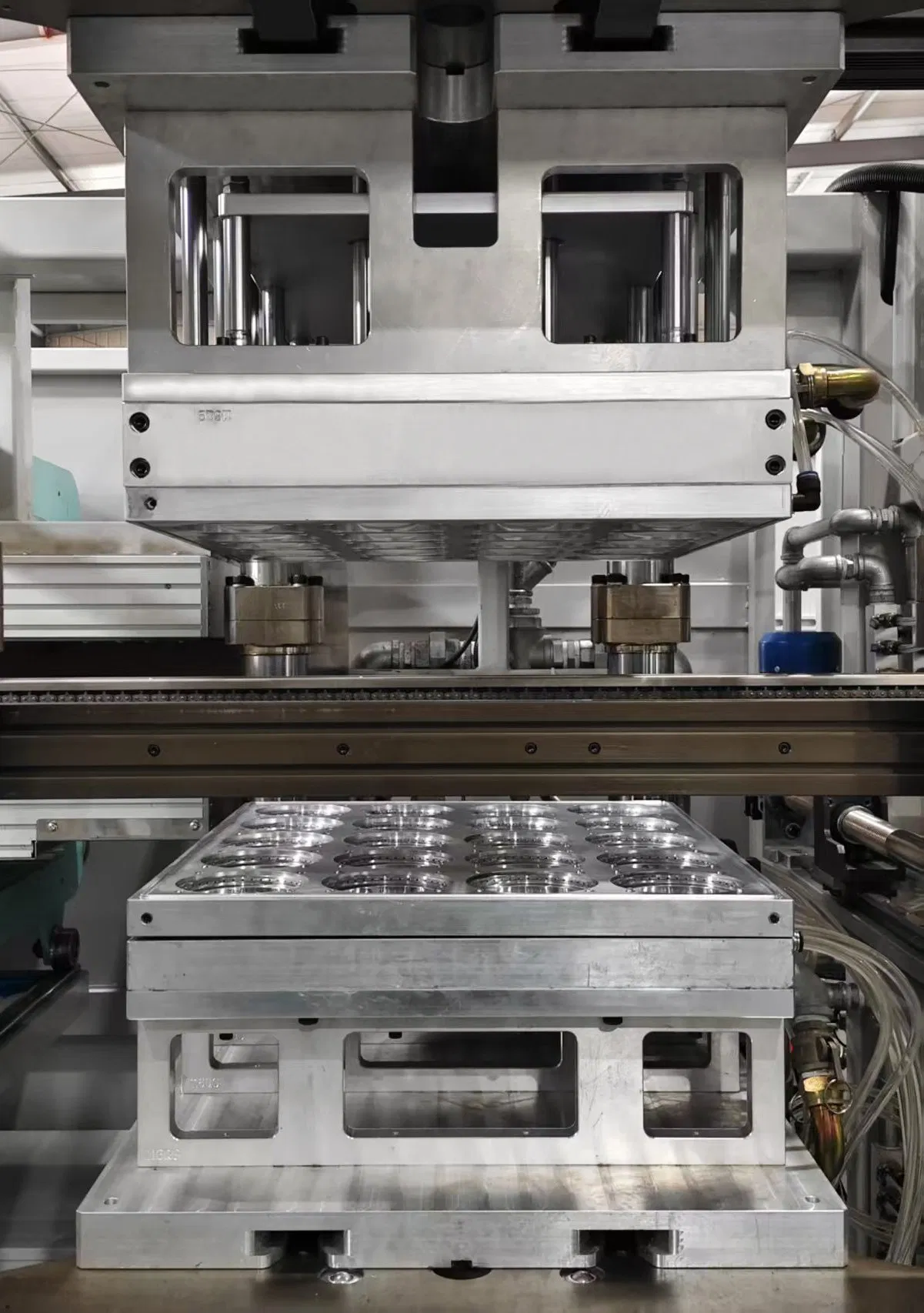

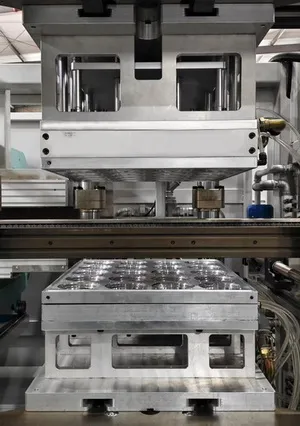

Forming Station: Delta servo drive, quick mold installation, auxiliary stretching mechanism.

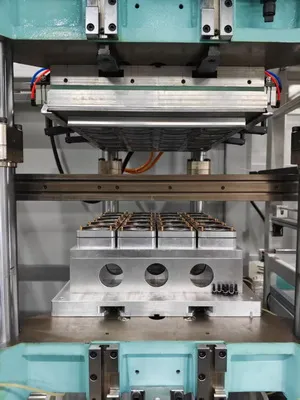

Cutting Station: Delta high-power servo drive, heated steel knife mold to prevent burrs.

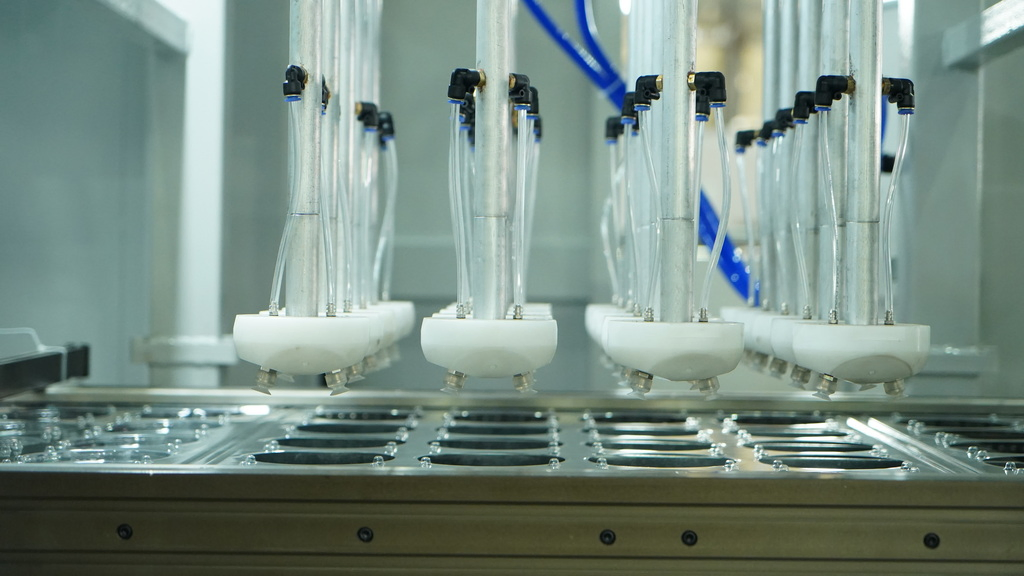

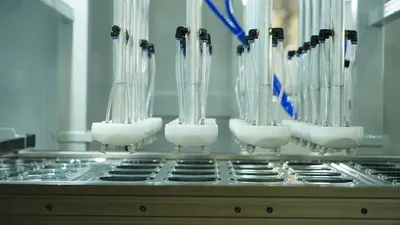

Stacking & Counting: Servo-driven with aluminum alloy rack, frequency speed reducer for smooth conveying.

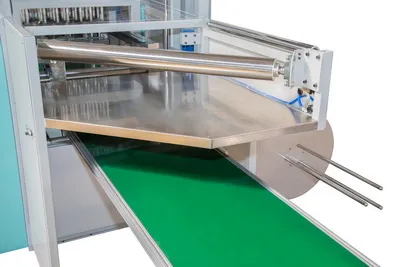

Scrap Winder: Independent pneumatic motor reducer for easy scrap handling.

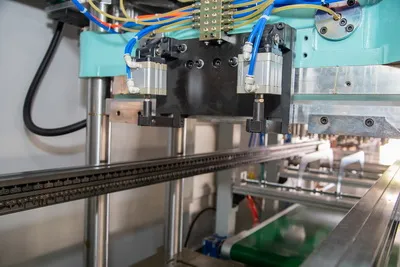

Guide Rail Feeding: Water-cooling rail, anodized aluminum (HV700), high precision conveying.

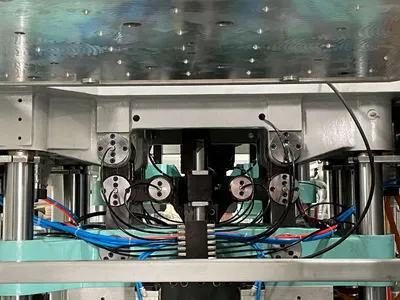

Transmission: Five-pivot structure for efficiency and energy saving.
Our team consists of professional technical personnel with over 20 years of experience in the thermoforming industry. We provide complete solutions including technology, equipment, and molds. By utilizing high-efficiency transmission systems and intelligent control systems, we ensure high standards of quality control. Our professional pre-sales and after-sales teams adhere to a "customer-first" service attitude, providing technical guidance and personnel training.
We are a national high-tech enterprise integrating R&D, production, and sales. With a core focus on quality and innovation, we gather the advantages of top-tier equipment from around the world to provide high-quality thermoforming solutions.
