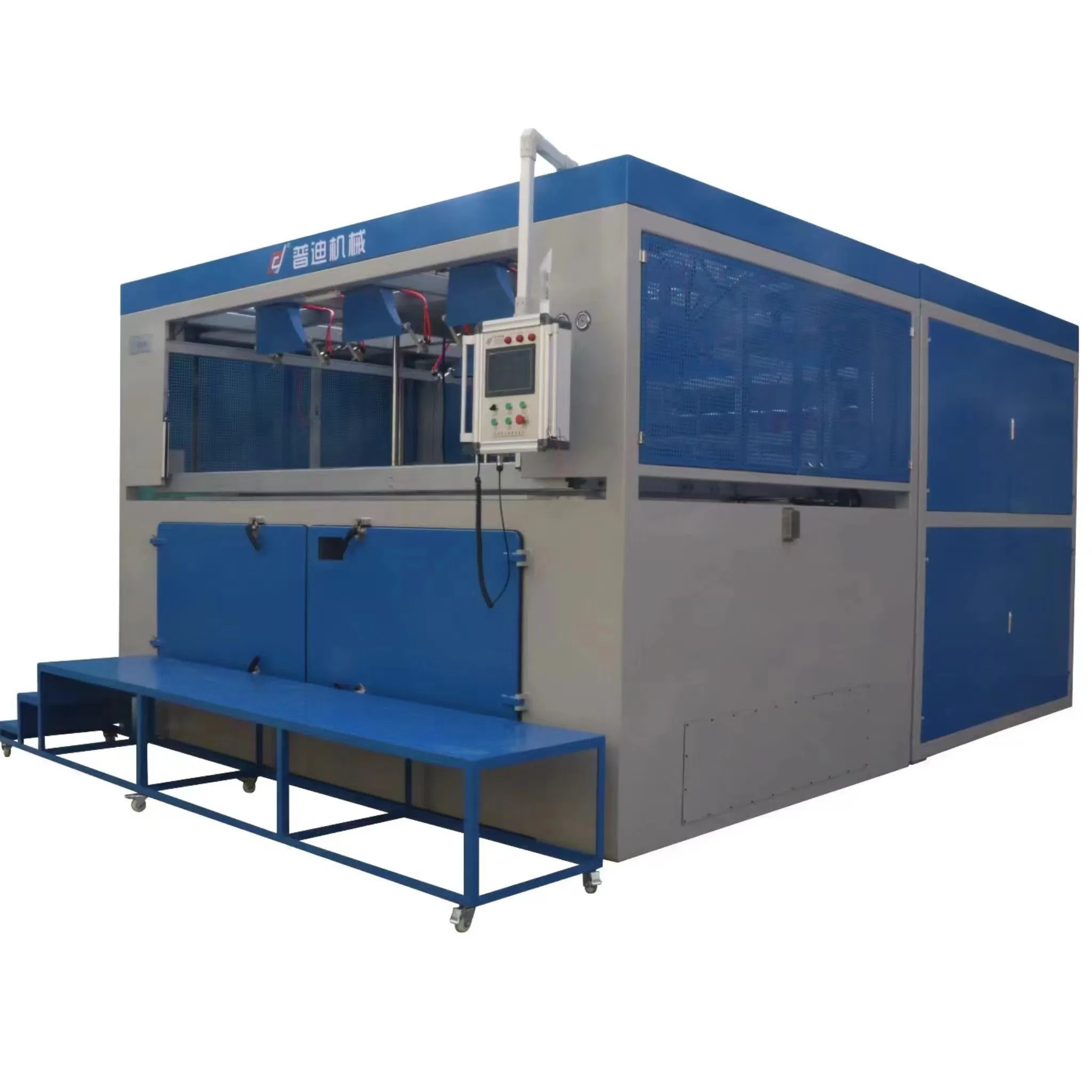

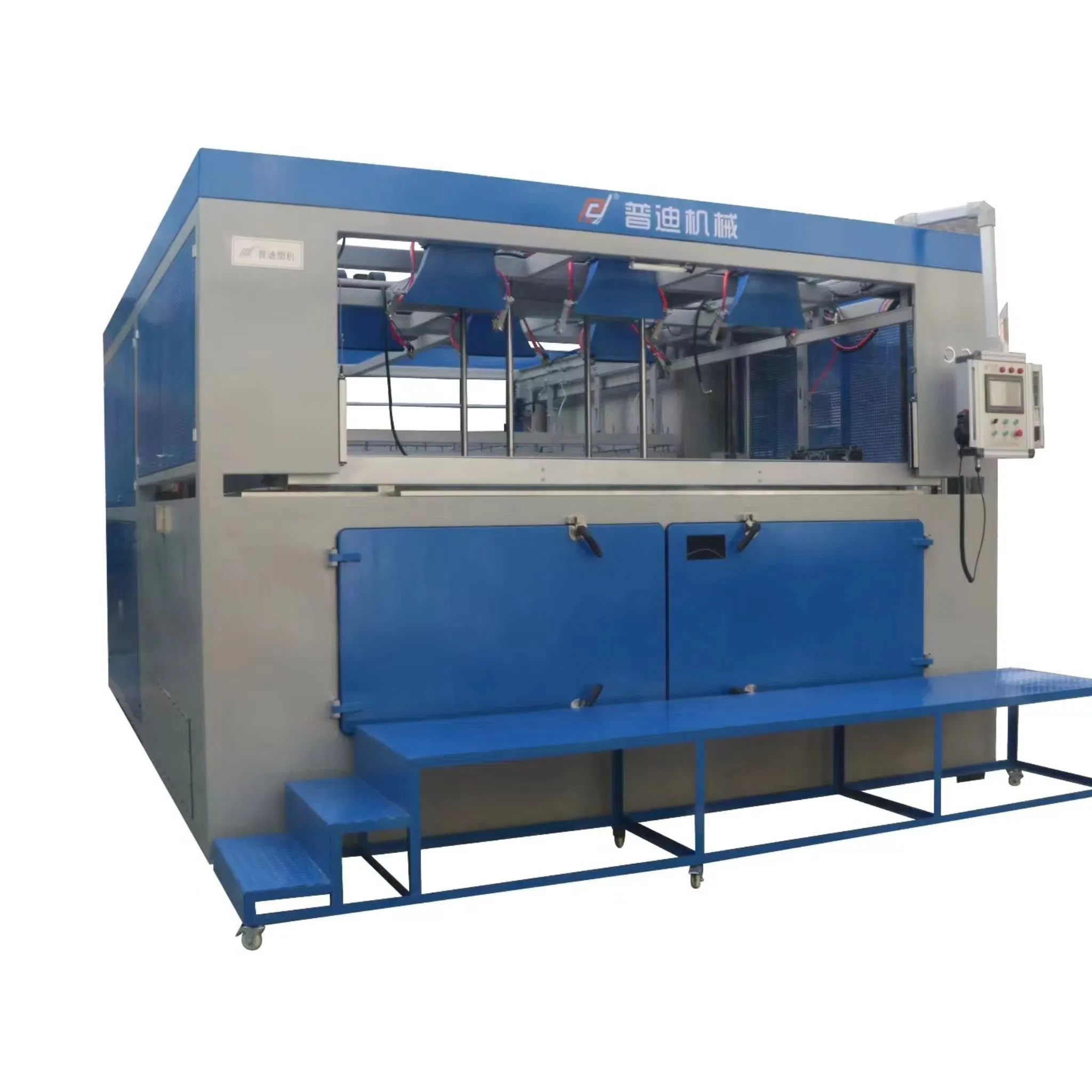

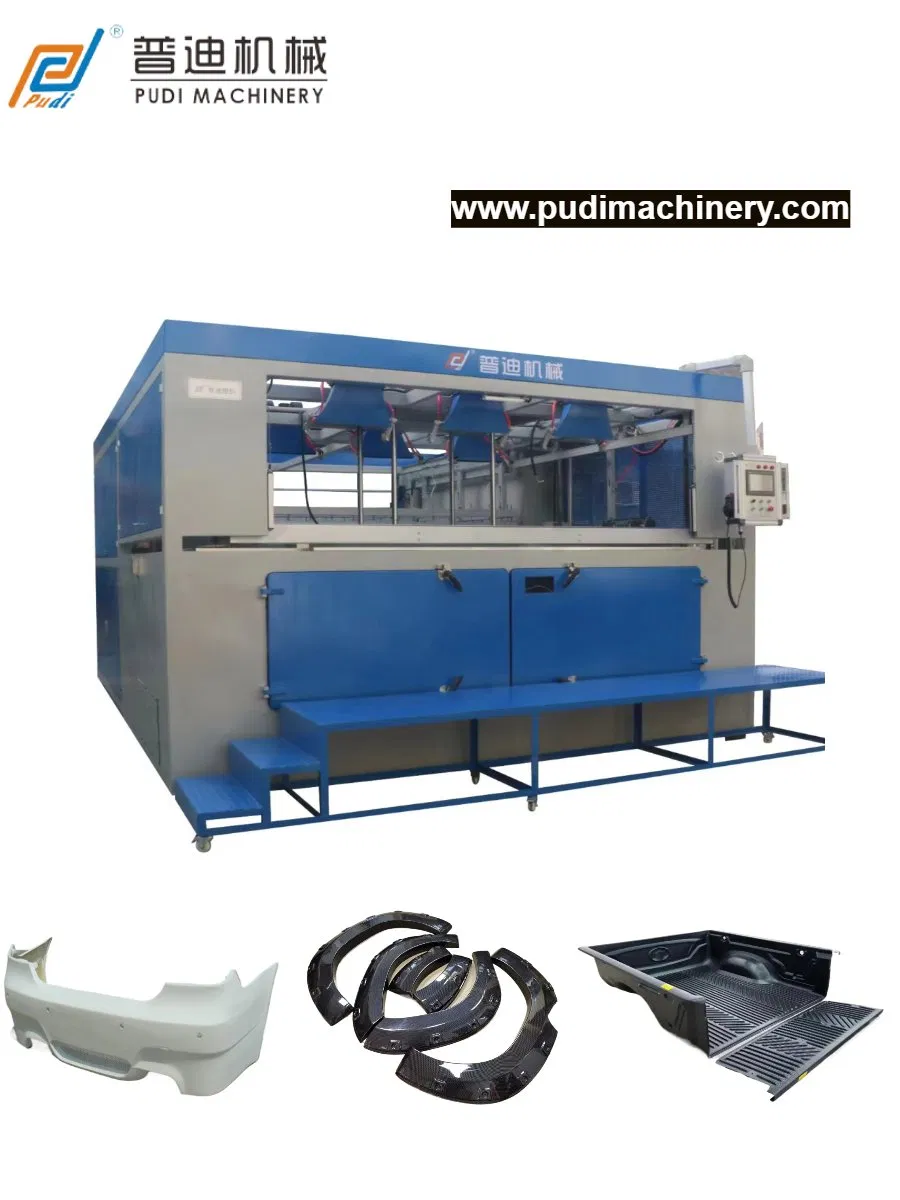

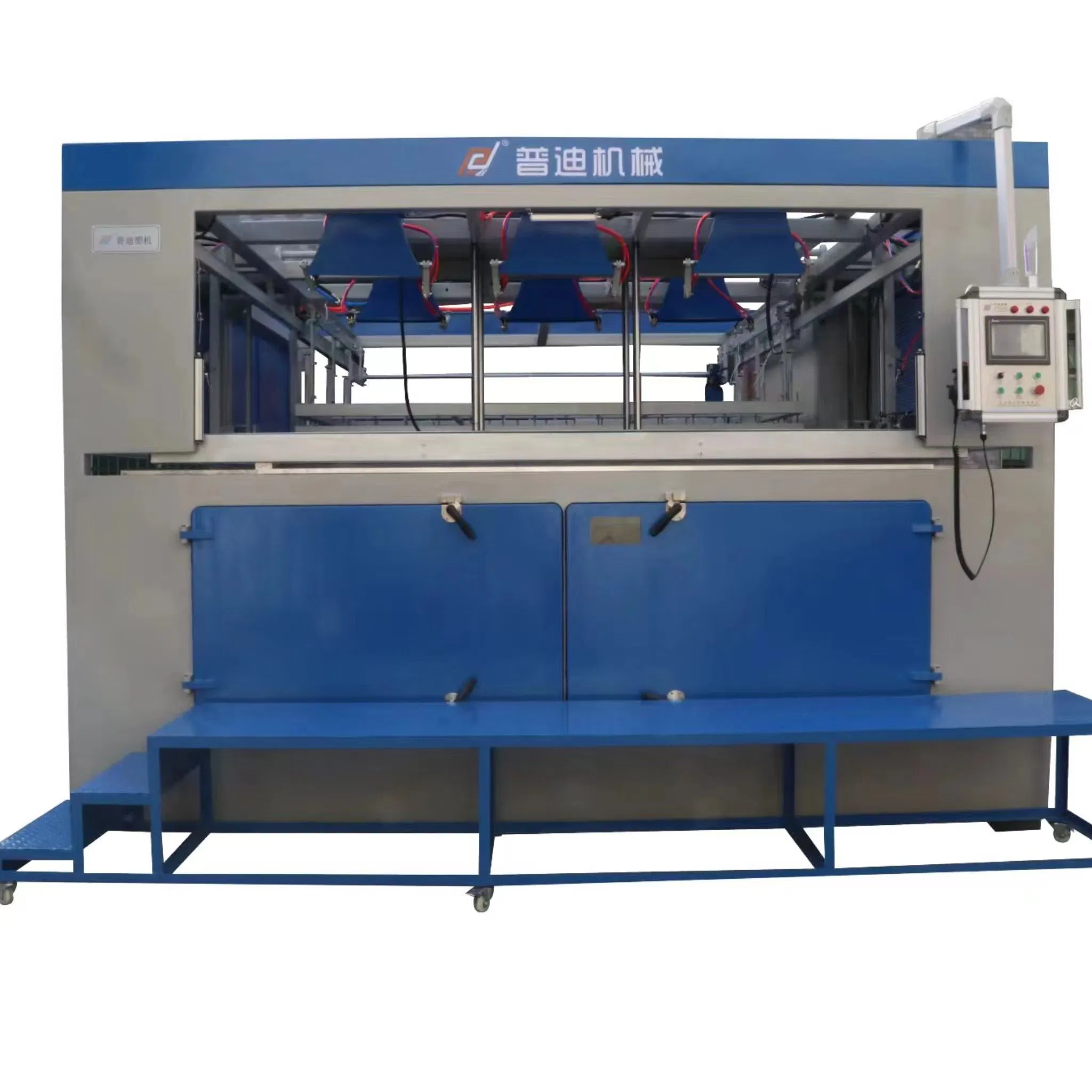

Large-Scale Automatic Vacuum Forming System for Car Parts

Warranty:	1 Year
Automation:	Automatic
Raw Material:	ABS

Send Inquiry

Product Description

Basic Information

Model NO.

PDVF-Mo

Shaping Mode

Die Molding

Driven Type

Electric

Computerized

After-sales Service

1 Year

Color

Blue

Output

200PCS/Year

Specification

Forming area: 2600mm*1600mm

⚙

Technical Parameters

No.	Item Technical	Parameters
1	Maximum wellhead size	Length: 2600 mm, Width: 1600 mm
2	Molding depth	500 mm
3	Applicable material thickness	1-10mm
4	Total power supply	Three-phase five-wire 380V±15V, 50Hz
5	Heating power	Upper furnace: 128kw; Lower furnace: 128kw
6	Total power	280kw (normal use between 50-70%)
7	Mold forming method	Concave mold forming (one time molding)
8	Upper furnace power	Servo motor
9	Cooling Form	Powerful fan
10	Heating unit	Fast medium wave infrared heating tube
11	Adaptation materials	PP, PC, PE, PVC, ABS, PMMA, PS plates

✓

Main Accessories List

NO.	Name	Brand
1	PLC/Touch Screen	Delta
2	Relay (electronics)	Omron
3	Temperature control regulator	AOYI digital regulator
4	Vacuum pumps	Cosmic Star
5	Contactors / Interrupter	Schneider
6	Servo Motors	Delta
7	Bearings	C&U bearings

📷

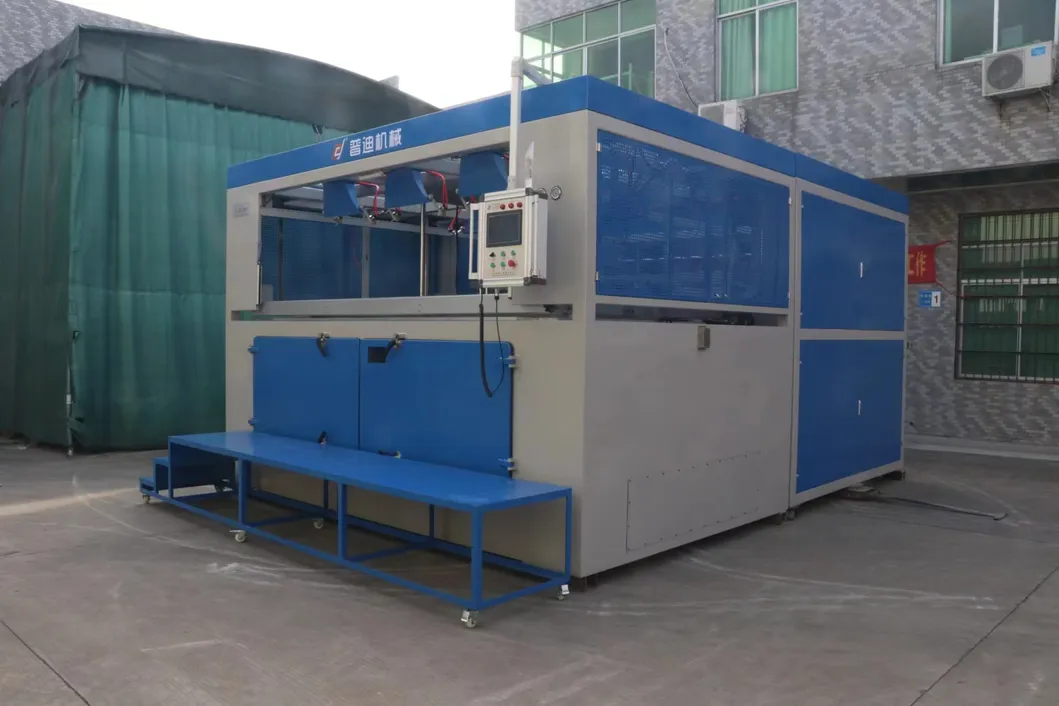

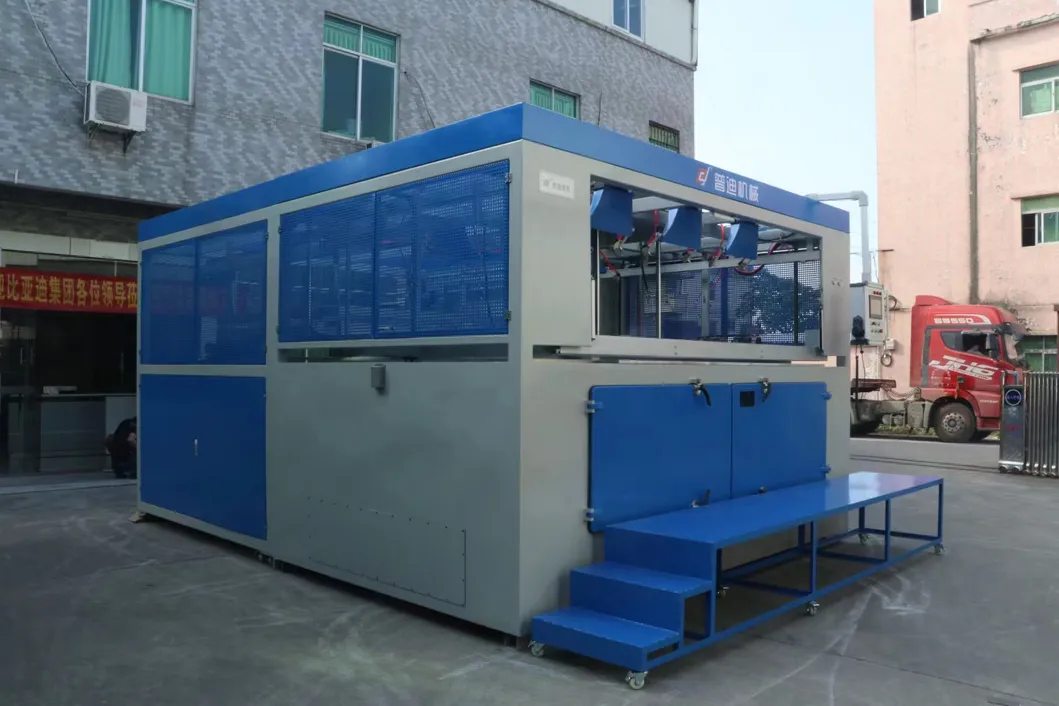

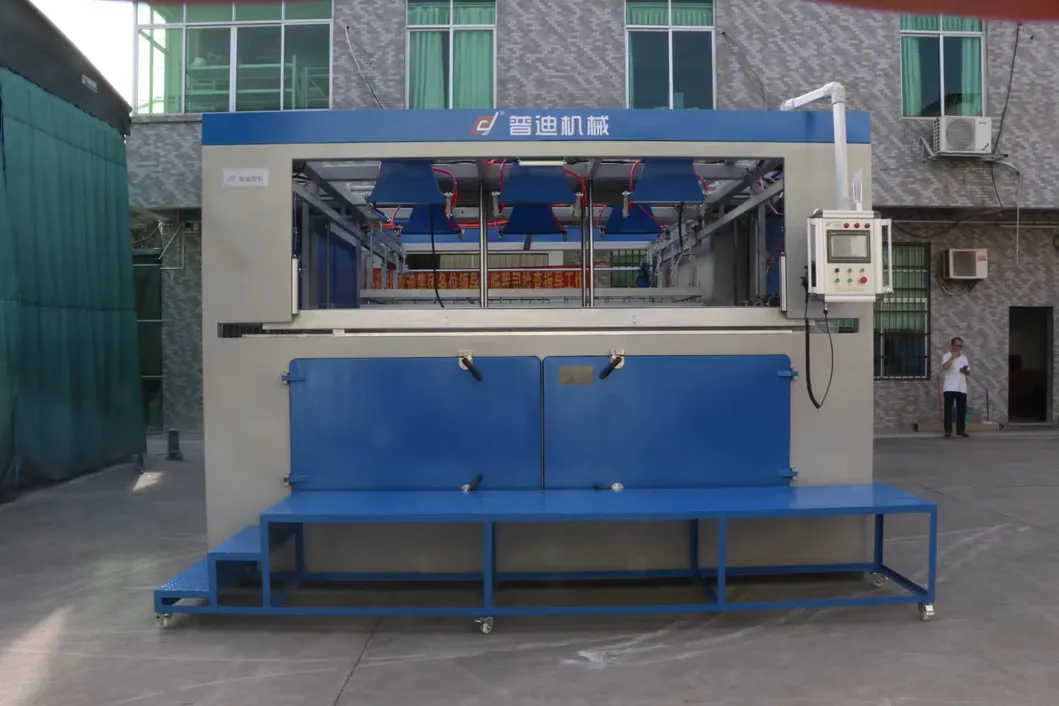

Equipment Showcase

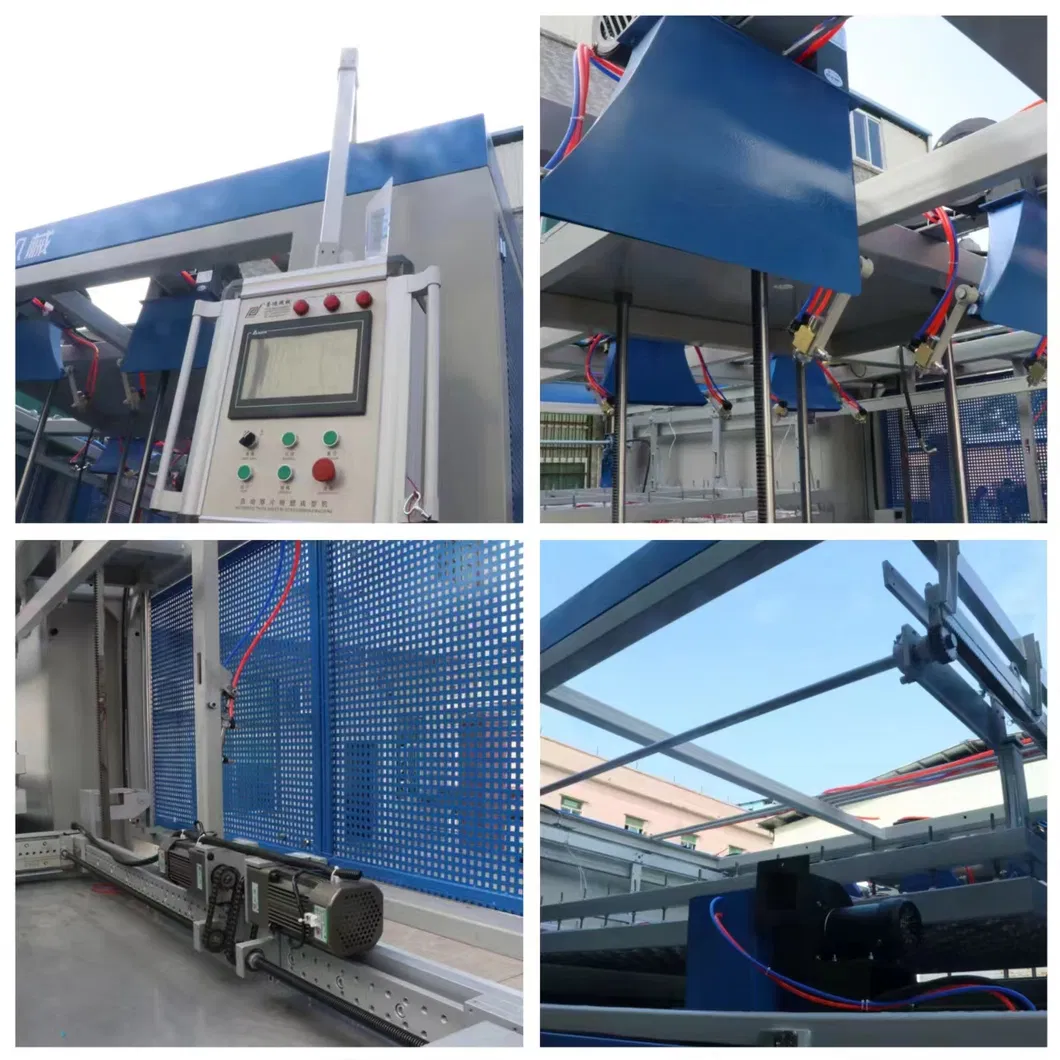

Machine Detail Diagram

🛠

Equipment Composition

This equipment consists of a pressing device, heating system, temperature control system, mold table lifting device, vacuum forming system, bubble blowing system, cooling system, and safety device system.

I. Pressing Device

Driven by pneumatic cylinder, the press frame can be adjusted to different sizes of length and width at will to match product dimensions.

II. Heating System

Double-sided heating using fast medium wave infrared heating tubes. Features fast heating with no preheat required. The furnace automatically turns on/off based on station position to save energy.

III. Temperature Control

Digital analog adjustment via 485 communication. Each heating unit is independently adjustable to optimize energy consumption.

IV. Vacuum & Cooling

Equipped with a two-stage vacuum system (large and small) and powerful fans for efficient product cooling. Includes an anti-sagging system to ensure uniform thickness.

🌍

Applications & Requirements

Power Supply

380V ± 10%, 50Hz

Environment Temp

-20 ºC ~ 40 ºC

Workshop Height

Ideal 5.5M

Air Pressure

0.6MPa - 0.8 MPa

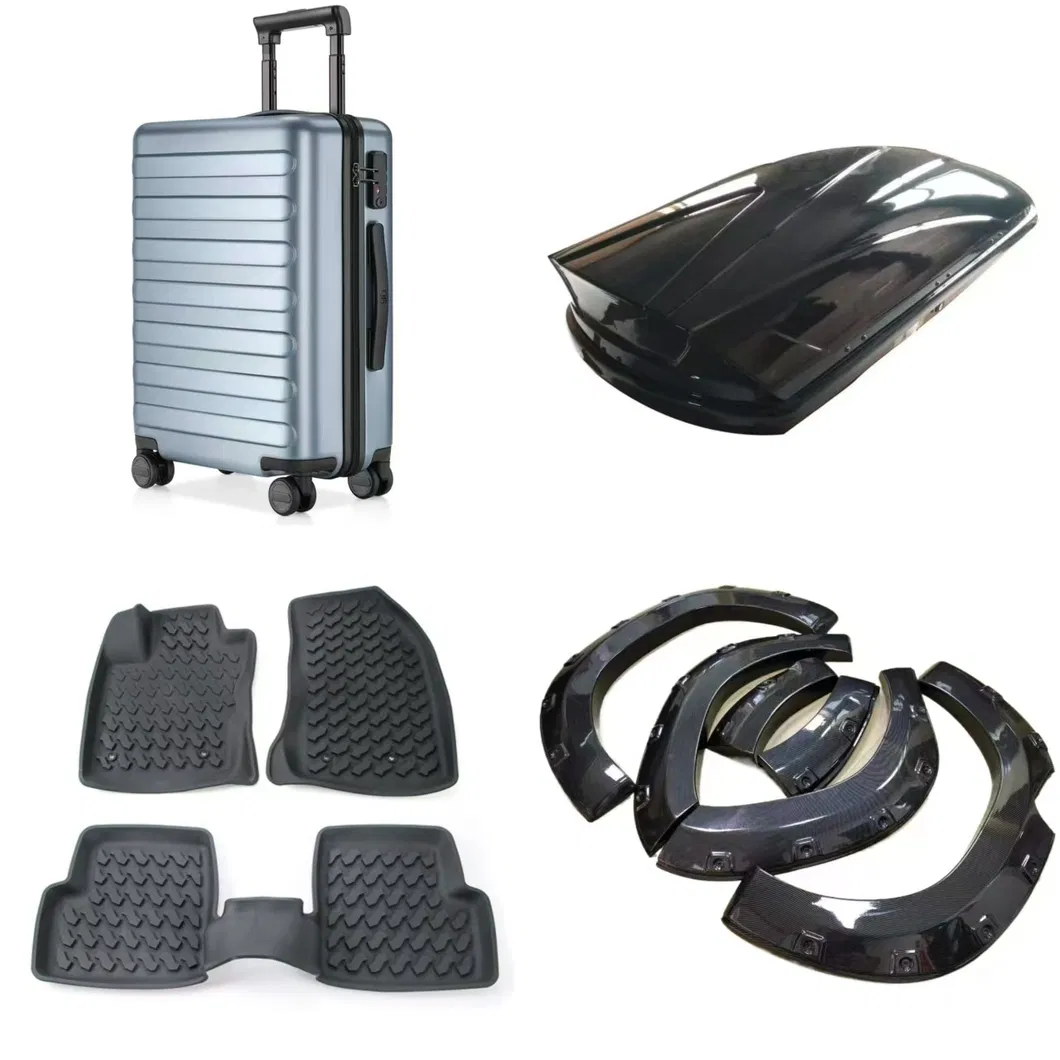

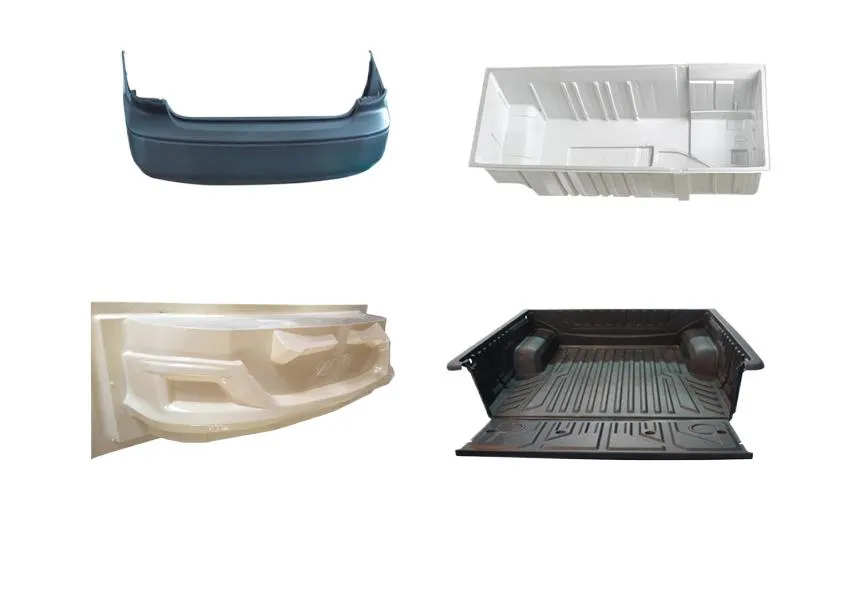

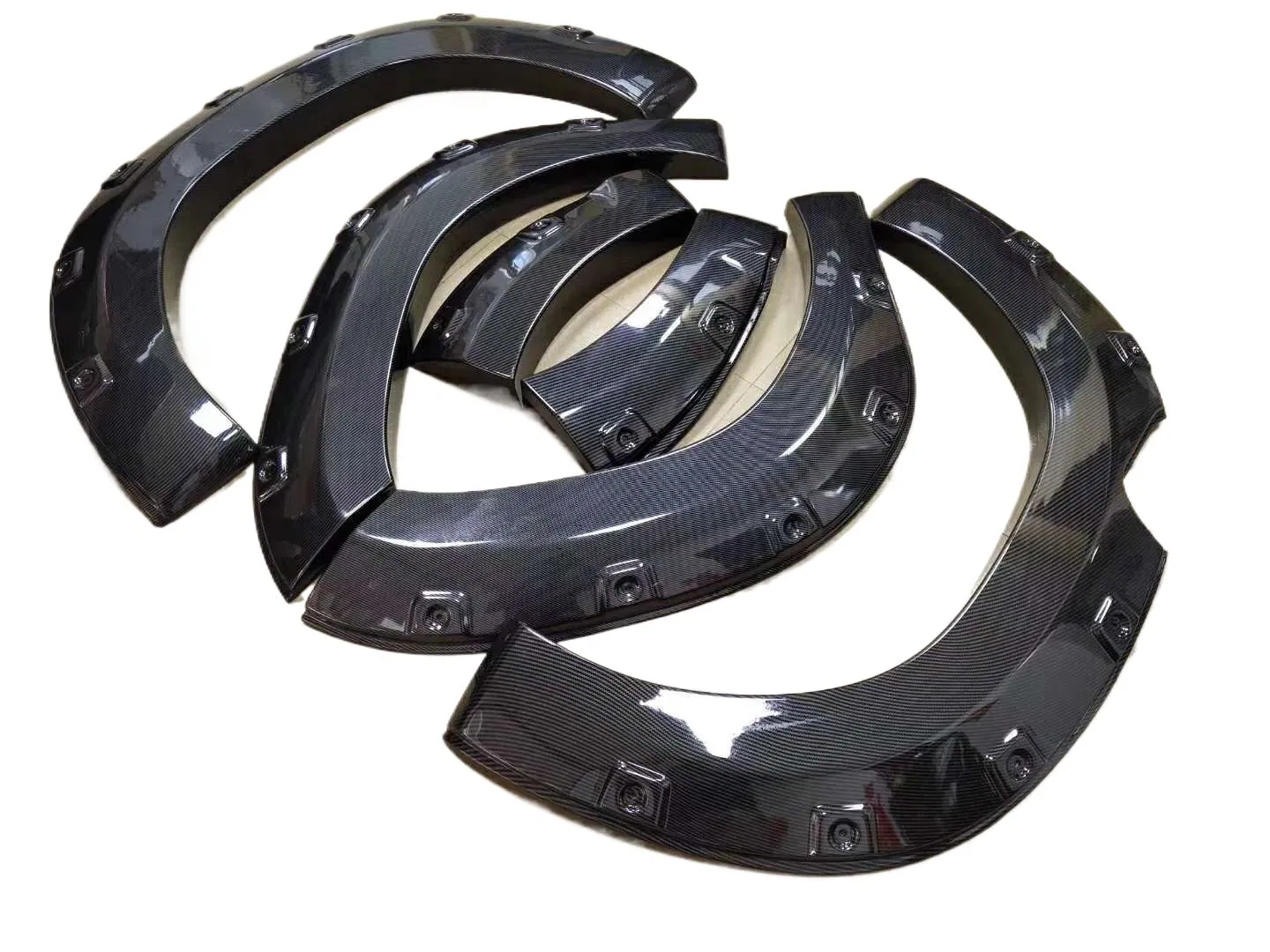

Applications: Automobile floor mats, wheel arches, rain shields, trunks, bumpers, bathroom wall panels, bathtubs, and refrigerator liners.

★

Our Expertise

1. Professional Technical Team: 20 years of R&D and production experience in vacuum moulding technology.
2. Customised Service: One-stop service providing complete vacuum forming solutions.
3. Quality Assurance: All mechanical parts are produced independently by CNC machining centres.
4. After-sales Service: Integration of installation, commissioning, and training services.

Frequently Asked Questions

What materials are compatible with this vacuum forming machine? The machine is designed for thermoplastic plates including ABS, PS, PE, PP, PC, PVC, and PMMA with a thickness range of 1mm to 10mm.

What is the maximum forming area and depth? The maximum forming area is 2600mm x 1600mm, with a maximum molding depth of 500mm.

Does the machine include energy-saving features? Yes, the heating system uses fast medium wave infrared tubes and an automatic control system that only activates heating when the furnace is at the working station.

What safety systems are installed on the equipment? It is equipped with safety gratings that stop all actions if personnel enter the work area, plus an anti-drop device for the press frame and sound/light alarms.

What kind of after-sales support do you provide? We provide a one-year warranty for the entire equipment, lifetime maintenance, and on-site installation and training services.
