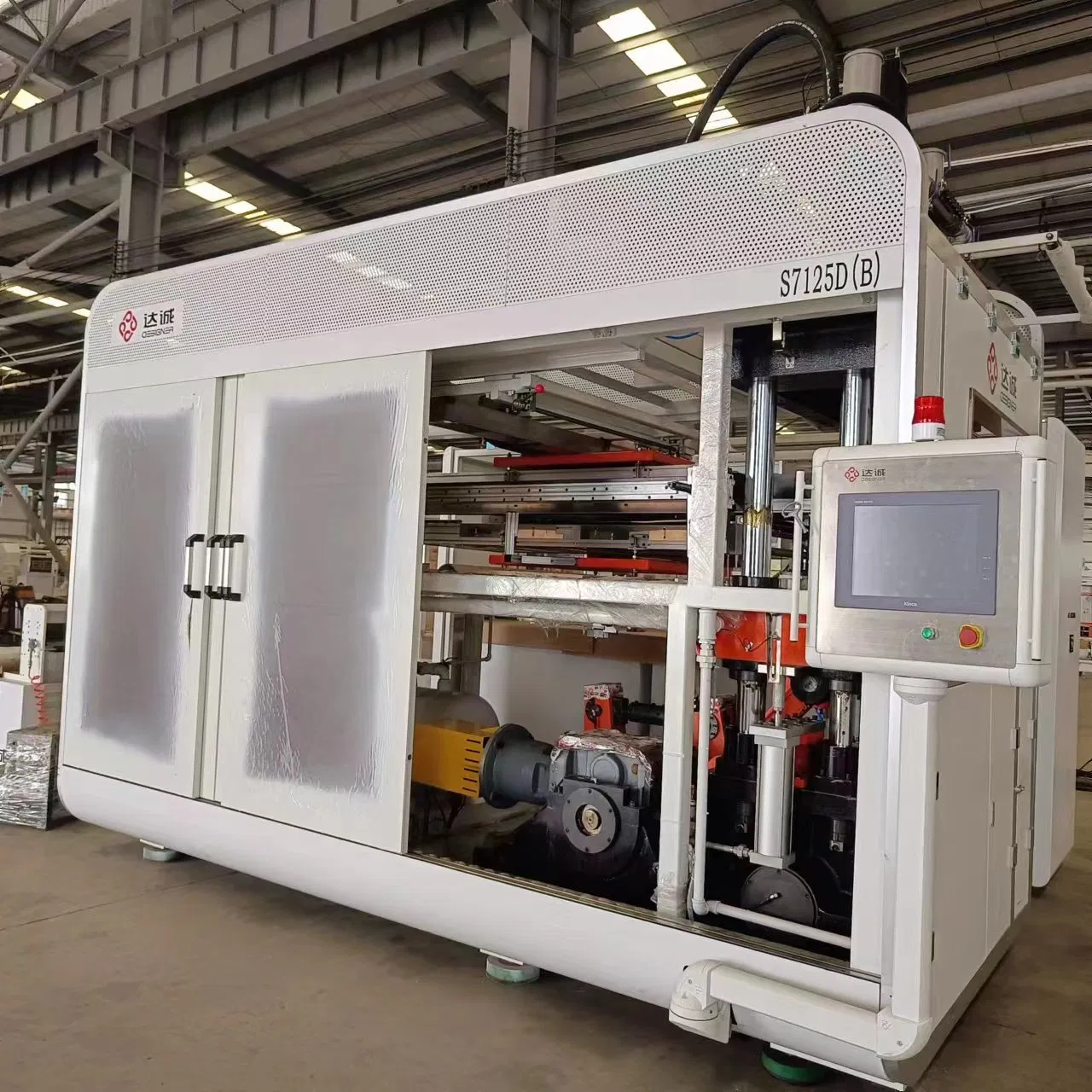

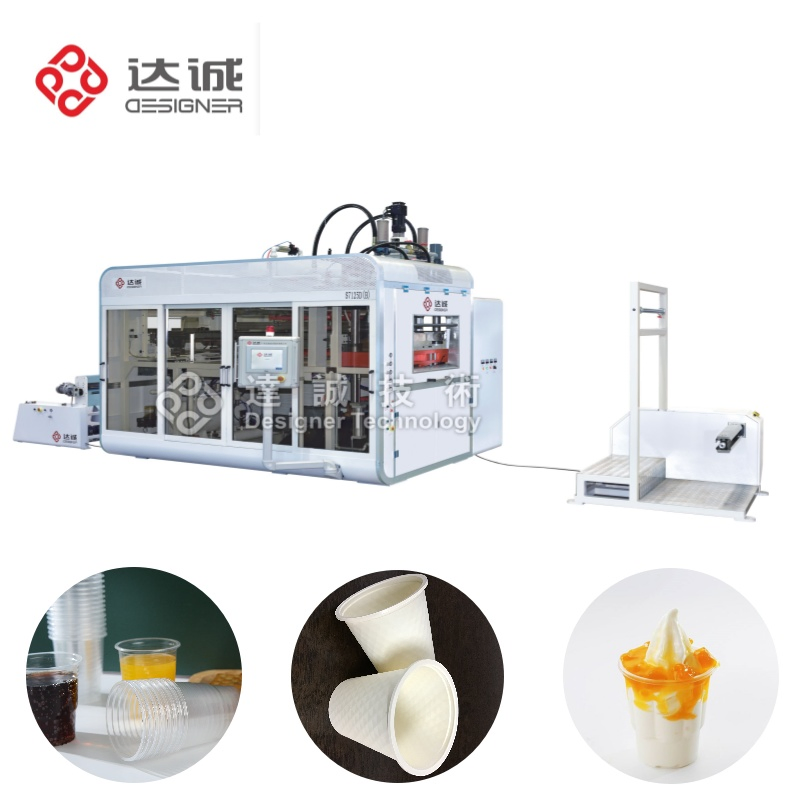

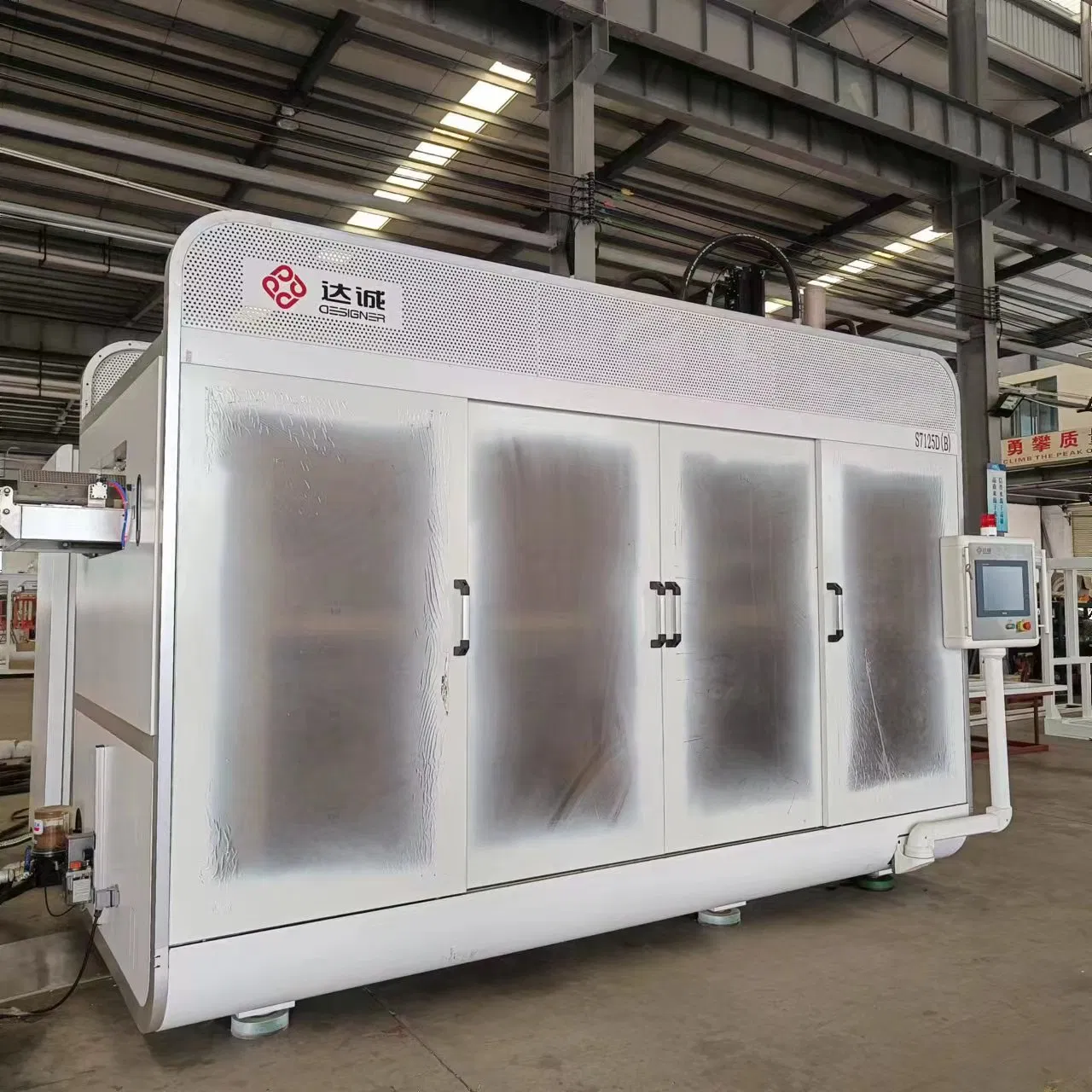

Automatic Plastic Coffee Cup Vacuum Forming Thermoforming Equipment

Basic Specifications

Model NO.

S7125D

Certification

ISO

Column number

Four Column

Molding Method

Pultrusion

Automatic Grade

Automatic

Control

PLC Touch Screen

Raw Material

PP, PS, PLA, PET, PVC, Biodegradable Materials

Formed Depth

≤180mm

Max Formed Area

680 & 390mm

Machine Capacity

3~6 Ton/Day

Product Range

Cup, Tray, Box, Lid, Bowl, Container

Process

Forming-Cutting-Stacking

Sheet Feeding

Servo Motor

Trademark

DESIGNER

Packaging & Delivery

Package Size

2000.00cm * 400.00cm * 300.00cm

Gross Weight

15000.000kg

Transport

Wooden Pallet & PE Film

Product Description

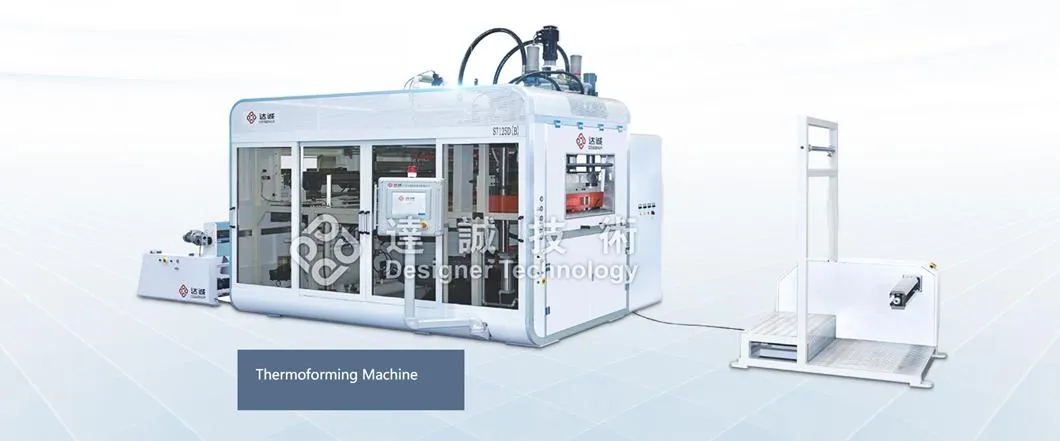

Automatic Cup Thermoforming Machine

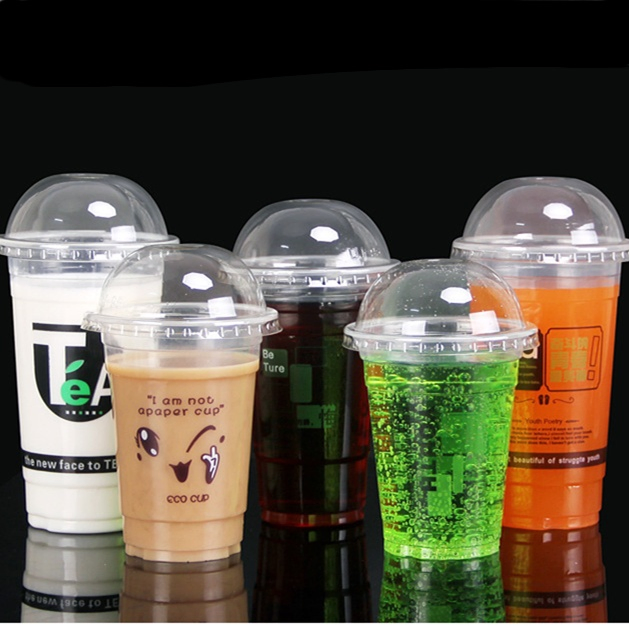

Our cupping machine is specialized for the high-precision production of plastic cups. It supports a wide range of materials including PP, PS, PLA, PET, PVC, and various biodegradable materials. This equipment is ideal for manufacturing yogurt cups, jelly cups, coffee cups, juice cups, and more.

Key Features:
1. Full process automation: feeding, forming, cutting, and stacking.
2. Conjugate Cam driving system for easy maintenance and stability.
3. Four-column structure ensures long-term forming precision.
4. Servo sheet feeding and servo motor drive plug assist for uniform thickness.
5. High-efficiency German heater for energy saving and longevity.

Technical Parameters

Model	Motor Power	Plug Servo	Sheet Thickness	Formed Depth	Max Area	Efficiency	Total Weight
S7125D	11 kw	7 kw	0.30-2.5 mm	≤180 mm	680×390 mm	≤29 cycle/min	12000 kg

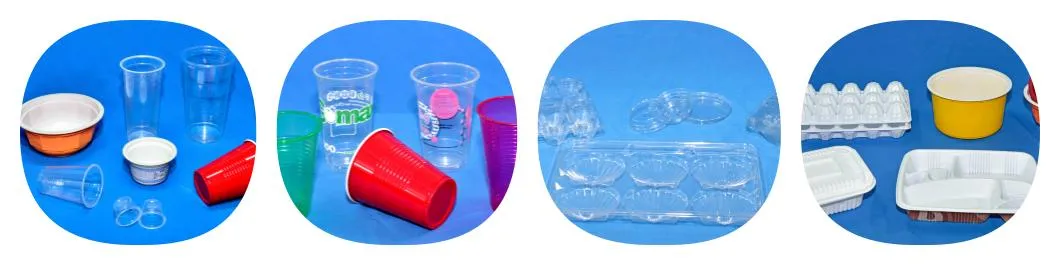

Product Application

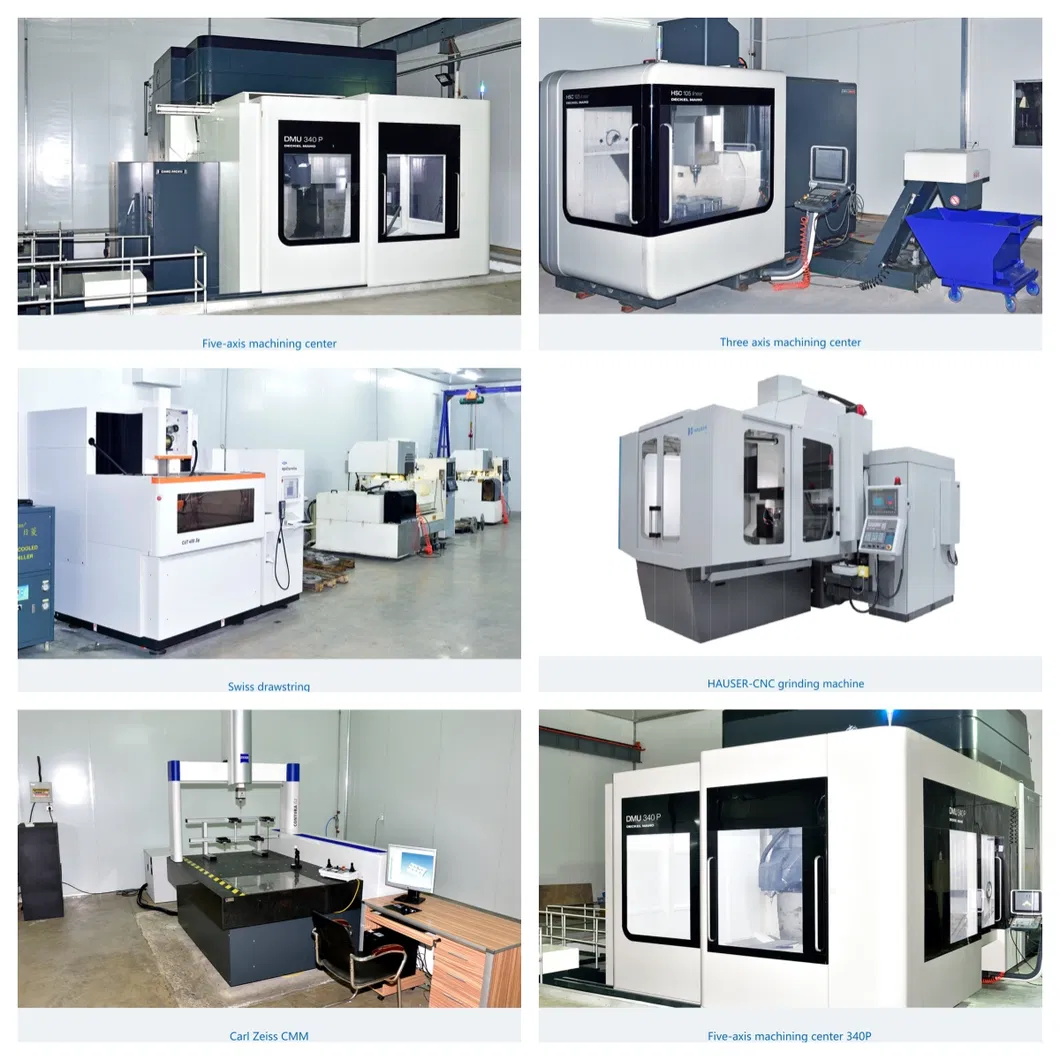

Machining Center

Global Presence & Quality

The enterprise engages in continuous R&D and manufacture of sheet extruders, thermoforming machines, and biodegradable starch equipment. Our core competitiveness lies in stable quality, intelligent control, and a worldwide service network.

Frequently Asked Questions

Q1: Which materials can the thermoforming machine process?

The machine is compatible with a wide range of materials including PP, PS, PLA, PET, PVC, and other biodegradable starch-based materials.

Q2: What is the main production process of this machine?

The fully automatic process includes four main stages: Material Feeding, Forming, Cutting, and Stacking.

Q3: How do you ensure the precision of the sheet feeding?

We use high-precision servo motors for sheet feeding to ensure accurate sending and consistent product quality.

Q4: Does the machine support customized mold changing?

Yes, the machine features a chain exit device designed to facilitate rapid and stable mold changes for different product shapes like cups, lids, and containers.

Q5: What kind of after-sales support do you provide?

We offer comprehensive technical support including installation guidance, operator training, and 24/7 online troubleshooting to ensure stable production.

Q6: How is the heating system designed for energy efficiency?

The machine utilizes specialized German heaters which provide a long life span while significantly reducing energy consumption.
