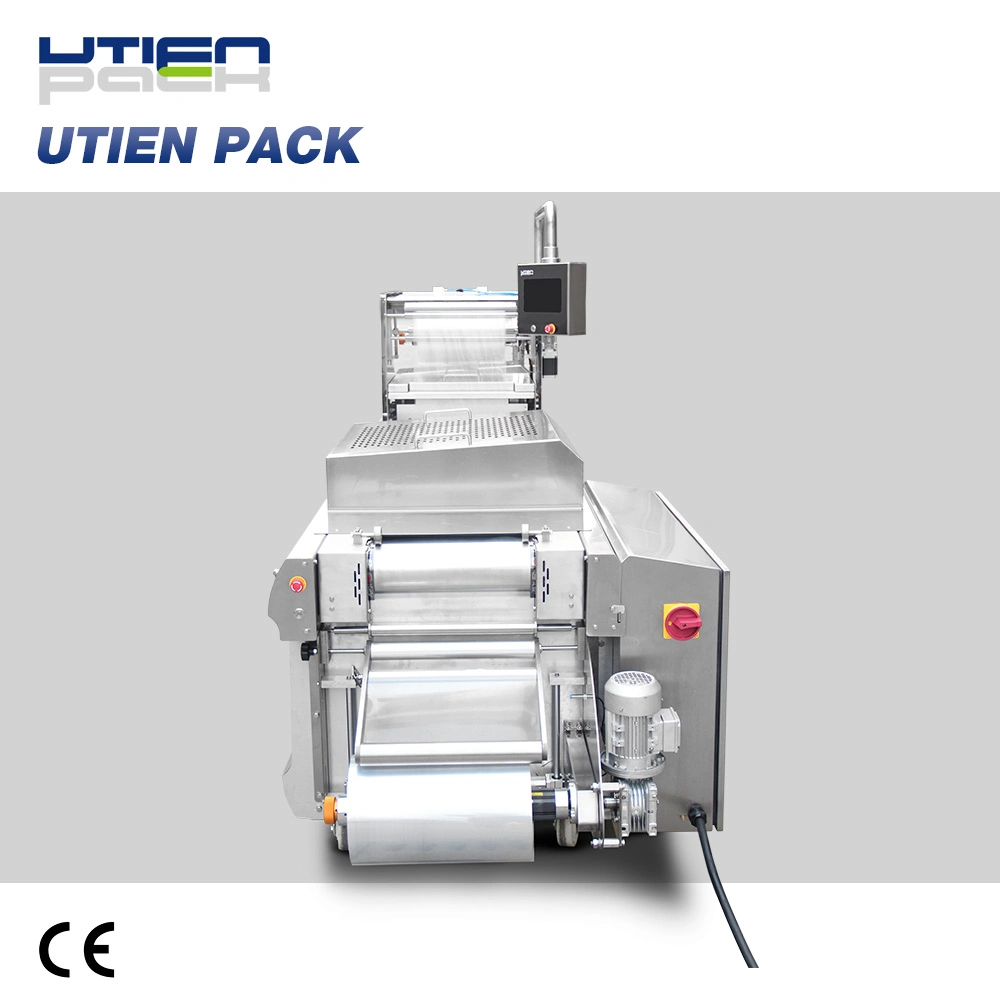

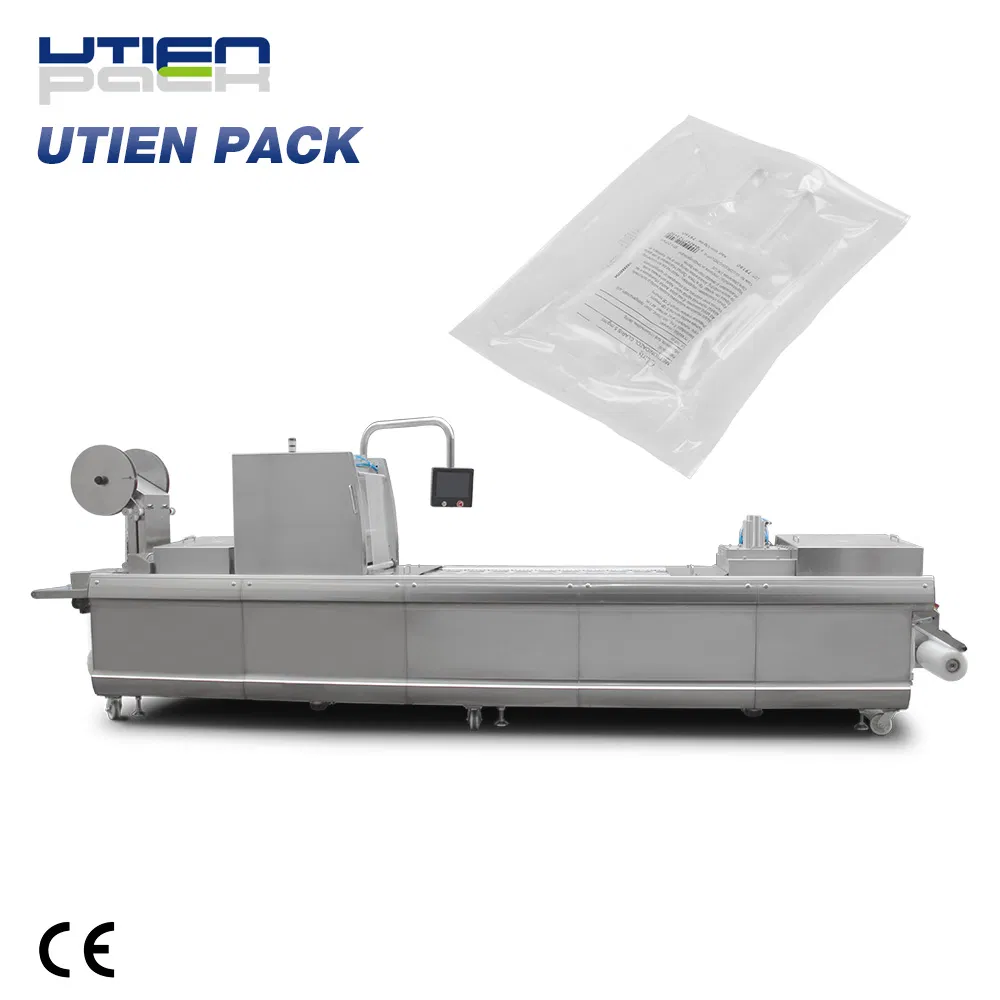

Automatic Thermoforming Vacuum Packing System

Customization:	Available
Automatic Grade:	Automatic
Type:	Forming Filling Sealing Machine

📊

Basic Information

Model NO.

DZL-420R

Forming Species

Blister Forming

Forming Function

Forming

Driven Type

Pneumatic

Material Type

Solid

Packaging

Tray

Packaging Material

Film

Material

304 Stainless Steel

Speed

6-8 Cycles Per Minute

Max. Forming Depth

150mm

HS Code

84224000

Specification

CE

📦

Product Description

Automatic Thermoforming Vacuum Packing System

Automatic Medical Packaging Machine:

Vacuum packaging is widely applied to the medical industry. It offers an unparalleled combination of hygiene and cleanliness presentation, enabling medical treatments and retailers to offer customers the highest quality products available.

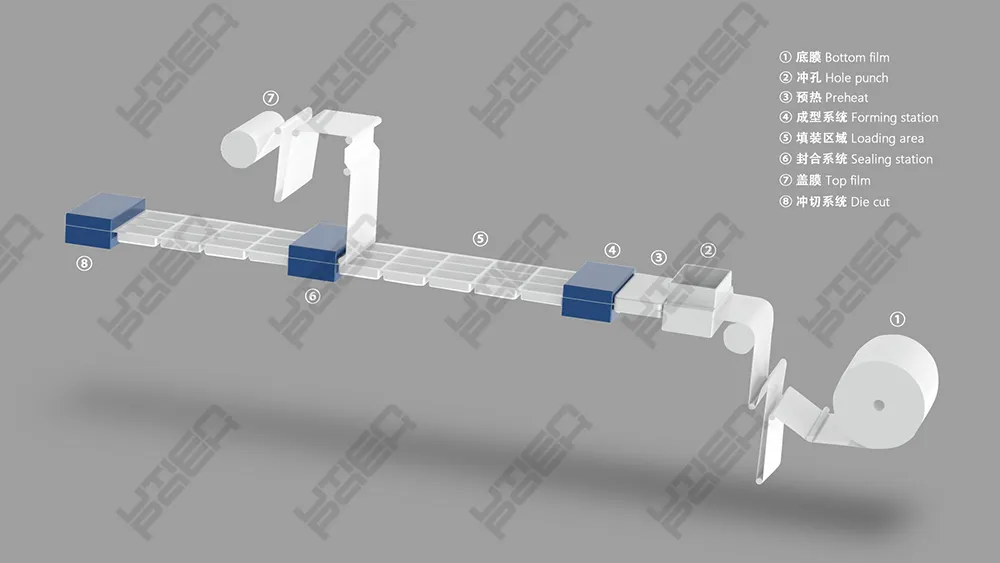

Our machine is able to do the whole process from package forming, vacuum-sealing, cutting to final output. With innovative technology, it's helpful to increase your capacity, lower your cost, and make your product more sanitary and appealing.

📷

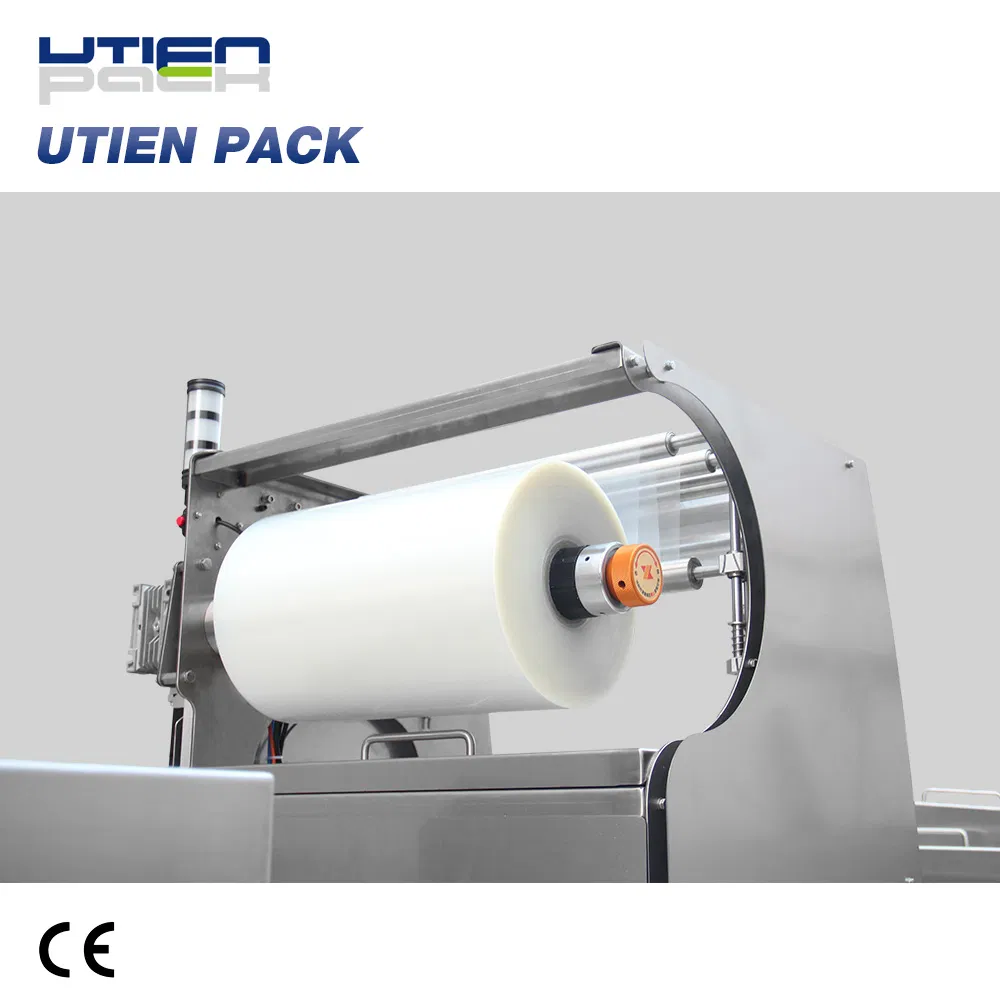

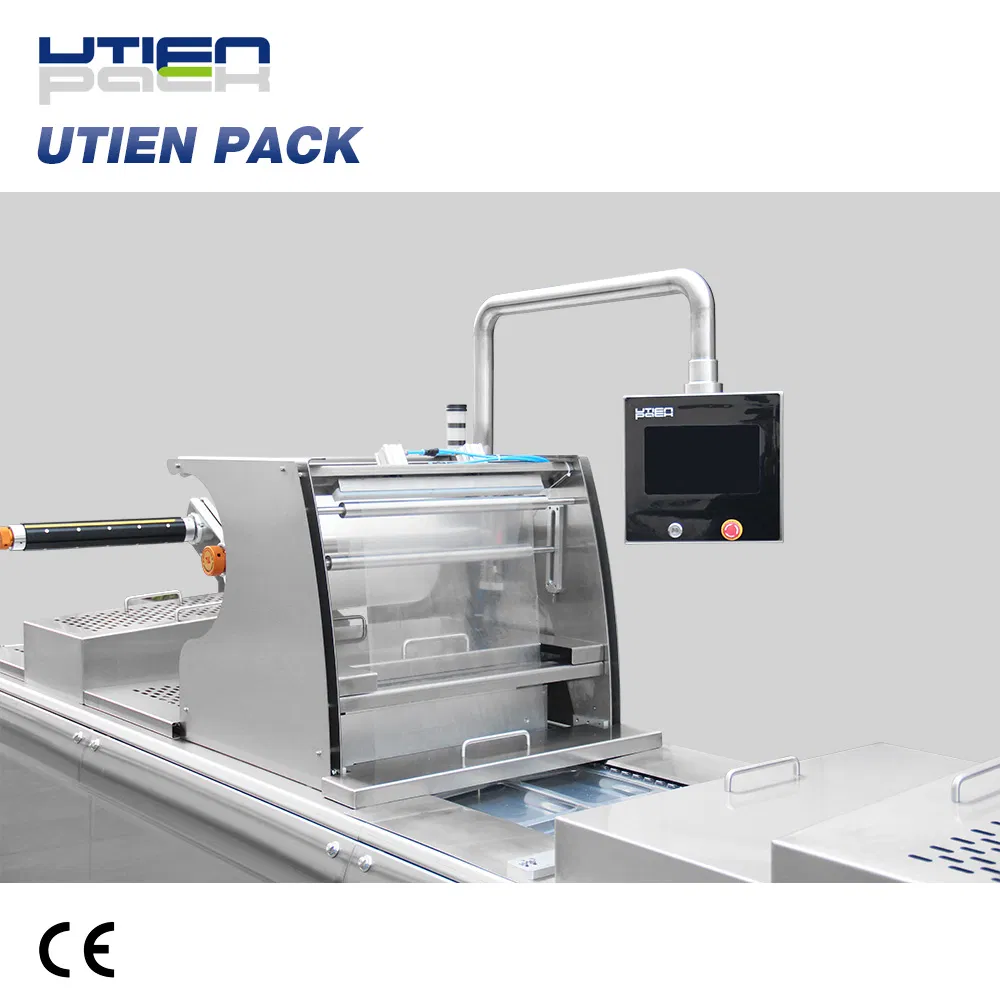

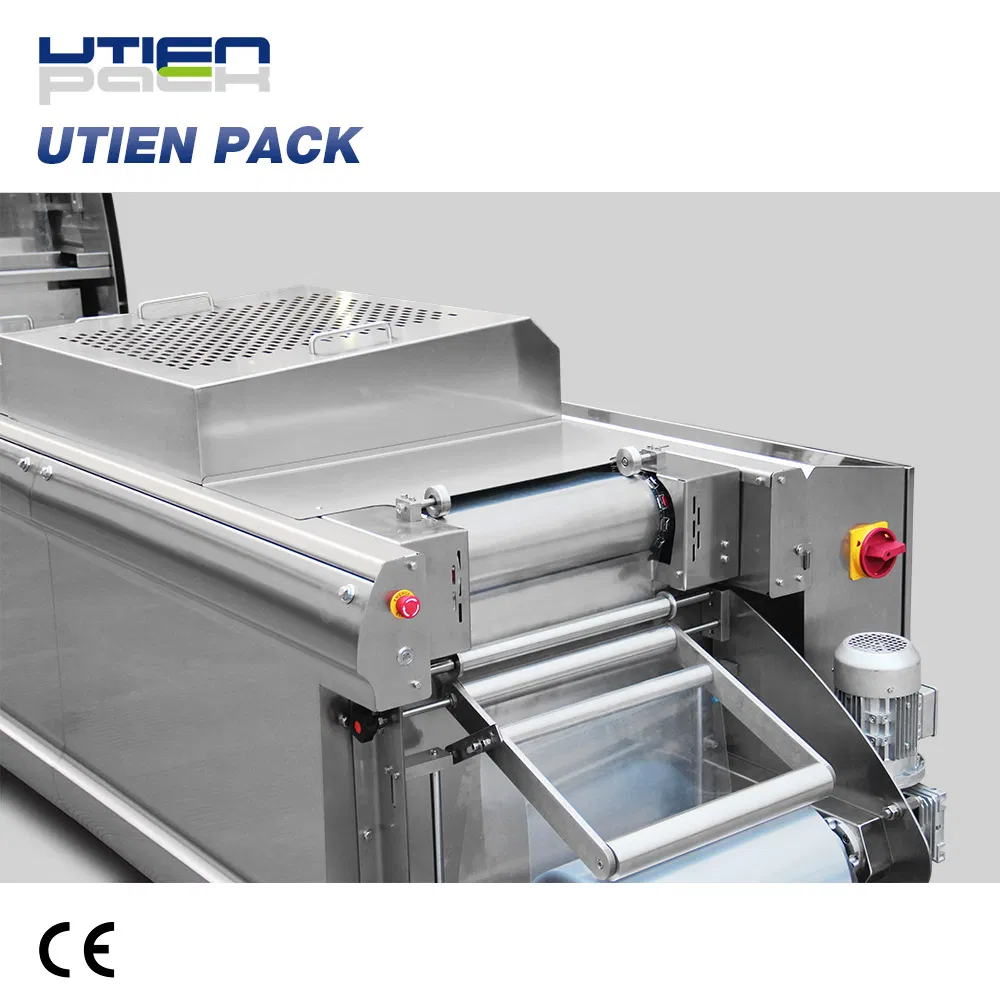

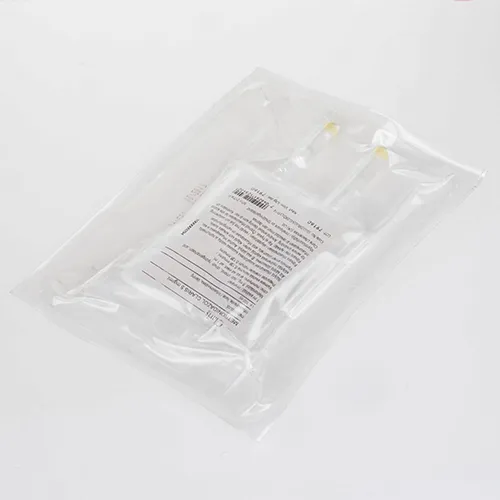

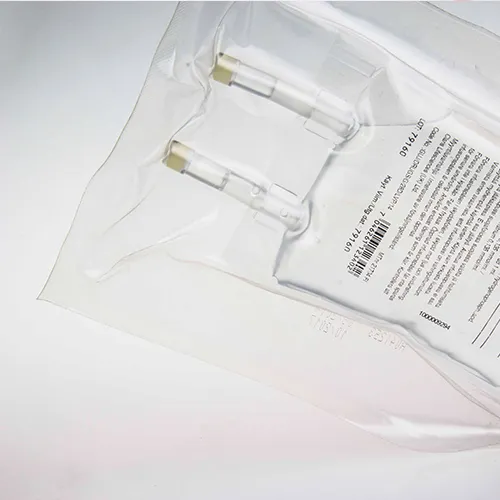

Detailed Photos

System Details

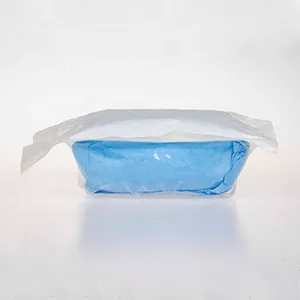

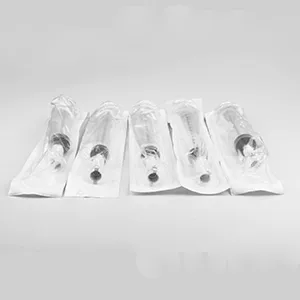

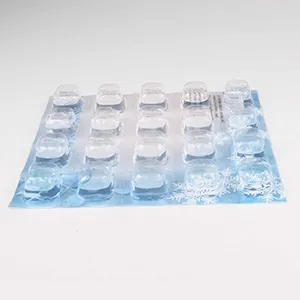

More Application

⭐

Our Advantages

🛡️

Long shelf life: Various packaging options are offered for the top freshness.

💰

Cost-effective: Each package is sealed using only the necessary amount of film, resulting in 40 percent less material than traditional wrapping.

🖱️

Easy operation: Control the entire machine easily via finger touch on the PLC screen.

✅

Reliable quality: Equipped with spare parts from international top brands and assembled by experienced workmen.

⚙️

Flexible design: Package shape, columns, and speed can all be customized to your requirements.

📏

Thermoforming depth: Maximum forming depth of 120mm with homogeneous deformation.

📋

Product Parameters

Key Design Features

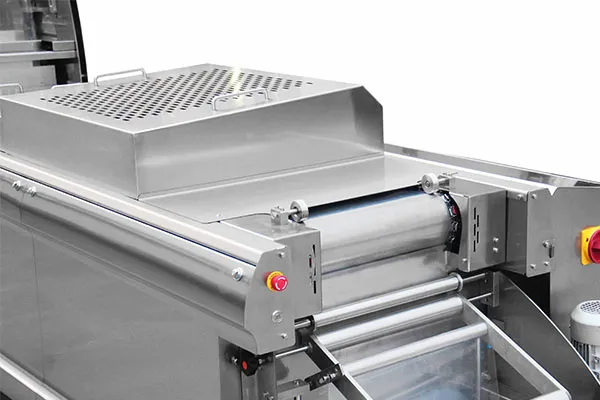

TOP SAFETY: Multiple sensors ensure auto-stop when covers are open.

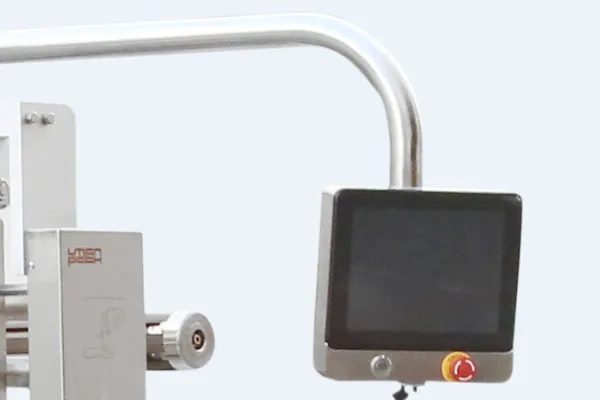

HIGH AUTOMATION: Fully automatic process controlled by 10'' PLC touch screen.

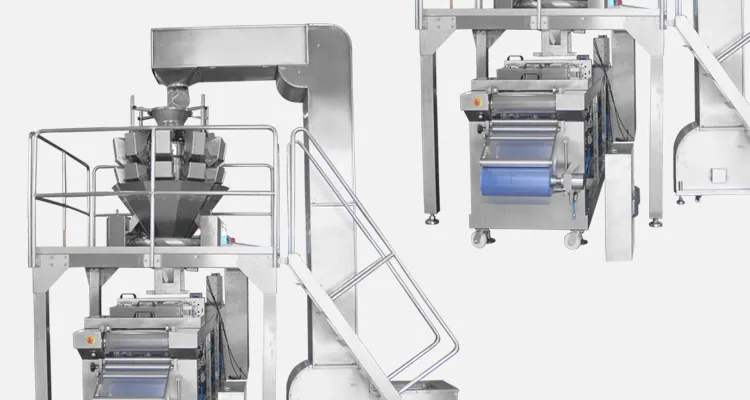

INDIVIDUAL DESIGN: Customized details for better integration with packing lines.

Machine Parameters
Speed	6-8 Cycles/min
Forming Depth	≤120mm
Film Widths	≤520mm
Advance Length	≤500mm
Film Specifications
Bottom Film Material	Sealable PE/PA Multi-layer Film
Top Film Material	Sealable PE/PA Multi-layer Film
Roll Diameter	Bottom: 500mm / Top: 250mm
Core Components
Vacuum Pump	BUSCH (Germany)
Electrical Components	Schneider (France)
Pneumatic Components	SMC (Japan)
PLC & Servo Motor	DELTA (Taiwan)

🛠️

After Sales Service

1. Warranty

12 months warranty for the entire machine, excluding wearable parts (silicone plates, heating elements, etc.).

2. Information Support

Comprehensive machine and package data provided before offer. Support includes online guidance and engineering services.

3. Design Service

Customized package design and machine functional adjustments available upon request.

❓

Frequently Asked Questions

How long is the delivery time?

Usually it takes 90 working days to manufacture the machine. This includes 30 days for technical drawing, 30 days for parts manufacturing, and 30 days for assembly and tuning.

What information is needed for a specific offer?

We need the dimensions of your intended package, the approximate daily production volume, and any other special functional requirements.

Do you offer overseas maintenance?

Yes. We first suggest online problem-solving, but we can arrange for an engineer to visit your factory personally if required.

What materials are suitable for the packing films?

The machine is designed for sealable PE/PA multi-layer co-extruded plastic films, both transparent and pre-printed options.

What is the maximum forming depth of the machine?

The standard maximum forming depth is up to 120mm-150mm depending on the specific model and material used.

Does the machine meet international standards?

Yes, the machine is CE certified and utilizes high-quality components from international brands like BUSCH, SMC, and Schneider.
