Blister Packaging System with Stacking Capability

1 / 5

Blister Packaging System with Stacking Capability

Customization:	Available
After-sales Service:	Lifetime Maintenance (Except Man-Made Damage and N
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information Overview

Model NO.

TANZ-6

Certification

CE, ISO

Molding Method

Pultrusion

Automatic Grade

Automatic

Model

Tzx-10000

Workstations

Forming, Punching and Stacking

Molding Length

450-850mm

Molding Width

420-720mm

Molding Height

0-140mm

Cooling System

3HP Chiller

HS Code

8422400000

Production Capacity

500 Sets per Year

Product Description

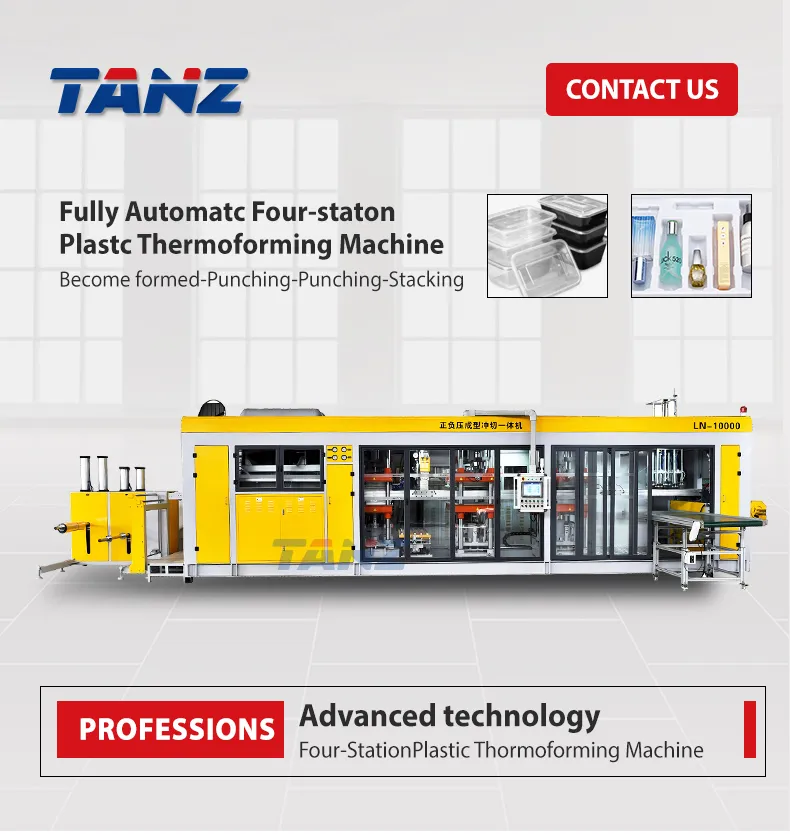

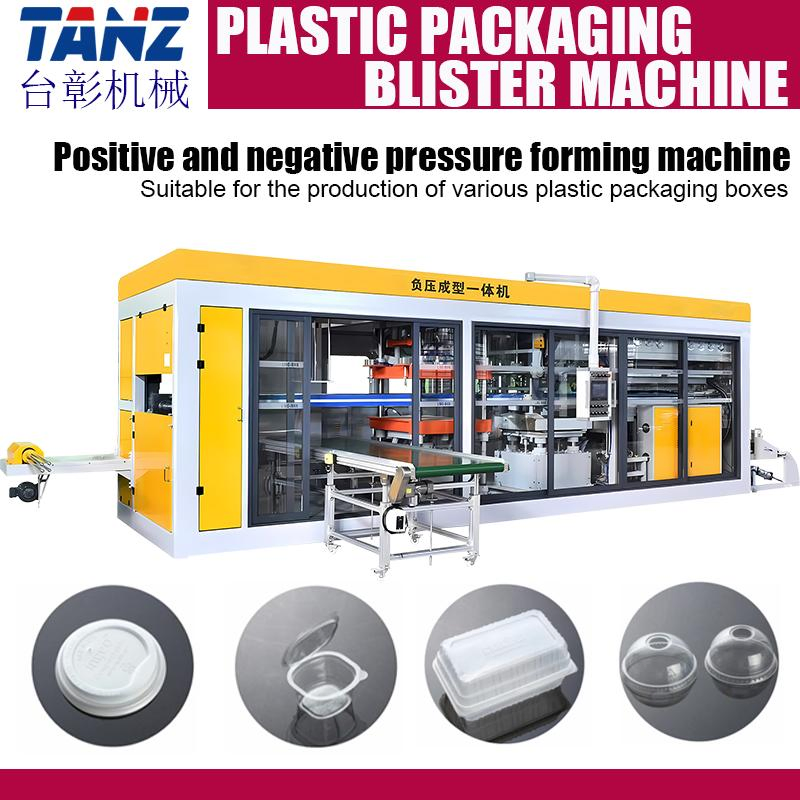

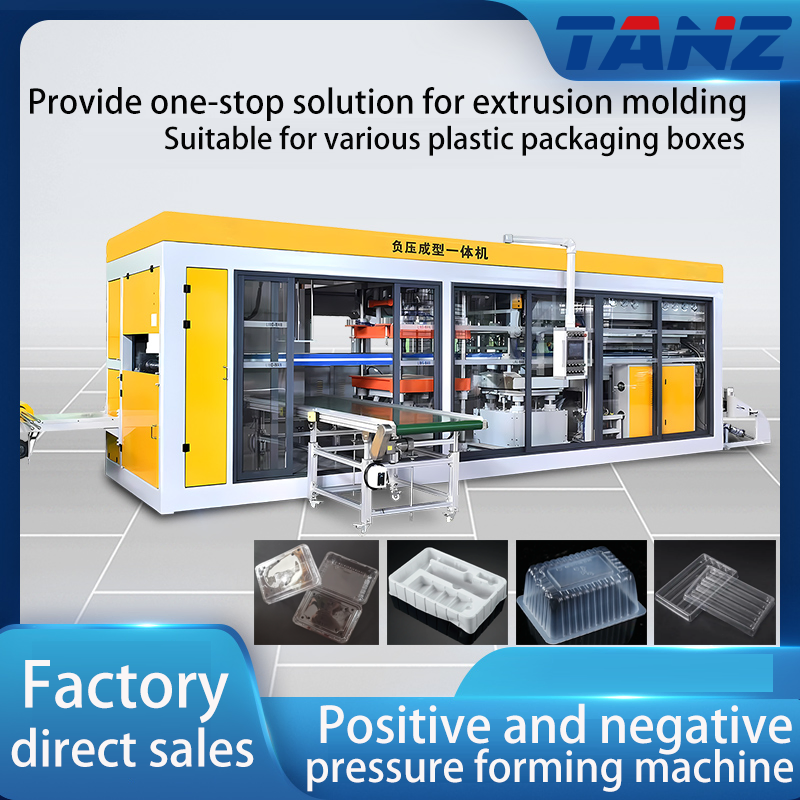

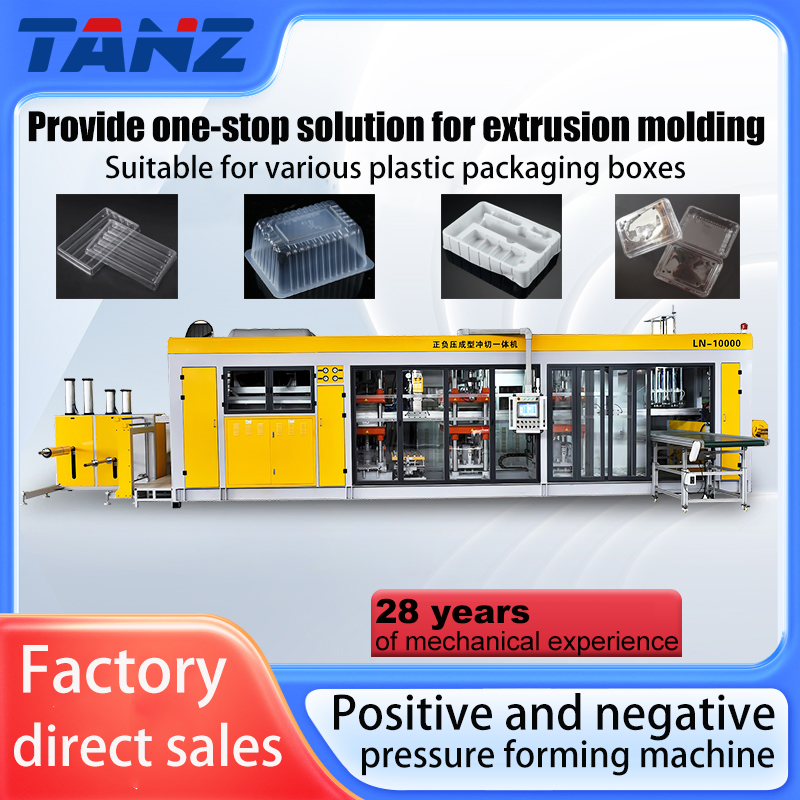

The Positive and Negative Pressure Integrated Molding Machine is an advanced solution designed for producing various types of plastic packaging. It integrates energy-saving technology, high output capacity, and labor-saving features to optimize your manufacturing process.

Key Advantages

High Production Efficiency: Operates at rapid processing speeds, enabling quick production of high-quality plastic products with short response times.
Wide Range of Application: Unique characteristics allow for the production of diverse plastic products, including cups, trays, and packaging boxes.
Cost-Effective Operation: Simplified processing and reduced labor requirements lead to lower production costs and increased profitability.

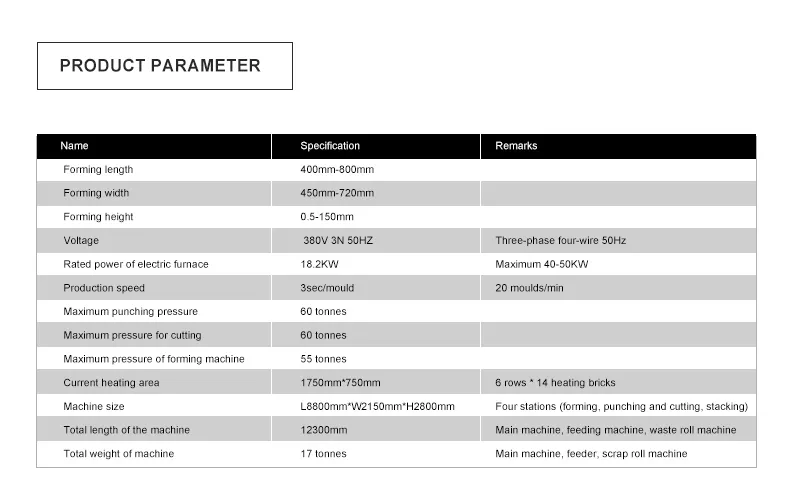

Finished product width	400-850mm
Forming width	420-720mm
Molding height	0-110mm
Operating voltage	380V 3N 50HZ (Three-phase)
Electric furnace rated power	30KW (Max 40-50kw)
Production speed	5-20 seconds/mold
Maximum punch pressure	50 tons
Maximum pressure to cut	50 tons
Machine Weight	9 tons
Total Machine Length	8800mm

Product Display

Frequently Asked Questions

What materials can this molding machine process?

The machine is designed for various plastic sheets suitable for blister packaging, including common materials used for cups and boxes.

What is the advantage of combined positive and negative pressure?

This combination ensures more precise molding details, better wall thickness distribution, and the ability to produce more complex shapes compared to vacuum-only machines.

Is the machine fully automated?

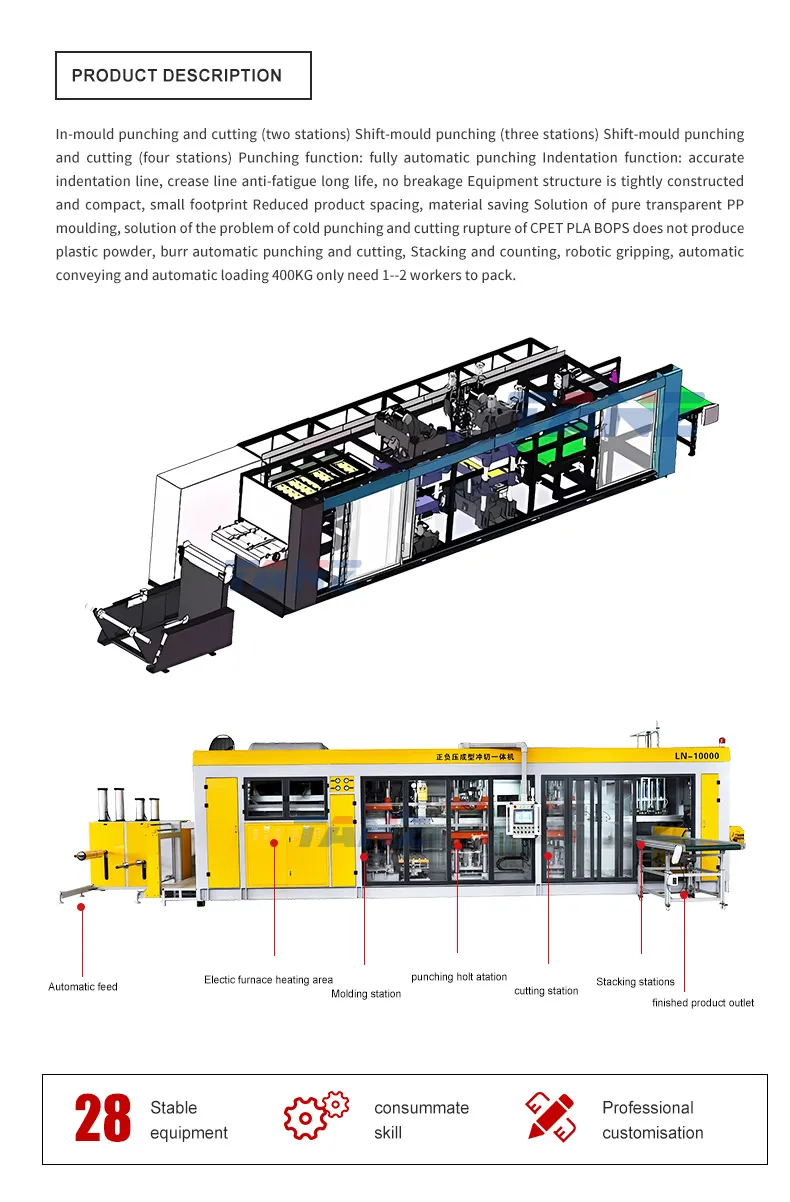

Yes, it features an automatic grade operation including forming, punching, and stacking workstations to minimize manual labor.

How is the temperature controlled during the molding process?

The system utilizes 84 groups of specialized temperature controls with a touch-screen interface for precise thermal management.

What is the production cycle speed?

The machine operates at a speed of 5 to 20 seconds per mold, depending on the product complexity and material thickness.

What cooling system is integrated?

It comes equipped with a 3HP Chiller and customized spray guns to ensure rapid cooling and consistent product quality.
